Manual
Handheld HI 1
Content
1. OPERATING CONTROLS ..........................................................................2
2. GENERAL ...................................................................................................3
2.1 Warranty ...............................................................................................3
2.2 Scope of delivery .................................................................................3
2.3 Disposal ...............................................................................................3
3. SAFETY INSTRUCTIONS ..........................................................................4
3.1 Functions ..............................................................................................4
3.2 Handling batteries and rechargeable batteries ................................5
4. INTRODUCTION .........................................................................................5
4.1 Functions ..............................................................................................5
4.2 Handling batteries / rechargeable batteries correctly......................5
4.3 Max and Min-value ...............................................................................5
5. INITIAL COMMISSIONING .........................................................................5
6. POWER SUPPLY .......................................................................................6
6.1 Battery operation and supply voltage monitoring ...........................6
6.2 Switching ON / OFF, reinitialisation ..................................................6
6.3 Data buffering ......................................................................................6
7. CONNECTING SENSORS ........................................................................7
8. DISPLAY AND KEYPAD ............................................................................7
8.1 Display ..................................................................................................7
8.2 Keypad .................................................................................................7
8.3 Peak value memory .............................................................................8
8.4 Measured value memory ....................................................................8
8.5 Relative measuring .............................................................................8
8.6 Hardware configuration ......................................................................9
9. TECHNICAL DATA .....................................................................................9
10. DECLARATION OF CONFORMITY .........................................................10

Page 2/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
1 Operating controls
1
2
3
(1) Measuring input
(2) LCD display (function field)
(a) Function
(b) Measuring point, 2nd meas. value
(c) Unit for 2nd meas. value
Main field
(d) Unit 1st meas. value
(e) 1st meas. value
(f) Operating states:
LOBAT: Battery voltage < 3,8V
REL: Relative measuring
(3) Operating keys
ON /OFF: To switch the device on; to switch off press
and hold down
M▲ M▼ Meas. point selection
MAX MIN Max. / min. value
cancel: press key and hold down
MEM Measured value memory
Switch on with pressed keys:
CLR Reinitialisation
Rear of device:
(4) Battery compartment 3 AA alkaline-manganese
batteries

Page 3/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
2 General
Congratulations on your purchase of this innovative HI 1 Handheld unit. Thanks to the patented connector the
device configures itself automatically; its operation should be fairly straightforward. The device can, however, be
used with such a wide range of sensors and peripherals and offers many different special functions. You are
advised therefore to properly familiarize yourself with the way the sensors function and with the device's
numerous possibilities and take the time to carefully read these operating instructions and the appropriate
sections in this manual. This is absolutely necessary to avoid operating and measuring errors and to prevent
damage to the device.
2.1 Guaranty
Each and every device, before leaving our factory, undergoes numerous quality tests. We provide a guarantee,
lasting one year from delivery date, that your device will function trouble-free. In the unlikely event that the device
proves defective and you need to return it please wherever possible use the original packaging material for
dispatch and enclose a clear and informative description of the fault and of the conditions in which it occurs.
This guarantee will not apply in the following cases :
The customer attempts any form of unauthorized tampering or alteration inside the device.
The device is used in environments and conditions for which it is not suited.
The device is used with unsuitable power supply equipment and / or peripherals.
The device is used for any purpose other than that for which it is intended.
The device is damaged by electrostatic discharge or lightning.
The user fails to observe and comply with the operating instructions.
The manufacturer reserves the right to change the product's characteristics in the light of technical progress or to
benefit from the introduction of new components.
2.2 Scope of delivery
When you unpack the device check carefully for any signs of transport damage and ensure that delivery is
complete.
Measuring instrument HI 1 with 3 AA alkaline batteries
These operating instructions
In the event of transport damage please retain the packaging material and inform your supplier immediately.
2.3 Waste disposal
The pictogram showing a waste bin crossed through
means that the product is subject to European Union
regulations on segregated waste disposal. This applies
both to the product itself and to any accessories marked
with the same symbol. Disposal of any such item as
unsorted domestic waste is strictly forbidden.
please dispose of all packaging materials according to the applicable national waste management regulations.
Please dispose of cardboard boxes, protective plastic packagingmaterials, and all preservative substances
separately and in the proper manner.
The disposal of the device itself (also of device parts, accessories, and consumables) is subject to the applicable
national and local wastemanagement regulations and to the environmental protection legislation in force in the country
of use.
Please dispose of all waste in the proper manner;
this applies in particular to allparts andsubstances that constitute a hazardfor the environment. This includes inter alia
plastics, batteries, and rechargeable batterypacks .
When disposing of goods, please wherever possible use the original packaging materials.

Page 4/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
3 Safety Instructions
DANGER
Danger to life and limb, risk of damage to equipment
Read the instructions carefully before starting to operate the device.
Please ensure that you comply with all general safety advice and the special safety
instructions included in other chapters.
Such risks may occur in the following circumstances :
Failure to heed the operating instructions and all the safety notes these contain
Any form of unauthorized tampering or alteration inside the device
Use of the device in environments or conditions for which it is not suited
Use of the device with an unsuitable power supply and / or in conjunction with
unsuitable peripheral equipment
Use of the device for any purpose other than that for which it is intended
Damage caused by electrostatic discharge or lightning.
DANGER
Risk of fatal injury caused by dangerously high voltage
Such risks may occur in the following circumstances :
Use of the device with an unsuitable power supply and / or in conjunction with
unsuitable peripheral equipment
Damage caused by electrostatic discharge or lightning
Do not run sensor lines in the vicinity of high-voltage power cables.
Before you touch any sensor lines, ensure that all static electricity has been
discharged.
DANGER
Warning - explosive atmospheres or substances
In the vicinity of various fuels or chemicals there is a risk of explosion.
Do not use the device in the close vicinity of blasting work or filling stations!
3.1 Special notes on use
If the device is brought into the work-room from a cold environment there is a risk that condensation might form
on the electronics. In measuring operations involving thermocouples pronounced changes in temperature may
cause substantial measuring errors. You are advised therefore to wait until the device has adjusted to the
ambient temperature before starting to use it.
Before using the mains adapter make sure that the mains voltage is suitable.
Be sure to observe the maximum load capacity of the sensor power supply.
Sensors with their own integrated power supply are not electrically isolated from one another

Page 5/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
3.2 Handling batteries
When inserting batteries / rechargeable batteries ensure that these are correctly polarized.
If the device will probably not be needed for a relatively long period of time or if the batteries
are empty, remove the batteries; this will prevent battery acid leaking onto the device and
damaging it.
Rechargeable batteries should be recharged as and when necessary.
You should never attempt to recharge an ordinary (non-rechargeable) battery; it may
explode !
Batteries / rechargeable batteries must never be short-circuited or thrown onto the fire.
Batteries / rechargeable batteries are special waste and must not be discarded together with
normal domestic waste.
4 Introduction
The HI 1 is equipped with a patented connector system. The intelligent connector offers decisive advantages when
connecting sensors and peripherals because all parameters are stored in an EEPROM located on the connector
itself; repeat programming is thus no longer necessary.
4.1 Function
The HI 1 measuring instrument has just one measuring input. For operation purposes the device incorporates a
large LCD display and a keypad.
4.2 Sensor programming
The measuring channels are programmed, completely and automatically, by the intelligent connectors.
5 Initial commissioning
1. Connect sensor to socket M0 (1).
2. Ensure that the power supply is provided by 3 AA batteries;
3. To switch ON press key ON (3)
4. Select measuring channels by pressing key M▲(3), read out measured values (5e)
5. Save the measured value by pressing key MEM (3)
6. Relative measuring to a reference value by pressing key CLR (3)
Revert to normal measured value by pressing and holding down key CLR
7. Evaluating a measuring operation
Call up maximum / minimum values by pressing keys MAX / MIN (3)
To delete max. / min. value(s) press and hold down key MAX or MIN see

Page 6/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
6 Power supply
Power can be supplied to the measuring instrument with 3 AA alkaline batteries (included in delivery)
6.1 Battery operation and supply voltage monitoring
Power is supplied to the measuring instrument as delivered by 3 AA batteries. At a current consumption of approx.
10 mA the operating time will be approx. 250 hours. The current operating voltage is displayed each time the the
device is switched on; this gives you a basis for estimating the remaining operating time. When the remaining
battery capacity drops to approx. 10 percent, the LOBAT arrow will appear in the display. If the batteries are
completely discharged the device will switch off. To replace old batteries first unscrew the battery compartment
cover on the rear of the device.
6.2 Switching ON / OFF, reinitialisation
To switch the device ON briefly press and release the key ON OFFr (3) in the middle of the keypad; to switch the
device, OFF press and hold down the key ON OFFr. After the device is switched off all saved values and settings
are retained intact.
If interference (e.g. electrostatic) or a malfunction (e.g. battery failure) causes the device to behave abnormally, the
device can be reinitialized. To activate RESET press and hold down the key CLR r when switching on. This will
restore all settings to the factory default status. Only the programming of the sensors in the intelligent connectors
remains unaffected.
6.3 Data buffering
The sensor's programming is stored in the EEPROM on the sensor connector and the device's calibration and
programmed parameters are stored in the EEPROM on the instrument itself, both on a fail-safe basis.
7 Connecting the sensors
Only the special intelligent sensors can be connected to input socket M0 (1). Attempting to connect any other
sensor here will trigger an error message.
All suitable sensors with the special intelligent connector have the measuring range and units already programmed
and can thus be connected to the input socket without further adjustment. A mechanical coding system ensures
that sensors and output modules can only be connected to the correct sockets. All connectors incorporate two
snap-lock levers; these snap into position as soon as the connector is inserted into the socket, thus preventing
unintended disconnection if the cable is accidentally pulled. To withdraw the connector, both these levers must be
pressed in at the sides.

Page 7/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
8 Display and key pad
8.1 Display
The display (2) on the HI 1 is a 2-row LCD arrangement; the main field comprises 5x 7-segment digits (e) plus 2x
16-segment digits (d) for depicting the measured value;,the function field comprises 41/2x 7-segment digits (b) for
depicting various measuring functions (a); there are also 2 arrows (f) for depicting the operating status.
Functionfield
Mainfield
8.2 Keys
To operate the device a keypad with 7 keys is provided :
Function : Key
To switch ON the device : ON OFF
To switch OFF the device : ON OFF must be pressed and held down
Function : Key
Selection of measuring points M▲ or M▼
Displaying the maximum value : MAX To delete press and hold down
Displaying the minimum value : MIN To delete press and hold down
Zero-setting the measured value : CLR To delete press and hold down
Saving the measured value : MEM
Displaying the battery voltage : ON OFF

Page 8/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual

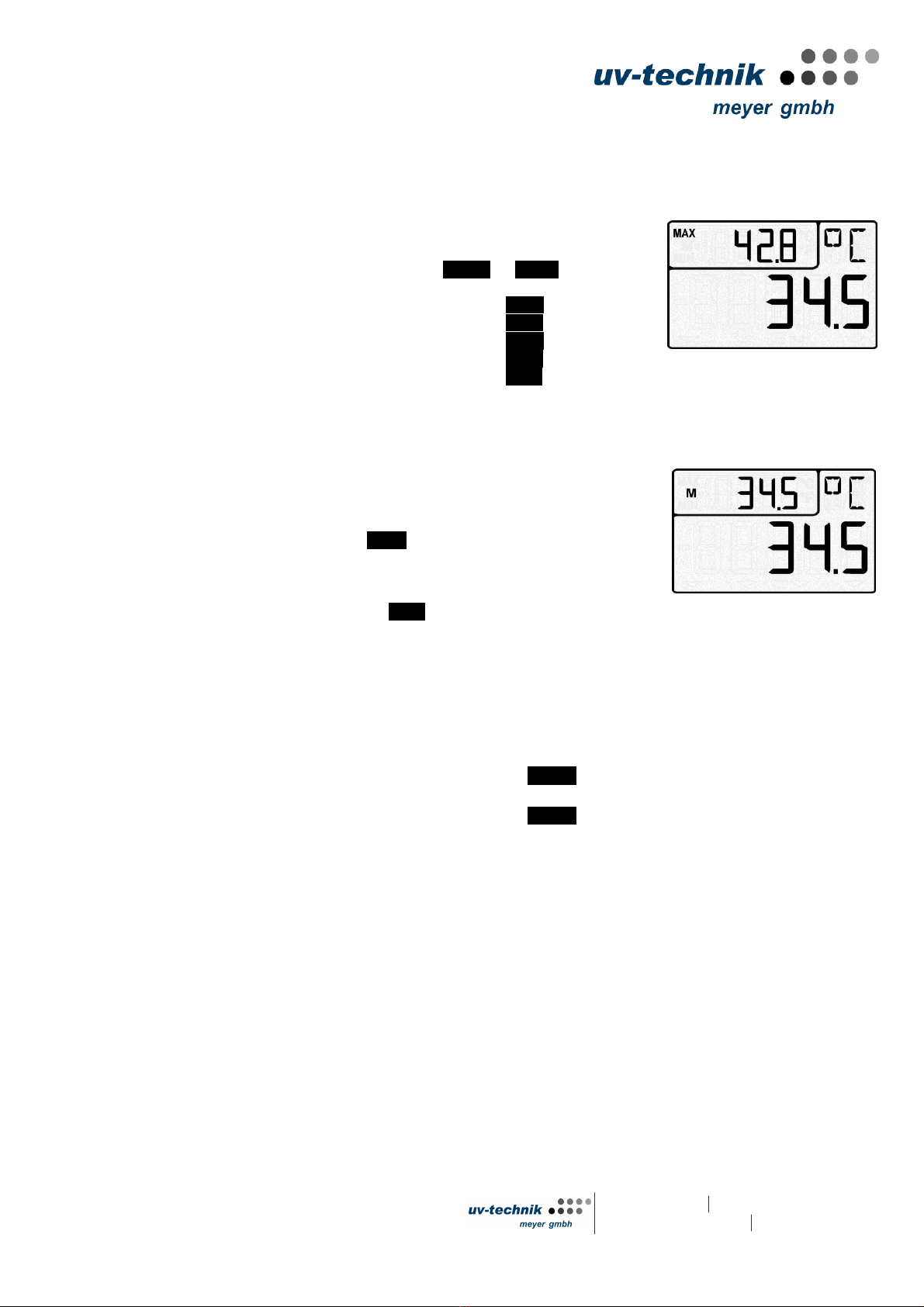

8.3 Peak value memory
From the measured values acquired for each measuring point the highest and the
lowest values are continuously recorded. To display these high/low peak values
first the desired channel must be set and then the MAX or MIN key must be
pressed. As a check the display also includes the associated symbol.
To display the maximum value press key : MAX .
To display the minimum value press key : MIN .
To delete the maximum value press and hold down key : MAX .
To delete the minimum value press and hold down key : MIN .
To return to the measuring point display press key : M▲ .
As soon as you clear the memory, the current measured value will appear (because measuring is continuous).
8.4 Measured value memory
On the HI 1 any measured value can be saved.
To save the measured value press key : MEM .
The value most recently saved then appears in the function field preceded by the
symbol ´M´.
To return to the channel display press key : M▲ .
8.5 Relative measuring
One very useful function is to zero the measured value at certain locations or at certain times as a reference value
in order then to observe only the subsequent deviations. This function is independent of the locking status and
does not modify the programming parameters in the connector.
To zero-set the measured value press key : CLR .
To display relative measuring press arrow : REL.
To return to normal measured value press and hold down key : CLR .
Setting to zero automatically deletes the maximum and minimum values for this channel. The MAX, MIN,
and MEM functions are thus also available for relative measurement.


Page 9/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. welco[email protected]m www.uv-technik.com
Manual
8.6 Device configuration
On the measuring instrument a number of parameters can be configured. To do
so when switching ON press and hold down key MEM . The function field should
then show an abbreviation for the parameter and the main field should show the
value currently set.
To select from all possible parameters,
if any are available, press keys : M ▲ or M ▼ .
Locking the CLR key:
Automatic switch OFF time in minutes:
To enter a value first press : ON and the value starts flashing.
To modify the value press keys : M▲ or M▼
To delete parameters press : CLR
Entry is completed by again pressing key : ON
To terminate configuration at any time press key: MEM
9 Technical data
Hand-held uni HI 1
Art. No.
A002067
System accuracy (resolution)
± 0,1 % of measured values ±3 digits
Measuring rate
2,5 mops
LC display
7 segments: Measured value 5 char, 15 mm
16 segments: Units 2 characters, 9 mm
Keypad
7 silicone keys
Operating temperature
-10°C...+60°C (continuous)
Power supply
3 x AA alkaline batteries, 5 mA
Current consumption
approx. 10 mA without uv sensor.
With connected uv sensor SI 1 in total approx. 15 mA
Weight
approx. 270 g
Dimensions (L x W x H)
approx. 125 x 80 x 40 mm
Housing material
ABS (acrylonitrile-butadiene-styrene)
Extent of the delivery
Hand-held unit including 3 AA alkaline batteries, manual
Note: At the hand-held unit, different uv-sensors type SI 1 (e.g. for different uv bandwidths) can be connected one
after another. Only one hand-held unit for different sensors is required.
AOFF
Loc

Page 10/10
HI 1 - E Manual v1.1.0.doc, AR, 15.06.2011 Glauburgstraße 34 D-63683 Ortenberg
Änderungen vorbehalten / All data are subject to alteration. [e-mail] www.uv-technik.com
Manual
10. Declaration of conformity
uv-technuik meyer gmbh declares herewith that measuring instrument HI 1 carries the CE label and complies in full
with the requirements of EU directives relating to low voltage and to electromagnetic compatibility (EMC)
(89/336/EWG).
The following standards have been applied in evaluating the product.
Safety / security: EN 61010-1:2001
EMC: EN 61326: 2006
If a product is modified in any manner not agreed with us in advance, this declaration becomes void.
When using the sensor with an extension care must be taken to ensure that wiring is not laid alongside or close to
high-voltage power cables and that it is, if necessary, properly shielded so as to prevent spurious interference
being induced in the system.
The following advisory notes must be observed when operating the device :
Using the device in strong electromagnetic fields may aggravate measuring errors (<50 µV at 3 V/m and 1.5 meters
thermocouple sensor). After exposure to such irradiation ceases, the device will again operate within its technical
specifications.
