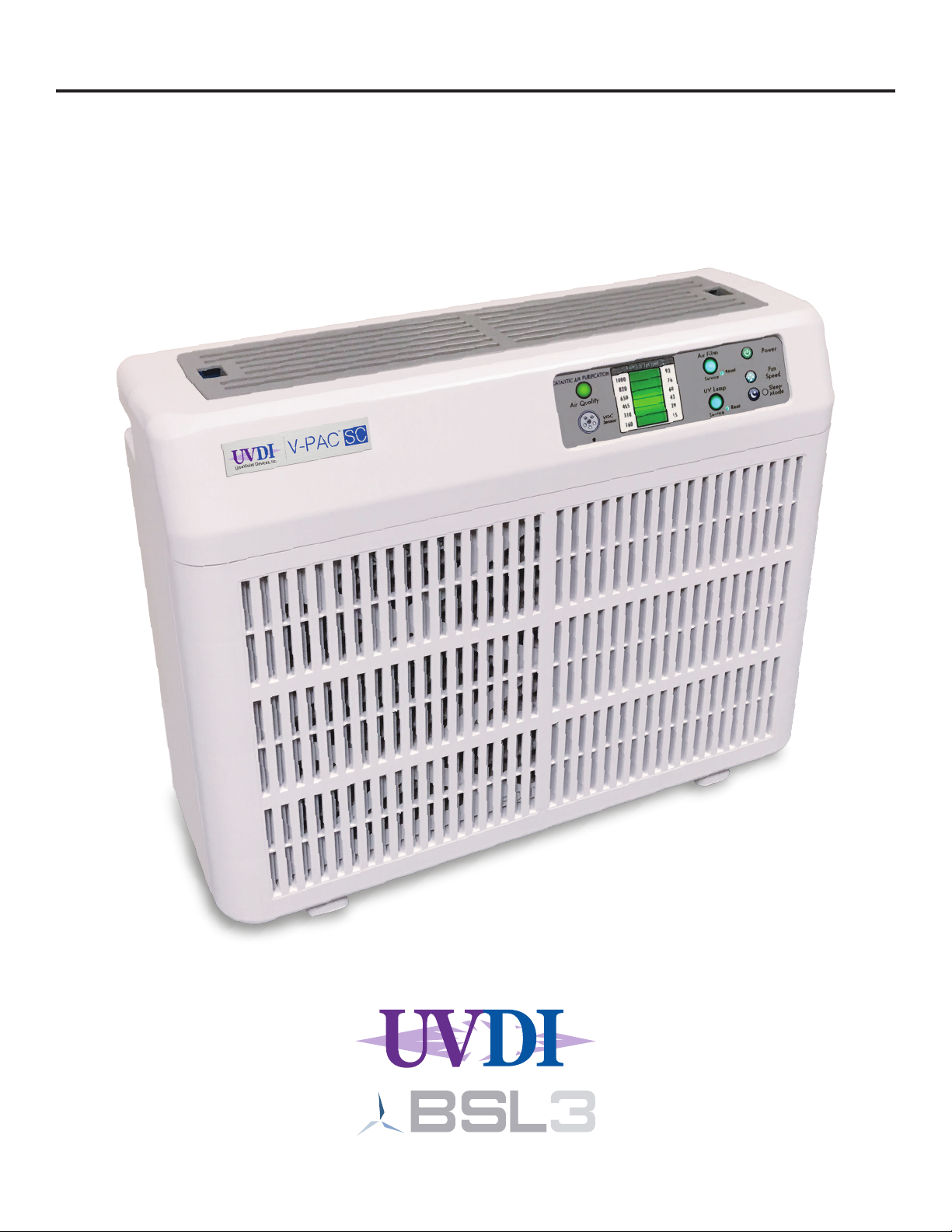

UVDI V-PAC SC Installation guide

Owner Operation & Maintenance Manual 41-1311-01/41-1313
V-PAC™SC
115 volt / 220 volt

241-1320 REV A
41-1311-01/41-1313
Table of Contents
Safety Information ................................................................................................................................. 3
Installation/Owners Manual ................................................................................................................4-5
Maintenance.......................................................................................................................................6-9
Specications/Replacement Parts....................................................................................................... 10
Warranty .............................................................................................................................................. 11
Specications subject to change without notice.
Copyright 2018 by UltraViolet Devices, Inc. All rights reserved.

3
41-1320 REV A
41-1311-01/41-1313
Specications subject to change without notice.
Copyright 2018 by UltraViolet Devices, Inc. All rights reserved.
Safety Information
READ AND SAVE THESE INSTRUCTIONS
Always unplug the V-PAC™ SC Self-Contained Air Purication System when it is not in operation, while the
Filters or UV-C germicidal lamps are being changed, and when cleaning. After servicing this equipment,
both the front and top grill assemblies must be reinstalled in exactly the same manner as prior to removal. If
either grill is not reinstalled properly, the V-PAC™SC unit will not turn on. This is a built in safety feature.
Before using the V-PAC™ SC unit, extend the power cord and inspect for any signs of damage. Do not use
the product if the power cord has been damaged.
WARNING
!
THE V-PAC™ SC UNIT IS DESIGNED TO BE USED ON A FLAT LEVEL
SURFACE, AND MAY NOT WORK PROPERLY ON AN UNEVEN
SURFACE. TO REDUCE THE RISK OF ELECTRIC SHOCK AND
INJURY, DO NOT PLACE IN A WINDOW. ALWAYS PLACE IT AT
LEAST 12 INCHES (30.48 CENTIMETERS) AWAY FROM HEAT
SOURCES SUCH AS STOVES, RADIATORS, OR HEATERS.
DO NOT MOVE THE V-PAC™ SC UNIT WHILE IT IS IN OPERATION.
ALWAYS UNPLUG PRIOR TO MOVING.
DO NOT IMMERSE THE V-PAC™ SC UNIT IN WATER,
AS PERMANENT DAMAGE WILL OCCUR. REFER TO THE
“MAINTENANCE” SECTION IN THIS OWNER OPERATION
AND MAINTENANCE MANUAL.

Installation/Owner’s Manual
441-1320 REV A
41-1311-01/41-1313
Figure 1
INSTALLING THE V-PAC
™
SC SELF-CONTAINED AIR PURIFICATION SYSTEM
Before unpacking the V-PAC™ SC unit, inspect the shipping container for visible damage. If you feel that
you may have received it in a damaged condition, notify the shipper or supplier before opening the container.
Remove the V-PAC™ SC unit from the box and inspect it for damage.
Handle it carefully. Do not drop!
Place the V-PAC™ SC unit in a location that will not restrict air ow through either the air inlet or the air outlet,
then plug in the electrical cord at the nearest electrical wall outlet.
NOTE: The V-PAC™ SC unit will perform a diagnostic test of indicator lights and functions when plugged in to
the wall outlet. This will only happen once, unless the system is unplugged from the wall and reinstalled.
1. Press the Power (ON/OFF) button to turn on the V-PAC™ SC unit. Lights on the control panel (gure 1)
will turn on as well the UV-C germicidal ultraviolet lamp.
2. Look into the air outlet at the top of the V-PAC™ SC unit and conrm that the UV-C germicidal
ultraviolet lamp is on. You will see a faint blue glow when the lamp is on.
If the UV-C germicidal ultraviolet lamp is not on, the V-PAC™ SC unit is not ready for operation.
NOTE: The “Air Quality” LED light may turn red on startup until the surrounding air quality improves.
When the air quality LED is red, the air ow is automatically increased by (2) power levels. The lowest
fan speed cannot be reached until the air quality light turns orange in color, and then green as air
quality improves.
CAUTION
!THIS V-PAC™ SC UNIT IS FOR INDOOR USE ONLY
voc
Sensor
Reset
Reset
Service
Service
Air Quality
Air Filter
Power
Fan
Speed
Sleep
Mode
UV Lamp
CATALYTIC AIR PURIFICATION
1,000 93
820 76
650 60
465 43
310 29
160 15
Square
Feet Square Meters
Room Size/Fan Speed

5
Installation/Owner’s Manual
41-1320 REV A
41-1311-01/41-1313
Installation/Owner’s Manual
3. Setting the fan speed and air volume to the correct room size.
Press the ”Fan Speed Button” (gure 1) until the green LED bar light underneath ”Room Size/Fan Speed”
reaches the corresponding size of your room. Calculations in both ”square feet” and ”square meters”
(length x width) measurements are conveniently listed at either side of the green LED bar lights. Correctly
setting this indicator will keep the air volume at an optimum level.
To achieve faster air purication, the fan speed can be increased to the maximum level.
4. Press the ”Sleep Mode Button” (gure 1) at night if you desire to reduce fan noise.
A green LED light will illuminate to the right side of the button indicating Sleep Mode. This will maintain
constant airow through the purier and reduce fan speed to a minimum. Since there is no movement in the
room, purication requirements are greatly reduced.
Press the Sleep Mode Button again to return to the normal air ow mode.
MONITORING OPERATION
You can always monitor the air quality of the room.
Air quality (level of VOCs) is sensed in real time by the chemical-detection sensor (see gure 1 on page 4)
which continually evaluates air quality. Air quality is expressed by one of (3) colors on the air quality LED light.
1. Green indicates good air quality.
2. Orange indicates moderate air quality.
3. Red indicates poor air quality.
Air volume is automatically increased by (2) fan speed levels when the air quality indicator turns red,
and will reset to a preset fan speed when the air quality indicator turns orange and then green.
It is normal for the air quality indicator to temporarily be red during periods of house cleaning, painting, or
cooking meals.
COMPREHENDING INDICATOR LIGHTS ON THE SERVICE PANEL
You should also keep an eye on the Service Panel which tells you when maintenance will soon be required.
Indicator lights on the Service Panel (“Air Filter” and “UV Lamp”) tell you if either the air lters or the
germicidal ultraviolet lamp will soon need to be cleaned or replaced.

641-1320 REV A
41-1311-01/41-1313
Maintenance
AIR FILTER INDICATOR LIGHT
Filter replacement intervals vary depending on usage and level of airborne contaminants in the environment.
Filters should be inspected on a regular basis and replaced as needed.
Typical replacement intervals are:
• Light contamination – 6 to 12 months
• Moderate contamination – quarterly
• Heavy contamination – monthly
The system monitors usage and provides indication as follows:
• Green LED light is On – The lters have been in service for less than 6 months.
• Orange LED light is On – The lters have been in service for more than 5 months.
• Red LED light is On – The lters have been in service for at least 6 months.
Replace the front grill and press only the lter reset button to reset timer for (6) more months. When both the
“Air Filter” and “UV Lamp” LED service lights turn red at the same time, lters and UV Lamp have been in
service for one year and need to be replaced.
ULTRAVIOLET LAMP INDICATOR LIGHT
The UV-C lamp has a useful life of one year (9,000 hours) with a one-month grace period.
• Green LED light is On – The UV-C lamp has been in service for less than 12 months.
• Orange LED light is On – The UV-C lamp has been in service for more than 11 months. It’s time to order a
new UV-C lamp and replacement lter set.
• Red LED light is On – The UV-C lamp must be replaced because it has been in service for more than
12 months and may no longer be effective.
PERFORMING MAINTENANCE
Maintenance includes the following procedures:
• Replacing the UV-C lamp
• Replacing the lters

7
41-1320 REV A
41-1311-01/41-1313

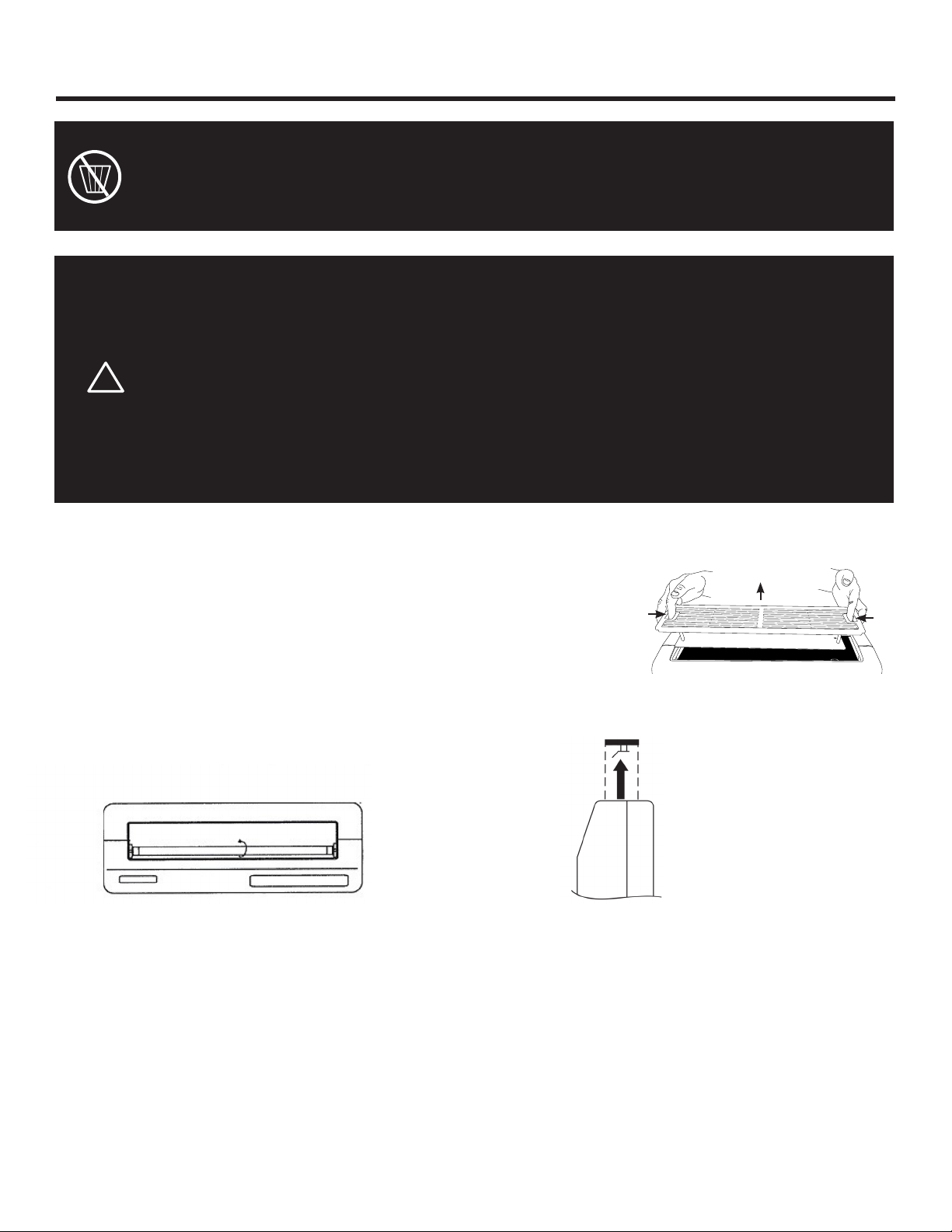

REPLACING THE UV-C LAMP
1. Unplug the V-PAC™ SC unit’s power cord from the electrical outlet.
2. Using index ngers, squeeze the locking tabs (gure 6) inwards
towards the center of the grill. Lift the grill up and remove.
4. Insert the new UV-C lamp in place and install by rotating one-quarter turn (top-to-front).
5. Replace the top grill removed in previous step 2 by pressing it into position until it locks. The aluminum
reector must be positioned over the UV-C lamp, nearest the front of the unit (gure 7a).
6. Reset the UV-C lamp timer by lightly pressing the related RESET button on the Service Panel (located
directly beside the “UV Lamp” LED indicator) with a paper clip or stiff wire. The “UV Lamp” LED service
light will turn green, and the 6 month timer will reset. This completes UV-C lamp replacement procedures.
Figure 6
Figure 7 Figure 7a
Maintenance
MERCURY
NOTICE
WARNING
!
THIS DEVICE CONTAINS MERCURY IN THE SEALED ULTRAVIOLET
BULB. DO NOT PLACE YOUR USED BULB(S) IN THE TRASH.
DISPOSE OF PROPERLY
ULTRAVIOLET-C LIGHT IS EMITTED FROM THE BULB WHEN THE
UNIT IS ELECTRIFIED, SEVERE EYE INJURY OR IRRITATION COULD
RESULT, UNPLUG THE UNIT WHEN SERVICING THE BULB TO AVOID
EXPOSURE OF EYES AND SKIN TO THE ULTRAVIOLET-C LIGHT.
MISAPPLYING OR MISUSING THE UV-C BULB COULD CAUSE
INJURY TO THE EYES OR SKIN. NEVER USE THE BULB WITHOUT
INSTALLING IT IN THE UNIT AS INSTRUCTED. NEVER OPERATE THE
UNIT WITHOUT THE TOP GRILL IN PLACE. THIS PRODUCT CAN BE
SERVICED OR MAINTAINED ONLY BY CHANGING THE UV-C BULB.
THE BULB CONTAINS NO SERVICEABLE PARTS.
3. Rotate the UV-C lamp one-quarter turn, top to rear, (gure 7) and remove lamp.

841-1320 REV A
41-1311-01/41-1313
Maintenance
REPLACING THE FILTERS
Each lter set includes 2 lter cartridges; One cartridge contains a prelter with a gas adsorption layer. The
other contains a 0.3 micron high efciency lter with a gas adsorption layer. The prelter front surface can be
vacuumed without being removed. When both indicator lights for “Air Filter” and “UV Lamp” turn red, both
lters and UV-C lamp have been in service for one year and should be replaced within the next 30 days.
To do so:
1. Unplug the V-PAC™ SC unit’s power cord from the electrical outlet.
2. Lay the unit it on its back to access the metal clips, located between the front grill and bottom feet. (gure 8)
Figure 8
3. Metal clips (2) are located on each lower side, between the front grill and feet. Using your nger or a at
head screwdriver on ONE SIDE AT A TIME, pull each metal clip, away from the grill. While holding clip, pull
on the adjacent lower corner of the grill to disengage that side. Repeat disengagement on opposite side.
Ensure that both lower sides remain un-clipped.
4. While holding both lower sides of the front grill, pull upward to clear the feet, then downward, to pull-out the
three tabs from top slots. Remove the grill entirely.
5. Pull out the two lter cartridges/panels and discard them.

9
41-1320 REV A
41-1311-01/41-1313
Maintenance

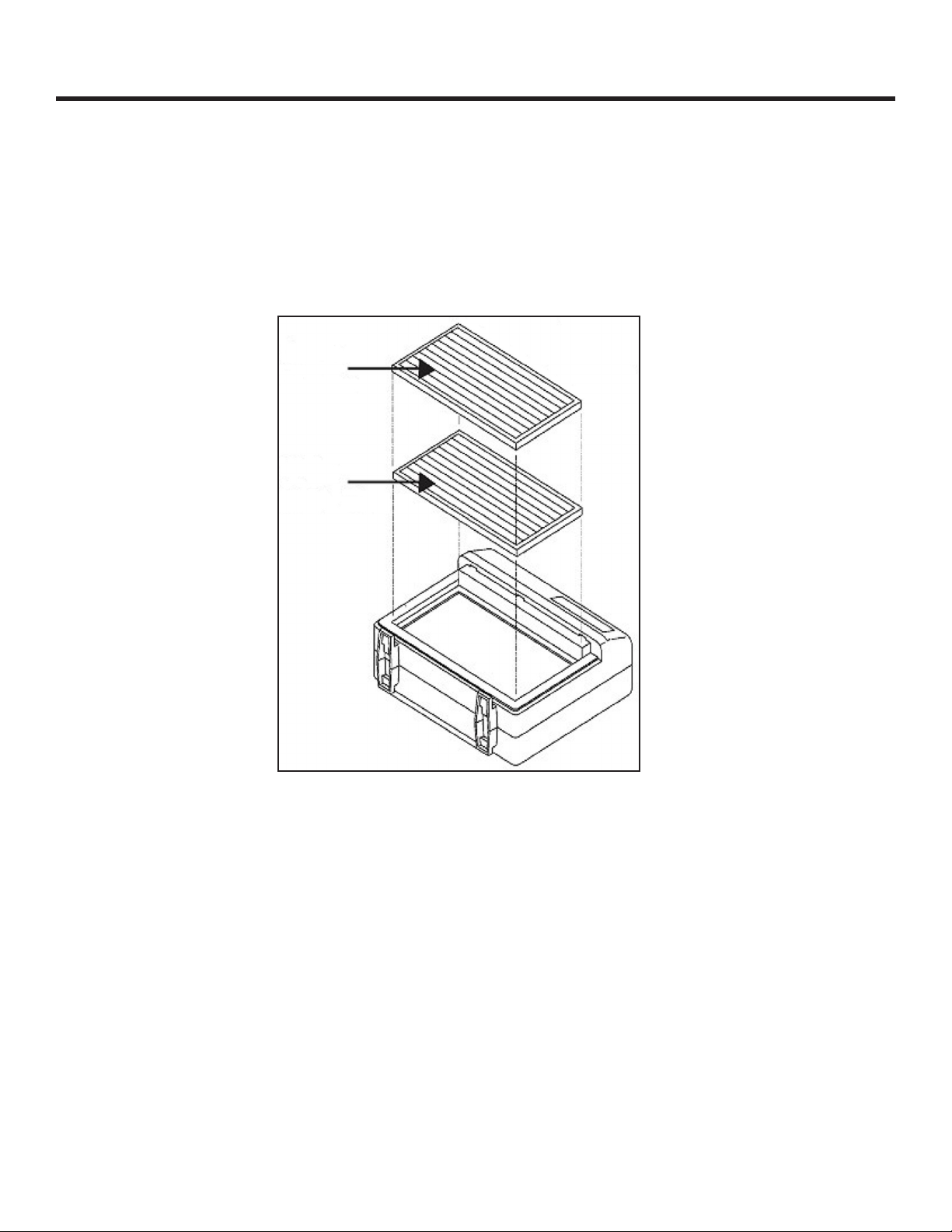

Figure 9
Prelter
0.3 Micron
High
Efciency
Filter
6. Insert a new, white 0.3 Micron High Efciency Filter (marked “First Stage”) into the front of the unit. Ensure
that the WHITE SURFACE FACES FRONT OF UNIT (gure 9 ).
7. Align a new, white Prelter (marked “Second Stage”) on top of the rst lter, or place it inside the inner
frame on the loose grill. Ensure that this lter’s WHITE SURFACE ALSO FACES FORWARD (gure 9).
8. Re-install the front grill, by rst sliding the three upper grill end tabs into the upper slots. Ensure that the
Prelter does not shift or fall out, while pressing down on the two lower corners to snap/lock.
NOTE: Ensure that the metal clips are IN FRONT of the plastic ramps or clips will not snap/lock. Check
that both lower corner clips are locked.
9. Reset the Filter Replacement timer by lightly pressing the RESET button on the front Service Panel,
using a paper clip or stiff wire. When the “Air Filter” LED light turns green, the timer has been reset. This
completes lter replacement.
10. Restore the V-PAC™ SC unit to its normal operating vertical position.
11. Plug the power cord into a wall outlet. Press the “Power” (ON/OFF) switch to operate the unit.

10 41-1320 REV A
41-1311-01/41-1313
Specications/Replacement Parts
Specications
MODEL V-PAC™SC
41-1311-01 41-1313
Voltage 115 V / 60 Hz 220 V / 50 Hz
Power Consumption 92 watts, .77 amperes 59 watts, .26 amperes
Dimensions 21.5" W x 18.5" H x 8" D (55 cm W x 47 cm H x 20 cm D)
Weight 23 lbs (11 kg)
Maximum Airow 265 CFM (8 m3/minute)
Blower Backward-curved motorized impeller - sealed bearings
UV-C Germicidal Lamp 8 watts
UV-C Germicidal Wavelength 254 nanometers
Stage 1 Prelter 5 micron
Stage 2 High Efciency Filter 0.30 micron
Stage 1 Gas Adsorption Layer Activated Charcoal
Stage 2 Gas Adsorption Layer Activated Charcoal
Application Range 1000 square feet (auto mode)
Service Interval 1 Year lamp and lter replacement
Catalyst TiO2Anatase
Sound Level 48 to 68 dBA
Agency Compliance ETL, CSA
Replacement Parts
DESCRIPTION PART NUMBER
Filter Set (one prelter and one 0.3 micron high efciency lter) 41-1326
UV-C Lamp & Filter Set (one prelter and one 0.3 micron high efciency lter) 41-1328
UV-C Germicidal Lamp 41-1330
Stage 1: Prelter with Gas Adsorption Layer 41-1332
Stage 2: 0.3 Micron High Efciency Filter with Gas Adsorption Layer 41-1334

11
41-1320 REV A
41-1311-01/41-1313
Warranty
WARRANTY
UltraViolet Devices, Inc. (UVDI) warrants to original Buyer for one year from the date of original purchase that its
goods are free from defect in material and workmanship under normal use and service. UVDI’s obligation under
this warranty shall be limited to the repair or replacement of those goods which prove defective, provided that such
products are installed, maintained, and operated for the purpose and in the manner intended and for which UVDI
instructs or recommends. Neither UVDI nor its dealers shall be liable for any special or consequential damages
directly or indirectly arising from the design, construction, installation, servicing, or operation of the goods. THIS
IS UVDI’S SOLE WARRANTY. NEITHER UVDI NOR ITS DEALERS MAKE ANY OTHER WARRANTY OF
ANY KIND, EXPRESSED OR IMPLIED. ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE WHICH EXCEED UVDI’S AFFORESTATED OBLIGATIONS ARE HEREBY
DISCLAIMED AND EXCLUDED FROM THIS WARRANTY.
UVDI AND ITS DEALERS’ LIABILITY UNDER THIS WARRANTY SHALL IN NO EVENT EXCEED THE COST
OF THE GOODS SOLD UNDER THIS CONTRACT OF SALE. UVDI neither assumes, nor authorizes any person
to assume for it, any obligation in connection with the goods. This warranty shall not apply to any goods (a) which
have been subjected to misuse, tampering, negligence, or accidents; or (b) the serial numbers of which have
been altered, defaced, or removed; or (c) which have been used in a manner contrary to UVDI’s instructions
or recommendations. Buyer shall not return to UVDI any allegedly defective goods without UVDI’s prior written
authorization. This warranty may not be assigned or transferred.
