V-drums Td-07dmk User manual

1Drum sound module / Pads / Others

Drum stand

3 4

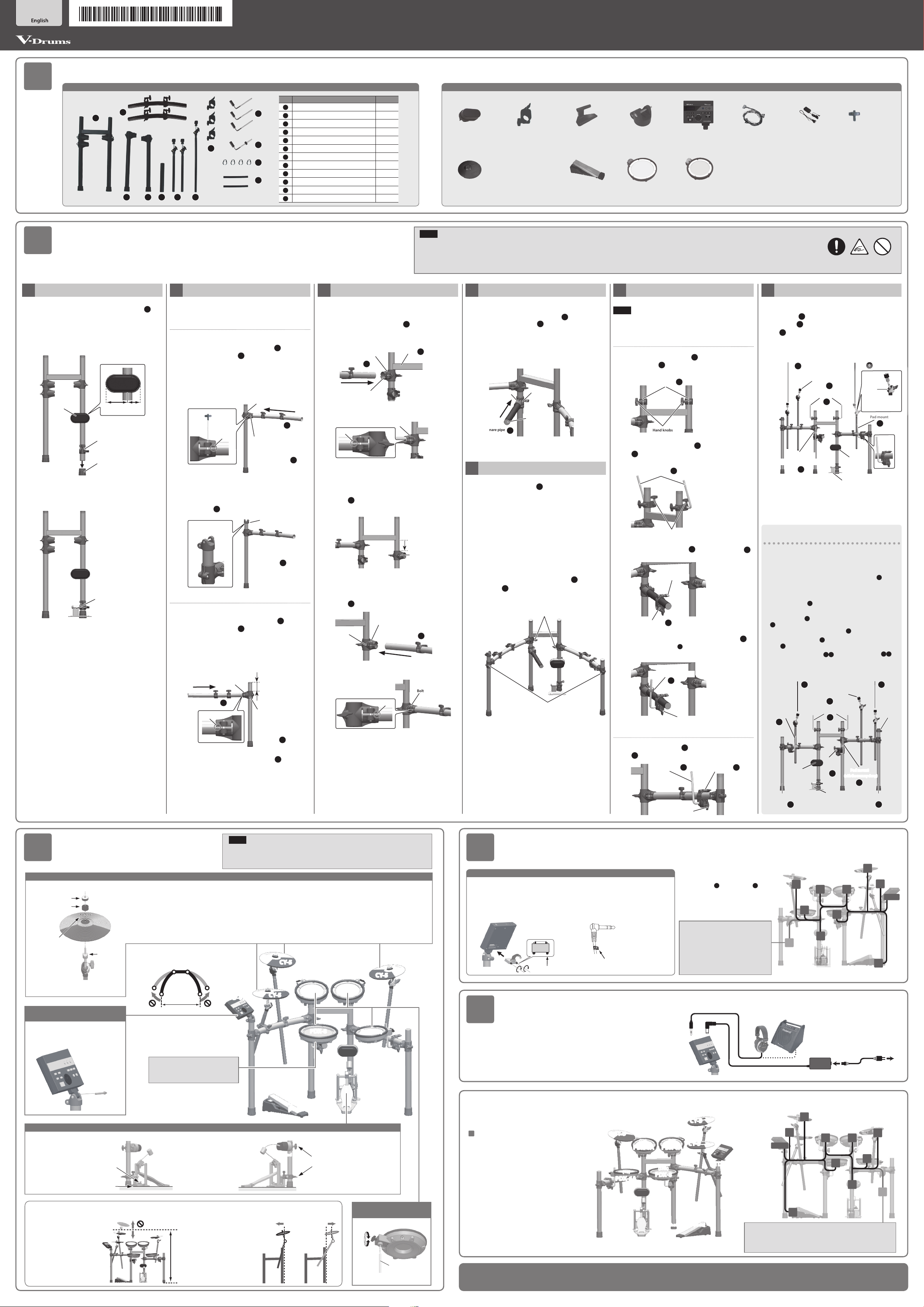

Connection procedure

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (the leaet “USING THE UNIT SAFELY,”“TD-07 Owner’s Manual,”and the Setup Guide).

After reading, keep the document(s) where it will be available for immediate reference.

Check the included items As soon as you open the package, check to see that all items are included. If anything is missing, please contact your dealer.

* This package does not include a kick pedal. Use with a commercially available kick pedal.

Assemble the drum stand

* If you will be using this drum stand for an extended period of time in the same location, we recommend that you use a drum mat

(TDM series) made by Roland to prevent the rubber feet from soiling the surface on which they are placed.

* The drum stand assembly procedure is for right-handed players. If you want to set up the stand for left-handed players, refer to

“Assembly for left-handed players” in the lower right.

Attach the parts Connect the pads to the drum sound module (TD-07)

* Insert the plug rmly,

making sure it’s all

the way in.

1. Connect the connection cable to the

drum sound module as shown in the

illustration below.

Insert the connector all the way, then

turn the knobs to fasten it securely.

2. Labels are axed to the

connection cable to indicate

the pads to be connected. Make

connections as shown in the

illustration at right.

Connect the AC adaptor and headphones/speakers

Connect the AC adaptor, headphones, or speakers as

described in the “TD-07 Owner’s Manual.”

* To prevent malfunction and equipment failure,

always turn down the volume, and turn o all the

units before making any connections.

For a left-handed setup

Assemble the drum stand as described in

“Assembly for a left-handed players” of section

“2Assemble the drum stand”; then attach the

parts and connect the cables as shown in the

illustration at right.

9 When you’ve nished making connections, turn on the power as described

in the “TD-07 Owner’s Manual,” and verify that you can hear sound.

This completes assembly and connections.

* Adjust the position and height of the pads and pedals according

to your height and tastes, so that they are easy to play.

* To prevent the drum stand from tipping over,

do not position the stand leg pipes at the two

ends more than 1.2 meters (48 inches) apart. CY-5

CY-5

PDX-6A PDX-6A

CY-5

TD-07

PDX-8 PDX-6A

Hi-hat control

pedal

8Hi-hat control

pedal

8Cymbal pad for hi-hat/crash/ride

(CY-5 x 3)

8V-Pad for tom

(PDX-6A x 3)

8Setup Guide (this document)

8Owner’s Manual set

8V-Pad for snare

(PDX-8)

1. Attaching the parts for the kick

1–1. Remove the cap that is attached to the 1

main unit’s right pipe (with one holder).

1–2. Insert the kick pad and mount holder (for the

pedal plate), and provisionally fasten them in

the orientation shown in the illustration.

Kick pad

Mount holder

(for the pedal plate)

Cap

Wide Narrow

1–3. Replace the cap.

1–4. Attach the pedal plate to the mount holder.

Pedal plate

2. Assembling the left and right arm sections

* Lay the left and right arm sections on the oor

while assembling them.

Left arm section

2–1. Using a drum key, loosen the bolt on the

holder of straight pipe“L” (long) 3, then

insert curved pipe 2.

* As a general rule, insert curved pipe until the guide hole on

the pipe can be seen through the gap in the holder.

2–2. After rmly inserting it all the way, use the

drum key to rmly tighten bolt.

Curved pipe

Straight pipe L (Long)

Holder

Bolt

Guide hole

Drum key

2–3. Use the drum key to loosen the bolt of the

drum sound module holder, then attach the

drum sound module holder to straight pipe

“L” (long) 3and tighten the bolt.

Straight pipe L

(Long)

Bolt

Drum sound module

holder

Right arm section

2–4. Using a drum key, loosen the bolt on the

holder of straight pipe“R” (short) 4then

insert curved pipe 2.

* As a general rule, insert curved pipe until the guide hole on

the pipe can be seen through the gap in the holder.

2–5. After rmly inserting it all the way, use the

drum key to rmly tighten bolt.

Curved pipe

Straight pipe

R (Short)

about 7 cm (3 inches)

Holder

Bolt

Guide hole

2–6. Position straight pipe “R” (short) 4so that its

tip protrudes by about 7 cm (3 inches), and

then tighten the holder.

3. Attach the left/right arm sections to the main unit

3–1. Use a drum key to loosen bolt of the holder

“A” attached to the left-side pipe (with two

holders) of the main unit 1, and insert left

arm (of the assembly you created in step 1)

into holder“A” of the main unit.

Holder A

Bolt

Curved pipe

Main unit

Left arm

* As a general rule, insert curved pipe until the guide hole on

the pipe can be seen through the gap in the holder.

Bolt

Guide hole

3–2. After rmly inserting it all the way, use the

drum key to rmly tighten bolt.

3–3. Lower the holder “B” attached to the main

unit 1’s right pipe, moving it down to the

position shown in the illustration.

Holder B

about 7 cm (3 inches)

3–4. Use the drum key to loosen bolt of the holder

“B,” and insert right arm (of the assembly you

created in step 1) into holder “B” of the main

unit 1.

Holder B

Bolt

Curved pipe

Right arm

* As a general rule, insert curved pipe until the guide hole on

the pipe can be seen through the gap in the holder.

Bolt

Guide hole

3–5. After rmly inserting it all the way, use the

drum key to rmly tighten bolt.

4. Attaching the snare pipe

4–1. Use the drum key to loosen bolt of the holder

“C,” and insert the snare pipe 5into holder

“C”of the main unit 1.

4–2. After rmly inserting it all the way, use the

drum key to rmly tighten bolt.

* Insert the end of the snare pipe that doesn’t have a cap on it

into holder “C.”

Snare pipe

Holder C

Cap

Bolt

5. Adjusting the vertical pipes

5–1. Place the main unit 1upright, then loosen

the hand knobs of holders “A” and “B.” Next,

spread open the pipes at left and right.

5–2. Adjust to an angle at which the drum stand

can remain upright on its own, and then

tighten the hand knobs (two locations) that

you loosened.

5–3. Verify that the four vertical pipes are truly

vertical.

If the stand wobbles, loosen the bolts on the

holders of straight pipes “L” (long) 3and “R”

(short) 4and adjust the height. After adjusting

the height, tighten the bolts on the holders.

Bolts on the holder

Hand knobs of

holders A and B

6. Attaching the pad mounts

NOTE

The tips of the mounts are sharp. Handle them with

care.

Main unit/snare pipe

6–1. Attach mount holders 8to the top of the

main unit 1and tighten the respective hand

knobs.

Mount holders

Hand knobs

6–2. Attach the pad mounts 9to mount holder

8, and rmly tighten the respective hand

knobs.

Pad mounts

Hand knobs

6–3. Attach mount holder 8to the snare pipe 5,

and tighten the hand knob.

Mount holder

Hand knob

6–4. Attach pad mount (with memory clamp) 10

to the snare pipe 5, and tighten the hand

knob.

(with the memory clamp)

Hand knob

Pad mount

Right arm

6–5. Attach pad mount 9to the mount holder

8, and tighten the hand knob.

Mount holder

Hand knob

Pad mount 98

7. Attaching the cymbal mounts

7–1. Insert the hi-hat and ride cymbal mounts

(short) 6and the crash cymbal mount

(long) 7into the holder of the curved pipe

2, and adjust the position and direction

of all holders as shown in the illustration to

complete the setup.

Cymbal mount (Short) Cymbal mount (Short)

Cymbal mount (Long)

Pad mounts

Pad mount

Kick pad

Pedal plate

(with memory

clamp)

The ball portion

should be visible by

the player

Ball

NOTE

5When setting-up or adjusting the drum stand, take care not to pinch your ngers between movable parts and the main unit. If using this in a location where children

are present, be sure to provide adult supervision or guidance.

5Prepare an area in which you can perform the assembly safely.

5Do not use a power tool (e.g., an electric screwdriver) to assemble the stand. You risk damaging or stripping the screws.

No. Name Quantity

1Main unit 1

2Curved pipe 2

3Straight pipe L (Long) 1

4Straight pipe R (Short) 1

5Snare pipe 1

6Cymbal mount (Short) 2

7Cymbal mount (Long) 1

8Mount holder 3

9Pad mount 3

10 Pad mount (with the memory clamp) 1

11 Cable clip 4

12 Cable tie 2

Use caution regarding the

following to prevent the drum

stand from falling over.

5Adjust the rod height so

that no part of any cymbal

is higher than 1.2 meters (48

inches) above the oor.

5Attach the cymbals in

such a way that the

center of the cymbal

does not extend

beyond the rear pipes

of the stand.

Adjusting the position of the cymbal

Attach the kick pedal

1. Mount the kick pedal to the

pedal plate.

2. Adjust the position of

the kick pad and the kick

pedal so that the beater

strikes the center of the

kick pad when you step

on the kick pedal.

3. Once the kick pad and kick

pedal are in the desired

playing position, tighten

the hand knobs.

Verify that the plate and pedal rmly

contact the oor without any gap

Install the kick pedal

securely.

1.2 m (48 inches)

Cabling diagram for the connection cable

(As seen from the back)

* Fasten the cables so that they will

not obstruct your playing; use

cable clips 11 and cable ties 12 .

Make sure to wrap the cable ties

around the pipes.

Attach the hi-hat (CY-5), crash cymbal/ride cymbal (CY-8)

PDX-6A

TD-07

Hi-hat control pedal

(T1)

PDX-6A

(T2)

PDX-6A

(T3) PDX-8

(SNR)

CY-5

(HH)

CY-5

(RD)

CY-5

(CR1)

CR1

T2 T1

SNR

TD-07

HHC

KIK

CR2

Cabling diagram for the connection cable

(As seen from the back)

CR1

SNR

TD-07

KIK

HHC

NOTE

When handling the hi-hat control pedal, kick pedal, or cymbal pads, take care not to

pinch your ngers between movable parts and the main unit. If using this in a location

where children are present, be sure to provide adult supervision or guidance.

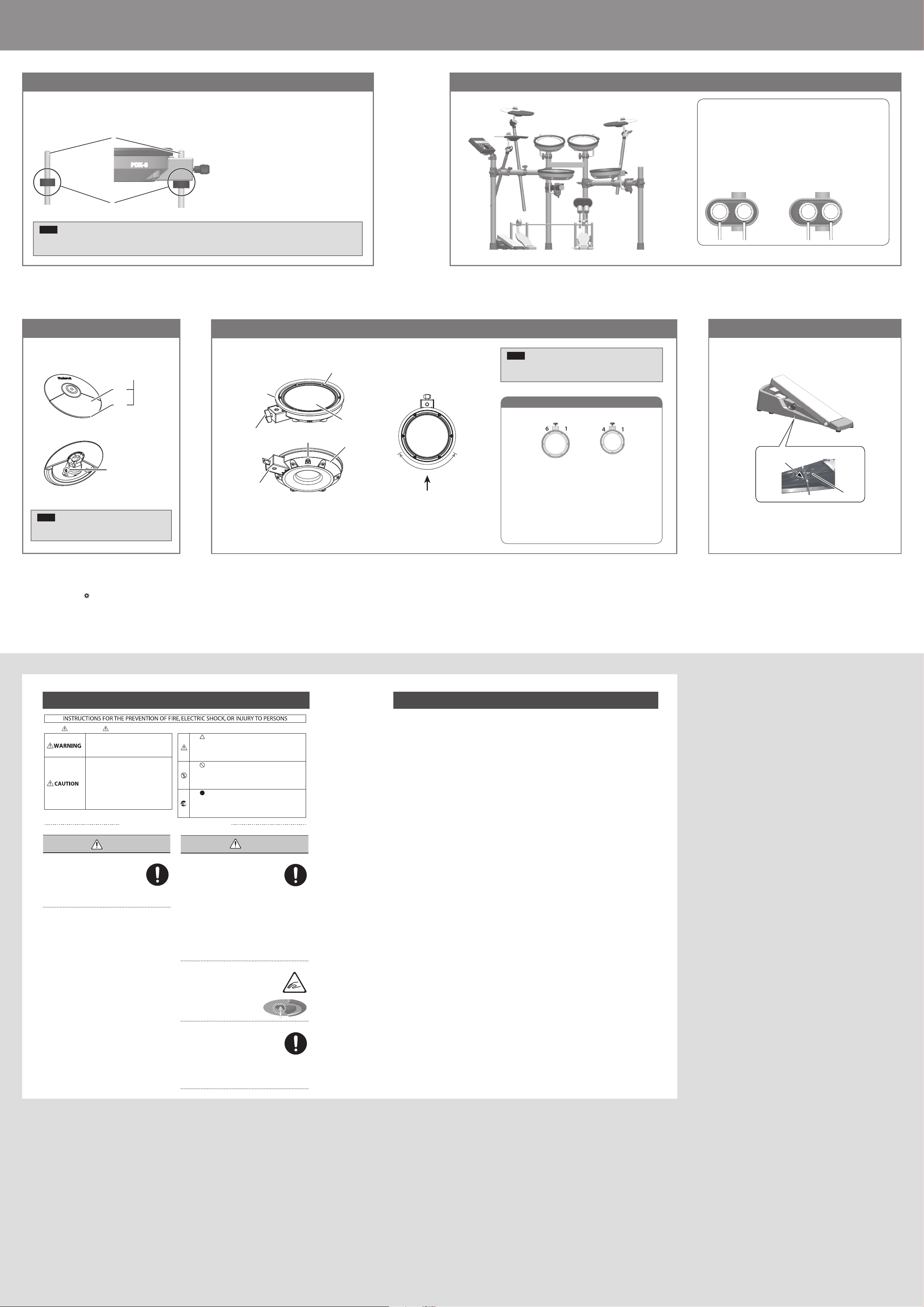

* When attaching the PDX-8 (snare),

refer to“About the memory clamp”

on the other side.

* 5 1 0 0 0 7 6 4 3 8 - 0 1 *

“CR2”is not used. It is used when

you are adding a cymbal using a

separately sold cymbal pad and

cymbal mount (MDY-Standard). If

you are not adding this, leave the cap

attached. Fasten it so that it does not

obstruct your performance.

* PDX-6A does not support

the use of the rim-shot

technique.

OK Not OK

TD-07DMK

8AC adaptor8Connection cable8Kick pad 8Pedal plate 8Drum sound

module holder

8Mount holder

(for the pedal plate)

8Drum sound module

(TD-07)

8Drum key

Knob

4 5 6 7

Assembly for a left-handed players

If you want to use a left-handed setup, assemble the

stand as follows.

5Reattach the holders attached to the main unit 1’s pipes

so that there are two holders on the right and one on

the left.

5Attach the kick pedal and the pedal plate to the left side

of the main unit 1.

5Assemble the left and right arm sections so that straight

pipe “R” (short) 4is at the left and straight pipe “L” (long)

3and the drum sound module holder are at the right,

and attach them to the main unit 1.

5Attach the snare pipe 5to the right side of the main

unit 1.

5Attach the pad mounts 910 and cymbal mounts 6 7 as

shown in the illustration.

Label

“CR2”is not used. It is used when you are adding a cymbal

using a separately sold cymbal pad and cymbal mount (MDY-

Standard). If you are not adding this, leave the cap attached.

Fasten it so that it does not obstruct your performance.

Beater Kick pad

Hand knob

Cymbal mount (Short)

Cymbal mount (Long)

Pad mounts

Kick pad

Pedal plate

Straight pipe R (Short)

Pad mount

Straight pipe L (Long)

Pad mount

(with the memory clamp)

6 6

Snare

pipe

Drum

sound

module

holder

1. Position the cymbal so that the stopper (convex

portion) of the cymbal mount is aligned with the

concave portion of the bottom of the cymbal.

2. Hi-hat:

Tighten the cymbal nut enough to prevent the pad from

wobbling when you strike it.

Crash/Ride cymbal:

Tighten the cymbal nut enough to allow an appropriate

amount of sway.

* Use the cymbal nut and felt washer that are included with the drum stand.

“Roland” logo on the

farther side

Cymbal nut

Felt washer

Stopper

(convex

portion)

Attach the drum sound module

(TD-07)

Use the bolt of the drum sound module

holder to attach it as shown in the

illustration.

Attach the snare (PDX-8)

and toms (PDX-6A)

Loosen

Tighten

Pad mount

Power cord

to AC outlet

AC adaptor

Headphones

Amplied speaker

etc.

CR2

1.2 m

(48 inches)

Detailed explanation of each part

CAUTION

Cautions when moving this unit

If you need to move the instrument, take note of

the precautions listed below. At least two persons

are required to safely lift and move the unit. It

should be handled carefully, all the while keeping

it level. Make sure to have a rm grip, to protect

yourself from injury and the instrument from damage.

• Check to make sure the bolts and hand knobs securing the

stand have not become loose. Fasten them again securely

whenever you notice any loosening.

• Disconnect the power cord.

• Disconnect all cords coming from external devices.

• Disconnect the kick pedal.

• Disconnect the connection cable of the kick pad.

• Disconnect the connection cable of the hi-hat control pedal.

Take care so as not to get ngers pinched

When handling the following moving parts, take

care so as not to get ngers, toes, etc., pinched.

Whenever a child uses the unit, an adult should be

on hand to provide supervision and guidance.

• Hi-hat control pedal

• Kick pedal

• Bottom of the cymbal pad (see gure)

Keep small items out of the reach of children

To prevent accidental ingestion of the parts listed

below, always keep them out of the reach of small

children.

• Included Parts

Cymbal nuts

• Removable Parts

Screws

CR2 plug’s cap

Used for instructions intended to alert the

user to the risk of injury or material

damage should the unit be used

improperly.

* Material damage refers to damage or

other adverse effects caused with

respect to the home and all its

furnishings, as well to domestic animals

or pets.

Used for instructions intended to alert the

user to the risk of death or severe injury

should the unit be used improperly.

The symbol alerts the user to things that must be

carried out.The specific thing that must be done is

indicated by the design contained within the circle. In the

case of the symbol at left, it means that the power-cord

plug must be unplugged from the outlet.

The symbol alerts the user to important instructions or

warnings.The specific meaning of the symbol is

determined by the design contained within the triangle.In

the case of the symbol at left, it is used for general

cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never be

carried out (are forbidden).The specific thing that must

not be done is indicated by the design contained within

the circle. In the case of the symbol at left, it means that

the unit must never be disassembled.

About WARNING and CAUTION Notices About the Symbols

ALWAYS OBSERVE THE FOLLOWING

9 CY-5 (Hi-hat/Crash/Ride)

NOTE

Continuous playing may cause dis-coloration of the pad,

but this will not aect the pad’s function.

Component names Component names NOTE

5Be sure to adjust the head tension of the pad before use.

5PDX-6A does not support the use of the rim-shot technique.

9 PDX-8 (Snare) / PDX-6A (Tom)

9 Hi-hat control pedal9 PDX-8 (Snare) 9 PDX-6A (Tom)

9 About the memory clamp

The memory clamp aligns the pad at a xed height when it is attached.

When shipped, the memory clamp is attached at the recommended position for using the drum safely.

NOTE

If the memory clamp is moved or removed in order to adjust the position of the PDX-8 (snare), a greater length of the rod may protrude;

take care that the protruding rod does not cause injury.

PDX-8

Pad face

Bow

Edge

OUTPUT jack

Knob bolt

Head

Tuning bolts

OUTPUT jack

Hoop rubber

Shell

Holder

Suitable position

for rim shots

Player

Position the two beaters equally apart from the center of the pad as shown in

the gure below. If one of the beater is further away from the center than the

other, the sound from the further beater will be lower in volume, or will not

sound as desired.

If you’re using twin pedals, the sensitivity will be lower than when a single

pedal is used. Raise the sensitivity on the sound module.

For details, refer to“TD-07 Owner’s Manual.”

Adjusting the head tension

1. Use the drum key to adjust each tuning bolt a little at a

time, moving in order from one side to the opposite side as

shown in the illustration.

The appropriate amount of tension is one that will provide

approximately the same striking response as on an acoustic

drum.

2. Make minor adjustments to the tightness as necessary.

Correct positioning Incorrect positioning

Placement

• Depending on the material and temperature of the surface on

which you place the unit, its rubber feet may discolor or mar

the surface.

Additional Precautions

• This instrument is designed to minimize the extraneous sounds

produced when it’s played. However, since sound vibrations

can be transmitted through oors and walls to a greater degree

than expected, take care not to allow these sounds to become

a nuisance others nearby.

569

• The rubber portion of the striking surface is treated with a

preservative to maintain its performance. With the passage of

time, this preservative may appear on the surface as a white

stain, or reveal how the pads were struck during product

testing. This does not aect the performance or functionality of

the product, and you may continue using it with condence.

• Continuous playing may cause dis-coloration of the pad, but

this will not aect the pad’s function.

• This document explains the specications of the product

at the time that the document was issued. For the latest

information, refer to the Roland website.

Intellectual Property Right

• Roland and V-Drums are either registered trademarks or

trademarks of Roland Corporation in the United States and/or

other countries.

• Company names and product names appearing in this

document are registered trademarks or trademarks of their

respective owners.

USING THE UNIT SAFELY IMPORTANT NOTES

WARNING

Use only the supplied AC adaptor and the correct voltage

Be sure to use only the AC adaptor supplied with

the unit. Also, make sure the line voltage at the

installation matches the input voltage specied on

the AC adaptor’s body. Other AC adaptors may use

a dierent polarity, or be designed for a dierent

voltage, so their use could result in damage, malfunction, or

electric shock.

4 3

2 5

6 1 4 1

2 3

PDX-8 PDX-6A

Rod

(pad mount)

Memory clamp

PDX-8

OUTPUT jack

Rear side

Engage cable

with slot

* Depending on how the drums are set up and played, some pads might be triggered unintentionally or one of the pads might not respond when two pads are struck at the same time.

In this case, press the [ ] (SETUP) button on the sound module, select “PAD,” select “ADVANCED,” and adjust the “XtlkCancel” parameter. For details, refer to “TD-07 Owner’s Manual.”

Other V-Drums Drum manuals
