V-Sun TLT-3 User manual

TLT-3
User Manual
(TLT-3 GPS/GSM Vehicle Tracker)
V1.0
Manual update records

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
2
Version Updates Author Date
V1.0 Manual initial order 2010－8－16
Product main features:

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
3
zReal-time SMS query coordinates
ztime position, Phone Position
zspeed alarm function
zhistorical data uploading
running track monitoring
1. Introduction
TLT-3 GPS / GSM vehicle is a remote location tracking device, based on GPS
technology and GSM / GPRS technology made of. Access to the user via SMS latitude
and longitude location information, and then in Google Maps or other mapping software
to find the location tracking device; or tracking device positioning data uploaded
via GPRS to a designated server, the user query through the Internet, real-time
location tracking devices historical trajectory.
TLT-3 GPS / GSM vehicle tracking device can be used for motorcycles, electric
golf cars, ordinary private car. The machine built-in antenna, one machine, easy to
install.
2．Features
1.built-in JRC / SKYTRAQ high performance GPS chipset. In weak signal conditions can
pinpoint; in urban canyons and other areas with limited sky view can be good work.
2.built-in GSM / GPRS module, support GSM900/1800MHz. (850/1900 optional to do), can
work worldwide.
3.support for SMS communication or GPRS TCP connection can be to receive location
information by SMS or the Internet to view trajectory.
4. with the electronic fence function, speed alarm, historical data upload functions.
5.high-reliability circuit design, meet the automotive industry related standards.
Note:
1, please read this manual carefully and make the correct mode of operation to avoid any errors.
2, the proposed installation of this product to professional dealers to ensure the safety of use, installation
and covert.
3 .pictures in this manual may be the product you get will be different to you buy the real product.
4, as a result of updated parameters and functional upgrades to increase without notice, if in doubt,

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
4
please consult our company or dealer financing.

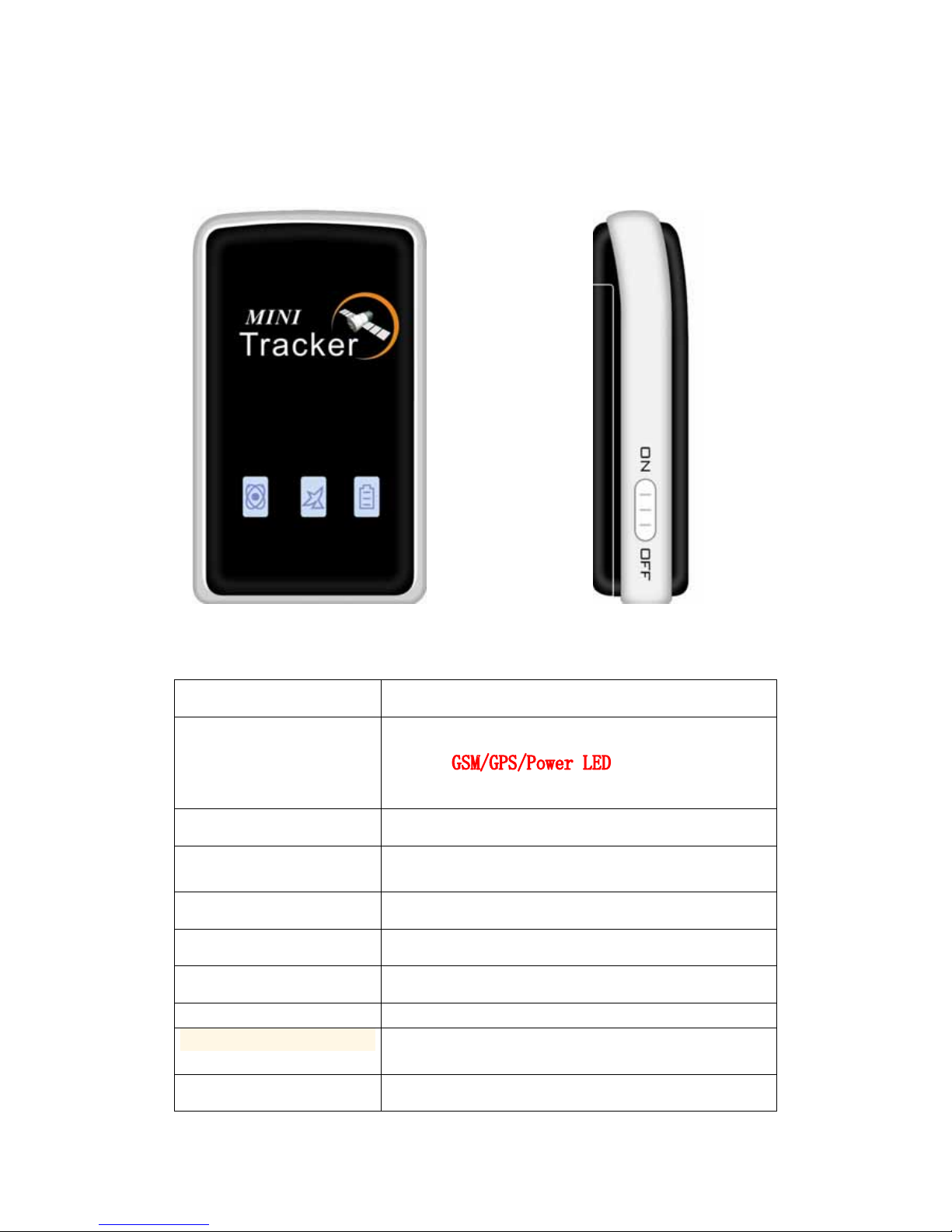

3．Product structure diagram
3.1 Specification
Hardware
GSM module MTK program, GSM 900/1800 / 850/1900 dual-band
or quad-band (optional) support for TCP
protocol
GPS chip JRC / SKYTRAQ high sensitivity GPS chipset
GPS Sensitivity
-164dBm
GPS frequency L1,1575.42MHz
C/A code 1.023MHz
Passage 210-channel, full-track
Location accuracy 2.5m, CEP
Speed Accuracy
0.1 m/s
Time accuracy 1 us and the GPS time synchronization

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
5
Coordinate system WGS-84
Regain Average 0.1 s
Hot Start Average 1 s
Warm Start Average 30 s
Cold start Average 35 s
Height restriction Maximum 18,000 meters (60,000 feet).
Speed limit The fastest 515 m / s (1000 section).
Acceleration limit Less than 4g
Operating Temperature -25℃ to 70℃
Humidity 5% ~ 95% No coagulation
Size 88mm×50mm×20mm
Voltage 12V
3.2 LED status lights description
1、Blue LED --- instructions GSM signal state
Status Meaning
Flash No SIM card or no GSM network
Flash once every 8s GSM receivers work well and stand-
2、Red LED --- charging instructions like
3、Green LED --- direct GPS signal status
4. Annex
1, TLT-3 GPS / GSM vehicle tracking device
2, the power line
Status Meaning
Always shine Charging
Extinguish
Charging complete
Status Meaning
Does not shine Work, but did not locate
Flash Work, has been positioning

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
6
3, Manual (CD)
5. Install SIM card
1. Select SIM card:
●You can use a local moving company's SIM card.
●Support SMS / GPRS capabilities and has sufficient balance.
2. Open the device shell, the special SIM card into SIM card slot and lock.
3. Installation wiring diagram
TLT-3 external leads such as the Connection Description:
Red 12V power cable for the car, then car battery cathode; black is ground, then a car battery anode; pull switch to
the ON side, the product boot. Please note that the correct installation of wire connection, if an error installing the
device caused damage to your own risk.
6．Specific Application
When you read the brief description of the product, the product has been installed,
SIM card already installed. Start following a specific use.
First step, a product owner, stored telephone numbers; (non-stored the same number
of products to respond to instructions sent) and then modify the device configuration
information. Products of the factory configured in the appendix. Command as follows:
Instruction Format: * new number 4-20 bit * Password 4 * number (1-3) **
Such as：*13900000000*0000*1**
Description: User initial password is: 0000. TLT-3 can be stored up to three phone
numbers. When TLT-3 receiving the order, confirm the user password is correct, after
the success of the sender to send the confirmation to the "SET USER NUMBER (1-3) OK".
This directive also applies to the new number with the number of existing coverage,
such as A is set to the first stored number. Similarly, if B then sends commands to
set the first stored number, then the number will replace the A B numbers, becoming
the first stored number.
6.1 Mode of introduction of products
There are two operating modes of the product model that is SMS (Short Message Point
to Point mode) and GPRS online mode.

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
7
1. Users who just want to use the phone when necessary to obtain query the vehicle
position (longitude, latitude), in the GOOGLE map corresponding to the address query,
or by phone to control vehicle power off oil, then use SMS (text mode) that be.
2. Users who require real-time vehicle dynamic control and need to check the
historical trajectory of vehicles can then use GPRS real-time online mode.
6.2 Switching the two modes as follows：
Text messages (SMS) Point to Point mode:
Command format: 700 + user password (4)
Such as：7000000
Description: When the TLT-3 received the SMS, to confirm the user password is correct,
switch to the SMS application mode. After the success of the sender to send the
confirmation to the "SET MODE OK, CURRENT MODE: SMS P2P".
GPRS online mode:
Command format: 710 + User Password 4
Such as：7100000
Description: When the TLT-3 received the SMS, to confirm the user password is correct,
the switch to GPRS mode. After the success of the sender to send the confirmation
to the "SET MODE OK, CURRENT MODE: GPRS".
Applications based on SMS mode operation
1. Single positioning request instructions
Command format: 666 + user password 4
For example: 6,660,000
Description: When TLT-3 received the order, confirm the user password is correct,
read the GPS information, regardless of the validity of it, together with the original
software with the base station set return back to the sender.
Data format：
Lat: latitude (+/-) latitude value (precision after the decimal point 5)
Long:: longitude direction (+/-) longitude value (precision after the decimal point
5)

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
8
Speed: speed KM / H (precision after the decimal point 2)
Direction: Heading (accurate to two decimal places)
Date: Date YYYY-MM-DD
Time: Time HH: MM: SS (GMT)
BS: base station information
FIX: Position Status (A / V)
ID: IMEI
STATE: Information Status
Valid data sample：
Lat: +22.50500
Long: +114.01000
Speed: 0.00KM/H
Direction: 315.00
Date: 2008-04-25
Time: 16:39:45
BS: 25ee0dff
Fix: A
ID: 353686009002030
STATE: SMS
Invalid data sample:
Lat: +22.50500
Long: +114.01000
Speed: 0.00KM/H
Direction: 315.00
Date: 2008—04—25
Time: 16:39:45
BS: 25ee0dff
Fix: V
ID: 353686009002030
STATE: SMS
Note: If the cold start and the GPS does not locate, then return invalid information

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
9
as shown below.
Such as：ERROR GPS GPRMC FRAME DATA
BS: 27971054
ID: 353686009002030
STATE: SMS
Check the map latitude longitude position of the corresponding detailed
1, download Google map software from http://earth.google.com

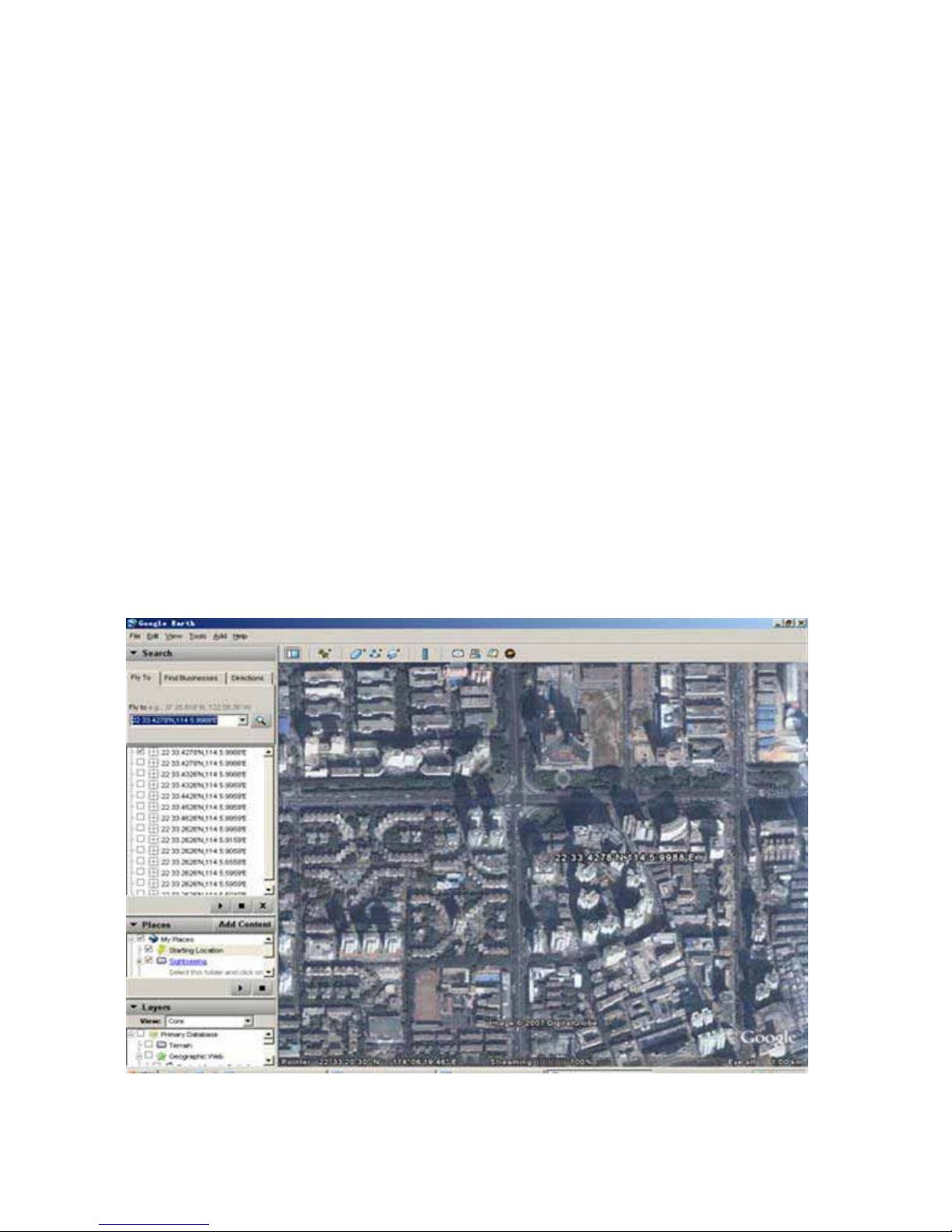

2, open the Google Maps software (for more information on the Google Maps software,
please refer to http://earth.google.com) as shown below. (Note change in location
data format)
Send "666 + code" SMS command to the TLT-3 by latitude and longitude data. Enter your

TLT-3 GPS/GSM Vehicle Tracker User Manual V1.0
10
latitude and longitude received from the SMS and click the search button, Google Maps
will show you the location map.
For example: When you receive the information transmitted from tracker, as follows:
Lat: +22.50500
Long: +114.01000
Speed: 0.00KM/H
Direction: 315.00
Date: 2008-04-25
Time: 16:39:45
BS: 25ee0dff
Fix: A
ID: 353686009002030
STATE: SMS

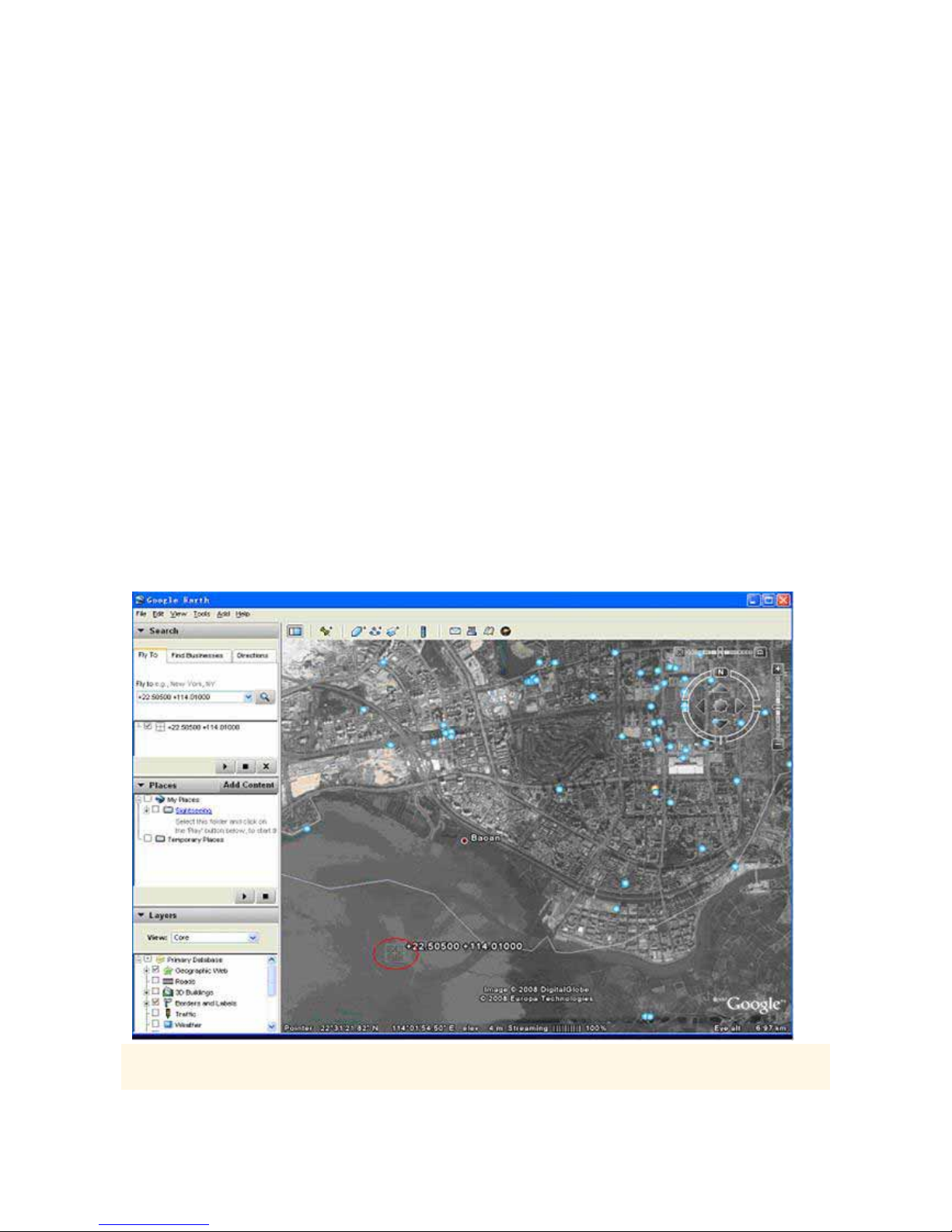

Find locations in Google Maps, enter in the appropriate location: +22.50500
+114.01000. Obtain the following picture:

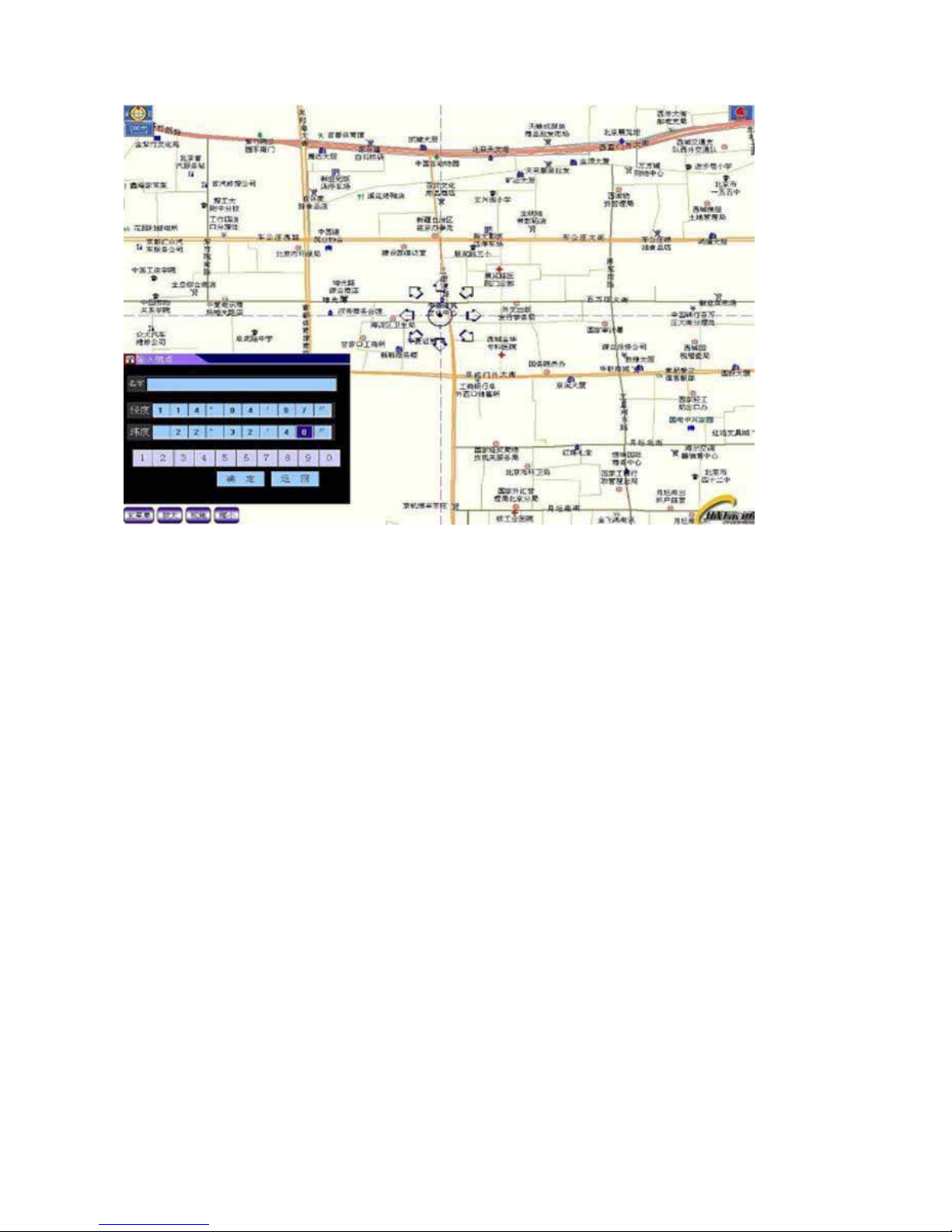

Or you can use the PDA or navigation device on a local map software, enter the location data. (Note
change in location data format)
