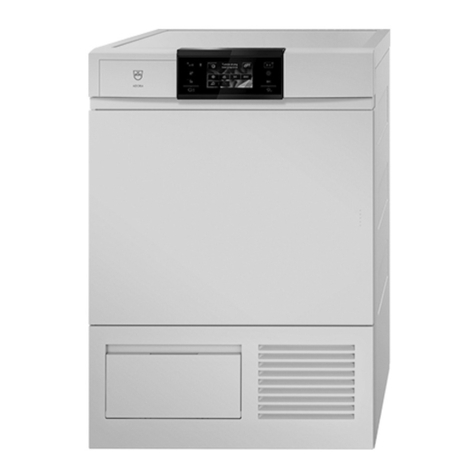

V-ZUG Adora TS WP User manual

Operating instructions
Adora TS WP
Tumble dryer

2
© V-ZUG Ltd, CH-6302 Zug, 2018

3
Contents
1Safety precautions 4
1.1 General safety precautions ............................... 4
1.2 Appliance-specific safety precautions ............ 4
1.3 Instructions for use ............................................. 6
1.4 Using for the first time........................................ 7
1.5 Note on the operating instructions .................. 8
2Appliance description 9
2.1 Appliance construction ...................................... 9
2.2 Indicator lights ..................................................... 9
2.3 Operating and display elements....................10
3Programme overview 11
3.1 Automatic programmes ...................................11
3.2 Standard programme.......................................11
3.3 Additional programme .....................................11
3.4 Fabric types .......................................................12
3.5 Additional functions ..........................................13
3.6 EcoManagement ............................................... 13
4Operating the appliance 14
4.1 Preparations.......................................................14
4.2 Selecting programme....................................... 14
4.3 Selecting additional functions......................... 15
4.4 Delayed start......................................................15
4.5 Timed drying ......................................................15
4.6 Changing selection...........................................15
4.7 Aborting a programme ....................................16
4.8 Interrupting a programme ...............................16
4.9 With childproof lock activated ........................ 16
4.10 End of programme ........................................... 17
4.11 EcoManagement statistics .............................. 18
5User settings 18
6Care and maintenance 21
6.1 Cleaning the door filter and door filter mat ..21
6.2 Cleaning the front filter mat (annually) ..........22
6.3 Cleaning the moisture sensor .........................22
6.4 Cleaning the temperature sensor...................23
6.5 Cleaning the appliance.....................................23
7Trouble-shooting 23
7.1 Error messages..................................................23
7.2 Other possible problems .................................24
8Spare parts 26
9Technical data 26
10 Drying tips 28
10.1 Saving energy ....................................................28
10.2 Avoiding damage ..............................................28
11 Disposal 29
12 Notes 30
Quick instructions 32

4
1 Safety precautions
1.1 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.2 Appliance-specific safety
precautions
▪Children under 3 years of age
must be kept away from the
appliance unless they are
constantly supervised.
▪The appliance has a max-
imum dry load capacity of 7
kg.
▪This appliance is only suitable
for drying textiles which have
been washed in water.
▪The appliance is only to be
used with the recommended

1 Safety precautions
5
vaporizing medium. The use
of other substances may give
rise to a toxic or fire risk.
▪The appliance has hot sur-
faces to evaporate active
components. These surfaces
should not be touched during
use.
▪The tumble dryer may not be
used if industrial chemicals
were used for cleaning.
▪Clean the fluff filters regularly.
▪Do not allow fluff to build up
around the tumble dryer.
▪Do not dry unwashed items in
the tumble dryer.
▪Textiles that have been
cleaned, treated or soaked
with flammable chemicals,
detergents or solvents (such
as white spirit, alcohol, stain
remover, oil, turpentine, acet-
one, paint, wax, etc.) are a
fire and explosion hazard!
Wash materials containing
such substances first by hand
with water or allow the solvent
to evaporate completely.
▪Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam rub-
ber pads should not be dried
in the tumble dryer.
▪Fabric softeners, or similar
products, should be used as
specified by the fabric
softener instructions.
▪Remove objects such as
lighters and matches and the
like.
▪Never stop a tumble dryer be-
fore the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is dissip-
ated.
▪If the appliance is installed on
a carpeted floor ensure that
any ventilation openings on
the base of the appliance are
not obstructed.
▪If the appliance is installed in
a housing, the ventilation
openings are to be kept free
of obstruction.
▪Exhaust air must not be dis-
charged into a flue which is
used for exhausting fumes

1 Safety precautions
6
from appliances burning gas
or other fuels.
▪Do not install the appliance
behind a door that locks, a
sliding door or a door with a
hinge that lies opposite the
hinge of the appliance.
To minimize the risk of fire in a tumble
dryer, the following should be observed:
▪Oil-affected items can ignite
spontaneously, especially
when exposed to heat
sources such as in a tumble
dryer. The items become
warm, causing an oxidation
reaction in the oil. Oxidation
creates heat. If the heat can-
not escape, the items can be-
come hot enough to catch
fire. Piling, stacking or storing
oil-affected items can prevent
heat from escaping and so
create a fire hazard. If it is un-
avoidable that fabrics that
contain vegetable or cooking
oil or have been contamin-
ated by hair care products be
placed in a tumble dryer they
should first be washed in hot
water with extra detergent –
this will reduce, but not elim-
inate, the hazard.
1.3 Instructions for use
Before using for the first time
▪The appliance must be installed and con-
nected to the electricity supply in accord-
ance with the separate installation instruc-
tions. Have a qualified fitter/electrician
carry out the necessary work.
▪Ensure access to the place of disconnec-
tion (e.g. socket outlet, wall switch, fuse)
and the water tap.
Correct use
▪The appliance is only suitable for drying
home textiles. It is designed for use in the
home and for the above-mentioned pur-
pose only. No liability is assumed for any
damage caused by improper or incorrect
use.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any elec-
trically live parts, may only be carried out
by the manufacturer, its Customer Ser-
vices or a similarly qualified person. Re-
pairs if carried out incorrectly could cause
serious injury or damage to the appliance
and fittings as well as affect the function-
ing of the appliance. If the appliance is
not working properly or in case of a repair
order, follow the instructions given in the
«Service & Support» section. If necessary,
please contact our Customer Services.
▪Use original spare parts only.
▪Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the drum.

1 Safety precautions
7
Note on use
▪If the appliance is not operating properly,
disconnect it from the power supply im-
mediately.
▪To protect your washing, follow the fabric
care symbols and the hints and advice in
the 'Drying tips' section.
▪Do not operate the appliance without a
door filter or with a damaged door filter.
Fluff can destroy the appliance!
Caution: Burns hazard!
▪Do not dry fabrics that contain traces of
hair spray, hair gel, nail varnish remover
or other similar substances. Danger of
gas build-up!
Caution: Risk to life!
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
How to avoid damaging the appliance
▪Transport the appliance in an upright posi-
tion only! Transporting it in any other posi-
tion will result in damage to the appliance!
When carried carefully without being
shaken, the appliance may be tilted a
maximum of 90° to the left (viewed from
the front).
Front
Front
▪Close the appliance door carefully.
▪When cleaning the appliance make sure
no water gets inside it. Use a moderately
damp cloth. Do not spray the outside or
the inside of the appliance with water. If
water gets inside the appliance, it will
cause damage.
1.4 Using for the first time
The appliance must be installed and
connected to the electricity supply
by a qualified fitter/electrician in ac-
cordance with the separate installa-
tion instructions.
Serial number
The serial number (FN) is located on the
identification plate:
▸ Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸ Hold the button depressed until the
following display appears:
User settings
FN XXXXX XXXXXX

1 Safety precautions
8
1.5 Note on the operating
instructions
For more information on your appliance and
for answers to frequently asked questions,
visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Caution, risk of fire!
Failure to observe said precautions can res-
ult in injury or in damage to the appliance or
fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the iden-
tification plate. These operating instructions
apply to:
Appliance
designation
Adora TS WP
Type WTATSWPZ
Product family 12005
Variations depending on the model are noted
in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modifica-
tions for the purpose of the further develop-
ment of the appliances is reserved.

2 Appliance description
2.1 Appliance construction
1
2
3
4
6
7
8
5
1Door filter with door filter mat 5Front grille
2Pivoting operating panel 6Identification plate / serial number (FN)
3Cover for door filter 7Ventilation grille
4Front filter mat 8Appliance door
2.2 Indicator lights
Illuminated: relevant function active
Off: relevant function not selectable
Flashing: relevant function selectable
9

2 Appliance description
2.3 Operating and display elements
3
4
5
6
1 2
1Pause 4End of programme
2Display 5Automatic programmes
3Additional functions 6EcoManagement
Additional functions Automatic programmes Additional programme
Easy care Extra dry Timed drying
+
ReversePlus Normal dry
Delayed start Iron dry
Damp
Fabric types
Standard programme
10
