V-ZUG Adora TSLQ WP User manual

Operating instructions
Adora TSLQ WP
Tumble dryer

2
© V-ZUG Ltd, CH-6302 Zug, 2018

3
Contents
1Safety precautions 4
1.1 General safety precautions ............................... 4
1.2 Appliance-specific safety precautions ............ 4
1.3 Instructions for use ............................................. 6
1.4 Using for the first time........................................ 7
1.5 Note on the operating instructions .................. 8
2Appliance description 9
2.1 Appliance construction ...................................... 9
2.2 Indicator lights and button state ...................... 9
2.3 Operating and display elements....................10
3Programme overview 11
3.1 Automatic programmes ...................................11
3.2 Standard and extra programmes...................11
3.3 Additional programme .....................................11
3.4 Fabric types .......................................................12
3.5 Additional functions ..........................................13
3.6 EcoManagement ............................................... 13
4Operating the appliance 14
4.1 Preparations.......................................................14
4.2 Selecting programme....................................... 14
4.3 Selecting additional functions......................... 15
4.4 Delayed start......................................................16
4.5 Timed drying ......................................................16
4.6 Changing selection...........................................16
4.7 Aborting a programme ....................................16
4.8 Interrupting a programme ...............................17
4.9 With childproof lock activated ........................ 17
4.10 End of programme ........................................... 18
4.11 EcoManagement statistics .............................. 19
5Favourites 20
5.1 Defining favourites.............................................20
5.2 Changing favourites ..........................................20
5.3 Deleting favourites.............................................21
5.4 Starting favourites..............................................21
6User settings 22
7Care and maintenance 25
7.1 Cleaning the door filter and door filter mat ..25
7.2 Cleaning the front filter mat (annually) ..........26
7.3 Cleaning the moisture sensor .........................26
7.4 Cleaning the temperature sensor...................26
7.5 Cleaning the appliance.....................................27
8Trouble-shooting 27
8.1 Error messages..................................................27
8.2 Other possible problems .................................28
9Spare parts 30
10 Technical data 30
11 Drying tips 32
11.1 Saving energy ....................................................32
11.2 Avoiding damage ..............................................32
12 Disposal 33
13 Notes 34
Quick instructions 36

4
1 Safety precautions
1.1 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.2 Appliance-specific safety
precautions
▪Children under 3 years of age
must be kept away from the
appliance unless they are
constantly supervised.
▪The appliance has a max-
imum dry load capacity of 7
kg.
▪This appliance is only suitable
for drying textiles which have
been washed in water.
▪The appliance is only to be
used with the recommended

1 Safety precautions
5
vaporizing medium. The use
of other substances may give
rise to a toxic or fire risk.
▪The appliance has hot sur-
faces to evaporate active
components. These surfaces
should not be touched during
use.
▪The tumble dryer may not be
used if industrial chemicals
were used for cleaning.
▪Clean the fluff filters regularly.
▪Do not allow fluff to build up
around the tumble dryer.
▪Do not dry unwashed items in
the tumble dryer.
▪Textiles that have been
cleaned, treated or soaked
with flammable chemicals,
detergents or solvents (such
as white spirit, alcohol, stain
remover, oil, turpentine, acet-
one, paint, wax, etc.) are a
fire and explosion hazard!
Wash materials containing
such substances first by hand
with water or allow the solvent
to evaporate completely.
▪Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam rub-
ber pads should not be dried
in the tumble dryer.
▪Fabric softeners, or similar
products, should be used as
specified by the fabric
softener instructions.
▪Remove objects such as
lighters and matches and the
like.
▪Never stop a tumble dryer be-
fore the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is dissip-
ated.
▪If the appliance is installed on
a carpeted floor ensure that
any ventilation openings on
the base of the appliance are
not obstructed.
▪If the appliance is installed in
a housing, the ventilation
openings are to be kept free
of obstruction.
▪Exhaust air must not be dis-
charged into a flue which is
used for exhausting fumes

1 Safety precautions
6
from appliances burning gas
or other fuels.
▪Do not install the appliance
behind a door that locks, a
sliding door or a door with a
hinge that lies opposite the
hinge of the appliance.
To minimize the risk of fire in a tumble
dryer, the following should be observed:
▪Oil-affected items can ignite
spontaneously, especially
when exposed to heat
sources such as in a tumble
dryer. The items become
warm, causing an oxidation
reaction in the oil. Oxidation
creates heat. If the heat can-
not escape, the items can be-
come hot enough to catch
fire. Piling, stacking or storing
oil-affected items can prevent
heat from escaping and so
create a fire hazard. If it is un-
avoidable that fabrics that
contain vegetable or cooking
oil or have been contamin-
ated by hair care products be
placed in a tumble dryer they
should first be washed in hot
water with extra detergent –
this will reduce, but not elim-
inate, the hazard.
1.3 Instructions for use
Before using for the first time
▪The appliance must be installed and con-
nected to the electricity supply in accord-
ance with the separate installation instruc-
tions. Have a qualified fitter/electrician
carry out the necessary work.
▪Ensure access to the place of disconnec-
tion (e.g. socket outlet, wall switch, fuse)
and the water tap.
Correct use
▪The appliance is only suitable for drying
home textiles. It is designed for use in the
home and for the above-mentioned pur-
pose only. No liability is assumed for any
damage caused by improper or incorrect
use.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any elec-
trically live parts, may only be carried out
by the manufacturer, its Customer Ser-
vices or a similarly qualified person. Re-
pairs if carried out incorrectly could cause
serious injury or damage to the appliance
and fittings as well as affect the function-
ing of the appliance. If the appliance is
not working properly or in case of a repair
order, follow the instructions given in the
«Service & Support» section. If necessary,
please contact our Customer Services.
▪Use original spare parts only.
▪Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the drum.
Note on use
▪If the appliance is not operating properly,
disconnect it from the power supply im-
mediately.

1 Safety precautions
7
▪To protect your washing, follow the fabric
care symbols and the hints and advice in
the 'Drying tips' section.
▪Do not operate the appliance without a
door filter or with a damaged door filter.
Fluff can destroy the appliance!
Caution: Burns hazard!
▪Do not dry fabrics that contain traces of
hair spray, hair gel, nail varnish remover
or other similar substances. Danger of
gas build-up!
Caution: Risk to life!
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
How to avoid damaging the appliance
▪Transport the appliance in an upright posi-
tion only! Transporting it in any other posi-
tion will result in damage to the appliance!
When carried carefully without being
shaken, the appliance may be tilted a
maximum of 90° to the left (viewed from
the front).
Front
Front
▪Close the appliance door carefully.
▪When cleaning the appliance make sure
no water gets inside it. Use a moderately
damp cloth. Do not spray the outside or
the inside of the appliance with water. If
water gets inside the appliance, it will
cause damage.
1.4 Using for the first time
The appliance must be installed and
connected to the electricity supply
by a qualified fitter/electrician in ac-
cordance with the separate installa-
tion instructions.
Serial number
The serial number (FN) is located on the
identification plate:
▸ Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸ Hold the button depressed until the
following display appears:
Settings
FN 12006 000123

1 Safety precautions
8
1.5 Note on the operating
instructions
For more information on your appliance and
for answers to frequently asked questions,
visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Caution, risk of fire!
Failure to observe said precautions can res-
ult in injury or in damage to the appliance or
fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the iden-
tification plate. These operating instructions
apply to:
Appliance
designation
Adora TSLQ WP
Type WTATSLQWPZ
Product family 12006
Variations depending on the model are noted
in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modifica-
tions for the purpose of the further develop-
ment of the appliances is reserved.
Colour operating instructions can be down-
loaded from the internet from www.vzug.com.

2 Appliance description
2.1 Appliance construction
1
2
3
4
6
7
8
5
1Door filter with door filter mat 5Front grille
2Pivoting operating panel 6Identification plate / serial number (FN)
3Cover for door filter 7Ventilation grille
4Front filter mat 8Appliance door
2.2 Indicator lights and button state
Indicator lights Button state
Illuminated: relevant function
active
Blue background: relevant
function active
Off: relevant function not
selectable
Black button: relevant function not
selectable
Flashing: relevant function
selectable
Black background: relevant
function selectable
9

2 Appliance description
2.3 Operating and display elements
Buntwäsche
Temperatur wählen
1
4
5
6 89
10
11
2
7
Coloureds
Select programme
3
1Door opener 8Additional programme
2 h 10Normal dry
12
2TouchDisplay 9Standard and
3Fabric types extra programmes
4Start/Pause 10 Eco (see
5End of programme additional functions)
6Favourites 11 EcoManagement
7Automatic programmes 12 Additional functions
Automatic programmes Standard and Additional functions
Extra dry extra programmes Eco (10)
Normal dry Standard Sprint
Iron dry Airing Ultra care
Damp Crease guard Easy care
Additional programme Basket programme
+
ReversePlus
Timed drying SilentPlus
Delayed start
10

3 Programme overview
3 Programme overview
To avoid damaging the laundry, follow the fabric care symbols on garment labels:
Tumble dry, medium heat Tumble dry, low heat Do not tumble dry
3.1 Automatic programmes
Automatic drying programmes have 3 phases:
Drying The laundry is dried according to the settings.
Cooling down /
Final airing
The laundry is cooled down to a temperature at which creasing is min-
imized. The duration of this phase depends on the temperature of the
laundry. «Crease guard» starts if the appliance is not unloaded when
this phase ends.
Crease guard The dried washing is moved at frequent intervals for up to 30 minutes
to prevent creasing. Open the appliance door to end before time.
Extra dry: For thick, multi-layered textiles and mixed loads. Less suit-
able for knitted or woven articles (e.g. t-shirts or underwear).
1–7 kg
Normal dry: For similar items of washing (e.g. t-shirts or underwear). 1–7 kg
Iron dry: For items that are to be ironed. 1–7 kg
Damp: For items that are to be pressed in a mangle (e.g. table linen). 1–7 kg
3.2 Standard and extra programmes
+ The most efficient programme for drying normal wet cot-
ton laundry.
1–7kg
+Airing: For refreshing or airing little-worn garments. 1–1.5 kg
+Crease guard: For reduced creasing (e.g. shirts and
blouses). The laundry is ready for ironing.
1kg
+Basket programme: For drying clean canvas shoes/train-
ers and small items such as gloves, hats and soft toys in
the basket (can be ordered as an accessory). Not suit-
able for leather or synthetic leather.
3.3 Additional programme
Timed drying: For final drying of textiles. For final drying of sleeping
bags and quilts, provided they have the relevant fabric care symbols.
Load for bulky textiles: 1 item
1–7 kg
11

3 Programme overview
3.4 Fabric types
+Coloureds: Automatic programmes suitable for most tex-
tiles.
1–7kg
Shirts: Fabrics are gently dried to «cupboard dry». max.7items
Towelling: For drying thick towels and terry towelling. 1–3kg
Denim: Denim fabrics are dried to «cupboard dry». Follow
the fabric care symbols as denim material can shrink.
1–4kg
+Thick down filling: For bulky down textiles (e.g. pillows,
jackets and thick duvets). If recommended, tennis balls
can be used for fluffing up the down during drying. Op-
timum load: 1 item
1–2kg
Thin down filling: For light-weight down textiles (e.g. thin
duvets and jackets). Optimum load: 1 item
1–2kg
Bed linen: For similar items of washing. Fasten zips and
buttons.
1–3kg
Outdoor garments: Leisure- and sportswear (Sympatex,
Gore-tex, ...) are dried gently.
1–3kg
+Woollens: For woollen fabrics labelled as washable.
Gentle drying through gentle drum action and low temper-
atures (approx. 45°C).
1kg
Silks: For drying silk fabrics. Follow the fabric care sym-
bols as silk tends to crease easily. Low temperature for
gentle drying.
1–1.5kg
Fluffing: Brings the bounce back to woollen textiles.
Since the textiles are not dried unload them as soon as
the programme ends.
1kg
WetClean finish: Loosens up delicate textiles. Unload the
textiles as soon as the programme ends.
1kg
+Baby garments: Baby garments are gently dried to «cup-
board dry». The washing is dried hygienically through an
extended final drying phase.
1–5kg
Hygiene: The washing is dried hygienically through an ex-
tended final drying phase. Ensures all germs are killed.
Use for non-delicate fabrics only.
1–3kg
12

3 Programme overview
3.5 Additional functions
Eco: The most energy-efficient programme, suitable for all fabrics.
Provides energy savings of up to 19% depending on programme.
Sprint: Quickest drying: Time saving: up to 23minutes.
Ultra care: Very gentle drying. The temperature is reduced. Particu-
larly suitable for fine textiles.
1–2.5kg
Easy care: Gentle drying for mixed fabrics (e.g. shirts, pullovers and
T-shirts). The level of dryness is reduced. To prevent creasing, put
just a few items into the drum and remove as soon as the pro-
gramme has finished.
1–2.5kg
+
ReversePlus: The laundry is dried evenly and less likely to get
tangled. Particularly suitable for drying larger items, e.g. bed linen.
SilentPlus: Particularly quiet programme.
Delayed start: For using cheap-rate electricity (setting range of up to
24hours). The programme starts automatically when the set time is
reached.
3.6 EcoManagement
Only active if «EcoManagement» is turned on in the user settings.
EcoManagement provides information on the energy consumption of the appli-
ance. The following statistical data can only be retrieved when no programme
is running:
▪Energy consumption of the last programme
▪Total energy consumption
▪Average energy consumption of the last 25 programmes
The energy consumption of a programme is displayed during programme se-
lection. At the end of a programme, the energy consumption of the last pro-
gramme run is displayed.
The values can vary according to programme, load, additional functions and user
settings.
13

4 Operating the appliance
4 Operating the appliance
4.1 Preparations
▸ Connect the mains plug into a
suitable mains socket.
▸ Press the markings at the edge
of door (5 dots) and open the
appliance door.
▸ Loosely load wet laundry items
one by one into the appliance.
▸ Close the appliance door. En-
sure that no items of washing
are trapped in the door.
Coloureds
Select programme
The start screen appears. It
goes out after 5minutes if no
programme selection is made.
To display the start screen
again at any time, touch the
screen.
▸ Touch the button to cancel pro-
gramme selection.
4.2 Selecting programme
When a programme is selected, all the necessary settings for it are assigned automatically.
Additional functions can be selected or deselected by using further buttons in other views.
▸ Touch the button for the de-
sired programme.
2 h 10Normal dry
The programme selected, the
expected duration and the se-
lectable additional functions
are displayed. The indicator
light for the selectable but-
ton flashes.
▸ Touch the button.
The programme selected
starts.
14

4 Operating the appliance
Duration remaining indicator
When the programme starts, the programme
duration at maximum load is displayed. The let-
ter «h» flashes for about 1 minute. During this
time, the actual load is being determined and
the expected duration remaining is being calcu-
lated. The expected duration remaining is sub-
sequently displayed.
Extra dry
Determining load
0 h 59
The programme may possibly take longer than
initially calculated. In this case, the duration re-
maining freezes while the programme runs. The
letter «h» flashes again.
Extra dry
Calculating time remaining
0 h 59

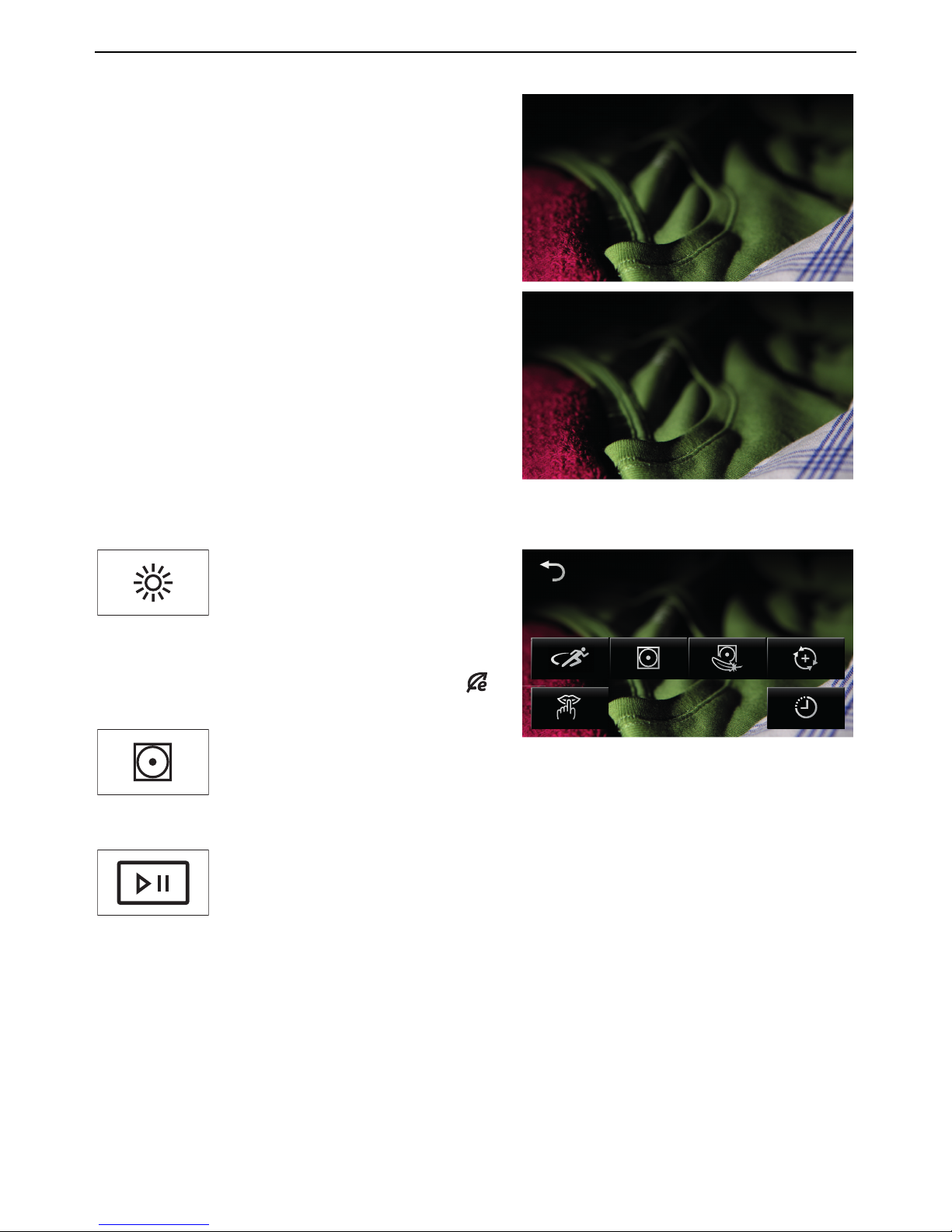

4.3 Selecting additional functions
▸ Touch the button for the de-
sired programme.
2 h 10Normal dry
The programme selected and
all selectable additional func-
tions are displayed. The indic-
ator light for the selectable
button flashes.
▸ For desired additional func-
tions, touch the corresponding
buttons.
The new programme duration
is displayed.
▸ Touch the button.
The programme selected
starts.
15

4 Operating the appliance
4.4 Delayed start
▸ Touch the button.
10 4 3
Delayed start
h min
The adjacent TouchDisplay ap-
pears.
81
▸ Enter the desired time delay
before the programme starts.
▸ Touch the button.
The delay before the pro-
gramme starts is saved.
▸ Touch the button.
The delayed start time starts.
The desired programme starts
automatically when the set
delay is up.

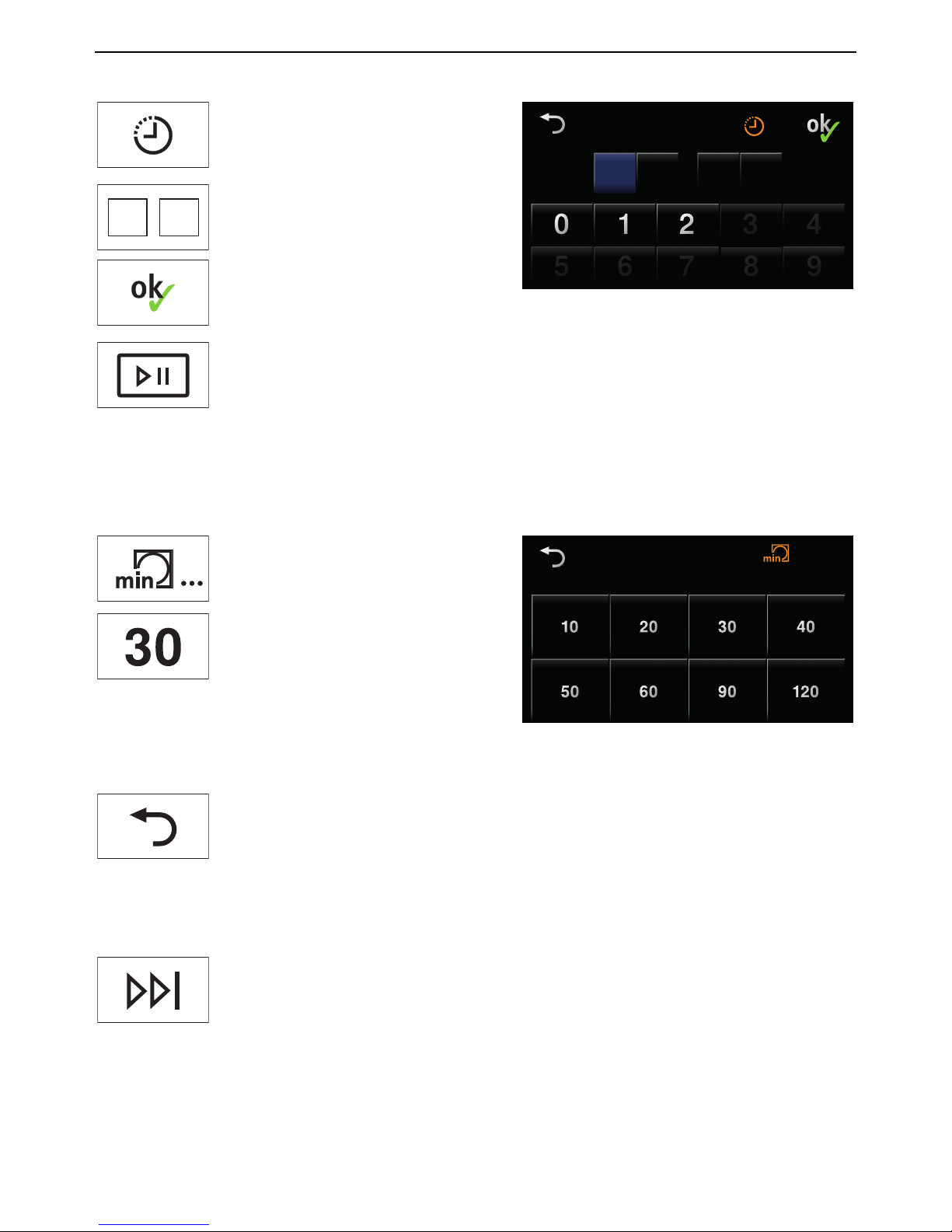

4.5 Timed drying
▸ Touch the button.
Timed drying
Duration in minutes
The adjacent TouchDisplay ap-
pears.
▸ Select the desired drying time.
The «Additional functions»
TouchDisplay appears.
4.6 Changing selection
▸ Touch the button in the «Additional functions» view.
▸ Select a new programme.
No changes can be made once a programme has started. The programme
must be aborted.
4.7 Aborting a programme
▸ Touch the button.
The programme is aborted. All settings are cleared.
16

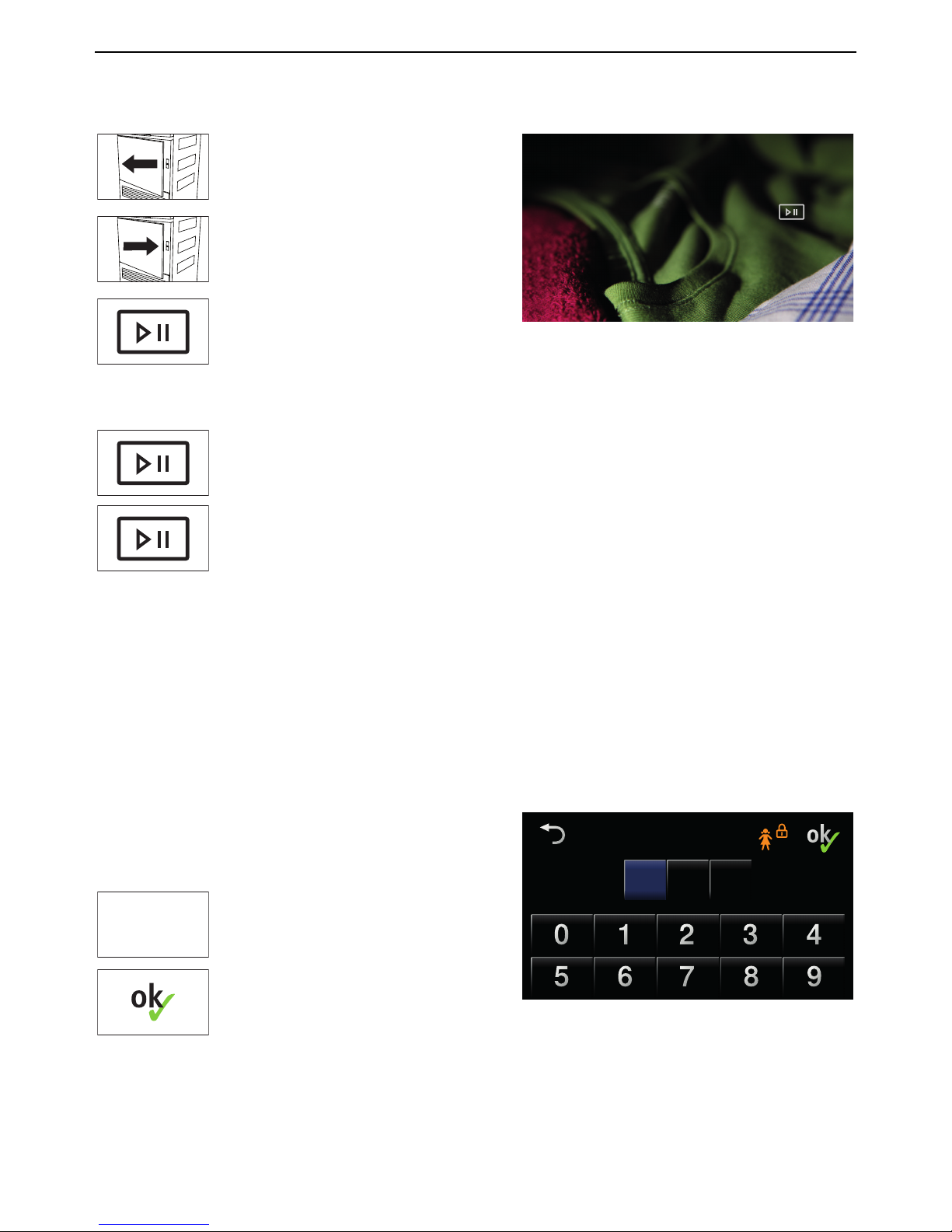

4 Operating the appliance
4.8 Interrupting a programme
Through opening the appliance door
▸ Open the appliance door.
Pause
Continue with button
Extra dry
The programme is interrupted.
Laundry can be added.
▸ Close the appliance door.
The adjacent TouchDisplay ap-
pears.
▸ Touch the button.
The programme is resumed.
Through pressing the pause button
▸ Touch the button.
The programme is interrupted.
▸ Touch the button again.
The programme is resumed.
Note: Each time a programme is interrupted, the programme sequence is delayed by
5minutes.
4.9 With childproof lock activated
How to turn the childproof lock on/off is described in «User settings».
When the childproof lock is activated, the appliance can no longer be operated once a pro-
gramme has started or if no button has been touched for over 20 seconds. A code must be
entered to unlock the appliance.
The adjacent TouchDisplay appears if a button
or the TouchDisplay is touched when the child-
proof lock is activated.
00 0
Childproof lock
Code
731
731
▸ Touch the digits 7, 3, 1 in se-
quence.
▸ Touch the button.
The appliance is unlocked.
After being unlocked, the appliance can be operated normally. The childproof lock is automat-
ically activated as soon as the programme starts.
17

4 Operating the appliance
4.10 End of programme
Display
Depending on whether «EcoManagement» has been activated, information on the energy con-
sumption is displayed when a programme ends.
With «EcoManagement»
The indicator light for the
button flashes.
End of programme - Clean door filter
Extra dry
0 h 00
Consumption values
0.9 kWh
The adjacent TouchDisplay ap-
pears.
Without «EcoManagement»
The indicator light for the
button flashes.
Extra dry
End of programme - Clean door filter
0 h 00
The adjacent TouchDisplay ap-
pears.
Note: Crease guard starts if the appliance is not unloaded straightaway. When it has finished,
all displays go out.
Unloading the washing
▸ Open the appliance door.
All displays go out.
▸ Unload the laundry.
Note: If the appliance door is opened during the «Final airing» phase, the programme is abor-
ted. All displays go out.
18

4 Operating the appliance
Each time after use
▸ Clean door filter (see page 25).
▸ Close appliance door.
4.11 EcoManagement statistics
Energy consumption can be displayed before a programme starts or after a programme ends.
Displaying the last programme
▸ Touch the button.
Last programme
Consumption values
0.9 kWh
The energy consumption of the
last programme run is dis-
played.
Display total and average consumption
▸ Hold the button depressed for
3seconds.
EcoManagement
Statistics
Total
Average
390 kWh
0.9 kWh
Total and average consumption
are displayed.
▸ Touch the button to end stat-
istic retrieval.
19

5 Favourites
5 Favourites
Simple start to frequently used programmes.
5.1 Defining favourites
Note: The appliance door has to be open to define a favourite.
▸ Touch the button.
empty
▸ Touch one of the favourite
buttons.
▸ Select programme and ad-
ditional functions.
▸ Touch the button.
▸ Touch one of the two adja-
cent buttons.
Yes
Save favourite programme.
No
Cancel action.
5.2 Changing favourites
▸ Touch the button.
extra dry
▸ Select the favourite pro-
gramme to be changed.
Change
▸ Touch the button.
▸ Make changes.
▸ Touch the button.
▸ Touch one of the two adja-
cent buttons.
Yes
Save changes.
No
Cancel action.
20
