V-ZUG Adora TSA User manual

Tumble dryer
Adora TSA/TSK
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2010
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Model Type Model no.
Adora TSA (Vented) WT-ATSA 956
Adora TSK (Condenser) WT-ATSK 957

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Your appliance 9
Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 11
Programme overview 13
Programme sequence for the automatic programmes . . . . 13
Automatic programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Special programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
User settings 19
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Level of dryness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Drying 22
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Aborting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Programme selection with childproof lock activated . . . . . . 28
End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

… Contents
4
Care and maintenance 30
Cleaning the exterior of the appliance . . . . . . . . . . . . . . . . . 30
Build-up of fluff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the door filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning the moisture sensor . . . . . . . . . . . . . . . . . . . . . . . 33
Trouble-shooting 34
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Drying tips 40
Fabric care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Technical data 42
Disposal 44
Index 45
Repair service 47
Quick instructions 48

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Ensure access to the place of disconnection (e.g. socket outlet, wall switch,
fuse).
䡲It is advisable to wipe out the drum with a damp cloth.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.
Read the operating instructions carefully before placing the appliance
in operation!

… Safety precautions
6
Correct use
䡲The appliance is suitable for drying home textiles. It is designed for use in
the home and for the above-mentioned purpose only. No liability is
assumed for any damage caused by improper or incorrect use.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrical parts, should only be carried out by the manufacturer, its
Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. If necessary, please contact Customer
Services.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating
instructions accompany the appliance, together with the instructions on
installation. In this way, the new owner can inform themselves about how
to use the appliance correctly and read the pertinent safety precautions.
Do not use the appliance to dry the following
䡲Unwashed washing.
䡲Textiles that have been cleaned, treated or soaked with flammable
chemicals, detergents or solvents (benzine, alcohol, stain remover, oil,
paint, wax, etc). Fire or explosion hazard!
Wash materials containing such substances first by hand with water or
allow the solvent to evaporate completely.
䡲Fabrics with traces of hair spray, hair gel, nail varnish remover or other
similar substances. Danger of gas build-up!
䡲Washing containing foam rubber or other rubber-like material. Ignition
hazard!

… Safety precautions
7
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for chil-
dren. Danger of suffocation! Keep packaging material away from children.
䡲The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
get locked inside.
䡲Tumble dryer additives (e.g. tumbler dryer sheets) can irritate the eyes,
mouth and throat and even cause choking! Keep tumble dryer additives
out of the reach of children.
䡲Use the childproof locking facility.
Note on use
䡲Do not use the appliance if visibly damaged or if the inlet pipes are
damaged. Contact Customer Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲If the mains cable of the appliance is damaged, it must be replaced by
Customer Services in order to avoid hazard.
䡲Keep pets away from the appliance.
䡲To protect your washing, follow the fabric care symbols and the hints and
advice in the 'Drying tips' section.
䡲Do not use a fabric conditioner or other fabric care solutions for the wash.
Otherwise pay attention to the manufacturer's information.
䡲Do not operate the appliance without or with a damaged door filter. Fire
hazard from fluff build-up!
䡲Take care not to allow fluff to build up around the drier.
Do not use the pivoting operating panel to lift or move the
appliance.

… Safety precautions
8
䡲Make certain that sufficient ventilation is present. Avoid the backflow of
gases from appliances which burn different fuels, including open flame.
䡲Before closing the appliance door and starting a programme, ensure that
there are no foreign objects or pets in the drum.
䡲During the drying process, the back, drum and inside of the appliance door
become hot. Care should be taken to avoid touching these parts.
䡲Never end the drying programme prematurely. A short cooling phase takes
place at the end of the drying programme. Providing you are able to do so,
remove the load quickly and spread it out to enable the heat to evaporate.
䡲The condensate water collected is not suitable for drinking.
䡲During longer periods of non-use, switch off the electricity by pulling out the
mains plug. Never pull the mains plug out by the cable.
Maintenance
䡲Disconnect the appliance from the mains before carrying out maintenance
work.
䡲The door filter must be cleaned each time the appliance is used.
䡲Do not spray the outside or the inside of the appliance with water. Do not
use a steam cleaner.
䡲Do not sit, lean or rest on the appliance door.
䡲Do not climb on to the appliance (danger of tipping).
䡲Use original spare parts only.
Ensure the drum has stopped moving before reaching inside. Do
not touch the drum while it is still in motion – risk of serious injury!

9
Your appliance
Appliance description
«Condenser» tumble dryer
The appliance operates with a closed air circuit. An air-cooled condenser
extracts moisture from the closed air circuit. The condensate water collected
is discharged through a pipe outlet at the rear into the drainage system.
䡲Capacity: from individual items to a 6 kg dry load
䡲6 automatic programmes
䡲3 special programmes
«Timed drying»
«Airing»
«Fluffing»
䡲4 additional functions
«Delayed start»
«Ultra care»
«Gentle»
«Sprint»
䡲Electronically controlled drying for energy-efficient performance
䡲Air-cooled condenser
䡲Crease guard at the end of programme
䡲Display for programme duration and programme duration remaining
䡲Digital display for hints and trouble-shooting
䡲Display for level of dryness
䡲Door filter
䡲Childproof lock
«Vented» tumble dryer
The «vented» model comes with the same features as the «condenser»
model, but without the condenser. In this model, the moisture extracted from
the washing is vented outside the home.

… Your appliance
10
Construction
«Condenser»/«Vented» model
1Operating and display elements
(pivoting operating panel)
2Appliance door
3Door filter
4Cover
5Air grille
6Identification plate/
serial number (FN)
Condensate water outlet
The condensate water outlet is located at the back of the appliance on the
bottom left-hand side.
Air extraction duct
The air extraction duct is located at the back of the appliance at the bottom.
The appliance door can be set to open to the left or to the right. Our
Customer Services can make the necessary adjustments to the
appliance.
The operating panel can be
set in one of three positions. 13
2
56
4

… Your appliance
11
Operating and display elements

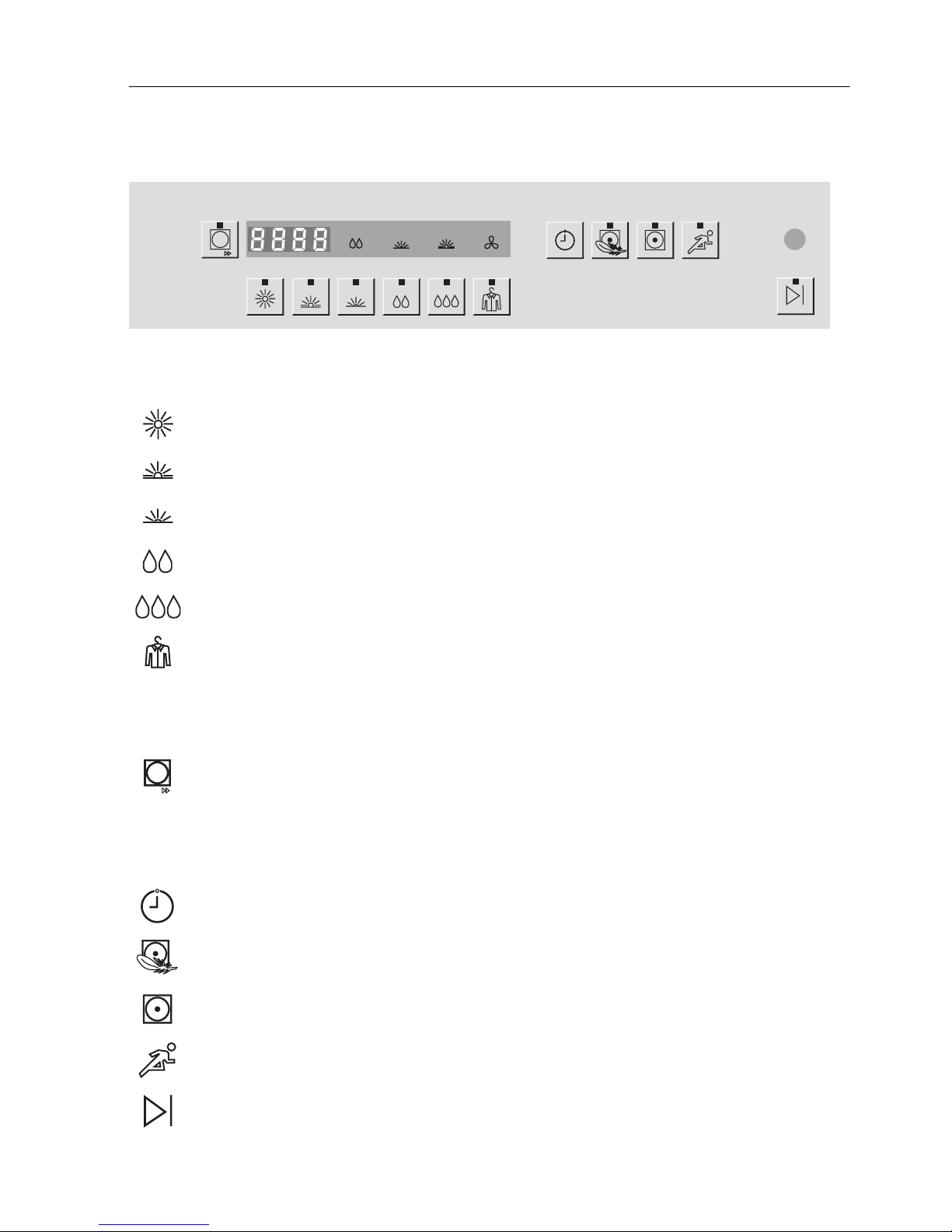

Automatic programmes
Special programmes
Additional functions
Extra dry
Standard dry
Light dry
Damp, ready to iron
Damp
Crease-guard programme
Timed drying/Airing
Delayed start
Ultra care
Gentle
Sprint
End of programme
min
min
min
min

… Your appliance
12
Displays
䡲Digital display for:
Programme duration
Programme duration remaining
Delayed start
Hints and trouble-shooting
䡲Display for level of dryness
䡲Cool down/Airing
Indicator lights
Damp, ready to iron
Light dry
Standard dry
Cool down/Airing
Indicator light flashes
Select programme or function.
Indicator light is illuminated
Programme or function is active.
Indicator light is not illuminated
Programme or function is inactive.

13
Programme overview
The programme duration and energy consumption data are for a 6 kg wash
load spun at around 1000 rpm (corresponding to a residual moisture level of
about 60 %). A higher spinning speed and a smaller load reduce them by
about 20–30 %.
Programme sequence for the automatic programmes
The drying process has 3 phases:
Tumble drying
The washing is tumble dried until it reaches the set level of dryness. The
tumble drying process is monitored by a moisture sensor. As soon as the
required level of dryness is reached, the «Cool down/Airing» phase starts.
Cool down/Airing
The washing is cooled down to a temperature at which creasing is minimized.
This phase lasts between 4 and 10 minutes. The washing can now be
removed from the appliance.
If the washing is not unloaded, the «Crease guard» programme starts.
Crease guard
With the «Crease guard» programme, the dried washing is moved at frequent
intervals to prevent creasing.
«Crease guard» lasts 90 minutes if the «Ultra care» function has been select-
ed, otherwise with all other programmes it lasts 30 minutes. «Crease guard»
can be stopped at any time simply by opening the appliance door.
To select the right drying programme, follow the fabric care symbols
on garment labels, e.g. .

… Programme overview
14
Automatic programmes
Programme/Symbol Use
Extra dry For thick, multi-layered textiles and mixed loads.
Not suitable for knitted or woven articles such as T-shirts and
underwear as they could shrink.
Standard dry For similar items of washing (e.g. terry towelling and underwear).
Light dry For similar, light items of washing.
Damp, ready to iron For items that are to be ironed.
Damp For items that are to be pressed (e.g. table linen).
Crease-guard programme Creases that come from spinning in the washing machine are
reduced (e.g. shirts, blouses).

… Programme overview
15
Programme sequence/Consumption data
Energy saving mode
ADepress the required automatic programme button for 3 seconds.
Capacity Residual moisture Programme duration ¹ Energy
6kg –5%to–2% 1h40
1h55 *
3.35 kWh
3.60 kWh *
6kg –4%to0% 1h30
1h45 *
3.25 kWh
3.50 kWh *
6kg –2%to2% 1h25
1h40 *
3.15 kWh
3.40 kWh *
6kg 8%to16% 1h15
1h30 *
2.40 kWh
2.80 kWh *
6kg 22%to30% 1h05
1h20 *
1.90 kWh
1.95 kWh *
1kg – 0h20
0h20 *
0.50 kWh
0.50 kWh *
Programme/Symbol Programme duration ¹ Energy
3h50
1h44 *
3.00 kWh
3.45 kWh *
3h40
1h34 *
2.90 kWh
3.40 kWh *
3h35
1h29 *
2.80 kWh
3.37 kWh *
3h25
– *
2.15 kWh
– *
3h15
– *
1.70 kWh
– *
* Applies to «condenser» model.
¹For single-phase 230 V, 10 A connections, the programme duration will be
longer.

… Programme overview
16
Special programmes
Programme/Symbol Use
Timed drying For drying textiles off. Also for drying sleeping bags and quilts, and any
individual items of washing.
Airing
For refreshing or airing little-worn garments.
Fluffing programme Raises the pile of and brings the bounce back to woollen textiles, but does
not dry them. Unload woollens as soon as the programme ends to prevent
creasing.
min
min
min
min
10 minutes
+

… Programme overview
17
Programme sequence/Consumption data
Capacity Residual moisture Programme duration Energy
6 kg – 0h10 to 1h30 –
2.5 kg – 0h10 0.02 kWh
1 kg – 0h03 0.05 kWh

… Programme overview
18
Additional functions
Function/Symbol Use Max. load
Delayed start Take advantage of cheap-rate electricity (delayed start period
of between 1 and 24 hours). During shut-off periods, which are
determined by the local electricity supplier, the delayed start
time is extended by the length of time the electricity was shut
off. This is not shown in the display.
–
Ultra care Very gentle programme with a significantly lower drying
temperature.
Particularly suitable for fine textiles.
2.5 kg
Gentle Gentle drying for mixed fabrics, e.g. shirts, pullovers, T-shirts.
The drying temperature and level of dryness are reduced. 2.5 kg
Sprint A higher drying temperature reduces the programme duration.
Use only with tougher fabrics. 6kg

19
User settings
You can change certain appliance settings to suit your own preferences. Set-
tings can be changed irrespective of whether the appliance door is open or
closed, provided no drying programme is running. The procedure is generally
the same for all settings.
Accessing the configuration mode
AHold the button depressed for 5 seconds.
– appears in the digital display.
APress the button repeatedly to see the various settings.
APress the button to change the configuration.
– Any changes are taken over automatically and must not be confirmed.
ATo exit the configuration mode, press the button repeatedly until the
digital display goes dark.

… User settings
20
Childproof lock
The childproof lock is to prevent children accidentally starting or stopping a
programme. When «Childproof lock ON» is activated, a programme can only
be started by pressing two buttons simultaneously.
Switching the childproof lock ON/OFF
AHold the button depressed for 5 seconds.
– appears in the digital display.
APress the button 1×.
– appears in the digital display for childproof lock OFF (factory
setting).
APress the button to change the setting.
– appears in the digital display for childproof lock ON.
ATo exit the configuration mode, press the button repeatedly until the
digital display goes dark.
