V-ZUG GK11TIFKZ User manual

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
1
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in
the order specified.
Validity
These installation instructions apply to the following models:
Model designation Model number Type Frameless,
for surface-mounted
installation
Frameless,
for flush installation
GK11TIFK FullFlex 31062 GK11TIFKZ GK11TIFKZ GK11TIFKZ
GK11TIFK FullFlex 31062 GK11TIFKZS GK11TIFKZS GK11TIFKZS
CookTopInduction V6000 FullFlex
CookTop V6000 I906 FullFlex
31134 CTI6T-31134 CTI6T96FKTFHD CTI6T96FKTFHD
General notes
If installing into a combustible material, the guidelines and standards for low-voltage installations and fire protection
must be strictly observed.
Identification plate
1
1Identification plate with serial number (SN)
▸Affix the second identification plate (supplied) in an accessible position behind the front of the fitted cabinet beneath the appliance.
Installation accessories supplied
Flush installation:
Designation Art. no.
Cementing-in instructions J004133
Sealing strip set H63283
Spacer set H60330
Accessories
Flush installation:
Designation Art. no.
Ventilation protective plate set for niche width 900mm H61085
Steel angle set, installation dimension 90 H63775
Intermediate support kit for the flush-mounted combination of several hobs (contains two intermediate supports) H63789
Instant adhesive for installation of the steel angle (50ml) B11657
Straight mixing nozzle B11656
TREMCLEAN isopropyl alcohol (1000ml) 1056609
Black silicone FA880 (310ml) B11555
Anthracite silicone FA880 (310ml) B11556
White silicone FA880 (310ml) 1031313
Stone grey silicone FA880 (310ml) 1031314
Marble smoothing agent AA320 (1000ml) B11557
Fugenboy (silicone finishing tool) B75158

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
2
Electrical connection
Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards
for low-voltage installations and the specifications of the local electricity supply companies.
Refer to the identification plate for information on the required mains voltage and current type.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Check old installa-
tions.
▸If the hobs are used at an altitude of over 2,000metres,a reduced performance must be expected.
The appliance is equipped with a connection cable which must be connected to an on-site junction box.
Installation pipe Distribution boxClamp
brown
blue
yellow/green
grey
blue
yellow/green
brown
L3
L1
N
N
L1
PE/
PE/
black
L2
400 V 3N~ / 16 A
230 V~ / 48 A
blue
yellow/green
brown
L1
N
PE/
black
L2
400 V 2N~ / 16 A
3106200.../3106203.../3106260.../3106266...
3113400001–3113400003/3113400005
3106261.../3106265.../3106267...
3113400004
E35/U0 error message
Incorrect connection:
Pole conductor connected to connection terminal for neutral conductor.
Quickly disconnect the appliance from the mains!

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
3

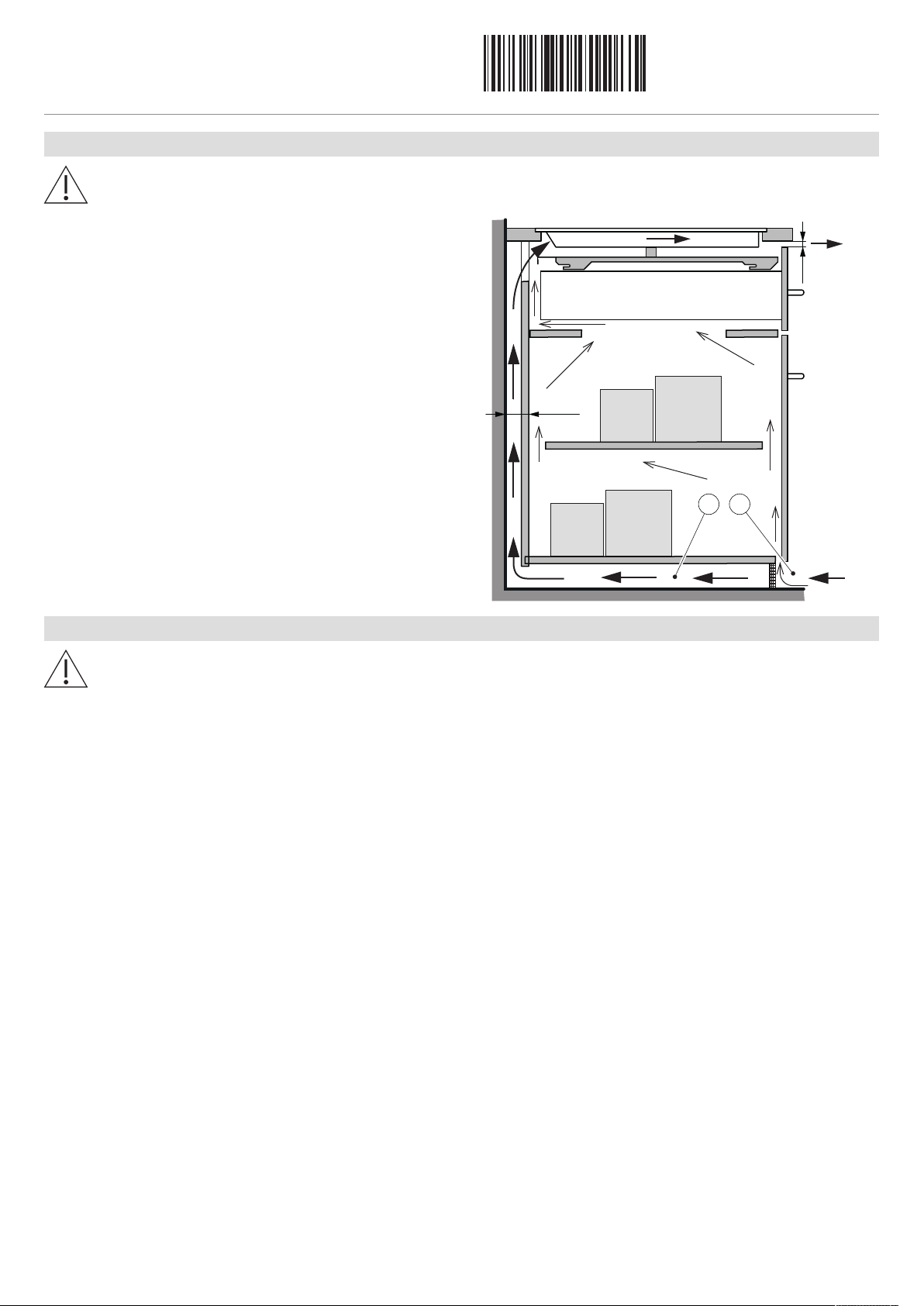

Ventilation
A protective plate with seal must be installed with models 31062 and 31134.
In order to guarantee good ventilation, a space of ≥10mm
height is necessary beneath the appliance.
1. The rear panel of the base unit must be open around the
work surface cut-out to guarantee continuous air circula-
tion through the ventilation slits.
The air must be drawn in from outside the cabinet and be
able to circulate freely from inside the cabinet to the hob.
2. Alternatively, a concealed fresh air supply can ensure air
circulation inside the cabinet.
In order that enough cold air can be drawn in, there must
be a continuous circulation of fresh air that extends outside
the cabinet.
The air must be drawn in from outside the cabinet and be
able to circulate freely from inside the cabinet to the hob.
≥15
21
≥3
General information about installation
The distance from the appliance cut-out to flammable walls (left, right and rear) must be ≥50mm. Parts such as side
walls and reinforcing strips which protrude into the installation space under the cooking zone must be made of non-
combustible materials.
It is recommended that a distance of 20mm be maintained between the underside of the appliance tray and any part
of the cabinet beneath that is made of combustible material. If a drawer is installed directly underneath – and if the
tray can be reached from below without the aid of tools – touch protection must be used. The ventilation protective
plate set (see Accessories) is recommended for this purpose.
▪The worktop must be flat so that it is sufficiently sealed against the ingress of liquids.
▪In order to guarantee good ventilation, a space of at least 10mm in height is necessary beneath the appliance.
▪A cabinet element with a width of 900mm is recommended for the base element.

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
4
Surface-mounted installation with DualDesign
The layout of the hob to be fitted may differ from the hob illustrated!
≥2×881
2×498
Drawer/Cabinet
900
A
886±1
≥50
490±1
≥50
B
825
=
=
≥490
2
501
897
H
Y
Y
Ri
Ra
≥10 *
B
Air inlet
H
Y – Y
Ventilation protective plate
* The required clearance must be observed!
2The front and rear pegs are reinforced underneath. The strut width is determined by the producer of the stone worktop. The
minimum peg width can vary according to the properties of the stone.
Type designation A Depends on producer B H Corner radius Ra/Ri
GK11TIFKZ, GK11TIFKZS
CTI6T96FKTFHD
≥40mm ≥82mm 72mm 5/1.5mm
AWorktop depth
BRequired clearance for service replacement over the entire cut-out area.
HDimension from the top of the work surface to the underside of the hob
Ri Corner radii of appliance Ra Outer corner radii of cut-out
Installation
1. Create an accurate installation cut-out.
2. Stick the sealing tape to the underside of the glass.
3. Carefully put the appliance in the installation cut-out and press against the worktop with sufficient overlap.

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
5
Flush installation with DualDesign
The layout of the hob to be fitted may differ from the hob illustrated!
Drawer/Cabinet
Ventilation protective plate
Side panel
886
490
Ra
R0–5
8.5
0
-1
8.5
0
-0.5
8.5 8.5
+1 0
+1 0
Detail Z
Steel angle bonded
.
501
897
H
900
A
600
903±1
507±1
Y
Y
B
825
=
=
2
Ri
≥50
≥50
≥507
Z
H
Y – Y
B
Air inlet
≥10 *
* The required clearance must be observed!
2The front and rear pegs are reinforced underneath. The strut width is determined by the producer of the stone worktop. The
minimum peg width can vary according to the properties of the stone.
Type designation A Depends on producer B H Corner radius Ra/Ri
GK11TIFKZ, GK11TIFKZS
CTI6T96FKTFHD
≥40mm ≥150mm 76mm 5/1.5mm
AWorktop depth
BRequired clearance for service replacement over the entire cut-out area.
HDimension from the top of the work surface to the underside of the hob
Ri Corner radii of appliance Ra Outer corner radii of cut-out
Installation
1. Create an accurate installation cut-out.
– The mounting surface can be reamed out or created by installing wood/stone supports or using the steel angle set (see Accessor-
ies).
Access to the appliance from below via the entire cut-out area must be guaranteed. For servicing purposes, the induction gen-
erator can be removed from below with the mounting plate. It must be possible to unscrew the contact-proof covers from be-
low.
2. Prepare the cut-out and appliance in accordance with the specifications in the enclosed cementing-in instructions.
3. Carefully cement the appliance in and leave the silicone sealant to dry for at least 24 hours.
4. Connect to the electrical mains connection before inserting the appliance, if necessary.

Installation instructions
Induction hob
GK11TIFKZ | GK11TIFKZS | CTI6T96FKTFHD
1032691-10
22/06/2022
1032691-10
6
Installing with ventilation protective plate with a 3mm ventilation gap at the front
A protective plate with seal is necessary for the adequate ventilation of the hob.
The distance X between the underside of the appliance and the protective plate must be ≥10mm.
393
86
5..10
56
ø4
15
(X) H
3
≤0.5
Caution: Mains cable must
not touch protective plate!
Well-fitting seal over
width of cabinet element
Air gap over entire width
of cabinet element 17 cm²
according to template
Drawer
Type designation X H Remarks
GK11TIFKZ, GK11TIFKZS, CTI6T96FKTFHD 14mm 72mm Surface-mounted installation
GK11TIFKZ, GK11TIFKZS, CTI6T96FKTFHD 10mm 76mm Flush installation
HDimension from the top of the work surface to the underside of the hob (ventilation opening).
