V-ZUG Miwell S Series User manual

Microwave
Miwell S
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
➤Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2010
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Type Model no. Size system
MW-S 942 SMS 55
MW-S/60 943 EURO 60

3
Contents
1 Safety precautions 5
1.1 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.5 Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.6 Note on accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Appliance description 14
2.1 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.2 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.4 Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.5 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.6 Ventilation fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3 Using for the first time 20
3.1 Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 Manual operation 21
4.1 Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3 Combi mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4 CombiCrunch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.5 PerfectDefrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.6 Interrupting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.7 Continuing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.8 Aborting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.9 End of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5 Additional functions 27
5.1 Start protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.2 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.3 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4
6 Tips and tricks 29
6.1 Heating up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3 Simultaneous defrosting and cooking . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4 Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.5 Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.6 Combi mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.7 CombiCrunch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7 Care and maintenance 33
7.1 Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2 Cleaning the appliance door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3 Cleaning the cooking space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.4 Cleaning the accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.5 Replacing a defective light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8 Trouble-shooting 36
8.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9 Accessories and spare parts 39
10 Technical data 40
11 Disposal 41
12 Notes 42
13 Index 45
14 Repair service 47

5
1 Safety precautions
In accordance with the requirements of IEC 60335-1:
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
1.1 Before using for the first time
• The appliance must be installed and connected up to the electricity supply
in accordance with the separate installation instructions. The necessary
work should be done by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.
• Before using the newly installed appliance for the first time, please follow
the tips in the USING FOR THE FIRST TIME section.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please
therefore follow the precautions given in these operating instruc-
tions.
In a serviceable microwave appliance the microwave energy remains
in the appliance and is therefore harmless. Operation is automatically
interrupted on opening the appliance door.

1 Safety precautions
6
1.2 Correct use
• The appliance is designed for use in the home for preparing food. Do not
flambé or prepare food using a lot of fat in the cooking space! No liability
is assumed for any damage caused by improper or incorrect use.
• Never use the appliance for drying animals, fabrics or paper!
• Do not use the appliance as a room heater.
• Any repairs, modifications or manipulations to the appliance, especially to
any electrical parts, may only be carried out by the manufacturer, its
Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the REPAIR SERVICE section. Please contact Customer Services if
necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell the
appliance or pass it on to a third party, please ensure these operating
instructions accompany the appliance, together with the instructions on
installation. In this way, the new owners can inform themselves about how
to use the appliance correctly and read the pertinent safety precautions.
1.3 Children in the home
• Packaging material e.g. plastic and polystyrene can be dangerous for
children. Danger of suffocation! Please keep packaging material away from
children.
• The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
hurt themselves.

1 Safety precautions
7
1.4 Note on use
• If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
• If the appliance is not operating property, disconnect it from the power
supply immediately.
• Ensure the mains cables of other electrical appliances do not get caught
in the door of the appliance, as the electrical cable insulation could get
damaged.
• If the mains cable of the appliance is damaged, it must be replaced by
Customer Services in order to avoid hazard.
• Ensure there are no foreign bodies or pets in the cooking space before
closing the appliance door.
• Objects that could pose a danger if the appliance were accidentally
switched on should not be stored in the cooking space. Do not store food
nor any temperature-sensitive or inflammable materials, e.g. cleaning
agents, oven sprays, etc., in the cooking space.
Caution: Danger of injury!
• Be careful that fingers do not get caught in the door hinges. Otherwise, if
the appliance door is moved, there is a risk of injury. Particular care should
be taken when children are around.
• An open appliance door poses danger of tripping or injury! Do not sit or
rest on the appliance door or use it as a storage surface.

1 Safety precautions
8
Caution: Burns hazard!
• Accessible parts of the appliance can get hot when in use. Keep children
away!
• The appliance, the appliance door and especially the glass get very hot
when in use.
• Steam may escape from the cooking space when the appliance door is
opened. Do not put your hands into the cooking space if there is steam in
it!
• Overheated fat and oil can easily catch fire. Heating oil in the cooking
space to sear meat is dangerous and should not be done. Never try to
extinguish burning oil or fat with water (danger of explosion)! Extinguish the
flames using a fire blanket and keep all doors and windows closed.
• Do not pour spirits (e.g. brandy, whisky, schnapps, etc.) over hot food –
danger of explosion!
• Accessories get hot in the cooking space. Always wear protective gloves
or use oven cloths.
• If you notice smoke possibly coming from a fire in the appliance or inside
the cooking space, keep the appliance door closed and disconnect the
appliance from the mains supply.
• The appliance will remain hot for some time after it is switched off and cool
down only slowly to room temperature. Allow sufficient time for the
appliance to cool down before, for instance, cleaning it.
• Do not leave the appliance unsupervised when drying herbs, bread,
mushrooms, etc. If the foodstuff dries out too much, this can pose a fire
hazard.

1 Safety precautions
9
How to avoid damaging the appliance
• The construction of the appliance may not be changed in any way. Do not
apply force to or interfere with the appliance door or the control and safety
devices. The illumination may only be replaced by our Customer Services.
• Always keep the appliance clean. Clean the appliance door with mild
detergent.
• Take care not to damage the appliance door, the door frame and the door
hinges.
• Do not use abrasive cleaning agents or cleaning aids such as steel wool,
knives, glass scrapers, razor blades, etc. to clean the door glass.
Scratches on the door glass could cause a breakage.
• Close the appliance door carefully.
• When cleaning the appliance make sure no water can get into the inside
of the appliance. Use only a moderately damp cloth. Do not spray the
inside or outside of the appliance with water. Do not use a steam cleaner.
If water gets inside the appliance, it can cause damage.

1 Safety precautions
10
1.5 Microwave
• Microwave energy is safe when used properly. When the appliance door is
opened, microwave operation is automatically interrupted. In the event of a
malfunction or damage to the appliance, especially to the appliance door,
do not use microwave operation. The appliance must be repaired by
qualified personnel.
• Ensure that nothing is trapped between the appliance door and the frame.
• Do not switch the microwave on until you have put the food in the cooking
space.
Heating foods and liquids
• Do not leave your appliance unattended when heating or cooking food in
containers that are made of plastic, paper or other flammable materials.
The containers can melt or ignite.
• Do not heat beverages or food that contain alcohol. Ignition hazard and
danger of explosion!
• When heating liquids, place a teaspoon in the vessel to prevent delayed
boiling (or superboiling). With delayed boiling, boiling point is reached
without the typical steam bubbles forming. Disturbing an open vessel, even
slightly, can cause the liquid to shoot out – risk of scalding!
• Do not use vessels with a narrow spout.
• Stir liquids halfway through heating and when the time is up allow the
vessel to stand in the cooking space for a short time. Stir the contents once
more and then take the vessel out of the cooking space.
• Infant food in jars or bottles must be heated without the lid, top or teat.
Infant food must be stirred or shaken well after being heated. It is imper-
ative to check the temperature of the food before giving it to the infant –
risk of scalding!
• Do not heat food in tightly sealed containers (tins, bottles, sealed foil, paper
or metal disposable packaging). Remove plastic packaging before
cooking or defrosting foods. Sealed containers can explode. Always open
the containers.

1 Safety precautions
11
• The cooking time depends on the quantity, nature and initial temperature
of the food, as well the dishes being used. Always start with the shorter
cooking time given to avoid overcooking the food. Otherwise, smaller
quantities or food with a low moisture content can dry out and possibly
ignite. If the food has not reached the right stage of cooking when the time
is up, then extend the cooking time.
• Prick food with a skin or peel such as potatoes, tomatoes, sausages, shell
food, etc. with a fork. Otherwise, the steam that is produced will be unable
to escape and may cause the food to explode.
• Do not cook eggs in the shell. Do not heat up boiled eggs. Eggs can
explode in the microwave. Crack the eggs open and then whisk them.
Pierce the yolks of fried eggs.

1 Safety precautions
12
1.6 Note on accessories
Turntable roller and glass turntable
• Use the appliance at all times and exclusively with the turntable roller and
the glass turntable supplied. Do not use any other such accessories in your
appliance.
• Allow the glass turntable to cool down first before cleaning it or rinsing it
with water.
• Do not cook food directly on the glass turntable.
• Do not place hot food or containers on the glass turntable when it is cold.
• Do not place frozen food or containers on the glass turntable when it is hot.
CombiCrunch plate
• The CombiCrunch plate may not be used in Microwave or Combi mode
together with the wire rack.
• Never use the CombiCrunch plate as a stand for other dishes or
containers.
Wire rack
• If just using the microwave function, the use of the wire rack is not
recommended.
• In the combi mode, do not place metal objects (aluminium dishes, meat
skewers) directly on the wire rack. Otherwise, arcing can occur which will
damage your appliance.
• Always place the wire rack in the centre of the glass turntable.
The accessories get very hot during use – burns hazard! Always
wear protective gloves or use oven cloths.

1 Safety precautions
13
Dishes
• Use only heat-resistant, microwave-proof dishes, such as glass, ceramic,
porcelain or temperature-resistant plastics. Microwaves can penetrate
these materials. Microwaves cannot or can only partially penetrate metal
dishes; food in this instance will remain cold.
• Only use dishes with a metal decor, e.g. a gold rim, or aluminium
containers if the manufacturer guarantees their microwave compatibility.
This also applies to products made from recycled paper.
• Ensure dishes do not touch the sides of the cooking space as they rotate.
• Do not use a meat thermometer. In the microwave mode, a meat
thermometer can, due to its construction, cause arcing, which will damage
your appliance!
• Porcelain, ceramic and earthenware dishes with cavities – which can fill
with water – can crack. Follow the manufacturers’ instructions!

14
2 Appliance description

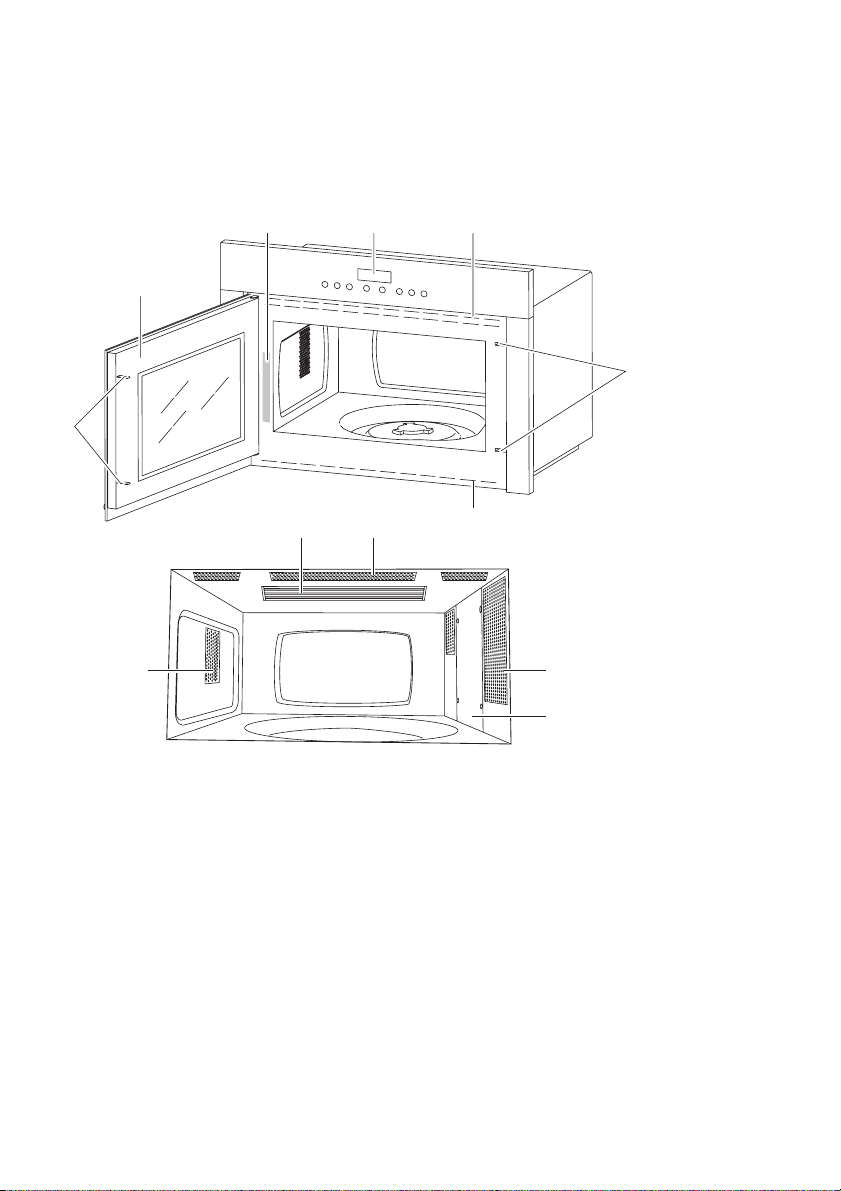

2.1 Construction
1Operating and display elements
2Appliance door
3Safety lock
4Ventilation openings
5Illumination
6Microwave inlet
7Grill
8Identification plate
148
3
3
2
6
45
74 4

2 Appliance description
15

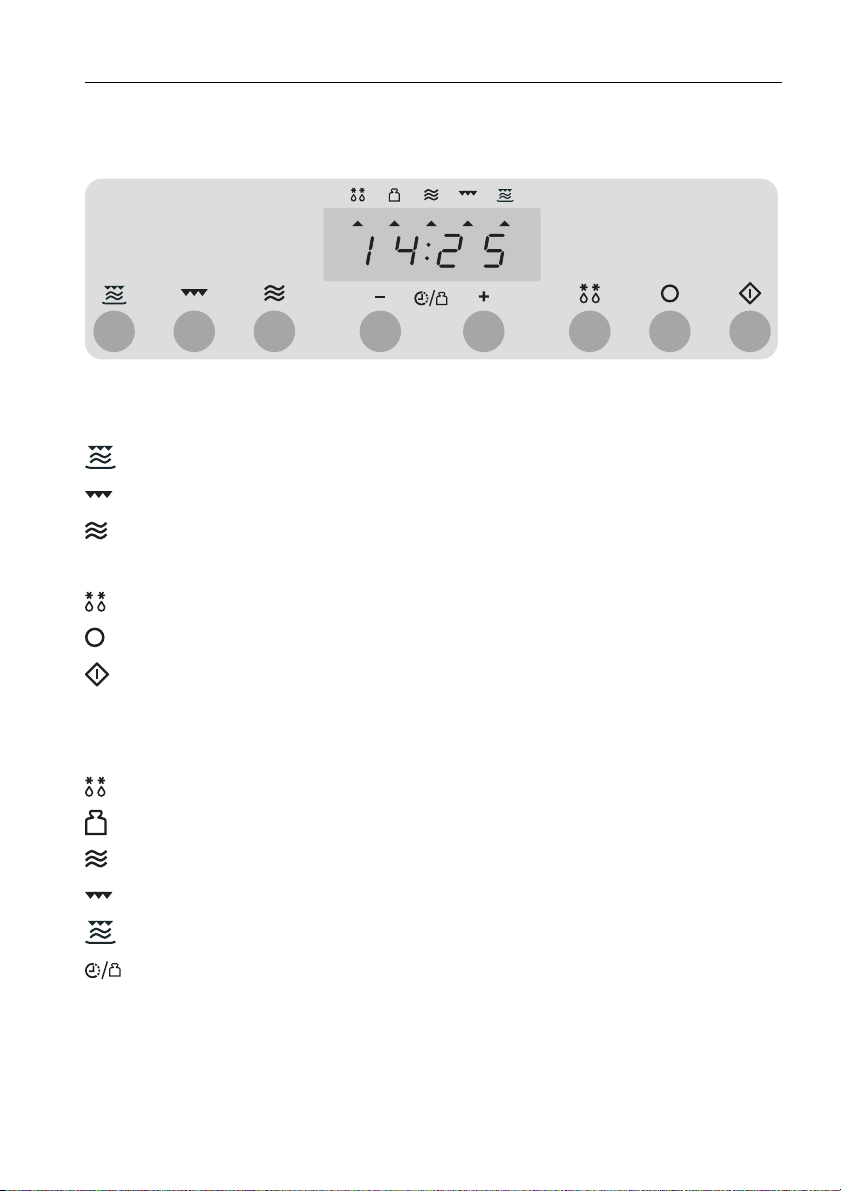

2.2 Operating and display elements
Buttons
Symbols
CombiCrunch
Grill
Microwave
–/+Change duration/weight/time
PerfectDefrost
Stop
Start
PerfectDefrost
Weight
Microwave
Grill
CombiCrunch
Change duration/weight/time

2 Appliance description
16
2.3 Accessories

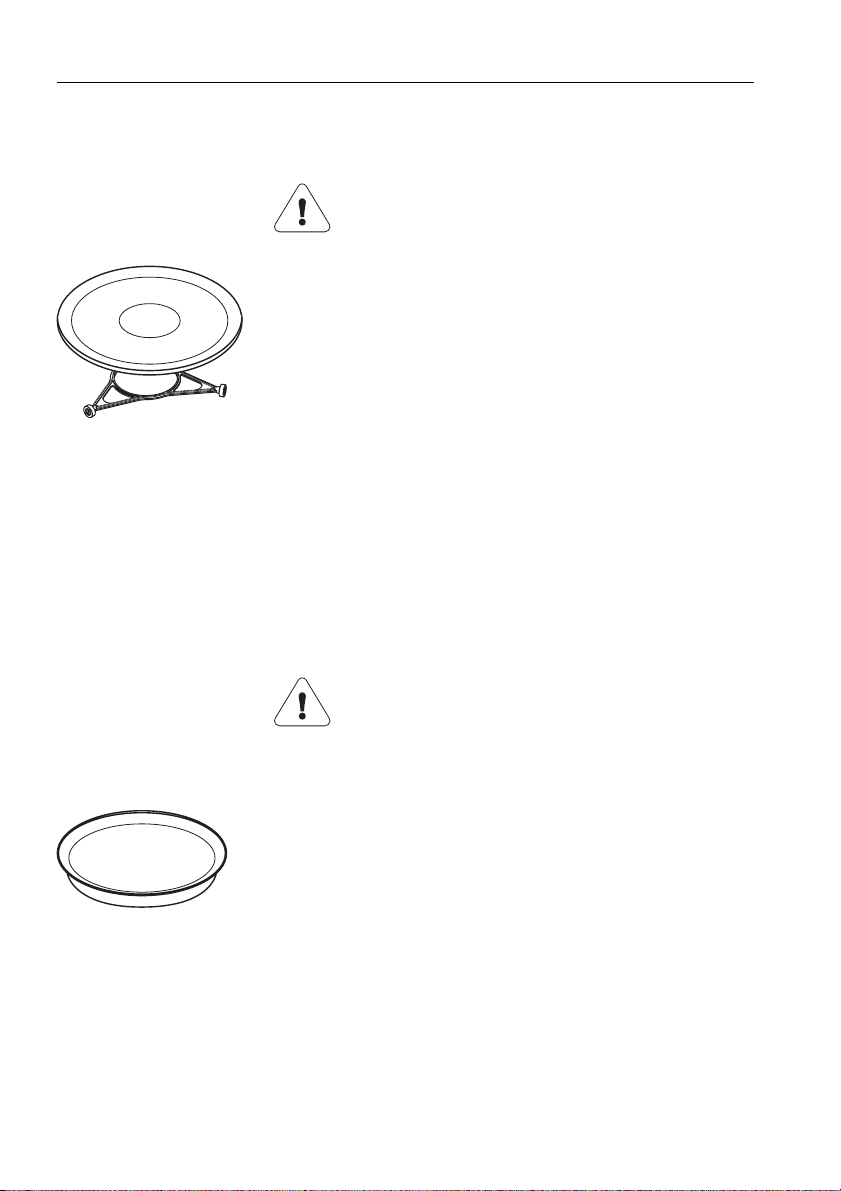

Turntable roller and glass turntable
Do not place any object other than the
glass turntable directly on the turntable
roller.
➤Place the turntable roller in the fitting in the floor of
the cooking space.
➤Position the glass turntable on the turntable roller
so that the pegs on the base of the glass turntable
engage in the corresponding recesses of the
turntable drive in the floor of the cooking space.
The glass turntable can turn clockwise or anti-
clockwise.
➤The glass turntable must be used with all operating
modes. It collects meat juices and food particles,
preventing unnecessary soiling of the cooking
space floor.
CombiCrunch plate
The CombiCrunch plate gets very hot
during use – risk of burns!
Using knives or cutting wheels on the
CombiCrunch plate will visibly damage the
surface.
• Use the CombiCrunch plate to achieve crisp
browning of the food.
➤Place the food directly on the CombiCrunch plate.
➤Always use the glass turntable underneath the
CombiCrunch plate.

2 Appliance description
17

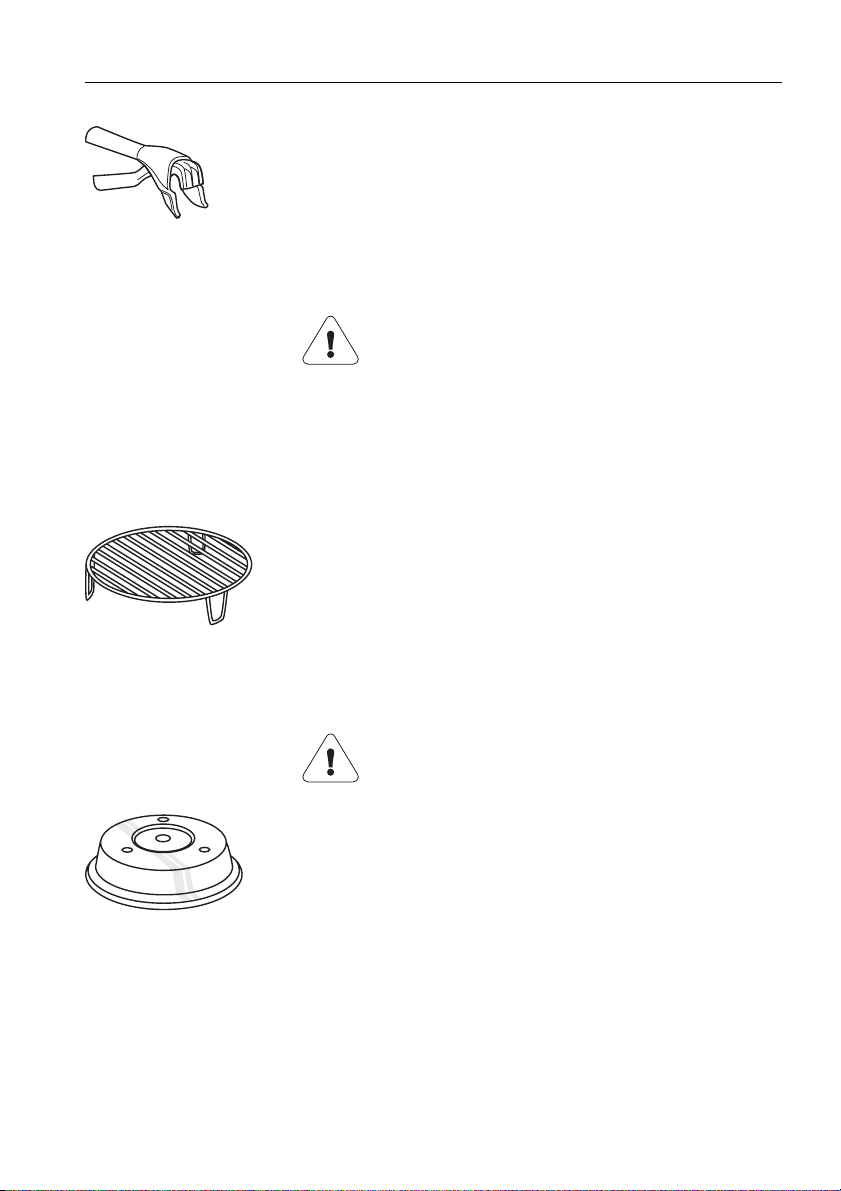

CombiCrunch grip
➤Use the CombiCrunch grip for taking the Combi-
Crunch plate out of the cooking space.
Wire rack
The wire rack gets very hot during use –
risk of burns!
Do not put metal dishes on the wire
rack when using the microwave and/or
combi modes. Otherwise, arcing can occur
which will damage your appliance.
Otherwise arcing can occur which can
damage your appliance.
➤Always use the glass turntable underneath.
➤When using the grill mode, place the food directly
on the wire rack and do not cover!
Food cover
Do not use the food cover with the grill,
CombiCrunch or combi modes as it will
melt!
• Use the food cover to prevent the food from drying
out and the cooking space from becoming soiled.
It is suitable for reheating food on 1 or 2 levels.
Using the food cover shortens the cooking time.
➤Place a plate on the glass turntable and cover with
the food cover.
➤Place a second plate on the food cover and cover
it with a second food cover.

2 Appliance description
18
2.4 Acoustic signal
An acoustic signal is emitted 3× at the end of the cooking process. The signal
is then repeated every minute for 10 minutes.
2.5 Operating modes
Select from the following operating modes:
Microwave Suitable for
750 W • Quickly reheating beverages, water, clear soups,
stews, coffee, tea or other food with a high water
content.
• Cooking vegetables, heating up meals
If the food contains egg or cream select a lower
power level.
500 W • Heating up milk
• Defrosting and cooking frozen food dishes
• Finishing cooking food
350 W • Cooking delicate foods
• Melting chocolate
•Cookingstews
160 W • Swelling rice and simmering stews
• Defrosting delicate foods
• Defrosting butter and cheese
Grill Suitable for
700 W • Quickly crisping and browning
Combi mode Suitable for
700 W grill
500 W microwave
(adjustable)
• Preparing gratinated dishes such as gratins, lasagne,
poultry and jacket potatoes
CombiCrunch Suitable for
700 W grill
750 W microwave
• Heating up and baking pizza and pasta
• Grilling eggs with bacon, hamburgers, sausages, etc.

2 Appliance description
19
2.6 Ventilation fan
The fan switches on automatically during operation. The fan can continue to
run at the end of operation to cool the electronic components. During this
time, the appliance door can be opened and the food removed. The fan
switches off automatically.
2.7 Installation
The appliance may only be operated with the appropriate approved instal-
lation kit. Alternative ways of setting up or installing the appliance are not
permitted.
A special installation kit is provided for installing the appliance.
The appliance can be operated at an ambient temperature of +5 °C to
+35 °C.
Adequate air circulation is essential for the trouble-free operation of the
appliance. Observe, therefore, the installation instructions and follow the
detailed installation specifications.
Do not obstruct the ventilation openings at any time.

20
3 Using for the first time
The time must be set when using the appliance for the first time or after a
power failure.

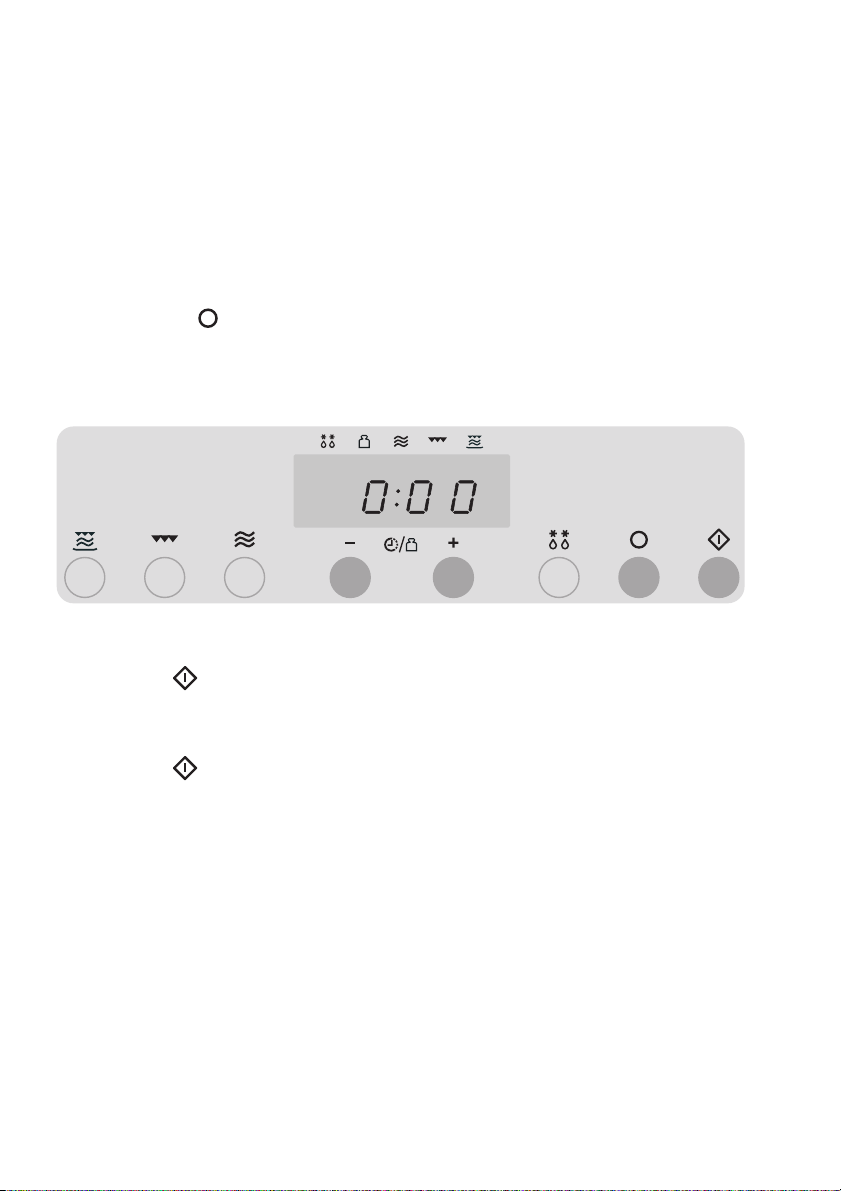

3.1 Setting the time
➤Depress the button for about 3 seconds.
– An acoustic signal is emitted.
– The hour digits flash.
➤Set the hour using the +and –buttons.
➤Press the button.
– The minute digits flash.
➤Set the minutes using the +and –buttons.
➤Press the button to confirm.
– The time is now set and the appliance is ready for use.
