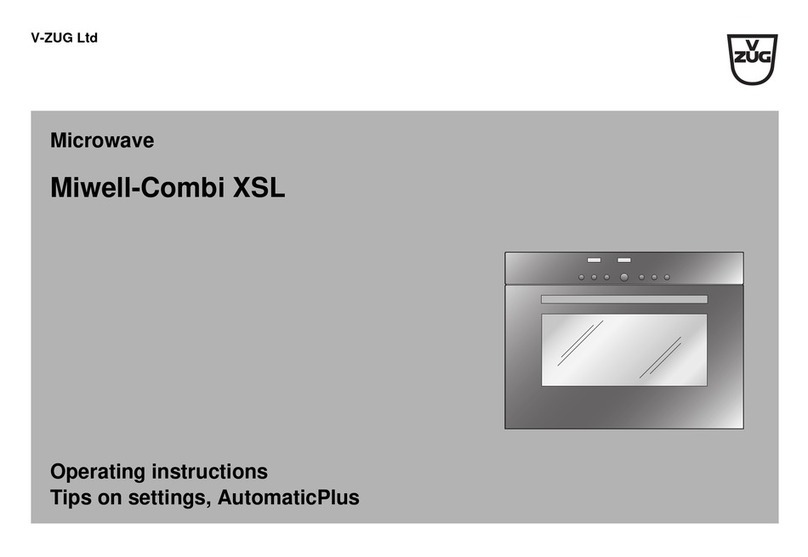

V-ZUG MWCXSL60g User manual

Operating instructions

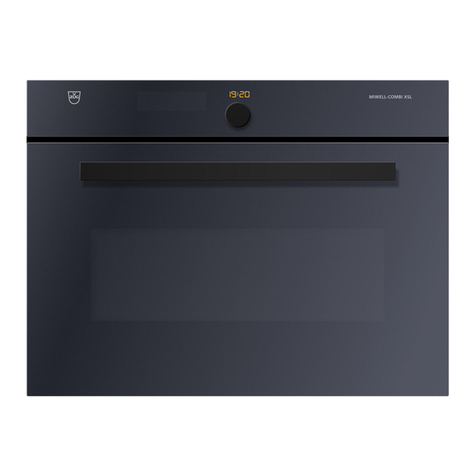

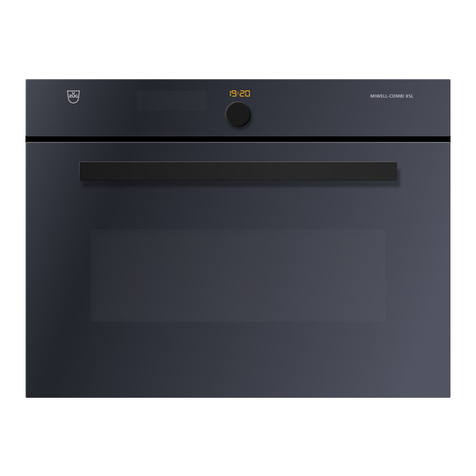

Miwell-Combi XSL
Microwave

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family Size system
MWCXSL 24009 60-450
Variations depending on the model are noted in the text.
Colour operating instructions can be downloaded from the internet from
www.vzug.com.
© V-ZUG Ltd, CH-6301 Zug, 2015
2

Table of contents
1 Safety precautions 5
1.1 Symbols used ........................................................................................................ 5
1.2 General safety precautions ................................................................................. 6
1.3 Appliance-specific safety precautions ............................................................. 7
1.4 Instructions for use ............................................................................................... 8
1.5 Accessories..........................................................................................................11
2 Disposal 13
3 Using for the first time 14
4 Appliance description 15
4.1 Construction.........................................................................................................15
4.2 Operating and display elements ......................................................................15
4.3 Cooking space ....................................................................................................16
4.4 Accessories..........................................................................................................17
4.5 Ventilation fan ......................................................................................................19
4.6 Installation.............................................................................................................19
5 Operating modes 20
5.1 Overview of operating modes ..........................................................................20
5.2 Favourite ...............................................................................................................20
5.3 Microwave ............................................................................................................21
5.4 CombiCrunch.......................................................................................................23
5.5 Hot air....................................................................................................................24
5.6 Hot air combi mode............................................................................................24
5.7 Fast heating .........................................................................................................25
5.8 Grill.........................................................................................................................25
5.9 Grill combi mode ................................................................................................26
5.10 Grill-forced convection .......................................................................................27
5.11 Grill-forced convection combi mode ...............................................................28
6 Operating the appliance 29
6.1 Selecting and starting the operating mode ...................................................30
6.2 Changing the microwave power level/temperature .....................................31
6.3 Changing the operating mode .........................................................................31
6.4 Changing the duration .......................................................................................32
6.5 Timer......................................................................................................................32
6.6 Interrupting ...........................................................................................................33
6.7 Continuing ............................................................................................................33
3

6.8 Aborting the operation .......................................................................................34
6.9 End of operation..................................................................................................34
6.10 Switching the appliance off...............................................................................36
7 AutomaticPlus 37
7.1 Overview ...............................................................................................................37
7.2 Selecting and starting automatic programme ...............................................41
8 Tips and tricks 42
8.1 Unsatisfactory cooking result... ........................................................................42
8.2 Saving energy......................................................................................................43
9 User settings 44
9.1 Selecting user settings.......................................................................................44
9.2 Adjusting user settings ......................................................................................44
9.3 Language..............................................................................................................44
9.4 Childproof lock ....................................................................................................45
9.5 Clock functions....................................................................................................45
9.6 Illumination ...........................................................................................................46
9.7 Acoustic signal ....................................................................................................46
9.8 Temperature unit .................................................................................................47
9.9 Time format ..........................................................................................................47
9.10 Contrast ................................................................................................................47
9.11 Factory settings ...................................................................................................47
10 Care and maintenance 48
10.1 Cleaning the exterior ..........................................................................................48
10.2 Cleaning the appliance door ............................................................................48
10.3 Cleaning the door seal.......................................................................................49
10.4 Cleaning the cooking space.............................................................................49
10.5 Cleaning the accessories..................................................................................50
10.6 Replacing the halogen light bulb.....................................................................50
11 Trouble-shooting 51
11.1 What to do if ... ....................................................................................................51
11.2 After a power failure ...........................................................................................52
12 Accessories and spare parts 53
13 Technical data 55
13.1 Temperature measurement...............................................................................55
13.2 Automatic energy-saving stand-by...................................................................55
14 Index 56
15 Service & Support 59
4

1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in damage
to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts to the steps taken.
▪Indicates a list.
5

1 Safety precautions
1.2 General safety precautions
▪Read the operating instructions before using the appliance for
the first time!
▪This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental cap-
abilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without su-
pervision.
▪If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a sim-
ilarly qualified person in order to avoid hazard.
6

1 Safety precautions
1.3 Appliance-specific safety precautions
▪READ THE IMPORTANT SAFETY INSTRUCTIONS CARE-
FULLY AND RETAIN FOR FUTURE USE.
▪WARNING: In the event that the door, door seals or interior
are damaged, the appliance must not be used until it has
been repaired by a qualified competent person.
▪WARNING: Maintenance or repair work which involves remov-
ing a cover that gives protection against exposure to mi-
crowave energy must only be carried out by a qualified com-
petent person.
▪WARNING: Never heat food or liquids in sealed containers
such as cans or bottles, as they are liable to explode due to
overpressure. Always open food containers before placing
them in the cooking space.
▪WARNING: Children should only use the appliance in the
combined operating mode under adult supervision due to the
temperatures generated.
▪This appliance is intended for use in the home or in similar
environments such as staff kitchens in shops, offices and
other commercial spaces; on agricultural premises; for cus-
tomers in hotels, motels and other residential facilities; or in
bed and breakfasts.
▪The appliance is intended for heating up food and beverages.
Desiccating food, drying clothing or heating warming pads,
slippers, sponges, damp cloths and the like can result in in-
jury, ignition or fire.
▪If you notice smoke, switch off the appliance or disconnect it
from the mains. Keep the door closed to stifle any flames.
▪Only use containers that are suitable for use with microwave
appliances.
7

1 Safety precautions
▪Heating beverages in a microwave can result in delayed
eruptive boiling (super boiling). Scalding hazard! Be careful
when you handle the container!
▪The contents of feeding bottles and baby food jars must be
stirred or shaken and the temperature must to be checked
before consumption in order to avoid burns and scalds.
▪Eggs in their shell or whole hard-boiled eggs should not be
heated in microwave appliances since they may explode,
even after microwave heating has ended.
▪Keep the appliance and the door seals clean. Remove any
soiling as soon as possible. Otherwise the appliance or the
door seal could become damaged, adversely affecting the life
of the appliance and possibly resulting in a hazardous situ-
ation. For more information on cleaning the door seals, the
cooking space and the adjoining parts, see the «Care and
maintenance» section.
▪Do not use aggressive or abrasive cleaning agents or sharp
metal scrapers to clean the glass in the appliance door, as
they could scratch the surface. This could destroy the glass.
▪Never use a steam cleaner for cleaning the appliance.
1.4 Instructions for use
Before using for the first time
▪The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
Correct use
▪The appliance is designed for use in the home for preparing food. Under no
circumstances flambé or cook food using a lot of fat in the cooking space!
No liability is assumed for any damage caused by improper use or incorrect
handling.
▪Never use the appliance to dry animals, textiles or paper, etc.
▪Do not use the appliance as a room heater.
▪The appliance should only be installed and operated at an ambient temper-
ature of 5 °C to 35 °C.
8

1 Safety precautions
▪Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
«Service & Support» section. Please contact our Customer Services if ne-
cessary.
▪Use original spare parts only.
▪Retain these operating instructions for future reference.
▪The appliance corresponds to recognized technology standards and the rel-
evant safety regulations. Proper use of the appliance is essential to avoid
damage and accidents. Please therefore follow the precautions given in
these operating instructions.
Note on use
▪Use the childproof locking facility.
▪If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪If the appliance is not operating properly, disconnect it from the power sup-
ply immediately.
▪Ensure there are no foreign bodies or pets in the cooking space before
closing the appliance door.
▪Objects that could pose a danger if the appliance were accidentally
switched on should not be stored in the cooking space or the heatable ap-
pliance drawer. Do not store food or any temperature-sensitive or inflam-
mable materials, e.g. cleaning agents, oven sprays, etc., in the cooking
space or the heatable appliance drawer.
▪For appliances with grill: Leave the appliance door closed when grilling. The
heat could otherwise damage the operating and display elements or the fit-
ted units above.
▪Do not switch the microwave on until you have put the food in the cooking
space.
▪Remove any non-microwaveable plastic and paper packaging from the food
before cooking or defrosting it. Ignition hazard!
▪Do not leave the appliance unattended when heating food in plastic or pa-
per containers. Ignition hazard!
▪Always open sealed food containers before placing them in the cooking
space. Danger of explosion due to excess pressure!
9

1 Safety precautions
Caution: Risk of burns!
▪The appliance gets very hot when in use. The appliance door also gets hot.
▪Steam and/or hot air may escape from the cooking space when the appli-
ance door is opened.
▪The appliance will remain hot for some time after it is switched off and will
only cool down slowly to room temperature. Allow sufficient time for the ap-
pliance to cool down before, for instance, cleaning it.
▪Overheated fat and oil can easily catch fire. Heating oil in the cooking
space to sear meat is dangerous and should not be done. Never attempt to
extinguish burning oil or fat with water. Danger of explosion! Smother the
flames with a fire blanket. Keep doors and windows closed.
▪Do not pour spirits (brandy, whisky, schnapps, etc.) over hot food. Danger
of explosion!
▪Do not leave the appliance unattended when drying herbs, bread, mush-
rooms, etc. If the foodstuff dries out too much, it can pose a fire hazard.
▪If you notice smoke possibly coming from the appliance itself or from inside
the cooking space, keep the appliance door closed. Disconnect the appli-
ance from the power supply.
▪Accessories get hot in the cooking space. Use protective gloves or oven
cloths.
▪Do not heat up alcoholic beverages!
▪When heating liquids in a microwave, place a teaspoon in the vessel to pre-
vent delayed boiling. When delayed boiling occurs, the boiling temperature
is reached without the usual steam bubbles rising. Disturbing a vessel, even
slightly, can cause the liquid to erupt if the container is open. Do not use
vessels with a narrow lip.
Caution: Risk of injury!
▪Be careful not to put fingers in the door hinges, there is otherwise a risk of
injury if the appliance door is moved. Particular care should be taken when
children are around.
▪Only leave the appliance door open in the at-rest position. An open appli-
ance door poses a danger of tripping or injury! Do not sit or rest on the ap-
pliance door or use it as a storage surface.
▪For hobs: A hob guard can be fitted to protect small children. Hob guards
are available from specialist retailers.
10

1 Safety precautions
Caution: Risk to life!
▪Danger of suffocation! Keep packaging material, e.g. plastic film and poly-
styrene, away from children. Packaging material can be dangerous for chil-
dren.
How to avoid damaging the appliance
▪Close the appliance door carefully.
▪For appliances with visible bottom heating element: Do not place any ob-
jects directly on the bottom heating element.
▪Do not use protective aluminium inserts with appliances with no visible bot-
tom heating element.
▪Do not use objects that can rust in the cooking space.
▪Using knives or cutting wheels on the baking tray will visibly damage the
surface.
▪To prevent corrosion, leave the appliance door open in the at-rest position
until the cooking space has cooled down.
▪When cleaning the appliance, make sure no water gets inside it. Use a
moderately damp cloth. Do not spray the outside or the inside of the appli-
ance with water. If water gets inside the appliance, it will cause damage.
▪The construction of the appliance may not be changed in any way. Do not
apply force to or interfere with the appliance door or the control and safety
devices. The illumination may only be replaced by our Customer Services.
▪Take care not to damage the appliance door, the door frame and the door
hinges.
▪Ensure that nothing is trapped between the appliance door and the frame.
▪Do not switch the microwave on until you have put the food in the cooking
space.
1.5 Accessories
Risk of burns! The accessories get very hot during use. Use protective
gloves or oven cloths.
Turntable roller and glass turntable
▪Use the appliance at all times and exclusively with the turntable roller and
the glass turntable supplied.
▪Never place any other vessel than the glass turntable directly on the
turntable roller.
▪Allow the glass turntable to cool down first before cleaning it or rinsing it
with water.
11

1 Safety precautions
▪Do not cook food directly on the glass turntable.
▪Do not place hot food or containers on the glass turntable when it is cold.
▪Do not place frozen food or containers on the glass turntable when it is hot.
CombiCrunch plate
▪Only use the CombiCrunch plate in the CombiCrunch and hot air modes.
▪Never use the CombiCrunch plate in the CombiCrunch mode together with
the wire rack.
▪Never use the CombiCrunch plate as a stand for dishes or containers.
Wire rack
▪Always place the wire rack in the centre of the glass turntable.
▪Never lay metal dishes on the wire rack in combi mode. This could cause
sparks which could damage the appliance.
▪Never use the wire rack for favourite, microwave or CombiCrunch operation.
This could cause sparks which could damage the appliance.
Food cover
▪Only use the food cover for microwave operation as well as for automatic
reheating. Otherwise, the food cover could melt.
Baking tray
▪Only use the baking tray in the hot air mode. Otherwise, arcing may occur
which could damage the appliance.
Cookware
▪Ensure the cookware does not touch the sides of the cooking space as it
rotates.
▪Use only heat-resistant, microwave-safe cookware, such as glass, ceramic,
porcelain, or heat-resistant plastics. Microwaves can penetrate these materi-
als. Microwaves cannot or can only partially penetrate metal cookware; food
in this instance will remain cold. If you use metal cookware, arcing may oc-
cur which could damage the appliance.
▪Only use cookware with a metal decor, e.g. a gold rim, or food in aluminium
containers if the manufacturer guarantees their microwave compatibility.
This also applies to products made from recycled paper.
▪Do not use a meat thermometer. The features of meat thermometers can
cause arcing in the microwave mode, which will damage your appliance.
▪Porcelain, ceramic and earthenware cookware may have cavities. These
can fill with water, causing the dishware to crack. Follow the manufacturers'
instructions.
12

2 Disposal
Packaging
▪All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
13

3 Using for the first time
Before operating the newly installed appliance for the first time, the following
steps should be taken:
▸ Remove the packaging and transportation material as well as any blue pro-
tective film from the cooking space.
▸ Set the time (see page 45).
▸ Switch on the childproof lock if necessary.
▸ Clean the cooking space and accessories with a mild cleaning agent and
water, and wipe dry with a soft cloth.
14

4 Appliance description
4.1 Construction
1
3
4
2
1Operating and display elements
2Ventilation opening
3Door handle
4Appliance door
4.2 Operating and display elements
00:00
1 32 4
1Display 3Touch buttons
2Adjusting knob 4Digital display (time/timer)
Touch buttons
Operating modes
AutomaticPlus
Automatic reheating
Temperature/microwave power level
setting
Timer
Start
Back
Time
Switch off
15

4 Appliance description
4.3 Cooking space
7
8
1
2
3
4
6
10
8
5
11
9
7
1Appliance door 7Locking mechanism for
appliance door
2Door seal 8Microwave inlet
3Level for baking tray 9Illumination
4Grill 10 Hot air fan
5Moisture sensor 11 Glass turntable
6Ventilation slots
16

4 Appliance description
4.4 Accessories
Turntable roller and glass turntable
Always use the turntable roller and the glass turntable, also in com-
bination with the other accessories.
▸ Place the turntable roller in the fitting in the floor of the
cooking space.
▸ Position the glass turntable on the turntable roller so
that the pegs on the base of the glass turntable en-
gage in the corresponding recesses of the turntable
drive in the floor of the cooking space. The glass
turntable can turn clockwise and anti-clockwise.
▸ The glass turntable must be used with all operating
modes, including when using accessories. It collects
meat juices and food particles, preventing soiling of
the cooking space floor.
CombiCrunch plate
Do not use the CombiCrunch plate in microwave or grill mode.
Do not use knives or cutting wheels on the CombiCrunch plate. This
will cause visible damage.
▪Browns and crisps up the food.
▸ Arrange the food directly on the CombiCrunch plate.
CombiCrunch grip
▸ Use the CombiCrunch grip for taking the CombiCrunch-
plate out of the cooking space.
17

4 Appliance description
High/Low wire rack
Never place metal dishes on the wire shelf in the combi mode. This
could cause sparks which could damage the appliance.
▸ In the grill mode, place the food directly on the wire
rack and do not cover.
Food cover
Only use the food cover for microwave operation and for «Auto-
matic reheating». Otherwise, the food cover could melt.
▪Prevents the food from drying out.
▪Prevents the cooking space from becoming soiled.
▪Shortens the cooking time.
▪For reheating food on more than one level:
▸ Place a plate on the glass turntable and cover with the
food cover.
▸ Place a second plate on the food cover and cover it
with a second food cover.
Baking tray
Only use the baking tray in the hot air mode. The baking tray must not
be used in the microwave or combi modes.
Do not cut using knives or cutting wheels on the baking tray. This will
cause visible damage.
▪Baking tin especially for savouries and biscuits
▪If not fully covered, its shape can become distorted
during baking. This is normal. It will go back to its
original form as it cools down.
1
▸ Ensure that the «sloped» side 1 of the baking tray
points in the direction of the appliance door. This
increases safety when removing the tray.
▸ Only use the normal way round – not upside down.
18

4 Appliance description
4.5 Ventilation fan
The fan switches on automatically during operation. The fan can continue to
run at the end of operation to cool down the electronic components.
During this time, the appliance door can be opened and the food removed.
The fan switches off automatically.
4.6 Installation
Do not obstruct the ventilation slots at any time.
Adequate air circulation is essential for the appliance to run smoothly.
Observe, therefore, the installation instructions and follow the detailed
installation specifications.
The appliance may only be operated with the appropriate approved installation
kit. Alternative ways of setting up or installing the appliance are not permitted.
A special mounting rail is provided for installing the appliance.
The appliance can be operated at an ambient temperature of +10°C to
+35°C.
19

5 Operating modes
Always use the turntable roller and the glass turntable, also in com-
bination with the other accessories.
5.1 Overview of operating modes
All the operating modes and fast heating are described below.
Follow the advice under «Tips and tricks» (see page 42) and in the
separate «Tips on settings».
5.2 Favourite
If you use a specific operating mode, microwave power level and duration fre-
quently, e.g. to heat up milk, you can save these settings as a favourite.
Setting favourites
▸ Press the sensor button.
▸ Select the desired operating mode.
▸ Make the settings and confirm.
–The operating mode summary appears in the display.
▸ Press and hold the adjusting knob down for 2 seconds.
–The settings are saved.
▸ Press the sensor button.
–The operation starts.
Starting favourites
▸ Press the sensor button.
▸ Select .
–The operating mode summary appears in the display.
▸ Press the sensor button.
–The operation starts.
20
