USER MANUAL
Vacuum Robot myVacBot B100

CONTENTS
01 SAFETY PRECAUTIONS ..........................................................................................
02 SAFETY INSTRUCTION ...........................................................................................
03 CAUTIONS ..............................................................................................................
04 SPECIAL FEATURE ..................................................................................................
05 PARTS ......................................................................................................................
06 ASSEMBLY ..............................................................................................................
07 MAIN UNIT FEATURES ...........................................................................................
08 REMOTE CONTROL FUNCTION ...........................................................................
09 BATTERY INSTALLATION .......................................................................................
10 BATTERY REMOVAL ...............................................................................................
11 SONIC WALL SETUP ...............................................................................................
12 DOCK ......................................................................................................................
13 DOCKING TEST ......................................................................................................
14 BATTERY CHARGING METHODS ..........................................................................
15 SCHEDULER OPERATIONS ....................................................................................
16 INSTALLING ACCESSORIES ...................................................................................
17 GENERAL OPERATION ..........................................................................................
18 CLEANING & MAINTENANCE ...............................................................................
19 SETTING ID WITH MAIN UNIT ...............................................................................
20 USEFUL TIPS ...........................................................................................................
21 PRODUCT SPECIFICATION ....................................................................................
4
4
4
5
6
6
7
9
10
10
11
12
12
12
13
15
16
17
19
21
23

4
Before using this product, please read the following instructions and keep this operation manual for future
reference. Please follow all normal safety precautions to avoid the occurrence of situations such as re,
short-circuit, and injury. Please make sure that you observe all the following safety precautions.
1. Read this user manual thoroughly before using this product.
2. This product is not for use outdoors.
3. This product is an electronic device. Never get it wet or let it come in contact with water. Do not use it
in a moist or wet environment.
4. Before using this product, please tidy up things on the oor. You must remove all objects that could get
caught in the rolling brush or in the air intake on the bottom of the unit. Examples include, clothing,
power cords, cable, telephone cords, drapes of blinds, loos fringes of rugs. These items can get caught
in the unit, and either prevents it from mowing, or the unit could pull over a lamp, table, or chair (for
examples) and cause damage to the unit, oor, object, or person.
5. Please do not sit or stand on this product. Pay special attention to toddlers or pets in the house to
prevent harm to the unit or the child, pet or the unit.
6. Please do not use this product to clean a still-burning cigarette, a lit match.
7. Please do not use this product to clean ammable or highly volatile liquids such as gasoline or white
gasoline.
8. To prevent damage to the vacuum, make sure that nothing is obstructing the air vents on the top of the
unit.
9. When the robot wasn‘t in use for a long period, please charge the battery for at least 12 to 24 hours.
10. Use the factory-provided batteries and charger. If battery was over lifespan, please renew same type
and rating of battery. Please ask your distributors.
11. When you hands are moist, do not touch the battery charger, plug or power cord.
12. When you need to clean this product, stop charging, and remove the battery.
Do not touch the UV light bulb with bare hands or sharp articles. Natural skin oils will cause
premature failure. Do not attempt to remove or replace the UV light. This light is a permanent
xture and is not user-replaceable.
01 SAFETY PRECAUTIONS
02 SAFETY INSTRUCTION
03 CAUTIONS
Do not look directly at the UV light.

5
1. This product is a revolutionary vacuum robot. It utilizes:
• 2 Rolling brushes by triangle allocation
• 2 Side brushes
• 2 storey dust bin unique design
• 2 option clean method - Non-collided and Soft-touched
• 6 drop sensors to keep unit from falling off. High and silence vacuum suction
• Sonic-Wall - Virtual blocking unit
• Auto self-charging base - Smart and efciency . Ultraviolet light to disinfect air from air outlet
• Spot spiral movement - Used remoter Mode 1, from inside to outside cycling
• All cleaning parts could renew from unit outside and by yourself
• Cleaning a wide variety of oor types
• Optimum dimension 33 x 8cm / 13 x 3.1 inch - Enables cleaning under beds, furniture

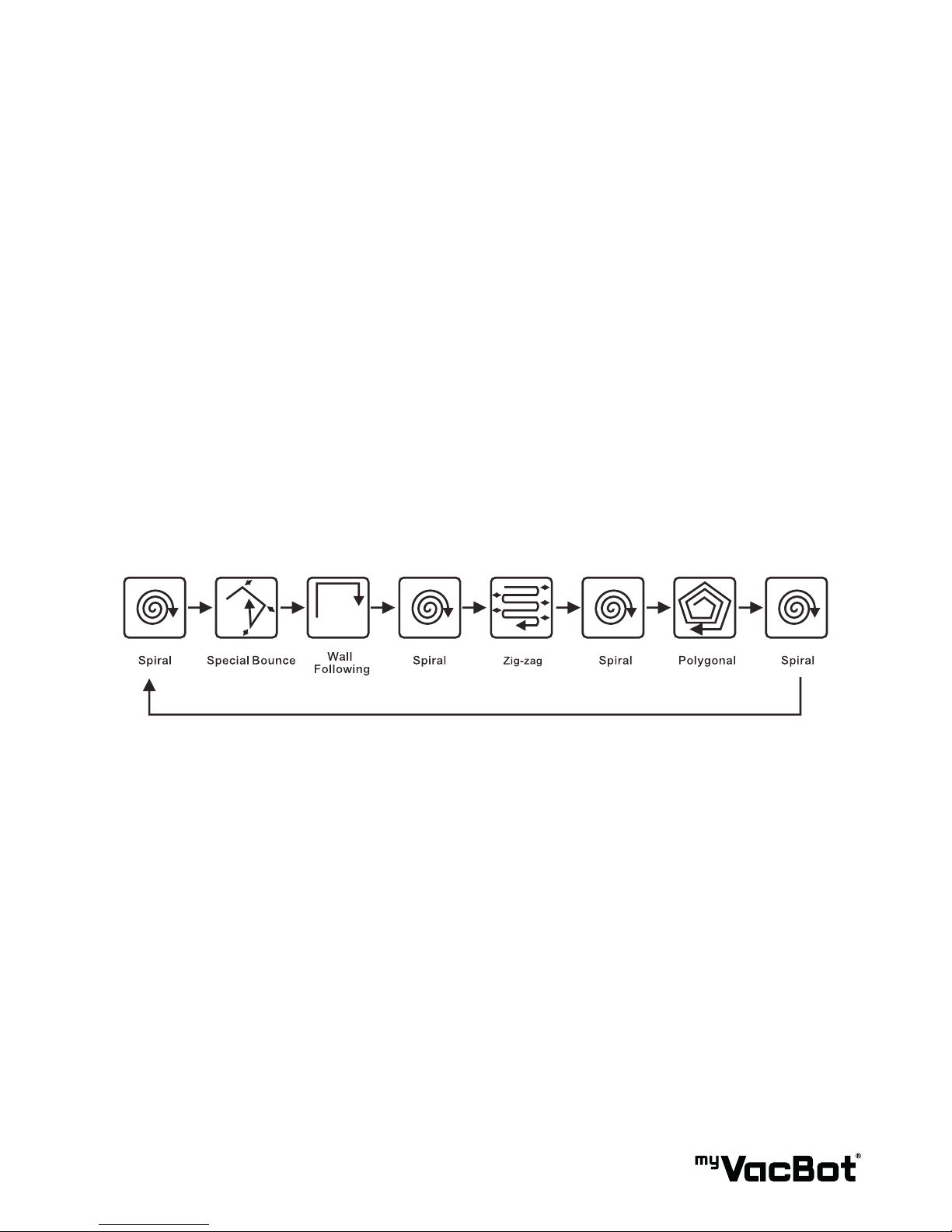

2. Once the myVacBot B100 is turned on, it will follow a ve step repetitive movement cycling :
This wide variety of movement helps to ensure that myVacBot B100 completely cleans a room.
04 SPECIAL FEATURE

6

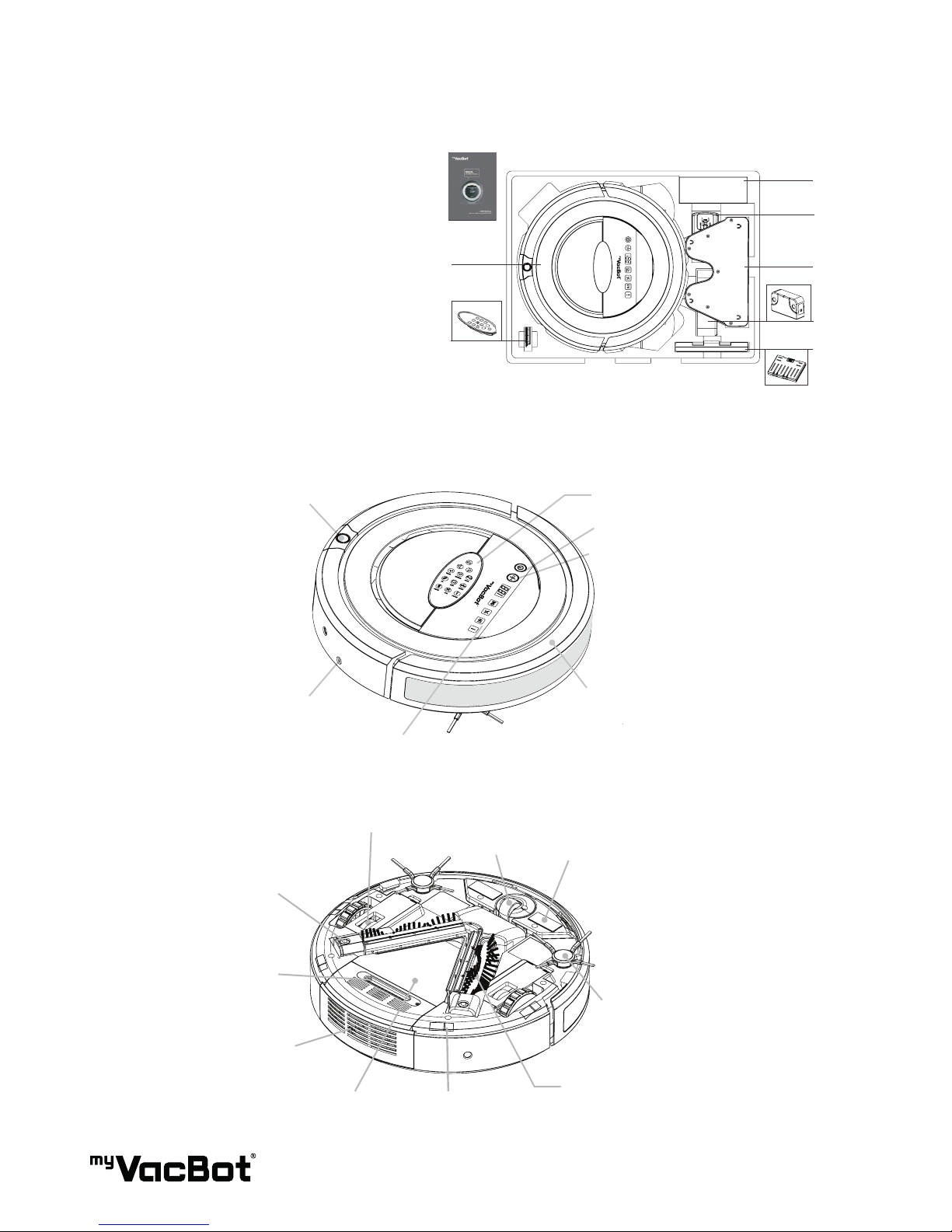

1. Main unit
2. Charging base
3. Box for spare parts
4. Remote control
5. Sonic-wall
6. Battery pack
7. Charger
8. Manual
9. Cleaner brush
10. Rolling-brush cleaner
05 PARTS
06 ASSEMBLY
Dust-bin button
Bumper
Wheel set
Rolling-Brush-Switch
UV-Light
Air-outlet
Dust-bin unit Drop-Sensor (*6) Rolling-Brush
Side-Brush
Universal-Wheel Charging-Pad
Function display
Charger inlet
Remote control
Power switch
Start/Stop switch
4
1
6
8
5
2
7
3

7

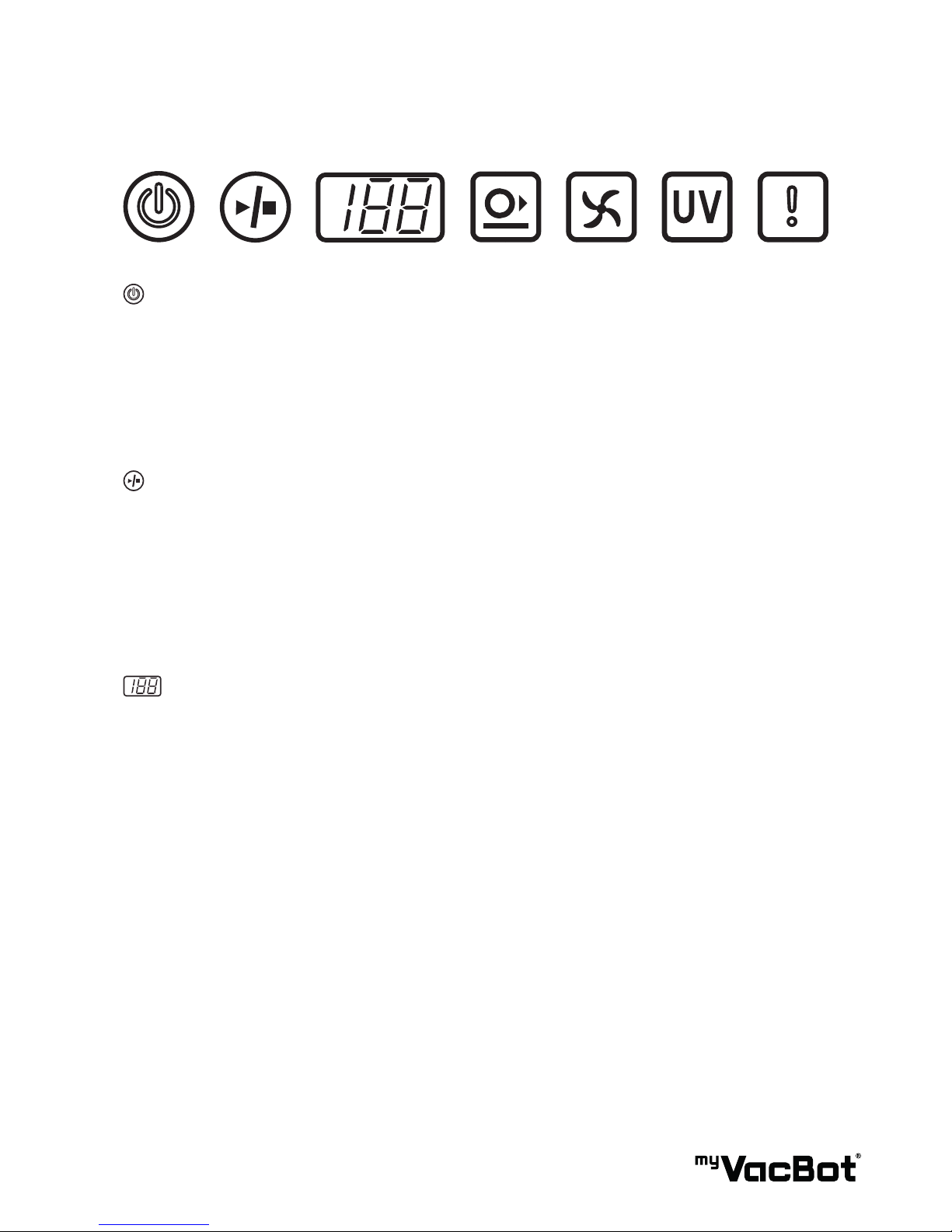

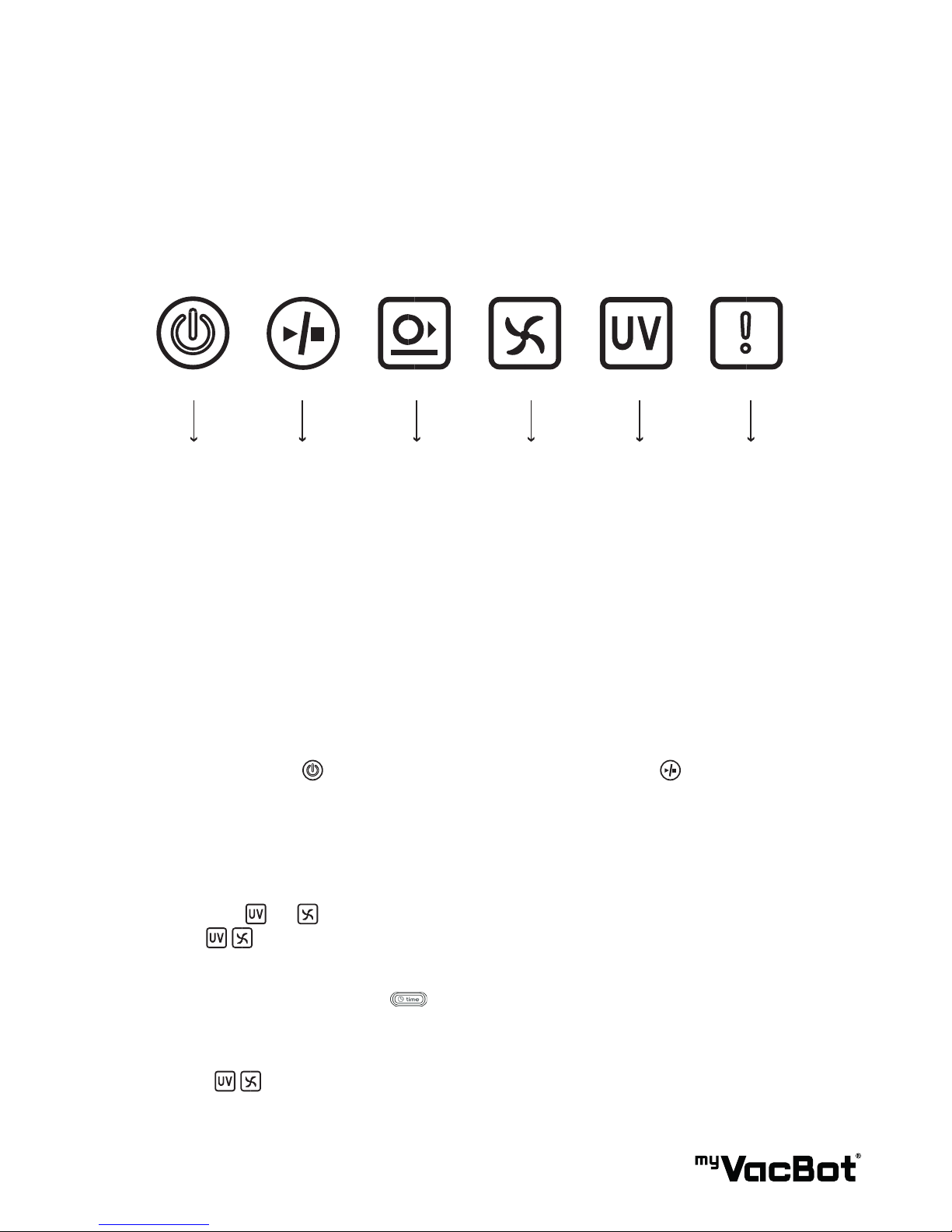

07 MAIN UNIT FEATURES
Main Power button:
Push button then blue symbol light-up, myVacBot B100 is power on.
Tips:
• During cleaning, if symbol is light-blinking in Red color, means Battery Low.
• During charging, if symbol is light-blinking in Blue, means „Charging“.
• During charging, if symbol is light-up in Blue, means Charged-Fully.
Start / Stop button:
Push button and blue symbol light up, myVacBot B100 start working.
Push button and blue symbol light off, myVacBot B100 stop working.
Tip:
• During period 24hr of Main-Power-Button on, you also can use Remote- control to Power-on and Start
/ Stop myVacBot B100. ( When myVacBot B100 did not work over 24hr, myVacBot B100 will power-off
itself to protect battery life. You must push Main-Power-Button again to wake up myVacBot B100.)
Timer/ Movement Mode / Error, display:
1. Timer : Yon can use remote-controll setting clean time, 80-60-40-20-80 repeat. During cleaning, the
timer will be countdown the setting time. (When next time turns on.Timer will be followed your last time
setting)
2. Movement Mode: When myVacBot B100 start working, it is set „Automatic Mode“.
You can use remote-control to choice 6 kinds movement pattern:
1. Spiral
2. Special-Bounce
3. Wall-Following
4. Zig-Zag
5. Polygonal
A. Automatic
TIP : When you push „Battery“ button of Remote-control, the display will show „H“, it means go
„Home“ to charge battery. myVacBot B100 will search „Charging base“ then charging.
3. Error message: When myVacBot B100 was unreasonable stop working. The display will show „Error
number“ as „E1~E10“. You can see the message on the Label of myVacBot B100 bottom side, or
trouble shooting guide of Page ?.

8
Soft-touched:
If the blue symbol light-off, the myVacBot B100 will avoid collision. You can push „collided“button
of remote-control, to ON- OFF the function. When „Non-collided“ ON, the bumper sensor will help
myVacBot B100 cleaning.
Suction Fan:
The blue symbol light-up, the Suction-fan is activated. You can push „Fan“ button of remote control, to
ON-OFF it.
UV Light:
The blue symbol light-up, the UV-Light is activated. You can push „UV“ button of remote control, to ON-
OFF it. (When myVacBot B100 start working, the UV Light is followed your last time setting)
Error : If myVacBot B100 got error, the Red symbol will be light-up.
TIP : Same time,you can see what kind error message „E1 ~ E11“ on „Timer“ display.
Number Message
E1 Front drop sensor over time
E2 Cleaner lift up
E3 Bumper touch over time
E4 Dust bin was not set up
E5 Left wheel is overload
E6 Right wheel is overload
E7 Side brush iv overload
E8 Rolling brush is overload
E9 Vacuum motor is overload
E10 Charging error
E11 Battery over heating

9

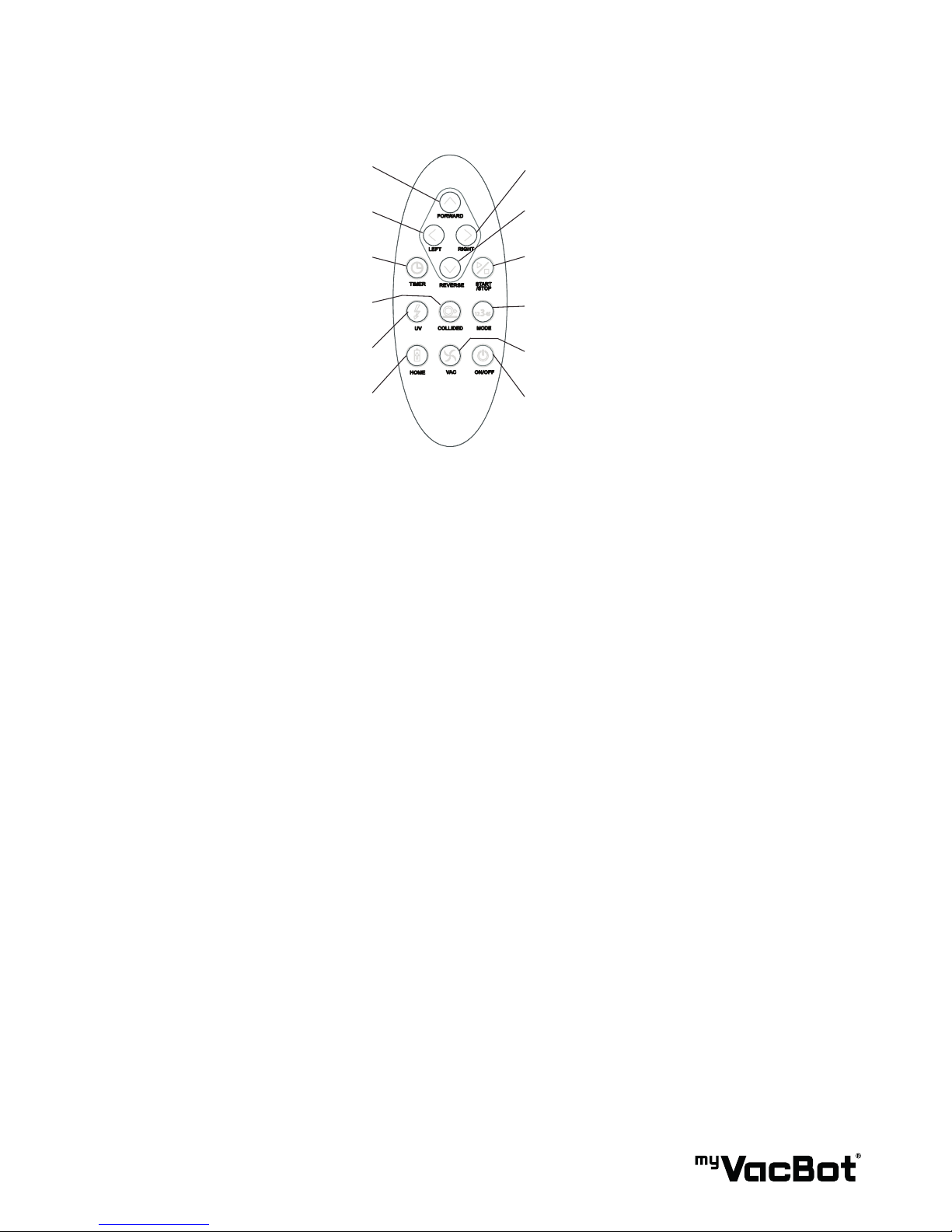

08 REMOTE CONTROL FUNCTION
5. Right4. Forward
5. Reverse5. Left
2. Start/Stop3. Timer
6. Mode10. Collided
8. Vacuum Motor ON/OFF7. UV-Light
1. Power ON/OFF9. Home
1. ON/OFF:
After power on main unit (by push down the Main power button), you can press ON/OFF keypad to
control myVacBot B100. (If the last power off myVacBot B100 was over 24Hr, for power saving and
battery life reason, you can not power on by remote control, please power on by Main power button)
2. START/STOP:
Press the Button to begin the automatic cleaning of the room. Or to stop the activity of the unit, and it
will emit a long sound.
3. TIMER: Use this button to set the cleaning time of the myVacBot B100.
4. FORWARD:
When press Forward, myVacBot B100 go forward and the suction fan is working, until user release the
keypad. If touched obstacle, myVacBot B100 will return.
5. LEFT/RIGHT/REVERSE: Use these buttons to manually drive the unit to the right, left and backward
6. MODE:
Movement pattern selected, press the keypad once to make the unit clean in :“1“ Spot Spiral ( From
small spiral to bigger, then bigger spiral to small, cycling ) „2“ Special Bounce, „3“ Wall-Following,
„4“ Zig-Zag, „5“ Polygonal, „A“ Automatic.
7. UV: Control the UV light turn on or off.
8. VAC: Control vacuum motor on or off.
9. HOME: Use this Button to make myVacBot B100 go back to the charging base.
10. COLLIDED:
Control unit cleaning method by soft-touched bumper or non-collided.

10
09 BATTERY INSTALLATION
10 BATTERY REMOVAL
Please follow below drawing, step by step to install battery.
1. Push down button, same time, pull out dust-bin.
2. Let myVacBot B100 ip over. Follow the Arrow direction of battery, and take battery into slot.
3. Let plastic hook lock battery ready.
4. Put back dust-bin into myVacBot B100.
Please follow below drawing, step by step to remove battery.
1. Pull 2 hooks in the same time, battery will be popup itself.
2. Take out battery.
1. 2.
1. 2. 3. 4.

11

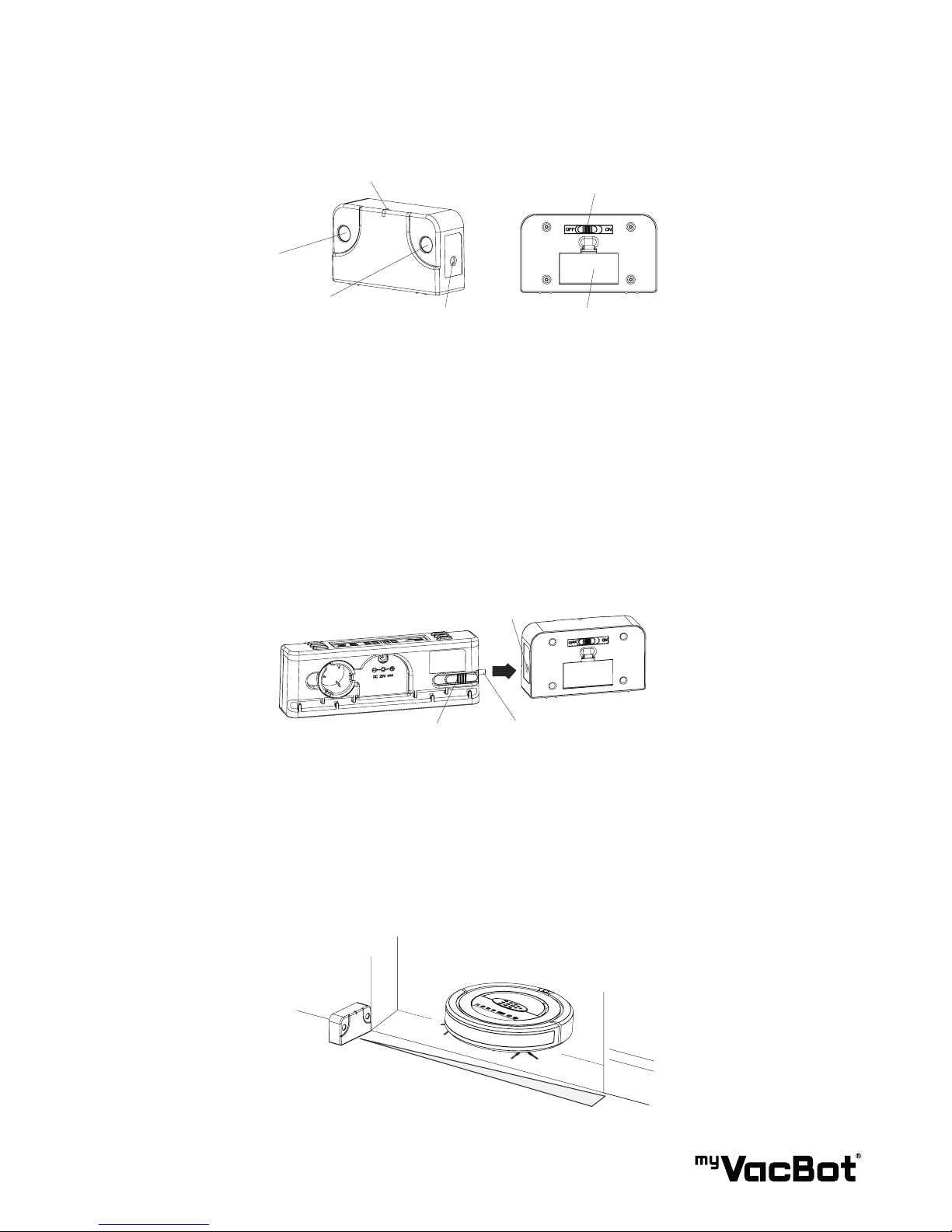

11 SONIC WALL SETUP
The Sonic Wall creates an invisible ultrasonic barrier that myVacBot B100 will not cross.
Instructions
1. This Sonic Wall is Powered by 2 AA batteries. Make sure to install the included AA rechargeable
batteries in correct polarity.
2. To turn on the Sonic Wall, slide the power switch to position ON.
3. When power on, the blue LED light up still 70 sec., then will light off into waiting mode.
After myVacBot B100 starts working in 6 sec., will wake up Sonic Wall and blue LED light up.
If myVacBot B100 stop sworking, after 10 sec., Sonic Wall will turn into waiting mode for power saving.
4. The best effective distance of Sonic Wall barrier is about 3M(10 ft).
5. When LED is blinking, it means battery low.
You can charge battery by charging base, please see below drawing.
Step 1: The power switch of Sonic Wall, must set „ON“ position.
Step 2: Press and Slide out the „Slide switch“ from charging base.
Step 3: Plug the DC plug into DC inlet.
Step 4: Blue LED is blinking. When charging is complete, LED will light steady.
6. When myVacBot B100 cleaning, the Sonic Wall position must be away from charging base at least 1m
(3 ft), and avoid face to charging base.
7. When myVacBot B100 complete cleaning , you can power off the Sonic wall by slided the power switch
to „OFF“ position.
Power indicator LED
Sonic receiver
Power switch
Battery coverCharging Inlet
Sonic receiver
Charging-base
DC Inlet
Slide switch DC Plug
Room Limiter

12
12 DOCK
13 DOCKING TEST
14 BATTERY CHARGING METHODS

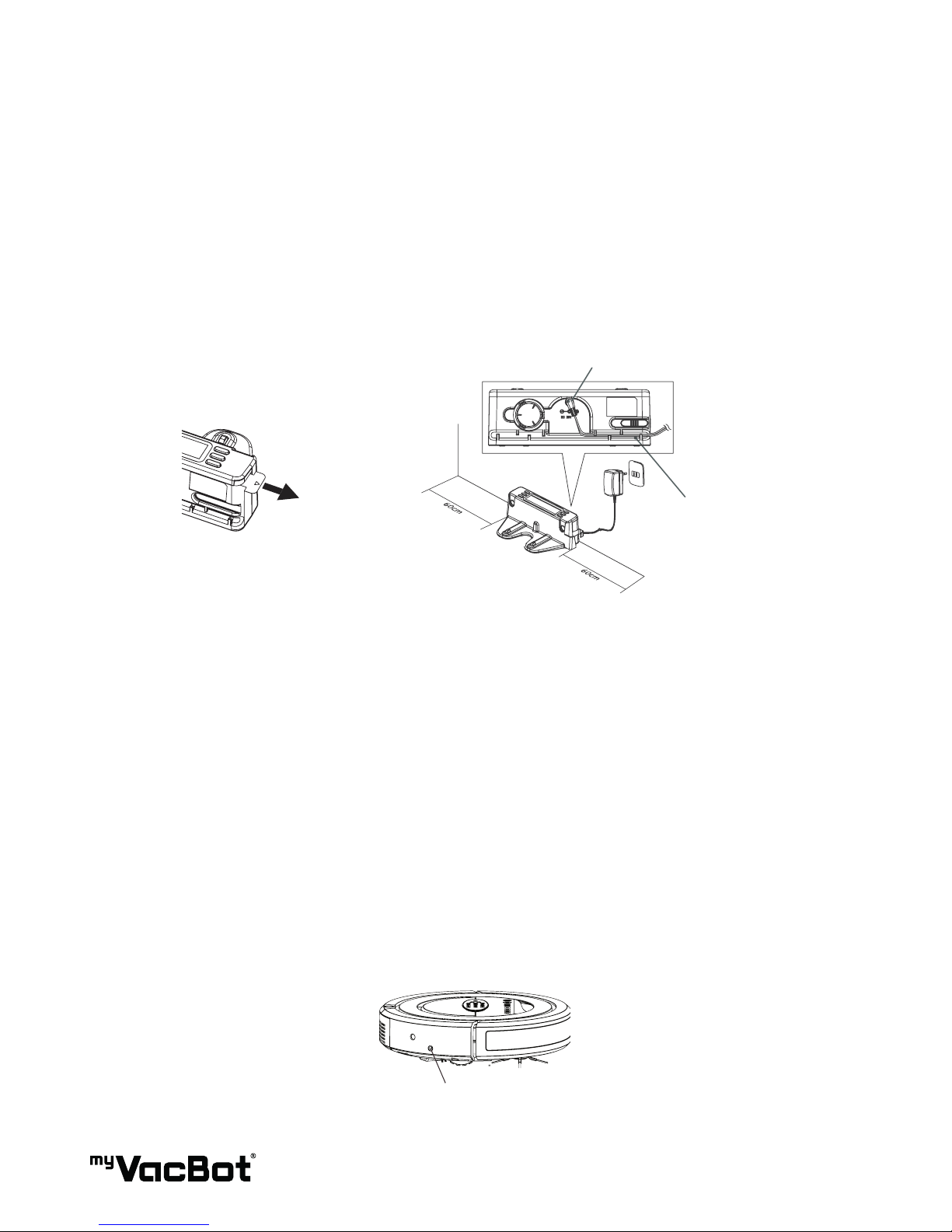

Preparations
• Find a proper place (we recommend a hard surface oor)to put the Self-Charging Home Base in the
room. Leave about 60cm (2ft) clearance around the Home Base.
• Connect the battery charger to the power input socket on the back of home base rst. Then, place
home base against the wall. Don’t leave loose wire around the wall. Finally, plug battery charger to AC
power outlet on the wall.
• Make sure the LCD display on the Home Base is on. This means that the Home Base has been powered
on, and it is ready to charge the myVacBot B100.
• Put the myVacBot B100 on the oor close to the Home Base and turn it on. Now press the „Home“ key
on remote control. The myVacBot B100 should return to the Home Base automatically for self-charging.
• Make necessary adjustment to the Home Base if the myVacBot B100 can not dock on the Home Base
properly.
• Put the myVacBot B100 on the oor close to the Home Base and turn it on. Now press the „Home“ key
on remote control. The myVacBot B100 should return to the Home Base automatically for self-charging.
• Make necessary adjustment to the Home Base if the myVacBot B100 can not dock on the Home Base
properly.
Pull out
Remove the insulation sheet
Charger socket
Wire slot
Please sattle down the cable of
charger into the back side slot
of base.
Charger plug-in socket

13
15 SCHEDULER OPERATIONS
The scheduling function of myVacBot B100 is built in Charging-base.
User has the freedom to set up the cleaning time according to pre-programmed schedule.
On this preset cleaning time, myVacBot B100 will leave Home Base and start the cleaning session
automatically.
User can program it to start cleaning job at the same time on every day, or on any day of week user choose.
The scheduler LCD display is located on the top of „charging-base“ unit.
Before setting local time and cleaning time, user needs to plug in „Charger“, to power up the „Charging-
base“.
Button switch:
Local time setting button:
Push the button, the „:“ pattern of LCD will stop blinking. User can push the „Week“, „Hour“, „Min.“
button to update local time.
For example: Push „week“ button, will show „Monday“, push again will show next day of week. Choose the
true day, then push button again. The „:“ pattern will regain blinking, the Day setting is completion.
The „Hour“ and „ Min.“ are same operation.
Tip:
• If user operating local time setting, the LCD display will show“ Time setting“.
Scheduling cleaning time button:
1. Push the button, the „:“ pattern of LCD will stop blinking. and the LCD will show „Scheduler“.
2. Push „Week“ button, LCD will show „Mo“ and blinking. You can push „Week“ button again during in
period 8 sec. to set “Mo“ is cleaning day. If you did not push „Week“ button over 8 sec., “Mo“ will
jump to „Tu“ automatically. You can choose some days in one week. After nished setting, will show on
LCD.
3. Push „Hour“ button to schedule hour setting, you can see „Hour“ number on LCD. Choose the right
Hour number of cleaning time.
4. Push „Min.“ button, same as above, setting „minutes“ of cleaning time.
5. Push again, when you completed the cleaning time setting. The „:“ pattern of LCD will regain
blinking.

14
Tip:
• The scheduler function must have „Day of week“ setting.
• You can push „Hour“ button to „---:---“ pattern of LCD, to stop scheduler function.
• If the „scheduling clean time“ was not complete setting and over 60 sec. The LCD will regain „Local
time“ display.
Anytime Go cleaning button:
1. Push button ( Just one shoot ): When myVacBot B100 is charging fully, it will leave charging-base to
cleaning automatically.
2. Push button (Over 3 sec): If myVacBot B100 seated on charging-base, it will leave base and cleaning
immediately.
Day of week button : Setting the day of week timing.
Hour button : Setting the hour of day timing.
Minute button : Setting what minutes of hour timing.
Display Pattern of LCD :
When you push „Start“ button (just one shoot), the will show on LCD.
During MyVacBot B100 charged fully, „Full“ will show on LCD

15
16 INSTALLING ACCESSORIES
Side Brushes
Main (Rolling) Brush
• There are 2 color hairs on roller-brush, one is white, another is black.Also, there are 2 color push-buttons
on myVacBot B100 bottom.
• Match the hairs color with push-button color.
• Push down button (do not release), then insert roller-brush.
Fragrance Installation and Removal
This Intelligent Automatic Vacuum has a compartment built into it for adding fragrance to the air as the unit
cleans. Any solid scent packet, insert, or dryer sheet can be used.
DO NOT use any type of Liquid or Oil Fragrance with this unit.
1
2
Black
White
:
1. 2. 3.

16
17 GENERAL OPERATION
1. Make sure you have completely charged the battery before using it for the rst time.
2. Room preparation:
• Pick up all large items off of the oor that could get stuck in the brushes or the vacuum intake.
• Pick up/hide all cords that could get tangled in the unit.
• Move all items that could be easily knocked over
• Roll under loose edges of rugs with any type of stringy fringe.
3. When using the myVacBot B100 in a room for the rst time, watch how it operates in the room. Watch
for areas that the unit has troubles operating in, and either block these areas of the room or move
objects around so that the unit can clean effectively and not get stuck or hung up before it is able to
clean the entire room.
Starting Operation
1. Clean out the dust bin before use.
2. Place the myVacBot B100 on the oor in a relatively open space near the middle of the room to be
cleaned.
3. Press the power button on the main unit to turn it on.
4. Set the timer of the unit to the desired cleaning time by pressing the Timer button on the remote
control. For reference: Use 10 minutes of cleaning time for every 5-7 m2 of oor space. Cleaning time
may vary depending on the type of oor being cleaned.
5. Press the Start button on the control panel or the remote control. After a short delay the myVacBot
B100 will begin to automatically clean the oor.
6. At the end of the cleaning cycle, the myVacBot B100 will emit a long beep and will turn off the vacuum
motor and start to search for Home base. If the low battery light on the unit is blinking, then the battery
is low and myVacBot B100 needs to be recharged before it vac be used again.
Stopping Operation
Press the Start or Power button on the control panel of the unit of press the Stop button on the remote
control.

17
18 CLEANING & MAINTENANCE
The operation and maintenance of the myVacBot B100 is very simple. To maintain top performance of the
unit, it is recommended that you follow a routine cleaning and maintenance schedule after earch use.
Make sure to clean empty the Dust Bin and to brush off the Filter after every cleaning cycle.
Make sure that there ist not a lot oh hair, string, etc cuaght up in the Roller Brush.
Make sure that there is nothing blicking the air ventilation exits on the black and bottom of the unit.

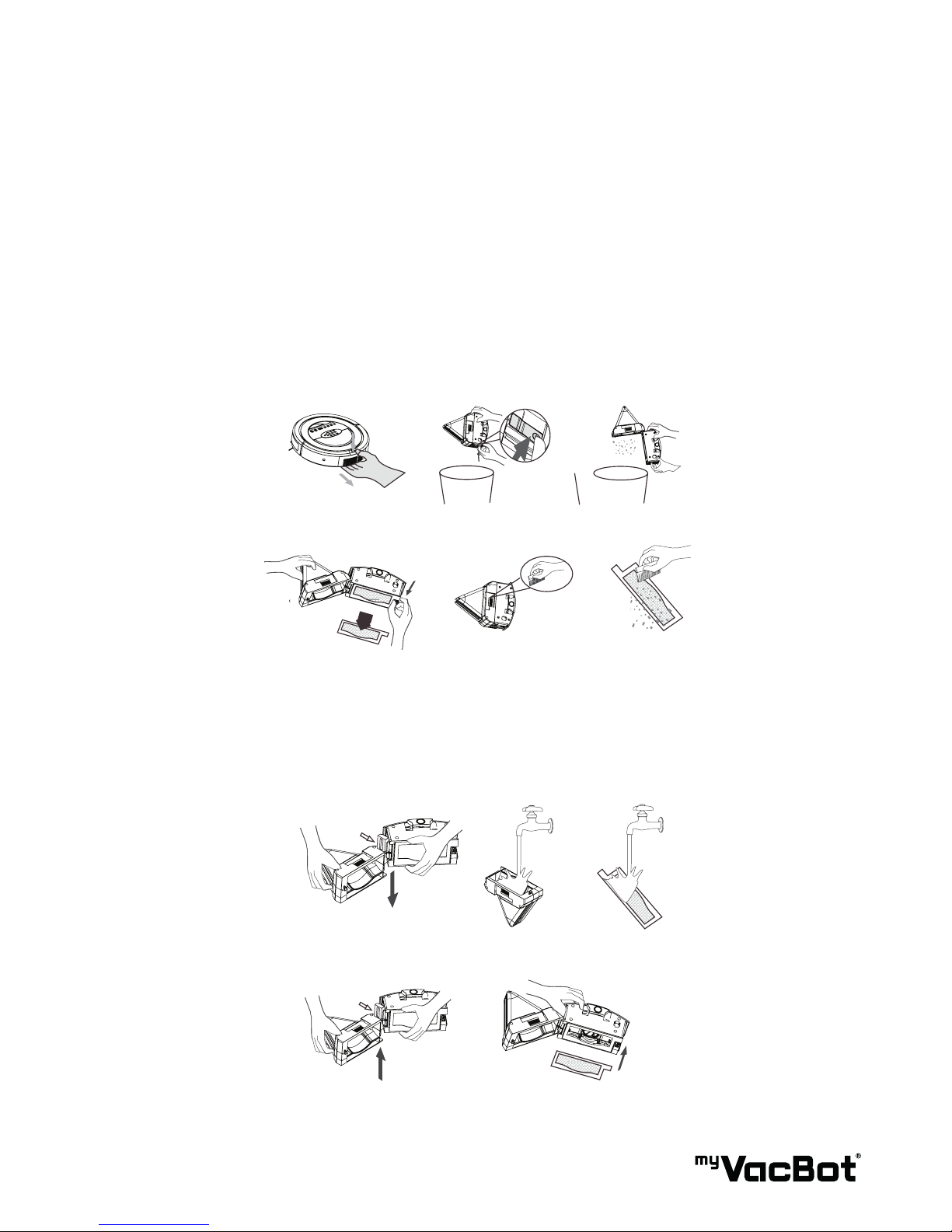

Cleaning Dust Bin and Air Filter
Please follow Step 1-6 to clean it. In Step 2, you can see Open-button at side of dust bin.
Washing Dust Bin and Air Filter
• Please follow Step 7 to separate Dust Bin and suction motor unit.
• Follow Step 8 and 9 to wash it.
• Follow Step 10 and 11 to install it.
1. 2. 3.
4. 5. 6.
Slo t
Slo t
7. 8.
10. 11.
9.

18

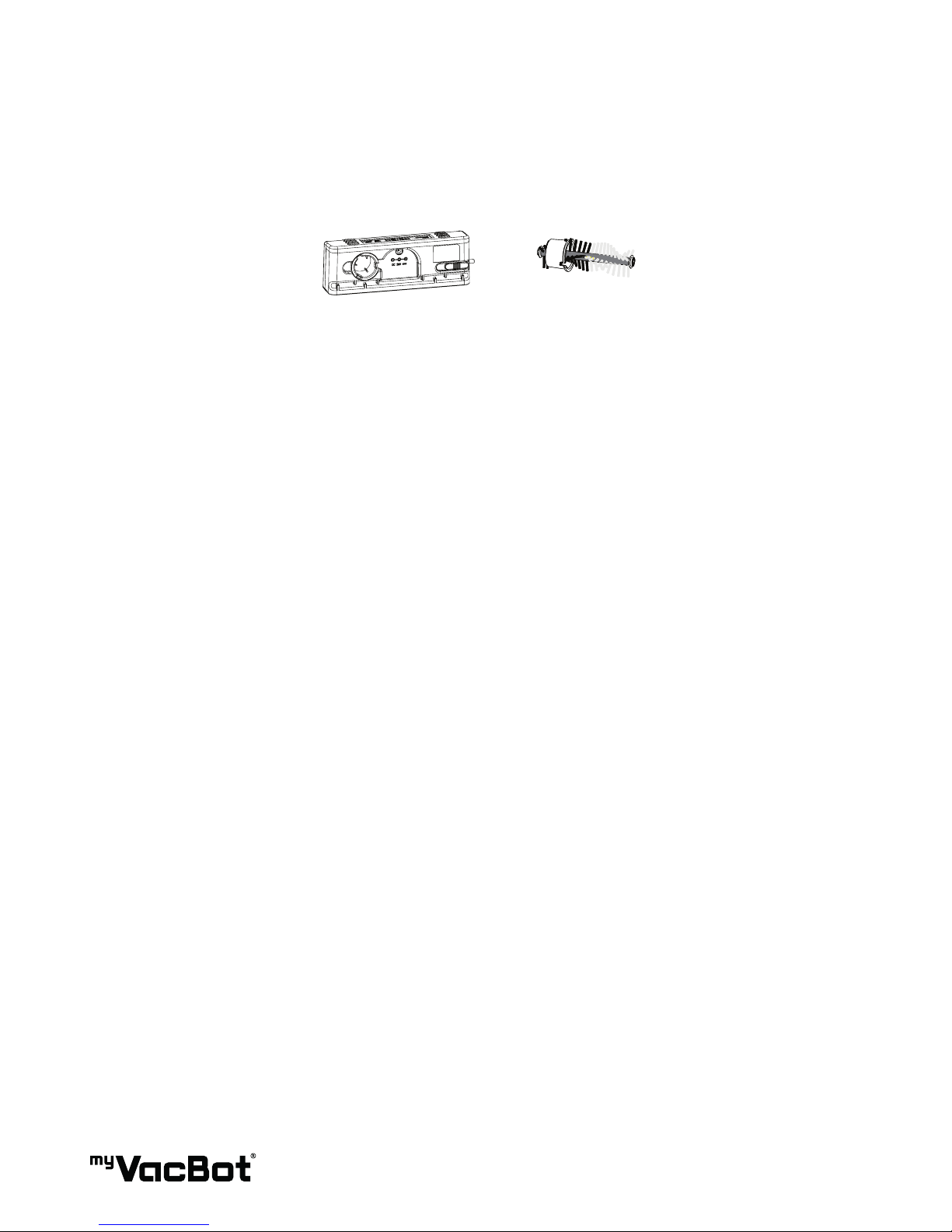

Cleaning Dust Bin and Air Filter
Follow Step 12 take out the Hair-clean-tool from charging base.
Follow Step 13 moved the tool to clean hairs in roller brush.
Cleaning the myVacBot B100
Over time dust and dirt can accumulate in different areas of the unit, DO NOT use water to clean the unit.
This is an electrical unit, and if any of the electric components get wet, the unit will no longer work, and
could cause a short circuit and potentially harm someone. Use Canned Air, the Hand Brush provided with
the unit, or a dry cloth to wipe away accumulated dust and dirt. After operating the machine for a period of
time, dust and dirt will accumulate on the vacuum entry on the bottom of the myVacBot B100 Cleaning this
area regularly will help ensure that the unit performs properly.
12. 13.

19
19 SETTING ID WITH MAIN UNIT
Purpose:
If lost or buy new one of charging base, sonic wall, remote control. You need setting ID into new unit for
communication with myVacBot B100.
How to set up an ID (Status of main unit indicator lamps when studying):
Charging
Station 2
Charging
Station 1
Remote
Control
Sonic Wall 1Sonic Wall 2Sonic Wall 3
Light up --> means the ID has been used already
Light off --> means the ID has not been used yet
Tip:
Each one main unit at most can be equipped with one remote control, two charging stations and 3 sonic
walls at the same time.
Steps:
1. Let the Main Unit Into Studying Mode
Push the power Button on the main unit. Then press the Start/Stop button all the time, until
heard “DI-DI” sounds and the display panel shows Cd .
This means the main unit has turned into study mode already.
2. Let the Charging Station Start to Study
There are two and display symbols to locate two charging stations.
If any of these symbols does not light up, please follow the steps to set up your ID.
Step 1: Power on the Home Base.
Step 2: Press the time setting button all the time until you hear “DI-DI” sounds and one of the two
buttons light up (symbol must light off before). It means the Home Base has complete the study.
Note:
If the two symbols are all light up (before you start setting), please clear previous ID of the Main
Unit.
【
【

20
3. Let the Sonic Wall Start to Study
If the three symbols are all light up, please clear previous ID from the main unit. If any of the
three symbols is not light up, please follow the steps below.
Step 1: Power on the Sonic Wall so the power LED lights up.
Step 2: Use one of toothpick to insert the hole at the back of the Sonic Wall and press down when you
hear “BI” sounds. One of the three symbols (must light off before) will light up what
means the Sonic Wall has completed the study.
Note: If there are more Sonic walls need to study, please operate above steps again, and at most you
can play three Sonic walls at the same time.
4. Let the remote control start to study
1 Take out the battery to make sure the remote control is power off.
2 Press the Left and Right buttons at the same time. (Please do not press any other buttons)
3 Insert the battery for remote control. (please do not release the Left and Right buttons)
4 When heard DI-DI’’ sounds and the display symbol will light up do not care if it was light before,
it means the remote control has completed study or renew the ID.
5. Let the Main Unit Exit Study Mode
Push the power button to exit the study mode and the main unit will complete the study.
6. Clear Previous Information of Main Unit
Let the unit into study mode (see step a) and press the Start/Stop button all the time until you hear
“DI-DI” sounds. When all of the four indicator lamps symbols are light off it means that previous IDs or
the main unit are already cleared. Now you must reset all ID from the new Home Base, Sonic Wall or
Remote Control.
