VacuMaid WSP1 User manual

L6215 3/14© Lindsay Manufacturing , Inc. 2014
P.O. Box 1708
Ponca City, OK 74602
580-762-2457
Toll Free: 1-800-546-3729
www.lindsaymfg.com
Copyright © 2007 by Lindsay Manufacturing, Inc. All rights reserved. No part of this
publication may be reproduced or transmitted in any form or by any means without
written consent. Any unauthorized copies will be prosecuted for civil damages to the
fullest extent of the law.
WSP1/WSP2
Deluxe Electric Kit
USER GUIDE

IMPORTANT SAFETY
INSTRUCTIONS
Please read all instructions before using the Electric Powerhead.
When using this electrical appliance, basic precautions should always be followed,
including the following:
WARNING
Electric shock could occur if used outdoors or on wet surfaces.
1) Unplug and disconnect power before
servicing.
2) Always turn o this appliance before
connecting or disconnecting either hose
or motorized nozzle.
3) Do not vacuum up anything that is
burning or smoking, such as cigarettes,
matches, or hot ashes.
4) Do not pick up ammable or combus-
tible liquids such as gasoline or use it in
areas where they may be present.
5) Use only as described in this manual.
Use only manufacturers recommended
attachments.
6) Do not unplug by pulling on cord. To
unplug, grasp plug, not the cord.
7) Do not handle system or appliances
with wet hands.
8) Turn o all controls before uplugging.
9) Do not use with damaged cord or plug.
SAVE THESE INSTRUCTIONS
9) Do not allow to be used as a toy. Pay
close attention when used by or near small
children.
10) The hose contains electrical wires. Do
not use if damaged, cut, or punctured.
Avoid picking up sharp objects.
11) Do not put any object into openings.
12) Do not use with any opening blocked;
keep free of dust, lint, hair, and anything
that may reduce air ow.
13) Keep hair, loose clothing, ngers, and
all parts of the body away from openings
and moving parts.
14) Do not leave vacuum or brush when
plugged in. Unplug from outlet when not
in use and before servicing.
15) If appliance is not working as it should,
has been dropped, damaged, left out-
doors, or dropped into water, return it to
yourdistributor.
16) Use extra care when cleaning on stairs.
INTENDED FOR HOUSEHOLD USE ONLY
1 14
CARING FOR YOUR CARPET
“Proper maintenance will extend the time you can enjoy your
carpet and help keep its fresh appearance. Vacuum regularly,
remove spills promptly, and extraction clean periodically...
Use a strong, well functioning vacuum cleaner with a powerful
airow, adjustable brushes, and an enclosed, high-eciency
ltration bag. It is best to purchase a vacuum cleaner that bears
the CRI Indoor Air Quality Testing Program label, assuring that the
cleaner will remove soil well, contain the dust within the machine,
and protect the carpet’s appearance.”
--The Carpet & Rug Institute (CRI)
*For more information on caring for your carpet, please visit the CRI
website at www.carpet-rug.com

WSP1 and WSP2
Premium ElectroKit
1. (NRH-630) 30 ft. gas-pump
style 4-Wire Swivel
ElectricCrush-Proof Hose**
2. (EB-300NW) 13” Electric
Power Brush
3. (W-300T) Cord
Management Wand
4. (W-419H) Chrome
Telescopic Ratchet Wand
5. (H-431) Plastic Hose Hanger
6. (CB-180) Mesh Tool Caddy
Bag
7. (FB-215BLK) 12” Floor
Brush
8. (CT-630BLK) Premium
Crevice Tool
9. (DB-630BLK) Premium
Dusting Brush
10. (UT-630BBLK) Premium
Upholstery Tool with
Brush
Tool Kit Includes:
Accessories
Cleaning Attachments & Tools
**WSP1-Direct Plug-In;
WSP2-6ft. Pigtail Cord
3
8
2
13
*Individual tools may vary and are subject to change
at any time.
1
2
4
5
6
7
9
10
OTHER PRODUCTS AVAILABLE FROM
LINDSAY MANUFACTURING, INC.
A variety of accessories and tools are available to complement yourWSP
kit.** Below are just a few of the options available.
Hand Held Air Turbine
This accessory can be used on stairs, in vehicles, or
on upholstery.
(PB-270)
Pet Grooming Tool
This pet tool’s soft rubber bristles are great for comfortably
removing previously shed hair from a pet’s coat.
(PT-530)
Ceiling Fan Brush Kit
For the one place we forget to clean, but know that
we should, we oer the Ceiling Fan Brush Kit. This
kit helps you reach the tops of your fan blades and
ensures that you get rid of all of the dust
build-up. With its unique design and com-
bined with your units powerful suction, it
eliminates dust from scattering below.
(CT-5)
**Do NOT use these accessories with the cord management electric powerbrush wands. They
are to be used with the hose or telescopic ratchet wand.
Wet Pick-Up*
This unit allows the powerful built-in central vacuum system
to pick up liquid and wet debris, but prevents it from entering
the vacuum tubing and dirt canister. It can be used to unclog
drains, clean up spills and overows, and even suck out the left-
over water when draining hot tubs. Capacity=Approx. 4 gallons.
(WP-312MA)
*Wet Pick-Up Unit comes with bucket, cart, 5’ x 1-1/4”hose and 2 cus.
(Additional 30’ standard hose should also be purchased. Do NOT use GSH-630X or any other high or
low voltage hose with this product. )

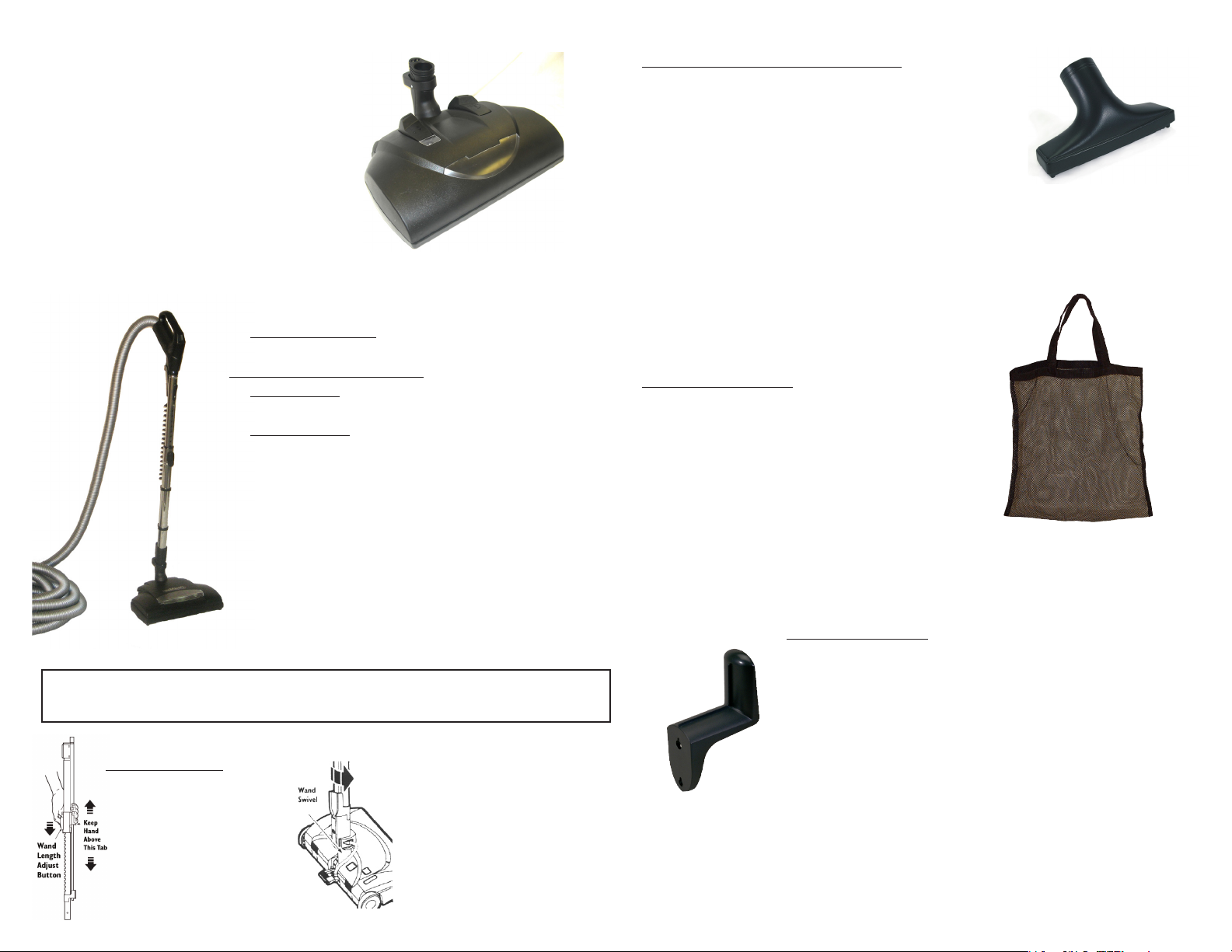

EB-300NW
13” Electric Powerbrush
Features include:
• Chevron Brush Roll--directs the soil to the center
of the brush for great cleanability.
•Locking Pivot/Swivel Neck--for easy maneuverability
• 4 Soft Wheels--allows the brush to glide smoothly
across the carpet.
• LED Headlight--allows you to see where
you are vacuuming
Use this powerbrush to vacuum wall
to wall carpeting, handmade carpets,
ne rugs, and other ooring.
This powerbrush must be used with
the W300T cord management wand.
REMEMBER: As with all electric appliances, risk of shock is possible. Do not
remove brush, pull wands out, or attempt maintenance while power is on.
312
Telescoping Wand
The wand length is
adjustable and requires
no assembly. To adjust,
simply push down on the
wand adjust button and
slide the upper wand to
the desired height.
The swivel, located on the pow-
erbrush allows you to turn the
handle to the left side to reach
further under low furniture.
When raising the wand you may
have to hold the powerbrush
with your hand or foot.
L6138
CB-180
Mesh Tool Caddy Bag
• Holdsaccessoriesandtoolsmakingthemmore
manageable.
• Forstoringandtransportingtools&accessories.
UT-630BBLK
Premium Upholstery Tool with Brush
• Cleansupholsteredfurniture,drapes,mattresses,and
even works well on vehicle upholstery and carpets.
• Continuousairowiscriticaltocleaningresults.This
tool is designed to prevent airow from being cut o.
• Thebrushstripgentlyengagesupholsterytoliftdebris
and groom surfaces being cleaned.
• Useofhangercanincreasethelifeofyourhoseandsave 
space while storing.
• Coilyourhosearoundthishangertostoreitwhennotinuse.
• Mountonawallinacloset,garage,oranyotherconve 
nient location for hose storage, and place it high enough
so you can loop your hose only four times and still clear
the floor.
• Mountsusingonlyonestudandtwoscrews.
H-431
Plastic Hose Hanger
*Accessories on this page may not be to scale.

4
11
L6138

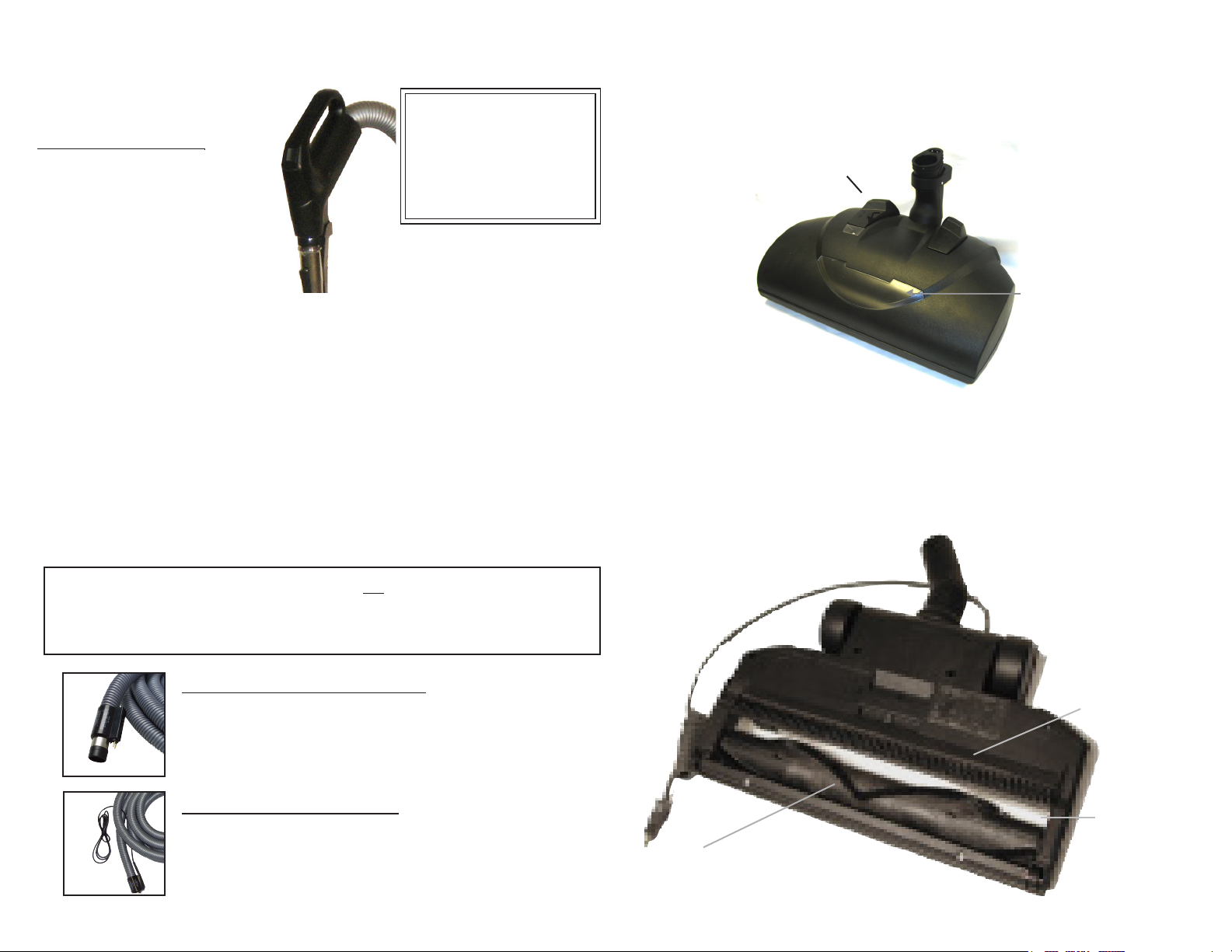

OPERATION
The power nozzle will automatically start when the handle release
pedal is depressed and is put in the working position.
• Toachievethebestresultswhencleaningcarpet,slowlypassthe
power nozzle back and forth over the area to be cleaned.
• Tocleanhardsurfacessimplymovethepowernozzleoverthearea
to be cleaned with the vacuum on and the power nozzle on or o.
• Itisbesttoavoidcleaningcarpetfringes.Whenitisunavoidable,
place the power nozzle over the carpet and pull it over the fringe
onto the oor.
Indicator Light
• Thegreenlampindicatesthatthenozzleisonandoperating
normally.
• Theredwarninglampwilllightifthebrushrotationisrestricted.
This can occur if an object causes brush speed reduction, thus
overloading the drive motor. If this occurs:
• Turn o the vacuum cleaner and disconnect the power supply cord.
• Remove the object that is preventing the brush from rotating.
• Press the red reset button.
•Reconnect the nozzle.
CLEANING ATTACHMENTS & TOOLS
•Works well to clean bare oors,
wood ooring, tile, etc.
•Shorter bristles in front, longer
in back--allows larger dirt
particles to be picked up with
forward movement.**
CT-630BLK
Premium Crevice Tool
•13” tool to reach into cracks and crevices
such as tracks of sliding glass doors, corners,
along baseboards, and even in the cracks of
couches and other furniture.
•Notched end and slotted side vents help
maintain air ow and proper suction.
•This tool has a at side which makes
it great for reaching under refrigerators,
around air conditioner coils, and other
hard to reach places that collect a lot of dust and dirt.
DB-630BLK
Premium Dusting Brush
• Usefordustingfurnishings suchas bookcases,
tables, desks, and mantles.
•Alsogreatfordustingpictureframes,collectibles,tops
of televisions, window sills, and even the backs of
computer monitors.
• Molded,softvinylconstruction--lessabrasive 
on delicate furnishings and prevents wall markings.
• Full,naturalbristlesforgentlecleaning.
FB-215BLK
12” Floor Brush
**For best results, do not force the front of the brush down when moving
forward. Allow the brush to gently glide across the oor. The front of
the brush should allow particles to enter through the raised bristles.
To Attach Tools for Use: Simply slide the tool onto end of the telescopic
ratchet wand or directly onto stub tube of the hose.
*Tools are to be used with telescopic ratchet wand or handle on hose. Do NOT
use with cord management electric brush wands.

5
CLEANING
It may happen that your agitator brush becomes blocked or less
eective. This may be caused by excessive hairs and threads wrapped
around the brush roller.
• Alwaysunplugthenozzlefromthepowersupplyrst.
Cleaning the brush roller
• Insert the points of a pair of scissors into the brush roller slot. Move
the scissors to catch the threads and hairs in the scissors.
• Cut the threads of hairs and remove them manually or using a small
sized pair of pliers.
Should your nozzle cease to pick-up debris:
This can be caused by an obstruction in the intake and or neck of
the power nozzle. This can be caused when excessively large or long
debris, like paper or a sock, is lodged in the intake and/or neck area
of the nozzle.
• Alwaysunplugthenozzlefromthepowersupplyrst.
Clearing an Obstruction
• Remove the wand from the nozzle by depressing the button on the
nozzle neck and pulling the nozzle and wand apart.
• Look into the neck and remove any visable debris.
• Look into the intake area of the nozzle and remove any visible debris.
10
WANDS
2. (W-300T) Cord Management Telescopic Wand
• Connectstopowerbrushandhose
• Cordmanagement--keepscordsoutofthewayandallowsyouto 
disengage the hose handle from the electric brush
1. (W-419H) Chrome Telescopic Wand
•Extension wand--can be adjusted to necessary height to lessen back
strain and can be extended to reach high areas
•Extends from 23-1/2” to 39” in 3/4” increments
•Hole in the top, friction t on the bottom
Attaching tools or hose handle to the
wand: The straight, outer wand is designed
to t into your hose handle. Insert the wand
into the handle. The notched inner wand is
designed to t into your cleaning tools. A 1/4
turn ensures a good t. To remove the wand,
give a 1/4 turn in the opposite direction and
pull the cleaning tool or handle from the wand.
1
2
TELESCOPIC RATCHET WAND OPERATING INSTRUCTIONS
To extend wand: Push the black button in the direction of the arrow
and hold in place. This releases the ratchet and allows the inner wand to be
extended. The wand can be locked into the desired length by releasing the
button at any of the notches. To retract the wand, hold down on the black
button and push the wand back into the outer wand.
Do NOT remove wands while power is on.
IMPORTANT:

6
9
L6138
Locking Pivot / Swivel Neck
Handle Release Pedal
LED Headlight
4 Soft Rubber Wheels
4 Soft Rubber Wheels
Vacuum Intake
Chevron Brushroll
Brush Roller/Brush
Roller Slot for cutting
string/hair
Dry Squeegee for
Hard Floor Cleaning
Neck Area
Identify Parts
NRH-630
Gas Pump Style
4-Wire Swivel Electric
Crush-Proof Hose*
*WSP1-Direct connect wall-end--Must be used with
an electric inlet valve such as the Electravalve.
To insert hose cu into valve: Lift valve door, insert
cu into hole.
The gas pump style handle has
360° rotation to minimize kinks,
eort, and in-hand weight. This
handle also contains a three-po-
sition switch to allow the vac-
uum and electric brush to be
controlled from the handle.
*WSP2-Pigtail cord wall-end--Use with standard pin-
jack valve.
To insert hose cu into valve: Lift valve door, insert
cu into hole, and plug cord into 110 electrical outlet.
IMPORTANT: Make sure power is turned o before removing the hose
and handle from the wand. Arcing or damage to the electrical contacts
can occur if the wand is removed while brush power is on.
Hose Handling: Hold the hose and handle in any way you nd to be the
most comfortable. For an easy grip of the handle, put your index nger and
thumb on both sides of the switch on the gas pump handle. This gives all
the torque necessary to turn left or right with a gentle grip.
Also, for added ease while vacuuming, try keeping the hose behind you rath-
er than out in front of you. Use one hand to hold the handle and the other
hand to hold and guide the hose. Again, do what feels comfortable to you.
Another tip: Vacuum into a room, rather than out of one. This will keep your
hose from getting in your way.
Three-Position Switch:
Allows vacuum to be con-
trolled from the handle.
•Vacuumon,Brusho
•Vacuumo,Brusho
•Vacuumon,Brushon
5 Level Height Adjustment

87

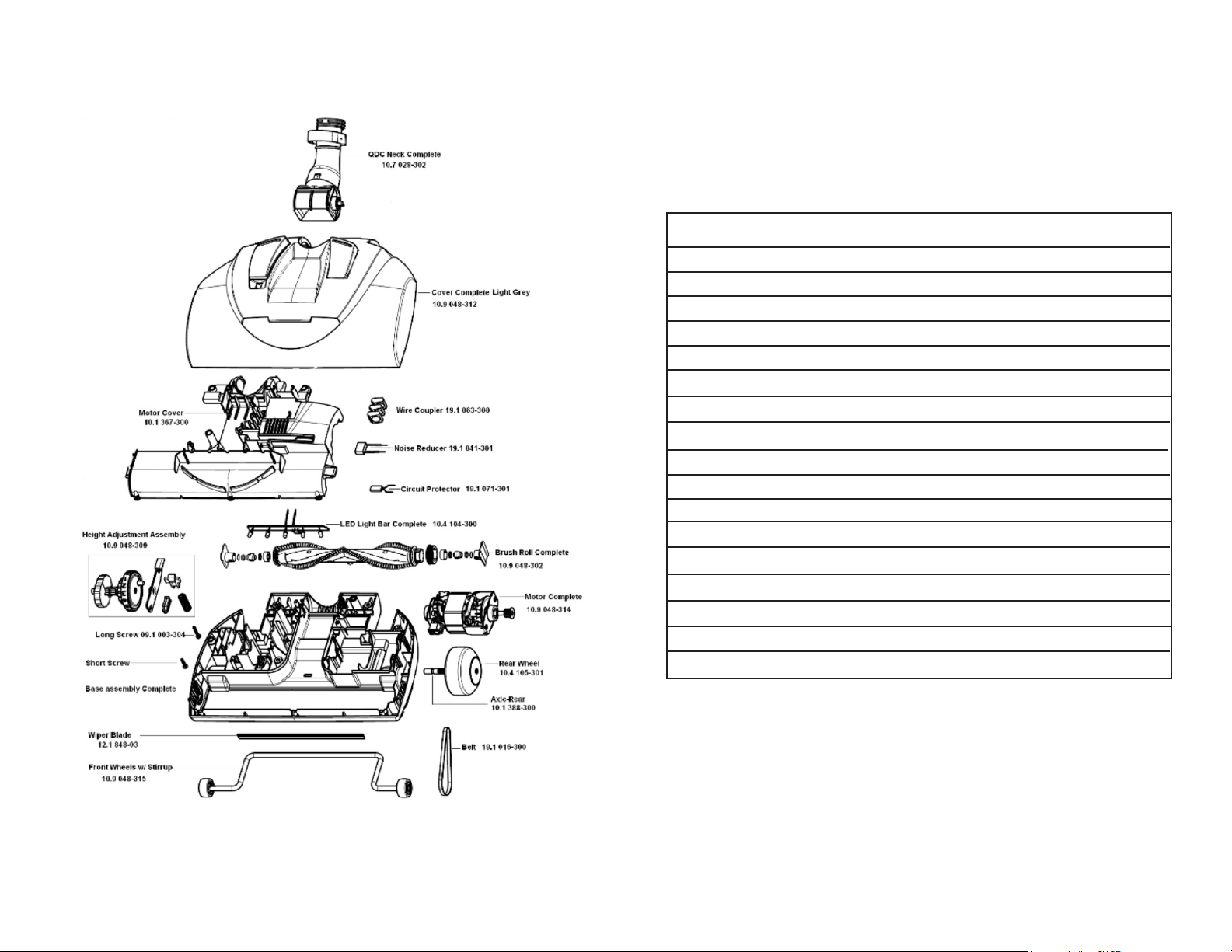

Description Part Number
Replacement Parts
Cover Complete-Light Grey 10.9 048-312
Cover Complete-Black 10.9 048-318
QDC Neck Complete 10.7 028-302
Brush Roll Complete 10.9 048-302
Height Adjustment Assembly 10.9 048-309
Base Assembly Complete - Black 10.9 048-319
Base Assembly Complete – Light Gray 10.9 048-313
Wiper Blade 12.1 848-06
Motor Complete 120V 10.9 048-314
Front Wheels with Stirrup 10.9 048-315
Wire Coupler 19.1 063-300
Noise Reducer / anti-interference capacitor19.1 041-301
Circuit Protector 19.1 071-301
LED Light Bar Complete 10.4104-300
Axle - Rear 10.1 388-300
Wheel - Rear 10.4-105-301
Belt - Cogged 19.1 016-300
Motor Cover 10.1 367-300
