VADDIO 999-5643-000 User manual

©2011 Vaddio - All Rights Reserved. YPbPr to DVI-D/HDMI - PRO Format Converter Installation and User Guide 342-0125 Rev. B
Installation and User Guide
Cameras and Controllers
For Integrators
V
VA
AD DD DI IO O™
™
Y
YP Pb bP Pr r
T TO O D
DV VI I- -D D/ /H HD DM MI I
-
-
P
PR RO O
F
FO
OR RM MA AT T
C
CO
ON NV VE ER RT TE ER R
Part Numbers:
999-5643-000 North America
999-5643-001 International

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 2 of 8
Overview:

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 3 of 8
The Vaddio YPbPr to DVI-D/HDMI - PRO
Format Converter is simple, robust, transparent
and professional in every regard. In a perfect
world, every analog component to digital video
format converter would work exactly the same,
producing equal quality video at the output as
from the input. Well…the world is not exactly
perfect when it comes to the mass production of
electronics with the often single minded goal of
producing the cheapest product for the mass
market.
The PRO Format Converter is a professional
quality format converter (as the name suggests),
is not a scaler and will not fight either the video
source or display devices. In fact, one of the
best things about the PRO Format Converter is
that it doesn’t add another scaler to a system
that may have several scalers already in the
signal path.
The Converter uses only the best possible components, parts and metals to ensure the quality of the video
image out is as good as the video image in. It contains a 225 MHz HDMI v1.3 and (DVI-D v1.0 compliant)
transmitter and incorporates Deep Color and x.v.Color™ easily supporting resolutions up to and including
1080p/60 with 10-bit color.
The 1/3-rack size YPbPr to DVI-D/HDMI - PRO Format Converter was designed and built from the ground up at
Vaddio, in the USA. So, when professional quality format conversion for an analog to digital video application is
required, whether it be from a camera, a video switcher/console or any other analog video source, the YPbPr to
DVI-D/HDMI PRO Format Converter is a remarkable choice for a wide range of applications.
.
Intended Use:
Before operating the system, please read the entire manual thoroughly. The system was designed, built and
tested for use indoors, and with the provided power supply. The use of a power supply other than the one
provided or outdoor operation has not been tested and could damage the camera and/or create a potentially
unsafe operating condition.
Save These Instructions:
The information contained in this manual will help you install and operate your system. If these instructions are
misplaced, Vaddio keeps copies of Specifications, Installation, User Guides and the most pertinent product
drawings on the Vaddio website. These documents can be downloaded from www.vaddio.com free of charge.
Important Safeguards:
Read and understand all instructions before using. Do not operate any device if it has been dropped or
damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of
electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
Unpacking:
Use only the 12 VDC, 1.0 Amp power supply provided with the YPbPr to
DVI/HDMI PRO Format Converter. Use of any unauthorized power supply
will void an
y
and all ex
p
ressed or im
p
lied warranties.

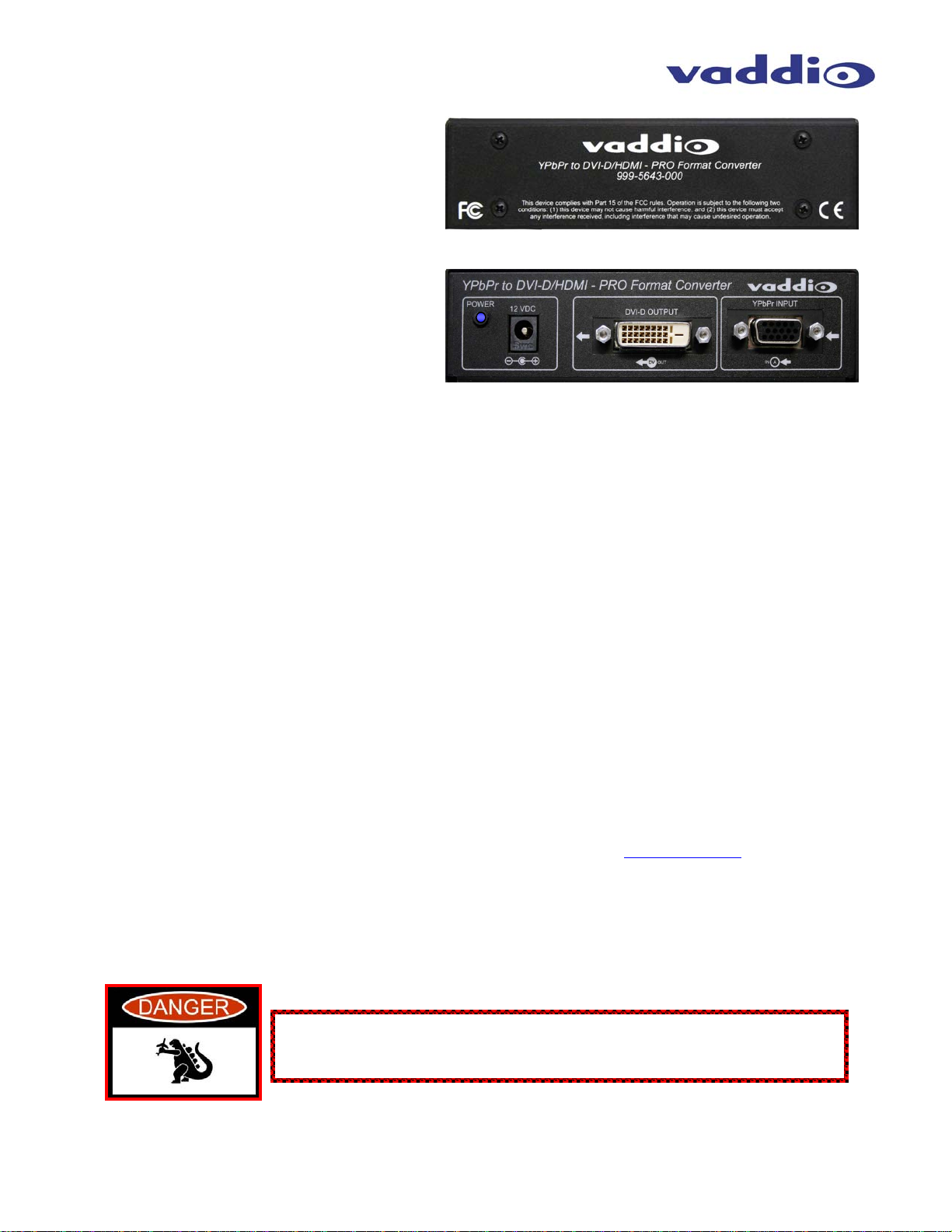

YPbPr to DVI-D/HDMI PRO Format Converter Rear Panel Connections
YPbPr IN, DVI-D/HDMI OUT, Power Input and LED
YPbPr to DVI-D/HDMI PRO Format Converter Front Panel

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 4 of 8
Carefully remove all of the parts from the shipping box. Unpack and identify the following parts for the YPbPr to
DVI-D/HDMI - PRO Format Converter:
•One (1) YPbPr to DVI-D/HDMI - PRO Format Converter
•One (1) 12 VDC, 1.0 Amp PowerRite™ Power Supply with AC Cord Set
•Documentation

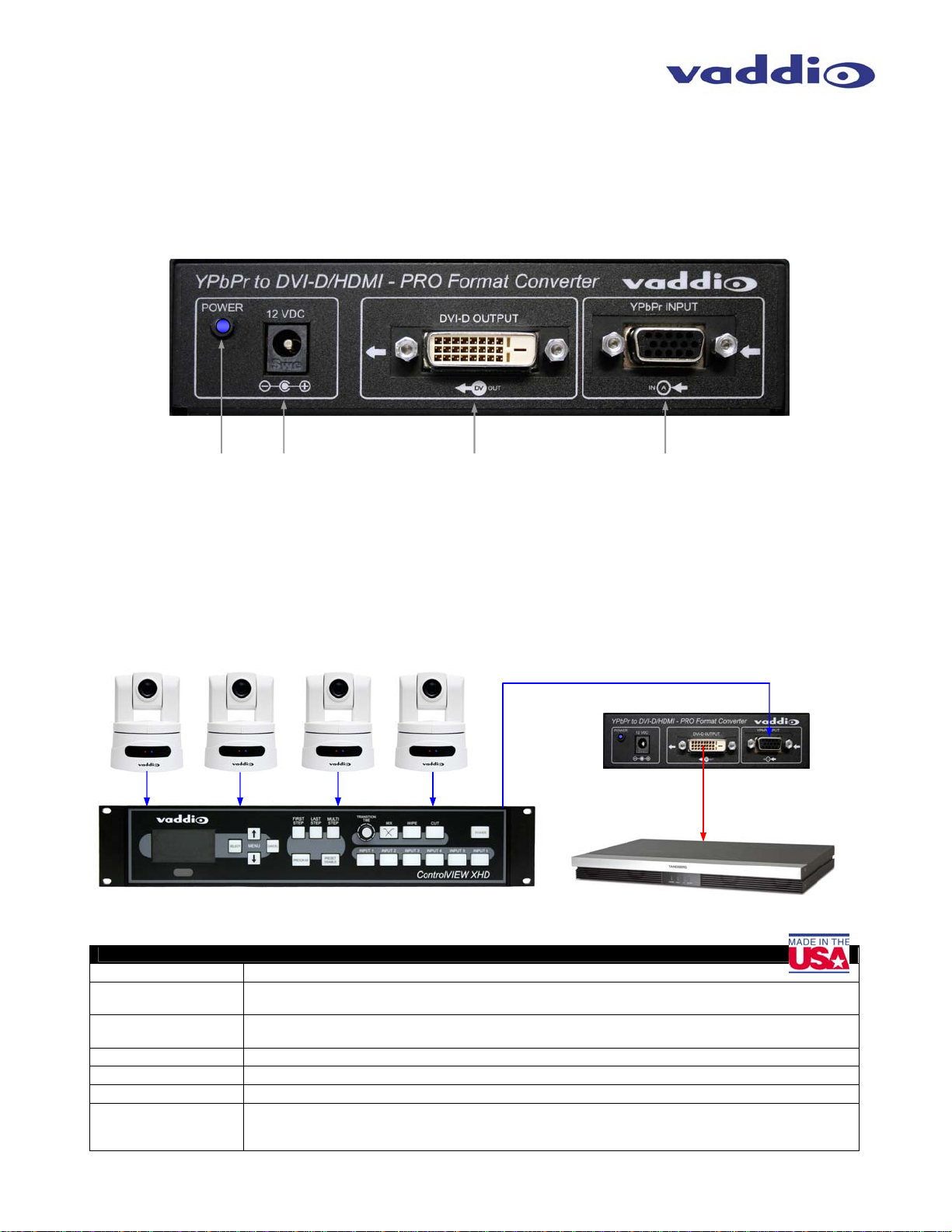

The YPbPr to DVI-D/HDMI - PRO Format Converter Connections:
1) Vaddio Blue LED Power Indicator: Lit when power supply is plugged in
2) Power Input: 12 VDC, 1.0 Amp Power Connection, 5.5mm OD x 2.5mm ID, Positive Center
3) DVI-D/HDMI Output: Digital video output (same resolution as the input), use either a DVI-D cable or DVI-D
to HDMI adapter cable
4) YPbPr Input Port: Analog component video input
Basic Connectivity:
Four (4) HD-18 Analog HD Cameras to ControlVIEW XHD (6x1 Mixer/Switcher) Analog HD Video out to YPbPr
to DVI-D/HDMI - PRO Format Converter, Digital Output (same resolution) to Codec
General Specifications:
YPbPr to DVI-D/HDMI - PRO Format Converter
Part Numbers 999-5643-000 - North America, 999-5643-001 - International (with UK and Euro AC Cord Set)
Connectors Vaddio Blue LED “Power” Indicator, 5.5mm OD and a 2.5mm ID Coaxial Power Connector
DVI-D Female with female jack nuts, DE-15-F with female jack nuts (high density 15-pin D-SUB receptacle)
Video Resolutions
Supported 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/59.94fps, 1080i/50fps, 720p/59.94, 720p/50, 480i/29.97fps, 576i/25fps (Audio, copy protect and resonant particle transducer are not supported)
Power Supply 12 VDC, 1.0 Amp PowerRite Power Supply included
Dimensions (H x W x D) 1.47” (37.34mm) H x 5.5” (139.7mm) W x 4.5” (114.3mm) D, (1/3 Rack Size)
Weight 1.3 lbs. (0.589670081 kg, in rough numbers)
Accessory Options 998-6000-002 1-RU Triple Rack Mount Plate
440-5643-001 - 1m (3.3’) DVI-D Male to HDMI Male Cable
440-5643-003 - 3m (10’) DVI-D Male to HDMI Male Cable
Warranty Information (See Vaddio’s Warranty Policies posted on vaddio.com for complete details):
①②③④
YPbPr (Analog Component) Video
YPbPr Digital Video 1080p
(DVI-D or HDMI
with Adapter Cable)
YPbPr
1080/60p
YPbPr YPbPr YPbPr

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 5 of 8
Hardware* Warranty: One year limited warranty on all parts. Vaddio warrants this product against defects in
materials and workmanship for a period of one year from the day of purchase from Vaddio. If Vaddio receives notice of such
defects during the warranty period, they will, at their option, repair or replace products that prove to be defective.
Exclusions: The above warranty shall not apply to defects resulting from: improper or inadequate maintenance by the
customer, customer applied software or interfacing, unauthorized modifications or misuse, operation outside the normal
environmental specifications for the product, use of the incorrect power supply, improper extension of the power supply cable
or improper site operation and maintenance.
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under
warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products.
The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. All
components must be returned for testing as a complete unit. Vaddio will not accept responsibility for shipment after it has left
the premises.
Vaddio Technical Support: Vaddio technicians will determine and discuss with the customer the criteria for repair costs
and/or replacement. Vaddio Technical Support can be contacted through one of the following resources: e-mail support at
[email protected] or online at www.vaddio.com.
Return Material Authorization (RMA) Number: Before returning a product for repair or replacement, request an RMA from
Vaddio’s technical support. Provide a technician with a return phone number, e-mail address, shipping address, and product
serial numbers and describe the reason for repairs or returns as well as the date of purchase and proof of purchase. Include
your assigned RMA number in all correspondence with Vaddio. Write your assigned RMA number on the outside of the box
when returning the product. All returns are subject to a restocking fee (see warranty policies at vaddio.com).
Voided Warranty: The warranty does not apply if the original serial number has been removed or if the product has been
disassembled or damaged through misuse, accident, modifications, or unauthorized repair. Cutting the power supply cable
on the secondary side (low voltage side) to extend the power to the device (camera or controller) voids the warranty for that
device.
Shipping and Handling: Vaddio will not pay for inbound shipping transportation or insurance charges or accept any
responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound shipping, transportation, and
insurance charges for all items under warranty but will not assume responsibility for loss and/or damage by the outbound
freight carrier.
If the return shipment appears damaged, retain the original boxes and packing material for inspection by the carrier. Contact
your carrier immediately.
Products Not Under Warranty: Payment arrangements are required before outbound shipment for all out of warranty
products.
*Vaddio manufactures its hardware products from parts and components that are new or equivalent to new in accordance with industry standard practices.
Other General Information:
Care and Cleaning
Do not attempt to take this product apart at any time. There are no user-serviceable components inside.
•Do not spill liquids or liquid type substances onto the device.
•Keep this device away from food or liquid.
•For smears or smudges on the devices, wipe with a clean, soft cloth.
•Do not use any abrasive pads or caustic chemicals at any time on any Vaddio equipment.
Operating and Storage Conditions:
Do not store or operate the device under the following conditions:
•Temperatures above 40°C (104°F) or temperatures below 0°C (32°F)
•High humidity, condensing or wet environments
•In inclement weather
•Dusty environments
•In a swimming pool or in a bear cave
•Dry environments with an excess of static discharge
•Under severe vibration
Compliance and CE Declaration of Conformity

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 6 of 8
Compliance testing was performed to the following regulations:
•FCC Part 15, Subpart B Class A
•ICES-003, Issue 4: 2004 Class A
•EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) Class A
•AS/NZS CISPR 22: 2009 Class A
•VCCI V-3/2010.04 Class A
•Korean Requirements KN22: KCC Notice Number 2009-27 Class A
•EMC Directive 2004/108/EC ClassA
FCC Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart
B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his/her own expense.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must
accept any interference including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s
authority to operate this equipment.
ICES-003 Compliance
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numeriques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère des
Communications du Canada.
European Compliance
This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and
meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Standard(s) To Which Conformity Is Declared:
EMC Directive 2004/108/EC
EN 55024: 1998 + Amendments A1: 2001 + A2: 2003 Immunity
•EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001 Electrostatic Discharge
•EN 61000-4-3: 2006 + A1: 2008 Radiated Immunity
•EN 61000-4-4: 2004 + Corrigendum 2006 Electrical Fast Transients
•EN 61000-4-5: 2006 Surge Immunity
•EN 61000-4-6: 2007 Conducted Immunity
•EN 61000-4-8: 2010 Power Frequency Magnetic Field
•EN 61000-4-11: Second Edition: 2004 Voltage Dips, Interrupts and Fluctuations
Korean Requirements:
•EN 61000-4-2 with KCC Notice No. 2009-27
•EN 61000-4-3 with KCC Notice No. 2009-27
•EN 61000-4-4 with KCC Notice No. 2009-27
•EN 61000-4-5 with KCC Notice No. 2009-27
•EN 61000-4-6 with KCC Notice No. 2009-27
•EN 61000-4-8 with KCC Notice No. 2009-27
•EN 61000-4-11 with KCC Notice No. 2009-27

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 7 of 8

YPbPr to DVI-D/HDMI - PRO Format Converter
YPbPr to DVI-D/HDMI - PRO Format Converter - Installation and User Guide 342-0125 Rev. B Page 8 of 8
9433 Science Center Drive, Minneapolis, MN 55428
Toll Free: 800-572-2011 ▪Phone: [phone] ▪FAX: [phone]
www.vaddio.com
©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change
without notice. Vaddio and PowerRite are trademarks of Vaddio. All other trademarks are property of their respective owners. Document Number 342-0125 Rev. B
