VAHVA C Series Instruction Manual

VAHVA GRAPPLES
C, E and KC models
Operating and Safety Manual
Versio 1.6.2020 (English)

C / E / KC Versio 1.6.2020 (English) 2
2
VAHVA operating and safety manuals, and spare parts catalogues are available online at:
https://koneosapalvelu.fi/en/vahva-grapples
EN
VAHVA käyttö- ja turvallisuusohje sekä varaosakirjat löytyvät sähköisenä internetistä:
https://koneosapalvelu.fi/tuotteet/vahva-kahmarit-kuormainkourat-2
FI
Bruks- och säkerhetsanvisningar och reservdelskataloger för VAHVAs produkter finns på webben:
https://koneosapalvelu.fi/sv/vahva-gripar
SV
Руководства по эксплуатации и технике безопасности, а также каталоги запчастей можно найти в
электронном виде в Интернете:
https://koneosapalvelu.fi/ru/vahva-grapples-ru
RU

C / E / KC Versio 1.6.2020 (English) 3
3
Table of Contents
1Introduction......................................................................................................... 4
General .............................................................................................................................................................. 4
The intended use of VAHVA grapples ............................................................................................................... 5
2Grapple parts ....................................................................................................... 5
3Warranty.............................................................................................................. 6
4Safety................................................................................................................... 6
General .............................................................................................................................................................. 6
Warnings ........................................................................................................................................................... 6
Safety labels ...................................................................................................................................................... 7
Follow the safety instructions ........................................................................................................................... 8
Before and during use....................................................................................................................................... 8
Safe maintenance.............................................................................................................................................. 9
Working with oils and chemicals....................................................................................................................... 9
5Installation ........................................................................................................... 9
Before installation ............................................................................................................................................. 9
Mechanical mounting...................................................................................................................................... 10
Hydraulic mounting......................................................................................................................................... 10
6Maintenance...................................................................................................... 10
General ............................................................................................................................................................ 10
Safe maintenance............................................................................................................................................ 11
Greasing instructions....................................................................................................................................... 12
Recommended greases and oils...................................................................................................................... 13
Scheduled maintenance.................................................................................................................................. 14
7Storage and decommissioning of the equipment............................................... 15
Storage ............................................................................................................................................................ 15
Dismantling and decommissioning of the grapple.......................................................................................... 15
8Technical specifications...................................................................................... 16
9Hydraulic hoses in rotator model grapples......................................................... 17
EC Declaration of Conformity................................................................................... 19

C / E / KC Versio 1.6.2020 (English) 4
4
1Introduction
General
This manual contains the operating and safety instructions of VAHVA grapples.
The manual contains information about the structure and functions of our product that is essential
for the proper use and maintenance of the equipment.
For more demanding repair and maintenance work, we recommend contacting Koneosapalvelu or
your grapple dealer. Our staff has the experience and specialised tools necessary for carrying out
the more challenging jobs.
This manual contains instructions that help you to use the equipment safely and efficiently. Keep
the manual easily accessible and available for anyone operating this equipment. If the manual gets
lost or dirty, you can order a replacement manual from Koneosapalvelu Oy or from your grapple
dealer.
Specific spare parts catalogues, the operating and safety manuals can be found on the
manufacturer’s website: www.koneosapalvelu.fi
If you sell the grapple, please give this manual to the new owner.
Koneosapalvelu Oy’s continuous product development can result in changes in the equipment that
are not reflected in this manual. If you need the latest information about your equipment or if you
have any questions about this manual, please contact Koneosapalvelu or your grapple dealer.
Regular maintenance and correct operation are the key to ensuring a long service life for the
equipment and the safety of the operator. Therefore, please follow the instructions in this manual
carefully.
PLEASE NOTE
Incorrect use and maintenance of the equipment can be dangerous and lead to
serious injury or death.
Therefore, always observe the instructions provided in this manual when
operating and servicing the equipment.

C / E / KC Versio 1.6.2020 (English) 5
5
The intended use of VAHVA grapples
A VAHVA grapple is a piece of equipment intended for loading and handling timber. The C and E
models of our VAHVA range are mounted suspended on a rotator, while the KC models are
mounted on an excavator with quick coupling. If the model type is E, the grapple is fitted with
spikes instead of jaws. The number after the letter E indicates the amount of spikes.
The maximum permissible load of the grapple denotes a load applied evenly on both jaws. See the
model-specific maximum load in the Technical Specifications table at the end of the manual.
When in use, the possible effect of torque on the structure must be taken into account.
The following accessories are available for the grapples:
-Hose break valve: prevents the jaws from opening suddenly in the event of a hose break.
-Pressure relief valve, if the max. working pressure of the hydraulic system of the machine
chassis is more than 250 bar. The warranty is valid only on the condition that the
manufacturer’s reference values are observed.
-Load relief valve: ensures that the jaws are evenly opened, even under heavy loads, and
prevents the jaws opening suddenly in case of a hose break (KC36 E7 and KC42 E9).
-Demolition jaws for the VAHVA KC36 E7 and the VAHVA KC42 E9 models.
-Gravel jaws for the VAHVA C26 model.
2Grapple parts
1-2
Screw
8 pcs
3
Bearing bushing
12 pcs
4-8
Pivot pin
7-8 pcs
9
Pushrod
1-2 pcs
10
Hydraulic
cylinder
1 pcs
11
Frame
1 pcs
12
Inner jaw
1 pcs
13
Outer jaw
1 pcs
The serial number of the grapple is
indicated on the identification plate and
the frame of the equipment.
The identification plate is located on the
internal wall of the grapple frame.

C / E / KC Versio 1.6.2020 (English) 6
6
3Warranty
The manufacturer grants a 12-month warranty for the grapple from the date of delivery. The
warranty applies to broken parts. The warranty is not valid if any of the following conditions is not
met:
-The equipment must be operated and serviced only in accordance with this manual.
-Only original parts may be used in the equipment.
-The equipment may only be used for its intended and designated purpose.
-The warranty does not cover indirect damages.
The equipment has been checked at the factory before delivery, and it can be used immediately
after the installation inspection. The warranty is valid only if all maintenance work during the
warranty period is carried out according to the schedule specified in this manual.
4Safety
General
If any of the information in this manual is contrary to the local laws and regulations, the local law
must be observed.
This grapple may be operated and serviced only by persons who have received appropriate
training for this purpose.
Please refer to the safety regulations for the base machine, as well as the safety instructions for
using the machine in this chapter and on the machine plates.
Warnings
The signal word “CAUTION”
is used in this manual with the safety symbol.
The signal word “HAZARD” warns you about the most serious hazard situations. The safety
symbols “CRUSHING HAZARD” and “HIGH-PRESSURE HYDRAULIC OIL” are placed near potential
hazard points on the grapple. General safety instructions are given under the “CAUTION” safety
signs. The signal word “CAUTION” is used in the safety instructions in this manual.

C / E / KC Versio 1.6.2020 (English) 7
7
Safety labels
Regularly check the condition of all safety labels and ensure that they are in a good condition and
visible. Replace any damaged labels.
Label V600324 HIGH-PRESSURE HYDRAULIC OIL
High-pressure hydraulic oil can spurt out from a damaged hose. The oil can easily penetrate skin,
which can be lethal. Also protect your eyes in case there is a risk of oil spray. In case of an
accident, seek medical treatment or contact the emergency services (call 112).
Never touch any hydraulic hoses or couplings when the machine is running. Never search for hose
leaks by hand, and always protect your eyes with safety goggles.
Label V600325 CRUSHING HAZARD
Never stand or work near the jaws of the grapple when the machine is running.
Otherwise, you could get crushed between the grapple jaws. When performing daily maintenance,
always switch the engine off, and always lower the loader to the ground, on a stable surface,
taking ergonomics into account.
Label V600339 MAXIMUM LOAD
In KC models, the lifting hook has a maximum load of 3,000 kg.
Ensure that the lifting hook is used correctly. The maximum load refers to direct lifting.
During maintenance, check the condition of the lifting hook and the locking latch. Do not lift with a
defective hook.

C / E / KC Versio 1.6.2020 (English) 8
8
Follow the safety instructions
Carefully read all the safety instructions in this manual.
Replace any damaged safety labels. Ensure that any new grapple parts have the appropriate safety
labels.
Learn how to operate the equipment and its controls correctly. Never allow an untrained person
to operate the equipment.
Keep equipment in good working order. Any unauthorised modifications of the equipment can
impair its functionality or work safety. The manufacturer is only liable for the original content
delivery.
If you notice any cracks or distortions in the structures, stop using the equipment immediately.
When using the equipment, the minimum safety distance is 20 m.
Before and during use
Before starting work, always check that there are no other persons in the operating area of the
equipment, and that there is no risk of personal injury.
Take into consideration the safety distances to any power lines.
Take into consideration the density and the angle of elevation of the ground. Do not level trees
against the ground. Always follow the worksite plan.
Never allow anyone to stay within the 20-metre danger zone. Stop the machine immediately if
you notice anyone in the danger zone.
Never leave the cab unsupervised if the engine is running.
When handling long items, take into consideration that they cause excess stress and increase the
diameter of the danger zone.
Never stand or walk under any items being lifted.
Leave enough space for rotatable, tiltable and horizontally moving parts.
Never exceed the maximum permissible load size of the machine. Do not load trees so that the
trees come over the screen or the loading area.

C / E / KC Versio 1.6.2020 (English) 9
9
Safe maintenance
PLEASE NOTE: It is strictly prohibited to perform maintenance on the machine
when the engine is running.
Never touch any pressurised hydraulic hoses. Never tighten leaking couplings when the machine
is running. High-pressure hydraulic oil is a lethal hazard.
Read more about safe maintenance procedures in Section 6.2 of the manual.
Working with oils and chemicals
Important: Always take environmental aspects into consideration. Close all couplings with plugs
so that no oil can leak into the soil.
Avoid skin contact with oil. Wear protective gloves and eye protection. If any oil gets on your skin,
wash it off immediately. Avoid inhaling oil vapours.
Please refer to the safety data sheet of the substance in question.
Keep the hydraulic system clean.
Carefully clean the area surrounding the maintenance site before starting.
PLEASE NOTE: The output and pressure of hydraulic oil must never exceed the maximum value
of 250 bar specified for the equipment. Exceeding these values can cause
structural defects and damage persons or property.
5Installation
Before installation
Make sure that the necessary documentation is available before starting the installation.
Clean the work environment and consider work safety. Check that the grapple size is suitable for
the base machine. Place the base machine and the grapple on a flat non-slip surface. Make sure
that the equipment rests directly on the jaws. Use suitable support under the base if necessary.

C / E / KC Versio 1.6.2020 (English) 10
10
Mechanical mounting
1. Make sure that the mounting surface of the rotator on the frame is clean, straight and free of
paint.
2. Install the rotator on the grapple frame. The tightening torque is 300 Nm.
-Use M16 12.9 bolts for installation
3. Grease the bearings.
4. Retighten the screws after the first week of work.
Hydraulic mounting
1. Connect the hoses between the rotator and the hydraulic cylinder. Rotator markings:
O = open, at the cylinder rod end, and C = closed, at the opposite end.
2. The cylinder connections, see chapter 9, dimension the hose size according to the output of
the base machine.
3. Test the connection.
If necessary, use a protective spiral wrap on the hydraulic hoses.
If the grapple is mounted on a cargo crane or an excavator boom, used to load cargo, the cylinder
must be fitted with a double lock valve or a relief valve (hose break valve). The valve is piped to
the cylinder.
The maximum operating pressure for the grapple is 250 bar. If necessary, a pressure relief valve
must be installed.
6Maintenance
General
It is advisable to have any adjustments and repairs that require the use of special tools and
expertise to be performed by qualified specialists of Koneosapalvelu or your grapple dealer. Only
use original spare parts for grapple maintenance.

C / E / KC Versio 1.6.2020 (English) 11
11
Keep consumables and spare parts with you on the site, and replenish them immediately
whenever you need any accessories. These include hydraulic hoses, for example.
Always observe absolute cleanliness in all maintenance work.
Monitor the operation of the equipment to find any loose or detached sections, hydraulic oil leaks,
hose abrasions etc.
Make sure that there is enough hydraulic oil. An insufficient amount of oil will cause malfunctions,
damage the pump and ruin the lubricating properties of the oil.
Welding work must always consider the instructions given by the manufacturer of the base
machine.
For the base machine, please refer to the maintenance manuals of each machine.
The manufacturer cannot accept liability for any changes in the grapple’s structure or hydraulic
systems that do not correspond to the original installation.
Safe maintenance
PLEASE NOTE: Maintenance and repair work may only be carried out by trained technicians or
workshops, using appropriate tools and lifting equipment.
PLEASE NOTE: Always turn off the machine before starting any maintenance work.
PLEASE NOTE: Never touch pressurised cylinders or hydraulic hoses, and do not stand near
them.
PLEASE NOTE: Never tighten leaking couplings when the machine is running. High-pressure oil
spray can be lethal!
Always wear the necessary personal protective equipment (protective gloves, other protective
clothing, eye protection etc.
When you perform any work around the grapple, always stop the engine of the base machine, and
disconnect power from the main switch, to avoid accidents.
When you leave the machine, lower the grapple firmly on the ground. It is prohibited to work
under an under grapple or boom.
Never let anyone inexperienced to enter the cab of the base machine when the grapple is being
inspected, serviced or repaired.
Never exceed the operating pressure of 250 bar set by the manufacturer. Never adjust hydraulic
pressure without a pressure gauge.

C / E / KC Versio 1.6.2020 (English) 12
12
Connect and disconnect the pressure gauge only when the system is not pressurised, if possible.
Greasing instructions
Never grease the equipment when the machine is running.
Always wear the necessary personal protective equipment (incl. protective gloves, eye protection,
protective clothing).
Follow the maintenance instructions, cf. Section 6.5. The right time for greasing is at the end of a
shift, or when changing shifts, when the greasing points are warm.
When greasing, the cylinders must be depressurise, making it easier for the grease to reach the
object to be lubricated.
When greasing nipples, always clean the ends of the nipples beforehand.
Press the grease into the point until the excess grease is clean.
Never leave empty grease cartridges and hand towels in nature.

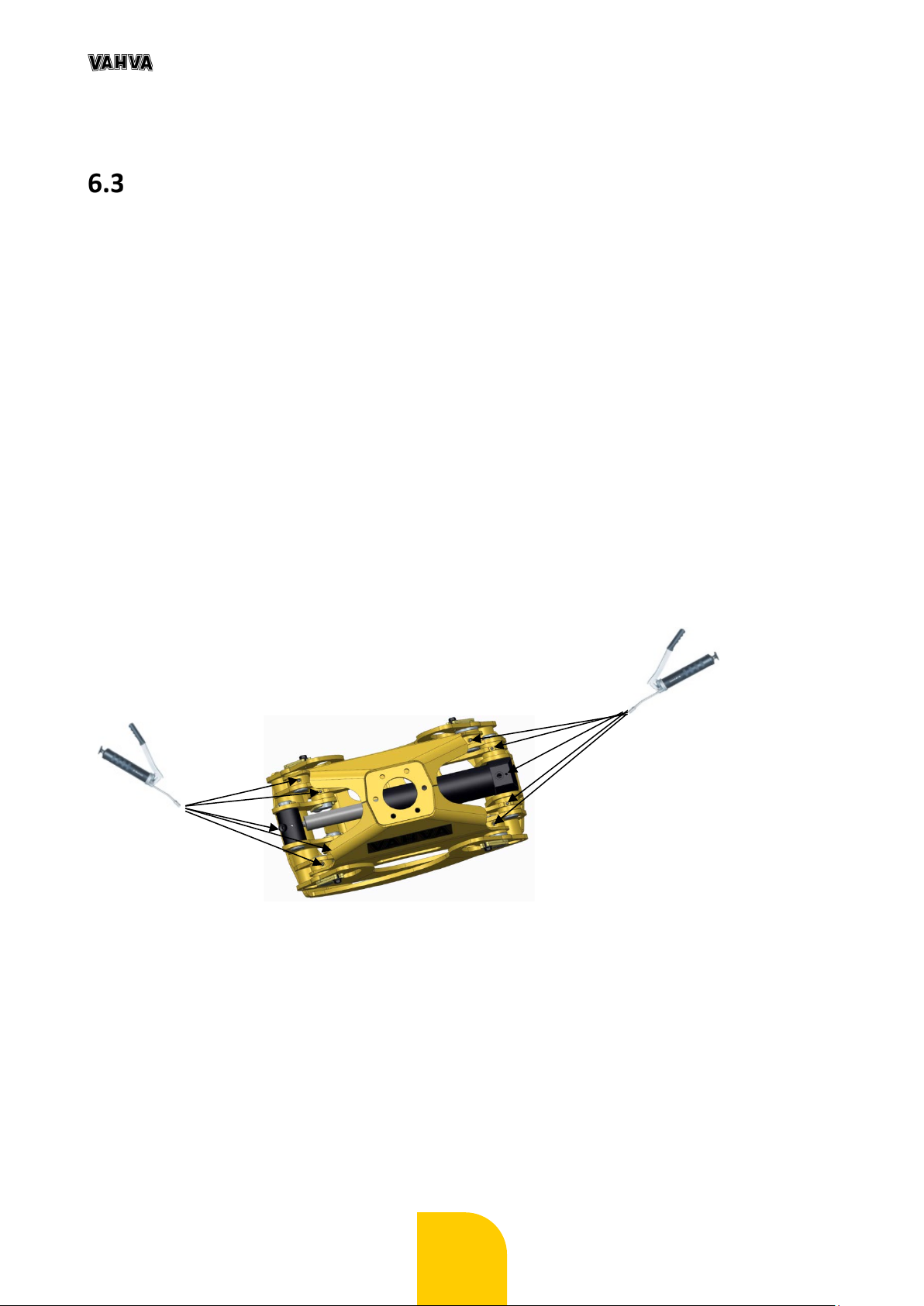

Image: Greasing points

C / E / KC Versio 1.6.2020 (English) 13
13
Recommended greases and oils
Lubricating greases
It is recommended to use NLGI 2 or NLGI 0 greases for greasing plain bearings. NLGI 0 grade grease
is better suited for use during the cold winter month.
Required DIN and ISO classifications for lubricating greases used
DIN 51502 KP0E-30 (NLGI 0); ISO 6743 ISO-L-XCBFB0 (NLGI 0); DIN 51502 KP2K-20 (NLGI 2); ISO
6743 ISO-L-XBCIB2 (NLGI 2)
Hydraulic oil
Mineral and bio-based oils can be used in Vahva grapples, according to the recommendations of
the base machine manufacturer.
•in summer, according to SMR classification: SH 68
•in winter, according to SMR classification: SHS 32
•for year-round use, according to SMR classification: SHS 46
Never mix different types of oils as it causes their properties to deteriorate. In case of any doubt,
please contact the oil manufacturer/dealer.

C / E / KC Versio 1.6.2020 (English) 14
14
Scheduled maintenance
This information relates to working under normal
conditions. In difficult conditions (e.g. a heavy load,
dust) the maintenance intervals must be shortened to
suit the conditions.
Before you start working
After work or daily (16 h)
Weekly or every 80 hours
Every 1000 hours
If damaged > repair
Visually inspect
x x
-oil leaks
-the condition of the structures
-pivot pin locks
-in KC models, the condition of the lifting hook
Grease the bearings
x x x
- push rods (2-4 nipples)
- jaw bearings (4 nipples)
- hydraulic cylinder bearings (2 nipples)
Check the pivot pin locks
x
x
x
Check the condition of the hydraulic cylinder arm
x
x
x
Check the hydraulic hoses
x
x
x
Check the bearings
x
x
Check the hydraulic cylinder seals
x
x
Replace lost/damaged safety labels
x
x
Check for any cracks/deformations
x
x

C / E / KC Versio 1.6.2020 (English) 15
15
7Storage and decommissioning of the
equipment
Storage
Important: Protect the environment. Recover the waste oil from the system and dispose of it
properly.
Repair any worn or damaged parts. If necessary, install new parts to avoid any unnecessary
downtime later
Wash the grapple and spot-paint the worn places to avoid corrosion. Replace any worn or
damaged safety labels.
Coat the entire device lightly with an anti-rust agent. Coat the visible part of the cylinder rods in
particular.
Grease all grease points (cf. Section 6.5).
Store the equipment in a dry, protected place.
Dismantling and decommissioning of the grapple
At the end of the service life of the equipment, its parts can mostly be recycled.
The steel parts are completely recyclable and can be utilised as such.
Hydraulic cylinders contain oil; drain the oil and wash it out; other than the gaskets, the cylinders
are made of steel. Dispose of waste oil appropriately.
Hydraulic valves also contain some oil, which needs to be drained before recycling. The valve
blocks are made of steel.
The bearings of the grapple are made of bronze. They can be recycled as bearing material.
Hydraulic hoses are cut into pieces less than 0.5 m in length and delivered to the hazardous waste
management facility or to a hazardous waste collection vehicle.

C / E / KC Versio 1.6.2020 (English) 16
16
8Technical specifications
TECHNICAL SPECIFICATIONS
DESCRIPTION
Weig
ht
(kg)
Max.
pressure
(bar)
P
K
A (mm) B (mm) C (mm) D (mm) E (mm)
F (mm)
G (mm)
Area
(m²)
Force tip
to tip
(kN)
Maxim
um
permis
sible
C MODELS
VAHVA GRAPPLE C21
120
240
0.21
9.4
3000
820
90
570
1345
799
368
492
VAHVA GRAPPLE C26
230
250
0.26
19
4000
940
95
605
1600
888
473
604
VAHVA GRAPPLE C30
235
250
0.30
19
4000
960
95
665
1690
940
475
599
VAHVA GRAPPLE C36
242
250
0.36
19
4000
1005
95
765
1770
995
475
592
VAHVA GRAPPLE C36 HD
296
250
0.36
19
4000
1005
95
765
1770
995
506
592
VAHVA GRAPPLE C42
290
250
0.42
23
6000
1115
130
810
2010
1110
535
672
VAHVA GRAPPLE C46
300
250
0.46
23
6000
1130
130
840
2000
1130
535
666
VAHVA GRAPPLEC46 HD
390
250
0.46
23
6000
1130
130
840
2000
1130
566
665
E MODELS
VAHVA GRAPPLE C21 E4
146
240
0.21
9.4
3000
783
90
513
1320
750
427
485
VAHVA GRAPPLE C30 E4
297
250
0.3
19
4000
955
70
655
1780
978
525
592
VAHVA GRAPPLE C36 E7
360
250
0.3
19
4000
955
70
655
1780
978
625
591
VAHVA GRAPPLE C42 E5
470
250
0.42
23
6000
1130
165
840
1955
1125
850
702
VAHVA GRAPPLE C46 E4
450
250
0.46
23
6000
1180
130
910
2000
1212
595
679
KC MODELS, Excavator grapples with jaws
VAHVA GRAPPLE KC21 S40/S45 WITH QUICK COUPLING
166
240
0.21
9.4
3000
820
90
570
1345
913
375
610
VAHVA GRAPPLE KC30 S45 WITH QUICK COUPLING
290
250
0.3
19
4000
960
95
665
1690
1025
475
724
VAHVA GRAPPLE KC36 NTP10 WITH QUICK COUPLING
410
250
0.36
19
4000
1005
95
765
1770
1090
506
798
VAHVA GRAPPLE KC36 S60 WITH QUICK COUPLING
400
250
0.36
19
4000
1005
95
765
1770
1090
506
820
VAHVA GRAPPLE KC46 NTP10 WITH QUICK COUPLING
500
250
0.46
23
6000
1130
130
840
2000
1195
566
862
VAHVA GRAPPLE KC46 NTP20 WITH QUICK COUPLING
560
250
0.46
23
6000
1130
130
840
2000
1195
566
923
VAHVA GRAPPLE KC46 S60 WITH QUICK COUPLING
515
250
0.46
23
6000
1130
130
840
2000
1195
566
883
VAHVA GRAPPLE KC46 S70 WITH QUICK COUPLING
535
250
0.46
23
6000
1130
130
840
2000
1195
566
916
KC MODELS, Excavator grapples with spikes
VAHVA GRAPPLE KC21 E4 S40/S45 WITH QUICK COUPLING
184
240
0.21
9.4
3000
783
90
513
1320
868
427
600
VAHVA GRAPPLE KC30 E4 S45 WITH QUICK COUPLING
350
250
0.3
19
4000
955
95
655
1780
1060
525
716
VAHVA GRAPPLE KC36 E7 NTP10 WITH QUICK COUPLING
475
250
0.36
19
4000
955
95
655
1780
1050
625
795
VAHVA GRAPPLE KC36 E7 S60 WITH QUICK COUPLING
465
250
0.36
19
4000
955
95
655
1780
1050
625
816
VAHVA GRAPPLE KC42 E5 NTP10 WITH QUICK COUPLING
580
250
0.42
23
6000
1130
165
840
1955
1185
850
888
VAHVA GRAPPLE KC42 E5 NTP20 WITH QUICK COUPLING
640
250
0.42
23
6000
1130
130
840
1955
1185
850
949
VAHVA GRAPPLE KC42 E5 S60 WITH QUICK COUPLING
570
250
0.42
23
6000
1130
130
840
1955
1275
850
909
VAHVA GRAPPLE KC42 E5 S70 WITH QUICK COUPLING
615
250
0.42
23
6000
1130
130
840
1955
1300
850
942
VAHVA GRAPPLE KC42 E9 NTP10 WITH QUICK COUPLING
720
250
0.42
23
6000
1130
130
840
1955
1315
840
888
VAHVA GRAPPLE KC42 E9 NTP20 WITH QUICK COUPLING
780
250
0.42
23
6000
1130
130
840
1955
1315
850
949
VAHVA GRAPPLE KC42 E9 S60 WITH QUICK COUPLING
710
250
0.42
23
6000
1130
130
840
1955
1275
850
909
VAHVA GRAPPLE KC42 E9 S70 WITH QUICK COUPLING
755
250
0.42
23
6000
1130
130
840
1955
1300
850
942
VAHVA GRAPPLE KC46 E4 NTP10 WITH QUICK COUPLING
560
250
0.46
23
6000
1180
130
910
2000
1270
595
867
VAHVA GRAPPLE KC46 E4 NTP20 WITH QUICK COUPLING
620
250
0.46
23
6000
1180
130
910
2000
1270
600
928
VAHVA GRAPPLE KC46 E4 S60 WITH QUICK COUPLING
550
250
0.46
23
6000
1180
130
910
2000
1360
600
888
VAHVA GRAPPLE KC46 E4 S70 WITH QUICK COUPLING
595
250
0.46
23
6000
1180
130
910
2000
1385
600
921
ACCESSORIES
VAHVA C26 GRAVEL JAWS
165
250
600
VAHVA DEMOLITION JAWS FOR C36 E7 GRAPPLES
240
250
750
VAHVA DEMOLITION JAWS FOR C42 E9 GRAPPLES
355
250
950
Please note! The manufacturer reserves the right to make changes in the
t h i l ifi ti
G

C / E / KC Versio 1.6.2020 (English) 17
17
9Hydraulic hoses in rotator model grapples
MODEL HYDRAULIC HOSE WITH 2 X REINFORCING MESH HOSE LENGTH
VAHVA C21
3/8” R2T 98 SAE 100 R2T/DIN 20022 370 mm and 520 mm
VAHVA
C26/30/36
1/2” R2T 98 SAE 100 R2T/DIN 20022
500 mm and 580 mm
VAHVA C42/46 1/2” R2T 98 SAE 100 R2T/DIN 20022
580 mm and 630 mm
MODEL EXAMPLE: HOSE CONNECTORS
EXAMPLE: NIPPLES ROTATOR
AND CYLINDER
VAHVA C21
CONNECTOR/90-AST/SK/JIC FOR 3/8" HOSE (2 pcs)
BANJO CONNECTOR FOR 3/8" HOSE (1 pc)
CONNECTOR/STRAIGHT SK/JJC FOR 3/8" HOSE (1 pc)
BASIC CONNECTOR BSP-6 x JIC-6 (1
pc)
BANJO BOLT 3/8"R (1 pc)
GASKET R3/8 17.2 x 23.9 x 2.1 (2 pcs)
BASIC CONNECTOR BSP-8 x JIC-6 (2
pcs)
VAHVA C26/30/36
CONNECTOR/ANGLE 90°/ JIC/UNF-THREAD (2 pcs)
CONNECTOR/STRAIGHT SK/JIC FOR 1/2" HOSE (2 pcs)
BASIC CONNECTOR BSP-8 x JIC-10 (3
pcs)
ANGLE CONNECTOR 90°, JIC SK x JIC-
10 THREAD NUT C6XS (1 pcs)
VAHVA C42/46
CONNECTOR/ANGLE 90°/ JIC/UNF-THREAD (2 pcs)
CONNECTOR/STRAIGHT SK/JIC FOR 1/2" HOSE (2 pcs)
BASIC CONNECTOR BSP-8 x JIC-10 (3
pcs)
ANGLE CONNECTOR 90°, JIC SK x JIC-
10 THREAD NUT C6XS
Vahva KC models: hose lengths and connectors on a case-by-case basis.

C / E / KC Versio 1.6.2020 (English) 18
18
Image: Grapple pipelines, sectional view.

C / E / KC Versio 1.6.2020 (English) 19
19
Original
EC Declaration of Conformity
Manufacturer Koneosapalvelu Oy
Address Teollisuustie 5, 35700 VILPPULA
Country Finland
Phone [phone]
E-mail [email protected]
www www.koneosapalvelu.fi
Kari Kytömäki (Koneosapalvelu Oy, Teollisuustie 5, 35700 Vilppula), is authorised to compile the technical
documentation. It is hereby assured that the grapple:
complies with the relevant provisions of the Machinery Directive (2006/42/EC).
Vilppula, 01.06.2020
Kari Kytömäki
Product Manager
[Type label]
