Vaillant atmoMAG 4/1 Z Series User manual

Operating instructions
atmoMAG
MAG ...4/1 Z
BE (de), DE
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

Contents
2Operating instructions atmoMAG 0020271944_00
Contents
1 Safety .................................................................... 3
1.1 Action-related warnings ......................................... 3
1.2 Intended use.......................................................... 3
1.3 General safety information .................................... 3
2 Notes on the documentation .............................. 5
2.1 Observing other applicable documents ................. 5
2.2 Storing documents................................................. 5
2.3 Validity of the instructions...................................... 5
3 Product description............................................. 5
3.1 Information on the data plate................................. 5
3.2 Control elements.................................................... 5
3.3 CE label ................................................................. 5
4 Operation.............................................................. 6
4.1 Cabinet-type casing............................................... 6
4.2 Preparing for start-up............................................. 6
4.3 Starting up the product .......................................... 6
4.4 Switching on the product ....................................... 6
4.5 Drawing hot water.................................................. 6
4.6 Setting the domestic hot water temperature.......... 7
4.7 Modulation ............................................................. 7
5 Troubleshooting .................................................. 7
5.1 Detecting and eliminating faults............................. 7
5.2 Eliminating faults in the product............................. 7
6 Care and maintenance ........................................ 7
6.1 Maintenance .......................................................... 7
6.2 Caring for the product............................................ 7
7 Decommissioning................................................ 8
7.1 Temporarily decommissioning the product............ 8
7.2 Having the product permanently
decommissioned.................................................... 8
7.3 What to do if there is a risk of frost ........................ 8
8 Recycling and disposal....................................... 8
9 Guarantee and customer service....................... 8
9.1 Guarantee.............................................................. 8
9.2 Customer service................................................... 9

Safety 1
0020271944_00 atmoMAG Operating instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-related warnings
The action-related warnings are classified in
accordance with the severity of the possible
danger using the following warning signs and
signal words:
Warning symbols and signal words
Danger!
Imminent danger to life or risk of
severe personal injury
Danger!
Risk of death from electric shock
Warning.
Risk of minor personal injury
Caution.
Risk of material or environmental
damage
1.2 Intended use
There is a risk of injury or death to the user or
others, or of damage to the product and other
property in the event of improper use or use
for which it is not intended.
The products are gas-fired instantaneous
water heaters and, as such, are intended for
hot water generation.
Intended use includes the following:
–observance of the operating instructions
included for the product and any other
system components
–compliance with all inspection and main-
tenance conditions listed in the instruc-
tions.
This product can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabil-
ities or lack of experience and knowledge if
they have been given supervision or instruc-
tion concerning use of the product in a safe
way and understand the hazards involved.
Children must not play with the product.
Cleaning and user maintenance work must
not be carried out by children unless they are
supervised.
Any other use that is not specified in these in-
structions, or use beyond that specified in this
document shall be considered improper use.
Any direct use in industrial or commercial
processes is also deemed to be improper.
Caution.
Improper use of any kind is prohibited.
1.3 General safety information
1.3.1 Installation by competent persons
only
Applicability: Except Belgium
The installation, inspection, maintenance
and repair of the product, as well as the gas
settings and gas conversions, must only be
carried out by a competent person.
1.3.2 Danger caused by improper
operation
Improper operation may present a danger to
you and others, and cause material damage.
▶Carefully read the enclosed instructions
and all other applicable documents, par-
ticularly the "Safety" section and the warn-
ings.
▶Only carry out the activities for which in-
structions are provided in these operating
instructions.
1.3.3 Risk of death from escaping gas
What to do if you smell gas in the building:
▶Avoid rooms that smell of gas.
▶If possible, open doors and windows fully
and ensure adequate ventilation.
▶Do not use naked flames (e.g. lighters,
matches).
▶Do not smoke.
▶Do not use any electrical switches, mains
plugs, doorbells, telephones or other com-
munication systems in the building.
▶Close the emergency control valve or the
main isolator.
▶If possible, close the gas isolator cock on
the product.
▶Warn other occupants in the building by
yelling or banging on doors or walls.
▶Leave the building immediately and ensure
that others do not enter the building.
▶Alert the police and fire brigade as soon as
you are outside the building.

1 Safety
4Operating instructions atmoMAG 0020271944_00
▶Use a telephone outside the building to
inform the emergency service department
of the gas supply company.
1.3.4 Risk of death due to blocked or
leaking flue pipework
What to do if you smell flue gas in the prop-
erty:
▶Open all accessible doors and windows
fully to provide ventilation.
▶Switch off the product.
▶Inform a competent person.
1.3.5 Risk of death due to explosive and
flammable materials
▶Do not use the product in storage rooms
that contain explosive or flammable sub-
stances (such as petrol, paper or paint).
1.3.6 Risk of death due to changes to the
product or the product environment
▶Never remove, bridge or block the safety
devices.
▶Do not tamper with any of the safety
devices.
▶Do not damage or remove any tamper-
proof seals on components.
▶Do not make any changes:
–The product itself
–to the gas, supply air, water and electri-
city supply lines
–to the entire flue system
–to the expansion relief valve
–to the drain pipework
–to constructional conditions that may
affect the operational reliability of the
product
1.3.7 Risk of poisoning caused by
insufficient combustion air supply
Conditions: Open-flued operation
▶Ensure that there is a sufficient combus-
tion air supply.
1.3.8 Risk of corrosion damage due to
unsuitable combustion and room air
Sprays, solvents, chlorinated cleaning
agents, paint, adhesives, ammonia com-
pounds, dust or similar substances may lead
to corrosion on the product and in the air/flue
pipe.
▶Ensure that the combustion air supply is
always free of fluorine, chlorine, sulphur,
dust, etc.
▶Ensure that no chemical substances are
stored at the installation site.
1.3.9 Risk of injury and material damage
due to maintenance and repairs
carried out incorrectly or not carried
out at all
▶Never attempt to carry out maintenance
work or repairs on your product yourself.
▶Faults and damage should be immediately
rectified by a competent person.
▶Adhere to the maintenance intervals spe-
cified.
1.3.10 Risk of being burned or scalded by
hot parts
Parts of the product become hot during oper-
ation.
▶Only touch the product and its parts once
they have cooled down.
1.3.11 Risk of death due to lack of safety
devices
A lack of safety devices (e.g. expansion relief
valve, expansion vessel) can lead to poten-
tially fatal scalding and other injuries, e.g. due
to explosions.
▶Ask a competent person to explain how
the safety devices work and where they
are located.

Notes on the documentation 2
0020271944_00 atmoMAG Operating instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
▶You must observe all operating instructions enclosed with
the system components.
2.2 Storing documents
▶Keep this manual and all other applicable documents
safe for future use.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
Applicability: Germany
OR Belgium
MAG 114/1 Z(E-
BE/FR)
Belgium 0010022555
MAG 114/1 Z(E-DE) Germany 0010022556
MAG 114/1 Z(LL-
DE)
Germany 0010022557
MAG 114/1 Z(P-
BE/FR)
Belgium 0010022554
MAG 144/1 Z(E-BE) Belgium 0010022544
MAG 144/1 Z(E-DE) Germany 0010022562
MAG 144/1 Z(LL-
DE)
Germany 0010022563
MAG 144/1 Z(P-BE) Belgium 0010022546
3 Product description
3.1 Information on the data plate
The data plate is mounted at the front of the down-draught
diverter, under the product casing, at the factory.
Applicability: Belgium
OR Germany
Information on the
data plate
Meaning
MAG Product category
11/14 Power in l/min
-4/1 Chimney connection/product generation
Z With Piezo ignition
atmoMAG Product series
Type B11 BS Approved gas boiler types
Cat I
Cat II
Single-gas unit
Multiple gas type boiler
2E+ (BE)
3P (BE)
2ELL 3P (DE)
Permissible gas categories
G20/25/31 Permitted gas types with connection
pressures
Pnom. Maximum heat output
Pmin. Minimum heat output
Qnom. Maximum heat input
Information on the
data plate
Meaning
Qmin. Minimum heat input
Pw max. Maximum permissible water pressure
Serial number 7th to 16th digit = product article number
3.2 Control elements
3
4
2
1
5
1 Flow rate se-
lector/temperature
selector
2 Rotary power switch
(10-stage from 50-
100%)
3 Piezo igniter
4 Control panel
5 Ignition flame sight
glass
3.3 CE label
The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.

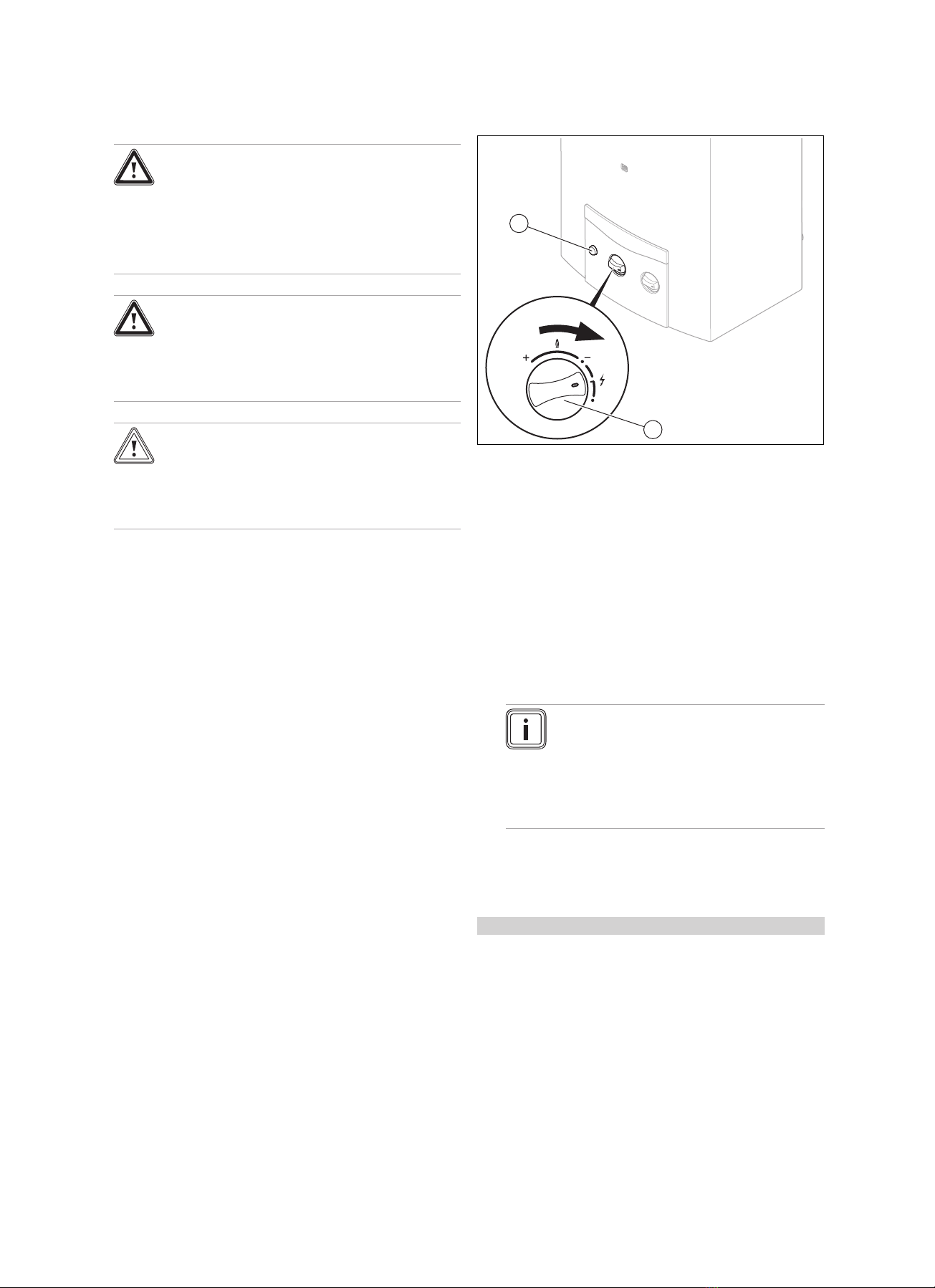

4 Operation
6Operating instructions atmoMAG 0020271944_00
4 Operation
Warning.
Risk of being scalded by hot water.
Incorrectly set hot water temperatures and
hot water in the lines may lead to scalding.
▶Check the hot water temperature with
your hand.
Warning.
Risk of burns caused by touching the
sight glass!
▶Avoid direct contact with the heat-con-
ducting sight glass.
Caution.
Risk of material damage caused by an
interrupted water supply.
▶Ensure that the water supply cannot be
interrupted.
4.1 Cabinet-type casing
Enclosing the product in cabinet-type casing requires compli-
ance with the applicable design instructions.
If you require cabinet-type casing for your product, consult
a heating specialist company. Never, under any circum-
stances, enclose the product yourself.
4.2 Preparing for start-up
1. Ask the competent person who installed the product to
explain to you where these isolator devices are located
and how to handle them.
2. Open the gas isolator cock fully.
3. Open the cold water stop valve that is set on-site.
4.3 Starting up the product
▶Only start up the product once the casing has been com-
pletely closed.
4.4 Switching on the product
2
1
1. Turn the rotary power switch (1) clockwise to the igni-
tion position (lightning symbol) and press it.
2. Press down and hold the rotary power switch in this
position and actuate the Piezo igniter (2) by pressing
it several times.
◁Each time the Piezo igniter is pressed, this creates
one single ignition spark. The ignition flame is ig-
nited.
3. While the ignition flame is burning, hold the rotary
power switch in this position for another 10-15 seconds.
4. Observe the ignited ignition flame through the sight
glass. If the product was shut down for an extended
period, air may have accumulated in the ignition gas
line. In this case, repeat the ignition procedure.
Note
If you notice leaks in the hot water pipes
between the product and the draw-off points,
you must immediately close the cold-water
isolation valve that was set on-site.
Have the leaks eliminated by a competent
person.
4.5 Drawing hot water
1. Open the hot water valve at the draw-off point.
◁The product automatically starts up.
Conditions: No hot water is supplied.
▶Ensure that any stop valve that is installed upstream of
the hot water valve is completely open.
▶Ensure that the pilot flame has ignited.
▶Remove the filter that is installed in the hot water valve
and check the filter for dirt and limescale.
▶Use a descaling solution to remove the limescale from
the filter.
2. Close the hot water valve on the draw-off point.
◁The product automatically shuts down.

Troubleshooting 5
0020271944_00 atmoMAG Operating instructions 7
4.6 Setting the domestic hot water temperature
2
1
1. Turn the temperature selector (1) clockwise to decrease
the domestic hot water flow rate.
–The domestic hot water temperature is thereby af-
fected (increased).
2. Turn the rotary power switch (2) anti-clockwise to in-
crease the burner output.
–The domestic hot water temperature is thereby in-
creased.
3. Turn the temperature selector (1) anti-clockwise to in-
crease the domestic hot water flow rate.
–The domestic hot water temperature is thereby af-
fected (reduced).
4. Turn the rotary power switch (2) clockwise to decrease
the burner output.
–The domestic hot water temperature is thereby re-
duced.
Note
If you increase the domestic hot water flow
rate and turn the rotary power switch anti-
clockwise, the gas consumption is increased.
4.7 Modulation
The burner output (gas flow rate) is continually and auto-
matically matched to the domestic hot water flow rate in the
range between the preselected setting on the rotary power
switch and the product's lowest possible output (approx.
35%). As a result, the domestic hot water temperature is
kept at a constant.
5 Troubleshooting
5.1 Detecting and eliminating faults
A fault is present if the product does not generate any hot
water. As the end user, you may only proceed as follows:
▶Use the sight glass to check whether the ignition flame is
still burning.
▶If the ignition flame goes out, switch the product on
(→Page 6).
▶If the ignition flame repeatedly goes out or no hot water is
generated, contact a competent person to eliminate the
problem.
5.2 Eliminating faults in the product
▶If the product was blocked by a safety device, wait ap-
prox. 10 minutes and then start up the product again.
▶If the product is repeatedly blocked by a safety device or
does not start up, contact a competent person to have
the fault eliminated.
▶Only start the product up again once the fault has been
eliminated by a competent person.
6 Care and maintenance
6.1 Maintenance
An annual inspection and biennial maintenance of the
product carried out by a competent person is a prerequisite
for ensuring that the product is permanently ready and
safe for operation, reliable, and has a long service life. The
inspection may require maintenance to be carried out earlier,
depending on the results.
6.2 Caring for the product
▶Clean the casing with a damp cloth and a little solvent-
free soap.
▶Do not use sprays, scouring agents, detergents, solvents
or cleaning agents that contain chlorine.

7 Decommissioning
8Operating instructions atmoMAG 0020271944_00
7 Decommissioning

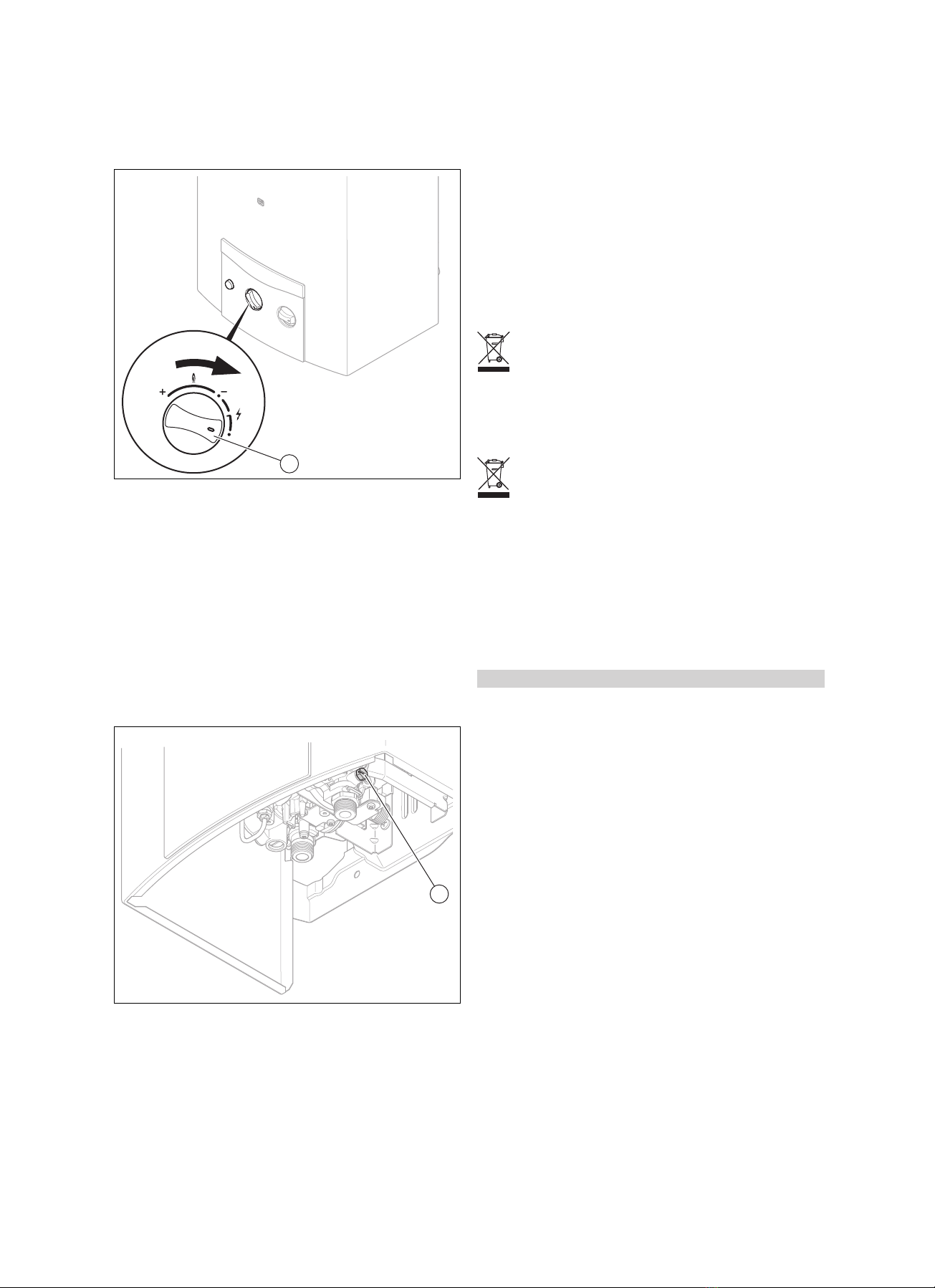

7.1 Temporarily decommissioning the product
1
▶Turn the power switch (1) clockwise from the position for
"ready for operation" as far as it goes.
▶Close the gas isolator cock that was set on-site.
◁The gas supply to the burner on the gas-fired instant-
aneous water heater is now blocked.
▶Close the cold water stop valve that is set on-site.
7.2 Having the product permanently
decommissioned
▶Have a competent person permanently decommission
the product.
7.3 What to do if there is a risk of frost
1
If there is a risk of frost, it is necessary to protect the product
against freezing. To do this, you must drain your gas-fired
instantaneous water heater.
▶Temporarily decommission (→Page 8) the product.
▶Undo the drain screw (1) with the sealing ring.
▶Open all of the domestic hot water tap fittings that are
connected to the product so that the product and line
drain until they are completely empty.
▶Leave the domestic hot water tap fittings and the drain
screw open until the product is started up again when the
risk of frost has passed.
▶When subsequently filling the product, only start it up
again once the water that flows out of the opened do-
mestic hot water tap fittings has no bubbles after the
cold-water isolation valve that is set on-site is opened.
8 Recycling and disposal
▶The competent person who installed your product is re-
sponsible for the disposal of the packaging.
If the product is labelled with this mark:
▶In this case, do not dispose of the product with the
household waste.
▶Instead, hand in the product to a collection centre for
waste electrical or electronic equipment.
If the product contains batteries that are labelled with
this mark, these batteries may contain substances that are
hazardous to human health and the environment.
▶In this case, dispose of the batteries at a collection point
for batteries.
9 Guarantee and customer service
9.1 Guarantee
Applicability: Belgium
Die N.V. VAILLANT gewährleistet eine Garantie von 2 Jah-
ren auf alle Material- und Konstruktionsfehler ihrer Produkte
ab dem Rechnungsdatum.
Die Garantie wird nur gewährt, wenn folgende Vorausset-
zungen erfüllt sind:
1. Das Gerät muss von einem qualifizierten Fachmann
installiert worden sein. Dieser ist dafür verantwortlich,
dass alle geltenden Normen und Richtlinien bei der
Installation beachtet wurden.
2. Während der Garantiezeit ist nur der Vaillant Werkskun-
dendienst autorisiert, Reparaturen oder Veränderungen
am Gerät vorzunehmen. Die Werksgarantie erlischt,
wenn in das Gerät Teile eingebaut werden, die nicht
von Vaillant zugelassen sind.
3. Damit die Garantie wirksam werden kann, muss die Ga-
rantiekarte vollständig und ordnungsgemäß ausgefüllt,
unterschrieben und ausreichend frankiert spätestens
fünfzehn Tage nach der Installation an uns zurückge-
schickt werden.
Während der Garantiezeit an dem Gerät festgestellte Mate-
rial- oder Fabrikationsfehler werden von unserem Werkskun-
dendienst kostenlos behoben. Für Fehler, die nicht auf den
genannten Ursachen beruhen, z. B. Fehler aufgrund unsach-
gemäßer Installation oder vorschriftswidriger Behandlung,
bei Verstoß gegen die geltenden Normen und Richtlinien zur
Installation, zum Aufstellraum oder zur Belüftung, bei Über-
lastung, Frosteinwirkung oder normalem Verschleiß oder
bei Gewalteinwirkung übernehmen wir keine Haftung. Wenn

Guarantee and customer service 9
0020271944_00 atmoMAG Operating instructions 9
eine Rechnung gemäß den allgemeinen Bedingungen des
Werkvertrags ausgestellt wird, wird diese ohne vorherige
schriftliche Vereinbarung mit Dritten (z. B. Eigentümer, Ver-
mieter, Verwalter etc.) an den Auftraggeber oder/und den
Benutzer der Anlage gerichtet; dieser übernimmt die Zah-
lungsverpflichtung. Der Rechnungsbetrag ist dem Techniker
des Werkskundendienstes, der die Leistung erbracht hat,
zu erstatten. Die Reparatur oder der Austausch von Teilen
während der Garantie verlängert die Garantiezeit nicht. Nicht
umfasst von der Werksgarantie sind Ansprüche, die über die
kostenlose Fehlerbeseitigung hinausgehen, wie z. B. An-
sprüche auf Schadenersatz. Gerichtsstand ist der Sitz unse-
res Unternehmens. Um alle Funktionen des Vaillant Geräts
auf Dauer sicherzustellen und um den zugelassenen Se-
rienzustand nicht zu verändern, dürfen bei Wartungs- und
Instandhaltungsarbeiten nur Original Vaillant Ersatzteile ver-
wendet werden!
Applicability: Germany
Herstellergarantie gewähren wir nur bei Installation durch
einen anerkannten Fachhandwerksbetrieb.
Dem Eigentümer des Geräts räumen wir diese Hersteller-
garantie entsprechend den Vaillant Garantiebedingungen
ein. Garantiearbeiten werden grundsätzlich nur von unserem
Kundendienst ausgeführt. Wir können Ihnen daher etwaige
Kosten, die Ihnen bei der Durchführung von Arbeiten an dem
Gerät während der Garantiezeit entstehen, nur dann erstat-
ten, falls wir Ihnen einen entsprechenden Auftrag erteilt ha-
ben und es sich um einen Garantiefall handelt.
9.2 Customer service
Applicability: Belgium
N.V. Vaillant S.A.
Golden Hopestraat 15
B-1620 Drogenbos
Belgien, Belgique, België
Kundendienst / Service après-vente / Klantendienst:
2 3349352
Applicability: Germany
Auftragsannahme Vaillant Kundendienst: 021 91 5767901

0020271944_00 06.04.2018
Supplier
Vaillant Deutschland GmbH & Co.KG
Berghauser Str. 40 D-42859 Remscheid
Telefon [phone]‑0 Telefax 021 91 18‑2810
Auftragsannahme Vaillant Kundendienst 021 91 5767901
[email protected] www.vaillant.de
N.V. Vaillant S.A.
Golden Hopestraat 15 B-1620 Drogenbos
Tel. [phone] Fax [phone]
Kundendienst / Service après-vente / Klantendienst 2 3349352
[email protected] www.vaillant.be
© These instructions, or parts thereof, are protected by copyright and may be reproduced or distributed only with
the manufacturer's written consent.
We reserve the right to make technical changes.
0020271944_00
