Vaillant flexoTHERM exclusive VWF 87/4 User manual

For the operator
Operating instructions
flexoTHERM exclusive
VWF 57 - 197/4, VWF 57 - 117/4 230V
GB, IE
Operating instructions
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

Contents
2Operating instructions flexoTHERM exclusive 0020213396_02
Contents
1 Safety ............................................ 3
1.1 Action-related warnings ................. 3
1.2 Intended use .................................. 3
1.3 General safety information............. 4
2 Notes on the documentation ...... 7
2.1 Observing other applicable
documents ..................................... 7
2.2 Storing documents......................... 7
2.3 Applicability of the instructions....... 7
3 System overview.......................... 7
3.1 Heat pump system design ............. 7
4 Product description..................... 8
4.1 Product design............................... 8
4.2 Serial number ................................ 8
4.3 Opening the front flap .................... 8
4.4 Operator control panel ................... 8
4.5 CE label ......................................... 9
4.6 Safety devices ............................... 9
5 Operating.................................... 10
5.1 Basic display................................ 10
5.2 Operating concept ....................... 11
5.3 Menu display................................ 11
5.4 Operating levels........................... 11
5.5 Starting up the product ................ 12
5.6 Adjusting the target cylinder
temperature ................................. 12
5.7 Yield indicator .............................. 12
5.8 Displaying the Live Monitor.......... 12
5.9 Displaying the building circuit
pressure....................................... 12
5.10 Displaying the environment
circuit pressure ............................ 12
5.11 Reading the operating
statistics ....................................... 12
5.12 Setting the language.................... 12
6 Maintenance and care ............... 13
6.1 Fulfilling requirements for the
installation site ............................. 13
6.2 Caring for the product .................. 13
6.3 Reading maintenance
messages .................................... 13
6.4 Checking the system pressure .... 13
6.5 Checking the brine circuit's
filling pressure.............................. 13
7 Troubleshooting ........................ 13
7.1 Fault message ............................. 13
8 Decommissioning...................... 14
8.1 Switching off the heat pump ........ 14
8.2 Permanently decommissioning
the product................................... 14
8.3 Recycling and disposal ................ 14
9 Guarantee and customer
service ........................................ 15
9.1 Guarantee.................................... 15
9.2 Customer service......................... 15
Appendix ............................................... 16
A Overview of the operator's
operating level ........................... 16

Safety 1
0020213396_02 flexoTHERM exclusive Operating instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-re-
lated warnings
The action-related warnings
are classified in accordance
with the severity of the pos-
sible danger using the following
warning signs and signal words:
Warning symbols and signal
words
Danger!
Imminent danger to life
or risk of severe personal
injury
Danger!
Risk of death from electric
shock
Warning.
Risk of minor personal
injury
Caution.
Risk of material or envir-
onmental damage
1.2 Intended use
There is a risk of injury or death
to the user or others, or of dam-
age to the product and other
property in the event of im-
proper use or use for which it
is not intended.
The system is intended exclus-
ively for domestic use.
The system is intended as a
heat generator with cooling
function for closed heating
installations and for hot wa-
ter generation. Operation of
the pump outside the applica-
tion limits results in the heat
pump being switched off by
the internal control and safety
devices.
Cooling mode with radiator
heating systems is not permit-
ted since radiators do not have
an adequate heat transfer sur-
face area.
Intended use includes the fol-
lowing:
–observance of the operating
instructions included for the
product and any other system
components
–compliance with all inspection
and maintenance conditions
listed in the instructions.
This product can be used by
children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given supervi-
sion or instruction concerning
use of the product in a safe way
and understand the hazards in-
volved. Children must not play
with the product. Cleaning and

1 Safety
4Operating instructions flexoTHERM exclusive 0020213396_02
user maintenance work must
not be carried out by children
unless they are supervised.
Any other use that is not spe-
cified in these instructions, or
use beyond that specified in this
document shall be considered
improper use. Any direct com-
mercial or industrial use is also
deemed to be improper.
Caution.
Improper use of any kind is
prohibited.
1.3 General safety
information
1.3.1 Danger caused by
improper operation
Improper operation may present
a danger to you and others, and
cause material damage.
▶Carefully read the enclosed
instructions and all other ap-
plicable documents, particu-
larly the "Safety" section and
the warnings.
▶Only carry out the activities
for which instructions are
provided in these operating
instructions.
1.3.2 Risk of death due to
explosive and flammable
materials
▶Do not use or store explosive
or flammable materials (e.g.
petrol, paper, paint) in the in-
stallation room of the product.
1.3.3 Risk of death due
to changes to the
product or the product
environment
▶Never remove, bridge or
block the safety devices.
▶Do not tamper with any of the
safety devices.
▶Do not damage or remove
any seals on components.
Only authorised competent
persons or customer services
may modify sealed compon-
ents.
▶Do not make any changes to:
–The product itself
–The product environment
–The brine fluid, air and elec-
tricity supply lines
–The drain line and expan-
sion relief valve for the heat
source circuit
–The constructional condi-
tions that may affect the
operational reliability of the
product
1.3.4 Risk of injury due to
chemical burns caused
by brine fluid
The brine fluid ethylene glycol is
harmful to health.
▶Avoid contact with the skin
and eyes.

Safety 1
0020213396_02 flexoTHERM exclusive Operating instructions 5
▶Always wear gloves and pro-
tective goggles.
▶Do not inhale or swallow.
▶Observe the safety data sheet
that accompanies the brine
fluid.
1.3.5 Preventing the risk of
injury from freezing
as a result of touching
coolant
The product is supplied with an
operational filling of R 410 A
refrigerant. Escaping coolant
may cause freezing if the exit
point is touched.
▶If coolant escapes, do not
touch any components of the
product.
▶Do not inhale any vapours or
gases that escape from the
refrigerant circuit as a result
of leaks.
▶Avoid skin or eye contact with
the coolant.
▶In the event of skin or eye
contact with the coolant, seek
medical advice.
1.3.6 Risk of injury and
material damage due to
maintenance and repairs
carried out incorrectly or
not carried out at all
▶Never attempt to carry out
maintenance work or repairs
on your product yourself.
▶Faults and damage should
be immediately rectified by a
competent person.
▶Adhere to the maintenance
intervals specified.
1.3.7 Risk of material damage
caused by frost
▶Ensure that the heating in-
stallation always remains in
operation during freezing con-
ditions and that all rooms are
sufficiently heated.
▶If you cannot ensure the op-
eration, have a competent
person drain the heating in-
stallation.
1.3.8 Avoid environmental
damage caused by
escaping coolant
The product contains R 410 A
refrigerant. The coolant must
not be allowed to escape into
the atmosphere. R410A is a
fluorinated greenhouse gas
covered by the Kyoto Protocol,
with a GWP of 2088 (GWP =
global warming potential). If
this gas escapes into the atmo-
sphere, its impact is 2088 times
greater than the natural green-
house gas CO2.
Before the product is disposed
of, the coolant that is contained
in it must be completely drained
into a suitable vessel so that

1 Safety
6Operating instructions flexoTHERM exclusive 0020213396_02
it can then be recycled or dis-
posed of in accordance with
regulations.
▶Ensure that only officially cer-
tified competent persons with
appropriate protective equip-
ment carry out maintenance
work on the refrigerant circuit
or access it.
▶Arrange for the refriger-
ant that is contained in the
product to be recycled or
disposed of by a certified
competent person in accord-
ance with the regulations.

Notes on the documentation 2
0020213396_02 flexoTHERM exclusive Operating instructions 7
2 Notes on the
documentation
2.1 Observing other applicable
documents
▶You must observe all operating instruc-
tions enclosed with the system compon-
ents.
2.2 Storing documents
▶Keep this manual and all other applic-
able documents safe for future use.
2.3 Applicability of the
instructions
These instructions apply only to:
Applicability: Great Britain
OR Ireland
Product
VWF 57/4
VWF 87/4
VWF 117/4
VWF 157/4
VWF 197/4
Applicability: Great Britain
OR Ireland
Product
VWF 57/4 230 V
VWF 87/4 230 V
VWF 117/4 230 V
3 System overview

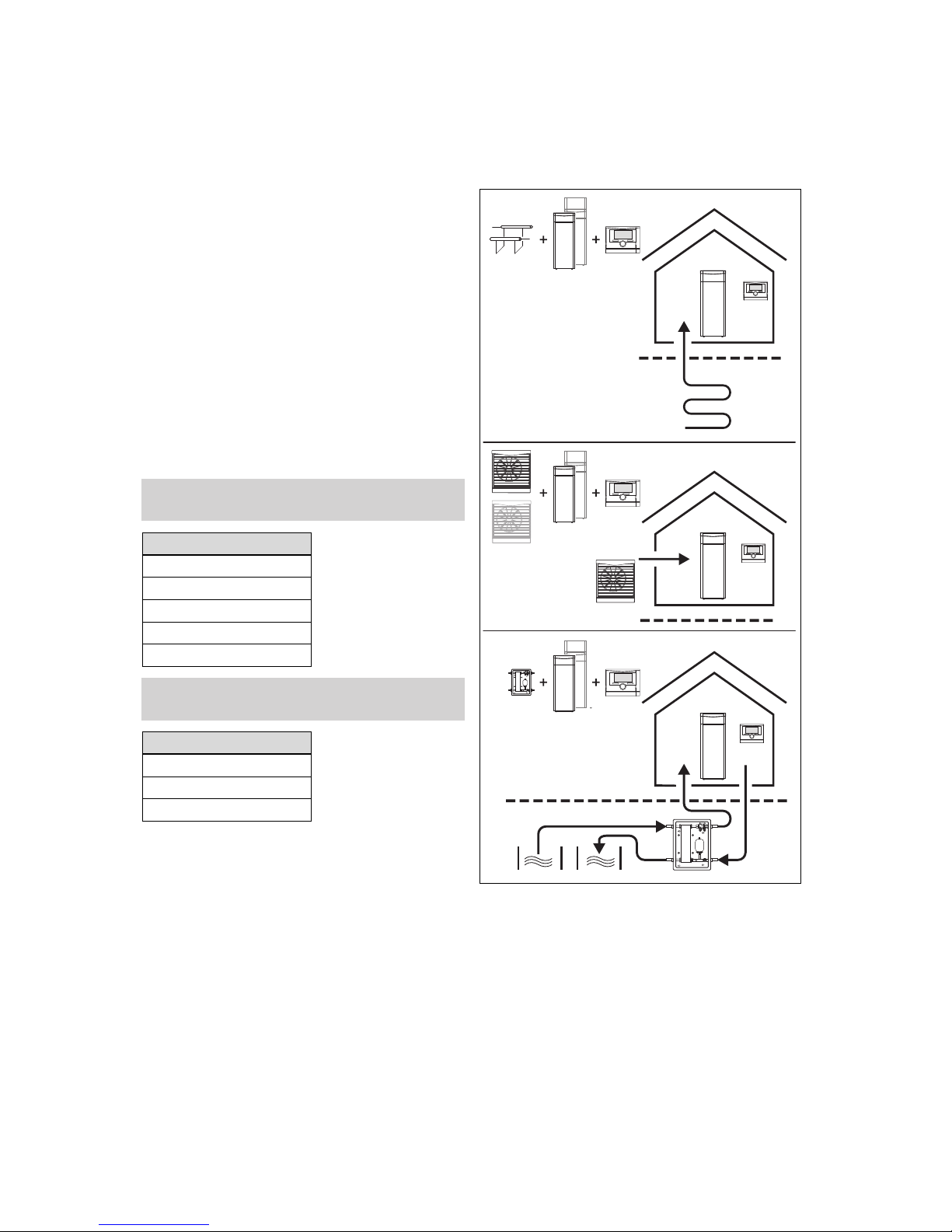

3.1 Heat pump system design
A
B
A
B
The heat pump system consists of the
following components:
–Heat pump
–System controller (from VRC 700)
–Outside temperature sensor with DCF
receiver
–System sensor, if required
–With ground heat source: Ground
sensor

4 Product description
8Operating instructions flexoTHERM exclusive 0020213396_02
–For the air heat source (only products
with 400 V): Air/brine collector(s)
–With well water heat source: Groundwa-
ter module
There is an opportunity for active cooling
to take place via circulation reversal for the
heat sources air, ground and groundwater.
4 Product description
4.1 Product design
1
2
3
4
1
2
3
4
1 Front flap
2 Recessed
handle
3 Control elements
4 Plate showing
the serial num-
ber
4.2 Serial number
The serial number is located on a plate be-
hind the front flap. The 7th to 16th digits of
the serial number form the article number.
4.3 Opening the front flap
1. Take hold of the recessed handle in
the front flap on the left- or right-hand
side.
2. Pull the recessed handle.

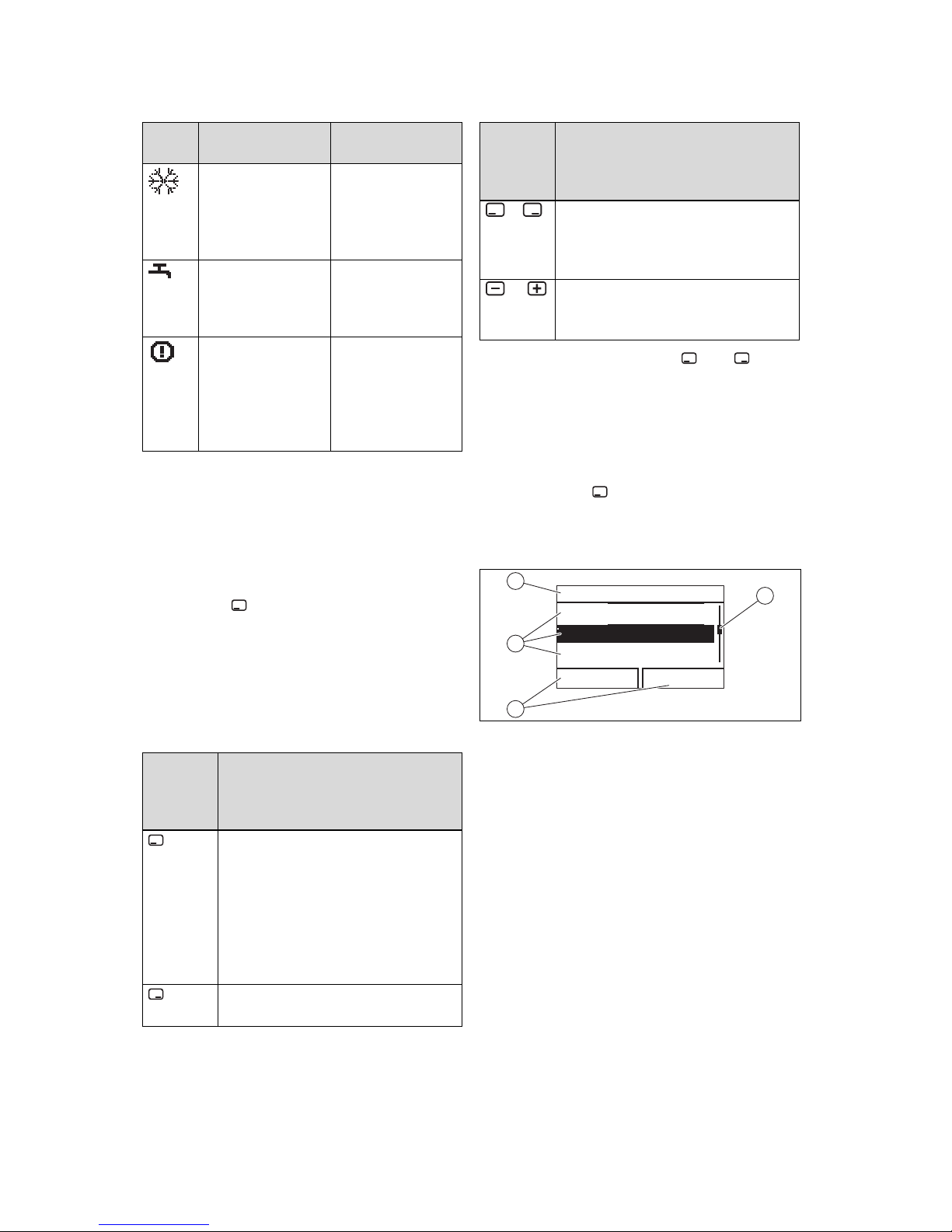

4.4 Operator control panel
50 d
kWh
reset
1
2
3
4
6
7
8
9
5
1 Displays the
daily environ-
mental energy
yield
2 Display of the
current as-
signment of
the right-hand
selection button
3 Left- and right-
hand selection
buttons
4and but-
ton
5 Reset button
6 Access to the
menu for addi-
tional information
7 Display of the
current configur-
ation of the left-
hand selection
button
8 Displays the
symbols for the
current operat-
ing status of the
heat pump
9 Display

Product description 4
0020213396_02 flexoTHERM exclusive Operating instructions 9
4.5 CE label
The CE label shows that the products
comply with the basic requirements of the
applicable directives as stated on the iden-
tification plate.
The declaration of conformity can be
viewed at the manufacturer's site.
4.6 Safety devices
4.6.1 Frost protection function
The frost protection function for the system
is controlled via the system controller. If
the system controller fails, the heat pump
guarantees limited frost protection for the
heating circuit.
4.6.2 Protection against low heating
water pressure
This function continuously monitors the
pressure of the heating water in order to
prevent a possible loss of heating water.
4.6.3 Brine loss protection system
The brine loss protection system continu-
ously monitors the fluid pressure in the
environment circuit in order to prevent a
possible shortage of fluid.
4.6.4 Freeze protection
This function prevents the evaporator from
freezing when the heat source temperat-
ure drops below a certain value.
The outlet temperature of the heat source
is constantly measured. If the outlet tem-
perature of the heat source falls below a
certain value, the compressor temporarily
switches off and displays a status mes-
sage. If this fault occurs three times in a
row, it is switched off and a fault message
is displayed.
4.6.5 Pump- and valve-blocking
protection system
This function prevents the pumps for heat-
ing water and brine and all diverter valves
from sticking. The pumps and the valves,
which were out of operation for 23 hours,
are switched on for 10 - 20 seconds, one
after the other.
4.6.6 High-pressure pressure switch
in the refrigeration circuit
The high-pressure pressure switch shuts
down the heat pump if the pressure in the
coolant circuit is too high. If the pressure
in the heat pump's refrigeration circuit ex-
ceeds the maximum pressure, the high-
pressure pressure switch temporarily shuts
down the heat pump. Following a waiting
period, another attempt is made to start
the heat pump. After three failed start at-
tempts in succession, a fault message is
displayed.
–Refrigeration circuit pressure max.: 4.60
MPa (g) (46.00 bar (g))
–Waiting period: 5 minutes (after the first
occurrence)
–Waiting period: 30 minutes
(after the second and every further oc-
currence)
The fault counter is reset if both of the
following conditions are met:
–Heat requirement without switching off
prematurely
–60 minutes of uninterrupted operation
4.6.7 Hot gas thermostat in the
refrigeration circuit
The hot gas thermostat shuts down the
heat pump if the temperature in the refri-
geration circuit is too high. If the temperat-
ure in the heat pump's refrigeration circuit
exceeds the maximum temperature, the
hot gas thermostat temporarily shuts down
the heat pump. Following a waiting period,
another attempt is made to start the heat

5 Operating
10 Operating instructions flexoTHERM exclusive 0020213396_02
pump. After three failed start attempts in
succession, a fault message is displayed.
–Max. refrigeration circuit temperature:
135 ℃
–Waiting period: 5 minutes (after the first
occurrence)
–Waiting period: 30 minutes
(after the second and every further oc-
currence)
The fault counter is reset if both of the
following conditions are met:
–Heat requirement without switching off
prematurely
–60 minutes of uninterrupted operation
4.6.8 Safety cut-out (SCO) in the
heating circuit
If the temperature in the heating circuit of
the internal auxiliary electric heating ex-
ceeds the maximum temperature, the SCO
shuts down the auxiliary electric heating as
a securing measure. Following a waiting
period, another attempt is made to start
the auxiliary electric heating. A fault mes-
sage is displayed that can only be reset by
pressing the Reset button or by switching
the heat pump off and on again.
–Max. heating circuit temperature: 85 ℃
5 Operating
5.1 Basic display
50 d
kWh
Sym-
bol
Meaning Explanation
Compressor –Filled: Com-
pressor in op-
eration
–Not filled:
Compressor
not in
operation
bar
Current filling
pressure of the
heating system
The dashed lines
show the permit-
ted range.
–Permanently
on: Filling
pressure in
the permitted
range.
–Flashing:
Filling pres-
sure outside
the permitted
range.
Pumps –Left continu-
ously on: Brine
pump in oper-
ation
–Right con-
tinuously on:
Heating pump
in operation
Auxiliary electric
heating
–Flashing: Aux-
iliary electric
heating in op-
eration
–+ : Aux-
iliary electric
heating act-
ive for heating
mode
–+ : Aux-
iliary electric
heating active
for hot water
handling mode
Green iQ mode –Product
equipped with
energy-saving
technology
Heating mode –Continuously
on: Heating
mode active

Operating 5
0020213396_02 flexoTHERM exclusive Operating instructions 11
Sym-
bol
Meaning Explanation
Cooling mode –Continuously
on: Cooling
mode active
(active or
passive)
Hot water gener-
ation
–Continuously
on: Hot water
handling mode
active
F. X X X
Fault in the
product
–Appears in-
stead of the
basic display,
may be an ex-
planatory plain
text display
The basic display shows you the product's
operating mode. If you press a selection
button, the activated function is displayed
in the display.
You can switch back to the basic display
by:
–Pressing to exit the selection levels
–Not pressing any button for longer than
15 minutes.
If there is a fault message present, the ba-
sic display switches to the fault message.
5.2 Operating concept
Op-
erator
control
element
Function
–Displaying the environmental
energy yield in heating mode,
hot water handling mode and
cooling mode
–Cancelling a change to a set
value
–Going one selection level
higher
–Confirm setting
–Going one selection level lower
Op-
erator
control
element
Function
+
at the
same
time
–Calling up the menu
or –Reducing or increasing the set
value
–Scrolling through menu entries
The current function of the and selec-
tion buttons is shown on the display.
Adjustable values are always displayed as
flashing.
You must always confirm a change to a
value. Only then is the new setting saved.
You can press to cancel a procedure at
any time.
5.3 Menu display
Xxxx
Xxxxxxxxxxx
Xxxx Xxxxxxx
Xxxxxxxxxx
xxxxxx Xxxxxxx
1
4
3
2
1 Scroll bar
2 Current assign-
ment of the se-
lection buttons
3 Selection level
list entries
4 Selection level
You can find an overview of the menu
structure in the appendix.
5.4 Operating levels
The product has two operating levels.
The operating level for the operator shows
the information and offers set-up options
that do not require any special prior know-
ledge.
The operating level for the competent per-
son is protected by a code.
Overview of the operator's operating level
(→Page 16)

5 Operating
12 Operating instructions flexoTHERM exclusive 0020213396_02
5.5 Starting up the product
▶Only start up the product once the cas-
ing has been completely closed.
5.6 Adjusting the target cylinder
temperature
In order to achieve energy-efficient hot
water generation predominantly from the
energy extracted from the environment,
the factory setting for the desired hot water
temperature must be adjusted on the sys-
tem controller.
▶To do this, adjust the cylinder set target
temperatures (Desired DHW circuit
temperature) to between 50 and 55 °C,
for example.
◁Depending on the source of energy
obtained from the environment,
hot water output temperatures of
between 55 and 62 °C are reached.
5.7 Yield indicator
Displays the environmental energy yield as
a cumulative value for a period of a day,
a month and the total for the heating, hot
water generation and cooling modes.
Displays the working figure for a period of
a month and the total for the heating and
hot water generation modes. The work-
ing figure is the ratio of thermal energy
generated to the operating current used.
Monthly values may vary considerably
since, for example, in the summer only
hot water generation is used. A large num-
ber of factors influence this estimate, e.g.
the type of heating installation (direct heat-
ing mode = low flow temperature or indir-
ect heating mode via buffer cylinder = high
flow temperature). This figure may there-
fore deviate by up to 20%.
The working figures only record the power
consumption of internal components, not
of external components such as external
heating circuit pumps, valves, etc.
5.8 Displaying the Live Monitor
Menu →Live Monitor
–You can use the Live Monitor to display
the current status of the product.
5.9 Displaying the building circuit
pressure
Menu →Live Monitor→Building circuit
pressure
–Current filling pressure of the heating
system
5.10 Displaying the environment
circuit pressure
Menu →Live Monitor→Environment
circuit pressure
–Current filling pressure in the environ-
ment circuit
5.11 Reading the operating
statistics
Menu →Information →Heating op.
hours
Menu →Information →DHW operating
hours
Menu →Information →Cooling op.
hours
Menu →Information →Total operating
hours
Operating hours for heating mode, hot
water handling mode, cooling mode and
the overall operation
5.12 Setting the language
Menu →Basic settings →Language
–Setting the desired language

Maintenance and care 6
0020213396_02 flexoTHERM exclusive Operating instructions 13
6 Maintenance and care
6.1 Fulfilling requirements for the
installation site
The installation site must be dry and frost-
proof throughout.
Conditions: Outdoor air heat source
The air/brine collector is designed to be
operated with outdoor air. The air intake
and blow-off route of the outdoor unit must
be kept clear at all times in order to guar-
antee that the air can flow unhindered and
as intended. Vegetation and, in winter,
snowfall, must be cleared.
You are not permitted to make any sub-
sequent structural alterations which
may result in a reduced room volume
or a change to the temperature at the
installation site.
6.2 Caring for the product
Caution.
Risk of material damage
caused by unsuitable clean-
ing agents.
▶Do not use sprays, scouring
agents, detergents, solvents
or cleaning agents that con-
tain chlorine.
▶Clean the casing with a damp cloth and
a little solvent-free soap.
6.3 Reading maintenance
messages
If the symbol is shown in the display,
the product requires maintenance work.
The product is not in fault mode; it contin-
ues to operate.
▶Consult a competent person.
6.4 Checking the system pressure
▶Check the filling pressure of the heating
installation every day for a week after
initial start-up and maintenance work,
and then twice a year.
–Filling pressure: ≥0.07 MPa
(≥0.70 bar)
Filling pressure too low
▶Inform your competent person so
that he can add heating water and
increase the filling pressure.
6.5 Checking the brine circuit's
filling pressure
▶Check the brine circuit's filling pressure
at regular intervals. Read the brine cir-
cuit's filling pressure in the heat pump's
display.
–Brine fluid operating pressure range:
0.07 … 0.20 MPa (0.70 … 2.00 bar)
7 Troubleshooting
7.1 Fault message
Note
If the heat pump has switched off
automatically due to a fault, the
system controller can be used to
activate a limp home mode with the
electric auxiliary heating.
If several faults occur at the same time,
the display shows the corresponding fault
messages for two seconds each in alterna-
tion.
F.714 Environment circuit: Pressure too
low
If the filling pressure falls below the min-
imum pressure, the heat pump will be
switched off automatically.
–Minimum brine fluid pressure:
≥0.05 MPa (≥0.50 bar)
–Min. brine fluid operating pressure:
≥0.07 MPa (≥0.70 bar)

8 Decommissioning
14 Operating instructions flexoTHERM exclusive 0020213396_02
▶Inform your competent person so that
he can top up the brine fluid.
F.723 Building circuit: Pressure too low
If the filling pressure falls below the min-
imum pressure, the heat pump will be
switched off automatically.
–Min. heating circuit pressure:
≥0.05 MPa (≥0.50 bar)
–Min. heating circuit operating pressure:
≥0.07 MPa (≥0.70 bar)
▶Inform your competent person so that
he can top up the heating water.
F.1120 Heating rod: Phase failure
The product has an internal circuit breaker
which switches off the heat pump in the
event of short circuits or the failure of
one (product with 230 V power supply) or
several (product with 400 V power supply)
current-carrying phases. This may be
caused by a defect in the internal auxiliary
electric heater, for example.
If the auxiliary electric heater is defective,
the Anti-legionella function is not guaran-
teed.
▶Inform your competent person so that
they can rectify the fault and reset the
internal circuit breaker.
8 Decommissioning
8.1 Switching off the heat pump
8.1.1 Temporarily decommissioning
the product
▶Use the partition that is installed on-
site (e.g. fuses or power switches) to
disconnect the product from the power
supply.
8.1.2 Protecting the product against
frost
▶Observe the installation site require-
ments for the product. (→Page 13)
8.2 Permanently
decommissioning the product
1. Have a competent person permanently
decommission the product.
2. Have the product disposed of by a
competent person.
8.3 Recycling and disposal
▶The competent person who installed
your product is responsible for the dis-
posal of the packaging.
If the product is identified with this
symbol:
▶In this case, do not dispose of the
product with the household waste.
▶Instead, hand in the product to a collec-
tion centre for old electrical or electronic
appliances.
If the product contains batteries that
are marked with this symbol, these bat-
teries may contain substances that are
hazardous to human health and the envir-
onment.
▶In this case, dispose of the batteries at
a collection point for batteries.
8.3.1 Arranging disposal of the
brine fluid
The product is filled with the brine fluid
ethylene glycol, although when using
ground as the heat source, aqueous
solutions of propylene glycol may also be
used as an alternative. Ethylene glycol is
harmful to health.
▶Brine fluid must only be disposed of by
a qualified competent person.
8.3.2 Arranging disposal of coolant
The product is filled with R 410 A refriger-
ant.
The coolant must not be allowed to escape
into the atmosphere.

Guarantee and customer service 9
0020213396_02 flexoTHERM exclusive Operating instructions 15
▶Coolant must only be disposed of by a
qualified competent person.
9 Guarantee and customer
service
9.1 Guarantee
Applicability: Great Britain
Vaillant provides a full parts and labour
guarantee for this appliance for the dura-
tion as shown on the enclosed registration
card which must be fully completed and
returned within 30 days of installation. All
appliances must be installed by a suitably
competent person fully conversant and
in accordance with all current regulations
applicable to the appliance type installa-
tion. In the case of gas appliances the Gas
Safety (Installation and Use) Regulations
1998, and the manufacturer’s instructions.
In the UK competent persons approved at
the time by the Health and Safety Execut-
ive undertake the work in compliance with
safe and satisfactory standards. Installers
should also be fully conversant with and
competent with all necessary electrical and
building regulations that may apply to the
installation.
In addition all unvented domestic hot water
cylinders must be installed by a compet-
ent person to the prevailing building regu-
lations at the time of installation (G3). All
appliances shall be fully commissioned in
accordance with our installation manual
and Benchmark commissioning check list
(this will be included within the installa-
tion manual). These must be signed and
given to the user for safe keeping during
the hand over process. Installers should
also at this time advise the user of the an-
nual servicing requirements and advise of
appropriate service agreement.
Terms and conditions do apply to the guar-
antee, details of which can be found on the
registration card included with this appli-
ance. In order to qualify for guarantee after
one year the appliance must be serviced
in accordance with our installation manual
servicing instructions. The benchmark ser-
vice history should be completed. Note -
all costs associated with this service are
excluded from this guarantee.
Failure to install and commission this ap-
pliance in compliance with the manufac-
turer’s instructions will invalidate the guar-
antee (this does not affect the customer’s
statutory rights).
9.2 Customer service
Applicability: Great Britain
To ensure regular servicing, it is strongly
recommended that arrangements are
made for a Maintenance Agreement.
Please contact Vaillant Service Solutions
for further details:
Telephone: [phone]

Appendix
16 Operating instructions flexoTHERM exclusive 0020213396_02
Appendix
A Overview of the operator's operating level
Setting level Values Unit Increment, se-
lect
Default
setting
Setting
Min. Max.
Yield indicator →
Energy yield: Day,
Heating
Cumulative
value
kWh
Energy yield: Day, Do-
mestic hot water
Cumulative
value
kWh
Energy yield: Day,
Cooling
Cumulative
value
kWh
Energy yield: Month,
Heating
Cumulative
value
kWh
Working figure: Month,
Heating
Cumulative
value
Energy yield: Total,
Heating
Cumulative
value
kWh
Working figure: Total,
Heating
Cumulative
value
Energy yield: Month,
Domestic hot water
Cumulative
value
kWh
Working figure: Month,
Domestic hot water
Cumulative
value
Energy yield: Total,
Domestic hot water
Cumulative
value
kWh
Working figure: Total,
Domestic hot water
Cumulative
value
Live Monitor →
Current status mes-
sage(s)
Current value
Building circuit pres-
sure
Current value bar
Environment circuit
pressure
Current value bar
Switch-on delay Current value min
Flow temp. setpoint Current value ℃
Current flow temp. Current value ℃
Energy integral Current value °min
Environment circuit
inlet temperature
Current value ℃
Environment circuit
outlet temperature
Current value ℃
Cooling capacity Current value kW

Appendix
0020213396_02 flexoTHERM exclusive Operating instructions 17
Setting level Values Unit Increment, se-
lect
Default
setting
Setting
Min. Max.
Electrical power con-
sumption
Current value kW Total power
consumption of
the heat pump
without any ex-
ternal compon-
ents connected
(as-delivered
condition).
Heating rod power Current value kW
Information →
Contact data Phone number
Serial number Permanent
value
Operating hours total Cumulative
value
h
Hours heating Cumulative
value
h
DHW operating hours Cumulative
value
h
Cooling op. hours Cumulative
value
h
Basic settings →
Language Current lan-
guage
Languages avail-
able for selection
02 English
Display contrast Current value 1 25
15 40
Resets →
Reset anti-cycl. time –Cancel reset
anti-cycl. time?
Yes/No

0020213396_02 29.04.2016
Vaillant Ltd.
Nottingham Road Belper Derbyshire DE56 1JT
Telephone [phone]
[email protected] www.vaillant.co.uk
© These instructions, or parts thereof, are protected by copyright and may be
reproduced or distributed only with the manufacturer's written consent.
We reserve the right to make technical changes.
