Valcom V-1040 User manual

Issue 0
1 947994
V-1040
INSTALLATION INSTRUCTIONS FOR
CLEAN ROOM CEILING SPEAKER
The Valcom Ceiling Speaker, V-1040 is a self-amplified and capable of reproducing voice paging in clean room
environments. The V-1040 has a screwdriver adjustable volume control located on the 1 watt amplifier circuit
board. The V-1040 has an 8-inch speaker. The speaker requires -24VDC, 50mA (1-power unit). The speaker
features the following, large rubber o-ring to seal the grille to the ceiling, rubber washers for all mounting hardware
and a polycarbonate dust shield located between the speaker and the grille.
Dimensions/Weight
•V-1040 13.00"Dia. x 3.00"D (33.02cm Dia. x 7.62cm D) 2.5 lbs. (1.13kg)
Coverage
The area covered by a ceiling speaker is determined by the height of the ceiling. If ceiling height is 8 feet,
the speaker will cover 256 sq. ft. With a ceiling height of 10 feet, the speaker will cover 400 sq. ft. If the
ceiling is 20 feet high, the speaker will cover 1600 sq. ft.
Connections
Refer to Figure 1 for audio and electrical
connections. Category 3 24 AWG structured
cable may be used for all connections.
FIGURE 1: TYPICAL CONNECTIONS
NOTE: Do not connect this speaker directly
to a 25/70/100 Volt amplifier as damage to
both the amplifier and speaker may occur.
A V-1095 may be used to allow the use of
Valcom self-amplified speakers on 70V
speaker lines.
Installation
Suspended Ceiling Installation
After determining the speaker location and referring to Figure 2 cut an 8.5” diameter hole in the ceiling
tile. Attach the backbox to the bridge with the four screws provided and position the assembly on the
back of the ceiling tile. Before continuing speaker installation using a small screwdriver set Volume
Control to 2/3 rotation. Place the large rubber O-ring on the back of the speaker assembly and using
the four screws equipped with washers and O-rings mount the speaker assembly to the bridge/backbox
assembly. Do not over-tighten the speaker mounting screws. Hand-tighten only. For a proper seal the
large O-ring should compress slightly. It is not necessary for the edge of the metal grille to touch the
ceiling tile for a proper seal. Refer to Figure 2.
Page
Out
Valcom Page
Control
(Tip/A)
(Ring/B)
(-24Vdc)
(Gnd)
Valcom -24 Vdc
Power Supply
One-Way
A
mplified
Speaker

2
FIGURE 2: V-1040 INSTALLATION INSTRUCTIONS
V-9915M-5 Backbox
V-9914M-5 Bridge
Attach backbox to
bridge with 4 screws
provided
Cut 8.5" round
hole in ceiling tile
Bend tabs down to
locate bridge in
ceiling tile cutout
Ceiling Grille
and 8" Speaker
Assembly
(4 white screws
with rubber washers
provided)
Large Rubber
O-Ring Placement

8 9
www.valcom.com • 800-825-2661

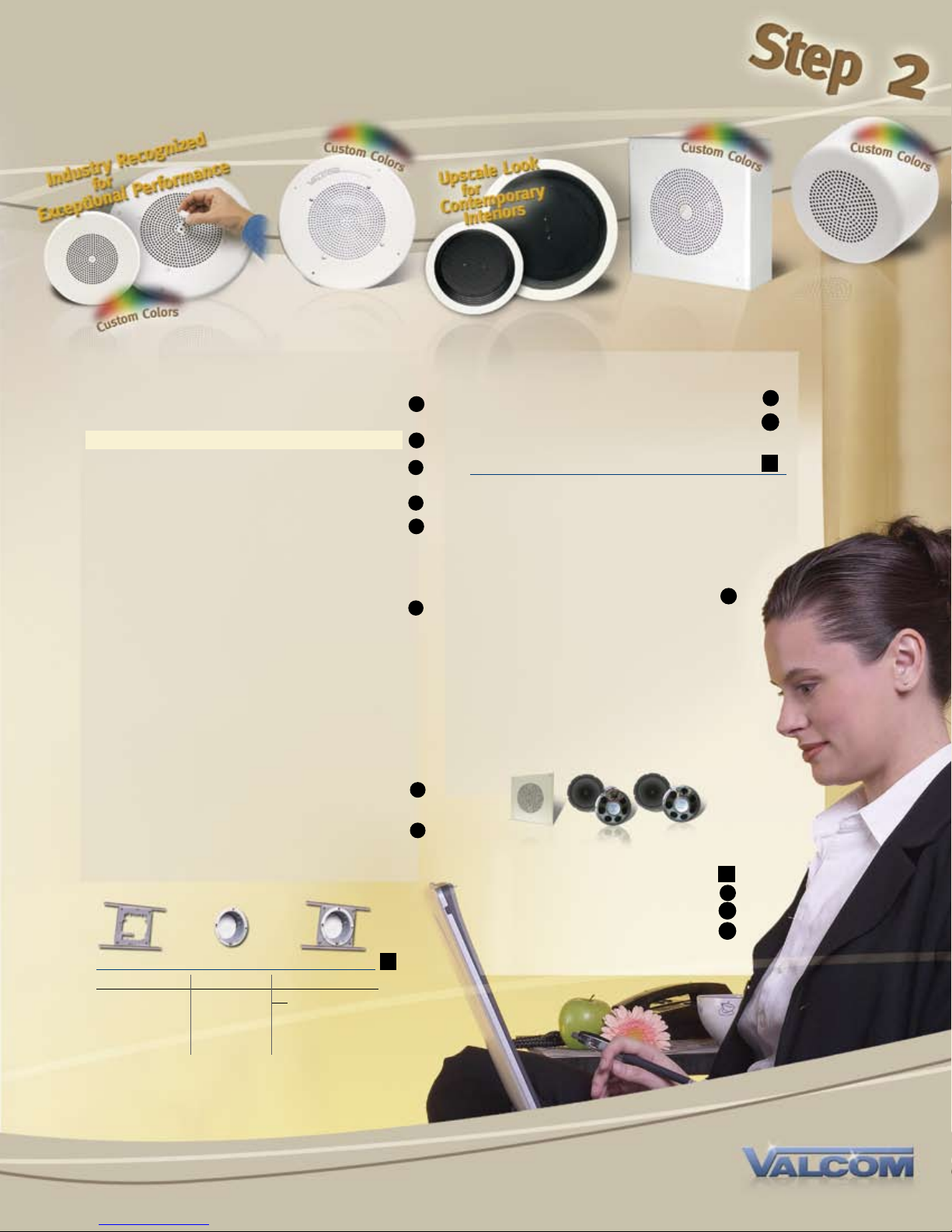

Ceiling SpeakersCeiling Speakers
V-1010C
V-1020C Clean Room
Speaker
V-1040
V-1920C
V-1011- MR
V-1012- BB
Square Ceiling Speaker
8" One-Way ..................................................... V-1920C
8" Talkback ................................................ V-CTSQPK
11.5”L x 11.5”L x 3.0"D (29.21cm x 29.21cm x 7.62cm) 3.75 lbs (1.69 kg)
Optional Square Speaker Backbox:
Surface Mount Backbox ........... V-1991 Flush Mount Backbox ........... V-1992
10.62”L x 10.62”L x 4.0"D 10.75”L x 10.75”L x 3.75"D
(26.97cm x 26.97cm x 10.61cm) 6.0 lbs (2.7 kg) (27.31cm x 27.31cm x 9.53cm) 2.75 lbs (1.24 kg)
Surface Mount Vandal-Resistant
Ceiling Speaker
One-Way ........................................... V-9010-W
Ideal for Concrete Ceilings & Harsh Areas:
Correctional Institutions, Outside Entrances,
Industrial Areas
• Steel Security Screen/Housing
w/Tamper-Resistant Screws
Prevents Objects from Penetrating Speaker
8.56”Dia x 5.13”H (21.74cm x 13.0cm) 4.8 lbs (2.16 kg)
-1
0
NEW
NEW
White Ceiling Speakers
4" One-Way .................................................................. V-1010C
7.65”Dia x 2.9”D (19.43cm x 7.36cm) 2.4 lbs (1.09 kg)
8" One-Way ............................................................... V-1020C
8" Dual-Input (One-Way) ............................................. V-1220
13.0”Dia x 3.0”D (33.0cm x 7.6cm) 3.8 lbs (1.73 kg)
8" Talkback .................................................................. V-1060A
8" Talkback w/LED ...................................................... V-1060B
13.0”Dia x 2.5”D (33.0cm x 6.35cm) 3.7 lbs (1.68 kg)
Clean Room Ceiling Speaker
8" One-Way ..................................................................... V-1040
Designed for Applications Where Concentration of Airborne
Particles is Controlled. For Areas Such as Pharmaceutical,
Medical & Other Critical Manufacturing Environments
•Large Rubber O-Ring to Seal the Grille to the Ceiling
•Rubber Washers for All Mounting Hardware
•Polycarbonate Dust Shield Between the Speaker & the Grille
13”Dia x 3.0”D (33.02cm x 7.62cm) 2.5 lbs (1.13 kg)
Recessed Ceiling Speakers
4" One-Way w/Mounting Ring & Rails ............. V-1011-MR
7.80”Dia x 5.0”D (19.81cm x 12.7cm) 4.3 lbs (1.95 kg)
8" One-Way w/Backbox & Rails ......................... V-1012-BB
11.75”Dia x 6.0”D (29.84cm x 15.24cm) 8.3 lbs (3.77 kg)
s
NEW
NEW
Round Speaker Mounting Hardware:
Bridges Backboxes Combo
For 4" V-9904M-5 V-9915M-5 Must Use V-9904M-5 Bridge
(5 Pack) (5 Pack) & V-9915M-5 Backbox Together
For 8" V-9914M-5 V-9915M-5 V-9916M
(5 Pack) (5 Pack)
Pre-Construction Bridge for 8" Spkr V-9912M-10 (10 Pack)
Great For Gypsum (Sheetrock) Ceilings w/ 16" or 24" Support Structure
Post-Construction Mounting Ring for 8" Spkr V-9912P-12 (12 Pack)
Great For Gypsum (Sheetrock) Ceilings Plastic
s
NEW
NEW
(Metal)
-1
-1
-1
0
0
-1
-1
s
(Metal)
V-936480 VSA-1020C V-936418
4 Volume Levels
s
Vandal-Resistant
Ceiling Speaker
V-9010-W
-1
-1
C.
Speaker Assemblies:
Square Grille ..........................V-936480
8" Speaker w/o Grille .............. VSA-1020C
8" 45 ohm Speaker ................. V-936418
8" 25/70 Volt Speaker ............ V-936400
D. E.
F.
G.
NEW
NEW
Pop-On/Pop-Off Volume Knob
s
NEW
NEW
s
ss
Pop-On/Pop-Off Volume Knob
D.
H.
Optional
Backbox
I.
CE
CE
CE
CE
CE
C.
E.
G.
H.
I.
F.
w/Amplifier
4 Volume Levels
Pop-On/Pop-Off Volume Knob
-1
0
0
N/A
N/A
N/A

ANALOG PAGE CONTROLS
2000 SERIES™ One-Way
1Zone...................................................................V-2000A...........+12................6
1Zone Enhanced ..................................................V-2001A...........+20................6
3Zone...................................................................V-2003A...........+20................6
Optional Plug-In Talkback Card for V-2003A .........V-9953............-10................6
6Zone...................................................................V-2006A...........+30................6
Optional Plug-In Talkback Card for V-2006A .........V-9956............-10................6
9Zone One-Way All Call....................V-1109RTVA...............-6................6
2000 SERIES™ Talkback
3Zone.............................................................V-2003AHF...........+10................6
6Zone.............................................................V-2006AHF...........+20................6
DualPath
24 Zones Wall Mount ..............................................V-2924A.................0................7
Add 24 Zones (Up to 3 on V-2924A) Wall Mount ........V-2925A.................0................7
DualPath V-2924A Accessories
Option Card...........................................................V-2926.................0................7
Option Card w/Time Event Scheduler.............V-2928.................0................7
Clock Relay Card................................................... V-CIO.................0................7
Clock Control Card............................................V-2927.................0................7
Clock Correction Kit ................................V-CLK2924.................0................7
MultiPath
24 Zones Wall Mount ................................................V-PW24.................0................7
48 Zones Wall Mount ................................................V-PW48.................0................7
24 Zones Rack Mount .................................................V-PR24.................0................7
48 Zones Rack Mount .................................................V-PR48.................0................7
72 Zones Rack Mount .................................................V-PR72.................0................7
96 Zones Rack Mount .................................................V-PR96.................0................7
Station Level/FXS Adapters
Digital 1 Zone One-Way Page Adapter....V-9970...............-4................7
Expandable Station Page Adapter..........V-9940...............-4................7
PagePal™ Interface................................. V-5335700.................0................7
SPEAKERS
One-Way Ceiling w/Built-In Amplifier & Volume Control
P-Tec™ Ceiling Speaker White......................V-1001...............-1................. 8
2’ x 2’ Lay-In Ceiling w/Backbox, White ... V-9022 * ...............-1................. 8
2’ x 2’ Lay-In European Version................ V-9022-EC * ...............-1................. 8
2’ x 2’ Lay-In Dual-Input w/Backbox....... V-9028 * ...............-1................. 8
4" Ceiling Speaker White............................V-1010C * ...............-1................. 9
8" Ceiling Speaker White............................V-1020C * ...............-1................. 9
8" Ceiling Speaker Dual-Input White...... V-1220 * ...............-1................. 9
8" Clean Room Ceiling Speaker White . V-1040 * ...............-1................. 9
4" Recessed w/Mounting Ring & Rails ....... V-1011-MR...............-1................. 9
8" Recessed w/Backbox & Rails ..................V-1012-BB...............-1................. 9
8" Square Ceiling Speaker White...........V-1920C * ...............-1................. 9
Surface Mount Ceiling Vandal-Resistant ......... V-9010-W * ...............-1................. 9
Talkback Ceiling
8" Square Ceiling Speaker White........ V-CTSQPK * .................0................. 9
P-Tec™ Ceiling Speaker White ......................V-1070.................0................. 8
8" Ceiling Speaker White ........................... V-1060A * .................0................. 9
8" Ceiling Speaker w/LED, White ............. V-1060B * .................0................. 9
2’ x 2’ Lay-In Ceiling Spkr w/Backbox... V-9062 * .................0................. 8
Round Speaker Mounting Hardware
Bridge for 4" Speaker (5 Pack) ............. V-9904M-5............... N/A ................9
Must Use V-9904M-5 Bridge & V-9915M-5 Backbox Together
Bridge for 8" Speaker (5 Pack) ............. V-9914M-5............... N/A ................9
Backboxes for 4" &8" (5 Pack)............. V-9915M-5............... N/A ................9
Bridge/Backbox Combo for 8".............. V-9916M............... N/A ................9
Pre-Construction Bridge Metal (10 Pack) ...... V-9912M-10............... N/A ................9
Post-Const. Mount Ring Plastic (12 Pack) ...... V-9912P-12............... N/A ................9
Optional Square Speaker Backbox
Square Flush Mount Backbox Metal ............V-1992............... N/A ................9
Square Surface Mount Backbox Metal .......V-1991............... N/A ................9
Speaker Assemblies
8" Square Grille............................................ V-936480............... N/A ................9
8" Speaker w/o Grille.............................VSA-1020C...............-1................9
8" 45 ohm Speaker.................................... V-936418.................0................9
8" 25/70 Volt Speaker............................. V-936400.................0................9
One-Way Wall w/Built-In Amplifier & Volume Control
Wall Black..........................................................V-1016-BK...............-1.............. 10
Wall White ...........................................................V-1016-W...............-1.............. 10
Wall Woodgrain Brown.................................... V-1023C...............-1.............. 10
Wall Woodgrain Light...................................... V-1022C...............-1.............. 10
Wall Gray Metal (Paintable).................................V-1052C * ...............-1.............. 10
Bi-Directional Corridor Brown.................... V-1027C...............-1.............. 10
Bi-Directional Corridor Light...................... V-1026C...............-1.............. 10
Bi-Directional Corridor White............... V-1026C-W...............-1.............. 10
Corner Woodgrain Brown............................... V-1025C...............-1.............. 10
Corner Woodgrain Light................................. V-1024C...............-1.............. 10
Corner Gray Metal (Paintable) ............................. V-1054 * ...............-1.............. 10
Dual-Input Wall Wood Light..........................V-1222...............-1.............. 10
Dual-Input Corner Woodgrain Light .........V-1224...............-1.............. 10
Dual-Input Bi-Directional Corridor Light . V-1226...............-1.............. 10
Slimline™ Wall Speaker............................ V-1042 +* ...............-1.............. 10
Talkback Wall
Wall Black..........................................................V-1061-BK.................0.............. 10
Wall White ...........................................................V-1061-W.................0.............. 10
Wall Woodgrain Brown....................................V-1063A.................0.............. 10
Wall Woodgrain Light ......................................V-1062A.................0.............. 10
Wall Gray Metal (Paintable)................................... V-1071 * .................0.............. 10
Dual-Input Wall Wood Light w/LED ...........V-1062B.................0.............. 10
Corner Woodgrain Brown...............................V-1065A.................0.............. 10
Corner Woodgrain Light.................................V-1064A.................0.............. 10
Corner Gray Metal (Paintable) .............................. V-1055 * .................0.............. 10
Bi-Directional Corridor Brown....................V-1067A.................0.............. 10
Bi-Directional Corridor Light......................V-1066A.................0.............. 10
Bi-Directional Corridor White...............V-1066A-W.................0.............. 10
Slimline™ Wall Speaker............................ V-1046 +* .................0.............. 10
30 31
www.valcom.com • 800-825-2661
Description ..................................................................................... Part # ............. VPU........ Page # Description ..................................................................................... Part # ............. VPU........ Page #
SPEAKER COLORS: *Speaker Available in Custom Colors... and some + Available in BK, GY, W, BR, ++ Available in W, GY, BK, +++ Available in W, GY, BG
Quick & Easy Product Index
STEP 1 Select A Page Control
Basic System Products
STEP 2 Select Speakers & Horns
See Accessories Listed on Page 32
w/Amplifier
4 Volume Levels
