Valcom Vip-802a User manual

1 947818

ISSUE 1

VIP-802A

DUAL ENHANCED NETWORK AUDIO PORT

INTRODUCTION

The VIP-802A Dual Enhanced Network Audio Port

enables voice access to two zones of one-way

paging over an IP network, allowing page zones to

be extended anywhere network connectivity is

available. The VIP-802A can be programmed as a

SIP (Session Initiation Protocol) device with two

identities (one per audio channel) for connectivity

to virtually any Voice over IP (VoIP) telephone

system.

SPECIFICATIONS

Features

2 Audio Outputs or Inputs

2 Form A relay contacts

2 Contact Closure Inputs

2 SIP identities for registering to a SIP

telephone system

RJ-45 jack for network connection

Front panel activity LED

Provides audio for up to 40 Valcom one-way

amplified speaker assemblies per zone

AUX audio input via RCA jack

Contact closure or VOX operation of audio

inputs

VM-186 RJ-45 connectors provided for audio

and relay interface

Page with music output, music mutes during

page

Output control contact closure provided during

paging output

Compatible with 25 or 70 Volt amplifiers

2.5mm jack for optional DC power

Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

1.75” H x 6.75" W x 9.5" D

(4.45cm H x 17.15cm W x 24.13cm D)

Weight: 1.75 lbs. (0.80 kg)

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 AMP @ 24VDC

Nominal Power Requirements

Via back panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-802A

1 VSP Document

2 Mounting Brackets W/ Hardware

2 RJ-45 Patch Cables

2 VM-186 RJ-45 Connectors

2947818

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates thatthere are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

Precautionary Designations

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated in

a commercial environment. This equipment

generates, uses and can radiate radio

frequency energy and if not installed and used

in accordance with the instruction manual, may

cause harmful interference to radio

communications. Operation of this equipment

in a residential area may cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

Mounting

The VIP-802A is designed for wall, table or rack

mounting.

Table: Provided with the VIP-802A are four rubber

pads. Peel the pads from their carrier backing and

place at the four corners of the bottom of the unit.

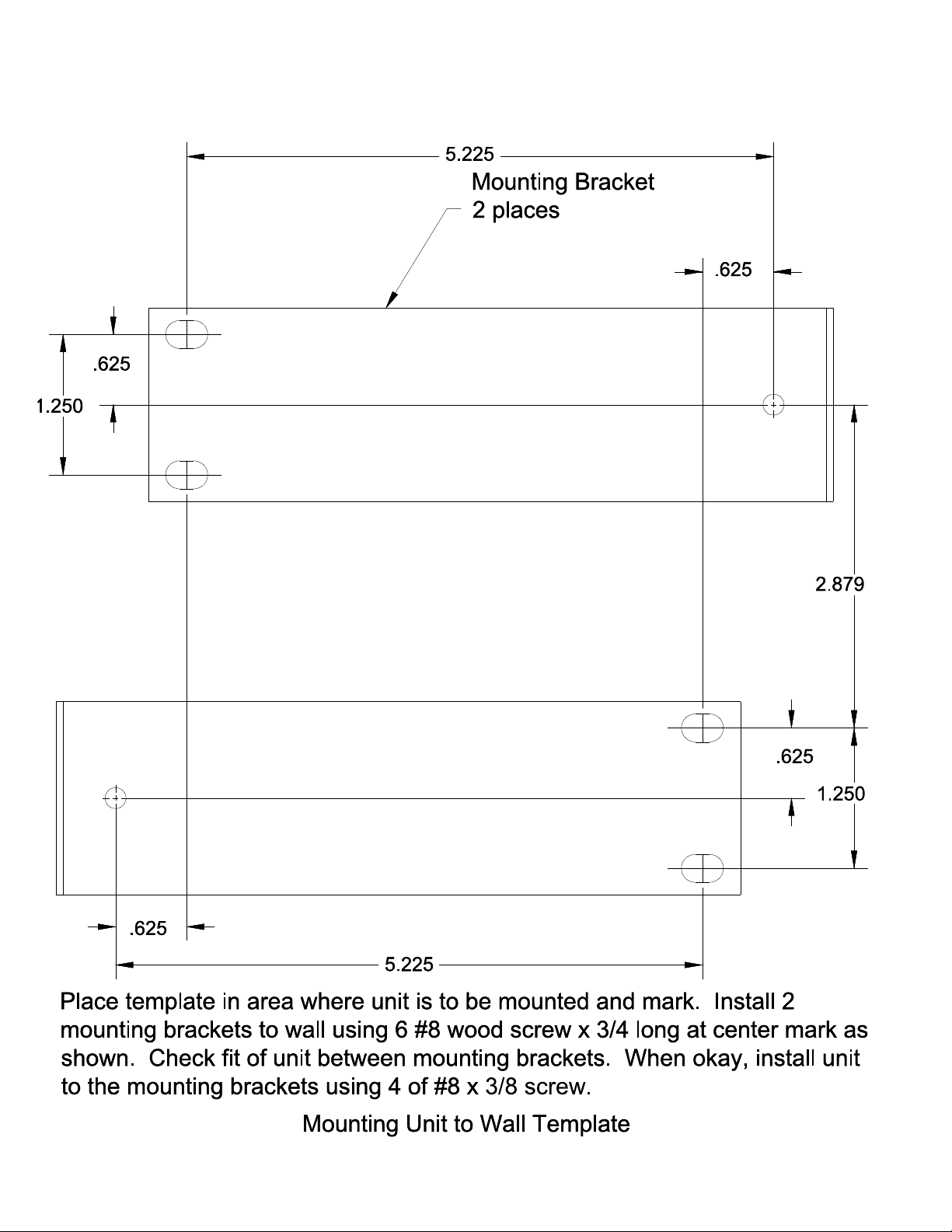

Wall: Using the template on last page of this

document, mark the location of the bracket screw

holes on the wall. Drill 5/64" pilot holes, 3/4" deep,

at each screw location and use the wood screws

provided to attach the brackets to the wall. For

surfaces other than wood, use hardware

appropriate for the surface (not included). With the

brackets securely attached to the wall, attach the

VIP-802A to the brackets using the included

hardware. Figure 2 illustrates the bracket

assembly.

Rack: Following the assembly drawing, attach the

two mounting brackets to the VIP-802A unit. Using

rack screws, mount the VIP-802A in an available

1U rack slot. See Figure 1.

Figure 1. Rack Mount

Figure 2. Wall Mount

Power Connections

The preferred method of powering a VIP-802A is

via a Power over Ethernet (PoE) switch meeting

the 802.3af specification.

If the rear panel barrel connector is used for power,

the preferred power supply is a Valcom VIP-324D.

Make all required signal connections before

applying power to the unit. If powering via 802.3af,

make sure all signal connections via the back

panel are made then connect the VIP-802A to the

Ethernet switch.

If power is supplied via the barrel connector, make

sure all signal connections are secure. Attach the

unit to the network via the front panel RJ-45

Ethernet connector. Apply power by connecting

the power supply into the VIP-802A via the barrel

connector on the rear of the VIP-802A.

3947818

VM-186

RJ45

BLUE

ORANGE

GREEN

BROWN

BLUE

N/O RELAY OUTPUT

AUDIO INPUT

CONTACT CLOSURE INPUT

AUDIO OUTPUT

WHITE/BLUE

BLUE

WHITE/ORANGE

ORANGE

WHITE/GREEN

GREEN

WHITE/BROWN

BROWN

Network Connection

The VIP-802A has one RJ-45 network connector

on the front panel.

Use a standard Ethernet patch cable to connect

the VIP-802A to an Ethernet switch.

Status Indicator Lights

The VIP-802A has 3 status indication lights on the

front panel:

STATUS: Illuminates at regular intervals during

normal operation. On steady indicates unit is in

reset mode.

The network jack provides two LED indicators:

Green LED: (Link) Indicates Ethernet connection

when illuminated.

Yellow LED: (Activity) Indicator flashes to indicate

network activity.

Signal Connections

The VIP-802A has 3 signal connectors on the rear

panel:

1 RCA jack for AUX audio input

2 RJ-45 connectors for signal connections for

each networked channel

AUX Input: Local audio may be input via the rear

panel RCA jack. Nominal input impedance is 600

Ohms. Connect any compatible audio source using

an RCA patch cable. Audio supplied through the

rear panel RCA jack is transformer coupled to

Audio Out channels when Audio Out is idle. This is

typically used for background music and can be

enabled or disabled for each channel.

Rear View

Networked Channels: Access to the networked

audio output, audio input, contact closure input and

relay closure output is provided via two rear panel

RJ-45 connectors. Provided with the VIP-802A are

two RJ-45 patch cables and two VM-186 RJ-45

Connectors. Signal connections are made by

connecting one end of a patch cable to the VIP-

802A, Port 1 or Port 2, and the other end of the

patch cable to the VM-186 connector. Access to

the signals is via screw connections or 110-style

punch down block connection on the VM-186 (see

Figure 3). Signals are present on pairs of pins, as

shown in the following chart:

Figure 3. VM-186 RJ-45 Connector

Setup

Information specific to your application will need to

be programmed into the VIP-802A using a

computer. The PC used for programming should

be connected to the same subnet as the VIP-802A.

Setup will be done using the IP Solutions Setup

Tool. Download the latest version of the free IP

Solutions Setup Tool from Valcom web site at

www.valcom.com/vipsetuptool.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. Check voltages for proper polarity to

the one-way amplified speakers. If a spare unit is

available, substitute a spare unit for the suspected

defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

[email protected].

When requesting assistance, you should include

all available information. General information and

troubleshooting procedures are available on the

Valcom website at www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

4947818

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund

of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
