Valet V110 User manual

Installation & Operation Manual
Rev 2.0
Premium Cyclonic
Central Vacuum
System

NESS HEAD OFFICE
02 8825 9222
SALES - SERVICE - SPARES
1800 050 333
Central Vacuum
Intercom
Security
Automation
www.valet.com.au
VALET PREMIUM CYCLONIC CENTRAL VACUUM
VAC-154 V81 POWER UNIT
VAC-157 V110 POWER UNIT
OWNER’S MANUAL
REV 2, September 2022
COPYRIGHT NOTICE
All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form
or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of
Ness.
Ness reserves the right to make changes to features and specifications at any time without prior notification in the
interest of ongoing product development and improvement.
© 2022 Ness Corporation Pty Ltd ABN 28 069 984 372

Safety Instructions ....................................4
Handling & Unpacking .................................5
Components .........................................6
Installing the Power Unit ..............................7, 8
Connecting the PVC Pipe ...............................9
Electrical ...........................................10
Start vacuuming .....................................11
How to empty the dust container ........................12
How to clean the filter cartridge .........................13
How to replace the filter cartridge .......................14
Technical Specifications ...............................15
Contents
3

Important Safety InStruCtIonS
Valet Vacuum Owners Manual
Intended only for Household and Light Commercial Use
Before InStallatIon or operatIon:
• Read the supplied manual and ensure correct installation and use of the product/s
• Empty the dust container regularly
• Check the condition of the filter cartridge regularly
• Do not install outside unless proper weather protection is in place
• Do not connect to a non grounded supply or a non approved supply
• Do not service the Power Unit unless it has been disconnected from the supply
• Do not use with a damaged electrical lead or plug
• Keep electrical lead away from heated or sharp objects
• Keep inflammable objects or liquids away from the Power Unit
• Do not place or store anything on top of the Power Unit
• Do not place or store anything that may restrict the air flow of the Power Unit
• Do not vent the Power Unit into a wall, a ceiling, or any enclosed space
• Do not vacuum any wet surfaces
• Do not vacuum any liquids, including any fuels
• Do not vacuum anything that is hot, burning or smoking
• Do not vacuum any ash, even it appears dormant
• Avoid vacuuming plaster dust or talcum powder, which can cause clogging of the filter
cartridge
• Do not obstruct, block or impede the hose or wall valve inlets
• Keep hair, all parts of the body and loose clothing away from the hose or wall inlets
• Do not use non recommended attachments or accessories
• Pay close attention to children while the system is being used
• Do not allow children to use the system as a toy
WarnIng
Improper uSe may CauSe fIre,
eleCtrIC ShoCk or Injury
Valet V81 & V110 power units are designed to power central vacuum systems for
residential buildings.
The power unit is connected to the ducted piping serving the various rooms. Inlet
valves are installed in rooms in the house for plugging the vacuum hose and
various cleaning accessories.
The vacuum unit has been designed to remove dust and small solid material and
must not be used to vacuum liquids or hazardous materials.
4

Warranty
Your Valet central vacuum system has been
engineered for a long, trouble-free service life.
The warranty period on parts only, excluding
labour, is FIVE YEARS plus ONE YEAR extra
when you register your warranty online.
This voluntary warranty is for reasonable
domestic use only and excludes operation in
commercial environments.
Remember, your warranty does not cover abuse
or misuse of the equipment.
Register your warranty online at
www.valet.com.au
Use of the manual
The instruction manual for use and
maintenance is an integral and essential part
of the vacuum power unit and must be handed
over to the user. It must be kept in a safe place
and consulted carefully as all of the warnings
provide important instructions for safety in the
phases of installation, use and maintenance.
Responsibility
The vacuum power unit must be used
only for the purpose for which it has been
designed. Any other use is considered
improper use and is therefore dangerous.
The manufacturer accepts no contractual or
extra-contractual liability for damage arising
from a wrong installation or operation or from
the non-compliance with the manufacturer’s
instructions.

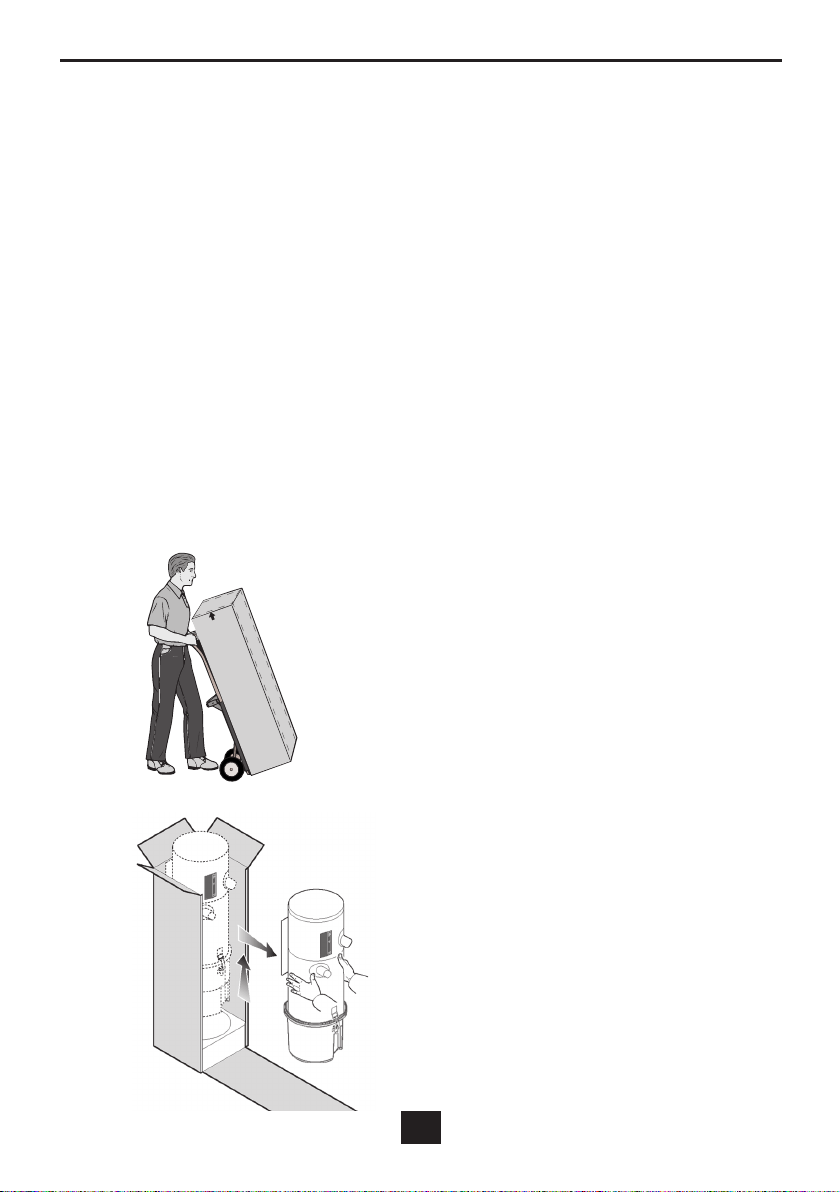

HANDLING & UNPACKING
Do not remove the unit from the packaging until
installation to prevent accidental damage.
Use suitable handling equipment.
Check that the product is not damaged and
the standard parts are contained in the dust
container.
Introduction
Top
Bottom
5

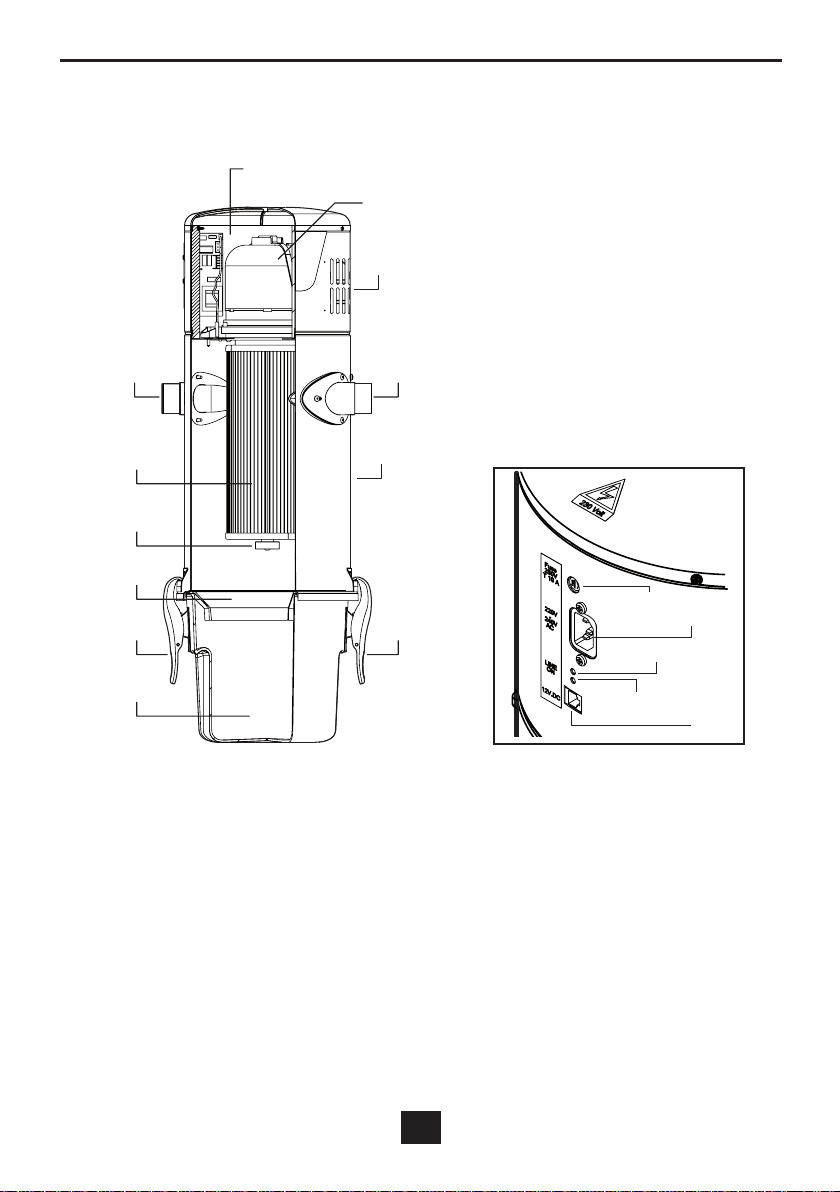

Power Unit Components
1Sound-proofed motor chamber
2Electric motor
3Exhaust
4Dual right/left dust inlet
5Dual right/left dust inlet
6Mains socket
7Low voltage switch input
8Top LED On: Mains on
9Bottom LED On: Unit running
10 Fuse
11 Filter cartridge
12 Fixing Knob
13 Mounting bracket
14 Lock lever (on the mounting bracket)
15 Dust Cone
16 Dust container locks
17 Dust container
3
13, 14
Rear of unit
2
1
5
4
11
12
15
16
17
16
10 6
9
7
8
v110 shown
6

Installing the Power Unit
Positioning
The power unit should be installed in service
rooms such as a store-room or garage and
protected against weather, humidity and
sudden changes of temperature.
The power unit is not designed for outdoor
use unless suitably protected.
The installation place shall be sufficiently
spacious and well lit to allow for a easy
access to the vacuum unit.
When installed indoors or in a semi-enclosed
area ensure the space is properly ventilated.
The power unit must be fixed to the wall at a
height that allows for an easy dismantling of
the dust container and the replacement of the
filter cartridge.
If Using a Wall Bracket
1A. Mount the bracket on the wall.
If Mounting Direct To The Wall
1B. Drill. Using a spirit level check that the
bracket is level
2. Release the locking lever.
V110 shown
7

Installing the Power Unit
3. Remove the support from the
guides.
4. Fit the vibration blocks to the
support.
5A. If using a wall bracket. Fix the
support to the wall bracket.
5B. If mounting directly to the wall.
Screw the support to the wall.
6. Remove the dust container.
7. Secure the Power Unit to the
support.
8. Make sure the locking lever locks
into position.
9. Attach the dust container.
8

Connecting the PVC Pipe
Installation with optional exhaust pipe
Suitable for installation in enclosed spaces.
Optional exhaust
vent adapter
Installation with natural exhaust
Suitable for outdoor (undercover) installations.
Exhaust
o
Air intakes.*
* Two air intakes are provided
- for left or right hand pipe
entry. The unused intake must
blocked with the cap provided.
Air intakes.*
* Two air intakes are provided
- for left or right hand pipe
entry. The unused intake must
blocked with the cap provided.
Exhaust
Optional muffler
V110 shown
V110 shown
9

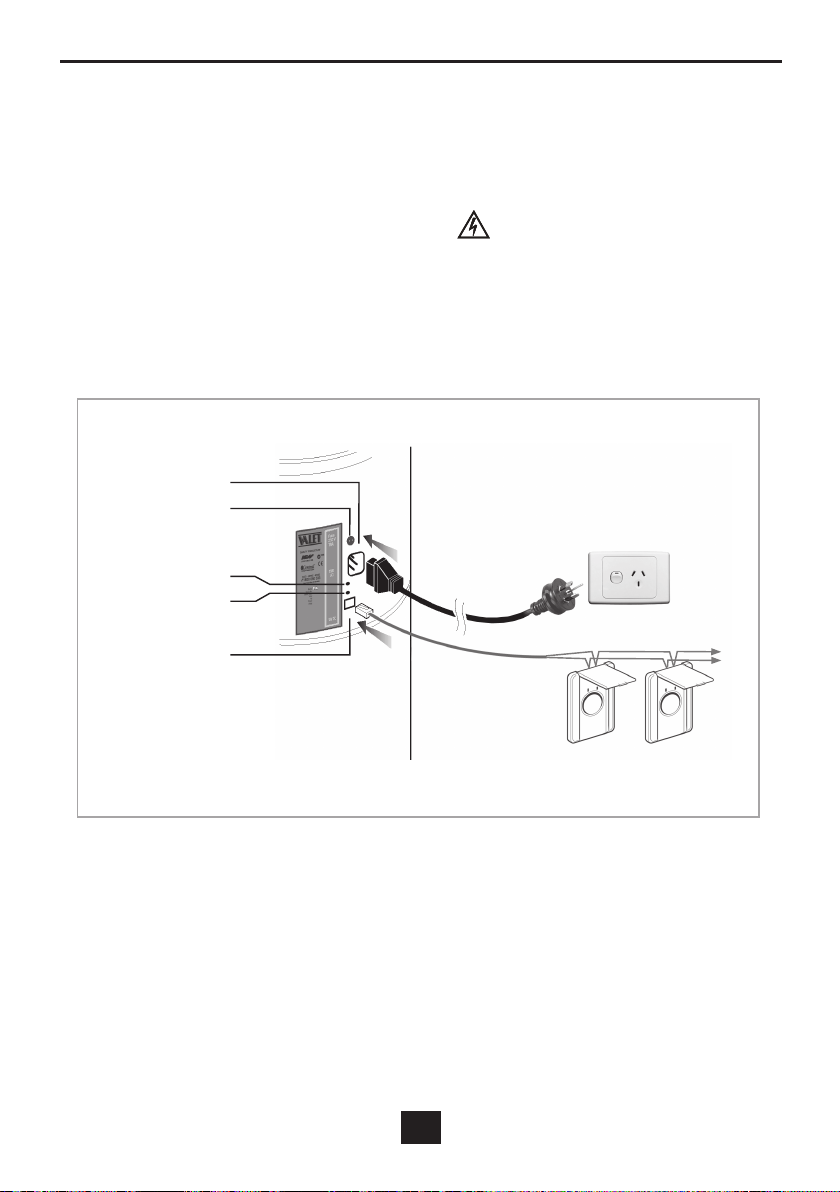

The electrical installation of the power unit
must be done by qualified electrical installers
according to local regulations.
The Manufacturer accepts no liability for
malfunction of the power unit or damage
to persons or property attributable to an
incorrect electrical connection.
Danger:
Do not touch the power unit
with wet or damp hands.
Keep non-authorised people
and children clear of the power
unit.
Mains socket
Fuse
LED - Power ON
LED - Unit Running
Low voltage
switch input
Low voltage
wiring to inlet
valves.
Standard 10A mains
power point.
Once the power unit has been connected
to the mains, check all vacuum sockets
using the flexible hose.
Final check
Electrical Connections
10

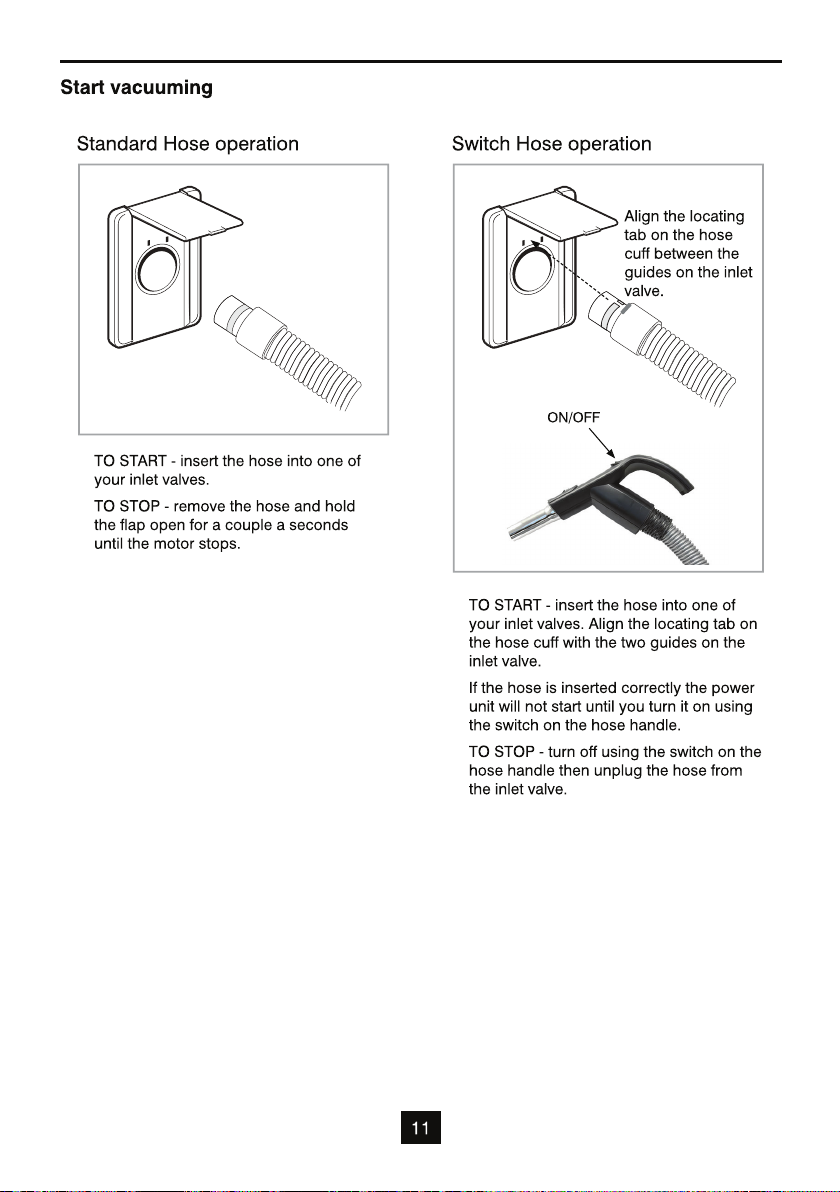

Emptying the dust container
Before any maintenance job, turn off
the mains power at the power point.
Regular maintenance increases
the life span of the power unit and
ensures maximum performance.
Regularly check the system for leaks
or blockages.
Do not operate the power unit
1. Remove the dust container. 3. Empty the dust container.
2. Lift out the Dust Cone. 4. Replace the cone ensuring it is
pointing downwards and reassemble
the dust container paying attention to
the seal position.
without a filter cartridge. Not
observing this precaution may
result in serious damage to
the motor and will void the
manufacturer’s warranty.
Please wear a dust mask and
gloves
12

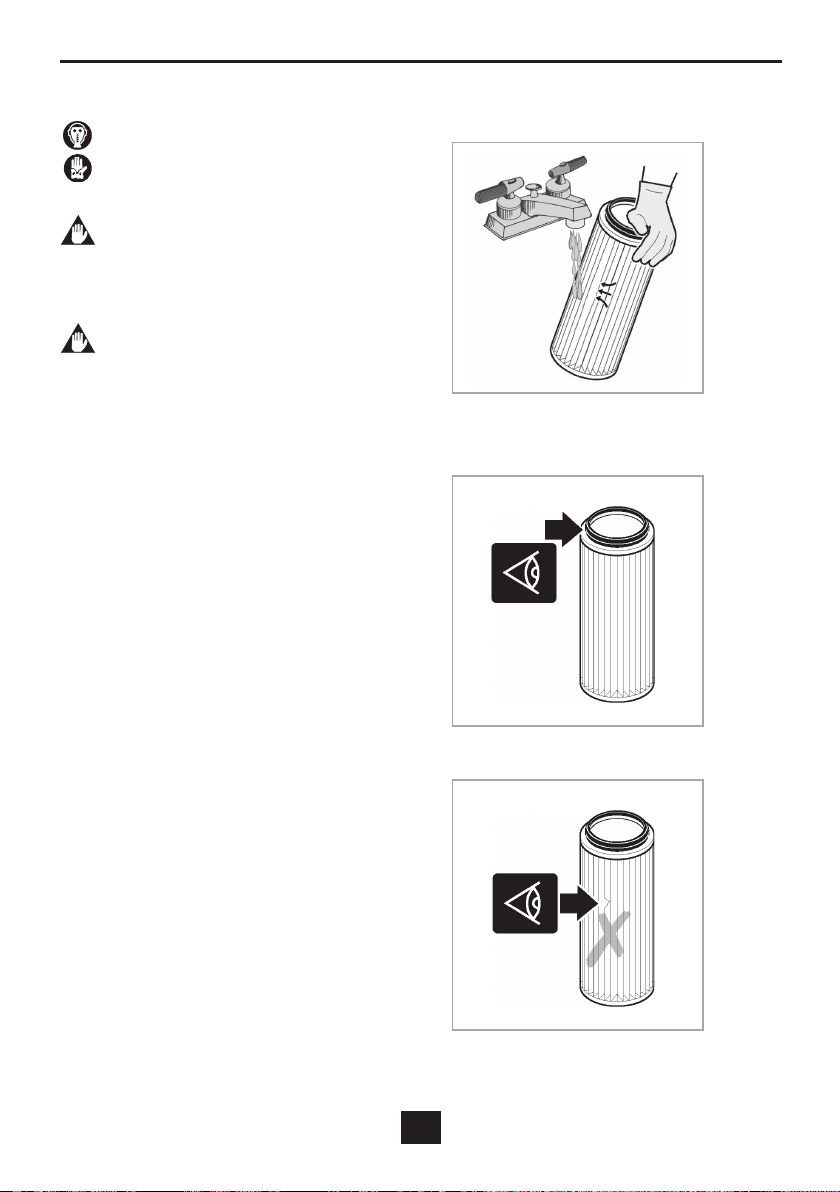

Cleaning the filter cartridge
Please wear a dust mask and
gloves
1. Wash the cartridge with tap water
taking care not to damage the filter
material.
2. Allow the cartridge to dry.
3. Check for damage and replace the
cartridge if necessary.
If the central vacuum system is
used regularly, check the filter
cartridge at least every 4 months.
- Remove the filter cartridge and
wash it with tap water. During
washing pay attention not to
damage the filter material.
If the filter is damaged during
cleaning the cartridge must be
replaced.
- After washing, allow the cartridge
to dry. Do not expose it to strong
heat sources.
Do not operate the power unit
without a filter cartridge. Not
observing this precaution may
result in serious damage to the
motor.
Use only genuine Valet spare parts.
13

Replacing the filter cartridge
Please wear a dust mask and
gloves
Replace the filter cartridge every 2-3
years.
This interval is variable depending on
how often your central vacuum system
is used.
Turn off the mains power at the
power point.
1. Remove the dust container. 3. Insert the new cartridge and
tighten the retaining nut by turning the
cartridge until it fits snugly in place.
2. Loosen the retaining nut and
remove the old cartridge.
4. Replace the cone ensuring it is
pointing downwards and reassemble
the dust container paying attention to
the seal position.
14

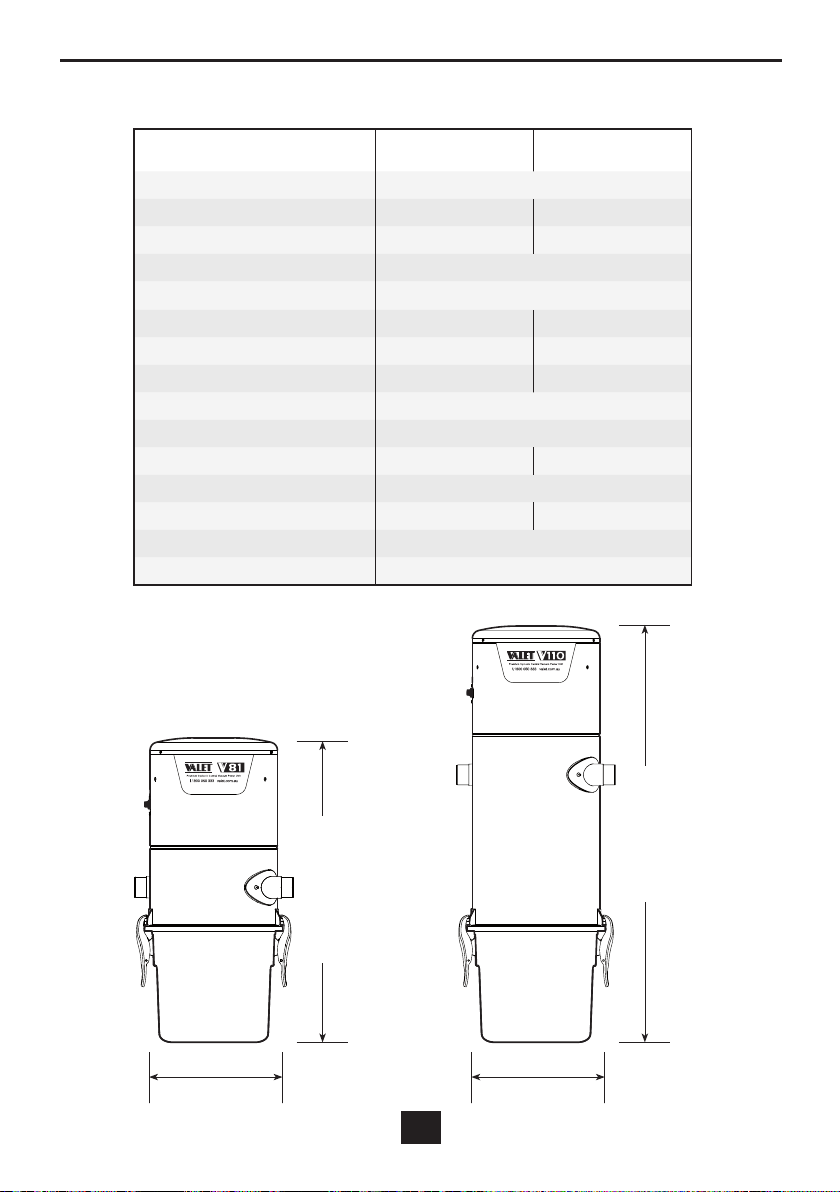

Specifications V81 V110
Voltage 220~240 VAC
Motor power 1260 Watts 1650 Watts
Motor revolutions 43,507 RPM 46,480 RPM
Turbine stages 1
Vacuum socket voltage 12 V
Air flow 121 CFM 115 CFM
Max vacuum (Water lift) 2753 mm 3192 mm
Filtering surface 4000 cm28000 cm2
Filter cartridge material Polyester
Dust container capacity 15 litres
Height 650 mm 900 mm
Diameter 280 mm
Weight 13 kg 16 kg
Construction Body Metal
Collection container Plastic
Technical
900
650
280280
15
