VALLEY CRAFT F89838A2 User manual

F89832A5 F89838A5
Instruction Manual Z42057A8
BATTERY POWERED ROTOLIFT W/ POWERDRIVE
F89838A2, F89837A1, F89832A5, F89831A4
Last Updated: 09/2019
© Valley Craft, Inc. All rights reserved

2
BATTERY POWERED ROTOLIFT W/ POWERDRIVE
Previously Updated: 08/15
Last Updated: 09/19

3
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

4
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

5
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

6
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

7
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

8
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

9
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

10
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

11
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

12
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

10
1
4
14
45
19
3
2
16
46
13
18
6
15
17
12
9
11
7
8
5

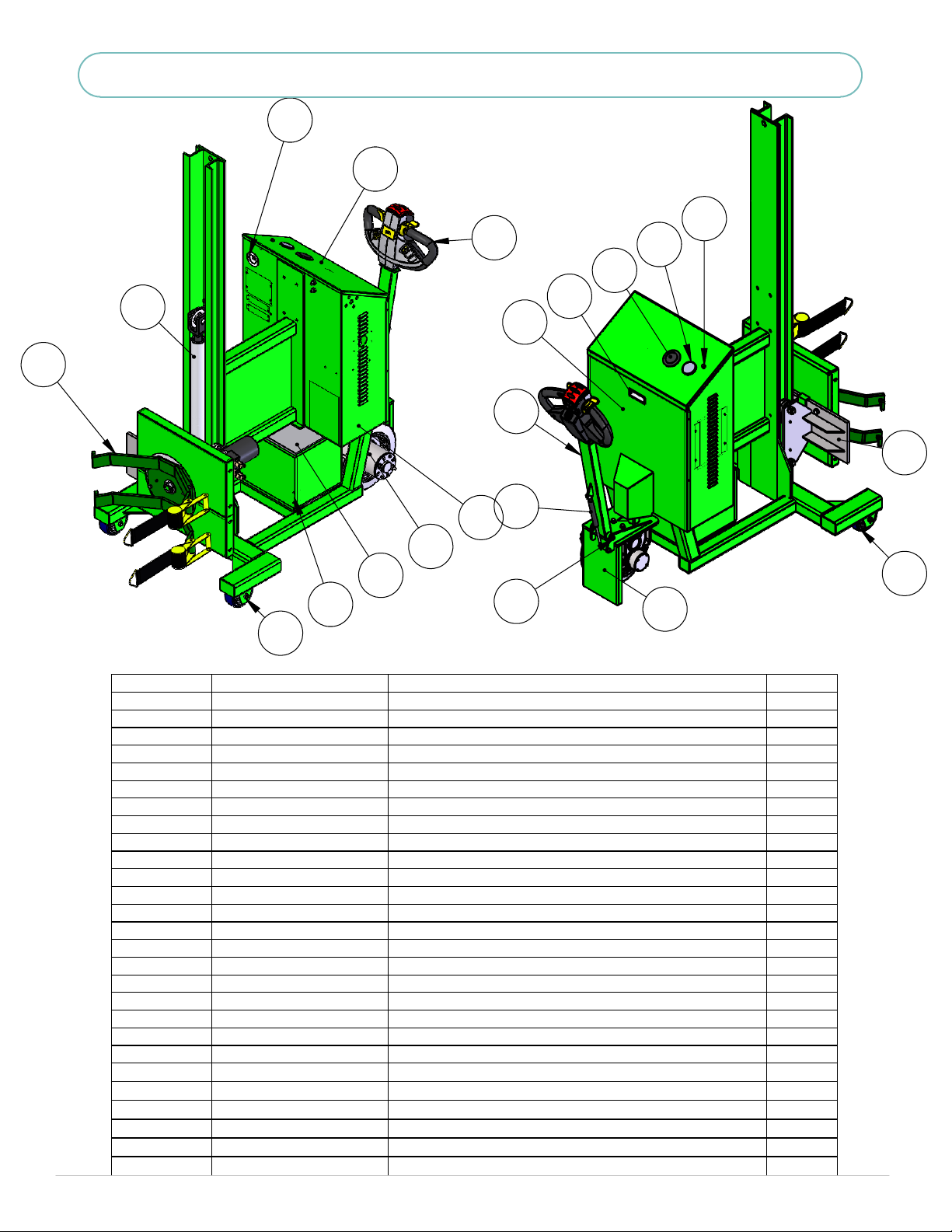

MODEL SHOWN
IS F89832A5
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 F68017A9 SL WLDMT-78/CW POWER DRIVE 1
2 F58249A3 WGT FRONT 1
3 F58250A2 WGT 0.5"X9"X11" (stk) 20
4 F51058 TOP-CRTL BOX/PL PD 1
5 F58422A4 RD-.63/AXLE TILLER (KANBAN) 1
6 F68094A7 CVR CNTR WLDMT/POWER DRIVE 1
7 F68097A4 PIVOT WLDMT/POWER DRIVE 1
8 F68098A3 TILLER WLDMT/POWER DRIVE 1
9 Z20817A6 LIGHT-INDICATOR LED GRN 24V 1
10 Z20823A0 TILLER HEAD/PD 1
11 Z20825A8 SPRING-GAS/120LBS 1
12 Z20836A7 GAUGE-BATTERY DISCHARGE 1
13 F64367A4 BACK PL ASSY 1
14 Z20753A0 CYL ASSY-78 SAE 1
15 Z30415A5 HDL PCKT PULL PLST 3.25X1.41 1
16 F63812A1 PLUG ASSY-125V 1
17 Z11560A5 GROMMET-PLUG 2-1/2 1
18 Z30443A1 WHL-5 x 2 PAL 2
19 Z20827A6 WHL ASSY-12/PD 1
45 F69299A4 FRT SECT ASSEMBLY/ROTOLIFT 1
46 Z11687A2 AXLE BOLT 1/2-13 X 3-3/8 2
47 F57496 CHAIN SPACER 1
48 Z11690A5 S-SHC 1/4-20X1-1/2 GR8 4
49 Z20899A4 CONTROLLER/PD CURTIS 1229 1
50 Z10382A6 NUT-HEX KEPS #8-32 ZP 2
51 Z10572A2 S-RHM # 8-32X1-1/4 2
52 90386A101 SFHHS-M6-1X16MM (LEAN-TEC) 4
13
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

4 73
1
8
2
59
6
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 F64056A3 GUIDE RLR-BRG ASSY 4
2 F64335A6 BACK PL WLDMT 1
3 Z10008A0 BUSH-MACH 6H 3/4x18GAx1-1/4 OD 4
4 Z10042A8 WASHER-5/16 FNDR X 1-1/4 OD 8
5 Z10461A0 NUT-HEX JAM 3/4-16 4
6 Z10539A9 S-BHSC 5/16-18x3/4 4
7 Z10594A0 WASHER-3/4 LOCK MD 4
8 Z30700A8 BALL TRANSFER-STUD MNT 1/4-20 4
9 Z51355A9 GUIDE BOLT-3/4-16 1.00X1.14 4
14
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

7
9
12
8
1
28
12
20
37
24
27
16
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 F58408A6 SHT-14G/FUSE JUMPER -
2 Z20832A1 PP-BASE/24V -
3 F58423A3 SHT-.25/PUMP MNT -
4 F58424A2 FLAT-.25X4.00/PLATE MNT -
5 Z00172A5 BATTERY-12V 80AH SEALED LEAD -
6 Z20815A8 HORN-24V -
7 Z20819A4 CONTROLLER/PD -
8 Z20820A3 FUSE-HLDR ANL -
9 Z00546A4 CHRGR-BATTERY 12/24 120VAC -
10 Z84897A3 FTG STR 2700-4-4-LN -
11 Z00120A4 PLUG-FLGD INLET 125V -
12 Z20839A4 FUSE-ANL -
13 F51080 SHT-14G/BTRY BX PL PD -
15
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

10
2
15
24
3
21
417
8
16
7
59
14
20
6
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 F52650A9 SPROCKET-LARGE 1
2 F62629A6 FRT SECT WLDMT/ROTO 1
3 Z20656A6 MOTOR-HYD/SAE 1
4 F30214A4 CHAIN-RS 50/46" (PURCH) 1
5 Z10627A7 ZERK-GREASE .188 DRIVE 2
6 Z30420A8 BRG-TAPER ROLL 1"BOR 1
7 F52527A0 NUT-LOCK 1-14/DT (KANBAN) 1
8 Z10132A9 S-HHC 3/8-16X1 4
9 Z30400A2 SPROCKET-SM W/SHS 1
10 F62980A9 RATCHET ASSY-2.0X53.00 7000 2
14 F57401 BTM SPROCKET GUARD/ROTOLIFT 1
15 F57402 TOP SPROCKET GUARD/ROTOLIFT 1
16 F69298A3 BACK SECTION WLDMT/ROTO-LIFT 1
17 Z10620A4 S-HHC 1/2-13X2 GR 5 2
18 Z10331A8 WASHER-1/2 FLAT SAE 2
19 Z10048A2 NUT-NYL NE 1/2-13 2
20 Z20891A6 2
21 F57403 MOTOR MOUNT PLATE 1
22 Z10640A3 S-HHC 1/2-13X1-1/4 GR 5 4
23 Z10216A8 WASHER-1/2 LOCK MD 4
24 F57491 SPACER PLATE-1/2X 8-1/2RD 1
16
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

17

18
BATTERY POWERED ROTOLIFT W/ POWERDRIVE

NOTE: SEE VALLEY CRAFT DOCUMENT
Z20901A6 (ELECTRICAL SCHEMATIC)
19
BATTERY POWERED ROTOLIFT W/ POWERDRIVE
