Vanco HDBaseT EVRXDSC User manual
4K HDR HDBaseT™
Receiver with POC,
Downscaling, ARC, IR
and RS-232
Part Number:
EVRXDSC
www.vanco1.com • 800.626.6445
4K HDR HDBaseT™
R E C E I V E R
with PoC, Downsacling, ARC, IR and RS-232
www.vanco1.com 800.626.6445
2
1. Do not expose this unit to water, moisture, or
excessive humidity.
2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.
3. To prevent risk of electrical shock or re
hazard, due to overheating do not obstruct
unit’s ventilation openings.
4. Do not install near any source of heat,
including other units that may produce heat.
5. Do not place unit near ames.
6. Only clean unit with a dry cloth.
7. Unplug unit during lightening storms or when
not used for an extended period of time. A
surge protector is strongly recommended.
8. Protect the power cord from being walked on
or pinched, particularly at the plugs.
9. Use unit only with accessories specied by
the manufacturer.
10. Refer all servicing to qualied personnel.
CAUTION
HDMI is a very complex technology requiring continuous authentication of the signal and the same video
resolution and audio settings on all electronic equipment in the system. When there are multiple sources and
displays, the video resolution and audio setting on all connected units must be adjusted to correspond with
that of the display having the lowest video and audio capability.
WARNING
DEAR CUSTOMER
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
This product is 100% inspected and tested in the
United States to verify HDMI performance parameters.
www.vanco1.com 800.626.6445 3
INTRODUCTION
Th Evolution by Vanco EVRXDSC 4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232, allows
extension of 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m and 1080p up to 230ft/70m over a single
Cat6 cable. PoC (Power over Cable) allows the EVRXDSC to be powered over Cat6 from the matrix unit. For control,
features IR pass-through to be able to control either sources and/or displays, as well as RS-232 pass-through for 3rd
party integration. Audio Return Channel (ARC) capable when utilizing with the PRO matrix units, passing audio from the
connected displays via HDMI or via the optical input, and broken out at the matrix unit, with an additional optical audio port
for audio extraction on the EVRXDSC itself. Able to downscale from 4K to 1080p, a perfect solution for multiple resolution
displays, without downgrading the resolution on all outputs. The EVRXDSC is compatible with the Evolution EVMX4X3,
EVMX8X6, EVMX44PRO, and EVMX88PRO matrix units.
The EVRXDSC is a step up from the EVRXHD2, with all the same features plus more, including RS-232 pass-through,
ARC, audio extraction, and downscaling. Both receivers can be mixed and matched with compatible Evolution matrix units,
resulting in a exible and modular matrix switching system for any application!
FEATURES
4K HDR HDBaseT™ Receiver with POC, Downscaling, ARC, IR and RS-232
Part # EVRXDSC
• Supports HDMI resolutions up to 4K@60Hz, 4:4:4 chroma sampling and HDR
• Extends 4K@60Hz 4:4:4, and HDR10 up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6
cable
• Ability to downscale 4K to 1080p
• Audio extraction with digital optical audio breakout
• Supports ARC with Evolution EVMX44PRO and EVMX88PRO matrix units via HDMI or digital optical
audio input
• 18Gbps high bandwidth
• Features Power over cable (POC) Technology, which provides power for the receivers resulting in easy
installation
• Bi-directional IR and RS-232 pass-through for control
• Compatible with the Evolution EVMX4X3, EVMX8X6, EVMX44PRO and EVMX88PRO matrix units
• Dimensions: 5.5” W x 0.8” H x 3.3” D
www.vanco1.com 800.626.6445
4
SPECIFICATIONS
Video
Input…… .......................................................................(1) HDBT
Input Connector……........................................................(1) RJ45
Input Resolution………....................................................Up to 4K@60Hz, 4:4:4 chroma and HDR10
Output…………..............................................................(1) HDMI
Output Connector….........................................................(1) Type-A female HDMI
Output Resolution……… .................................................Up to 4K@60Hz, 4:4:4 chroma and HDR10
Audio
Input…… .......................................................................(1) ARC Audio In
Input Connection……… ...................................................(1) Digital Optical Audio
Output…………..............................................................(1) Digital Optical Audio breakout (from source)
Output Connector…………… ..........................................(1) Digital Optical Audio
Audio Format…………….. .............................................. Supports PCM, Dolby Digital, Dolby True-HD, DTS and
DTS-HD
Frequency Response …....................................................20Hz – 20KHz, ±3dB
Max Output Level……… .................................................. 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV
(316mV) nominal consumer line level signal
THD+N……….. ..............................................................< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine
at 0dBFS level (or max level)
SNR…….. ......................................................................> 85dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation…….. ..................................................> 70dB, 10KHz sine at 0dBFS level (or max level before
clipping)
L+R Level Deviation……………........................................< 0.3dB, 1KHz sine at 0dBFS level (or max level before
clipping)
Frequency Response Deviation …… ..................................< ± 0.5dB 20Hz - 20KHz
Output Load Capability………...........................................1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel Separation…….........................................>70dB@1KHz
Control Part……… .........................................................(1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1)
RS232
Control Connector…… ....................................................(1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal
block
Bandwidth……… ............................................................18Gbps
HDMI Standard…… ........................................................2.0
HDCP Version……….......................................................2.2, 1.4 compliant
CEC…… ........................................................................Pass-through
Bi-directional PoC………..................................................Supported
HDMI 2.0 Cable Length…….............................................4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080p
≤ 20m
Transmission Standard……..............................................HDBaseT
Transmission Distance…… .............................................. 1080p@60Hz ≤ 230 ft/70m; 4K@60Hz ≤ 131 ft/40m)
www.vanco1.com 800.626.6445 5
SPECIFICATIONS
Operation Temperature……………...................................23-131 degrees F
Storage temperature……………......................................-13 – 158 degrees F
Relative humidity……………............................................10-90% RH (no condensation)
Power Supply…………….................................................Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption…………… .......................................12W (max)
Dimensions…………… ...................................................5.5” W x 0.8” H x 3.3” D
Weight…………… .........................................................0.6 lb
PACKAGE CONTENTS
• EVRXDSC Receiver
• (2) Mounting ears with hardware
• (4) Plastic feet
• (1) 3-pin terminal block for RS-232 connection
• Product Manual
www.vanco1.com 800.626.6445
6
1. POWER LED: Illuminates red when powered on either by PoC or connected power supply
2. ARC Mode: To enable or disable ARC, press the ARC button with a paperclip (paperclip marking on front
panel), the ARC LED will illuminate blue when activated
3. ARC Audio In: Connect digital optical audio from the display (if the display has a digital optical audio output
and does not feature an HDMI ARC port)
• If the display features ARC, ensure the ARC functionality is active within the display settings; audio will
then be broken out at the matrix unit via the corresponding digital optical outputs (on the Evolution PRO
matrix units only)
4. FW: Micro-USB port for rmware upgrade; any available rmware updates will be located on the product
page for this part # on www.vanco1.com, under the “downloads” tab
5. HDMI OUT: Connect an HDMI display
6. Digital Optical Audio Breakout: Connect to a soundbar, amplier, distributed audio system, etc. to extract
audio via digital optical audio (ARC must be disabled for output to be active)
7. IR IN: Connect the compatible IR receiver to send IR commands to the matrix unit location for source
control
8. IR OUT: Connect the compatible IR transmitter to send IR commands to the EVRXDSC for display control
from the matrix unit location
9. RS232: Connect the included 3-pin terminal block for RS-232 control device for 3rd party integration
10. HDBT IN: Connect a single Cat6 (home-run cable strongly recommended) to the matrix unit
• The LINK LED illuminates when there is a link between the matrix unit and the receiver. The HDCP LED
illuminates when the video contains HDCP content
11. DC 24V: Optional, connect a power supply for redundant power, the EVRXDSC features PoC and will
receive power from the Evolution EVMX4X3, EVMX8X6, EVMX44PRO, or EVMX88PRO matrix units
PANEL DESCRIPTIONS
123 4
567 8 910 11
www.vanco1.com 800.626.6445 7

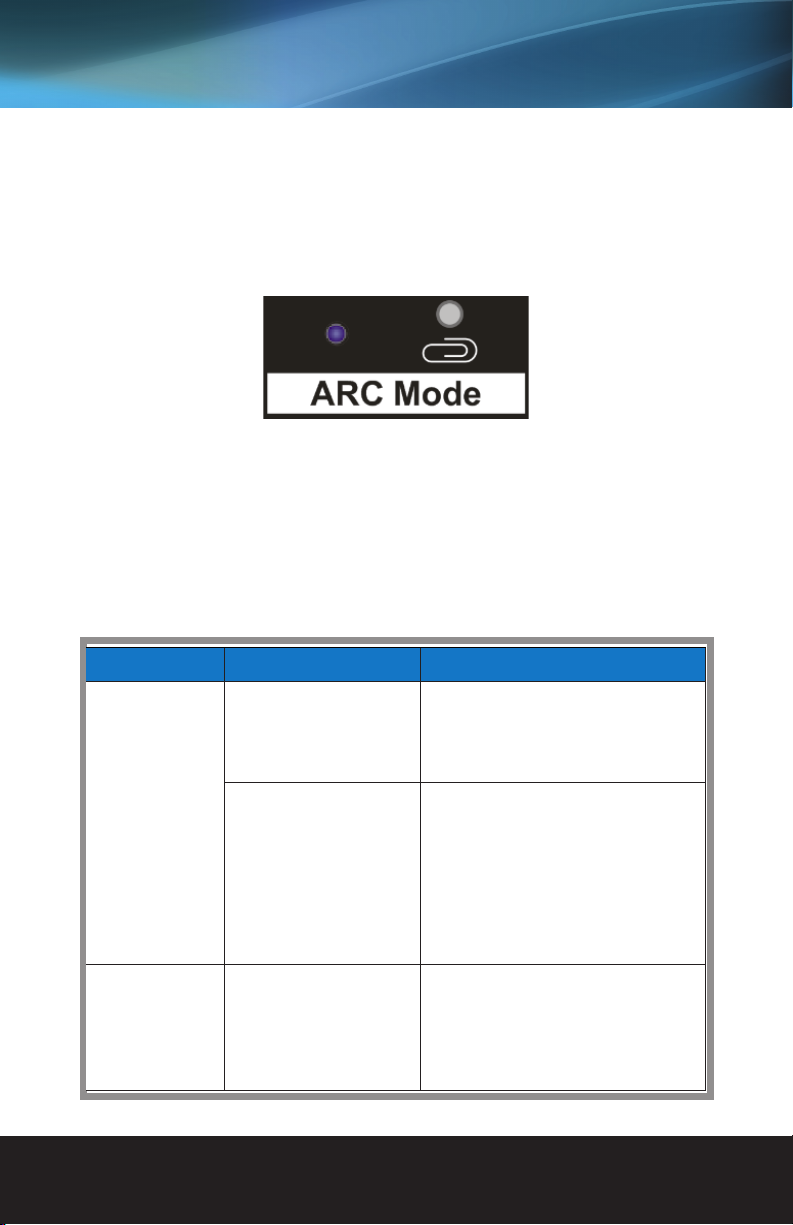

ARC (Audio Return Channel) Mode
To enable/disable ARC, press the button with the “paperclip” marking. The ARC led will illuminate blue
when ARC is enabled; no illumination means ARC is disabled. ARC mode on the EVRXDSC receiver is only
compatible with the Evolution PRO EVMX44PRO and EVMX88PRO matrix units.
The EVRXDSC receiver can send audio back downstream with ARC capability at the matrix unit and broken out
via digital optical audio outputs, with two options:
1. Connection with an ARC capable display using the display’s HDMI ARC port; ensure the ARC functionality
is active within the display’s settings
2. Connection with a display that does not have ARC functionality, however has a digital optical audio
breakout. (If the display does not feature a digital optical audio breakout, an HDMI audio extractor can be
added, visit www.vanco1.com for audio extraction solutions)
ARC Mode Display (i.e TV) Audio Transmission Path
ON
ARC is supported and enabled The display audio is transmitted from
the display to the EVRXDSC via HDMI
connection; will be sent to the matrix unit to
be broken out by the corresponding digital
optical audio breakout; see gure 1
ARC is not supported Connect the display to the ARC Audio In
port of receiver with a digital optical audio
cable. The display audio is transmitted from
the display to the EVRXDSC; will be sent
to the matrix unit to be broken out by the
corresponding digital optical audio breakout;
see gure 2
Note that if ARC mode is ON, the Audio
Breakout port will not be active
OFF
The Audio Breakout port is active, and will
extract or de-embed audio from the source;
connect to a soundbar, amplier, distributed
audio system, etc.; see gure 3
Note that if ARC mode is OFF, the ARC
Audio IN port will not be active
www.vanco1.com 800.626.6445
8
Figure 1
Figure 2
www.vanco1.com 800.626.6445 9
Figure 3
www.vanco1.com 800.626.6445
10
CONNECTION DIAGRAM
CONNECT AND OPERATE
1. Connect a single Cat6 cable (home-run cable strongly recommended) from a compatible Evolution matrix
unit to the EVRXDSC (HDBT in)
2. Connect an HDMI display to the HDMI output (NOTE: HDMI certied cables are strongly recommended for
4K HDR resolution)
3. OPTIONAL: Connect the compatible IR accessories for IR source and/or display control; IR receiver to the
IR IN port; IR transmitter to the IR OUT port
4. OPTIONAL: Connect a power supply; the EVRXDSC features PoC and will be powered up by the compatible
Evolution matrix unit
www.vanco1.com 800.626.6445 11
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment
it manufactures or sells will be free from defects in materials and workmanship for a period of two years from
the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period,
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become
the property of Vanco. This warranty does not apply to those products which have been damaged due to
accident, unauthorized alterations, improper repair, modications, inadequate maintenance and care, or use in
any manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably computer hard
drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective
manufacturers. Such specic warranties are available upon request to Vanco. A surge protector, power
conditioner unit, or an uninterruptible power supply must be installed in the electrical circuit to protect against
power surges.
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales
invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco
regarding warranty repair or replacement.
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email
When calling, please have the Model Number, Serial Number (afxed to the bottom of the unit) and Invoice
available for reference during the call.
Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the
capabilities of this product and its proper installation.
All active electronic products are 100% inspected and tested to insure highest product quality and trouble-
free installation and operation. The testing process utilizes the types of high-denition sources and displays
typically installed for entertainment and home theater applications.
For additional information, such as helpful installation videos, etc. please visit www.vanco1.com
LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects. The manufacturer of this product
cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for
their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent of the publisher.
Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or
improve its products where necessary or desirable. This statement does not affect the legal rights of the user
in any way.
Vanco®International
506 Kingsland Drive
Batavia, Illinois 60510
call: 800.626.6445
fax: 630.879.9189
visit: www.vanco1.com
This manual suits for next models
1
Table of contents
Other Vanco Receiver manuals
