Vanguard LogMate FB32CA User manual
For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED 40,000
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMEN-
-
UNVENTED (VENT-FREE) 32" LogMate®UNIVERSAL FIREBOX
OWNER’S MANUAL
®
Shown with
FB32CA (SHOWN) AND NLFB32C
CIRCULATING LOUVERED MODELS
FB32NCA AND NLFB32NC NONCIRCULATING
SMOOTH FACE MODELS
www.desatech.com 105604-01K2
-
-
-
-
TABLE OF CONTENTS
Safety Information ............................................... 3
Local Codes......................................................... 4
Unpacking............................................................ 4
Product Specications......................................... 4
Product Features................................................. 5
Locating Firebox ................................................. 5
Air for Combustion and Ventilation ...................... 6
Installation ........................................................... 8

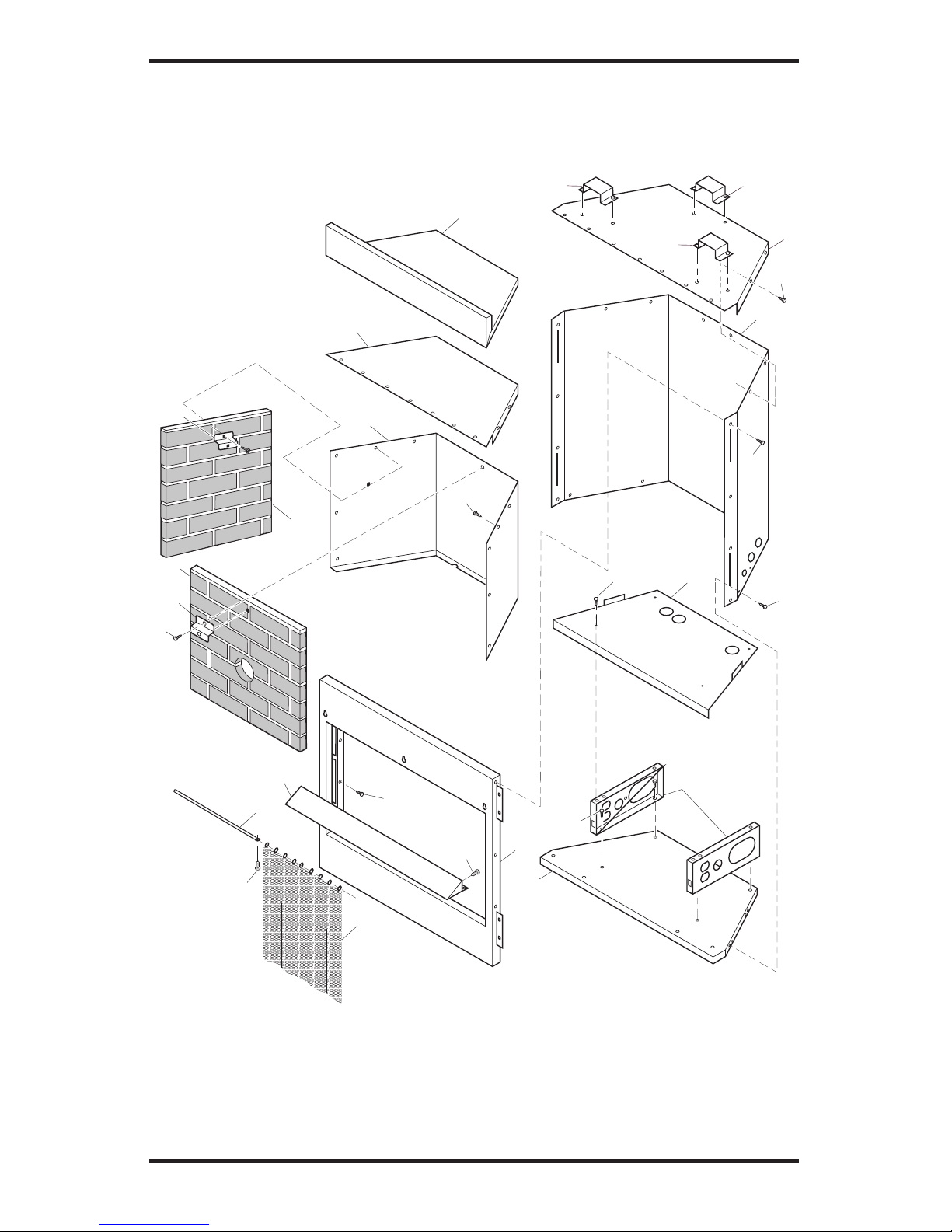

Illustrated Parts Breakdown and Parts List........ 14
Replacement Parts............................................ 18
Technical Service............................................... 18
Accessories ....................................................... 18
Warranty Information ...........................Back Cover
State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the
Commonwealth of Massachusetts.
Sellers of unvented propane or natural gas-red supplemental room heaters shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for bedroom and bathroom installation in the Common-
wealth of Massachusetts.
www.desatech.com
105604-01K 3
SAFETY INFORMATION
-
IMPORTANT: Read this owner’s
-
WARNING: Do not allow fans
-
-
with models NLFB32NC and
hood accessory (see Accesso-
ries
-
dren when they are in the room
remain hot for a time after shut-
1. This rebox shall not be installed in a bedroom
or bathroom.
2. Never install the rebox
• in a recreational vehicle
• where curtains, furniture, clothing or other
ammable objects are less than 42" from the
front, top or sides of the rebox
• in high trafc areas
• in windy or drafty areas
3. Do not use this rebox as a wood-burning
replace. Use only decorative unvented room
heaters (log sets).
4. Do not add extra logs or ornaments such as
pine cones, vermiculite or rock wool. Using
these added items can cause sooting.
www.desatech.com 105604-01K4
5. Vent-free gas log heaters installed in these
reboxes require fresh air ventilation to run
properly. See Air for Combustion and Ventila-
tion, page 6.
6. Do not run rebox
• where ammable liquids or vapors are used
or stored
• under dusty conditions
7. Do not use this rebox to cook food or burn
paper or other objects.
8. Turn rebox off and let cool before servicing.
Only a qualied service person should service
and repair rebox.
9.
Operating vent-free log sets in a firebox
above elevations of 4,500 feet could cause
pilot outage.
10. Do not use the rebox if it has been under
water due to the shock hazard that could
result with the blower accessary (if installed)
in place.
11.
Provide adequate clearances around air
openings.
LOCAL CODES
Install and use replace with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code ANSI
Z223.1/NFPA 54*. Firebox must be electrically
grounded in accordance with the National Electri-
cal Code, ANSI/NFPA70 (latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING
1. With utility knife, cut the carton all the way
around above the staples on the bottom tray.
Lift the carton off the rebox. Remove pack-
ing. Note: The hood is located in the packing
on the right hand side of the heater front. Lift
the heater off the bottom tray.
SAFETY INFORMATION
Continued
2. Check carton contents for the following:
• Screen assembly (2)
• Screen support rod (2)
• Hood
• Hardware and parts bag containing the fol-
lowing:
• Owner’s Operation and Installation Manual
• 2 - Black #10 x 3/8” Phillips screws
• 3 - Zinc #10 x 1/2” shouldered hex screws
• 2 - Black #10 x 5/8” shouldered hex screws
If any items are missing, inform dealer where
you bought the rebox.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought rebox.
PRODUCT
SPECIFICATIONS
Figure 1 - Firebox Front View
35
1
/
16
"
31
3
/
4
"
16
1
/
4
"
1
1
/
4
"
2
3
/
4
"
2
3
/
4
"
6
3
/
8
"
19
3
/
8
"
3
7
/
8
"
6
3
/
4
"
Built-in Nailing
Flanges
Standoffs (Models
FB32NCA and
NLFB32NC only)
Louvers (Models FB32CA
and NLFB32C only)
www.desatech.com
105604-01K 5
12
1
/
2
"
2
3
/
4
"
1
1
/
2
"
9
3
/
4
"
4
5
/
8
"
2
1
/
2
"
6"
32
3
/
16
"
33
11
/
16
"
Figure 2 - Firebox Side View
Gas Line
Access
Standoffs (Models FB32NCA
and NLFB32NC only)
Electrical
Access Hole
Electrical
Access Hole
with Bushing
22
1
/
2
"
16
11
/
16
"13
1
/
4
"*
14
1
/
4
"*
31
5
/
8
"
34
3
/
8
"
35
5
/
8
"
19
1
/
4
"
Figure 3 - Firebox Top View
*Note: 14 1/4" is total rebox cavity depth
including brick liner. 13 1/4" is depth of at
oor including brick liner.
PRODUCT
SPECIFICATIONS
Continued
PRODUCT FEATURES
OPERATION
This rebox is designed for use with approved
ANSI Z21.1.2 decorative type unvented room
heaters. (Physical size limitations apply. Refer to
minimum rebox requirements supplied with log
heater.) It requires no outside venting or chimney
making installation easy and inexpensive. When
used without the blower (models FB32CA and
NLFB32C only), the rebox requires no electricity
making it ideal for emergency backup heat.
BLOWER ACCESSORY
The FB32CA and NLFB32C rebox will accept
the GA3750A accessory. The variable blower al-
lows you to select the fan speed you desire. The
blower circulates heated air from the rebox into
the room. Use of blower is optional.
LOCATING FIREBOX
Plan where you will install the rebox. This will
save time and money later when you install the re-
box. Before installation, consider the following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installation
Clearances, page 9).
2. Everything needed to complete installation.
3. These models CANNOT be installed in a
bedroom or bathroom.
4. Proper air for combustion and ventilation (see
page 6).
www.desatech.com 105604-01K6
AIR FOR COMBUSTION
AND VENTILATION
-
-
Today’s homes are built more energy efficient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss in
homes. Home owners weather strip and caulk around
windows and doors to keep the cold air out and the
warm air in. During heating months, home owners
want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home.All fuel-burning appliances need
fresh air for proper combustion and ventilation.
Exhaust fans, reboxes, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code ANSI Z223.1/NFPA 54, Section 5.3, Air
for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows may
provide enough fresh air for combustion and ventila-
tion. However, in buildings of unusually tight con-
struction, you must provide additional fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the three
Determining
Fresh-Air Flow For Firebox Location,
The National Fuel Gas Code ANSI Z223.1/NFPA
54 denes a conned space as a space whose
volume is less than 50 cubic feet per 1,000 Btu
per hour (4.8 m3per kw) of the aggregate input
rating of all appliances installed in that space and
an unconned space as a space whose volume is
not less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3per kw) of the aggregate input rating of
all appliances installed in that space. Rooms com-
municating directly with the space in which the
appliances are installed*, through openings not
furnished with doors, are considered a part of the
unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation grills
between them.
www.desatech.com
105604-01K 7
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have a
conned or unconned space.
Includes the room in which you will install
heater plus any adjoining rooms with doorless
passageways or ventilation grills between the
rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =__________ cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is sup-
plied with grills or openings, add the volume of
these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
____________ (volume of space) x 20 =
(Maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 =
51,200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free heater ________ Btu/Hr
Gas water heater* ________ Btu/Hr
Gas furnace ________ Btu/Hr
Vented gas heater ________ Btu/Hr
Gas replace logs ________ Btu/Hr
Other gas appliances* + ________ Btu/Hr
Total = ________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater ________ Btu/Hr
Vent-free heater + ________ Btu/Hr
Total = ________ Btu/Hr
AIR FOR COMBUSTION
AND VENTILATION
Continued
4.
Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
_______Btu/Hr (maximum the space
can support)
________ Btu/Hr (actual amount of
Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a conned space
because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support. You must
provide additional fresh air. Your options are as
follows:
A.
Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconfined space, remove door to adjoining
room or add ventilation grills between rooms. See
Ventilation Air From Inside Building, page 8
.
B. Vent room directly to the outdoors. See Ven-
tilation Air From Outdoors, page 8.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size
makes room unconned.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
an unconned space. You will need no additional
fresh air ventilation.
WARNING: If the area in
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
40,000
39,000
79,000
www.desatech.com 105604-01K8
AIR FOR COMBUSTION
AND VENTILATION
Continued
VENTILATION AIR
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 4). You
can also remove door into adjoining room (see
option 3, Figure 4). Follow the National Fuel Gas
Code ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
Figure 4 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Figure 5 - Ventilation Air from Outdoors
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.
INSTALLATION
NOTICE: This heater is intended
-
-
WARNING: Never install the
• in a recreational vehicle
• where curtains, furniture,
• in windy or drafty areas
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing firebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion and
Ventilation, page 6.
IMPORTANT: Make sure the rebox is level.
If firebox is not level, log set will not work
properly.
www.desatech.com
105604-01K 9
INSTALLATION
Continued
Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
Example
*
Mantel Clearances for Built-In
Installation
If placing custom mantel above built-in rebox,
you must meet the minimum allowable clearance
between mantel shelf and top of rebox opening
shown in Figure 7. These are the minimum allowable
mantel clearances for a safe installation. Use larger
clearances wherever possible to minimize the heating
of objects and materials placed on the mantel.
CAUTION: Close screens
If your installation does not meet the minimum
clearances in Figure 7, you must:
• raise the mantel to an acceptable height,
OR
• remove the mantel.
Figure 7 - Minimum Mantel Clearances
for Built-In Installation
Note: Your Vanguard rebox is designed to be
used in zero clearance installations. Wall or fram-
ing material can be placed directly against any
exterior surface on the rear, sides or top of your
rebox, except where standoff spacers are inte-
grally attached. If standoff spacers are attached to
your rebox, these spacers can be placed directly
against wall or framing materials.
Use the dimensions shown for rough openings to
create the easiest installation (see Built-In Firebox
Installation, page 13).
INSTALLATION CLEARANCES
WARNING: Maintain the
Carefully follow the instructions below. This will
ensure safe installation.
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This combus-
tible material must be 4" from the side of the
replace opening (see Figure 6).
B.
Clearances from the top of the replace opening
to the ceiling should not be less than 42".
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Mantel Shelf
13" 16" 19" 21"
19" 20" 21" 22"
For FB32NCA and NLFB32NC
Series noncirculating
smooth face models
2 1/2"
6"
8"
10"
For FB32CA and NLFB32C
Series circulating louvered
models only
Note:
All vertical measurements
are from top of fireplace
opening to bottom of mantel
shelf. All measurements
are in inches.
Facing material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments.
Note: All vertical
measurements are from
top of replace opening to
bottom of mantel shelf. All
measurements are in inches.
Facing material
(above rebox)
may be of
combustible
material, including
decorative mantel
ornaments.
For
FB32NCA
and
NLFB32NC
Series
noncirculating,
smooth face
models
For
FB32CA
and
NLFB32C
Series
circulating,
louvered
models only
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and
Right Sides
Bottom
and Rear
42" 16" 0"
www.desatech.com 105604-01K10
INSTALLING BLOWER ACCESSORY
You may install blower accessory GA3750A with
conventional installation (below) or with built-in
installation (page 11) with models FB32CA and
NLFB32C only.
Conventional Installation of Blower
Accessory
NOTICE
1. Remove the rebox bottom:
a. Remove the 4 screws that secure the bottom
of the rebox (see Figure 8).
b. Carefully raise and remove the rebox
bottom from the rebox.
electrical outlet installed in the
2. Place the blower against lower rear wall of
rebox wrapper with the exhaust port directed
upward. Align the holes in top mounting tabs
of blower with holes in wall of wrapper (see
Figure 9). Using 2 screws provided, mount
blower and tighten screws securely.
3. Be certain that all wire terminals are securely
attached to terminals on blower motor and that
the screw retaining the green ground wire is
tight.
4. Locate the plastic hole plug installed in the
3/8" diameter opening in the lower right
side of the rebox front panel (see Figure 9).
Remove the plastic plug and discard.
5. Place speed control against inner wall of front
panel, pushing the plastic control shaft for-
ward through the opening (see Figure 10).
6. While supporting speed control, secure control
shaft with lock nut by pushing and turning
lock nut with pliers clockwise until it is tight
against front panel. Place control knob pro-
vided on shaft (see Figure 10).
INSTALLATION
Continued
Figure 8 - Removing Screws from
Firebox Bottom
Screws
Screws
Blower
Lower Rear Wall
of Firebox
Wrapper
Floor
Supports
Top
Mounting
Tab
Exhaust
Port
Plastic
Hole Plug
Figure 9 - Mounting Blower to Firebox
Figure 10 - Attaching Speed Control
Speed Control
Control Knob
Lock Nut
Control Shaft
www.desatech.com
105604-01K 11
7. Plug in blower power cord.
a. If your rebox is installed as a freestanding
unit, determine whether the power cord
will exit the left side or the right side of the
rebox. Install 1 plastic bushing provided
into the 1 1/2" hole in the oor support on
the exit side. Install the second plastic
bushing provided into the 1 1/2" hole in the
outer casing through which the power cord
will exit (see Figure 11). Route power cord
through both plastic bushings and plug the
power cord into a 3-prong grounded wall
receptacle near the rebox.
b. If your firebox installation is recessed
and/or pre-wired, see Built-In Installation
of Blower Accessory, column 2.
8. Turn on power to duplex outlet if previously
turned off per the warning in step 1.
9.
Check to make sure that the power cord is com-
pletely clear of the blower wheel and that there
are no other foreign objects in blower wheel.
Turn blower on and check for operation.
WARNING: Never touch the
10. Peel off the backing paper and stick the sup-
plied wiring diagram decal on the rebox
bottom approximately 12" in front of the
blower.
11. Replace bottom of rebox. Note: Make sure
the back of the rebox bottom slides under
the rear of the rebrick (lift the rebrick up if
necessary.)
12. Reattach rebox bottom using 4 screws re-
moved in step 1. Note: Discard the remaining
hardware items.
13. Install the log set heater according to the instal-
lation instructions supplied with the heater.
INSTALLATION
Continued
-
The National Electrical Code
ANSI/NFPA 70
Built-In Installation of Blower Accessory
1. Before replacing bottom of rebox, remove
screw holding duplex outlet to the support
bracket in the bottom of rebox. Remove
duplex outlet.
2. Clamp electrical cable into rebox through
smallest hole in outer casing using strain relief
provided.
3. Route wires from electrical box through hole
in side of heater and hole in support bracket
(see Figure 12).
4. Connect wires from the electrical box to
duplex outlet. Match wire colors to those
indicated on duplex outlet. Be sure to connect
ground wire.
5. Replace duplex outlet with screw.
6. Plug blower power cord into duplex outlet.
7. Replace bottom of rebox.
Figure 11 - Installing Plastic Bushing for
Power Cord
Plastic
Bushing Figure 12 - Routing Blower Accessory
Power Cord for Built-In Installation
Screw
Blower
Power Cord
Support Bracket Cables From
Electrical Source
Duplex
Outlet
Blower
Light your gas appliance with the blower off. After
about 15 minutes, turn the blower on to deliver
heated air at the top louvers. The blower features
a variable control which allows you to select the
speed you desire.
Note: Periodically check the louvers of the rebox
and remove any dust, dirt or other obstructions.
www.desatech.com 105604-01K12
INSTALLING LOG HEATER IN
FIREBOX
CAUTION: Do not remove the
1. Remove four screws holding rebox bottom
in place.
2.
Lift and remove rebox bottom (see Figure 13).
3. If installing GA3750A blower accessory
(Models FB32CA and NLFB32C only), see
Installing Blower Accessory, page 10.
4. Route exible gas line from manual shutoff
valve into rebox through side.
is recommended to allow ac-
-
tion to the manual shutoff valve
5.
Install and properly test gas log heater. Follow
installation instructions included with the vent-
free gas log heater that is being installed.
6. Replace firebox bottom and secure with
screws.
INSTALLATION
Continued
Figure 13 - Removing Firebox Bottom
Screws
INSTALLING FIREPLACE HOOD
1. Attach three zinc-colored shoulder screws to
back of hood.
2. Insert hood into hood-mounting slots on
rebox.
3. Hold hood in place. Insert two black Phillips
screws through bottom of hood and tighten.
Figure 14 - Installing Fireplace Hood
Hood
Hood
Mounting
Slot
Screw
Shoulder
Screw
INSTALLING FIREPLACE SCREEN
1. Insert each rod through nine rings located at
top of screen.
2. Insert rst rod into rear hole in left side of
rebox. Fasten rod to rear hole near center of
rebox using black shoulder screw.
3. Insert other rod into front hole on right side of
rebox and fasten using remaining shoulder
screw.
Figure 15 - Installing Fireplace Screen
(Shown Without Fireplace Hood for
Clarity)
Rod
Front and
Rear Hole
Ring
Screen
Screw
www.desatech.com
105604-01K 13
INSTALLATION
Continued
FIREBOX INSTALLATION USING
OPTIONAL ACCESSORY MANTELS
This rebox may be installed using the corner or
cabinet mantel with hearth base accessory against
a wall in your home. A trim kit is included with
each mantel accessory (see Accessories, page 18).
Follow the instructions included with mantels for
assembly and installation.
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves install-
ing rebox into a framed-in enclosure. This makes
the front of rebox ush with wall. If installing
a mantel above the rebox, but you must follow
the clearances shown in Figure 7, page 9. Follow
the instructions below to install the rebox in
this manner.
1.
Frame in rough opening. Use dimensions
shown in Figure 16 for the rough opening. If
installing in a corner, use dimensions shown
in Figure 17 for the rough opening. The
height is 33" (FB32CA and NLFB32C) or
34
1
/
4
"(FB32NCA and NLFB32NC), which is
the same as the wall opening in Figure 16.
2. Install gas piping to rebox location. This
installation includes an approved flexible
gas line (if allowed by local codes) after the
manual shutoff valve. The exible gas line
must be the last item installed on the gas pip-
ing. See Connecting to Gas Supply in log set
owner’s manual.
3. Carefully set rebox in front of rough open-
ing with back of rebox inside wall opening.
IMPORTANT: If installing Brass Trim Kit
GA6090, see instructions included with brass
trim accessory. You must install shoulder
screws now.
4. If using GA3750A blower accessory (Models
FB32CA and NLFB32C only), see Installing
Blower Accessory for built-in installation,
page 10.
5. Attach exible gas line to log set. See Connect-
ing to Gas Supply in log set owner’s manual.
6. Carefully insert rebox into rough opening.
7. Attach rebox to wall studs using nails or
wood screws through holes in nailing ange
(see Figure 18).
8. Check all gas connections for leaks. See Checking
Gas Connections in log set owner’s manual.
9. If using optional GA6090 brass trim kit, install
the trim after nal nishing and/or painting of
wall. See instructions included with brass trim
accessory for attaching brass trim.
34
3
/
4
"
17
3
/
4
"
33" (FB32CA and
NLFB32CA)
34
1
/
4
" (FB32NCA and
NLFB32NCA)
Figure 16 - Rough Opening for Installing
in Wall
39
3/8
"
27
7/8
"
55
5/8
"
34
3/4
"
Figure 17 - Rough Opening for Installing
in Corner
Nailing
Flanges
Nails or
Wood
Screws
Figure 18 - Attaching Firebox to Wall
Studs
Model #
Front Width
Actual Actual
FB32CA 323/16" 33" 343/8" 343/4"
NLFB32C 323/16" 33" 343/8" 343/4"
FB32NCA 3311/16" 341/4" 343/8" 343/4"
NLFB32NC 3311/16" 341/4" 343/8" 343/4"
Model #
Actual
FB32CA 1611/16" 173/4"
NLFB32C 1611/16" 173/4"
FB32NCA 1611/16" 173/4"
NLFB32NC 1611/16" 173/4"
www.desatech.com 105604-01K14
ILLUSTRATED PARTS BREAKDOWN
MODELS
FB32NCA AND NLFB32NC
5
14
16
16
16
13
15
17
17
17
16
6
1
7
16
18
10
8
20
12
19
9
4*
2*
3*
2*
16
11
18
www.desatech.com
105604-01K 15
KEY
DESCRIPTION
1 101872-03 Firebox Top • • 1
2 101889-01 Firebrick Retainer • 3
3 101929-04 Rear Firebrick • 1
4 101932-04 Side Firebrick • • 2
5 103207-01 Outer Casing • • 1
6 103208-01 Outer Shell Base • • 1
7 ** Firebox Wrapper • • 1
8 103297-01 Assembly Screen • • 2
9 103217-01CK Hood • • 1
10 103773-02 Front Assembly • • 1
11 ** Firebox Bottom • • 1
12 103809-01 Screen Rod • • 2
13 103816-01 Firebox Insulation • • 1
14 101348-01 Firebox Support • • 2
15 101357-03 Outer Casing Top • • 1
16 M11084-26 Hex Head Screw, #10-16 • 49
M11084-26 Hex Head Screw, #10-16 • 46
17 098194-02 Stand Off • • 3
18 098304-01 Phillips Pan Head Screw, #10 • • 11
19 099230-01 Hex Head Screw • • 3
20 099230-02 Shoulder Screw • • 2
** Not available for eld replacement.
PARTS LIST
This list contains replaceable parts used in your rebox. When ordering parts, follow the instructions
listed under Replacement Parts on page 18 of this manual.
FB32NCA
NLFB32NC
www.desatech.com 105604-01K16
ILLUSTRATED PARTS BREAKDOWN
MODELS
FB32CA AND NLFB32C
5
16
16
15
16
17
22
6
1
16
7
16
14
21
13
18
10
8
20
12
19
9
4*
2*
3*
2*
16
11
18
18
www.desatech.com
105604-01K 17
PARTS LIST
This list contains replaceable parts used in your rebox. When ordering parts, follow the instructions
listed under Replacement Parts on page 18 of this manual.
KEY
DESCRIPTION
1 101872-03 Firebox Top • • 1
2 101889-01 Firebrick Retainer • 3
3 101929-04 Rear Firebrick • 1
4 101932-04 Side Firebrick • 2
5 103207-01 Outer Casing • • 1
6 103208-01 Outer Shell Base • • 1
7 ** Firebox Wrapper • • 1
8 103297-01 Assembly Screen • • 2
9 103217-01CK Hood • • 1
10 103773-01 Front Assembly • • 1
11 ** Firebox Bottom • • 1
12 103809-01 Screen Rod • • 2
13 M12461-2 Screw, Outlet Mounting • • 1
14 101348-01 Firebox Support • • 2
15 101357-01 Outer Casing Top • • 1
16 M11084-26 Hex Head Screw, #10-16 • 49
M11084-26 Hex Head Screw, #10-16 • 46
17 103771-01 Strain Relief Fitting • • 1
18 098304-01 Phillips Pan Head Screw, #10 • • 13
19 099230-01 Hex Head Screw • • 3
20 099230-02 Shoulder Screw • • 2
21 GA3555 Duplex Outlet • • 1
22 103457-01 Button Plug 1
** Not available for eld replacement.
FB32CA
NLFB32C
www.desatech.com 105604-01K18
REPLACEMENT PARTS
Note: Use only original replacement parts. This
will protect your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating Products’ Technical Service
Department at 1-866-672-6040.
When calling DESA Heating Products, have
ready
• your name
• your address
• model and serial numbers of your rebox
• how rebox was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the
factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), call
DESA Heating Products at 1-866-672-6040 for
referral information.
When calling DESA Heating Products, have
ready
• model number of your rebox
• the replacement part number
TECHNICAL SERVICE
You may have further questions about installation,
operation or troubleshooting. If so, contact DESA
Heating Products’ Technical Service Department
at 1-866-672-6040. When calling please have your
model and serial numbers of your heater ready.
You can also visit DESAHeating Products’Techni-
cal Service web site at .
ACCESSORIES
Purchase these rebox accessories from your local
dealer. If they can not supply these accessories,
call DESA Heating Products’ Sales Department
at 1-866-672-6040 for information. You can also
write to the address listed on the back page of
this manual.
EQUIPMENT SHUTOFF VALVE
GA5010
For all models. Equipment shutoff valve with
1/8" NPT tap.
Use with Models FB32CA and NLFB32C only.
The variable speed blower allows you to select
the desired speed. The blower circulates heated
air from the replace into the room.
PERIMETER TRIM ACCESSORY
PT32B - Brushed Brass
PT32PB - Polished Brass
PT32P - Platinum
A trim kit is included with each mantel accessory.
Optional with built-in installation. Provides a n-
ished appearance covering rough and/or unnished
mantel edges.
For all models. Decorative polished brass hood
enhances the appearance of the rebox.
CORNER CABINET MANTEL WITH
BASE AND PERIMETER TRIM (Not
C32AU - 32" Unnished, Traditional Design
C32AOS - Light Oak Finish, Traditional
Design
C32HS - 32" Dark Oak Finish, Classic
Design
Ideal for space saving installations.
www.desatech.com
105604-01K 19
ACCESSORIES
Continued
WALL CABINET MANTEL AND BASE
ACCESSORY WITH FIREPLACE
PERIMETER TRIM
W32AU - 32" Unnished, Traditional Design
W32AOS - 32" Light Oak Finish, Traditional
Design
CMA311W - 32" Painted White, Traditional
Design with Dentil Molding
CMA306FA - 32" Light Oak Finish,
Traditional Design with Dentil Molding
CMA312FB - 32" Dark Oak Finish, Classic
Design
W32KCSA - 32" Cherry Finish, Neo-
Classical Design
W32KPA - 32" Painted White, Neo-
Classical Design
CMA305UA - 32" Unnished, Georgian
Design with Columns
32" Light Oak Finish, Georgian
Design with Columns
W32DS - 32" Dark Oak Finish, Keystone
Design
W32GOSA - 32" Dark Oak Finish, Mission
Design
W32IP - 32" Painted White, Ultra/Click-n-
Brick Surround
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
105604-01
Rev. K
02/06
NOT A UPC
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
VENT-FREE FIREBOX
DESA warrants this product to be free from defects in materials and components for four (4) years from the date
of rst purchase, provided that the product has been properly installed, operated and maintained in accordance
with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must
be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to
restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized
Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA who
will provide original factory replacement parts. Failure to use original factory replacement parts voids this war-
ranty. The heater MUST be installed by a qualied installer in accordance with all local codes and instructions
furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by
improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to
repairing a defective heater will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF
THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRAN-
TIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL
COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA’S LIABILITY IS HEREBY LIMITED
TO THE PURCHASE PRICE OF THE PRODUCT AND DESA SHALL NOT BE LIABLE FOR ANY OTHER
DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of
incidental or consequential damages, so the above limitation on implied warranties or exclusion or limitation on
damages may not apply to you.
This warranty gives you specic legal rights and you may also have other rights that vary from state to state.
For information about this warranty write:
105604 01
Other manuals for LogMate FB32CA
1
This manual suits for next models
3
Table of contents
Other Vanguard Indoor Fireplace manuals
Vanguard
Vanguard V36NCR User manual
Vanguard
Vanguard FB36NCA, FB42NC, FB36CA, FB42C Quick start guide
Vanguard
Vanguard 107156-01E.pdf Quick start guide
Vanguard
Vanguard Vi33NRB Quick start guide
Vanguard
Vanguard VDDVF36STN/STP Quick start guide
Vanguard
Vanguard VMH26PRB Quick start guide
Vanguard
Vanguard SBVBN(A) Quick start guide
Vanguard
Vanguard VGL850N Quick start guide
Vanguard
Vanguard VSGF28NTD Operating and maintenance instructions
Vanguard
Vanguard VMH26TN Quick start guide
Vanguard
Vanguard EBDV34N Quick start guide
Vanguard
Vanguard VI33NR Quick start guide
Vanguard
Vanguard VMH26TPA Quick start guide
Vanguard
Vanguard VMH26TPB Quick start guide
Vanguard
Vanguard VMH26TPB Operation manual
Vanguard
Vanguard FBPS Quick start guide
Vanguard
Vanguard Aristocrat V36E User manual
Vanguard
Vanguard VE32L Quick start guide
Vanguard
Vanguard B) Quick start guide
Vanguard
Vanguard BDV37NC Quick start guide
Popular Indoor Fireplace manuals by other brands
Majestic fireplaces
Majestic fireplaces DV580 Installation and operating manual
Majestic
Majestic JASPER30IN installation manual
Napoleon
Napoleon HD35PT-2 Installation and operation manual
Signature Design by Ashley
Signature Design by Ashley EF16-23 user manual
Osburn
Osburn Stratford installation instructions
Solution FIres
Solution FIres LUX75 instruction manual
EcoSmart Fire
EcoSmart Fire 450S Clearances and installation manual
Town & Country Fireplaces
Town & Country Fireplaces TC36 instruction manual
Napoleon
Napoleon Vittoria GD19N-2 Installation and operation manual
Heatilator
Heatilator Novus NDV3630 owner's manual
Town & Country Fireplaces
Town & Country Fireplaces TCWS.54CE SERIES C Installation and operating instructions
Sunjoy
Sunjoy A304001100 manual
Montigo
Montigo B34-DV-2 Installation operation & maintenance
CHAD-O-CHEF
CHAD-O-CHEF VFDG 700 Installation & operating instruction manual
Desa
Desa Comfort Glow RFP28TC OWNER'S OPERATION AND INSTALLATION MANUAL
Vermont Castings
Vermont Castings KSTDV500(N/P)TSCSB Installation and operating instructions
Quadra-Fire
Quadra-Fire VILLAGE QV26E owner's manual
SEI
SEI FA1009259 Assembly
