Vanguard WMH26TNB Quick start guide

VMH26TPB
VMH26TNB
14,000 to 26,000 Btu/Hr
withThermostat
®
WARNING:Iftheinformationinthismanualisnot
followed exactly, a fire or explosion may result
causing property damage, personal injury, or
loss of life.
— Do not store or use gasoline or other
flammablevaporsandliquidsinthevicinityof
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuse
any phone in your building.
• Immediately call your gas supplier from a
neighbor’sphone.Followthegassupplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installationandservicemustbeperformedby
aqualifiedinstaller,serviceagency,orthegas
WARNING:Improperinstallation,adjust-
ment,alteration,service,ormaintenance
can cause injury or property damage.
Refer to this manual for correct installa-
tionandoperationalprocedures.Foras-
sistance or additional information con-
sultaqualified installer,serviceagency,
or the gas supplier.
This appliance may be installed in an aftermarket,* permanently located, manufactured
(mobile) home, where not prohibited by local codes.
This appliance is only for use with type of gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Save this manual for future reference.
Save this manual for future reference.
WARNING: This is an unvented gas-
firedheater.Itusesair(oxygen)fromthe
room in which it is installed. Provisions
for adequate combustion and ventila-
tionairmustbeprovided.Referto Airfor
Combustion and Ventilation section on
page 4 of this manual.
VENT-FREE COMPACT FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
For more information, visit www.desatech.com
For more information, visit www.desatech.com
Shown with Optional
Cabinet Mantel/Hearth
Base Accessory

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or ser-
vice this fireplace. Improper use of this fireplace can
cause serious injury or death from burns, fire, explo-
sion,electricalshock,andcarbonmonoxidepoisoning.
SAFETY INFORMATION
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoningresemble theflu, withheadaches, dizziness,or nausea.If
you have these signs, the fireplace may not be working properly.
Get fresh air at once! Have fireplace serviced. Some people are
more affected by carbon monoxide than others. These include
pregnantwomen,peoplewithheartorlungdiseaseoranemia,those
under the influence of alcohol, and those at high altitudes.
Natural and Propane/LP Gas: Natural and propane/LP gases are
odorless. An odor-making agent is added to the gas. The odor helps
youdetectagasleak.However,theodoraddedtothegascanfade.Gas
may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this
manual for reference. It is your guide to safe and proper operation
of this fireplace.
DANGER: Carbon monoxide poisoning may lead
to death!
WARNING ICON G 001
WARNINGS
WARNING: Any change to this fireplace or its
controls can be dangerous.
WARNING:Donotallowfanstoblowdirectlyinto
the fireplace. Avoid any drafts that alter burner
flame patterns. Ceiling fans can create drafts that
alter burner flame patterns. Altered burner patterns
can cause sooting.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Do not place clothing or other flammable material on
or near the appliance. Never place any objects in the
fireplace.
Fireplace front and screen becomes very hot when
running fireplace. Keep children and adults away
fromhot surfacestoavoid burnsorclothing ignition.
Fireplace will remain hot for a time after shutdown.
Allow surfaces to cool before touching.
Carefully supervise young children when they are in
the room with fireplace.
Youmustoperatethisfireplacewithafireplacescreen
inplace.Makesurefireplacescreenisinplacebefore
running fireplace.
WARNING: Do not use a blower insert, heat
exchanger insert, or other accessory not approved
for use with this fireplace.
WARNING:Thisproductcontainsand/orgenerates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
Keeptheappliance area clear and free fromcombus-
tiblematerials,gasoline,andotherflammablevapors
and liquids.
TABLE OF CONTENTS
SAFETY INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
LOCAL CODES........................................................................... 3
PRODUCT IDENTIFICATION ..................................................... 3
PRODUCT FEATURES .............................................................. 4
UNPACKING ............................................................................... 4
ASSEMBLY ................................................................................. 4
AIR FOR COMBUSTION AND VENTILATION ........................... 5
INSTALLATION ........................................................................... 7
OPERATING FIREPLACE ........................................................ 17
INSPECTING BURNER ............................................................ 18
CLEANING AND MAINTENANCE ............................................ 19
TROUBLESHOOTING .............................................................. 20
SPECIFICATIONS .................................................................... 23
SERVICE HINTS....................................................................... 23
TECHNICAL SERVICE ............................................................. 23
REPLACEMENT PARTS .......................................................... 23
ILLUSTRATED PARTS BREAKDOWNAND PARTS LIST ....... 24
ACCESSORIES ........................................................................ 26
OWNER’S REGISTRATION FORM.......................................... 27
WARRANTY INFORMATION...................................... Back Cover

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
1. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s) inside any structure.
Locate propane/LP supply tank(s) outdoors (propane/LP only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
4. This fireplace shall not be installed in a bedroom or bathroom.
5. Do not use this fireplace as a wood-burning fireplace. Use only
the logs provided with the fireplace.
6. Do not add extra logs or ornaments such as pine cones, ver-
miculite,or rock wool. Using these added items can cause soot-
ing. Do not add lava rock around base. Rock and debris could
fall into the control area of fireplace.
7. This fireplace is designed to be smokeless. If logs ever appear
to smoke, turn off fireplace and call a qualified service person.
Note: During initial operation, slight smoking could occur due
to log curing and fireplace burning manufacturing residues.
8. To prevent thecreation ofsoot, follow theinstructions inClean-
ing and Maintenance, page 19.
9. Before using furniture polish, wax, carpet cleaner, or similar
products, turn heater off. If heated, the vapors from these prod-
ucts may create a white powder residue within burner box or
on adjacent walls or furniture.
10. This fireplace needs fresh air ventilation to run properly. This
fireplace has an Oxygen Depletion Sensing (ODS) safety
shutoffsystem.The ODSshuts down thefireplace ifnot enough
fresh air is available. See Air for Combustion and Ventilation,
pages 5 through 7. If fireplace keeps shutting off, see Trouble-
shooting, pages 20 through 22.
11. Do not run fireplace
• where flammable liquids or vapors are used or stored.
• under dusty conditions.
12. Do not use this fireplace to cook food or burn paper or other
objects.
13. Do not use fireplace if any part has been under water. Immedi-
ately call a qualified service technician to inspect the room
fireplace and to replace any part of the control system and any
gas control which has been under water.
14. Turnoffand unplug fireplaceand let coolbeforeservicing. Only
a qualified service person should service and repair fireplace.
15. Operating fireplace above elevations of 4,500 feet could cause
pilot outage.
16. Do not operate fireplace if any log is broken. Do not operate
fireplace if a log is chipped (dime-sized or larger).
17. To prevent performance problems, do not use propane/LPfuel
tank of less than 100 lbs. capacity (propane/LP only).
18. Provide adequate clearances around air openings.
SAFETY INFORMATION
Continued
PRODUCT IDENTIFICATION
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the
absenceoflocalcodes,usethelatesteditionofTheNationalFuelGas
Code ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Figure 1 - Vent-Free Gas Compact Fireplace
Ignitor Button
Screen
Fireplace
Cabinet
Logs
Control Knob
SAFETY INFORMATION
LOCAL CODES
PRODUCT IDENTIFICATION

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
ASSEMBLY
WARNING: Always have branch support and
screen in place before operating fireplace. This pre-
vents excessive temperatures on fireplace surfaces.
WARNING: Failure to position the parts in accor-
dancewiththesediagramsor failure to use only parts
specifically approved with this fireplace may result in
property damage or personal injury.
Figure 3 - Assembling Fireplace
ASSEMBLING FIREPLACE
Tools Required:
• Phillips screwdriver
• 5/16" hex wrench
• slotted screwdriver
Installing Log
1. Lift screen up and pull out to remove.
2. Cut two plastic straps to remove the log from the firebox cavity.
3. An optional blower is available. See Accessories, page 26. In-
stall optional blower now. Follow installation instructions pro-
vided with blower.
4. Remove log packaging material and discard packaging. Gently
place log set on burner support (see Figure 3). The log should
fit flat against top of burner support and log locator tabs fit
into the slots under the log. Do not allow log to contact flame.
If flame contacts log, soot will be created.
5. Reattach screen by placing the notches in the screen frame
over the shoulder screws and pushing down.
PRODUCT FEATURES
SAFETY PILOT
This fireplace has a pilot with an Oxygen Depletion Sensing (ODS)
safetyshutoffsystem.TheODS/pilotisarequiredfeatureforvent-free
room fireplaces. The ODS/pilot shuts off the fireplace if there is not
enough fresh air.
PIEZO IGNITION SYSTEM
This fireplace has a piezo ignitor. This system requires no matches,
batteries, or other sources to light fireplace.
THERMOSTATIC HEAT CONTROL
Thisfireplacehasathermostatsensingbulbandacontrolvalve.The
thermostat will automatically modulate the heat output to maintain
a consistent room temperature. This results in greater fireplace
comfort. This can also result in lower gas bills.
IMPORTANT:
THIS PACKAGE CONTAINS A
FIREPLACE HOOD. UNWRAP
CARTON AND REMOVE HOOD
BEFORE DISCARDING
PROTECTIVE PACKAGING.
1
2
UNPACKING
1. Remove log box and fireplace from carton. The hood is not
attached. IMPORTANT: The fireplace hood is inside the card-
board protective end wrap on the left side of fireplace (as
viewed from front).A decal is on the outside of the cardboard
end wrap stating hood is enclosed (see Figure 2).
2. Remove hood from cardboard protective end wrap as shown
in Figure 2.
3. Removeallprotectivepackagingappliedtofireplaceforshipment.
4. Make sure your fireplace includes one hardware packet.
5. Check fireplace for any shipping damage. If fireplace is dam-
aged, promptly inform dealer where you bought fireplace.
Figure 2 - Removing Fireplace Hood
Hood
Cardboard
Protective
Fireplace
End Wrap
Hood Enclosed
Decal
Log
Screen
Burner Support with
Log Locator Tabs
Branch
Support
Shoulder
Screw
PRODUCT FEATURES
UNPACKING
ASSEMBLY
Assembling Fireplace

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
Figure 4 - Assembling Hood
Hood Tabs
Hood
Louver
Hood Tab
Baffle
Sheet Metal
Screw
Firebox Top
Assembling Hood
1. Locate four black phillips sheet metal screws from the hard-
ware packet.
2. Rotate hood as shown in Figure 4. Make sure hood tabs
point toward fireplace.
3. Insert hood tabs between baffle and louvers (see Figure 4).
4. Gently rotate hood to upright position. Make sure hood tabs are
behind louvers and hood is resting on firebox top (see Figure 4).
5. Align screw holes on hood with screw holes on firebox top.
6. Insert screws as shown in Figure 4. Tighten screws firmly.
ASSEMBLY
Continued
AIR FOR COMBUSTION AND
VENTILATION
Today’s homes are built more energy efficient than ever. New materi-
als, increased insulation, and new construction methods help reduce
heat loss in homes. Home owners weather strip and caulk around
windowsanddoorstokeepthecoldairoutand the warm air in. During
heatingmonths,home owners wanttheirhomes as airtightaspossible.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code,ANSI
Z223.1/ NFPA 54, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 5 through 7 will help you classify your
space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilings exposedtotheoutsideatmosphere
have a continuous water vapor retarder with a rating
of one perm (6 x 10-11 kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on openable win-
dows and doors and
c. caulking orsealantsare applied toareassuchas joints
around window and door frames,between sole plates
and floors, between wall-ceiling joints, between wall
panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air. See Ventilation Air
From Outdoors , page 7.
If your home does not meet all of the three criteria above,
proceed to Determining Fresh-Air Flow For Fireplace
Location , page 6.
WARNING: This heater shall not be installed in a
confined space or unusually tight construction un-
lessprovisions areprovidedfor adequatecombustion
and ventilation air. Read the following instructions to
insure proper fresh air for this and other fuel-burning
appliances in your home.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,andfuelburningappliances
drawairfromthehousetooperate.Youmustprovideadequatefresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
ASSEMBLY
Assembling Fireplace (Cont.)
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
AIR FOR COMBUSTION AND
VENTILATION
Continued
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1.3/ NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors,areconsideredapart of the unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
Confined and Unconfined Space
The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors,areconsideredapart of the unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Usethis worksheet todetermineif youhave aconfined orunconfinedspace.
Space:Includestheroominwhichyouwillinstallheaterplusanyadjoining
rooms with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling
height) = 2560 cu. ft. (volume of space)
Ifadditional ventilationto adjoiningroom issuppliedwith grillsor open-
ings, add the volume of these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine the maximum Btu/Hr
the space can support.
__________ (volume of space) x 20 = (Maximum Btu/Hr the space
can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maximum
Btu/Hr the space can support)
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction,provideadequatecombustionandven-
tilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1/NFPA 54 Sec-
tion 5.3 or applicable local codes .
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater _____________ Btu/Hr
Gas water heater* _____________ Btu/Hr
Gas furnace _____________ Btu/Hr
Vented gas heater _____________ Btu/Hr
Gas fireplace logs _____________ Btu/Hr
Other gas appliances* + _____________ Btu/Hr
Total = _____________ Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws com-
bustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater _____________ Btu/Hr
Vent-free heater + _____________ Btu/Hr
Total = _____________ Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual
amount of Btu/Hr used.
__________________ Btu/Hr (maximum the space can support)
__________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
56,000 Btu/Hr (actual amount of Btu/Hr used)
Thespacein the above example is aconfinedspace because the actual Btu/
Hrusedismorethanthemaximum Btu/Hrthespacecansupport.Youmust
provide additional fresh air. Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the
extra space provides an unconfined space, remove door to adjoining
roomoradd ventilation grills between rooms.SeeVentilationAirFrom
Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Out-
doors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room
unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can
support,thespaceisanunconfinedspace.Youwillneednoadditionalfresh
air ventilation.
30,000
26,000
56,000
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation (Cont.)
Determining Fresh-Air Flow for Heater Location

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7

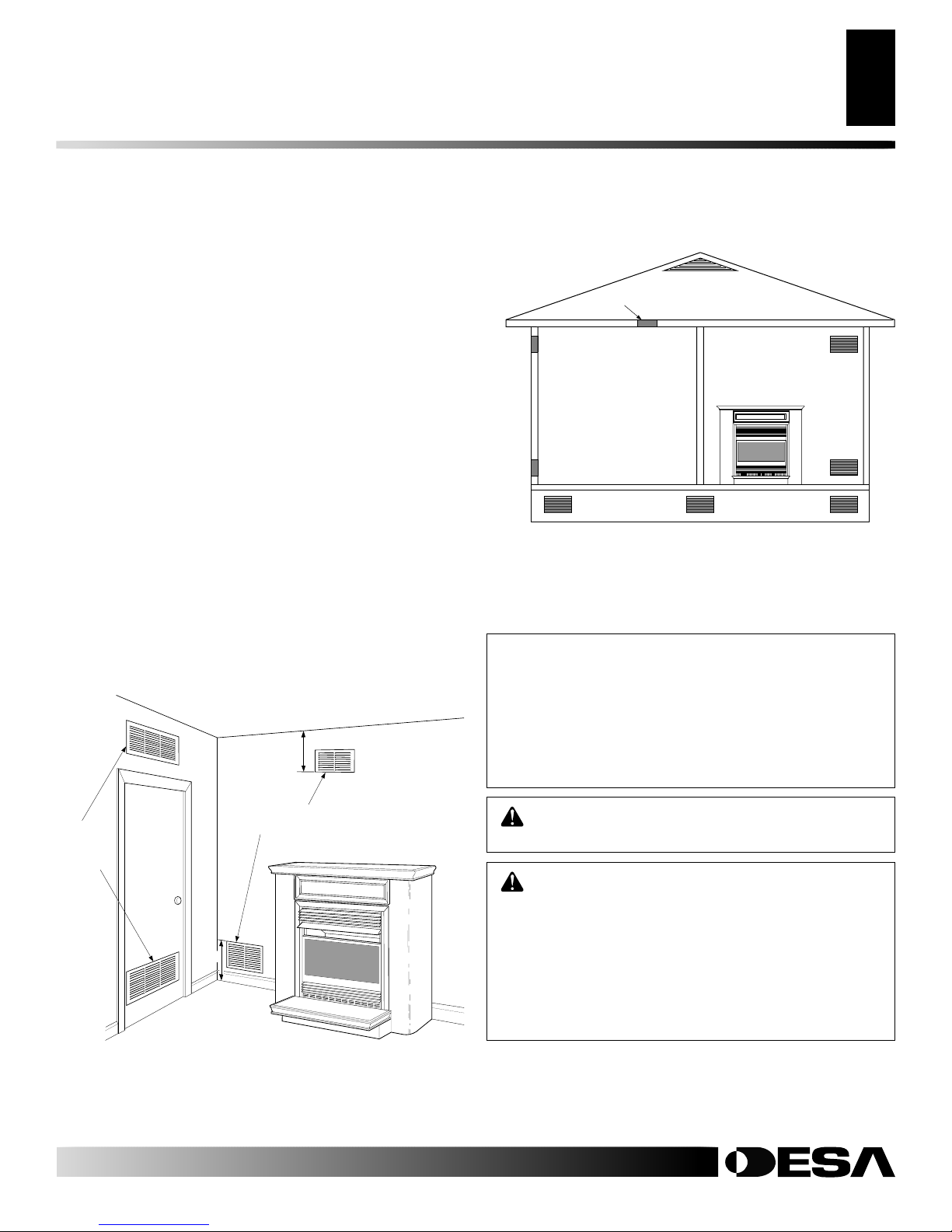

Figure 6 - Ventilation Air from Outdoors Shown with Optional
Mantel
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
AIR FOR COMBUSTION AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 5). You can also remove door into
adjoining room (see option 3, Figure 5). Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provideextrafreshairbyusingventilationgrills orducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoorsorspacesopentotheoutdoors.Thesespacesincludeattics
and crawl spaces. Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air into
attic if attic has a thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
Figure 5 - Ventilation Air from Inside Building Shown with
Optional Mantel
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1
WARNING: A qualified service person must in-
stall fireplace. Follow all local codes.
WARNING: Never install the fireplace
•in a bedroom or a bathroom
•in a recreational vehicle
•where curtains, furniture, clothing, or other flam-
mable objects are less than 36 inches from the
front, top, or sides of the fireplace
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
INSTALLATION
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughoutthehouse.Intheeventofapoweroutage,
you can use this heater as your primary heat source.
AIR FOR COMBUSTION AND VENTILATION
Ventilation Air
INSTALLATION

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
Youcanrecessfireboxintothewall.Youcanalsopositionfireplace
in the optional cabinet or corner mantels. IMPORTANT: Only use
optional cabinet or corner mantels specified in this manual. Pur-
chasetheoptionalmantelfromyourdealer(seeAccessories,page26).
LOCATING FIREPLACE
CAUTION: This fireplace creates warm air cur-
rents. These currents move heat to wall surfaces next
to fireplace. Installing fireplace next to vinyl or cloth
wallcoveringsoroperatingfireplacewhereimpurities
(such as, but not limited to, tobacco smoke, aromatic
candles,cleaningfluids,oilorkerosenelamps,etc.)in
the air exist, may discolor walls or cause odors.
Figure 8 - Mounting Clearances As Viewed From Front of
Fireplace Shown with Optional Mantel
Top Of
Mantel Can
Be Flush
With Wall
Left
Side
CEILING
Right
Side
36"
Minimum
6"
Minimum
From
Sides Of
Fireplace
Left
Side
CEILING
36"
Minimum
FLOOR
Right
Side
WARNING: Maintain the minimum clearances
shown in Figures 7 and 8. If you can, provide greater
clearances from floor, ceiling, and joining wall.
0" Minimum To Top Surface
Of Carpeting, Tile Or Other
Combustible Material
Note: When installing fireplace directly on carpeting, tile or other
combustible material, other than wood flooring, the fireplace shall
be installed on a metal or wood panel extending the full width and
depth of the fireplace.
0" Minimum To Top
Surface Of Carpeting,
Tile Or Other
Combustible Material

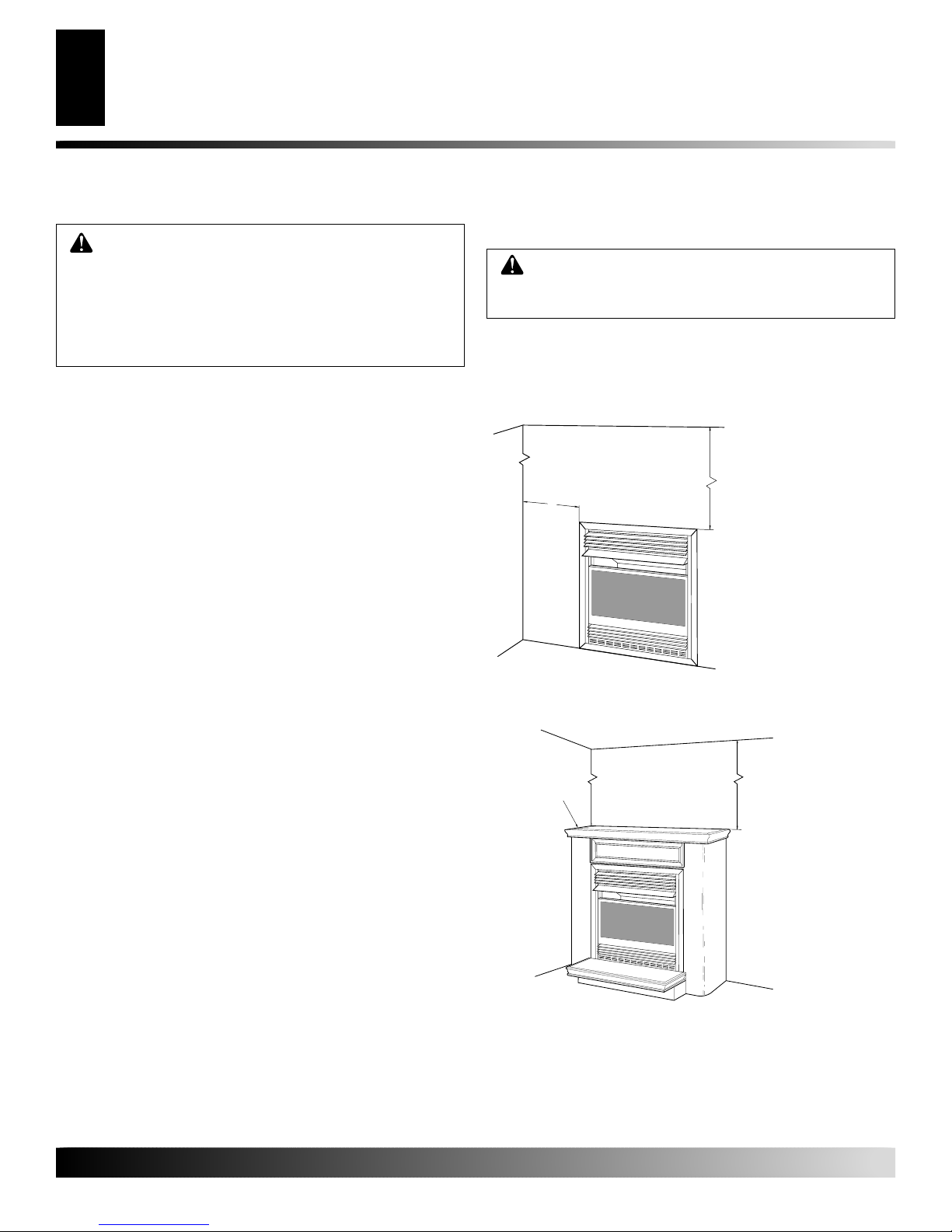

Figure 7 - Mounting Clearances As Viewed From Front of
Fireplace Shown Built-In the Wall
INSTALLATION
Continued
IMPORTANT: Vent-free fireplaces add moisture to the air. Although
this is beneficial, installing fireplace in rooms without enough ventila-
tionairmaycausemildewtoformfromtoomuchmoisture.SeeAirfor
Combustion and Ventilation, pages 5 through 7.
Note: YourVanguardfireplaceisdesignedtobeusedinzeroclearance
installations. Wall or framing material can be placed directly against
anyexteriorsurfaceofyourfireplace,exceptwherestandoffspacersare
integrally attached. If standoff spacers are attached to your fireplace,
these spacers can be placed directly against wall or framing materials.
Use the dimensions shown for rough openings to create the easiest
installation (see Built-In Fireplace Installation, page 9).
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP) for your unit. If
your gas supply is not correct, do not install fireplace. Call dealer
where you bought fireplace for proper type fireplace.
INSTALLATION ITEMS
Before installing fireplace, make sure you have the items listed
below.
• external regulator - propane/LP only (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection*
• ground joint union
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 26.
Note: If desired, purchase a four-sided brass trim kit for built-in
installations. See Accessories, page 26.
INSTALLATION
Check Gas Type
Installation Items
Locating Fireplace

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued
1. Frame in rough opening. Use dimensions shown in Figure 9
for the rough opening.
If installing in a corner, use dimensions shown in Figure 10
for the rough opening. The height is 26 7/8" which is the same
as the wall opening above.
36
5/8
"25
7/8
"
51
3/4
"
26
7/8
"
Figure 10 - Rough Opening for Installing in Corner
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace
into a framed-in enclosure. This makes the front of fireplace flush
with wall. An optional brass trim kit accessory is available (see
Accessories,page 26). Brass trim willextend pastsides of fireplace
approximately 1/2 inch. This will cover the rough edges of the wall
opening.If installing abuilt-in mantel abovethe fireplace youmust
follow the clearances shown in Figure 12, page 10. Follow the
instructions below to install the fireplace in this manner.
Actual Framing
Height 26" 26 7/8"
Front Width 26 3/4" 26 7/8"
Depth 9 1/2" 10 1/2"
Bottom 3/4" 3/4"
CAUTION: If you install the fireplace in a home
garage
•fireplacepilotandburnermustbeatleast18inches
above floor.
•locatefireplacewheremovingvehiclewillnothitit.
For convenience and efficiency, install fireplace
• where there is easy access for operation, inspection, and service.
• in coldest part of room.
An optional blower kit is available from your dealer (see Accesso-
ries, page 26). If planning to use blower, locate fireplace near an
electrical outlet.
26
7/8
"
26
7/8
"
3/4" Off
The Floor
Minimum
10
1/2
"
Figure 9 - Rough Opening for Installing in Wall
WARNING: If pre-wiring, do not connect wiring to
any electrical source at this time.
Install fireplace electrical outlet and connect wiring
to outlet before connecting to electrical source. The
fireplaceelectricaloutletisincludedwiththeGA3450T
blower accessory.
Only use the fireplace electrical outlet supplied with
the GA3450T blower accessory.
2. If installing GA3450T blower accessory, do so at this time.
See Installing Blower Accessory GA3450T, page 11.
Note: If not installing blower accessory, you may wish to run
electrical wiring to your fireplace for future blower installa-
tion (see Accessories, page 26) Use only approved three-wire
electrical wiring.
Note: Aqualifiedinstallershouldmakeallelectricalconnections.
3. Install gas pipingto fireplacelocation.Thisinstallation includes
an approved flexible gas line (if allowed by local codes) after
the equipment shutoff valve. The flexible gas line must be the
last item installed on the gas piping.
4. If you have not assembled firebox, follow instructions on page 4.
5. Carefully set fireplace in front of rough opening with back of
fireplace inside wall opening.
6. Attach flexible gas line to fireplace gas regulator. See Con-
necting Fireplace to Gas Supply, page 15.
7. Bend four nailing flanges on outer casing with pliers (see
Figure 11, page 10).
8. Attach fireplace to wall studs using nails or wood screws
through holes in nailing flange.
9. Check all gas connections for leaks. See Checking Gas Con-
nections, page 16.
INSTALLATION
Locating Fireplace (Cont.)
Built-In Fireplace Installation

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLATION
Continued
Mantel Clearances for Built-In Installation
Ifplacing mantel abovebuilt-in fireplace,you must meetminimum
clearance between mantel shelf and top of fireplace opening.
NOTICE: If your installation does not meet the mini-
mumclearancesshowninFigure12,youmustdoone
of the following:
•raise the mantel to an acceptable height
•remove the mantel
NOTICE:Surfacetemperatures of adjacent walls and
mantels become hot during operation. Walls and
mantels above the firebox may become hot to the
touch. If installed properly, these temperatures meet
the requirement of the national product standard.
Followallminimumclearancesshowninthismanual.
OPTIONAL MANTEL INSTALLATION
Note: Refer to instructions provided with the mantel for assembly
instructions.Refertoinstructionsbelowforsysteminstallation.Refer
to instructions on page 4 for firebox assembly. Blower accessory
should be installed if it is being used (see Accessories, page 26).
1. Unscrew four brass screws that attach top louver to fireplace.
Remove louver from fireplace and set aside.
2. Place fireplace on wood base.
3. Place mantel around fireplace/base assembly.
4. Assemble brass trim kit. See Assembling Brass Trim, page 11.
13" 16"
19"
21"
2 1/2"
6"
8"
10"
Note:
All vertical
measurements
are from top of
fireplace
opening to
bottom of
mantel shelf. All
measurements
are in inches.
Figure 12 - Minimum Mantel Clearances for Built-In Installation
Mantel Shelf
Side of
Firebox
WARNING:Donotallownoncombustiblematerials
to cover any necessary openings like louvered slots.
WARNING: Use only noncombustible mortar or
adhesives when overlapping the front facing with
noncombustible facing material.
WARNING: Never modify or cover the louvered
slots on the front of the firebox.

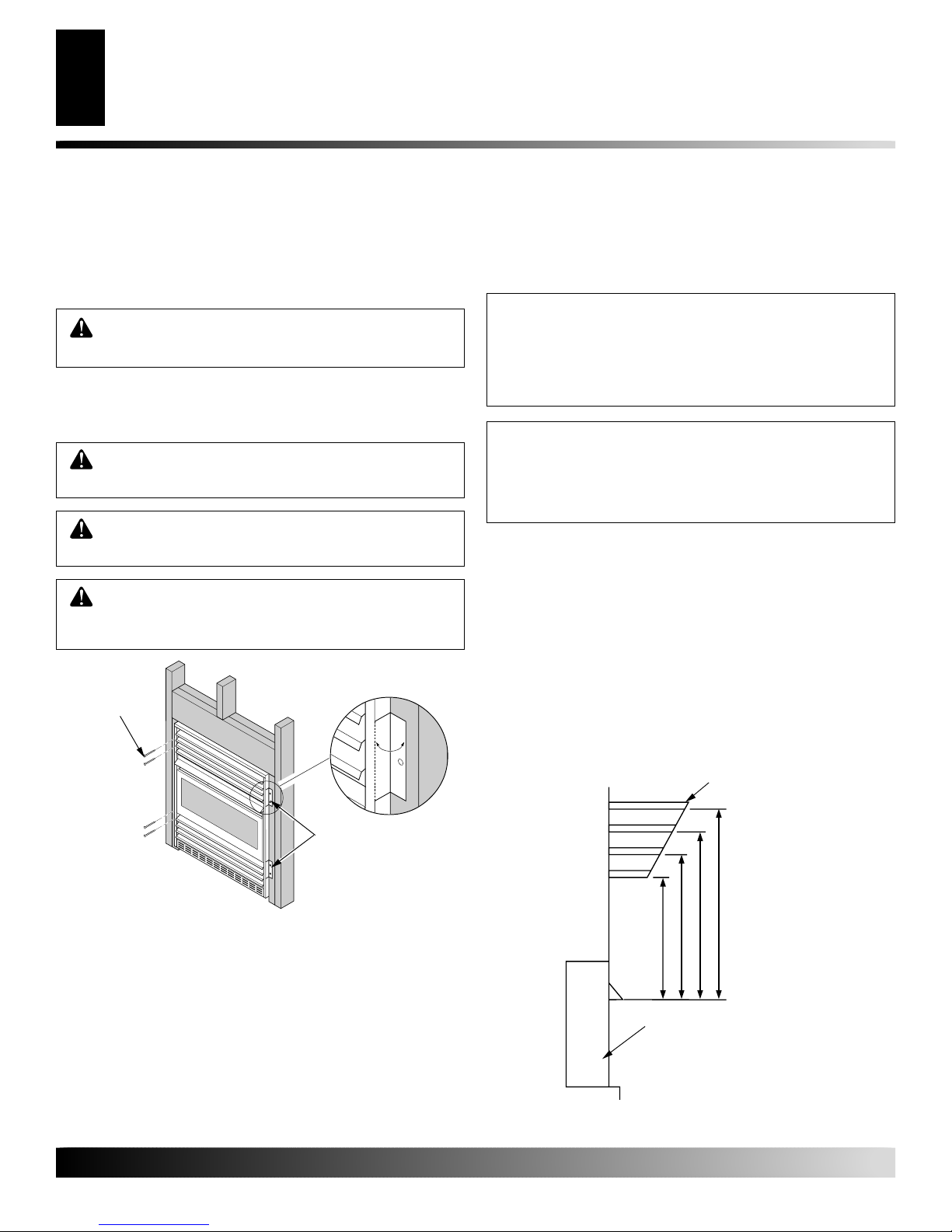

Figure 11 - Attaching Fireplace to Wall Studs
Nails or
Wood Screws
WARNING: Do not allow any combustible materi-
als to overlap the firebox front facing.
IMPORTANT: Noncombustible materials such as brick, tile, etc.
may overlap the front facing, but should never cover any necessary
openings like louvered slots.
Nailing Flanges
10. If using optional brass trim kit, install the trim after final fin-
ishing and/or painting of wall. See instructions included with
brass trim accessory for attaching brass trim.
IMPORTANT: When finishing your firebox, combustible materials
INSTALLATION
Built-In Fireplace Installation (Cont.)
Optional Mantel Installation

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11

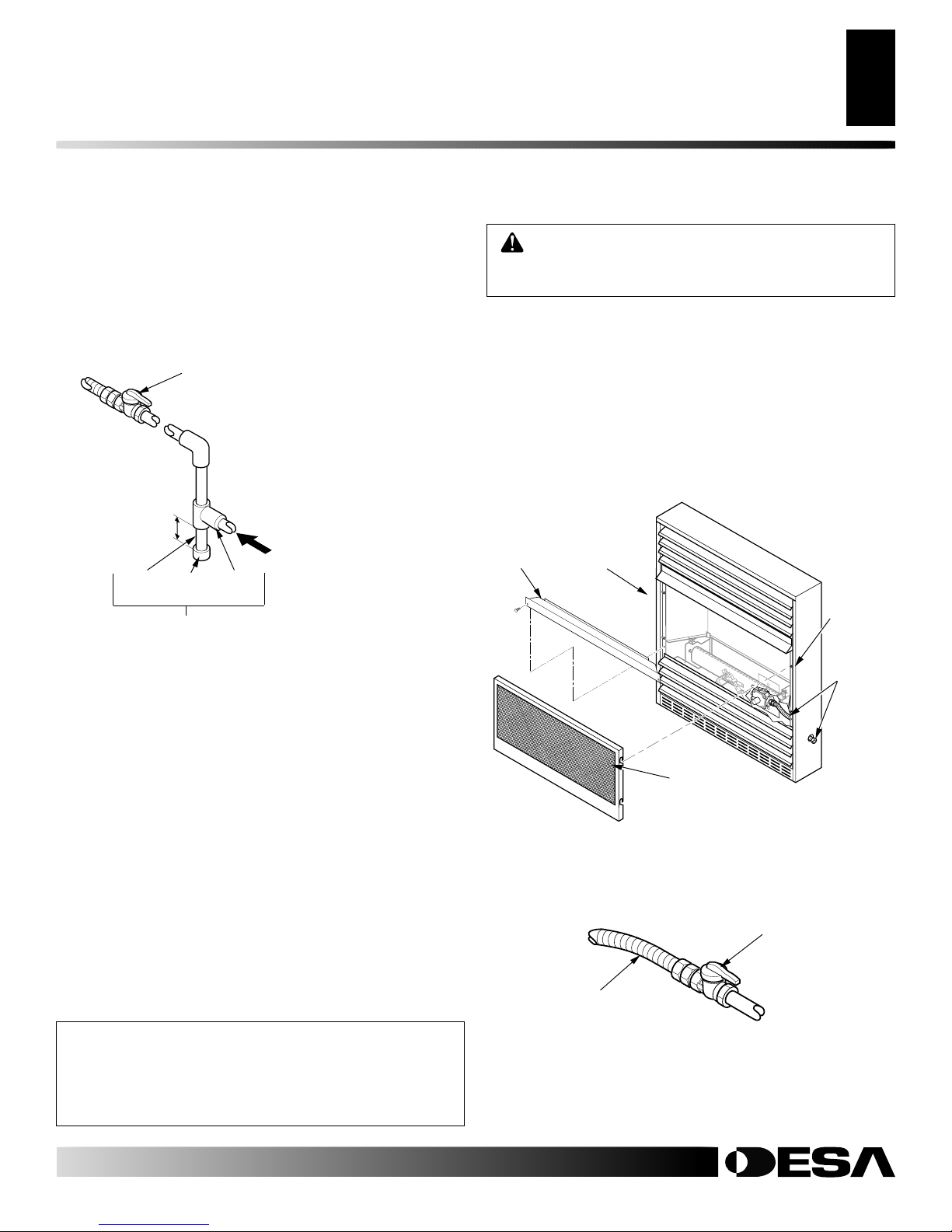

Figure 13 - Attaching Brass Trim to Fireplace
Figure14-AttachingWoodBasetoFloor
5. Firmly snap brass trim kit on shoulder screws. Shoulder screws
are located on fireplace cabinet (see Figure 13).
6. Align brass trim kit for flush fit around opening.
7. Use two 3" wood screws provided and attach fireplace base to
wooden base (see Figure 13).
8. Remove brass trim kit and mantel. Be careful not to damage
wall or mantel.
9. Place wood base next to wall at installation location.
10. Attach wood base to floor with two 1 3/4" black screws provided
(see Figure 14). If the floor is concrete use anchor method (see
Attaching Wood Base to Solid Floor, page 14).
11. Install gas line. See Connecting To Gas Supply, page 14.
12. Check for leaks. See Checking Gas Connections, page 16.
13. Place mantel around fireplace. Be careful not to damage wall
or mantel.
14. Place brass trim kit on the shoulder screws located on the side
and top of the fireplace. Firmly snap the brass trim over the
shoulder screws on fireplace (see Figure 13).
15. Adjust assembly to remove any gaps.Attach remaining two 3"
wood screws from hardware pack through openings inside of
fireplace sides into the mantel. The openings are located at top
behind the area for the brass louvers (see Figure 14).
16. Reinstall top brass louvers.
1 3/4" Screw
Wood Base
INSTALLATION
Continued
Shoulder Screws
Assembled
Brass Trim
Hole for 3" wood
screw for attaching
fireplace to mantel
Hole for 3"
wood screw for
attaching
fireplace to
wooden base
Assembling Brass Trim (Brass Trim Shipped
with Mantel)
1. Remove packaging from three remaining pieces of brass trim.
2. Locate two adjusting plates with set screws, and two shims in
the hardware packet.
3. Align shim under adjusting plate as shown in Figure 15.
4. Slide one end of adjusting plate/shim in slot on mitered edge
of top brass trim (see Figure 15).
5. Slide other end of adjusting plate/shim in slot on mitered edge
of side brass trim (see Figure 15).
6. While firmly holding edges of brass trim together, tighten both
set screws on the adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other corner.
8. Set brass assembly aside for later installation.
Side Brass Trim
Top Brass
Trim
Mitered Edge
Figure 15 - Assembling Brass Trim
Shim
Set Screws
Adjusting
Plate
Slot
Slot
INSTALLING BLOWER ACCESSORY
GA3450T
Removing Upper Louver Assembly
To install the blower accessory, you must first remove the upper
louver assembly.
1. Lift screen off heater.
2. Remove 4 screws from louver assembly (see Figure 16). Save
these screws.
3. Pull louver assembly straight out from the cabinet. Be careful
not to scratch the paint. Set louver assembly and screws aside.
Figure 16 - Removing Upper Louver Assembly
Upper Louver
Assembly
Brass Screws
Blower Bracket
Mounting Holes
INSTALLATIONS
Optional Mantel Installation (Cont.)
Installing Blower Accessory - GA3450T

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
3
2
1
3. Note the wire locations on back of AUTO/OFF/ON switch.
The terminals on back of switch are numbered 1, 2, and 3.
Carefully remove red wire from terminal 1 and blue wire from
terminal 3. Black wire can remain on middle terminal 2 (see
Figure 18).
4. Carefully disconnect green and white wires at their insulated
connectors.
5. In top of the heater cabinet, locate the four mounting holes on
theouter casing.Align thesefour holeswith those on the blower
bracket assembly.Attach blower bracket assembly to the outer
casing with 4 #10 screws provided (see Figure 18).
6. Route the wire harness through the hole in left side of baffle.
Pull wire harness through lower opening above where the
valve shield was removed. (see Figure 18).
7. Insert the 4 wire harness into one of the round holes in the rear
of the valve cover shield and through the rectangular hole in
the front of shield (see Figure 18).
8. Reconnect red wire to switch position 3. Reconnect blue wire
to switch position 1. Reconnect green and white wires.
Figure 18 - Installing Blower Bracket Assembly
INSTALLATION
Continued
Removing Valve Cover Shield
1. Open bottom louver assembly by swinging the assembly down
(see Figure 17).
2. Using short Phillips screwdriver, remove the screw under the
center of the branch support. Rotate valve cover shield clock-
wise and slide out.
IMPORTANT: Do not remove shoulder screw on the left side
of valve cover shield. Slide the valve cover shield off of the
shoulder screw (see Figure 17).
Note: If you do not have a short Phillips screwdriver, the
screen,log set,and branchsupport mustbe removedso a longer
screwdriver may be used. See Connecting Equipment Shutoff
Valve to Heater Control, page 15, steps 1 and 2.
Figure 17 - Removing Valve Cover Shield
Installing Blower Assembly
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION: Verify proper operation after servicing.
Note: If you are using a mantel with your heater, use the following
instructions. If your heater is built-in, see For Built-In Installation
on page 13.
1. Install snap bushings found in hardware kit into both holes in
rear of valve cover shield.
2. Make sure the wire harness is firmly connected to the terminals
on the blower bracket assembly.
1
2
Remove
Screw Valve Cover
Shield
Shoulder Screw
Branch Support
Snap Bushings Bottom Louver
Assembly
Wire
Harness
Blower Bracket
Assembly
Screw
Power
Cord
Valve Cover
Shield
Box Cover Wire
Harness
Switch
Plate
Switch
Baffle
Wiring Routing
Hole in Baffle
Blue
Red
INSTALLATION
Installing Blower Accessory - GA3450T (Cont.)

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
3
2
1
Figure 19 - Installing Switch Plate to Valve Cover Shield
Switch
Plate Screw
Valve Cover
Shield
INSTALLATION
Continued
9. Install the switch plate on the valve cover shield with 2 #10
screws provided (see Figure 18, page 12). Reinstall the valve
cover shield. Route power cord out of the cabinet by inserting
it through the bushing on the outer casing (see Figure 18, page
12). Plug fan kit into 120-Volt grounded power supply and test
operation.
Note: When switch is in the AUTO position, the
fan will start after the heater has run for a few moments. The
fan will continue to run for several moments after the heater
has been turned off. When switch is in the ON position, the
fan will run until turned to OFF. Reinstall upper louver assem-
bly and hood if previously removed, (see Figure 16, page 11).
Close lower louver door.
For Built-In Installation
WARNING: A licensed electrician must connect
the wiring harness to electrical supply following all
localcodes.Electricianmustprovideaclamponthe
box cover to secure the wiring. Wiring should be
routed through the bushing in the hole on the outer
casing of heater.
Follow instructions Removing Valve Cover Shield (page 12), then
1. Install a snapbushing found inhardware kit intoone oftheholes
found on rear of valve cover shield. The other hole is for a strain
relief clamp (not supplied) to secure incoming electrical supply.
2. Follow steps 2 through 6 in Installing BlowerAssembly, page 12.
Also remove black wire from middle switch terminal 2.
3. Remove black plastic strain relief and power cord from switch
plate. The power cord supplied will not be used in built-in in-
stallations. Pop in the plastic snap bushing found in hardware
kit into the hole left by supply cord/strain relief.
4. A licensed electrician must follow the wiring diagram to con-
nect incoming electrical supply to fan kit wiring harness (see
Figure 20).
5. Plug power cordto the outletreceptacle (not provided)as shown
in figure 19. Wind the extra cable in power cord and and tie it
up with the plastic wire strap (see Figure 21). Set the cable
bundlebetween theburner bracket and outer casing, away from
the burner.
6. Reinstall valve cover shield.
7. Test to make sure the blower is working properly.
8. Reinstallupperlouver assembly and hoodifpreviouslyremoved,
(see Figure 16, page 11). Close lower louver door.
Red
Red
Fan Switch
(Auto/Off/On)
Blue
Blue
Thermostat
Switch
(N.O.)
Green
White Green
White
On
110/115
V.A.C. Blower
Motor
Black
Off
1
23
Auto
Figure 20 - Wiring Diagram For Blower Accessory Built-In
Installation
Blower Bracket
Assembly
Screw
Wire
Harness
Power
Cord
Valve
Cover
Shield Box Cover Wire
Harness
Switch
Plate
Switch
Clamp Connector
(not included)
Outlet
Receptacle
Blue Red
Plastic
Wire Strap
Figure 21 - Installing Blower Bracket Assembly
INSTALLATION
Installing Blower Accessory - GA3450T(Cont.)

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
CONNECTING TO GAS SUPPLY
WARNING: A qualified service person must con-
nect fireplace to gas supply. Follow all local codes.
CAUTION: Never connect propane/LP fireplace
directly to the propane/LP supply. This fireplace
requires an external regulator (not supplied). Install
the external regulator between the fireplace and
propane/LP supply.
CAUTION:Useonlynew, blackironorsteelpipe.
Internally-tinned copper tubing may be used in cer-
tain areas. Check your local codes. Use pipe of 1/2"
or greater diameter to allow proper gas volume to
fireplace. If pipe is too small, undue loss of volume
will occur.
WARNING:Use pipejointsealantthat is resistant
to liquid petroleum (LP) gas.
For propane/LP units, installer must supply an external regulator.
The external regulator will reduce incoming gas pressure. You
mustreduceincoming gaspressuretobetween11and14 inchesof
water. If you do not reduce incoming gas pressure, fireplace
regulator damage could occur. Install external regulator with the
ventpointingdownasshown in Figure 23.Pointingthevent down
protects it from freezing rain or sleet.
Propane/LP
Supply Tank External Regulator
ATTACHING WOOD BASE TO SOLID FLOOR
For attaching base to solid floors (concrete or masonry)
Note: Flooranchorsandmountingscrewsareinhardwarepackage.
The hardware package is provided with fireplace.
1. Drill holes at marked locations using 5/16" drill bit. For solid
floors (concrete or masonry), drill at least 1" deep.
2. Fold floor anchor as shown in Figure 22.
3. Insert floor anchor (wings first) into hole. Tap anchor flush to
floor.
4. Insert mounting screws through base and into floor anchors.
5. Tighten screws until base is firmly fastened to floor.
Figure 22 - Folding Anchor
Installation must include a equipment shutoff valve, union, and
plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from fireplace (see Figure 24,
page 15).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Checkyourbuildingcodesforanyspecialrequirementsforlocating
equipment shutoff valve to fireplaces.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in clogged fireplace valves.
Figure 23 - External Regulator with Vent Pointing Down
Vent Pointing Down
WARNING:Thisappliancerequiresa45°maleflare
fitting5/8"-18 UNF (Unified National Fine Thread) inlet
connection and the flexible gas line provided.
INSTALLATION
Continued
Extension Cord
Use extension cord if needed. The cord must have a three-prong,
groundingplugandathree-holereceptacle.Makesurecordisingood
shape. It must be heavy enough to carry the current needed. An
undersized cord will cause a drop in line voltage. This will result in
loss of power and overheating. Use a No. 16 AWG cord for lengths
less than 50 feet.
WARNING:Neverconnectnaturalgasfireplaceto
private (non-utility) gas wells. This gas is commonly
known as wellhead gas.
INSTALLATION
Installing Blower Accessory - GA3450T (Cont.)
Attaching Wood Base to Solid Floor
Connecting to Gas Supply

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
We recommend that you install a sediment trap in supply line as
showninFigure24.Locatesedimenttrapwhereitiswithinreachfor
cleaning. Install in piping system between fuel supply and heater.
Locatesediment trapwhere trappedmatter isnot likelyto freeze.A
sediment trap traps moisture and contaminants. This keeps them
from going into fireplace controls. If sediment trap is not installed
or is installed wrong, fireplace may not run properly.
Figure 24 - Gas Connection
INSTALLATION
Continued
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
PROPANE/LP
From External Regulator
(11" W.C. to 14" W.C.
Pressure)
NATURAL
From Gas Meter (5" W.C.
to 10.5" W.C. Pressure)
3" Minimum
Pipe Cap Tee
Nipple Joint
Sediment Trap
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 26.
CONNECTING EQUIPMENT SHUTOFF VALVE
TO HEATER CONTROL
Installation Items Needed
• Phillips screwdriver
• sealant (resistant to propane/LP gas, not provided)
1. Remove fireplace screen. Remove two screws that hold fire-
place screen in place for shipping. These screws are located
near top of screen. Discard screws. Lift fireplace screen up
and pull out to remove.
2. Remove screws that attach branch support to fireplace (see
Figure 25). Carefully lift up branch support and remove from
fireplace (see Figure 25).
3. Route flexible gas line included from fireplace control to equip-
mentshutoffvalve throughsideorrearaccessholesinoutercasing.
NOTICE: Most building codes do not permit con-
cealed gas connections. A flexible gas line is pro-
vided to allow accessibility from the fireplace (see
Figure25).The flexible gas supply line connectionto
the equipment shutoff valve should be accessible.
4. Apply pipe joint sealant lightly to male threads of gas connec-
tor attached to flexible gas line/equipment shutoff valve (see
Figure 26).
5. Check all gas connections for leaks. See Checking Gas Con-
nections, page 16.
6. Replace branch support back into fireplace. Feed flexible gas
line into fireplace base area while replacing branch support.
Make sure the entire flexible gas line is in fireplace base area.
Reattach branch support to fireplace with screws removed in
step 2.
CAUTION: Avoid damage to regulator. Hold gas
regulator with wrench when connecting it to gas
piping and/or fittings.
Figure 25 - Removing Log Base Assembly From Fireplace
Figure 26 - Attaching Flexible Gas Line to Equipment Shutoff
Valve
Branch
Support
Screen
Screen
Shipping
Screw
Shoulder
Screw
Flexible
Gas Line
➞
➞
Flexible Gas Line from
Fireplace Gas Regulator
Provided with Fireplace
To Fireplace
Gas Regulator Equipment Shutoff Valve
Provided by Installer
PROPANE/LP
To External
Regulator
NATURAL
To Gas Supply
INSTALLATION
Connecting to Gas Supply (Cont.)
Connecting Equipment Shutoff Valve to Heater Control

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
ON
POSITION
OFF
POSITION
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (control
valve)andequipmentshutoffvalvefromgassupplypiping. Pres-
sures in excess of 1/2 psig will damage fireplace regulator.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurizesupplypipingsystembyeitheropeningpropane/LPsup-
ply tank valve for propane/LP gas or opening main gas valve lo-
catedon or neargasmeter for naturalgas,or usingcompressedair.
4. Check all joints of gas supply piping system.Apply a noncor-
rosive leak detection fluid to gas joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 27).
2. Pressurize supply piping system by either opening propane/
LP supply tank valve for propane/LP gas or opening main gas
valve located on or near gas meter for natural gas, or using
compressed air.
3. Check all joints from gas meter for natural or propane/LP sup-
ply to equipment shutoff valve (see Figures 28 and 29).Apply
a noncorrosive leak detection fluid to gas joints. Bubbles form-
ing show a leak.
4. Correct all leaks at once.
Pressure Testing Fireplace Gas Connections
1. Open equipment shutoff valve (see Figure 27).
2. Open main gas valve located on or near gas meter for natural
gas or open propane/LP supply tank valve.
Open
Closed
Equipment Shutoff
Valve
Figure 28 - Checking Gas Joints for Propane/LP Gas (Shown
with Optional Mantel)
Figure 27 - Equipment Shutoff Valve
Equipment Shutoff Valve
Propane/LP
Supply Tank
WARNING: Test all gas piping and connections
forleaksafterinstallingorservicing.Correctallleaks
at once.
WARNING:Never use anopenflame tocheckfor
a leak. Apply a noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak. Correct all
leaks at once.
CAUTION: Make sure external regulator has been
installedbetweenpropane/LPsupplyandfireplace.See
guidelines under Connecting to Gas Supply , page 14.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from equipment shutoff valve to thermostat
gas valve. Apply a noncorrosive leak detection fluid to gas
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, pages 17 and 18).
Check all other internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to Appliance, page 18).
8. Replace front panel.
INSTALLATION
Continued
CHECKING GAS CONNECTIONS
Figure 29 - Checking Gas Joints for Natural Gas (Shown with
Optional Mantel)
Equipment Shutoff Valve
Gas Meter
INSTALLATION
Checking Gas Connections

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
LIGHTING
INSTRUCTIONS Ignitor Button
Figure 30 - Control Knob In The OFF Position
Control Knob
WARNING: You must operate this fireplace with
the fireplace screen in place. Make sure fireplace
screen is installed before running fireplace.
NOTICE: During initial operation of new fireplace,
burning logs will give off a paper-burning smell.
Orange flame will also be present. Open window to
vent smell. Operate fireplace on HI position to burn
off odor. This will only last a few hours.
OPERATING FIREPLACE
1. STOP! Read the safety information above.
2. Make sure equipment shutoff valve is fully open.
3. Turn control knob clockwise
Clockwise
to the OFF position.
4. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Follow
“B” in the safety information above. If you don’t smell gas,
go to the next step.
Thermocouple
Pilot Burner
Figure 31 - Pilot (Propane/LP Shown)
Ignitor Electrode
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonotfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Useonlyyourhand topush in or turnthe gascontrolknob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water. CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
5. Turn control knob counterclockwise
C-clockwise
to the PI-
LOT position. Press in control knob for five (5) seconds
(see Figure 30).
Note: You may be running this fireplace for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
• If control knob does not pop up when released, contact a
qualified service person or gas supplier for repairs.
6. With control knob pressed in, push down and release ig-
nitor button. This will light pilot. The pilot is attached to
the front of burner. If needed, keep pressing ignitor but-
ton until pilot lights.
Note: If pilot does not stay lit, refer to Troubleshooting,
pages 20 through 22. Also contact a qualified service per-
sonor gassupplier forrepairs.Until repairsaremade,light
pilot with match. To light pilot with match, see Manual
Lighting Procedure, page 18.
7. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7.This fire-
place has a safety interlock system. Wait one (1) minute
before lighting pilot again.
8. Turn control knob counterclockwise
C-clockwise
to desired
heating level. The main burner should light. Set control
knob to any heat level between HI and LO.
OPERATING FIREPLACE
For Your Safety Read Before Lighting
Lighting Instructions

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
TO TURN OFF GAS
TO APPLIANCE
The thermostatic control used on this fireplace differs from
standardthermostats.Standard thermostatssimplyturn onand
off the burner. The thermostat used on this fireplace senses the
room temperature. The thermostat adjusts the amount of gas
flow to the burner. This increases or decreases the burner flame
height. At times the room may exceed the set temperature. If so,
theburnerwillshutoff.Theburnerwillcyclebackonwhenroom
temperature drops below the set temperature.
ThecontrolknobcanbesettoanyheatlevelbetweenHIandLO.
Note: The thermostat sensing bulb measures the temperature
ofairnearthefireplacecabinet.Thismaynotalwaysagreewith
room temperature (depending on housing construction, instal-
lation location, room size, open air temperatures, etc.). Fre-
quent use of your fireplace will let you determine your own
comfort levels.
Shutting Off Fireplace
1. Turn control knob clockwise
Clockwise
to the OFF position.
2. Turn off all electric power to the appliance if service is to
be performed.
Shutting Off Burner Only (pilot stays lit)
Turn control knob clockwise
Clockwise
to the PILOT position.
THERMOSTAT
CONTROL OPERATION
1. Followsteps1through5underLightingInstructions,page17.
2. With control knob pressed in, strike match. Hold match to
pilot until pilot lights.
3. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob. Now follow
step 8, page 17.
MANUAL LIGHTING
PROCEDURE
OPERATING FIREPLACE
Continued
OPERATING
BLOWER
OFF
ON
Auto/Off/On
Switch
Thisblowerhasthreesettings:ON,OFF,andAUTO.IntheON
position, the blower will operate constantly. In the OFF posi-
tion, the blower will not operate. In the AUTO position, the
blower will start when the thermostat senses a sufficient in-
crease in firebox temperature.
Figure 32 - Auto/Off/On Switch
INSPECTING BURNER
Thermocouple
Pilot Burner
Figure 33 - Correct Pilot
Flame Pattern (Propane/LP
Shown)
Thermocouple
Pilot Burner
Figure 34 - Incorrect Pilot
Flame Pattern (Propane/LP
Shown)
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 33 shows a correct pilot flame pattern. Figure 34 shows an
incorrectpilotflamepattern.Theincorrectpilotflameisnotproperly
heating the thermocouple. This will cause the thermocouple to cool.
When the thermocouple cools, the fireplace will shut down.
If pilot flame pattern is incorrect, as shown in Figure 34
• turn fireplace off (see To Turn Off Gas to Appliance)
• see Troubleshooting, pages 20 through 22
Note: The pilot flame on natural gas units will have a slight curve,
but flame should be blue and have no yellow or orange color.
Note: Your fireplace and thermostat blower will not turn on
and off at the same time. The fireplace may run for several
minutesbeforethe blowerturns on.Afterthe heatermodulates
tothepilotposition,theblowerwillcontinuetorun.Theblower
will shut off after the firebox temperature decreases.
Note: It is safe to operate fireplace with blower turned off.
However,theblowerhelpsdistributeheatedairfromthefireplace.
OPERATING FIREPLACE
To Turn Off Gas To Appliance
Thermostat Control Operation
Manual Lighting Procedure
Operating Blower
INSPECTING BURNER
Pilot Flame Pattern

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
BURNER FLAME PATTERN
Figure35 showsa correctburner flamepattern. Figure36 showsan
incorrect burner flame pattern. The incorrect burner flame pattern
shows sporadic, irregular flame tipping. The flame should not be
dark or have an orange/reddish tinge.
Note: When using the fireplace the first time, the flame will be
orange for approximately one hour until the log cures.
If burner flame pattern is incorrect, as shown in Figure 36
• turn fireplace off (see To Turn Off Gas to Appliance, page 18)
• see Troubleshooting, pages 20 through 22
Figure 35 - Correct Burner Flame Pattern
Figure 36 - Incorrect Burner Flame Pattern
INSPECTING BURNER
Continued
CLEANING AND MAINTENANCE
WARNING: Turn off fireplace and let cool before
cleaning.
CAUTION:Youmustkeepcontrolareas,burner,and
circulating air passageways of fireplace clean. Inspect
theseareasoffireplacebeforeeachuse.Havefireplace
inspected yearly by a qualified service person. Fire-
place may need more frequent cleaning due to exces-
sive lint from carpeting, bedding material, pet hair, etc.
CLEANING BURNER INJECTOR HOLDER
AND PILOT AIR INLET HOLE
Theprimaryairinletholes allow the proper amountofairtomixwith
the gas. This provides a clean burning flame. Keep these holes clear
of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each
Figure 38 - Pilot Inlet Air Hole
(Propane/LP Shown)
Pilot Assembly
Pilot Air
Inlet Hole
Figure 37 - Injector Holder
On Outlet Burner Tube
Burner
Tube
Injector
Holder
Primary Air Inlet Holes
Ports/Slots
CABINET
Air Passageways
• Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture.
Wipe the cabinet to remove dust.
INSPECTING BURNER
Burner Flame Pattern
CLEANING AND MAINTENANCE
Cleaning Burner Injector Holder and Pilot Air Inlet Hole
Cabinet
WARNING: Failure to keep the primary air
opening(s) of the burner(s) clean may result in soot-
ing and property damage.
heating season. Blocked air holes will create soot. We recommend
that you clean the unit every three months during operation and have
heater inspected yearly by a qualified service person.
We also recommend that you keep the burner tube and pilot
assembly clean and free of dust and dirt. To clean these parts we
recommendusingcompressedairnogreaterthan30PSI.Yourlocal
computer store, hardware store, or home center may carry com-
pressed air in a can. You can use a vacuum cleaner in the blow
position. If using compressed air in a can, please follow the direc-
tionson thecan.Ifyoudon'tfollowdirectionsonthecan, youcould
damage the pilot assembly.
1. Shut off the unit, including the pilot.Allow the unit to cool for
at least thirty minutes.
2. Inspect burner, pilot, and primary air inlet holes on injector
holder for dust and dirt (see Figure 37).
3. Blow air through the ports/slots and holes in the burner.
4. Check the injector holder located at the end of the burner tube
again. Remove any large particles of dust, dirt, lint, or pet hair
with a soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the injector holder.
6. In case any large clumps of dust have now been pushed into
the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
airinlet holeabouttwoinchesfromwherethepilotflame comesout
ofthepilot assembly (seeFigure38).With the unitoff,lightly blow
airthroughtheairinlethole.Youmayblowthroughadrinkingstraw
if compressed air is not available.

111043-01A
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
TROUBLESHOOTING
WARNING:Turnoffandunplug
fireplaceandletcoolbeforeservic-
ing.Onlyaqualifiedserviceperson
shouldserviceandrepairfireplace.
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot.ThiscandamageODS/
pilot unit.
POSSIBLE CAUSE
1. Ignitor cable pinched or wet
2. Ignitor electrode not connected to igni-
tor cable
3. Broken ignitor cable
4. Bad piezo ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned wrong
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Depleted gas supply (propane/LP only)
6. ODS/pilot is clogged
7. Gas regulator setting is not correct
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Safety interlock system has been triggered
4. Equipment shutoff valve not fully open
5. Thermocouple connection loose at con-
trol valve
6. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
7. Thermocouple damaged
8. Control valve damaged
REMEDY
1. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
2. Reconnect ignitor cable
3. Replace ignitor cable
4. Replace piezo ignitor
5. Replace pilot assembly
6. Replace pilot assembly
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holdingdown control knob.Re-
peatignitingoperationuntilair is removed
5. Contact local propane/LP gas company
6. Clean ODS/pilot (see Cleaning and
Maintenance, page 19) or replace ODS/
pilot assembly
7. Replace gas regulator
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Wait one minute for safety interlock sys-
tem to reset. Repeat ignition operation
4. Fully open equipment shutoff valve
5. Hand tighten until snug, then tighten 1/4
turn more
6. A) Contact local propane/LP or natural
gas company
B) Clean ODS/pilot (see Cleaning and
Maintenance, page 19) or replace ODS/
pilot assembly
7. Replace pilot assembly
8. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at ODS/pilot
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition
ODS/pilot lights but flame goes out when
control knob is released
Note: For additional help, visit DESA’s
technical service web site at
www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.
TROUBLESHOOTING
