Vanguard ARISTOCRAT V36EC2 User manual

Model
Serial No.
Date Purchased
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or optional accessory items when
needed. Keep it with your other important papers.
®
INSTALLATION INSTRUCTIONS
DESA INTERNATIONAL,
2701 INDUSTRIAL DRIVE
P.O. BOX 90004
BOWLING GREEN, KY
42102-9004
55504
Rev. B
08/99
®

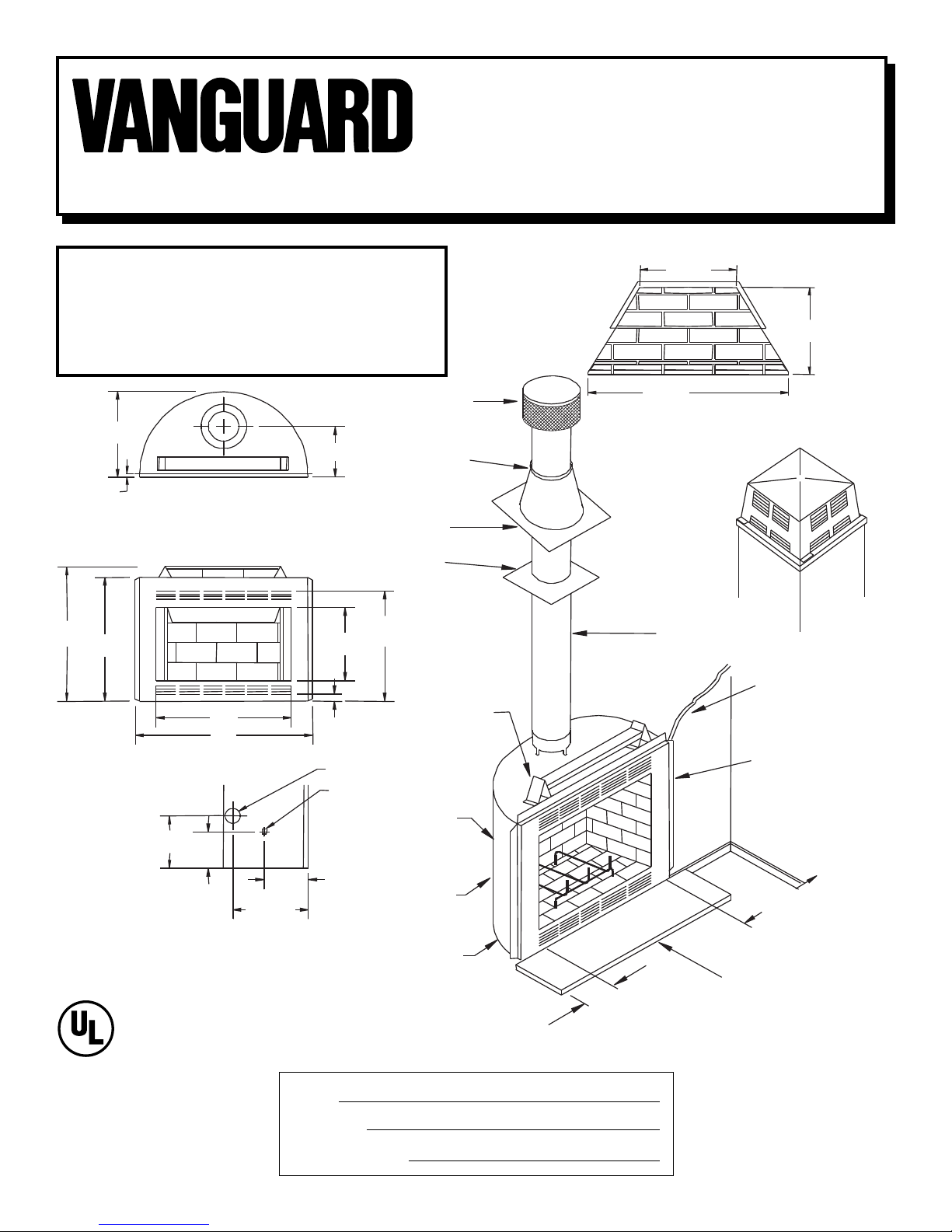

ARISTOCRAT™
MODELV36EC2
LOUVERED CIRCULATING
WOOD-BURNING FIREBOX
21 3/8
42 35
36
41
23 1/4
0 IN.TO
TOP
SPACER
AIR KIT K/O
GAS LINE K/O
3/4" AIR SPACE
BACK AND SIDES
OUTSIDE AIR
(LEFT SIDE ONLY)
0 IN.TO
BOTTOM
9 1/28
19 5/8
9
33 5/16
8 IN.
EACH SIDE
HEARTH EXTENSION
52 IN. X 16 IN.
NOT LESS
THAN 18 IN.
TO PERPENDICULAR
SIDEWALL
NO COMBUSTIBLE
MATERIAL ON FACE
COMBUSTIBLE
WALL BOARD
2 IN. AIRSPACE
TO COMBUSTIBLE
MATERIAL
3 1/4
5/8
13
ROUND TOP
TERMINATION
STORM
COLLAR
17.22
16.07
35.75
(2-PIECE BOTTOM
REFRACTORY) ECONO-TOP
TERMINATION
FLASHING
FIRESTOP

2
55504
Figure 1 FRAMING DIMENSIONS
41
3
/ 4 "
42
1
/ 4 "
22
7
/ 8 "
10
1
/ 4 "
Maintain 3/4"
air space between
framing and
fireplace.
13
1
/ 4 "
MIN 43
7
/ 8 "
MIN
41
3
/ 4 "
MIN
62
3
/ 16 "
MIN
Figure 2 FRAMING DIMENSIONS
INSTALLATION INSTRUCTIONS
INTRODUCTION
Beforebeginning theinstallation ofyour firebox,read theseinstruc-
tions through completely.
These Vanguard components and firebox are safe when installed
according to this Installation Manual. Unless you use Vanguard
components, which have been designed and tested for the firebox
systems, you may cause a fire hazard.
This wood burning fireplace complies with UL 127 as a
FACTORY BUILT FIREPLACE and is listed and tested by
Underwriters Laboratory Inc.
This model is not for use in mobile homes.
The DESA International warranty will be voided by, and DESA
International disclaims any responsibility for the following actions.
a) Modification of the firebox, components, doors, air inlet system
and the damper control.
b) Use of any component part not manufactured or approved by DESA
InternationalincombinationwithDESAInternationalfireboxsystems.
WARNING: DONOTUSEA FIREBOXINSERTINTHIS
FIREBOX UNLESS THE MANUFACTURER'S IN-
STRUCTIONS WITH THE INSERT SPECIFICALLY
STATE THIS FIREBOX HAS BEEN TESTED FOR USE
WITH THE INSERT.
PROPER INSTALLATION is the most important step in ensuring
safe and continuous operation of this firebox. Consult the local
building codes as to the particular requirements concerned with the
installation of all factory-built fireboxes. Although grounding may
not be required by code the manufacturer recommends it.
Thisfireboxis notintendedtobeused asasubstitute
for a furnace to heat an entire home. Use for supple-
mentary heating only.
MINIMUM CLEARANCE TO COMBUSTIBLE
MATERIAL
Framing and enclosures may safely make direct contact with the
spacer on the top of the firebox. The firebox may sit directly on
combustible flooring (see step 4). The firebox opening must not be
less than 14 inches from a combustible perpendicular sidewall. A 2-
inch minimum air space clearance between combustible materials
and the chimney must be absolutely maintained. A 16 1/2inch inside
chase dimension is recommended as a minimum size. A 3/4 inch air
space required around back and sides of firebox.
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.
HEIGHT
Theminimumheightof the chimney, measured fromthebase of the
fireboxtothefluegasoutlet,is14feetforstraightfluesorafluewith
one elbow set. For systems with 2 elbow sets, the minimum height
is 22 feet. The maximum height of any system is 60 feet. This
measurement includes the firebox, chimney sections and the effec-
tive height of the termination assembly.
INSTALLING THE FIREBOX
STEP 1: Frame the opening for the firebox using the dimensions
shown in Figure 1, Figure 2, or Figure 3, page 3.
STEP2: Setthefireboxdirectlyinfrontof thisopening andslide the
unit back until the mounting flanges touch the side framing.
STEP 3: Check the level of the firebox and shim with sheet metal if
necessary.
STEP 4: When the firebox is installed upon a combustible floor a
galvanized sheet ember protector (provided) must be installed be-
tween the firebox and the hearth extension as illustrated.
STEP 5: Secure the firebox to the framing through the nailing flanges
locatedonthesidesonthefireboxwith8-pennynailsorsheetrockscrews.
FOR YOUR SAFETY
• Do not store or use gasoline or any other flam-
mablevaporsor liquidsinthevicinity ofthisorany
other appliance.
• Duetohightemperatures,the appliance should be
located out of traffic and away from furniture and
draperies.
• Donotplaceclothing or otherflammablematerials
on or near the appliance.
• NEVER leave children unattended when a fire is
burning in the firebox.
WARNING: IMPROPER INSTALLATION, ADJUST-
MENT, ALTERATION, SERVICE OR MAINTENANCE
CANCAUSEINJURY,PROPERTYDAMAGE,ORLOSS
OF LIFE. REFER TO THIS MANUAL. FOR ASSIS-
TANCEORADDITIONALINFORMATION CONSULT A
QUALIFIED INSTALLER OR LOCAL DISTRIBUTOR.
WARNING: THIS FIREBOX IS INTENDED FOR USE
WITH WOOD, OR IF A VENT-FREE OR DECORATIVE
GAS APPLIANCE IS INSTALLED, BURN PROPANE
OR NATURAL GAS ONLY.
CHECK LOCAL CODES PRIOR TO INSTALLATION

3
55504
V12S-8DM
SUPPORT
30 FT. 30 FT.
RETURN
ELBOW
V12S-8DM
SUPPORT

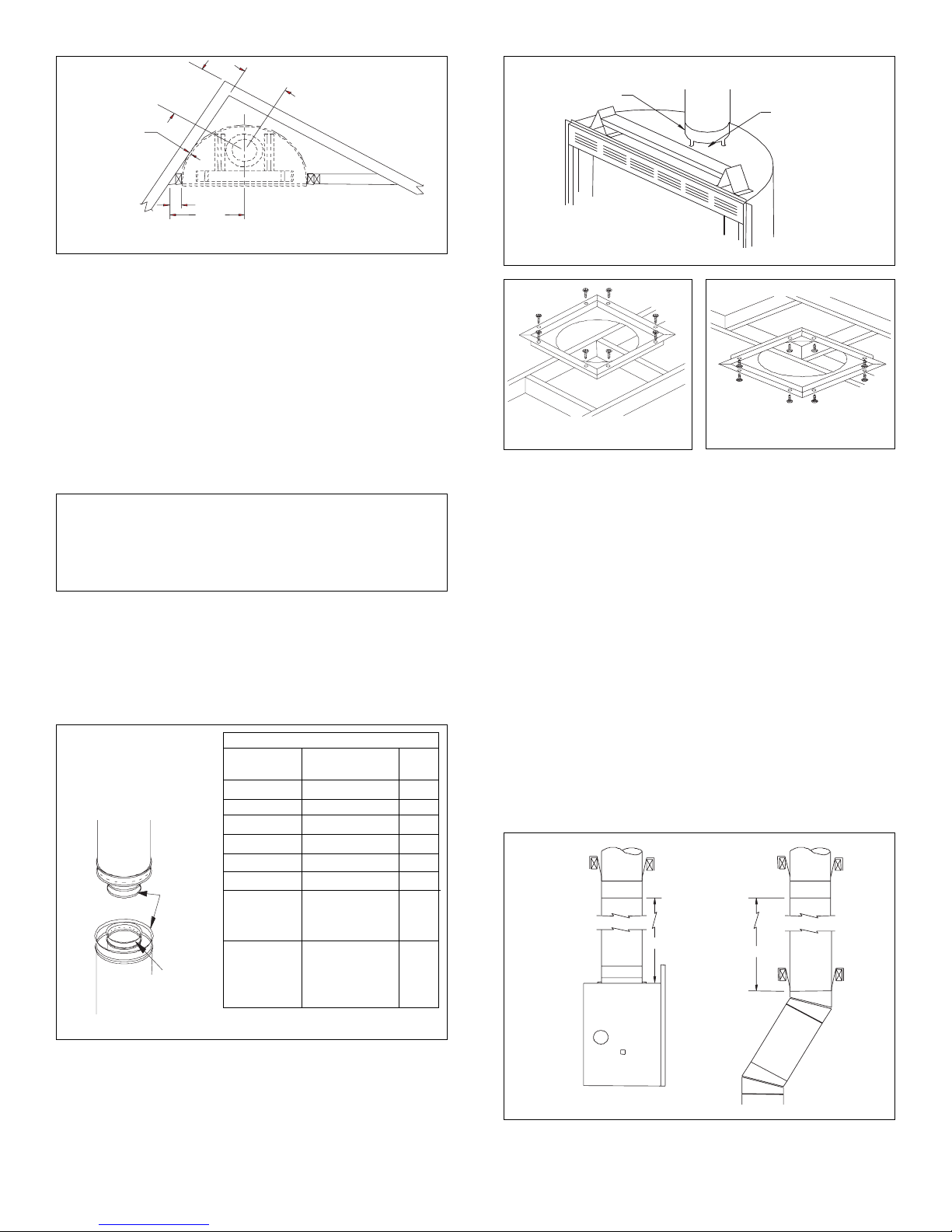

Figure 6 Figure 7
Figure 8
Figure 3
Maintain 3/4"
air space between
framing and
fireplace.
10
1
/ 2 "
MIN
14
5
/ 16 "
MIN
24
3
/ 4 "
4"
FRAMING DIMENSIONS AT 30°
ASSEMBLING AND INSTALLING YOUR
DOUBLEWALL CHIMNEY SYSTEM
Eachdoublewallchimneysectionconsistsofanouterpipe,fluepipe
and one wire spacer. The pipe sections are not galvanized and must
be assembled independently as the chimney is installed. When
starting the chimney directly on the firebox, the flue pipe section
must be installed first, with the flared end with lances up. The outer
pipe section can then be installed over the flue pipe section with the
hemmed end up (see Figure 4).
Press down on each pipe section until the lances on the lower end
securelyengagethe knurl onthefirebox collar. Thewirespacer will
assure the proper spacing between the inner and outer pipe sections.
WARNING: THEOPENINGSINTHECOLLARAROUND
THE BASE OF THE CHIMNEY AT THE TOP OF THE
FIREBOXMUSTNOTBEOBSTRUCTED,NEVERUSE
BLOWN INSULATION TO FILL THE CHIMNEY EN-
CLOSURE (SEE FIGURE 5).
Continue to assemble chimney sections as outlined above, making
sure both inner and outer pipe sections are locked together. When
installing double wall "snap lock" chimney together, it is important
to assure the joint between the chimney sections are locked. Check
by pulling chimney upward after locking. The chimney will not
come apart if properly locked. It is not necessary to add screws to
keep the chimney together.
FIRESTOP SPACERS - VFS-8DM
Firestop spacers are required at each point where the chimney
penetrates a floor or ceiling joist space. Their purpose is two fold;
they establish and maintain the required clearance between the
chimney and combustible materials.
They also provide complete separation from one floor space to
another floor or attic space as required by most codes.
When the double wall pipe passes though a framed opening into an
atticspace,thefirestopmustbeplacedintotheatticfloorasinFigure
6. Whenthepipepassesthroughaframedopeningintoalivingspace
above, the firestop must be placed onto the ceiling from below as in
Figure 7.
SUPPORT SECTIONS
The chimney support section is a 12-inch length double wall pipe
with4 straps. Achimney supportis requiredevery 30feet abovethe
firebox after a straight chimney run, or above a return elbow after a
straight chimney run (see Figure 8). This support is designed to
relieve the extra weight load on the firebox and elbows when high
chimneys are installed.
Figure 4
8 IN.
STAINLESS
INNER PIPE
HEMMED
END
12
3
/ 8 GALVANIZED
OUTER PIPE
LINEAL GAIN: THE ACTUAL
MEASURABLE LENGTH OF A
PART AFTER TWO OR MORE
PARTS ARE CONNECTED.
LINEAL GAIN
PART GAIN
NO. DESCRIPTION (IN)
V36EC2 FIREBOX 42
V12-8DM PIPE SECTION 10 5/8
V18-8DM PIPE SECTION 16 5/8
V24-8DM PIPE SECTION 23 5/8
V36-8DM PIPE SECTION 34 5/8
V48-8DM PIPE SECTION 46 5/8
VRTL-8DM ROUND
VRTTL-8DM TERMINATION 6
VADS-8DM
VETL-8DM
VETO-8DM CHASE
VETLO-8DM TERMINATION 1 to 12
VET-8DM
Figure 5
KEEP THIS
AREA OPEN
FIREPLACE
COLLAR

4
55504
NOTE: ANY OFFSET
GREATER THAN 6 FEET YOU
MUST USE A V12S-8DM.
Figure 9
A
B
CEILING
SUPPORT
PIPE
V12S-8DM 2"
MINIMUM
ANGLE
FIRESTOP
DETAIL B
SEE
DETAIL B
INSTALL SUPPORT 12S-8DM
DETAIL A
SEE
DETAIL A
RETURN
ELBOW
Figure 10
OFFSET
ELBOW OFFSET
ELBOW
OFFSET
ELBOW
OFFSET
ELBOW
OFFSET
ELBOW
RETURN
ELBOW
RETURN
ELBOW RETURN
ELBOW
RETURN
ELBOW
CEILING
SUPPORT
PIPE
V12S-8DM
RETURN
ELBOW
6' MAX 6' MAX
6' MAX
6' MAX6' MAX
6' MAX
ABC
INSTRUCTIONS WHEN OFFSET OF CHIMNEY IS
NEEDED
TO INSTALL ELBOWS
1. To achieve desired offset, you may install combinations of 12",
18", 36", and 48", lengths of double wall pipe (see Rise and Off-
sets chart and Figure 9 & 11).
2. Chimney weight above offset rests on return elbow. Straps must
be securely nailed to rafters or joists (see Figure 10 detailsA& B).
3. Maximum length of pipe supports (Return elbow or V12S-8DM)
is 6 feet of angled run. Maximum of two (2) 6 feet of angled run
sections per chimney system.
PENETRATING THE ROOF
To maintain a 2-inch clearance to the pipe on a roof with a pitch a
rectangular opening must be cut.
STEP 1: Determine the center point through which the pipe will
penetrate the roof.
STEP2:Determine the pitchofthe roof. Pitchisthe distance theroof
drops over a given span, usually 12 inches. A 6/12 pitch means that
the roof drops 6 inches for each 12 inches measured horizontally.
STEP 3: From the center point determined in STEP 1, measure an
opening171/4incheswide(85/8inchestoeachsideofthecenterpoint).
For a roof pitch between 0/12 (Flat) and 6/12 measure an opening 21
inches long (10 1/2inches above and below the center point).
6/12 to 12/12 pitches: Measure 26 inches (13 above and below).
12/12to18/12pitches:Measure321/2inches(161/4aboveandbelow).
18/12 to 24/12 pitches: Measure 40 inches (20 above and below).
RISE AND OFFSETS
A B 48 36 18 12 A B 48 36 18 12 12S
43/8163/8 41
1
/ 4 80
1
/ 4 111 1
9
3
/4251/214586
3
/421
123/4303/41
46
3
/ 4 89
1
/ 2 1111
15 343/42
51 97 11 1
18 40 1 1
53
1
/ 4 101 21 1
211/4461/41
56
1
/ 4 106
1
/ 4 21
233/4491/412
59
1
/ 4 111
1
/ 2 111 1
273/4563/41
61
3
/ 4 115
1
/ 2 211
30 603/411
64
3
/ 4 120
3
/ 4 211
33 66 1 1
68
1
/ 4 127 12 1
36 71 1 1
70 130 2111
381/475 2
74
1
/ 4 137
1
/ 2 12 11
763/41411/2121 1
793/41463/441
Figure 11 TYPICAL OFFSET INSTALLATION

5
55504
Figure 12
Figure 13
ATTACH BRACKET
TABS TO OUTER
PIPE (3 PLACES)
SECURE WITH
SCREWS
OVERLAP
SHINGLES
TOPAND SIDES
TERMINATION
FLUE PIPE OF
TERMINATION INSIDE
INNER PIPE OF
CHIMNEY
CAULK
COLLAR
FLASHING
UNDERLAP SHINGLES
BOTTOM ONLY
2"2"
STEP 4: Remove the shingles around the opening measured and cut
out this section.
STEP 5: Add the next sections of the pipe until the end penetrates the
roofline. Check to see that proper clearances are maintained. Extend
chimneybyaddingsectionsofdoublewallpipeuntilpipehasreached
aminimum of30inches abovehighest pointofroof cutout. Termina-
tionandchimneymust extend a minimum of36inches above highest
point where it passes through the roof. (See 10' Rule, Figure 12).
TERMINATIONS
The firebox and chimney system must be vented to the out-of-doors
and must be terminated with the listed round top or chase termina-
tions. If a chase termination is desired, refer to the instructions
supplied with the termination.
FOR ROUND TOP TERMINATION
STEP 1: Slide the flashing over the pipe (No firestop is needed at the
rooflevel). Tacktheflashingdownatthetoptwocornerswithroofing
nails. Lay tile over the top and sides of the flashing and secure them
tothe roofthroughtheflashingwiththeroof nails. Laytiles underthe
lower edge and secure these to the roof. Mastic all nail heads.
STEP2:Installstormcollar(VSC1-20-8DM,VSC2-20-8DM)ondouble
wall chimney, apply waterproof caulking around flashing top and push
storm collar down securely on sealer and flashing (see Figure 13).
STEP 3: Place the VRTL-8DM TERMINATION into the pipe end
as illustrated in Figure 13 and secure with screws provided.
10 FOOT RULE
Allchimneyterminationsmustextenda minimumof3feetinheight
abovethehighest pointwhereit passesthrough the roofand must be
atleast2feetabovethepeakoftheroofifwithinahorizontaldistance
of 10 feet from the peak (see Figure 12).
OUTSIDE OF
FIREPLACE
GAS LINE
CONDUIT REMOVE
KNOCKOUT
SIDE FIREBRICK
FINISHED SIDE
REFRACTORY
KNOCKOUT PLUG
REMOVE BY TAPPING
LIGHTLY WITH A
1/2" DOWEL
AFTER REMOVING
GAS LINE COVER
PLATE, REPLACE
SCREWS
REMOVE
INSULATION
TEMPORARILY
(DO NOT
DISCARD)
REMOVE
GAS CONDUIT
COVER
Figure 14
OUTSIDE OF
FIREPLACE
GAS LINE
CONDUIT
REPACK
INSULATION
INCOMING
1/2" BLACK
IRON PIPE PROVIDE ENOUGH
THREADED END
FOR FITTING
CONNECTION
SEAL OPENING
WITH REFRACTORY
CEMENT
SIDE FIREBRICK
FINISHED SIDE
Figure 15
IMPORTANT: If an exposed portion of chimney is greater than 5
feet above the roof line, use support wires to keep chimney secured.
The support wires may be attached to the outer pipe of the chimney
withscrews,providedthescrewsarenotlongenoughtopenetratethe
inner flue pipe.
CAUTION: Do not seal ventilation openings on the
rooftop flashing. Follow the installation instructions
provided with the termination being used.
Agaslinemaybeinstalledforthepurposeofinstallingagasappliance
available through your local distributor. Use only 1/2" black iron pipe
and appropriate fittings. When installing a gas line, a shut-off valve
designed for installation outside the firebox is recommended.
Thegaspipe is intendedforconnection to anunventedgas log setor
to a decorative gas appliance.
If you will install an unvented gas log set, ONLY UNVENTED GAS
LOG SETS WHICH HAVE BEEN FOUND TO COMPLY WITH
THESTANDARDFORUNVENTEDROOMHEATERS,ANS/IAS/
AGA Z21.11.2, ARE TO BE INSTALLED IN THIS FIREPLACE.
NOTE:An appropriate Vanguard hood must be installed when
using an unvented gas log set.
WARNING: DO NOT OPERATE AN UNVENTED GAS
LOG SET IN THIS FIREPLACE WITH THE CHIMNEY
REMOVED.
If you will install a decorative gas appliance, the decorative gas
appliance must comply with the Standard for Decorative Gas
Appliances for Installation in solid Fuel burning Fireplaces,
ANSZ21.60-1996andshallalso beinstalled in accordancewith the
National Fuel Gas code, ANS Z223.1-1996.
WARNING: WHEN USING A DECORATIVE APPLIANCE,
THE DAMPER MUST BE REMOVED OR PERMANENTLY
LOCKED IN THE FULLY OPEN POSITION.
To install the gas line, remove the gas line plug located in the side
firebrickapprox.2inchesabovethebottom.Theplugmustbetapped
out from the finished side towards the unfinished side (see Figure
14). Insert the gas line parallel to the face. Fill any gap between the
gas line and the hole in the firebrick with refractory cement or
commercial furnace cement (see Figure 15).
10 FOOT RULE
2' MIN.
2' MIN.
LEVEL OF FLUE
GAS OUTLET
10'
3' MIN.
3' MIN.
10'
OR LESS

6
55504
Figure 18
Figure 19
STANDARD
HEARTH SEAL GAP
SEAL GAP
DO NOT BLOCK
INTAKE GRILL
EMBER PROTECTOR
EMBER PROTECTOR
ELEVATED
FIREPLACE
RAISED
HEARTH
NO
HEARTH
EXTENSIONS

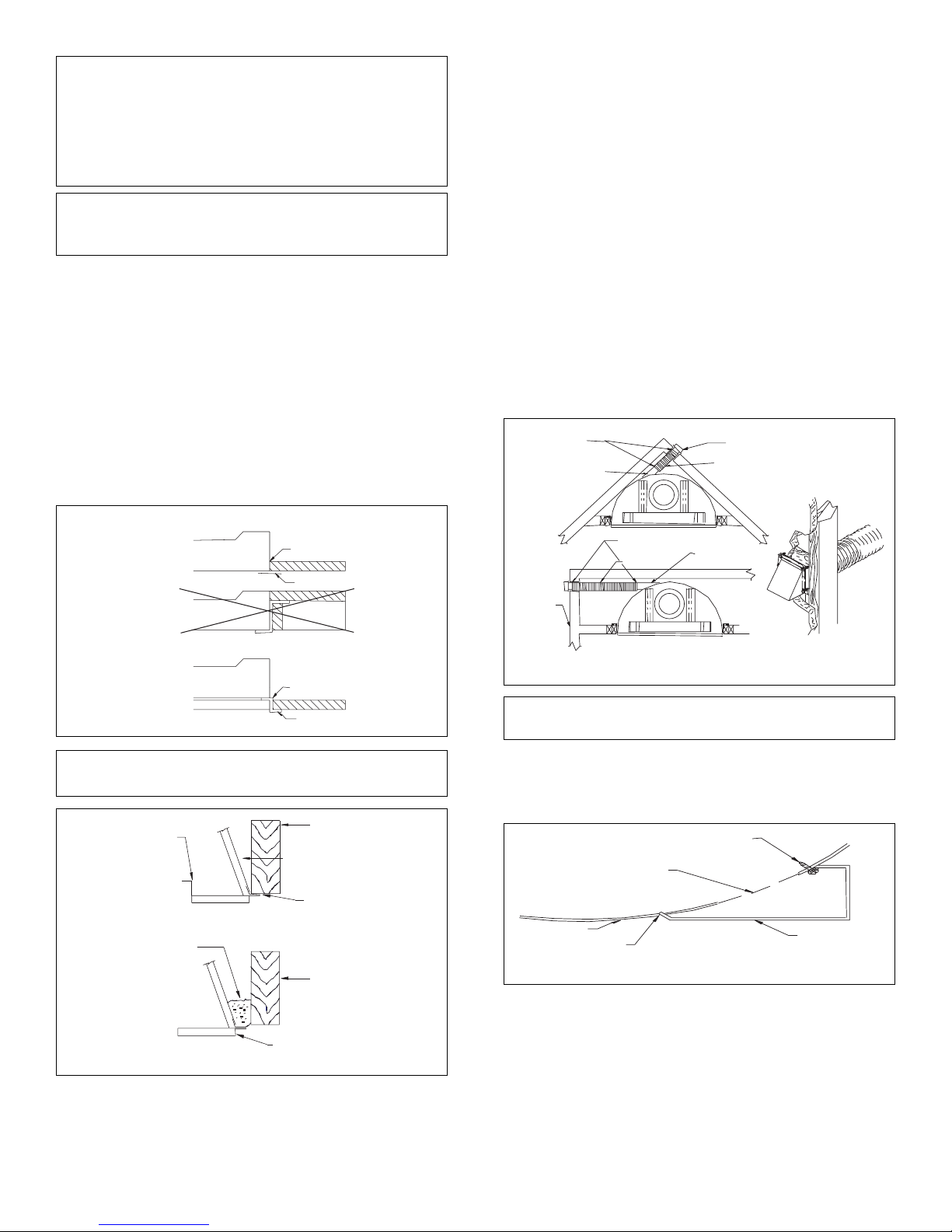

Figure 16
WARNING: All gas piping and connections must be
testedforleaksaftertheinstallationiscompleted. Be
suregasvalveisturnedon. Applysoapsudssolution
toallconnectionsandjoints. Ifbubblesappear,leaks
mustbedetectedandcorrected. DONOTuseamatch
or open flame of any kind to test for leaks. Never
operate any appliance with leaky connections.
WARNING: WHEN USING A DECORATIVE APPLI-
ANCE THE DAMPER MUST BE REMOVE OR PERMA-
NENTLY LOCKED IN THE OPEN POSITION.
HEARTH EXTENSION
Ahearthextensionprojectingaminimumof16inchesinfrontofand
a minimum of 8 inches beyond each side of the firebox opening is
required to protect combustible floor construction in front of the
firebox. Use a layer of noncombustible inorganic material having a
thermal conductivity of K=0.84 BTU IN/FT. SQ. HR F (or less) at
1"thick. Forexample,ifthematerial selectedhasaKFactorof0.25,
such as glass fiber, then the following formula would apply 0.25/
0.84 x 1"=. 30 thick. This must be covered by any noncombustible
material such as tile, slate, brick, concrete, metal, glass, marble,
stone,etc. Fastenthehearthextensiontothefloor toprevent shifting
andsealthegapbetweenthefireboxframeandhearthextensionwith
a noncombustible material (see Figure 16).
FIREBOX ENCLOSURE - COLD WEATHER
CLIMATE
Before finishing the enclosure around the firebox, inspect all joints
around the firebox. Any gaps between the nailing flanges and the
framing should be sealed with noncombustible insulation or caulk-
ing.Inspectthefireboxjoint forpossiblegaps causedby shippingor
mishandling during installation. These should be sealed with non-
combustiblematerials.Ifthefireboxismountedonaraisedplatform,
insulate below the platform to prevent the entry of cold air through
the firebox bottom by means of conduction. The above steps are
important, especially if the firebox is installed in cold weather
climate, (see Figure 17).
COMBUSTIBLE AIR KIT (MODEL VAK-4E)
An air kit is available for use with model 36EC2 firebox as an
optional accessory. The outside air vent can be installed through an
outside wall or a ventilated crawl space. A plaster ground is provid-
ing for use on unfinished walls prior to applying finish surface.
Attachflextubetoair ventandairinlettube. Sealwithducttape(see
Figure 18).
WARNING: HEARTH EXTENSION IS TO BE IN-
STALLED ONLY AS ILLUSTRATED.
Figure 17
FIREPLACE
SIDE FRAME
FIREPLACE
SIDE FRAME
NORMAL FRAMING
PACK
INSULATION
HERE
WIDE FRAMING
SIDE
FRAMING
SIDE
FRAMING
3/4 CLEARANCE
NOT REQUIRED
AT THE FRAMING
CAULK HERE
SEAL WITH
DUCT TAPE
AIR INLET
TUBE
AIR INLET
TUBE
OUTSIDE
WALL
SEAL WITH
DUCT TAPE
AIR KIT INSTALLATION
FLEX DUCT
FLEX DUCT
AIR VENT
CAUTION: AIR INLET DUCTS ARE NOT TO TERMI-
NATE IN ATTIC SPACE.
Avoid installing outside air eyebrow in areas where inlet opening
may be blocked by snow, bushes or other obstacles. Maximum
heightofairinletaboveplatformoffireboxiswithin3feetbelowthe
termination exhaust height.
BLOWER ASSEMBLY - VCBK3
Ablowerassemblyisavailable forusewiththisfireboxasanoptional
accessory. ItisdesignedtobeinstalledonVanguardfactorypre-wired
firebox only. The optional blower assembly model VCBK3 can be
installedpriorto, orafterinstallation ofthefirebox. Useofblowers or
fans other than those manufactured by DESA International voids the
warranty. A switch located on the lower face operates the optional
blower. Flipping the switch turns the blower on or off.
SHEET METAL SCREW
REMOVE KNOCKOUT
FIREPLACE
TAB IN NOTCH AIR INLET TUBE

7
55504
Figure 23
12
1
/ 4 " REF
6"
REF 33 DEG
MINIMUM 12" 3"
NOM
6" MINIMUM 1
1
/ 2 "
MAX
TOP OF
LOUVERED
OPENING
COMBUSTIBLE
MATERIAL
SAFE ZONE FOR
PROJECTION OF
COMBUSTIBLE
MATERIALS
NOTE: DRAWING NOT
TO SCALE
UPPER
SECTION OF
FIREPLACE
DAMPER
WEIGHT
TO CLOSE
DAMPER
TO OPEN
DAMPER
NOTE: Firebox must be wired to the house electrical system in
orderfortheblowerstooperate.Thisblowersystemdoesnotrequire
a wall switch. Refer to the VCBK3 blower assembly installation
instructions for details.
Electrical connections are made through the cover on the right side
of the firebox as illustrated in Figure 21. Use 14 AWG copper wire
forallconnections. Becertainthefireboxisproperlygroundedtothe
green wire.
BLOWER
SWITCH
GROUND SCREW
ELECTRICAL
COVER PLATE
STRAIN RELIEF
Figure 20
Figure 21
10', 14 GA.W/GROUND
ROMEX ADDEDTO U.L.
LISTED (MH11306)
FIREPLACE AT THE
FACTORY
COVER PLATE WITH
STRAIN RELIEF
TO WALL SWITCH
EXISTING “J” BOX
IN FIREPLACE
WIRE NUT (TYP.)
FINISHING YOUR FIREBOX
Combustible materials may make direct contact with the sides and
thetopofthefirebox face. Itisimportantthatcombustible materials
do not overlap the face itself. Brick, tile or other noncombustible
materials may be applied to the face provided that any gap between
the material around the firebox opening is caulked to prevent the
seepage of combustible products.
CAUTION: DONOTCOVERUPTHETOPORBOTTOM
FACE LOUVERS.
Figure 22
MANTEL
A mantel may be installed if desired (see Figure 22) for minimum
heights above and beyond opening of firebox face.
Woodwork, such as wood trim and mantels, and other combustible
material, shall not be placed within 6 inches of a firebox opening.
Combustible material above and projecting more than 1 1/2inches
from a firebox opening shall not be placed less than 12 inches from
thetopofthefireboxopening. NFPAStandard211sections7-3.3.3.
DAMPER OPERATION
The flue gas damper is located inside the firebox similar to a
conventional masonry fireplace. Look within the top of the firebox
andlocatethedamperhandleextendingfromthedamper(seeFigure
23) for operating the damper. This can be easily accomplished with
a firebox poker.
FIRE: Use seasoned hardwood or when using vent-free or
decorative gas appliance use natural or propane/LP gas.

8
55504
REPLACEMENT AND ACCESSORY PARTS
Purchase replacement parts or accessories from your local dealer. If
they can not supply these accessories, call DESA International's
Parts Department at 1-800-972-7879 for referral information. You
can also write to the address listed on the front cover of this manual.
When calling DESA International, have ready
• model number of your firebox
• the replacement part number
DOUBLE WALL CHIMNEY
36 GR
SUPPORT
PIPE
V12S-8DM
FIRESTOP
VFS-8DM
V30FS-8DM
DELUXE BLOWER KITVCBK3
ELBOW SET
V30E-8DM
V12-8DM
V18-8DM
V24-8DM
V36-8DM
V48-8DM
STORM
COLLAR
VSC1-20-8DM (20 PACK)
VSC2-20-8DM (20 PACK)
FLASHING
ROOF PITCH
V6F-8DM - 0 to 6/12
V12F -8DM - 6/12 to 12/12
EMBER PROTECTOR
EP-36
ROUND TOP
TERMINATION
VRTL-8DM
VRTTL-8DM
VADS-8DM
ECONO-TOP
TERMINATION
VETO-8DM
VETLO-8DM
GLASS DOOR
KIT
VDG36E (Brushed Brass)
VDP36E (Polished Brass)
AIR KIT
VAK4E
ADJUSTABLE HOOD
BLACK - GA6050
POLISHED BRASS - GA6052
ANTIQUE BRASS - GA6053
COMPONENT PARTS
SC-8
VRTL-8DM VRTL-8DM VETL-8DM
V6F-8
VFS-8DM
VFS-8DM
V30E-8DM
MINIMUM
HEIGHT
14 FT.
MAXIMUM
HEIGHT
60 FT.
AIR KIT OPERATION
The damper rod for the air kit is located inside the face opening,
abovetheupper left top oftherear firebrick. Pushtherod up toopen
the air intake, and down to close it (see Figure 24).
Figure 23
AIR KIT DAMPER ROD
OPEN POSITION
CLOSED POSITION
REAR FIREBRICK
NOTE: USE OF ANY OTHER GLASS DOOR ASSEMBLY
NOT TESTED WITH THIS FIREPLACE MAY CONSTI-
TUTE A FIRE HAZARD AND WILL VOID THE DESA
INTERNATIONAL WARRANTY.
