Vaniman SandStorm Prestige User manual

SANDSTORM PRESTIGE
25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE - 05/21 Page 1
CAUTION:Read the instructions before using this equipment
ORIGINAL INSTRUCTIONS
1. CONDITIONS FOR USE
This micro abrasive blaster may only be operated:
• Indoors;
• Below 1981 m (6500 ft) above sea level altitude;
• Ambient air temperature between 40°-105°F (5-40°C);
• Maximum relative humidity of 80% at 31°C (88°F);
• Power supply current fluctuations does not exceed 10% of nominal value;
• Under level 2 contamination conditions;
• Supply cool, dry air only, at a maximum pressure of 10.3 Bar (150 PSI).
2. SAFETY
WARNING: Read all safety warnings, instructions, illustrations and specifications provided
with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
BATTERY-operated (cordless) power tool.
1. Work area safety:
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c. Keep children and bystanders away while operating this power tool. Distractions can
cause you to lose control.
2. Electrical Safety:
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 2
SANDSTORM PRESTIGE
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a RESIDUAL CURRENT
DEVICE (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal Safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs,
alcohol or medication. A moment of inattention while operating power tools my result in
serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or BATTERY pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energizing power tools that have the
switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
h. Do not let familiarity gained from frequent use of this tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe injury
within a fraction of a second.
4. Power tool use and care:
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or remove the BATTERY pack, if
detachable, from the power tool before making any adjustments, changing accessories,
or storing power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 3
SANDSTORM PRESTIGE
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations di󰀨erent from those intended could result in a hazardous situation.
f. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
3. SPECIAL ATTENTION TO THIS PRODUCT
• Unplug equipment from the wall before changing out the LED light. Do not squeeze or bend
the light tube. Always wear gloves or use a towel to protect your hands from glass splinters.
• Always disconnect the unit from the compressed air and power sources before beginning any
maintenance.
• Any abrasive material on the o-ring may lead to leakage and early wear of the o-ring. After
lling, clean the thread and o-ring before applying the lid.
• Solvents will create cracks in the jar and weaken the jar (danger of explosion!). Clean the lid
and tank only with a dry cloth. Do not write or adhere anything to the jar or lid.
• Check for damages on the lids and tanks regularly and replace them if there is any doubt of
the structural integrity.
• Before operation, check to make certain the lid is secured properly. Using the product without
the lid secured will create a serious explosive hazard.
• Never operate the blasting units without suitable dust extraction and appropriate protective
gear. The type of dust extraction should be based on the type dust generated. Ask the proper
authorities.
• Never direct the blasting material towards eyes or unprotected areas of skin. Improper use
can result in risk of eye or skin injuries.
• Never work with the glass door open.
• Do not depress the foot switch when only the compressed air supply hose is connected. The
loose hose could wrap around itself and cause serious injury.
• Maintain equipment and accessories. Check for breakage of parts and any other condition
that may a󰀨ect the equipment’s operation.
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 4
SANDSTORM PRESTIGE
• The triangular light symbol labelled on the light indicates that the user should not look directly
into the light and that doing so may cause eye damage.
• Please note that correct use requires reference to this manual and that the following label indicates
that the user should reference this manual prior to operation.
4. LIABILITY EXCLUSION
Vaniman Manufacturing shall be absolved from all claims for damages and warranty if:
• The product is used for any purpose other than it was designed for.
• The product is altered in any way other than those described in the operating instructions.
• The product is repaired by anybody other than an authorized facility or if any parts other than
Vaniman OEM parts are used.
• The product continues to be employed, despite obvious safety faults.
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 5
SANDSTORM PRESTIGE

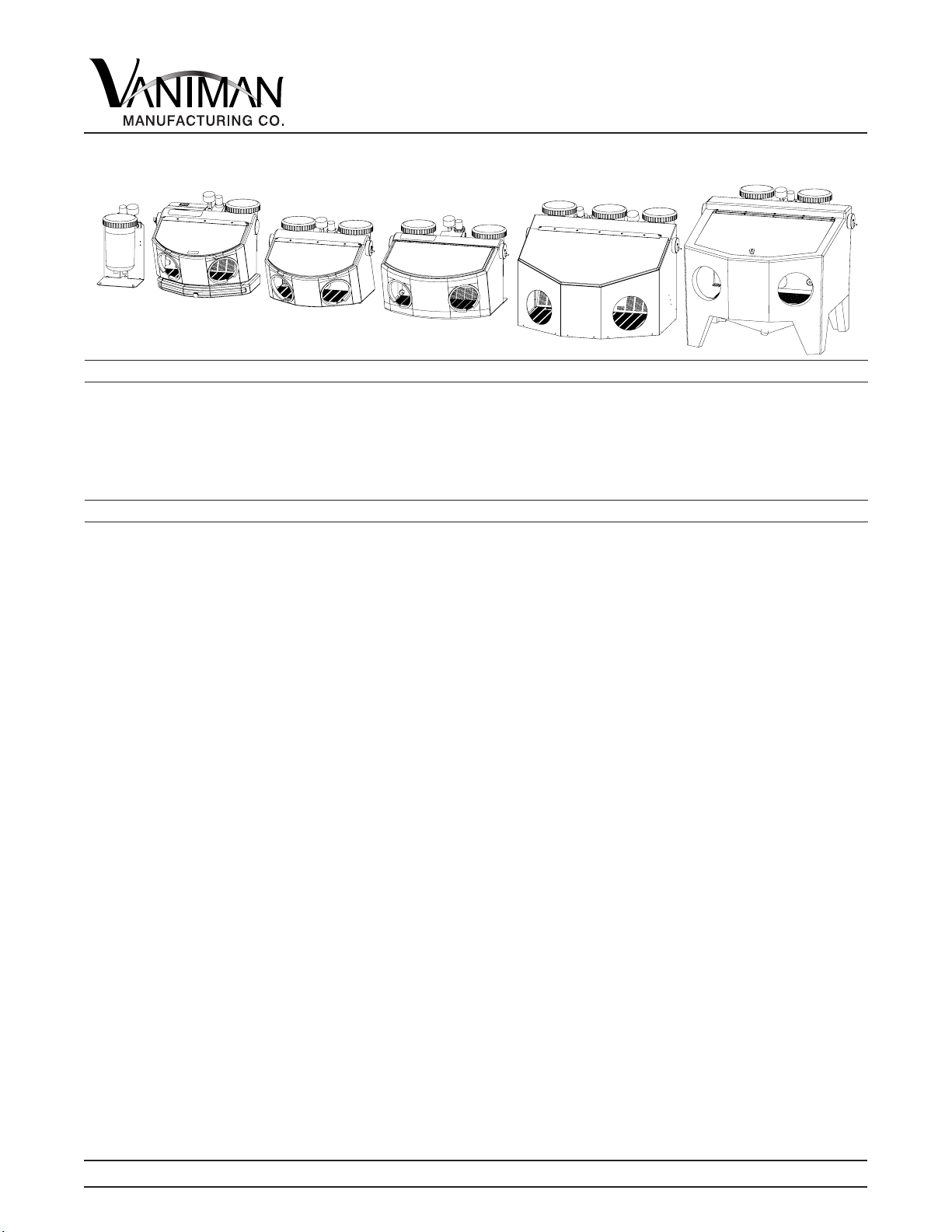

PACKING LIST
1 - Micro-Abrasive Blaster
1 - Instructions
1 - DC Power Supply (if applicable)
1 - Additional Air Supply Connection
INSTALLATION & OPERATION
1. Remove the unit and all packaging material from the box. Check against the packing list.
2. For units with lights: Plug the DC Power Supply into the jack on the unit's light and plug the
other end into a standard outlet.
3. Unscrew lid(s) on abrasive storage tank(s) and ll to the line marked on the tank. Do not
overll as clogging may result.
4. Inspect lid and tank for any cracks or areas that might create leaks. Ensure the threads on
the tank and lid are clean of abrasive before screwing the lid securely back into place. Do not
over-tighten.
5. Use the plumbing diagrams at the end of these instructions to locate the tting on the back of
the unit to connect your air supply line. Most units come equipped with a barbed tting for a
1/4" (6mm) ID (inside diameter) hose while the IO/Master units come equipped with a quick
disconnect tting for a 1/4" (6mm) OD (outside diameter) air line. All Vaniman units are shipped
with both ttings included to meet the customer's needs. For more help on connecting your
unit to an air supply visit:
www.vaniman.com/air-supply-connections-blasters/
6. Regulate air pressure by turning the air regulator knob, pulling up on the knob to unlock and
pressing back down to lock. The pressure reading will be indicated on the pressure gauge
and should NOT be adjusted above 100 psi (7 BARS).
7. Never depressurize the system by disconnecting the air supply line while under pressure;
abrasive will be forced into the foot valve and regulator, causing damage. Before disconnecting
the air supply line, turn the regulator down (counterclockwise) until the pressure gauge reads
zero.
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 6
SANDSTORM PRESTIGE
8. Press the foot pedal to start the ow of air and blasting media. Release the foot pedal to stop
the ow.
9. It is recommended that a dust collector is attached to the unit to remove excess media and
improve visibility during blasting.
ENGLISH
MAINTENANCE
Vaniman blasters are designed to be low maintenance. However, as the materials used in a
microblaster are abrasive by design, components do wear out. A few minor areas should be
maintained regularly for a long product life.
Handpieces Hoses:
Check handpiece hoses for wear regularly. When hose feels thin or holes develop, the tubing
should be replaced.
On the rear of IO/Master units, there is a pinch valve that controls the ow of media by squeezing
andreleasing the handpiece tube. This will be the point of highest wear on the tubing and
therefore the hose should be moved periodically in order to wear a new section of hose. If a
hole develops, replace the tubing.

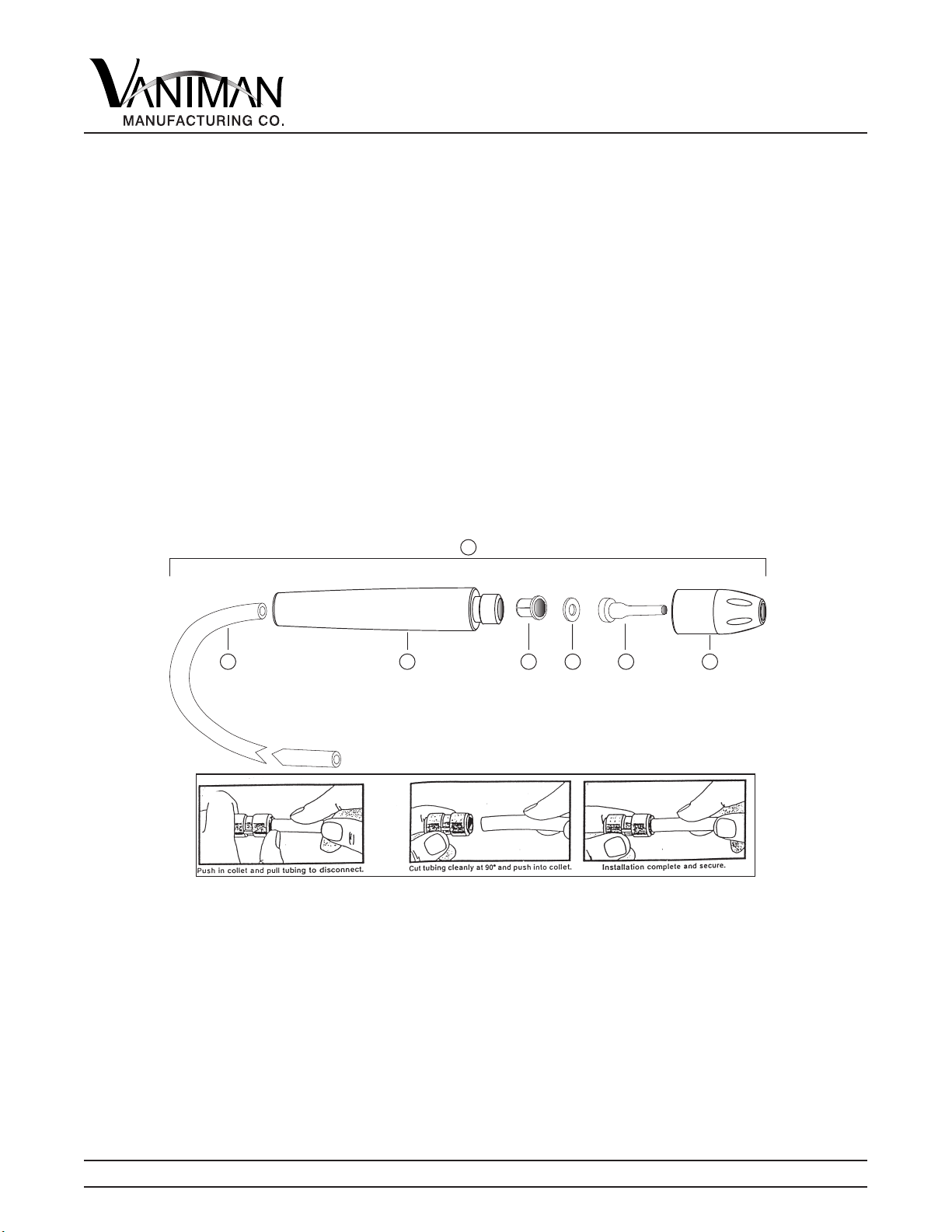

Handpiece Tip Installation:
It is imperative that the handpiece tip and sealing o-ring be installed correctly and securely to
avoid damage or leaks. Install in the manner shown in Figure 1 and ensure the tip and o-ring
sit evenly in the assembly.
Tanks:
When installing the lids on the tanks, be sure the lid is rid of any blasting material or debris.
If the tank or lid begins to wear, replace immediately. Do not over-tighten the lid on the unit.
The ttings on the bottom of the tank are designed for easy maintenance of the hoses. To
remove a handpiece tubing from quick disconnect tting, push toward the tank on the plastic
ring while pulling the tubing out. Do not remove the hose ttings while tank is full of media
and upright; turn the tank upside down or empty before removing hoses. To replace, be sure
the tting and hose are free of debris or abrasives and push the hose rmly into the tting. Be
sure the tube reaches beyond the black o-ring that is just above the quick disconnect tting
in the tank. Improper installation will result in leakage and damage to the tanks.
SandVac 120V PN: 10211
StoneVac II 120V PN: 10201
SandVac 220V PN: 10212
StoneVac II 220V PN: 10209

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 7
SANDSTORM PRESTIGE
Illustration 1
Glass Window:
Included with the unit is a free "Static-Cling" blasting shield for the inside of the window. These
are inexpensive protection for the viewing clarity of the window. To install, pull o󰀨 the backing
on the shield and adhere to the inside of the window. Replace when necessary.
Moisture:
Vaniman blaster regulators include a lter for small amounts of oil and moisture. If moisture
causes the media to clump or cake in the tanks, improper media ow will result. Be sure the
air supply is relatively oil and moisture free. Installation of a heavy duty air lter/dryer between
the air supply and unit may be required.
123456
7
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 8
SANDSTORM PRESTIGE
HANDPIECE PARTS
Number Description Part Number Corresponding Units
1
Anti-Static Handpiece Tubing 97928 (2ft.)
97929 (3ft.)
97930 (4ft.)
2192 (by the foot)
-SandStorm Edge, Professional, 2, Expert, & Problast 2
-SandStorm XL & Problast
-SandStorm Prestige & Problast 3
- All Units
2 Handle 2191 - All Units
3 Handpiece Insert 2187 - All Units
4 O-Ring 97909 (5-pack) - All Units
5 Tip (o-ring included) See Above - All Units
6 Nozzle Cap 2177 - All Units
7
2ft. Handpiece Assembly*
3ft. Handpiece Assembly*
4ft. Handpiece Assembly*
6ft. Handpiece Assembly*
97947
97949
97959
98109
- SandStorm Edge, Professional, 2, Expert, & Problast 2
- SandStorm XL & Problast
- SandStorm Prestige & Problast 3
- SandStorm Mobile & Mobile Problast
*Does not include o-ring or tip
BLASTER TIPS
Tip Type Part No. Color Nozzle Size Recommended Vaniman
Media
Recommended Tank Assembly
Part Number Description
Crystal Tip
(2 per pack)
97902 Blue
Medium
0.032"
(0.8mm)
25µm Al2O3 97956 25µm
50µm Al2O3
97957 50-100µm
97903 Black
Large
0.048"
(1.2mm) 50µm Glass Bead
100µm Al2O3
97904 Red
Extra Large
0.065"
(1.6mm)
50µm Glass Bead
100µm Al2O3
250µm 97958 110-250µm
Tungsten
Carbide Tip
(1 per pack)
97905 Yellow
Small
0.026"
(0.65mm)
25µm Al2O3 97956 25µm
97906 Green
Medium
0.036"
(0.91mm)
50µm Al2O3
97957 50-100µm50µm Glass Bead
100µm Al2O3
97907 Violet
Large
0.059"
(1.5mm)
50µm Glass Bead
97958 110-250µm
100µm Al2O3
250µm Al2O3
BLASTER MEDIA
Material Size Part Number Applications
55lbs. 15lbs. One Tank
Aluminum Oxide
25µm 98201 97921 97935 Fine surfacing of metal and other hard materials.
50µm 97927 97922 97936 Deburring and deashing of metals and other hard materials.
100µm 98202 97923 97937 Aggressive removal of materials, semi-rough nished surface.
250µm 98203 97924 97938 Bulk removal or surface cleaning of tough materials. Rough surface preparation.
Glass Bead 50µm 98204 (50 lbs) 97925 97939 Smoothing/polishing. Cleans and polishes without removing material.
Sodium Bicarbonate 50-100µm 98206 (50 lbs.) 97934 98200 Aggressive removal of materials, water soluble and does not embed into the material.
Walnut Shell
250µm 97931 (50 lbs.) - -
Organic, used for cleaning purposes.100µm 98207 (50 lbs.) 97932 -
50µm - 97933 -
ENGLISH

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 9
SANDSTORM PRESTIGE
SANDSTORM 2
SANDSTORM PRESTIGE
140 N. Brandon P.O. Box 74, Fallbrook, CA, USA 92088 1-800-VANIMAN (826-4626) USA  www.vaniman.com
1
2
3
4
5
6
7 8
9
10
11
12
13
1 2293 Regulator Ensamblado de Regulador de
Filtro
Ensemble régulateur
ltre
Filter/Regler Bau-
gruppe Gruppo regolatore del ltro
2
97956
97957
97958
Sand Jar Assembly 25µm
Sand Jar Assembly 50-
100µm
Sand Jar Assembly 110-
250µm
Ensamblaje de Tubo de Arena
de 25 micrones
Ensamblaje de Tubo de Arena
de 50-100 micrones
Ensamblaje de Tubo de Arena
de 110-250 micrones
Ensemble récipient de
sable 25 micron
Ensemble récipient de
sable 50-100 micron
Ensemble récipient de
sable 110-250 micron
Sandbehälter 25
micron
Sandbehälter 50-100
micron
Sandbehälter 110-250
micron
Gruppo del serbatoio sabbia 25
micron
Gruppo del serbatoio sabbia 50-100
micron
Gruppo del serbatoio sabbia 110-
250 micron
32266 Thumb Nut Tuerca Manual Ecrou à oreille Halterungsmutter Dado ad alette
4 2294 Selector Valve Ensamblado de Válvula Ensemble clapet Ventilbaugruppe Gruppo valvola
52240 Floor Screen Pantalla de Piso Ecran de sol Bodensieb Schermo a terra
62112 Air Pressure Gauge Calibrador de presión de aire Jauge de pression d'air Luftdruck Gage Misuratore Pressione dell'Aria
797969 LED Light Assembly Conjunto de luces LED Ensemble d'éclairage
à LED LED-Leuchte Gruppo Luce LED
8 2290 Pin-Hinge Assembly Ensamblaje Clavija—Visagra Assemblage broche-
-articulation
Bolzen-Scharnier
Baugruppe Gruppo perno-cerniera
9 2282 Window Bracket Assem-
bly (with window)
Ensamblaje del Soporte de
Ventana (con vidrio)
Ensemble support
fenêtre (avec vitre)
Fensterhalterungsbau-
gruppe (mit Fenster)
Gruppo sta󰀨a della nestra (con
vetro)
10 2241 Replacement Window Vidrio de la Ventana de Re-
posición
Vitre de rechange
fenêtre Ersatzfenster Vetro della nestra sostitutivo
11 97951 Static Cling (12-pack) Escudo (paquete de 12) Bouclier (paquet de 12) Shield (Paket von 12) Scudo (pacchetto di 12 )
12 2260 Cu󰀨 Holder Sostenedor del Manguito Support manchette Manschettenhalter Porta-manicotto
- 2033XL Cu󰀨 (black cloth) Manguito (tela negra) Manchette (tissu noir) Manschette (schwarzes
Tuch) Manicotto (tessuto nero)
13 2030B Window Gasket Kit Kit para Junta de Ventanas Kit joint statique fenêtre Fensterdichtungssatz Kit guarnizione nestra
- 2285 Blow-O󰀨 Gun Pistola de aire Pistolet sou󰀪age Knallpistole Pistola So󰀩ante
- 2101 Foot Pedal Pedal de pie Pédale Fußpedal Pedale

25799 Je󰀨erson Ave.  Murrieta, CA 92562 1-800-VANIMAN (826-4626) USA  www.vaniman.com  sales@vaniman.
SANDSTORM PRESTIGE- 05/21 Page 10
SANDSTORM PRESTIGE
PLUMBING
1 Air in De aire Air Luft in Ingresso Aria
2 Foot Pedal Pedal de pie Pédale Fußpedal Pedale
3 Dust
Collector
Port
Puerto del
colector de
polvo
Collecteur de
poussière
Staubsammler
Port
Porta Raccogli
Polvere
4 Handpiece
Tube
Tubo aplicador Tube du
manche
Handstück
Schlauch
Tubo Impugna-
tura
140 N. Brandon  P.O. Box 74, Fallbrook, CA, USA 92088  1-800-VANIMAN (826-4626) USA  www.vaniman.com
SANDSTORM PRESTIGE SANDSTORM PRESTIGE IO
SANDSTORM XL
1
2
1
2
3
3
1
3
2
