Vanu Anywave® Base Station Subsystem
Operator Guide

Vanu, Inc. One Cambridge Center, Cambridge MA 02142 t 617.864.1711 www.vanu.com Copyright © 2007 Vanu, Inc.
Copyright © 2007 Vanu, Inc. All rights reserved.
The product described in this manual is covered by US patents US 6,584,146 B2, US 6,654,428 B1, US 6,876,864, US
6,889,354, US 7,139,967, and pending patents in the United States and other countries.
Vanu, Inc., the VANU logo, Anywave, and “Where Software Meets the Spectrum” are trademarks or registered trademarks
of Vanu, Inc. in the United States and other countries. The product described in this manual includes copyrighted software.
This software is commercial software.
“Brandywine,” “Intel,” “Powerwave,” “Protium,” and any other trademarked terms used in this manual are trademarks or
registered trademarks of their respective owners.
The terms of use of this software are set forth in detail in a related software license agreement. Except as otherwise set forth
in such software license agreement, none of such copyrighted material may be modified, copied, distributed, performed,
displayed, or reverse engineered.

Anywave BSS Operator Guide
i
Vanu Anywave Base Station Subsystem Operator Guide
Contents
CHAPTER 1. Introducing the Vanu Anywave BSS ............................................................ 2
Introduction ............................................................................................................................................................ 2
Manual Scope and Objectives............................................................................................................................... 2
What makes Vanu Anywave BSS different? ......................................................................................................... 3
System Operator Role ........................................................................................................................................... 5
CHAPTER 2. BTS Components & Connections.............................................................. 6
Overview................................................................................................................................................................ 6
BTS Server ............................................................................................................................................................ 7
BTS Server, Front View..................................................................................................................................... 7
BTS Server, Front Panel Control Switches and LEDs ...................................................................................... 8
BTS Server, Back View ..................................................................................................................................... 9
RF Front End ....................................................................................................................................................... 10
Protium RF Front End Unit .............................................................................................................................. 10
Overview of Protium RF Front End Connections ............................................................................................ 11
Protium Duplexer Connections........................................................................................................................ 11
Protium Up/Down Converter Connections....................................................................................................... 12
Protium Front-End LEDs.................................................................................................................................. 14
Power Shelf ......................................................................................................................................................... 15
Power Amplifier.................................................................................................................................................... 16
Power Amplifier, Front View ............................................................................................................................ 16
Power Amplifier, Back View............................................................................................................................. 17
Power Amplifier, Back View............................................................................................................................. 18
GPS Timing Source ............................................................................................................................................. 19
GPS 4 Timing Source Connections................................................................................................................. 19
GPS 4 Timing Source Indicator LEDs ............................................................................................................. 20
CHAPTER 3. Base Station Operation ............................................................................ 21
Hardware ............................................................................................................................................................. 21
Appendix A: Acronym Glossary........................................................................................... 22
Index ....................................................................................................................................... 23

Anywave BSS Operator Guide
ii
Figures
Figure 1: Hardware Architecture............................................................................................................................ 4
Figure 2: BTS Server Front View............................................................................................................................ 7
Figure 3: Server Control Switches and Status LEDs ........................................................................................... 8
Figure 4: BTS Server, Back View ........................................................................................................................... 9
Figure 5: Protium Translator System Block Diagram ........................................................................................ 10
Figure 6: Protium Duplexer Connections............................................................................................................ 11
Figure 7: Protium RF Up/Down Converter Connections ................................................................................... 12
Figure 8: Protium Front End LEDs....................................................................................................................... 14
Figure 9: Powerwave Power Shelf ....................................................................................................................... 15
Figure 10: Powerwave Amplifier, Front View...................................................................................................... 16
Figure 11: Powerwave Amplifier, Rear View....................................................................................................... 17
Figure 12: GPS 4 Timing Source Connections................................................................................................... 19
Figure 13: GPS 4 Timing Source Indicator LEDs ............................................................................................... 20
Figure 14: Intel Server Power Button .................................................................................................................. 21

Anywave BSS Operator Guide
1
Preface
The Anywave® Base Station Subsystem (BSS) Operator Guide is intended for system users who have completed the Vanu
Anywave System Training Course. This Anywave BSS Operator Guide provides an overview of the Vanu Anywave Base
Station Subsystem application structure, along with information on how to perform system tasks, general system
maintenance, and basic issue resolution procedures.
The Anywave BSS Operator Guide provides information on the following areas:
•Introducing Vanu Anywave Base Station Subsystem
•BTS Overview

2
CHAPTER 1. Introducing the Vanu Anywave BSS
Introduction
Welcome to the Vanu Anywave Base Station Subsystem Operator Guide. This manual is designed to serve as a knowledge
resource for the Vanu system currently installed at your site, and to assist you in your role as System Operator. This guide
focuses on ongoing system maintenance, and prepares you to provide first line technical support for your Anywave BSS.
The following is a high level overview of the scope and objectives of this guide:
Manual Scope and Objectives
This manual will cover BTS Hardware Components and Connections

Anywave BSS Operator Guide
3
What makes Vanu Anywave BSS different?
The Vanu Anywave GSM BSS provides radio access network functionality by implementing the BTS (Base Transceiver
Station) in software running on a general-purpose server. Signal processing, protocol processing, and all other radio access
network functionality are implemented as application level software running on top of a Debian GNU/Linux system.
The Anywave BTS system uses Protium wideband RF front ends from Protium Technologies.
The Vanu Anywave BSS is composed of three major subsystems:
•RF front end, supporting the 850 MHz band, and providing Analog-to-Digital and Digital-to-Analog conversion
•Signal Processing
•Back end network connectivity
Vanu, Inc. integrates these subsystems, running its software on top of the COTS hardware that comprises a complete radio
access network, including the traditional functionality of the BTS.

4
Figure 1: Hardware Architecture

Anywave BSS Operator Guide
5
System Operator Role
As System Operator, you will maintain and support all components of the Vanu Anywave wireless infrastructure. By the time
you receive this document, you will already have met several important milestones. You will have worked with Vanu, Inc.’s
Deployment group to plan and deploy your current installation, and you will have attended the Vanu, Inc. System Operator
Training Course. Both of these milestones will lay the foundation on which to build your knowledge base for Vanu, Inc.
products and prepare you to service your system.
The following is an overview of the System Operator role and some of the duties you will be expected to perform:
•Manage technical issues regarding hardware and software required to run the Vanu Anywave network.
•Diagnose radio access network problems and proactively monitor network performance.
•Introduce and train other users who will support the system.

6
CHAPTER 2. BTS Components & Connections
The BTS provides the air interface in a particular region, also known as a cell, to each Mobile Station (cell phone) located
within its border with an active connection.
In this section, we will review the following list of BTS Hardware components:
•BTS Server
•RF Front Ends
•Power Amplifier
•Power Shelf
•GPS Timing Source
Overview
The Vanu Anywave BTS implements all of the signal processing required for full GSM base station functionality in software
running on a server. A standard system implements the components of the GSM Phase II specification for voice
communications. It supports mobile phones using full-rate (GSM 6.10) vocoders. For the purpose of your deployment, each
Vanu BTS is complemented by a Protium RF Front End.

Anywave BSS Operator Guide
7
BTS Server
The Anywave BTS software application is hosted on an Intel TIGI2U NEBS server running a Debian GNU/Linux operating
system. The RF data enters the server from the Protium RF front end units through an Ethernet connection. GSM audio
signaling is routed internally from mobile to mobile using the Anywave Micro-MSC. An Ethernet port connects the BTS
server to the Ethernet switch. Connections from an Ethernet port in the BTS server are used to connect it to the Protium RF
Front End units.
The Intel TIGI2U server is a Network Equipment Building Standards Level 3 and ETSI certified server. The TIGI2U server
has redundant power supplies, fans, and hard drives to ensure that the BTS remains functional in the event of hardware
failure.
BTS Server, Front View
Figure 2: BTS Server Front View
Peripheral Bay Control Switches and Status LEDs

8
BTS Server, Front Panel Control Switches and LEDs
Figure 3: Server Control Switches and Status LEDs
Power Button
Reset Switch
Critical Alarm LED
Major Alarm LED
Minor Alarm LED
Power Alarm LED
ID Switch
System ID LED (white)
NIC0/NIC1 Activity LED (green)
Main Power LED
Disk 2 Activity/Fault LED (green/amber)
Disk 1 Activity/Fault LED (green/amber)
Power Button Reset Switch Critical Alarm Major Alarm Minor Alarm Power Alarm
Disk 1 Status LED
Disk 2 Status LED
Main Power LED
NIC0/NIC1 LED
System ID LED
ID Switch

Anywave BSS Operator Guide
9

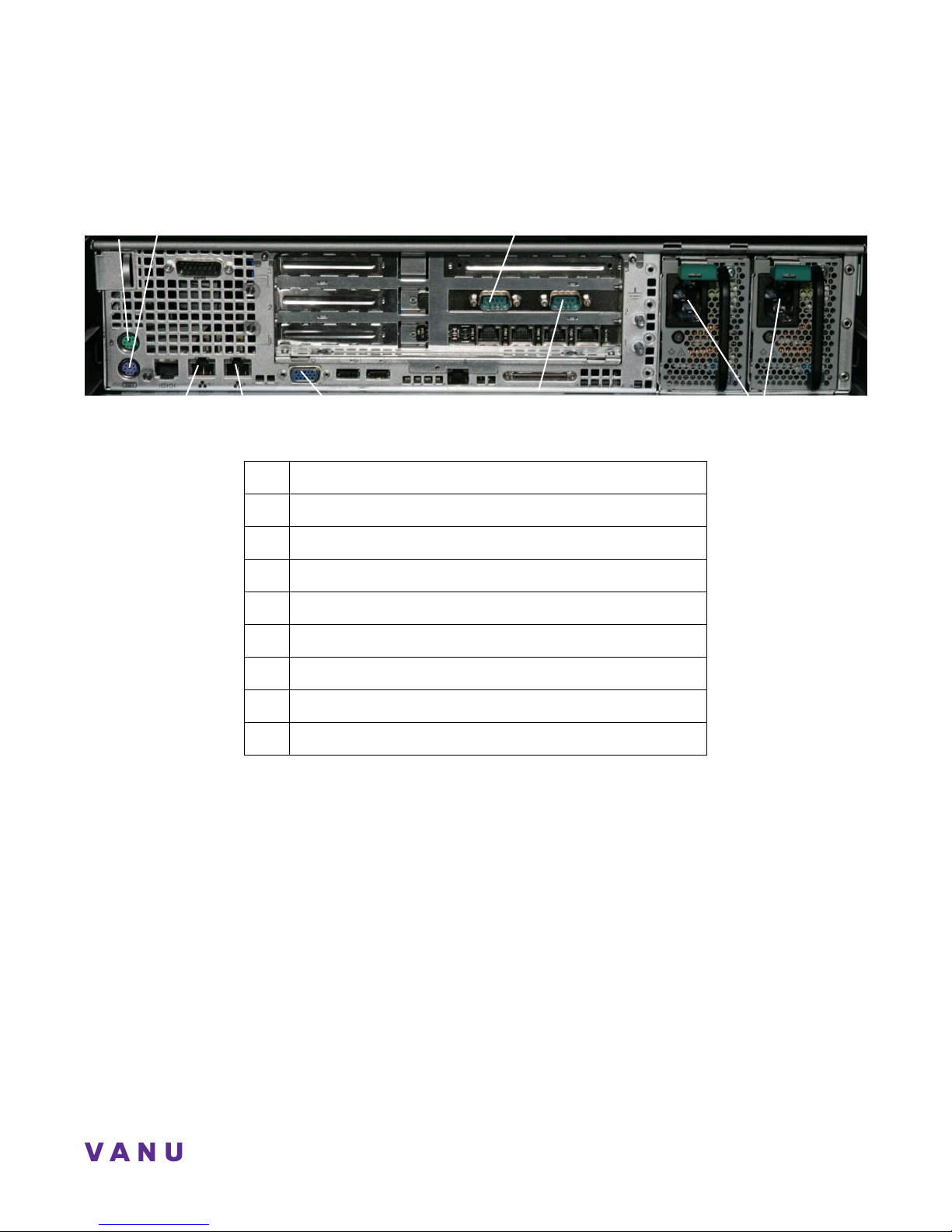

BTS Server, Back View
Figure 4: BTS Server, Back View
Qty Connection
1 Mouse connection
1 Keyboard connection
1 NIC 1 Ethernet connection
1 NIC 2 Ethernet connection
1 Serial connection to Protium RF Front End
1 Serial connection to GPS Timing Source
1 Monitor connection
2 Power jack connections to 120 V power source
Power Cables
Mouse & ke
y
board connections
Monitor connection
NIC 1 Serial Connection to GPS
NIC 2
Serial Connection to Protium

10
RF Front End
The wideband RF front ends perform transmission and reception over the air interface between the BTS and a number of
GSM mobiles. Using a wideband multi-channel front end allows one BTS unit to transmit and receive multiple carriers over a
wide frequency band of up to 25 MHz.
The RF front ends include both the RF up/down converters and the digital IF subsystem, which perform digital filtering,
timestamp injection and other functions. The BTS software communicates with the RF front ends using digital baseband
samples.
Protium RF Front End Unit
Your deployment includes four Protium RF Front Ends, all of which have a Duplexer, an Up/Down converter, and also do
channelization and resampling. The Protium RF Front End Units are divided into two compartments for noise containment.
The lower compartment contains the Duplexer and associated filters. The upper compartment contains the RF Up/Down
converters, analog-to-digital converters, digital-to-analog converters, and other digital hardware.
The RF signals are piped between the two compartments externally to maintain the noise separation. We will refer to the
lower compartment as the Duplexer and the upper compartment as the Up/Down Converter for simplicity. The units will be
installed and serviced as one box, but for clarity we will describe them here as two components.
Figure 5: Protium Translator System Block Diagram

Anywave BSS Operator Guide
11
Overview of Protium RF Front End Connections
The RF signal is received through the Main Antenna port, located on the Duplexer panel. RF data received from the Main
Antenna is run through the Duplexer, out the Main RX SMA port, then over a cable to the Main RX SMA on the Up/Down
Converter panel. This signal is then converted to digitized data and sent out through an Ethernet port to the server. These
digitized data are then converted to an RF signal and transmitted out the BTS antenna.
This section provides a general overview of the connectors on the RF Front End Up/Down Converters and Duplexers.
Protium Duplexer Connections
Figure 6: Protium Duplexer Connections
Qty Connection
1 PA In port: an N connector linking the Power Amplifier to the duplexer. The amplified RF signal
from the PA enters the duplexer at this port.
1 Main Antenna port: an N Connector connecting the Antenna Coax Cable to the duplexer.
1 Main RX port: an SMA connector connecting to the Upper RX SMA Connect. The RF signal travels
from this port to the Protium upper half to be digitized.
1 Diversity RX port: an SMA connector connecting to the Upper Diversity RX port, routing filtered
secondary RX data.
1 Diversity Antenna port: an N connector connecting the Diversity Coax Cable from the secondary
antenna to the secondary RX path filter.
Main Antenna
PA in Port
Main RX Out
Diversit
y
Antenna Diversity RX Port

12
Protium Up/Down Converter Connections
Figure 7: Protium RF Up/Down Converter Connections
Qty Connection
1 Chassis Power Jack: Standard power connection for RF Unit
1 Power Switch: On and Off switch
1 TX SMA Port: TX connection to PA In port on the PA.
1 RX port: RX connection to Main RX port on duplexer
1 Diversity RX port: Connects to the lower Diversity RX port on the duplexer
4 Ethernet Ports: Data path between Protium and the assigned Ethernet port on the BTS server.
1 Console Port: An RS232 DB-9 port used to monitor system error messages and to configure the
unit from the server. This connection is made between the BTS server and only one RF Front End.
1 10 MHz In port: 10 MHz Reference input from GPS Timing Source
1 1 Hz In port: 1 PPS Reference input from GPS Timing Source
Power Jack
Power Switch 10 MHz In port
TX Port
Ethernet port A
Console serial port
RX Port
Diversity RX Port
1 Hz In port

Anywave BSS Operator Guide
13
Protium 850 RF Front End

14
Protium 850 Indicator LEDs
The front of the Protium unit has two LED lights, which serve both compartments of the RF Front End unit. The green LED
indicates that power is active on the unit. The red LED indicates that an alarm in the system has been triggered.
Protium Front-End LEDs
Figure 8: Protium Front End LEDs
Qty Connection
1 RF Alarm LED
1 Power LED
RF Alarm LED
Power LED
