EARTH AUGER 42.7CC
POWXG5025
1 APPLICATION
1.1 Intended use
This earth auger is intended to work with soil, (digging holes for small trees, fence ground
stakes and the like.), which is designed to be used with both hand for gardening purpose.
1.2 Non intended use
This machine is not designed for working with ice, excessively rocky ground and especially in
an area which with underground electric, gas, water, or telephone lines.
This machine is not designed for use in any position other than the auger bit is in upright.
1.3 Residual risks
Even with the intended use of the appliance there is always a residual risk, which can not
prevented. According to the type and construction of the appliance the following potential
hazards might apply:
Access to the rotating auger bit (cutting hazards)
Unforeseen, abrupt movement of the auger bit. (vibrating on hands)
Flung out of foreign materials from the working area.
Inhalation of work place particles, emissions from the gasoline engine
Skin contact with the fuel (gasoline / oil)
Loss of hearing, if no required ear protection used during work.
WARNING! Read this manual and general safety instructions carefully
before using the appliance, for your own safety. Your power tool should
only be passed on together with these instructions.
2 DESCRIPTION (FIG A)
1. Fuel tank
2. Throttle trigger
3. Engine switch
4. Throttle lock
5. Trigger lock
6. Right hand grip
7. Fuel cap
8. Primer bulb
9. Airbox cover
10. Choke lever
11. Left hand grip
12. Spark plug cap
13. Starter grip
14. Muffler
15. Connection pin
16. Drive shaft
17. Gearbox
3 PACKAGE CONTENT LIST
Remove all packaging materials.
Remove remaining packing and package inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug and all accessories for transportation
damage.
Keep the packing materials as far as possible till the end of the warranty period. Dispose it
into your local waste disposal system afterwards.
WARNING: Packaging materials are not toys! Children must not play with
plastic bags! Danger of suffocation!

POWXG5025 EN
Copyright © 2013 VARO P a g e | 4www.varo.com
1 x earth auger
1 x Ø150mm drill
1 x drill extension 346mm
1 x socket wrench
1 x 8/10mm open end spanner
1 x 13/16mm open end spanner
3 x drill bit fixation bolt
3 x cotter pins
1 x S4 inner hexagon spanner
1 x S5 inner hexagon spanner
1 x empty bottle to mix oil/fuel
1 x wind scooper
1 x manual
If any parts are missing or damaged, please contact your dealer.

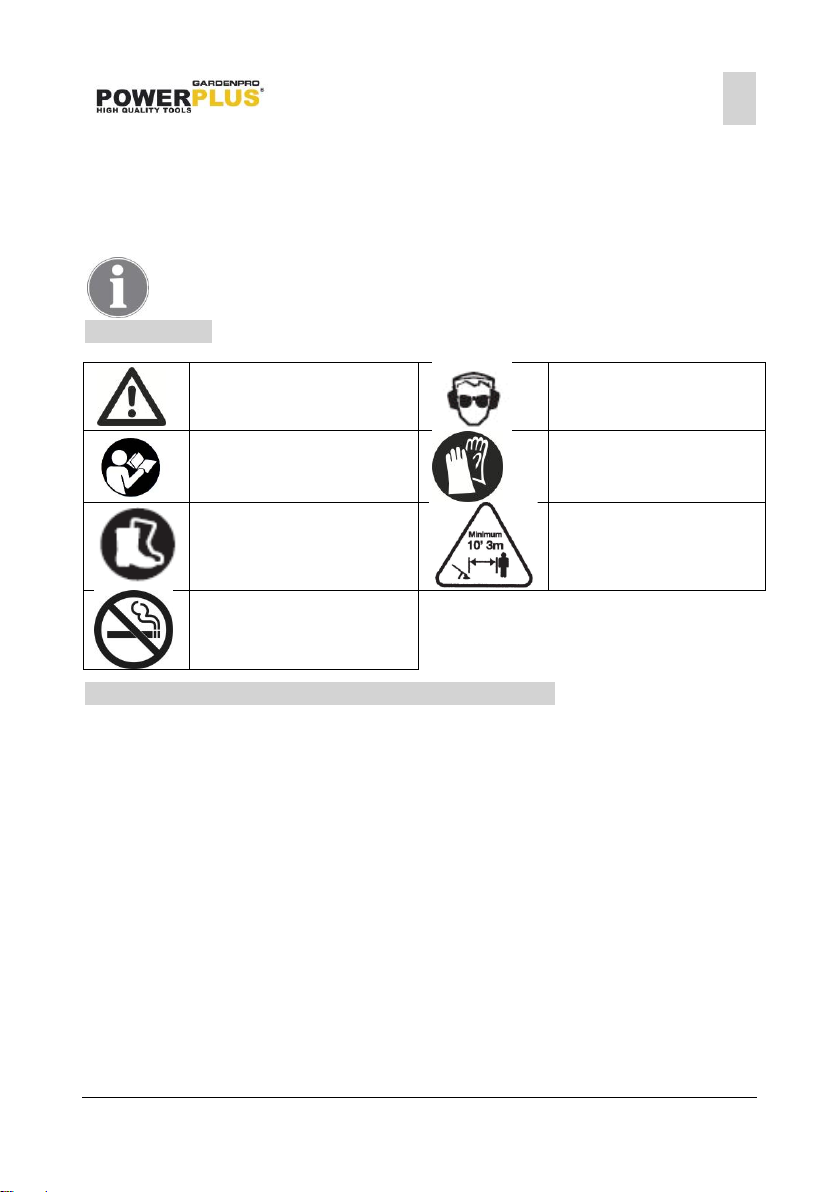

4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
Denotes risk of personal
injury or damage to the tool.
Wear ear guards and
goggles
Read manual before use
Wear gloves
Wearing of protective shoes
advised
Keep all bystanders at
least 3m away
No smoking
5 GENERAL POWER TOOL SAFETY WARNINGS
For safe operation, read and understand all instructions before using the earth auger.
Follow all safety instructions. Failure to follow all safely instructions listed below, can result
in serious personal injury.
Do not allow children or untrained individuals to use this unit.
The power drill must only be used by adults in good physical condition with knowledge of
the operating instructions.
Never start or run the engine in a closed or poorly ventilated area; breathing exhaust
fumes can kill.
Clear the work area before each use. Remove all objects such as rocks, broken glass,
nails, wire, or string which can be become entangled in the auger.
Wear protective non-slip safety shoes, gloves, glasses and ear protection while operating
this unit.
Wear heavy long pants. Do not wear loose fitting clothing, short pants, loose jewellery of
any kind, or use with bare feet.
Secure long hair to prevent entanglement in any moving parts.
Keep ail bystanders, children, and pets at least 3m away.
Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or
medication.
Do not operate in poor lighting.
Keep firm footing and balance. Do not overreach. Overreaching can result in loss of
balance or exposure to hot surfaces.

POWXG5025 EN
Copyright © 2013 VARO P a g e | 5www.varo.com
Keep all parts of your body away from any moving part.
Do not touch area around the muffler or cylinder of the earth auger, these parts get hot
from operation.
Always stop the engine and remove the spark plug wire before making any adjustments or
repairs except for carburetor adjustments.
Inspect the unit before each use for loose fasteners, damaged components, fuel leaks,
etc. Replace any damaged parts before use.
It has been reported that vibrations from hand-held tools may contribute to a condition
called Raynaud’s Syndrome in certain individuals. Symptoms may include tingling,
numbness and blanching of the fingers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are
all thought to contribute to the development of these symptoms. It is presently unknown
what, if any, vibrations or extent of exposure may contribute to the condition. There are
measures that can be taken by the operator to possibly reduce the effects of vibration:
Keep your body warm in cold weather. When operating the unit wear gloves to keep the
hands and wrists warm. It is reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
After each period of operation, exercise to increase blood circulation.
Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately discontinue use and
see your physician about these symptoms.
Keep the tool well maintained, fasteners tightened and worn parts replaced.
Mix and store fuel in a container approved for fuel.
Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage.
Move 9m away from refuelling site before starting engine.
Stop the engine and allow to cool before refuelling or storing the unit.
Allow the engine to cod; empty the fuel tank and secure the unit from moving before
transporting in a vehicle.
6 MACHINE-SPECIFIC SAFETY WARNINGS
Replace augers if cracked, bent, or damaged in anyway. Be sure the auger and or
extension shaft is properly installed and securely fastened. Failure to do so can cause
serious injury.
Make sure all guards, straps, deflectors and handles are properly and securely attached.
Do not start working until you have a clear work area. Do not work near electric cables or
underground utilities. It is highly recommended that you check with local authorities before
starting to drill.
If auger turns whilst the engine is idling, stop the engine and immediately adjust the idle
settings following the instructions in this manual.
Use only the manufacturer’s replacement augers on this unit. Do not use any other
attachments.
Never operate unit without the safety clutch in working condition. The safety clutch will
engage when the engine is at idle or if a hard object is struck.
Replace the bit immediately if any cracks or other damage are present.
Maintain a firm grip on both handles during operation.
Never use the drill with the handles above waist level. Drilling with the units handles above
waist level restricts control and can cause serious chest injuries if a hard object is struck.
Never carry the power drill with the engine running.
Carry the power drill with the engine stopped, and with the auger bit removed.
Never drill in a horizontal angle. This drill should only be operated with the auger at a 90°
angle to the ground (see figure 7a).
Always keep the handles dry and clean.

POWXG5025 EN
Copyright © 2013 VARO P a g e | 6www.varo.com
Before starting to drill make sure the bit is not obstructed.
Always work in a firm-footed and safe position.
Never touch the auger bit or carry out maintenance with the engine running.
Grip the earth auger firmly with both hands and keep all parts of the body away from the
auger bit and muffler.
Never attempt to carry out servicing or repairs that are not part of the routine maintenance.
For other repairs, have the earth auger serviced by an authorized repairer.
Store the power drill off the ground in a vertical position in a dry place and with fuel tank
empty.
If the auger bit jams, stop the engine immediately.
7 ASSEMBLY
7.1 Lubrificant for reduction gearbox
Warning! The power drill is supplied with a universal gearbox grease in the
reduction gearbox.
7.2 Fitting drill bits
Fit the reduction shaft into the seat on the bit and secure it using the appropriate locking pin
with cotter pin. (Fig 1a, 1b)
Warning! Do not change the ration of the reduction gearbox. The
characteristics of the machine could change and unforeseen reactions
could occur.
NOTE: Your earth auger is supplied with a 300mm extension shaft to be
used for deeper hole digging. DO NOT start digging a hole with the
extension attached.
The hole should always be started with the auger bit only fitted. Once the hole is deep enough
and the operator handles are at least 300mm below waist level, you may stop the unit and
attach the extension shaft between the power head and the auger for added comfort and
deeper hole depth. (Fig 1c, 1d)
7.3 Working rules
Warning! Always follow the safety rules. The power drill must only be used
to drill ground. Do not lock the power drill onto fixed supports. It is
forbidden to apply tools or applications other than the ones indicated by
the manufacturer onto the p.t.o. of the power drill.
7.4 Installing the wind scooper
For added comfort during warmer conditions you may choose to attach the supplied wind
scooper. The grill is designed to direct the warm air flow away from the user.
Insert one end of the grill as per the arrow indicated (Fig 2)
Hold down the inserted end and push down the opposite end until the grill clicks in
position.

POWXG5025 EN
Copyright © 2013 VARO P a g e | 7www.varo.com
8 OPERATION
8.1 Fuel mixture
Gasoline liters
1
2
3
4
5
2-cycle oil ml
20
40
60
80
100
When preparing the mixture, only use oil for 2-stroke engines. Shake the fuel canister before
filling. Refill when the engine is switched off and faraway from naked flames. Before
unscrewing the fuel tank cap, position the power drill on a flat, solid surface.
8.2 To start a cold engine (Fig 3)
Place the engine switch to the on “1“ position.
PRIME - press the primer bulb 10 times slowly.
SET the choke lever to the “START’ position.
Lock on the throttle by pulling the throttle trigger and pressing in the lock button.
PULL the starter rope with a quick firm and consistent upwards motion until the engine
fires or starts and runs.
If the engine fires (pops) but does not continue to run, move the choke lever back to the
“RUN” position and continue to start the engine.
If the engine starts and runs, pull the throttle trigger to release It from the half-throttle
position and move to choke lever to the “RUN” position.
Allow the engine to warm up for 5-20 seconds.
8.3 To start a warm engine
With the engine switch on “I" position PULL the starter rope with a quick firm and
consistent upward motion until the engine starts.
NOTE: Do not use the choke when starting a hot engine.
8.4 To stop the engine (Fig 4)
Press the engine switch to the stop “O” position. Wait until the engine stops.
8.5 Operating the earth auger (Fig 5)
Grip the power drill firmly with both hands and keep all parts of the body away from the auger
bit and muffler.
Hold the earth auger in front of you with the right hand firmly gripping on the throttle
handle and your left hand firmly gripping the other.
Always keep a firm grip with both hands while in operation.
The earth auger should be held at a comfortable position with the handle height no higher
than waist level.
The throttle trigger helps control the speed of the auger to suit various ground conditions.
Keep a comfortable distance between yourself and the drill without overreaching.
Always pay full attention to your operation. Serious injuries may result if contact is made
with the rotating auger.
NOTE: Your earth auger is supplied with a 300mm extension shaft to be
used for deeper hole digging. DO NOT start digging a hole with the
extension attached.
The hole should always be started with the auger bit only fitted.
Once the hole is deep enough and the operator handles are at least 300mm below waist level,
you may stop the unit and attach the extension shaft between the power head and the auger
for added comfort and deeper hole depth.

POWXG5025 EN
Copyright © 2013 VARO P a g e | 8www.varo.com
WARNING! Never use the drill with the handles above waist level. Drilling
with the units handles above waist level restricts control and can cause
serious chest injuries if a hard object is struck.
9 CLEANING AND MAINTENANCE
Warning !Before performing any work on the equipment, pull the power
plug.
Do not submerge earth auger in any liquids.
Do not use products that contain ammonia, chlorine, or abrasives.
Do not use chlorinated cleaning solvents, carbon tetrachloride, kerosene, or gasoline.
Keep earth auger body clean. Use a soft cloth dampened with a mild soap and water
mixture and wipe the earth auger body to clean.
9.1 Engine
Clean the cylinder fins with compressed air or a brush periodically. Dangerous overheating of
engine may occur due to impurities on the cylinder.
9.2 Reduction gearbox
Every 100 working hours change the grease in the reduction gearbox.
9.3 Cleaning air filter (Fig 6)
A dirty air filter will cause starting difficulty, loss of performance, and shorten the life span of
the engine. Check the air filter monthly. For best performance, replace the air filter at least
once a year.
Loosen the air filter cover by turning the fixing screw counter clockwise.
Remove the airbox cover and the air filter.
Clean the foam filter element with warm soapy water. Rinse and let dry.
NOTE If the foam filter element Is damaged, It should be replaced.
Apply a light coat of engine oil to the foam filter element, then squeeze it out.
Reinstall the air filter.
NOTE Make sure the filter Is seated properly Inside the cover. Installing the
filter incorrectly will allow dirt to enter the engine, causing rapid engine
wear.
Reinstall the airbox cover and tighten fixing screw to secure.
10 STORAGE
In a high or locked place, out of children’s reach;
in a dry place.
10.1 When storing for 1 month or longer
Drain all fuel from tank into a container approved for petrol. Run engine until it stops.
11 TECHNICAL DETAILS
DRIL L
Model nr.
POWXG5025
Reduction ratio
50:1

POWXG5025 EN
Copyright © 2013 VARO P a g e | 9www.varo.com
Auger drill bits
φ8cm、φ10cm、φ15cm、φ20cm
Reduction gearbox with grease
yes
ENGINE
Type
Air-cooled Two cycle engine
Rated speed
6500r/min
Idle speed
2800r/min
Clutch speed
3900r/min
Total displacement
42.7cc
Tank capacity
0.98L
12 NOISE
Noise values measured according to relevant standard. (K=3)
Acoustic pressure level LpA
83 dB(A)
Acoustic power level LwA
109 dB(A)
ATTENTION! The sound power level may exceed 85 dB(A), in this case
individual hearing protection shall be worn.
aw (Vibration)
Max 16.3 m/s²
K = 1,5 m/s²
13 WARRANTY
This product is warranted for a 36-month period effective from the date of purchase by the
first user.
This warranty covers all material or production flaws excluding : batteries, chargers,
defective parts subject to normal wear & tear such as bearings, brushes, cables, and
plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects
resulting from maltreatment, accidents or alterations; nor the cost of transportation.
Damage and/or defects resulting from inappropriate use also do not fall under the
warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the
tool.
Repairs may only be carried out by an authorised customer service centre for Powerplus
tools.
You can always obtain more information at the number 00 32 3 292 92 90.
Any transportation costs shall always be borne by the customer, unless agreed otherwise
in writing.
At the same time, no claim can be made on the warranty if the damage of the device is the
result of negligent maintenance or overload.
Definitely excluded from the warranty is damage resulting from fluid permeation, excessive
dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate
usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not
following the instructions given in the manual), inexpert assembly, lightning strike,
erroneus net voltage. This list is not exhaustive.
Acceptance of claims under warranty can never lead to the prolongation of the warranty
period nor commencement of a new warranty period in case of a device replacement.
Devices or parts which are replaced under the warranty therefore remain the property of
Varo NV.
We reserve the right to reject a claim whenever the purchase cannot be verified or when it
is clear that the product has not been properly maintained. (Clean ventilation slots, carbon
brushes serviced regularly, etc.).
Your purchase receipt must be kept as proof of date of purchase.

POWXG5025 EN
Copyright © 2013 VARO P a g e | 10 www.varo.com
Your appliance must be returned undismantled to your dealer in an acceptably clean state,
(in its original blow-moulded case if applicable to the unit), accompanied by proof of
purchase.
14 ENVIRONMENT
Should your appliance need replacement after extended use, do not dispose of it with the
household refuse, but in an environmentally safe way.
Please dispose of used motor oil in a manner that protects the environment. We suggest you
take it in a sealed container to your local service station for recycling. Do not throw it into the
refuse or pour it on the ground.
15 DECLARATION OF CONFORMITY
VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,
Product: Earth auger
Trade mark: POWERplus
Model: POWXG5025
is in conformity with the essential requirements and other relevant provisions of the applicable
European Directives as they relate to European harmonized standards. Any unauthorized
modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amending directives):
2004/108/EC
2006/42/EC
2000/14/EC
Annex V LwA 106dB(A)/ 109dB(A)
97/68/EC Engine Class SH2 G3
EDP 50h
Testing Authority VCA/ Bristol
European harmonized standards (including, if applicable, their amendments):
2006/42/EC –Annex I
EN ISO 14982: 2009
The undersigned acts on behalf of the company management,
Philippe Vankerkhove
Certification Manager
Date: 24/01/2013
