VAS 3-N-1 Gaming Theater/GT XLGTS46-2DT User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg., Inc. Page 1 Factory # 33-10944
3-N-1TM Gaming Theater/GTTM TV Console
Model # XLGTS46-2DT
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this
will give you the opportunity to use this TV Console for different configurations in case you decide
to upgrade your TV set in the future.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, do not return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [e-mail]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
LOT NUMBER:
DATE PURCHASED: / /
XLGTS46-2DT

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 2 Factory # 33-10944
MANUFACTURER: VAS Furniture
CATALOG: 3-N-1TM Gaming Theater/GTTM TV Console (XLGTS46-2DT)
DATE OF MANUFACTURE: August, 2011
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION, TIPS and TRICKS
This product is sold with Tip Restraint Hardware kit. You must install the Tipping Restraint
Hardware between the wall and the TV stand to prevent any accidents or damages. When
properly installed, this restraint can provide protection against the unexpected tipping of the
unit due to small tremors, bumps or climbing. The restraint is only a deterrent and is not a
substitute for proper adult supervision. Use of tip-over restraints may only reduce, but not
eliminate, the risk of tip-over.
FITS UP TO MOST 54” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
FITS UP TO MOST 54” FLAT PANEL TVs
WITHOUT SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.7 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN CENTRE
OF UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 5 lb. (2.27 kg)
MAXIMUM LOAD 15 lb. (6.8 kg)

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 3 Factory # 33-10944
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.

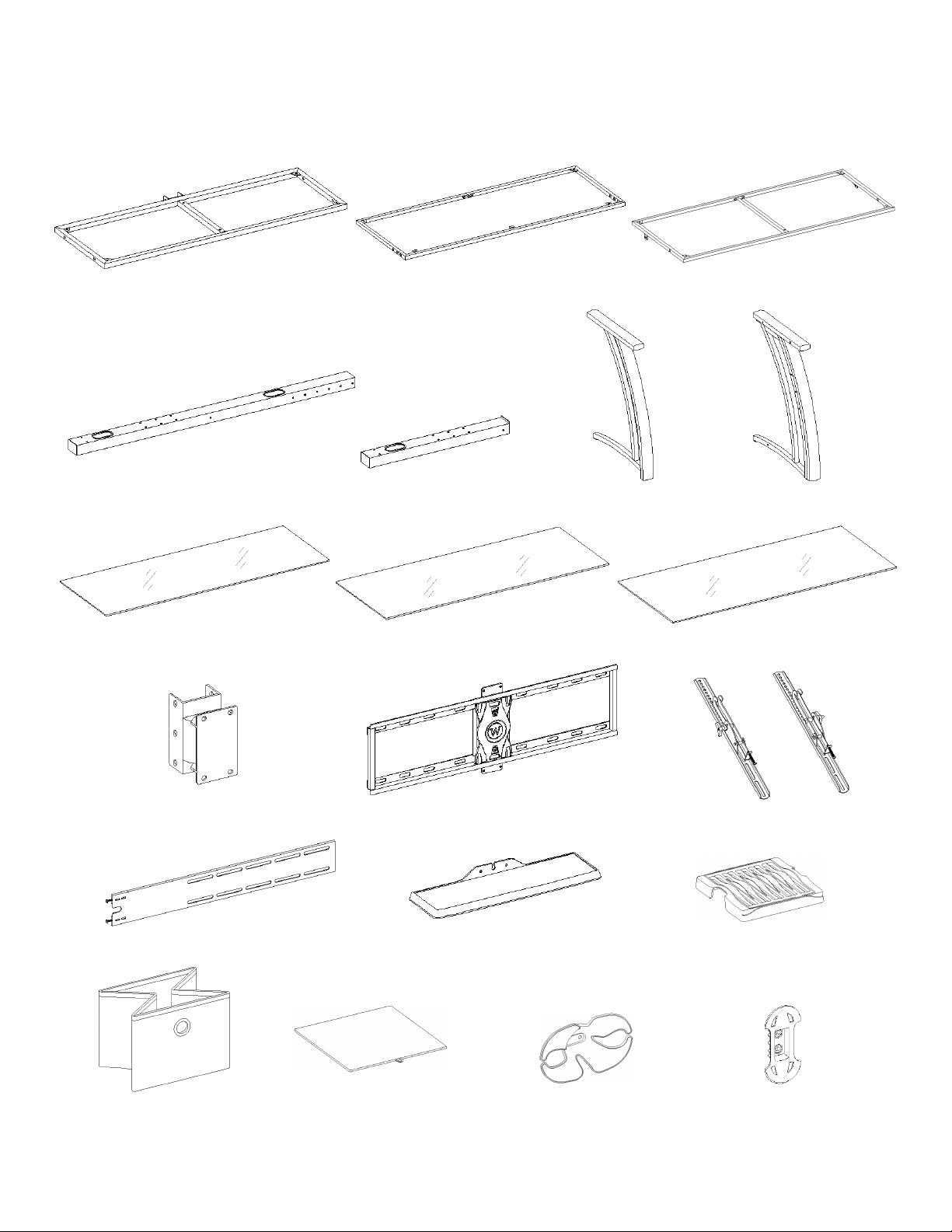

A- Top Metal Frame (1) B- Middle Metal Frame (1) C- Bottom Metal Frame (1)
D- Long Spine (1) D1- Short Spine (1) E- Left Leg (1) F- Right Leg (1)
G- Top Glass (1) H- Middle Glass Shelf (1) (I)- Bottom Glass Shelf (1)
J- Swiveling Bracket (1) K- XYZ Mounting Frame (1) L- Monitor Bracket (2)
M- SSS Spine (1) N- Sensor/Sound Shelf (1) O- Plastic Media Tray (1)
P- Folding Bin (1) Q- Folding Bin Flooring (1) R- Gaming Guitar Clip (1) S- Cable Wheel (1)
LR
LL

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 4 Factory # 33-10944
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
(1) Suction Cup (2) 1/2” Bolt (3) 3/4” Bolt (4) 1-1/4”Bolt (5) Lock Washer
(18+1 extra) (8+1 extra) (13+1 extra) (12+1 extra) (22+1 extra)
(6) Flat Washer (7) Concrete Anchor (8) 2-1/2” Lag Bolt (9) Large Flat Washer
(22+1 extra) (4) (4) (4+1 extra)
M4 Allen Wrench 3/16” Allen Wrench Touch-up Pen Tipping Restraint Hardware Kit (1)
(2) (1) (1) (Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen Wrench (provided), Open Wrench (provided) and Phillips Screwdriver.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 5 Factory # 33-10944
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.
2. Choose the option suits your needs. Locate Long Spine (D) or Short Spine (D1) and set back
face down on a scratch free surface as shown in detail #1.
3. Align and attach 3 Shelf Frames (A, B and C) to the Spine. Make sure the inside corner plates
on the shelf frames will face up after assembly. NOTE: The Middle Shelf Frame (B) is
adjustable. Choose the upper hole sets to increase the bottom space.
1-1/4”Bolt
(4 used in this step)
④
Lock Washer
(2 used in this step)
⑤
Flat Washer
(2 used in this step)
⑥
3/4”Bolt
(2 used in this step)
③

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 6 Factory # 33-10944
Assembly Instructions
4. Stand the unit upright.

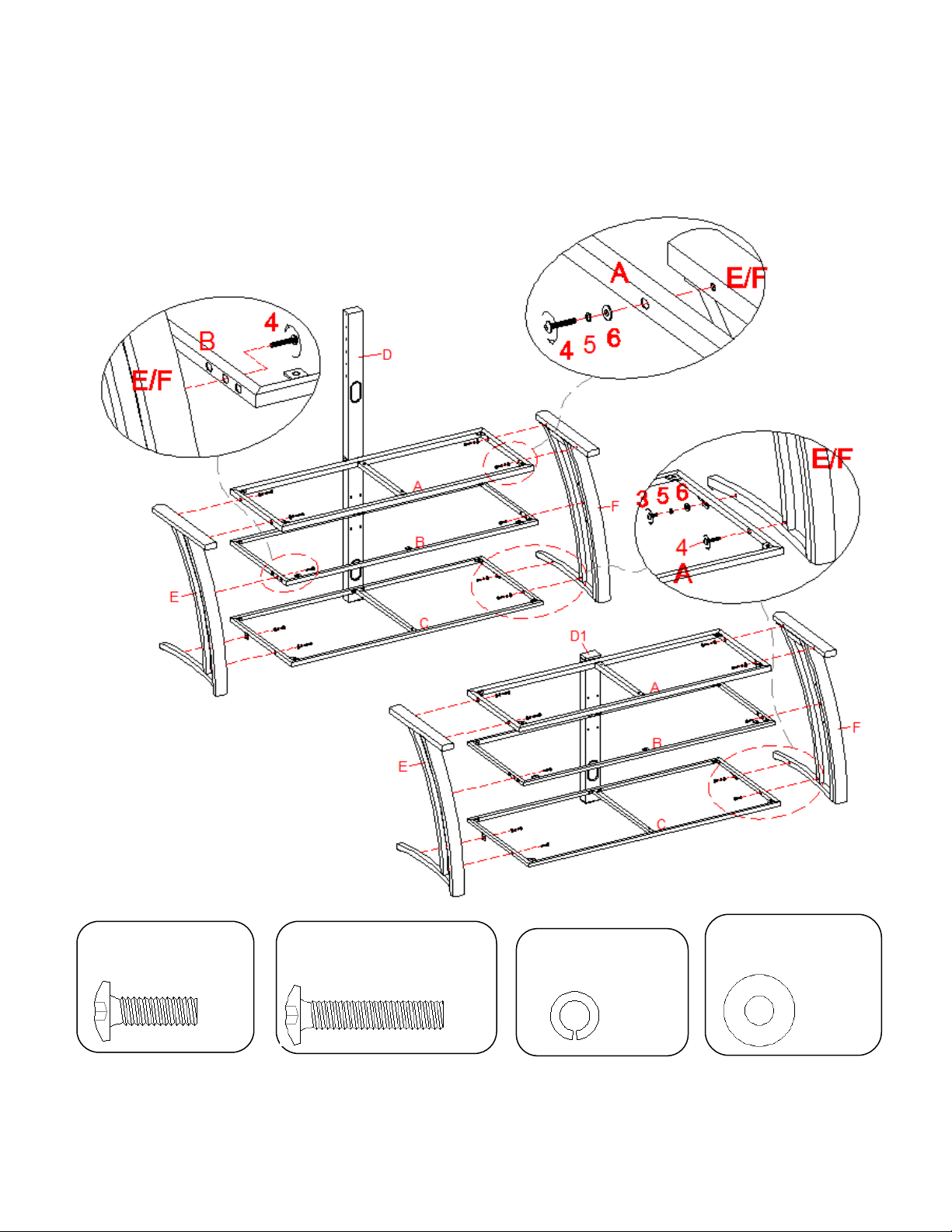

5. Align and attach Left and Right Legs (E and F) to three Shelf Frames (A, B and C).
1-1/4”Bolt
(8 used in this step)
④
Lock Washer
(6 used in this step)
⑤
Flat Washer
(6 used in this step)
⑥
3/4”Bolt
(2 used in this step)
③

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 7 Factory # 33-10944
Assembly Instructions
6. Go back and tighten all bolts with enclosed Allen Wrench.
7. Adjust the Floor Levelers pre-attached at the bottom of both Legs (E and F) to level the unit.
If you choose Table-top configuration,
continue to STEP 8.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 11.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 8 Factory # 33-10944
Assembly Instructions for Table-top
8. Attach Gaming Guitar Clip (R) and Cable Wheel (S) vertically onto the backside of Short
Spine (D1). You can treat them as cable controls to help keep your entertainment center’s
cables and cords organized.
9. The Gaming Guitar Clip (R) can provide storage of gaming guitar controllers when you
attach it horizontally onto the backside of the Spine.
3/4”Bolt
(3 used in this step)
③

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 9 Factory # 33-10944
Assembly Instructions for Table-top

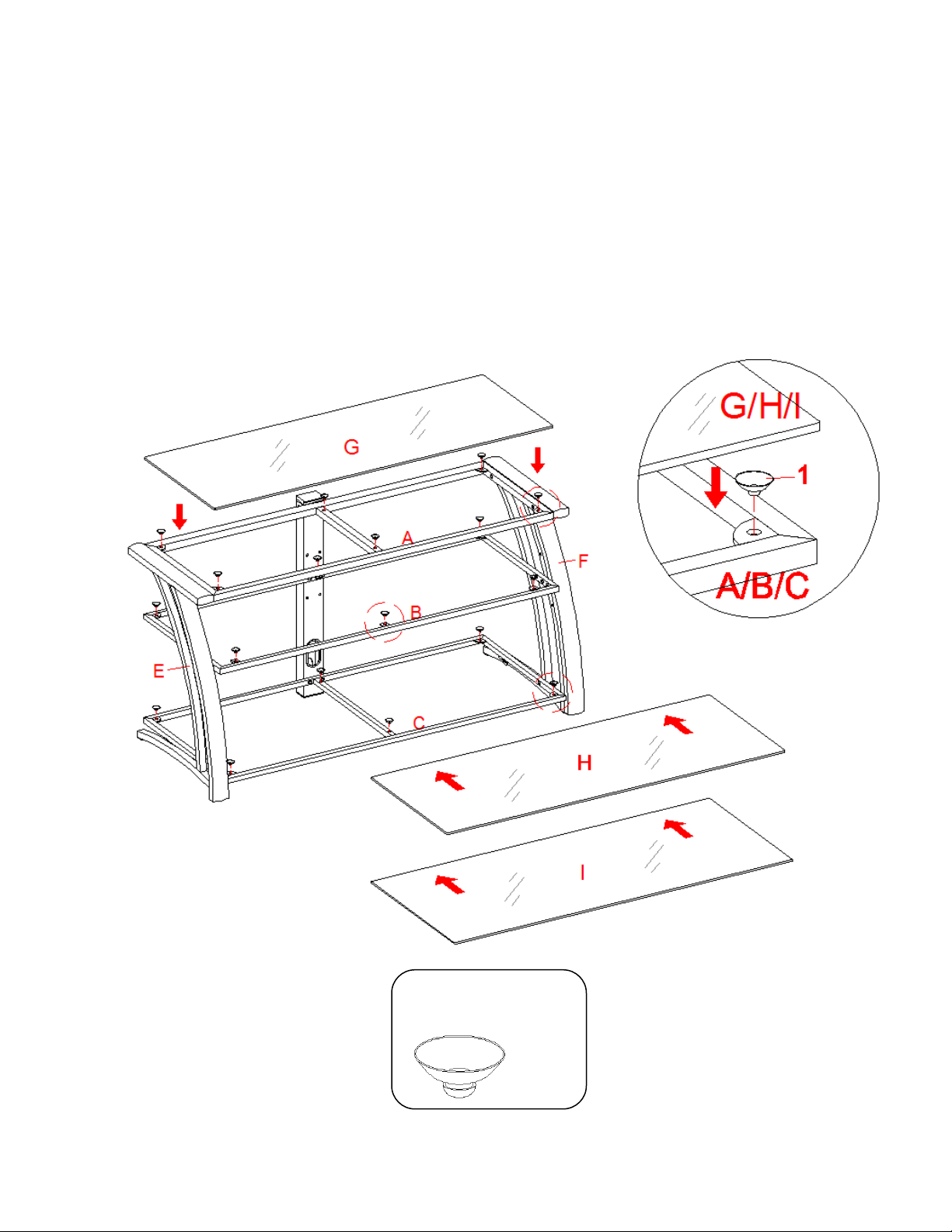

10. Put Suction Cups (1) firmly into the top holes and inside corner plates on the Shelf Frames
(A, B and C). Tip: If a suction cup resists insertion, try pressing down on the middle of the
cup with the Allen Wrench while twisting it clockwise into the hole.
11. Place Glass Shelves (G, H and I) with the black side of glass down onto the Suction Cups (1)
on shelf frames. Push all glass shelves all the way back against the Spine. Also, be sure to
press down evenly and firmly each glass onto the Suction Cups to make sure they securely
rest onto the Suction Cups.
Note: If glass is scratched you can minimize the damage by using a BLACK marker and
filling in scratched area from underneath.
Suction Cup
(18 used in this step)
①

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 10 Factory # 33-10944
Assembly Instructions for Table-top

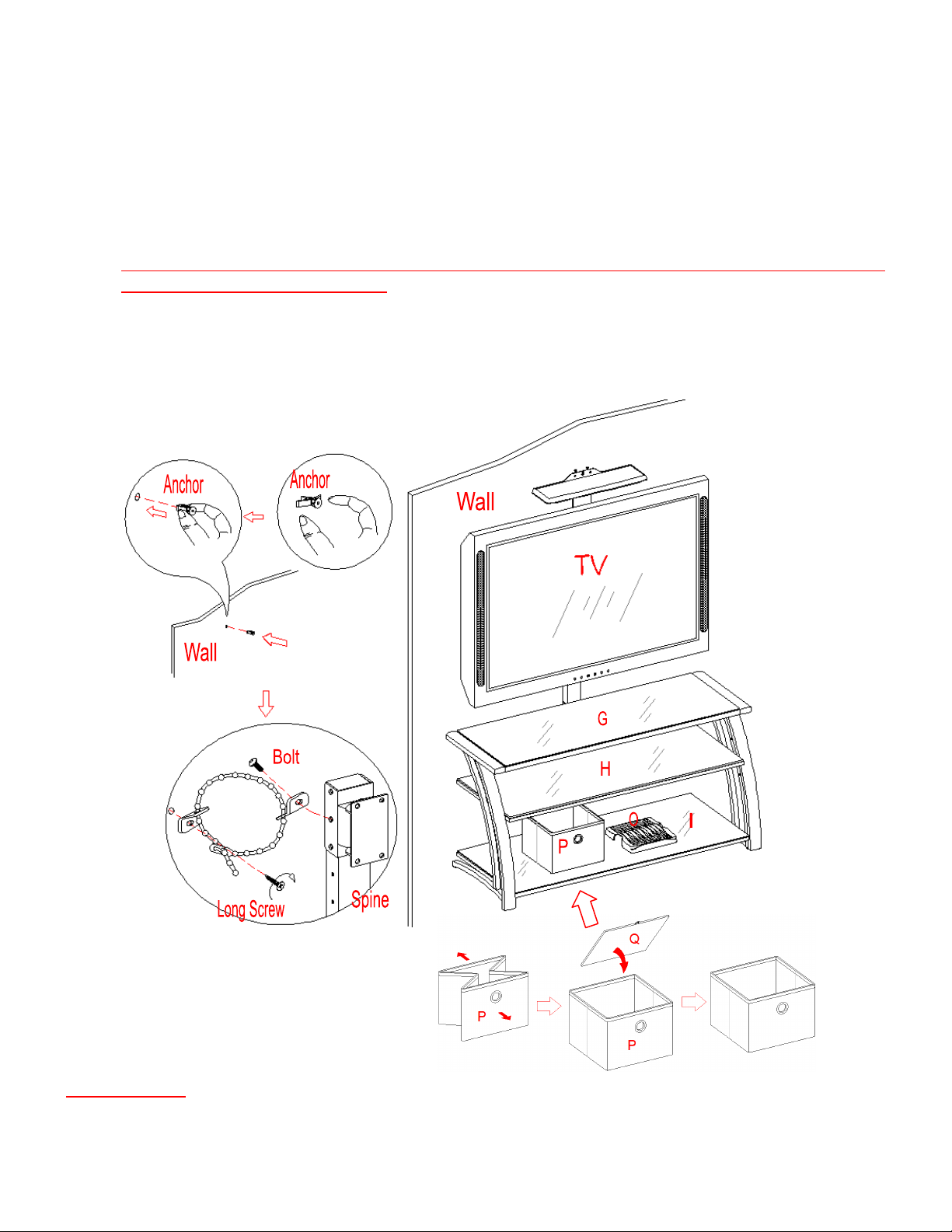

12. Position the assembled Table-top in your desired location against the wall. Now follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to mount
the Tipping Restraint Hardware Kit to the Spine and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
13. The Table-top is ready for use now. Be sure to position your Flat Panel TV in center of the
console.
14. Unfold the Folding Bin (P) and then place inside the Folding Bin Flooring (Q). Store
controller and remotes inside the Folding Bin (P). Plastic Media Tray (O) is provided to hold
the DVD and Blu-ray disk collections.
NOTE: For Tilting Wall Mount, proceed to PAGE #20.
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 11 Factory # 33-10944
15. Align and attach Swiveling Bracket (J) to the top of Long Spine (D) making sure the pivoting
bolt head is up. Tighten the bolts with enclosed Allen Wrench.
Note: The Spine can provide four height options for your TV set. Refer to your TV size,
adjust the Swiveling Bracket at your desired height to offer optimum viewing.
Assembly Instructions for
Floating Swivel Mount
Lock Washer
(6 used in this step)
⑤
Flat Washer
(6 used in this step)
⑥
3/4”Bolt
(6 used in this step)
③

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 12 Factory # 33-10944
Assembly Instructions for Floating Swivel Mount

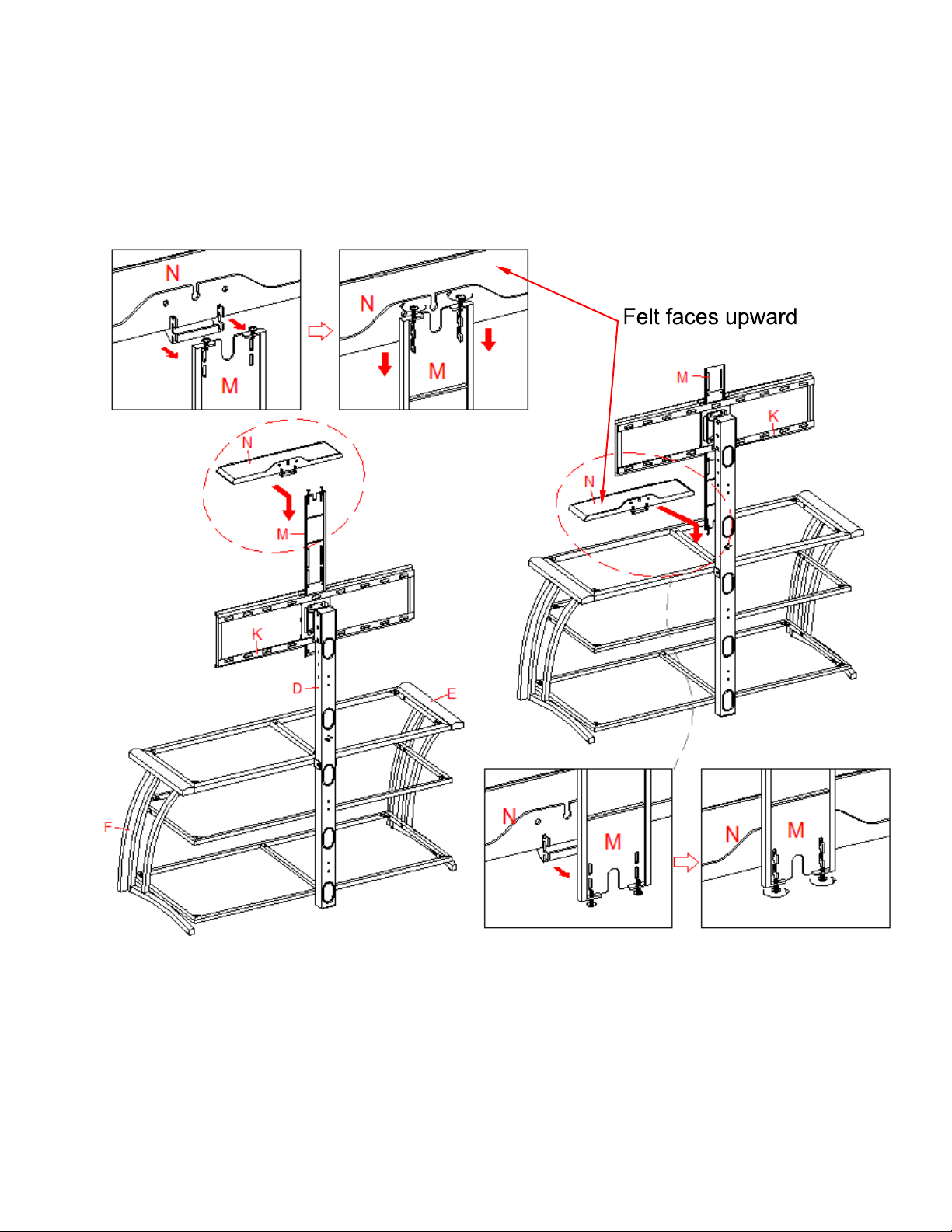

16.The Sensor/Sound Shelf (N) provides two options: position gaming accessories above TV or
sound bar below TV. Choose the option you prefer, slide SSS Spine (M) onto the XYZ
Mounting Frame (K) properly. Adjust the height of SSS Spine and attach in place. Make sure
the Sensor/Sound Shelf (N) will not hit your TV.
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
1/2”Bolt
(4 used in this step)
②

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 13 Factory # 33-10944
Assembly Instructions for Floating Swivel Mount
17.Hold and attach the flat side of XYZ Mounting Frame (K) onto the Swiveling Bracket (J).
Make sure the recess holes on the XYZ Mounting Frame are at the bottom.
Lock Washer
(4 used in this step)
⑤
1/2”Bolt
(4 used in this step)
②
Flat Washer
(4 used in this step)
⑥

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 14 Factory # 33-10944
Assembly Instructions for Floating Swivel Mount
18.Pick up Sensor/Sound Shelf (N) and securely fit the back tabs into the small slots of SSS
Spine (M). Tighten both lock bolts pre-attached on the SSS Spine with a Phillips Screwdriver
until they hit the back tabs of Sensor/Sound Shelf.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 15 Factory # 33-10944
Mounting Monitor Brackets to a television with a flat back
Note: For televisions with a curved back or recessed back proceed directly to step #21.
19. Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.

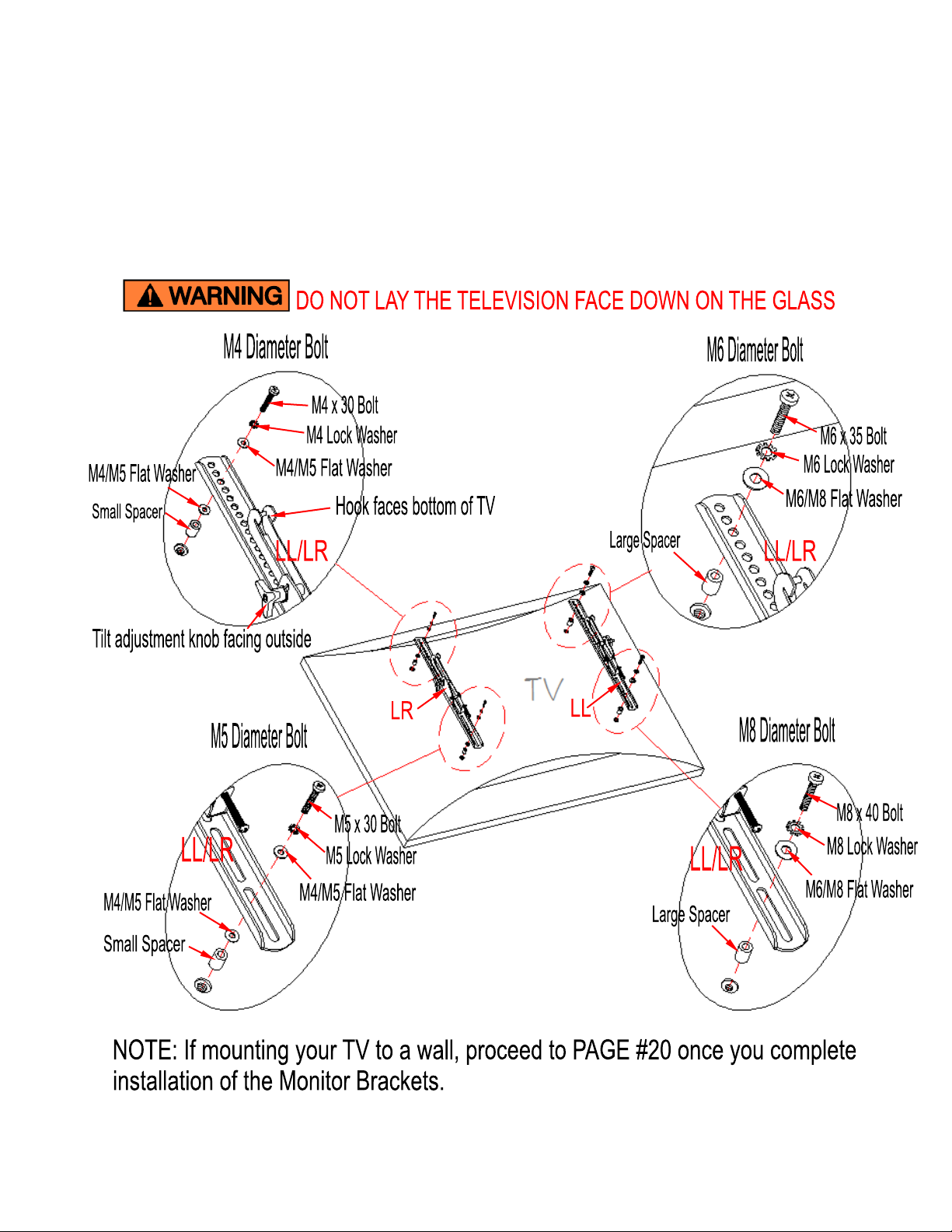

20. Follow the appropriate diagram below to attach Monitor Brackets (LL/LR) to the back of your
TV with selected fasteners. Make sure the Monitor Brackets are centered and level with
each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
Note: Lean the TV up against a wall or other solid surface when attaching with the Monitor
Brackets. DO NOT place the TV face down on the glass this may cause permanent damage.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 16 Factory # 33-10944
Mounting Monitor Brackets to a television with a curved / recess back
21. Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
22. Follow the appropriate diagram below to attach Monitor Brackets (LL/LR) to the back of your
TV with selected fasteners. Make sure the Monitor Brackets are vertically centered and level
with each other. Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 17 Factory # 33-10944
Assembly Instructions for Floating Swivel Mount
MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE AND
USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO
INSTALLATION OF TV.
23. Once the Monitor Brackets (LL/LR) are attached onto the back of television, ask for
assistance to lift the television up to attach the Monitor Brackets onto the XYZ Mounting
Frame (K). Set the hooks on Monitor Brackets over the Mounting Frame then lower them
onto the bars of Mounting Frame. Loosen the Lock Bolt pre-attached on the Monitor
Brackets to ensure an easy fit at the bottom hooks. Proceed to center the television.
24. Once the television is in place, tighten both Lock bolts with a long Phillips Screwdriver until
they hit underside of XYZ Mounting Frame (K) to ensure your TV is safe and secure.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 18 Factory # 33-10944
Assembly Instructions for Floating Swivel Mount
25. The Monitor Brackets (LL/LR) can tilt up to 11˚ downward and 5˚upward, depending on
your optimum viewing position. Have your assistant hold the TV steady before you start to
adjust the tilt. Simply reach behind the TV and turn the both Tilt Adjustment Knobs with
enclosed 3/16” Allen Wrench to adjust your TV to provide optimum viewing and minimize
glare.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 19 Factory # 33-10944
Assembly Instructions
26. Repeat steps 8 thru 11 to attach the Gaming Guitar Clip (R) and Cable Wheel (S) and
install the Top Glass (G) and Glass Shelves (H and I) in place.
27. Carefully move the console and position in your desired location against the wall. Now
follow the instructions printed on the plastic bag containing Tipping Restraint Hardware Kit
to mount the Tipping Restraint Hardware Kit to the Spine and the wall.
Note: You must install the Tipping Restraint Hardware with the unit in use to prevent any
accidents or damage to the unit.
28. Unfold the Folding Bin (P) and then place inside the Folding Bin Flooring (Q). Store
controller and remotes inside the Folding Bin (P). Plastic Media Tray (O) is provided to hold
the DVD and Blu-ray disk collections. You can enjoy your home entertainment center now.
Swivel left-or-right for optimum viewing control.
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

Model # XLGTS46-2DT
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc. Page 20 Factory # 33-10944
Assembly Instructions for Universal Wall Mount
Installing XYZ Mounting Frame onto WOODEN STUD WALL
NOTE: If you are mounting your TV onto brick, solid concrete or concrete block, skip
this section. This assembly requires an electric drill, level and stud finder (not included).
29. Using a stud finder, locate the edges of the wood studs. Find the center line of each stud
and draw a vertical reference line on the wall over each one. Place the XYZ Mounting Frame
(K) level against the wall where you intend to mount the TV. Using the Mounting Frame (K)
as a template, mark 4 drill points (2 on top, 2 on bottom) with a pencil on the vertical
reference lines you just drew.
30. With an electric drill (not included) drill 3/16 inch diameter holes to at least 2½ inch deep on
the four drill points. WhileholdingtheBracketPlateinplace, loosely screw in the Lag Bolts (8).
31. Secure the XYZ Mounting Frame (K) to wall with Lag Bolts (8) and washers (9) at the drill
points. Tighten bolts firmly, but be careful not to over tighten.
The following steps are only for those who wish to mount their
TV directly to the wall. If you have already mounted your TV to
the Swinging Floater or plan to display your TV on the top
surface of the stand, disregard the following steps.
Do not over tighten the Lag Bolts. Tighten Lag Bolts only until the Lag
Bolt Washer is pulled firmly against the metal plate of Mounting Frame. If there is a layer
of drywall or other material, this drywall or other material may not exceed 5/8 inch in
thickness. Failure to heed this caution may result property damage and/or personal injury.
