VAS XL50-6GB User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 1
50”3-in-1 TV Console (XL50-6GB)
Option 1: Console with Swinging Floater
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [email protected]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
XL50-6GB
LOT NUMBER:
DATE PURCHASED: / /

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 2
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under
normal use, we will repair or replace it for up to 1 year from date of purchase.
Every VAS Furniture product is designed to meet your highest expectations.
We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other
rights which vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST Monday to Friday
www.whalenfurniture.com
MANUFACTURER: VAS FURNITURE
CATALOG: 50” 3-in-1 TV Console (XL50-6GB)
DATE OF MANUFACTURE: April, 2010
MADE IN CHINA
FITS UP TO MOST 56”FLAT PANEL TV’S
MAXIMUM LOAD 135 LB (61.2 kg)
FITS UP TO MOST 56”FLAT PANEL TV’S WITHOUT
SWIVELING BRACKET
MAXIMUM LOAD 135 LB (61.2 kg)
MAXIMUM LOAD 50 LB (22.7 kg)
This unit is intended for use only with the products and maximum
weights indicated. Use with other products or products heavier than the maximum weights
indicated may result in instability causing possible injury. The base of the television must
be placed squarely in the center of the stand with no overhanging on either side.

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 3
Parts and Hardware List for Option #1
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
A-Top Shelf Frame (1) B- Middle Shelf Frame (1)
C- Bottom Shelf Frame (1) D- Long Spine (1)
E- Left Side Frame (1) F- Right Side Frame (1)
G- Top Glass (1) H- Glass Shelf (2) I- Swiveling Bracket (1)
J- XYZ Mounting Frame (1) K- Monitor Bracket (2) L- Safety Bar (1)

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 4
Parts and Hardware List for Option #1
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
(1) - Suction Cup (24+1 extra) (2) - 3/4” Bolt (30+1 extra) (3) - 1 1/4” Bolt (14+1 extra)
(4)- Nut (5) - Lock Washer (6) - Flat Washer
(4+1 extra) (44+2 extra) (48+2 extra)
Open Wrench (1) Allen Wrench (2) Tipping Restraint Hardware Kit (1)
(Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 X 12 Bolt (4) M5 x 30 Bolt (4)
M6 x12 Bolt (4) M6 x 35 Bolt (4) M8x16 Bolt (4) M8 x40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen Wrench (provided), Open Wrench (provided) and Phillips Screwdriver.

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 5
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts, then go
back and fully tighten all bolts, this will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.
2. Locate Long Spine (D) on a level and protective surface with 2 round holes facing up as
shown in detail #1.
3. Align the holes on “U”bracket of three Shelf Frames (A, B & C) with the threaded inserts on
the Long Spine (D), attach using 3/4”Bolts (2) with Washers (5 & 6) through the bracket
holes into the Spine. See detail #1.
Required hardware in this step
Description: (2) - 3/4” Bolt (5) - Lock Washer (6) - Flat Washer
Sketch
Qty. (12 pcs) (12 pcs) (12 pcs)
Tools required: Allen Wrench

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 6
Assembly Instructions
4. Stand the unit upright.
5. Pick up Left Side Frame (E) and attach to the Middle & Bottom Shelf Frame (B & C). Insert
& screw the 1 1/4” Bolts (3) with Washers (5 & 6) through the pre-drilled holes on front rail
and 3/4" Bolts (2) with Washers (5 & 6) through the metal bracket on the back of shelf frame
into the threaded inserts on side frame. See detail #2. DO NOT tighten the bolts.
Note: For the end metal brackets on the back of shelf frame must use only ¾” Bolt (2).
6. Proceed to attach the Left Side Frame (E) to Top Shelf Frame (A) using three 1 1/4”Bolts (3)
with Washers (5 & 6) through the pre-drilled holes in side rail. See detail #2A.
7. Repeat last two steps to install Right Side Frame (F) at the other end.
Required hardware in this step
Description: (2) - 3/4” Bolt (3) - 1 1/4" Bolt (5) - Lock Washer (6) - Flat Washer
Sketch
Qty. (8 pcs) (14 pcs) (22 pcs) (22 pcs)
Tools required: Allen Wrench

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 7
Assembly Instructions
8. Go back and tighten all bolts with Allen Wrench provided.
9. In case of uneven floor, Floor Levelers are provided at the bottom of Left & Right Side
Frame (E & F). Simply tilt the unit back and raise or lower floor leveler by hand to correct
tilting as shown in detail #3.
Parts provided Tools required
Pre-attached Floor Leveler No tool required

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 8
Assembly Instructions
10.Align and attach Swiveling Bracket (I) to the top of Long Spine (D) using six 3/4” Bolts (2)
with Washers (5 & 6). Make sure the swivel bolt head is up. See detail #4.
Note: The Spine can provide 4 height options for your TV set. Refer to your TV size, adjust the
Swiveling Bracket at your desired height to offer optimum viewing.
Required hardware in this step
Description: (2) - 3/4” Bolt (5) - Lock Washer (6) - Flat Washer
Sketch
Qty. (6 pcs) (6 pcs) (6 pcs)
Tools required: Allen Wrench

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 9
Assembly Instructions
11.Hold the flat side of XYZ Mounting Frame (J) onto the Swiveling Bracket (I) ensuring the
hook on the side of Mounting Frame is bottom. Align and attach by threading four 3/4” Bolts
(2) with Flat Washers (6) through the metal plate on XYZ Mounting Frame and the Swiveling
Bracket, at the other side of Swiveling Bracket place the other Flat Washers (6) and Lock
Washers (5), and then secure with Nuts (4). Securely tighten with Open Wrench and Allen
Wrench provided. See detail #5.
Required hardware in this step
Description: (2) - 3/4” Bolt (4) - Nut (5) - Lock Washer (6) - Flat Washer
Sketch
Qty. (4 pcs) (4 pcs) (4 pcs) (8 pcs)
Tools required: Allen Wrench and Open Wrench

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 10
Mounting Monitor Bracket to a television with a flat back
Note: For televisions with a curved back or recessed back proceed directly to step #15.
12.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
13.Once you have determined the correct diameter Bolt, follow the appropriate Diagram below,
thread the Short Bolt through the appropriate Lock Washer, Flat Washer, the Monitor Bracket
(K), and into the upper threaded inserts of TV. As shown in detail #6A. Note: Lean the TV up
against a wall or other solid surface when attaching with the Monitor Brackets (K). DO NOT
place the TV face down on the glass this may cause permanent damage.
14.Proceed to insert the long Bolt through the appropriate Lock Washer, the Flat Washer, the slot
of Monitor Bracket (K), a second Flat Washer (M4/M5 Diameter Bolts only), appropriate
Spacer, and into the bottom threaded inserts of TV. As shown in detail #6. Make sure the
Monitor Brackets (K) are centered and level with each other. Tighten the bolts securing the
Monitor Brackets to the TV.
Parts provided Qty. Tools required
K –Monitor Bracket (2) Phillips Screwdriver
TV Mounting Kit

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 11
Mounting Monitor Bracket to a television with a curved / recess back
15.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
16.Once you have determined the correct diameter Bolt, follow the appropriate Diagram below,
thread the Bolt through the appropriate Lock Washer, the Large Flat Washer, the Monitor
Bracket (K), a second Large Flat Washer (M4/M5 Diameter Bolts only), appropriate Spacer
and into the threaded inserts of TV. See detail #7.
17.Make sure the Monitor Brackets (K) are vertically centered and level with each other.
Tighten the bolts to secure the Monitor Brackets to the TV.
Parts provided Qty. Tools required
K –Monitor Bracket (2) Phillips Screwdriver
TV Mounting Kit

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 12
Assembly Instructions
MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE
PRIOR TO INSTALLATION OF TV
18.Once the Monitor Brackets (K) are attached onto the back of television, ask for assistance to
lift the television up to the XYZ Mounting Frame (J). Place the hooks on Monitor Brackets
over the Mounting Frame then lower them onto the bars of Mounting Frame. Proceed to
center the television.
19.Insert the Safety Bar (L) into the bottom holes on the side of XYZ Mounting Frame (J) by
sliding it all the way across the frame. Secure the Safety Bar by rotating the bent end into
the slot of hook so that it is facing wall. Make sure it sits over the bottom hook of the Monitor
Brackets. See detail #8.
Parts provided Qty. Tools required
L–Safety Bar (1) No Tool Required

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 13
Assembly Instructions
20.Put the Suction Cups (1) firmly into top holes & metal tabs of three Shelf Frames (A, B & C)
as shown in detail #9.
21.Place the Top Glass (G) & Glass Shelves (H) in place as shown in detail #9. Make sure the
glass is properly centered and the black side of glass is down. Push each glass all the way
back against the Spine. Also, be sure to press down evenly and firmly each glass onto the
Suction Cups to make sure they securely rest onto the Suction Cups.
Note: Make sure that the Suction Cups go all the way into the pre-drilled holes & metal tables
to prevent the glass shelf from falling and getting damage. If glass is scratched you can
minimize the damage by using a BLACK marker and filling in scratched area from
underneath.
Required hardware in this step
Description Sketch Qty.
(1) –Suction Cup (24 pcs)

Model # XL50-6GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 56-12089 Page 14

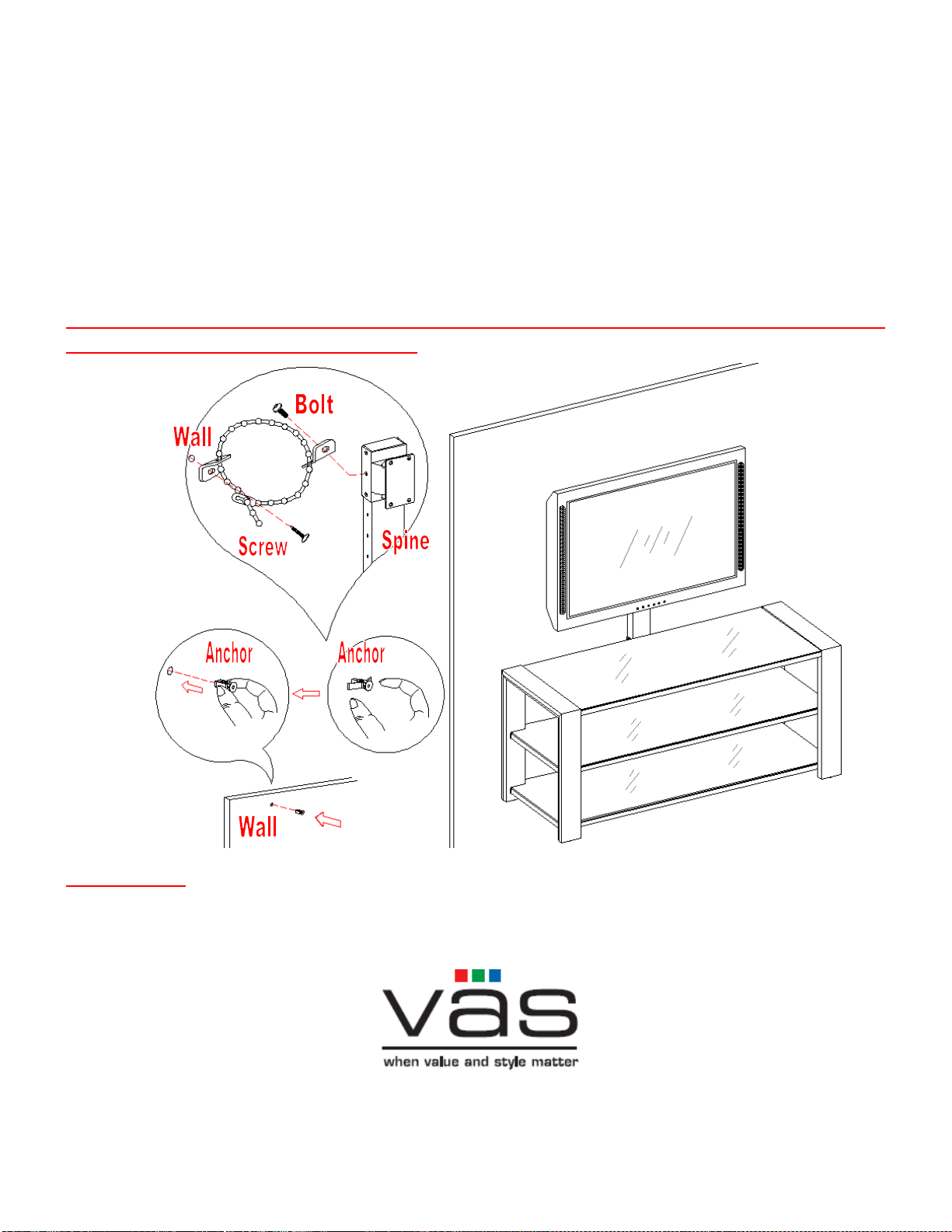

TIPPING RESTRAINT HARDWARE
Note: We have included one Tipping Restraint Hardware bag for this Unit.
When properly installed, this restraint can provide protection against the unexpected tipping
of the Unit due to small tremors, bumps or climbing. We strongly recommend mounting this
hardware to a wall stud and your unit when installing.
Please carefully read the instructions printed on the plastic bag.
Note: You must install the Tipping Restraint Hardware with the unit in use to prevent
any accidents or damage to the unit.
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
Your assembly should now be complete.
Thank you for your purchase.
