VAS PRO44-1TC User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc. Page 1 Factory No. 56-12089
Flat Panel Console with Swinging Floater
Model # PRO44-1TC
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
001-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [email protected]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
PRO44-1TC
LOT NUMBER:
DATE PURCHASED: //

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 2 Factory No. 56-12089
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal
use, we will repair or replace it for up to one (1) year from date of purchase.
Every VAS Furniture product is designed to meet your highest expectations. We
guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights
which vary from State to State.
Customer Service: 001-866-942-5362
8:30 a.m. - 4:30 p.m. PST, Monday to Friday
www.whalenfurniture.com
MANUFACTURER: VAS Furniture
CATALOG: Flat Panel Console with Swinging Floater (PRO44-1TC)
DATE OF MANUFACTURE: June, 2011
MADE IN CHINA
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY
WITH FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE
AND WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT
PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN CENTRE
OF UNIT; CRT TVS, IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
OR OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
FITS UP TO MOST 50” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
FITS UP TO MOST 50” FLAT PANEL TVs
WITHOUT SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.7 kg)

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 3 Factory No. 56-12089

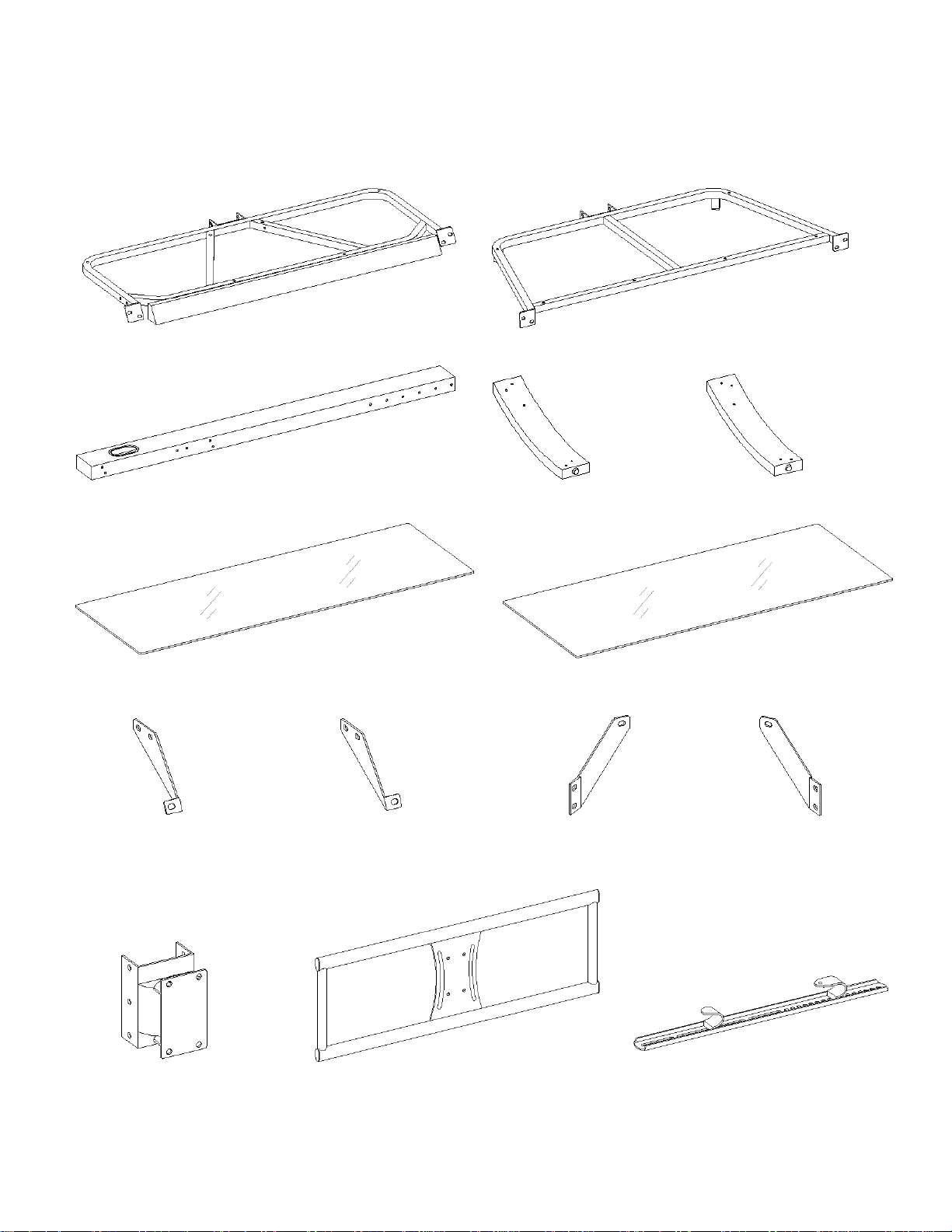

Parts & Hardware List
Please read completely through the instructions and verify that all parts listed are
present before beginning assembly.
A-Top Shelf Frame (1) B- Bottom Shelf Frame (1)
C- Spine (1) D- Left Leg (1) E- Right Leg (1)
F- Top Glass (1) G- Glass Shelf (1)
H- Front Left Support I- Front Right Support J- Back Left Support K- Back Right Support
(1) (1) (1) (1)
L- Swiveling Bracket (1) M- XYZ Mounting Frame (1) N- Monitor Bracket (2)

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 4 Factory No. 56-12089
Parts & Hardware List
Please read completely through the instructions and verify that all parts listed are
present before beginning assembly.
(1) Suction Cup (6+1 extra) (2) 3/4” Bolt (40+2 extra) (3) Nut (4+1 extra)
(4) Lock Washer (5) Flat Washer (6) Glass Raiser
(38+1 extra) (42+2 extra) (8+1 extra)
Open Wrench (1) Allen Wrench (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools Required: Allen Wrench (provided), Open Wrench (provided) and Phillips Screwdriver.

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 5 Factory No. 56-12089
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts, then go
back and fully tighten all bolts, this will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.

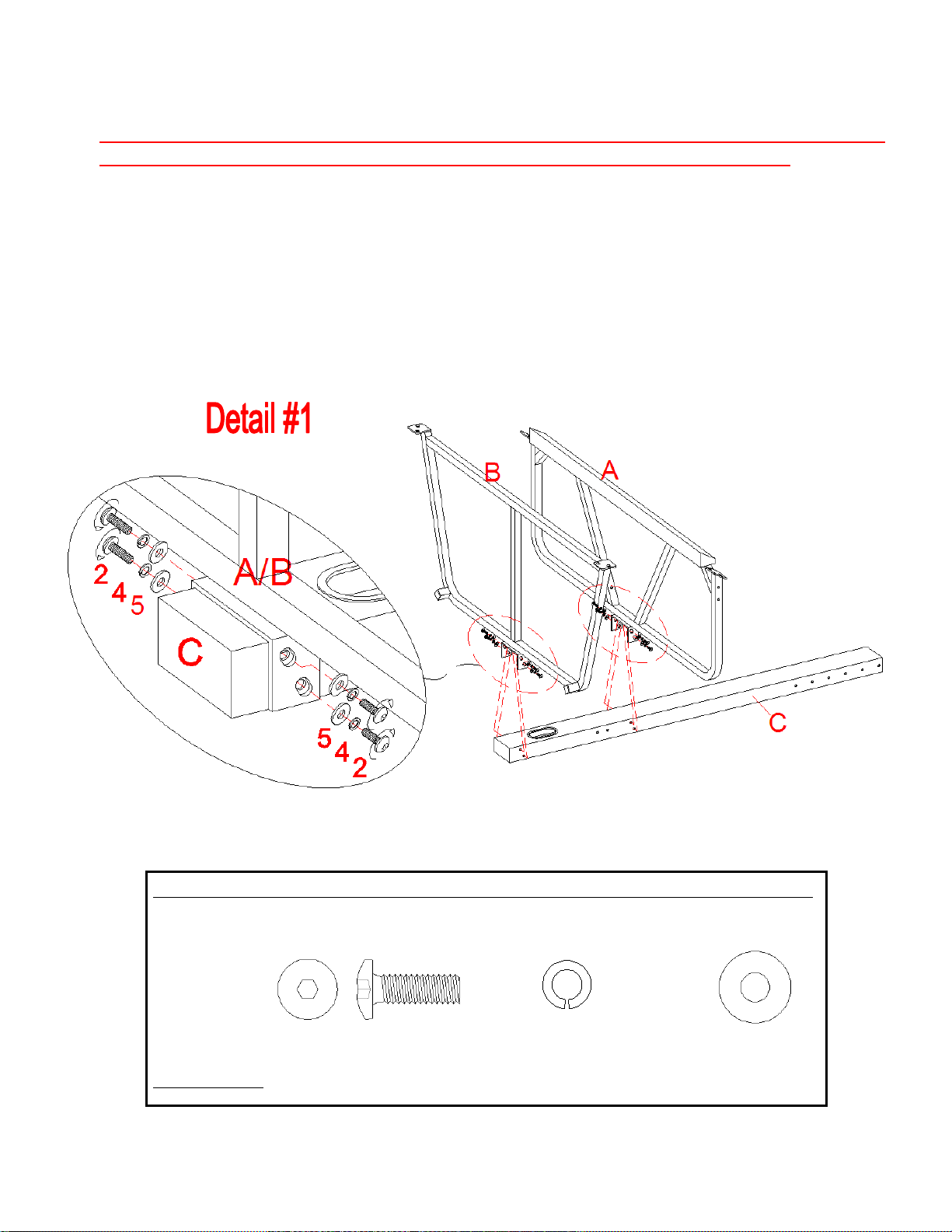

2. Locate Spine (C) and set back face down on a scratch free surface as shown in detail #1.
3. Align the “U”shape plate holes of Top & Bottom Shelf Frame (A & B) with the threaded
inserts on the Spine (C) in place, attach with 3/4”Bolts (2) with Washers (4 & 5) through the
bracket holes. See detail #1.
Required hardware in this step
Description: (2) 3/4” Bolt (4) Lock Washer (5) Flat Washer
Sketch
Qty. (8 pcs) (8 pcs) (8 pcs)
Tools Required: Allen Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 6 Factory No. 56-12089
Assembly Instructions
Note: Please loosen the bolts on the wooden front rail before assembling the legs.
4. Pick up Right Leg (E) and align the back inserted nuts with the end brackets on the Shelf
Frames (A & B) simultaneously, insert and screw the 3/4” Bolts (2) with Washers (4 & 5)
through the end brackets as shown in detail #2. DO NOT tighten the bolts.
5. Repeat last step to install the Left Leg (D) at the other end. Make sure the gap and offsets
between the wooden front rail of Top Shelf Frame (A) and the Legs are equal. Loosen the
bolts on the wooden front rail and adjust if necessary.
Required hardware in this step
Description: (2) 3/4” Bolt (4) Lock Washer (5) Flat Washer
Sketch
Qty. (8 pcs) (8 pcs) (8 pcs)
Tools Required: Allen Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 7 Factory No. 56-12089
Assembly Instructions
6. Turn the unit upright.
7. For a stable structure, align and attach the Front Left & Right Support (H & I) in place to
connect the Top Shelf Frame (A) with Left & Right Legs (D & E) using 3/4” Bolts (2) with
Washers (4 & 5), as shown in detail #3.
8. Align and attach the Back Left and Back Right Support (J & K) to the Top Shelf Frame (A)
and Spine (C) with the 3/4” Bolts (2) with Washers (4 & 5), as shown in detail #3A.
Required hardware in this step
Description: (2) 3/4” Bolt (4) Lock Washer (5) Flat Washer
Sketch
Qty. (12 pcs) (12 pcs) (12 pcs)
Tools Required: Allen Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 8 Factory No. 56-12089
Assembly Instructions

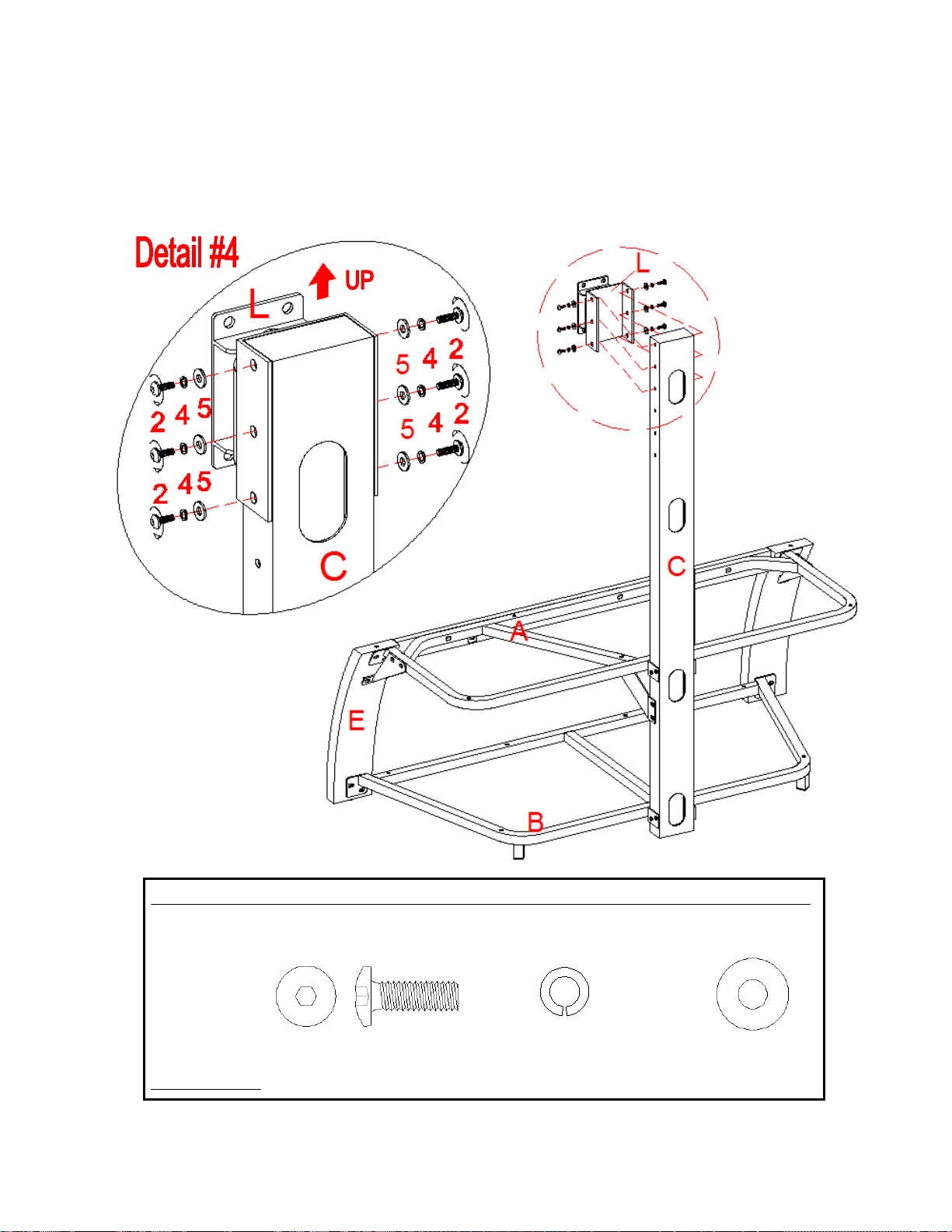

9. Align and attach Swiveling Bracket (L) to the top of the Spine (C) using six 3/4” Bolts (2) with
Washers (4 & 5). Make sure the pivoting bolt head is up. See detail #4.
Note: The Spine can provide four height options for your TV set. Refer to your TV size, adjust
the Swiveling Bracket at your desired height to offer optimum viewing.
Required hardware in this step
Description: (2) 3/4” Bolt (4) Lock Washer (5 Flat Washer
Sketch
Qty. (6 pcs) (6 pcs) (6 pcs)
Tools Required: Allen Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 9 Factory No. 56-12089
Assembly Instructions
10.Hold the flat side of XYZ Mounting Frame (M) onto the Swiveling Bracket (L). Align and
attach by threading four 3/4” Bolts (2) with Flat Washers (5) through the metal plate on XYZ
Mounting Frame and the Swiveling Bracket, at the other side of Swiveling Bracket place the
other Flat Washers (5) and Lock Washers (4), and then secure with Nuts (3). Securely
tighten with Open Wrench and Allen Wrench provided. See detail #5.
11.Go back and tighten all bolts with Allen Wrench provided.
12.In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (D & E).
Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in
detail #5A.
Required hardware in this step
Description: (2) 3/4” Bolt (3) Nut (4) Lock Washer (5) Flat Washer
Sketch
Qty. (4 pcs) (4 pcs) (4 pcs) (8 pcs)
Tools Required: Allen Wrench and Open Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 10 Factory No. 56-12089
Mounting Monitor Bracket to a television with a flat back
Note: For televisions with a curved back or recessed back proceed directly to step #16.
13.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
14.Once you have determined the correct diameter Bolt, follow the appropriate Diagram below,
thread the Short Bolt through the appropriate Lock Washer, Flat Washer, the Monitor Bracket
(N), and into the upper threaded inserts of TV. As shown in detail #6A. Note: Lean the TV up
against a wall or other solid surface when attaching with the Monitor Brackets (N). DO NOT
place the TV face down on the glass this may cause permanent damage.
15.Proceed to insert the long Bolt through the appropriate Lock Washer, the Flat Washer, the slot
of Monitor Bracket (N), a second Flat Washer (M4/M5 Diameter Bolts only), appropriate
Spacer, and into the bottom threaded inserts of TV. As shown in detail #6. Make sure the
Monitor Brackets (N) are centered and level with each other. Tighten the bolts securing the
Monitor Brackets to the TV.
Parts Provided Qty. Tools Required
N –Monitor Bracket (2) Phillips Screwdriver
TV Mounting Kit

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 11 Factory No. 56-12089
Mounting Monitor Bracket to a television with a curved / recess back
16.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
17.Once you have determined the correct diameter Bolt, follow the appropriate Diagram below,
thread the Bolt through the appropriate Lock Washer, Flat Washer, the Monitor Bracket (N), a
second Flat Washer (M4/M5 Diameter Bolts only), appropriate Spacer and into the threaded
inserts of TV. See detail #7.
18.Make sure the Monitor Brackets (N) are vertically centered and level with each other. Tighten
the bolts securing the Monitor Brackets to the TV.
Parts Provided Qty. Tools Required
N –Monitor Bracket (2) Phillips Screwdriver
TV Mounting Kit

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 12 Factory No. 56-12089
Assembly Instructions
MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE AND
USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO
INSTALLATION OF TV.

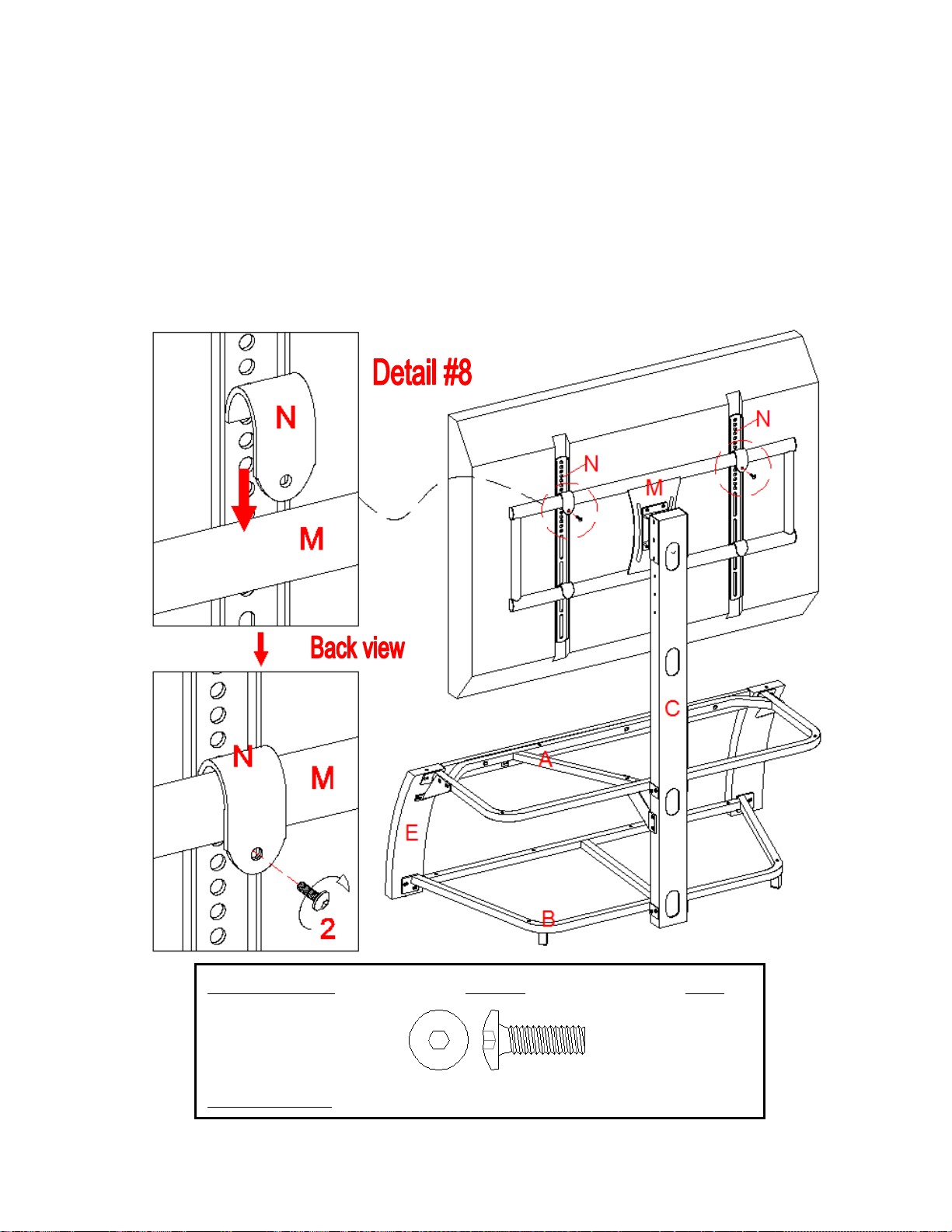

19.Once the Monitor Brackets (N) are attached onto the back of television, ask for assistance to
lift the television up to the XYZ Mounting Frame (M). Place the hooks on Monitor Brackets
over the Mounting Frame then lower them onto the bars of Mounting Frame. Proceed to
center the television.
20.Screw two 3/4”Bolts (2) onto the upper hooks of Monitor Brackets (N) for additional safety.
See detail #8.
Parts Provided Sketch Qty.
(2) 3/4”Bolt (2 pcs)
Tools required: Allen Wrench

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 13 Factory No. 56-12089
Assembly Instructions
21.Put the Suction Cups (1) firmly into top holes of the Bottom Shelf Frame (B) in place. As
shown in detail #9.
22.Screw the Glass Raisers (6) onto the top holes of Top Shelf Frame (A) and Left & Right Leg
(D & E), make sure they go all the way in. See detail #9.
23.Place the Top Glass & Glass Shelf (F & G) in place as shown in detail #9. Make sure the
glass is properly centered and the black side of glass is down. Push each glass all the way
back against the Spine. Also, be sure to press down evenly and firmly each shelf onto the
Suction Cups to make sure they securely rest onto the Suction Cups.
Note: Make sure that the Suction Cups go all the way into the pre-drilled holes to prevent the
glass shelf from falling and getting damage. If glass is scratched you can minimize the
damage by using a BLACK marker and filling in scratched area from underneath.
Parts Provided Sketch Qty.
(1) Suction Cup (6 pcs)
(6) Glass Raiser (8 pcs)

Model # PRO44-1TC
Please call for replacement parts or assistance: 001-866-942-5362
VAS Furniture Mfg. Inc. Page 14 Factory No. 56-12089

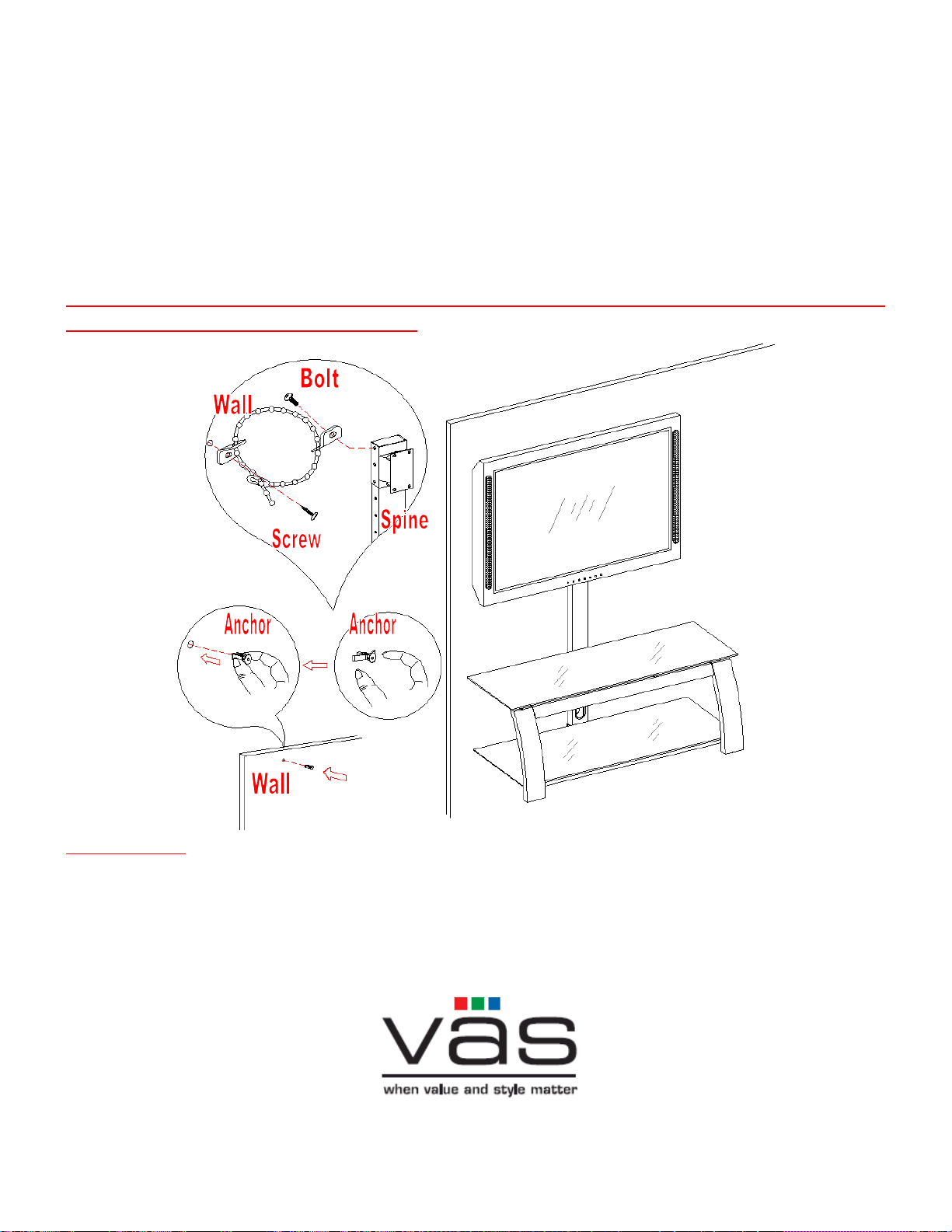

TIPPING RESTRAINT HARDWARE
Note: We have included one Tipping Restraint Hardware bag for this unit.
When properly installed, this restraint can provide protection against the unexpected tipping
of the unit due to small tremors, bumps or climbing. We strongly recommend mounting this
hardware to a wall stud and your unit when installing.
Please carefully read the instructions printed on the plastic bag.
Note: You must install the Tipping Restraint Hardware with the unit in use to prevent
any accidents or damage to the unit.
Tools required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur
during assembly or shipping.
Your assembly should now be complete.
Thank you for your purchase.

IF YOU REQUIRED TO ORDER PARTS PLEASE USE THE LIST BELOW
Flat Panel Console with Swinging Floater (PRO44-1TC)
*PRO44-1TC-1-S Spine *PRO44-1TC-24-M4LW M4 Lock Washer *PRO44-1TC-2-TG Top Glass *PRO44-1TC-25-M5LW M5 Lock Washer *PRO44-1TC-3-GS Glass Shelf *PRO44-1TC-26-M6LW M6 Lock Washer *PRO44-1TC-4-LL Left Leg *PRO44-1TC-27-M8LW M8 Lock Washer *PRO44-1TC-5-RL Right Leg *PRO44-1TC-28-M4x12B M4 x 12 Bolt *PRO44-1TC-6-SB Swiveling Bracket *PRO44-1TC-29-M4x30B M4 x 30 Bolt *PRO44-1TC-7-MB Monitor Bracket *PRO44-1TC-30-M5x12B M5 x 12 Bolt *PRO44-1TC-8-MF XYZ Mounting Frame *PRO44-1TC-31-M5x30B M5 x 30 Bolt *PRO44-1TC-9-PC Plastic Cover *PRO44-1TC-32-M6x12B M6 x 12 Bolt *PRO44-1TC-10-TSF Top Shelf Frame *PRO44-1TC-33-M6x35B M6 x 35 Bolt *PRO44-1TC-11-BSF Bottom Shelf Frame *PRO44-1TC-34-M8x16B M8 X 16 Bolt *PRO44-1TC-12-3/4B 3/4” Bolt *PRO44-1TC-35-M8x40B M8 x 40 Bolt *PRO44-1TC-13-GR Glass Raiser *PRO44-1TC-36-TRHK Tipping Restraint Hardware Kit *PRO44-1TC-14- LW Lock Washer *PRO44-1TC-37-TUP Touch-up Pen *PRO44-1TC-15-FW Flat Washer *PRO44-1TC-38-CH Complete Hardware *PRO44-1TC-16-N Nut *PRO44-1TC-40-OPG Oval Plastic Grommet *PRO44-1TC-17-SC Suction Cup *PRO44-1TC-41-FL Floor Leveler *PRO44-1TC-18-OW Open Wrench *PRO44-1TC-42-FLS Front Left Support *PRO44-1TC-19-AW Allen Wrench *PRO44-1TC-43-FRS Front Right Support *PRO44-1TC-20-SS Small Spacer *PRO44-1TC-44-BLS Back Left Support *PRO44-1TC-21-LS Large Spacer *PRO44-1TC-45-BRS Back Right Support *PRO44-1TC-22-M4M5FW M4/M5 Flat Washer (for TV mounting) *PRO44-1TC-46-WFR Wooden Front Rail *PRO44-1TC-23-M6M8FW M6/M8 Flat Washer (for TV mounting) *PRO44-1TC-47-PEC Plastic End Cap
