Vatronix TG19264A-02WA0 User manual

TG19264A-02WA0_A00 Page 1of 14
LCD Module User Manual
Customer :
Ordering Part Number :
TG19264A-02WA0
DRAWING NO. :
m-TG19264A-02WA0_A00
Approved By
Checked ByPrepared By
Vatronix Holdings Limited
ADD:5F,No.10 Blg,WenGuang Industrial Zone,XiLi,Nanshan District,Shenzhen,China
TEL:[phone] 33207536 FAX:[phone]
E-mail:[e-mail] Http://www.vatronix.com
Approved By Customer:
Date:

TG19264A-02WA0_A00 Page 2of 14
Contents
1. Precautions in Use of LCD Module-------------------------------------P3
2.General Specification-------------------------------------------------------P3
3.Absolute Maximum Ratings-----------------------------------------------P3
4.Electrical Characteristics--------------------------------------------------P4
5. Backlight Information------------------------------------------------------P4
6.Optical Characteristics-----------------------------------------------------P5
7.Interface Description--------------------------------------------------------P6
8.Contour Drawing & Block Diagram--------------------------------------P7
9. Application circuit----------------------------------------------------------P8
10. Timing Characteristics-------------------------------------------------P9
11. Display Control Instruction-------------------------------------------P10
11.1 Instruction table----------------------------------------------------P10
11.2 Instruction description --------------------------------------------P10
12. Reset and Initializing flow chart --------------------------------------P12
13. Display Data RAM map ------------------------------------------------P13
14.Revision records------------------------------------------------------P14

TG19264A-02WA0_A00 Page 3of 14
1. Precautions in Use of LCD Module
(1) Avoid applying excessive shocks to the module or making any alterations or modifications to it.
(2) Don’t make extra holes on the printed circuit board, modify its shape or change the components of LCD
Module.
(3) Don’t disassemble the LCD Module.
(4) Don’t operate it above the absolute maximum rating.
(5) Don’t drop, bend or twist LCD Module.
(6) Soldering: only to the I/O terminals.
(7) Storage: please storage in anti-static electricity container and clean environment.
2. General Specification
Item Standard Value Unit
Number of dots 192X64 Dots
Outline dimension 130.0(W)X65.0(H)X12.5MAX.(T) mm
View area 104.0(W)X39.0(H) mm
Active area 95.96(W)X31.96(H) mm
Dot size 0.46(W)X0.46(H) mm
Dot pitch 0.50(W)X0.50(H) mm
LCD type STN,Blue,negative,Transmissive
View direction 6 o’clock
Backlight LED,White
Interface Parallel
43. Absolute Maximum Ratings1
ITEM SYMBOL
MIN. TYP. MAX. UNIT
Operating Temperature TOP -20 -+70 ℃
Storage Temperature TST -30 -+80 ℃
Input Voltage VI0-VDD V
Supply Voltage For LogicVDD 0-5.5 V
Supply Voltage For LCD VDD-VEE 0-5V

TG19264A-02WA0_A00 Page 4of 14
4. Electrical Characteristics
ITEM SYMBOL CONDITION MIN. TYP.
MAX. UNIT
Logic Voltage VDD-VSS -4.7 5.0 5.2 V
SupplyVoltage for LCD
VDD-VOTa=25℃--- 12.0 --- V
Input High Volt. VIH -2.0 -VDD V
Input Low Volt. VIL --0.3 -0.8 V
Output High Volt. VOH IoH=-0.2mA 2.4 -VDD V
Output Low Volt. VOL IoL=1.6mA 0-0.4 V
Supply Current IDD(Include DC/DC) ---- 6.0 --- mA
5. Backlight Information
Absolute Maximum ratings (Ta=25℃)
Item Symbol
Conditions Rating Unit
Reverse voltage Vr -5.0 V
Reverse Current IrVr=5.0V 80 uA
Absolute maximum forward
Current Ifm 120 mA
Peak forward current Ifp Imsec plus 10% Duty Cycle 240 mA
Power dissipation Pd340 mW
Operating Temperature Range Toper -30~+70
℃
Storage Temperature Range Tst -40~+80
℃
Electrical/Optical Characteristics (Ta=250C,If=120mA)
Color Wavelength
λp(nm) Spectral line half widthΔλ(nm)
Operating
Voltage(V)
(±0.15V)
Forward
Current (mA)
White --- --- 3.1 90

TG19264A-02WA0_A00 Page 5of 14
6. Optical Characteristics
ITEM SYMBOL
CONDITION
MIN TYP MAX
UNIT
(V)θCR≧210 －120
deg.View Angle
(H)φCR≧2-45 －45 deg.
Contrast Ratio
CR －－5－－
T rise －－200 300
ms
Response Time
T fall －－150 200
ms

TG19264A-02WA0_A00 Page 6of 14
7.Interface Description
Pin No.
Symbol Level Description
1VSS 0V Ground
2VDD 5.0V Power supply for Logic
3VO(Variable)
Driving voltage for LCD
4RS(D/I,A0)
H/L H:Data L :Instruction
5RW(R/W)
H/L H:Read L:Write
6EH/L Enable signal
7~14DB0~DB7
H/L Data bus.DB7 is used for Busy Flag.
15 /CS1 LChip selection for IC1,Active low level
16 RES H/L Controller reset signal, Activelow level
17 /CS2 LChip selection for IC2,Active low level
18 /CS3 LChip selection for IC3,Active low level
19 VEE -10VNegative voltage output
20 A(LED+) +5.0VAnode of LED Backlight

TG19264A-02WA0_A00 Page 7of 14
8. Contour Drawing & Block Diagram

TG19264A-02WA0_A00 Page 8of 14
9. Application circuit
8080-series MPU Circuit
6800-series MPU Circuit

TG19264A-02WA0_A00 Page 9of 14
10. Timing Characteristics
Characteristic Symbol
Min. Type
Max. Unit
E cycle tC1000 －－ns
E high level width tWH 450 －－ns
E low level width tWL 450 －－ns
E rise time tR－－25 ns
E fall time tF－－25 ns
Address set -up time tASU 140 －－ns
Address hold time tAH 10 －－ns
Data set -up time tDSU 200 －－ns
Data delay time tD－－320 ns
Data hold time (write) tDHW 10 －－ns
Data hold time (read) tDHR 20 －－ns

TG19264A-02WA0_A00 Page 10 of14
11. Display Control Instruction
The display control instructions control the internal state of the LCD module. Instruction is
received from MPU to LCD module for the display control. The following table shows
various instructions.
11.1 Instruction table
Instruction RS
RW
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
Function
Display
On/off 0
00011111D
Controls the display ON or
OFF.The internal status
and the DDRAM data is
not affected.
D=0: OFF; D=1: ON
Set Address
(Y address)
0
001Y address (0~63) Sets the Y address at the
column address counter
Set Page
(X address)
0
010111Page (0~7) Sets the X address at the
X address register.
Display
Start Line 0
011Display start line (0~63) Indicates the Display Data
RAM displayed at the top
of the screen.
Status
Read 0
1Busy
0ON/
OFF
Reset 0
000
Reads the internal status
BUSY
0: Ready
1: In operation
ON/OFF
0: Display ON
1: Display OFF
RESET
0: Normal
1: Reset
Write
Display
Data1
0Write data
Writes data (DB[0:7]) into
the DDRAM. After writing
instruction, Y address is
incriminated by 1
automatically
Read
Display
Data1
1Read data Reads data (DB[0:7]) from
display data RAM to the
data bus.
11.2 Instruction Description
1) Display On/Off
The display data appears when D is 1 and disappears when D is 0.
Though the data is not on the screen with D=0, it remains in the display data RAM.
Therefore,you can make it appear by changing D=0 into D=1.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
000011111D

TG19264A-02WA0_A00 Page 11 of 14
2) Set Address (Y Address)
Y address (AC0~AC5) of the display data RAM is set in the Y address counter.
An address is set by instruction and increased by 1 automatically by read or write
operations of display data.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
0001AC5
AC4
AC3
AC2
AC1
AC0
3) Set Page (X Address)
X address (AC0~AC2) of the display data RAM is set in the X address register.
Writing or reading to or from MPU is executed in this specified page until the next page is
set.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
0010111AC2
AC1
AC0
4) Display Start Line (Z Address)
Z address (AC0~AC5) of the display data RAM is set in the display start line register and
displayed at the top of the screen.
When the display duty cycle is 1/64 or others (1/32~1/64), the data of total line number of
LCD screen, from the line specified by display start line instruction, is displayed.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
0011AC5
AC4
AC3
AC2
AC1
AC0
5) Status Read
RS
R/W
DB7 DB6
DB5 DB4 DB DB2
DB DB0
01BUSY
0ON/OFF
RESET
0000
lBUSY
When BUSY is 1, the Chip is executing internal operation and no instructions are
accepted.
When BUSY is 0, the Chip is ready to accept any instructions.
lON/OFF
When ON/OFF is 1, the display is off.
When ON/OFF is 0, the display is on.
lRESET
When RESET is 1, the system is being initialized.In this condition,no instructions
except status read can be accepted.
When RESET is 0, initializing has finished and the system is in the usual operation
condition.
6) Write Display Data
Writes data (D0~D7) into the display data RAM.After writing, Y address is increased by 1
automatically.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
10D7 D6 D5 D4 D3 D2 D1 D0
7) Read Display Data
Reads data (D0~D7) from the display data RAM.
After reading instruction, Y address is increased by 1 automatically.
RS R/W
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
11D7 D6 D5 D4 D3 D2 D1 D0

TG19264A-02WA0_A00 Page 12 of14

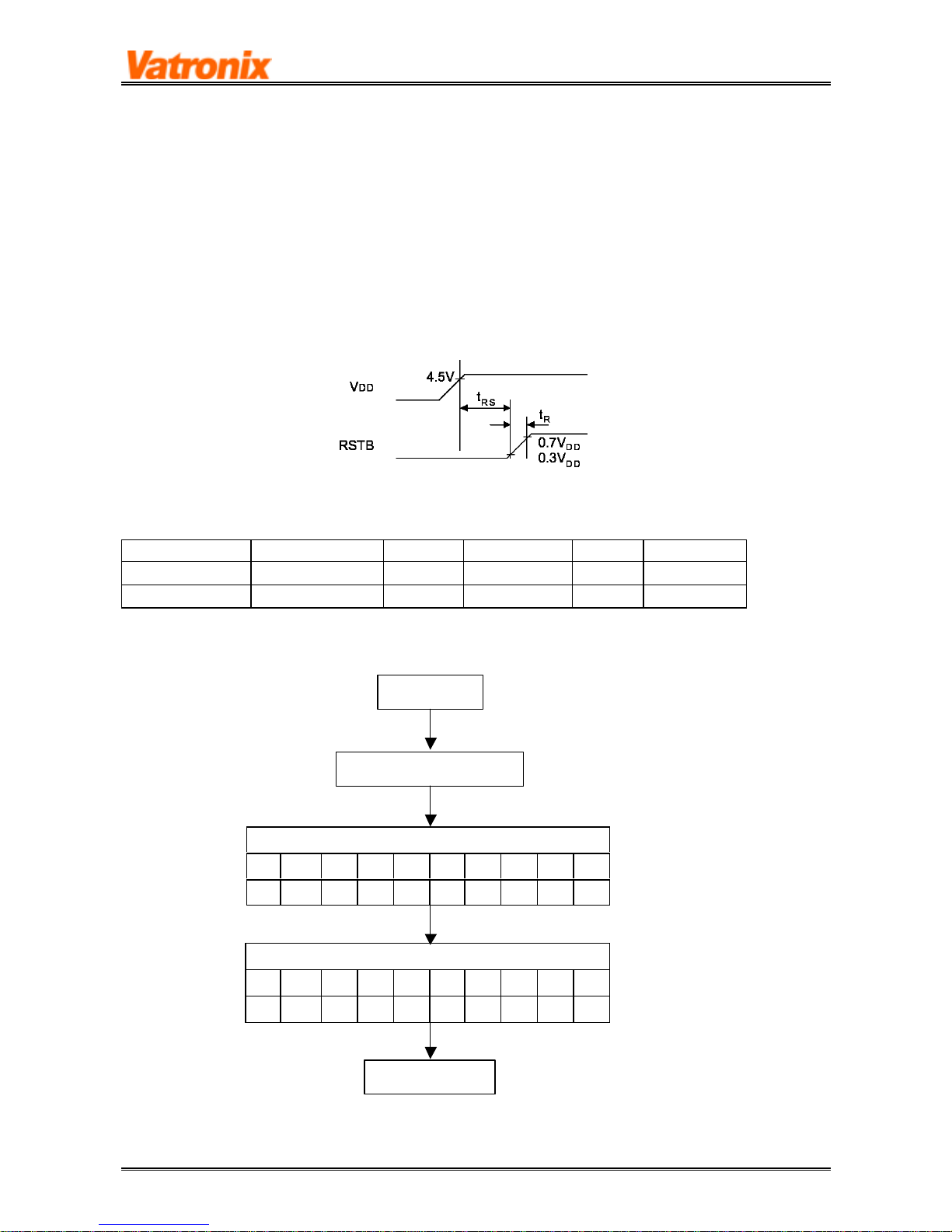

12.Reset and Initializing flow chart
12.1 Reset
The system can be initialized by setting RSTB terminal at low level when turning power on,
receiving instruction from MPU.
When RSTB becomes low, following procedure is occurred.
— Display off
— Display start line register become set by 0. (Z-address 0)
While RSTB is low, No instruction except statusread can be accepted. Therefore, execute
other instructions after making sure that DB4 = 0 (clear RSTB) and DB7 = 0 (ready) by
status read instruction. The Conditions of power supply at initial power up are shown as
follow.
12.2 Initializing flow chart
Item
Symbol
Min
Typ
Max
U
nit
Reset time
t
RS
1.0
-
-
uS
Rise time
t
R
-
-
200
nS
Power on
Wait for more than 30mS
Set Display Start Line to first line
RS
RW
D7
D6
D5
D4
D3
D2
D1
D0
0
011000000
Set Display ON
RS
RW
D7
D6
D5
D4
D3
D2
D1
D0
0
000111111
Initialization End

TG19264A-02WA0_A00 Page 13 of14
13. Display Data RAM map

TG19264A-02WA0_A00 Page 14 of14
14. Revision records
Version
Ref.pages Revision Items Date
A00 All pages New release 2006.05.27
