Touch R700 / Navi 900

4 Introduction
Introduction
General information ....................... 4
Theft-deterrent feature ................... 5
Control elements overview ............ 6
Usage .......................................... 10
General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
Using the FM, AM or DAB radio
functions, you can register a great
number of stations on various
favourites pages.
You can even register music tracks,
telephone numbers, destination
addresses or tone settings on the
favourites pages.
You can connect external data
storage devices, e.g. iPod, USB
devices, or other auxiliary devices to
the Infotainment system as further
audio sources; either via a cable or
via Bluetooth.
The navigation system with dynamic
route planning will reliably guide you
to your destination, and, if desired,
automatically avoid traffic jams or
other traffic problems.
In addition, the Infotainment system is
equipped with a Phone portal that
allows comfortable and safe use of
your mobile phone in the vehicle.
Optionally, the Infotainment system
can be operated using controls on the
steering wheel, a touch pad between
the front seats, or via the speech
recognition system.
The well-thought-out design of the
control elements, the touch screen
and the clear displays enable you to
control the system easily and
intuitively.
Note
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.

Introduction 5
Important information on
operation and traffic safety
9Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before
operating the Infotainment
system.
9Warning
The usage of the navigation
system does not release the driver
from the responsibility for a
correct, vigilant attitude in road
traffic. The related traffic
regulations must always be
followed.
Only make entries (e.g.
addresses) with the vehicle
stationary.
If a navigation instruction
contradicts traffic regulations, the
traffic regulations always apply.
9Warning
In some areas one-way streets
and other roads and entrances
(e.g. pedestrian zones) that you
are not allowed to turn into are not
marked on the map. In such areas
the Infotainment system may
issue a warning that must be
accepted. Here you must pay
particular attention to one-way
streets, roads and entrances that
you are not allowed to drive into.
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to:
■ changes in distance from the
transmitter,
■ multi-path reception due to
reflection,
■ shadowing.
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrence.
The Infotainment system therefore
functions only in your vehicle and is
worthless to a thief.

6 Introduction
Control elements overview
Centre display with controls

Introduction 7
1X knob .................................. 10
If switched off: short press:
switch power on
If switched on: short press:
mute system; long press:
switch power off
Turn: adjust volume
2Display/touch screen ............. 12
3Home screen
(configurable) ........................ 19
4 MENU knob ........................... 13
Turn: mark screen buttons
or menu items; set
numeric values
Press: select/activate a
marked screen button or
menu item; confirm set
value; switch to different
setting option; open
application-specific menu
(if available)
5; button ............................... 13
Press: display Home screen
6 BACK button ......................... 13
Press: return to previous
screen/menu
7v button
Radio: short press: skip to
next station; long press:
seek up ................................. 45
CD player / External
devices: short press: skip
to next track; long press:
fast forward ........................... 51
8d button (if CD player equipped)
Press: eject disc .................... 51
TONE button (if no CD
player equipped)
Press: display tone
settings menu ........................ 39
9t button
Radio: short press: skip to
previous station; long
press: seek down .................. 45
CD player / External
devices: short press: skip
to previous track; long
press: fast rewind .................. 51
10 MEDIA button ........................ 10
Press: activate CD player
or external device
11 RADIO button ........................ 45
Press: activate radio or
change waveband
12 CD slot .................................. 51

8 Introduction
Touch pad
1Touch sensitive area
Operate the menus on the
centre display using multi-
touch gestures ...................... 13
2h button
Press: activate/deactivate
character recognition ............ 22
3 BACK button ......................... 19
Press: return to previous
screen/menu
Long press: return to
Home screen
Left-hand steering wheel control
1s button
Press: take phone call .......... 88
or activate speech
recognition ............................ 78
or interrupt a prompt and
speak directly ........................ 78
2n button
Press: end/decline call .......... 88
or deactivate speech
recognition ............................ 78
or activate/deactivate
mute function ........................ 10

Introduction 9
For a description of all other controls,
see Owner's manual.

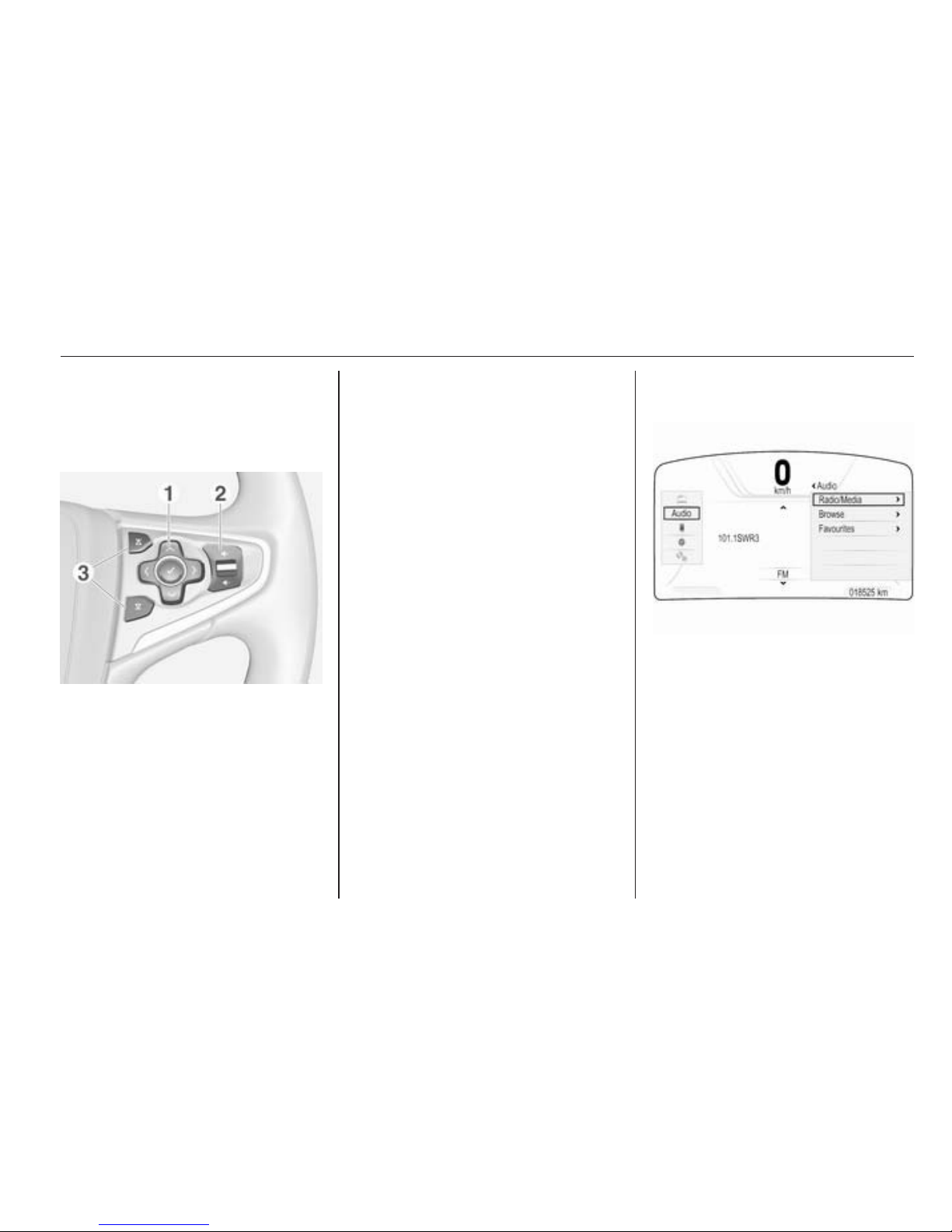

Right-hand steering wheel
control
1Five-way controller ................ 13
Press buttons: operate
menus in the Driver
Information Centre (see
images below)
N button - display menu for
application selection;
return to next higher menu level
j button - display
application-specific main menu
P / Q buttons - select
menu item
9 button - confirm selection
2! / # button .......................... 10
Press upwards: increase volume
Press downwards:
decrease volume
3k / l buttons
Radio: press to select
next / previous favourite ........ 26
Media: press to select
next / previous track .............. 55
Driver Information Centre
(uplevel)
The uplevel Driver Information Centre
enables switching between two
different display modes (themes),
Touring and Sport.
The image above shows the Touring
theme (for changing the display
theme, see Owner's manual).
The menus in the Driver Information
Centre are operated via the five-way
controller on the right-hand side of the
steering wheel.

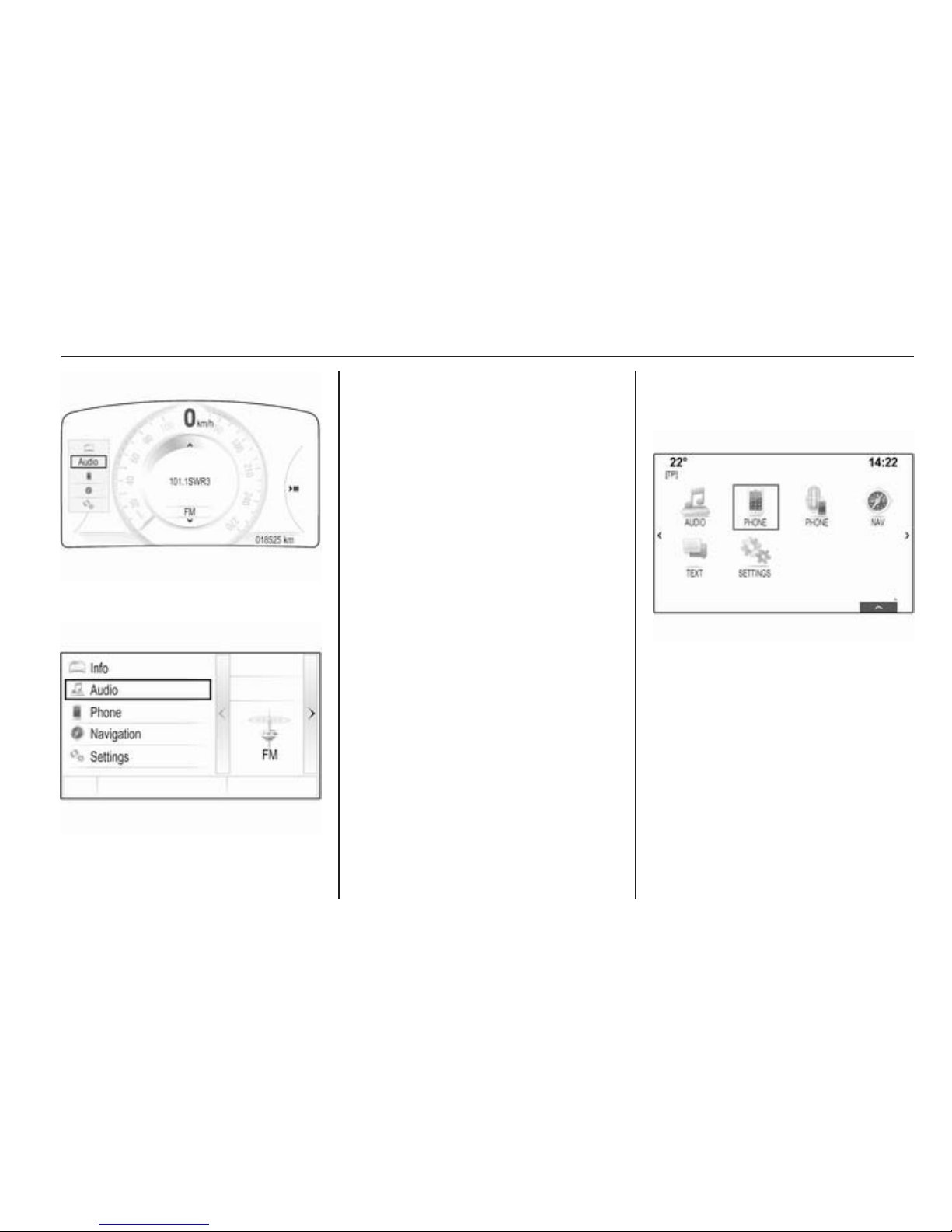

10 Introduction
The Driver Information Centre has
three separate zones:
■ Left zone - displays menu for
application selection
■ Centre zone - displays Infotainment
information and vehicle-specific
information (see Owner's manual)
■ Right zone - displays application-
specific menus.

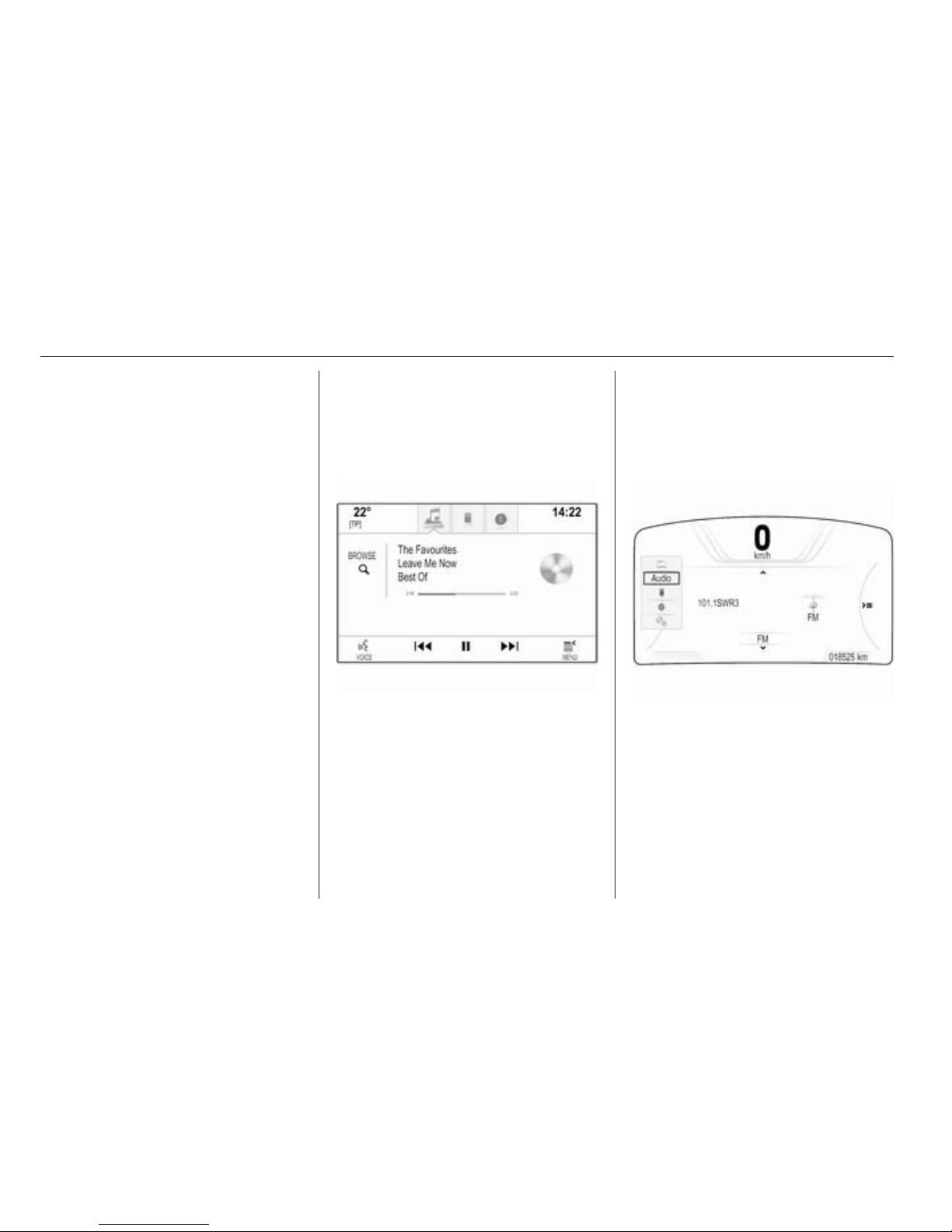

Driver Information Centre
(midlevel)
In the Driver Information Centre,
Infotainment related information and
menus are shown.
The menus on the Driver Information
Centre are operated via the five-way
controller on the right-hand side of the
steering wheel.
Usage
Switching Infotainment system
on/off
Press the X button briefly. After
switching on, the last selected
Infotainment source becomes active.
Automatic switch-off
If the Infotainment system is switched
on using the X button while the
ignition is switched off, it switches off
again automatically after 1 hour.
Setting the volume
Turn the X knob.
The current setting is shown on the
display.
When the Infotainment system is
switched on, the last selected volume
is set, provided that the volume is
lower than the maximum start-up
volume 3 40.
Auto volume
When Auto volume is activated
3 40, the volume is adapted
automatically to compensate for the
road and wind noise while driving.
Mute
Briefly press the X knob to mute the
audio sources.
To cancel mute again: turn the X
knob.
Modes of operation
Radio
Repeatedly press the RADIO button
to activate the radio mode or to
change between the different
wavebands.
Find a detailed description of the
radio functions 3 45.
CD player
Repeatedly press the MEDIA button
to activate the CD player.
Find a detailed description of the CD
player functions 3 50.

Introduction 11
External devices
Repeatedly press the MEDIA button
to activate the playback mode for a
connected external device (e.g. USB
device, iPod or smartphone).
Find a detailed description on
connecting and operating external
devices 3 53.
Navigation
Press the ; button to display the
Home screen.
Tap on the NAV icon to display the
navigation map showing the area
around the current location.
Find a detailed description of the
navigation functions 3 60.
Phone
Press the ; button to display the
Home screen.
Select the PHONE icon.
If a connection to a paired mobile
phone can be established, the main
menu of the phone mode is displayed.
Find a detailed description of mobile
phone operation via the Infotainment
system 3 88.
If no connection can be established,
a corresponding message is
displayed. For a detailed description
of preparing and establishing a
Bluetooth connection between the
Infotainment system and a mobile
phone 3 85.

12 Basic operation
Basic operation
Displays ....................................... 12
Controls ....................................... 13
Menu operation ............................ 19
Keyboards .................................... 22
Favourites .................................... 26
Contacts ....................................... 30
Touch operation overview ........... 35
Tone settings ............................... 39
Volume settings ........................... 40
System settings ........................... 41
Displays
Infotainment and vehicle information
are shown on two separate displays.
Centre display
The centre display is located in the
middle of the instrument panel. It
serves as the main information and
control centre of the Infotainment
system.
Inputs can be optionally made via
buttons on the instrument panel, the
touch screen or the touch pad.
For detailed descriptions, see
chapters "Control elements overview"
3 6 and "Controls" 3 13.
Driver Information Centre
Uplevel, Touring theme:
Uplevel, Sport theme:

Basic operation 13
Midlevel:
The Driver Information Centre is part
of the instrument cluster and shows
Infotainment information as well as
vehicle-specific information (see
Owner's manual).
The Driver Information Centre serves
as an additional information and
control centre for a selection of
important Infotainment functions.
Inputs are made via the five-way
controller on the right-hand side of the
steering wheel.
Find detailed descriptions in "Control
elements overview" 3 6 and
"Controls" 3 13.
Controls
Instrument panel
Find an overview of all instrument
panel controls in "Control elements
overview" 3 6.
MENU knob
The MENU knob is one of the central
control elements for the menus.
Turn:
■ To select a screen button or menu
item.
■ To scroll through a list of menu
items.

14 Basic operation
■ To change a setting value.
Note
The selected item is highlighted by a
red box.
Press:
■ To activate a selected screen
button or menu item.
■ To confirm a changed settings
value.
■ To switch to a different settings
option.
■ To display the application-specific
submenu.
Note
In any but the AUDIO application,
when being on a screen, where
turning the MENU knob does not
execute an application-related
function, the MENU knob may be
used to adjust the frequency (AM or
FM waveband) or skip to the
previous or next station (DAB
waveband).
Home button
Press the ; button on the instrument
panel to access the Home screen.
BACK button
When operating the menus, press the
BACK button to return to the next
higher menu level.
Touch screen
The centre display has a touch-
sensitive surface that allows direct
interaction with the screen.
m screen button
To return to the next higher menu
level, select the m screen button.
Exit screen button
To leave the menu currently active,
select the Exit screen button.
Selecting or activating a screen
button or menu item
Tap on a screen button or menu item.
The corresponding system function is
activated, a message is shown, or a
submenu with further options is
displayed.
Note
In subsequent chapters the
operating steps for selecting and
activating a screen button or menu

Basic operation 15
item via the touch screen will be
described as "...select the...screen
button..." or "...select the...menu
item...".
Moving items
Tap on and hold the element you wish
to move until frame marks appear
around the icons.
Move your finger across the screen.
The element appears as a ghosted
image.
Note
Constant pressure must be applied
and the finger must be moved at
constant speed.
The item previously stored in that
location, and all other items before or
respectively after, shift left or right to
create a gap at the position the new
icon was dragged to. Release the
element in the desired location.
Press one of the buttons on the
instrument panel to exit edit mode.
Note
In subsequent chapters the
operating steps for moving a screen
element via the touch screen will be
described as "...drag the...icon to..."
or "...drag the...menu item to...".
Scrolling lists
If there are more items available than
presentable on the screen, the list has
to be scrolled.
To scroll through a list of menu items,
you may optionally:
■ Place your finger anywhere on the
screen and move it upwards or
downwards.
Note
Constant pressure must be applied
and the finger must be moved at
constant speed.
■ Tap on the o or n screen
buttons at the top and at the bottom
of the scroll bar.
■ Move the slider of the scroll bar with
your finger up and down.
■ In alphabetically ordered lists, tap
on the respective letter in the
vertical keyboard. The list jumps to
the corresponding location within
the list.
To return to the top of the list, tap on
the list title.

16 Basic operation
Note
In subsequent chapters the
operating steps for scrolling a list via
the touch screen will be described as
"...scroll to...list item...".
Scrolling pages
If the available items are organised on
more than one page, e.g. on the
Home screen, the pages have to be
scrolled.
Note
Pages are only scrollable if there is
more than one page set up.
To scroll from one page to another:
■ Place your finger anywhere on the
screen and move it left to scroll to
the previous page or right to scroll
to the next page.
Note
Constant pressure must be applied
and the finger must be moved at
constant speed.
■ If available, tap on the q or p screen
buttons at the left and right side of
the screen.
Note
In subsequent chapters the
operating steps for scrolling pages
via the touch screen will be
described as "...scroll to...page...".
Touch pad
The touch pad has a touch-sensitive
surface that allows additional
functions for menu control on the
centre display. It is located behind the
gearshift lever.
Note
The touch pad provides haptic
(tactile) feedback while it is
operated.
BACK button
Press the BACK button to return to
the previous screen.
Press and hold the BACK button to
return to the Home screen.

Basic operation 17
h button
Press the h button to enter or exit the
character recognition function 3 22.
Selecting a screen button or menu
item
Place your finger on the pad. A hand
cursor appears on the screen.
Depending on the position of your
finger, the system may highlight an
element on the screen.
Note
The cursor disappears after a
certain timeout period.
Move your finger in the direction of the
element you wish to select. The hand
cursor moves from one selectable
screen element to the next.
When the desired element is
highlighted, stop moving.
Press down on the pad to select the
respective element.
Note
In subsequent chapters the
operating steps for selecting and
activating a screen button or menu
item via the touch pad will be
described as "...select the...screen
button..." or "...select the...menu
item...".
Scrolling lists
If there are more items available than
presentable on the screen, the list has
to be scrolled.
To scroll through a list of menu items:
Place two fingers on the pad and
simultaneously move them upwards
or downwards.
Note
In subsequent chapters the
operating steps for scrolling a list via
the touch pad will be described as
"...scroll to...list item...".

18 Basic operation
Scrolling pages
If the available items are organised on
more than one page, e.g. on the
Home screen, the pages have to be
scrolled.
Note
Pages are only scrollable if there is
more than one page set up.
Scrolling Home screen pages
To scroll from one page to another:
Place two fingers on the pad and
simultaneously move them left to
scroll to the next page or right to scroll
to the previous page.
Scrolling favourites pages
To scroll from one favourites page to
another:
Place three fingers on the pad and
simultaneously move them left to
scroll to the next pages or right to
scroll to the previous pages.
Note
In subsequent chapters the
operating steps for scrolling pages
via the touch pad will be described
as "...scroll to...page...".
Steering wheel controls
Find an overview of all relevant
steering wheel controls in "Control
elements overview" 3 6.
Five-way controller
The five-way controller is used to
operate the menus in the Driver
Information Centre.
The five-way controller consists of
four directional buttons and a
confirmation button (9).

Basic operation 19
i (back) button
When operating the submenus in the
Driver Information Centre, the i
button serves as back button.
Press the i button to return to the next
higher menu level.
Selecting an application
To display the menu for application
selection, press the i button.
Repeatedly press the P or Q
buttons to select a menu item.
Press the 9 button to confirm your
selection. The respective application
is activated.
Selecting an application-specific
function
To display the main menu of the
application currently active, press the
j button.
Repeatedly press the P or Q
buttons to select a menu item.
Press the 9 button to confirm your
selection. A submenu with further
options is displayed or the selected
function is activated.
Note
If you are requested to confirm a
function or message in the Driver
Information Centre by pressing SEL
(Select), press the 9 button.
Speech recognition system
Find a detailed description of the
speech recognition system in
"Speech recognition" 3 78.
Menu operation
Home screen
The Home screen is shown on the
centre display.
All applications installed may be
accessed from the Home screen.
The Home screen comprises up to
five pages with up to eight
applications on each page.
Home button
Press the ; button on the instrument
panel to access the Home screen.
If you press the ; button while
already being on the Home screen,
you are returned to the first page.
Activating an application
Select the respective application icon
to launch the application and enter
the application main menu.
The radio and media functions are
selected via the respective buttons.
Note
The icons of unavailable
applications are greyed out.
