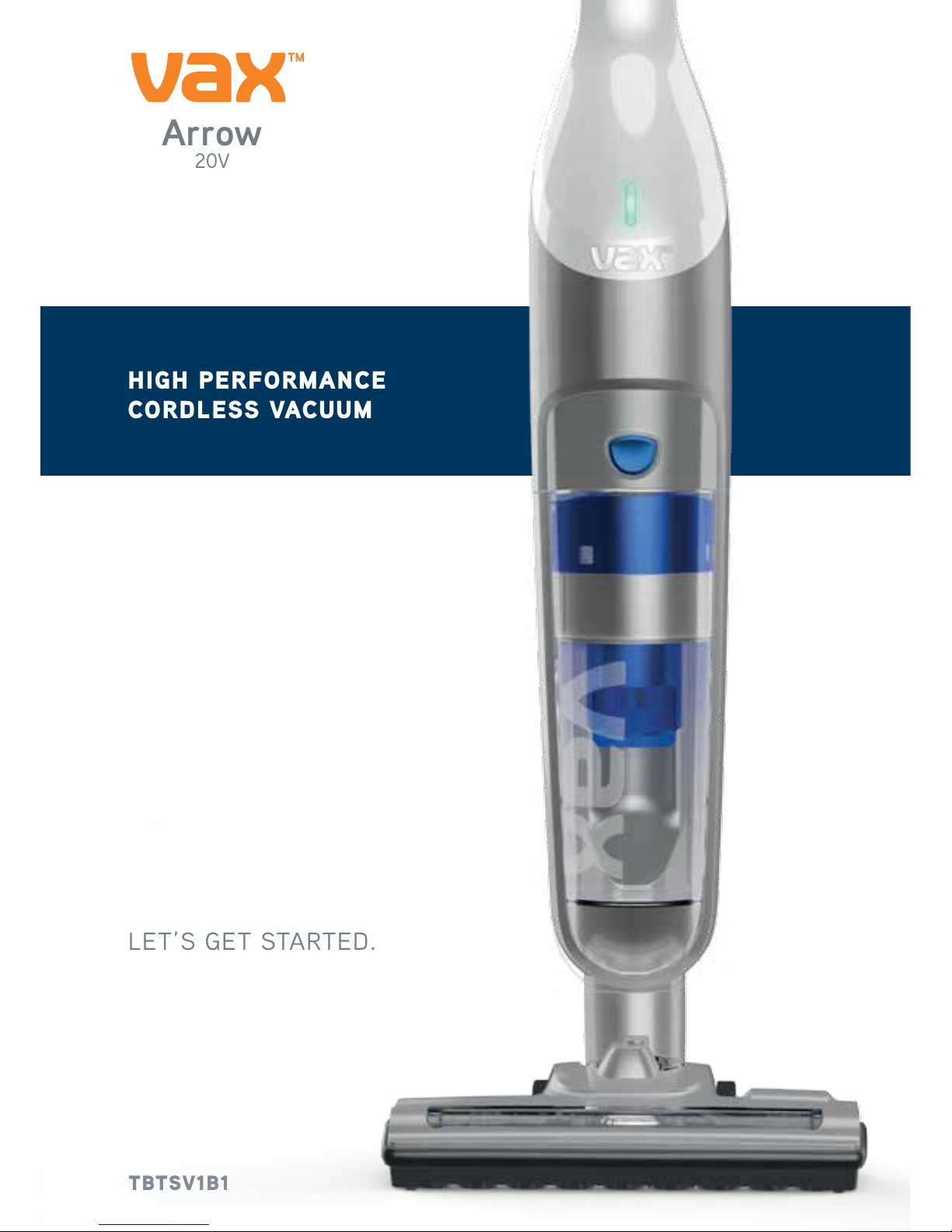

Vax TBTSV1B1 User manual

TBTSV1B1
LET’S GET STARTED.
HIGH PERFORMANCE
CORDLESS VACUUM
Arrow
20V

Let’s talk safety
Basic
safety
precautions
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
• Only use the vacuum cleaner indoors and keep the area
you’re cleaning well lit.
• Keep ngers, hair and loose clothing away from moving parts
and openings whilst using the vacuum cleaner.
• Only Vax recommended tools and accessories should be used
with this vacuum cleaner.
Don’ts
• Don’t charge the vacuum cleaner outdoors, or leave the charger
connected to the mains when not in use.
• Don’t use the vacuum cleaner with the charger plugged into
the mains supply and connected to the vacuum cleaner.
• Don’t use this vacuum cleaner if it has been dropped, damaged,
immersed in water or left outdoors.
• Don’t handle the charger plug or use the vacuum cleaner
with wet hands.
• Don’t run over the charger cord or use the vacuum cleaner if the
charger cord or plug is damaged. Please contact our Customer
Care Line on: 0330 026 8455.
Do’s
• Always make sure the lter and dirt container are tted
correctly before using your vacuum cleaner.
• Always turn o and unplug the vacuum cleaner from the
charger before carrying out any maintenance.
• Turn o all controls on the vacuum cleaner before
disconnecting or connecting the charger.
• Take extra care when cleaning on the stairs.
• Always protect the charger cord from heated surfaces
or when near open ames.

• This vacuum cleaner can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the vacuum cleaner in a safe way and
understand the hazards involved. Children should not play with the vacuum
cleaner. Cleaning and user maintenance should not be made by children
without supervision.
• Don’t use the charger cord as a handle, pull the charger cord around corners
or sharp edges or close a door over the charger cord. Don’t unplug charger
by pulling on the charger cord.
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your vacuum cleaner.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Don’t use this vacuum cleaner to vacuum up liquids.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Always carry the vacuum cleaner by the carry handle.
• Store your vacuum cleaner in a cool, dry area.
Please keep instructions for further use.

Thank you for buying this Cordless vacuum.
Taking care of your carpets and hard oors
This user guide will help you get the most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer
and Vax will help you take good care of them.
Taking care of your cordless vacuum
Also inside this guide are instructions on maintaining your new machine, so that it’s ready
when you are to tackle your carpets and hard oors.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit our online support:
vax.co.uk/support
Still need to get in touch?
Our UK based Customer Care Team are here to support you - for help with assembly,
operational/performance problems or buying and tting new accessories. Whether you wish to chat,
use Facebook, Twitter or call, you can nd all our contact details at vax.co.uk/contactus
This user guide can be found online at: vax.co.uk/support

Contents
Arrow 20V
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
Notes
What to do if it goes wrong
Getting in touch
Included with
your machine
Battery
Charger
Wall Clip

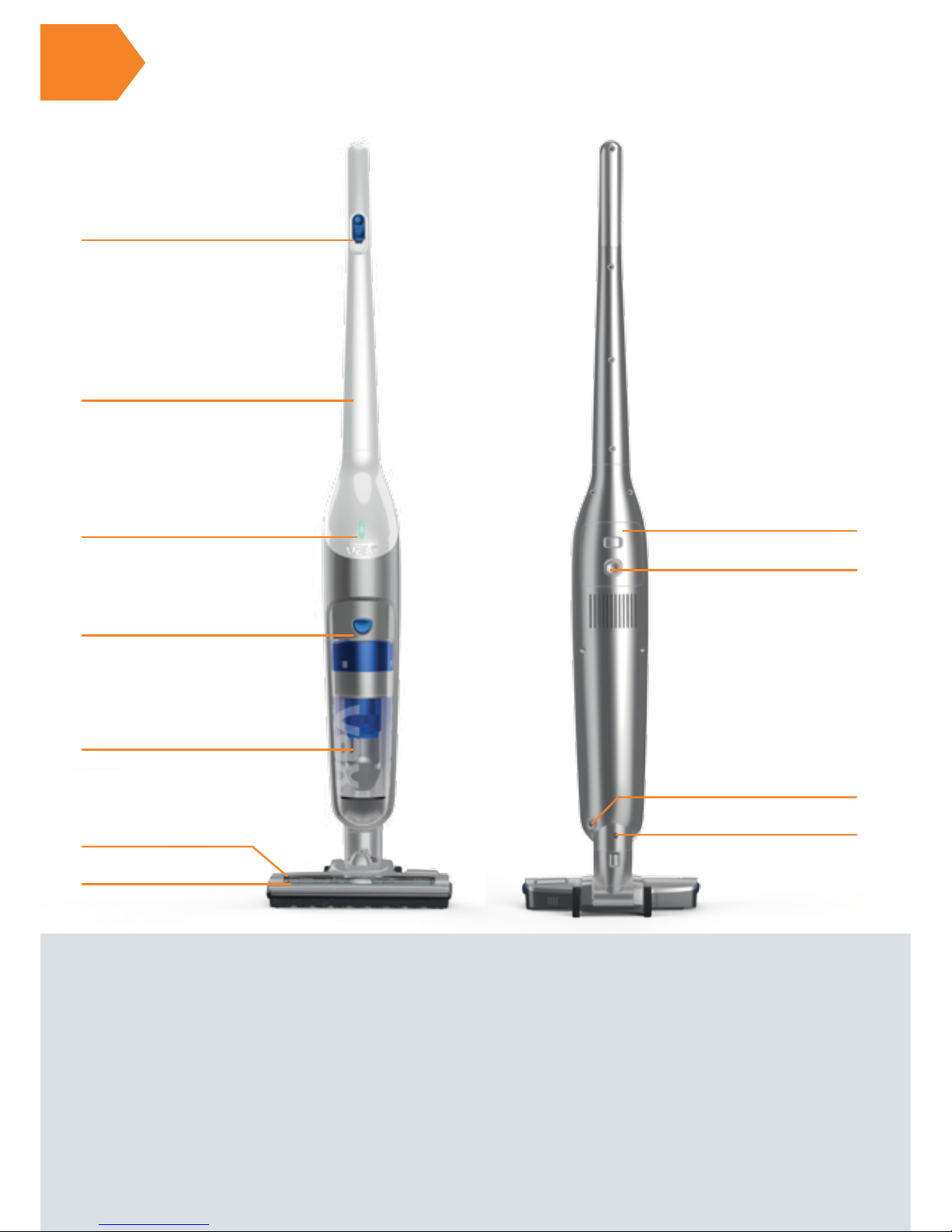

Getting to know your machine
Name Arrow 20V
Battery voltage See product rating label
Run time 35 minutes*
Charge time 4 hours
Weight 2.56 kg
Dust bin capacity 0.6l
Technical Specication
Subject to technical change without notice. Images are illustrative only. * Tested in low speed mode on hardoor.

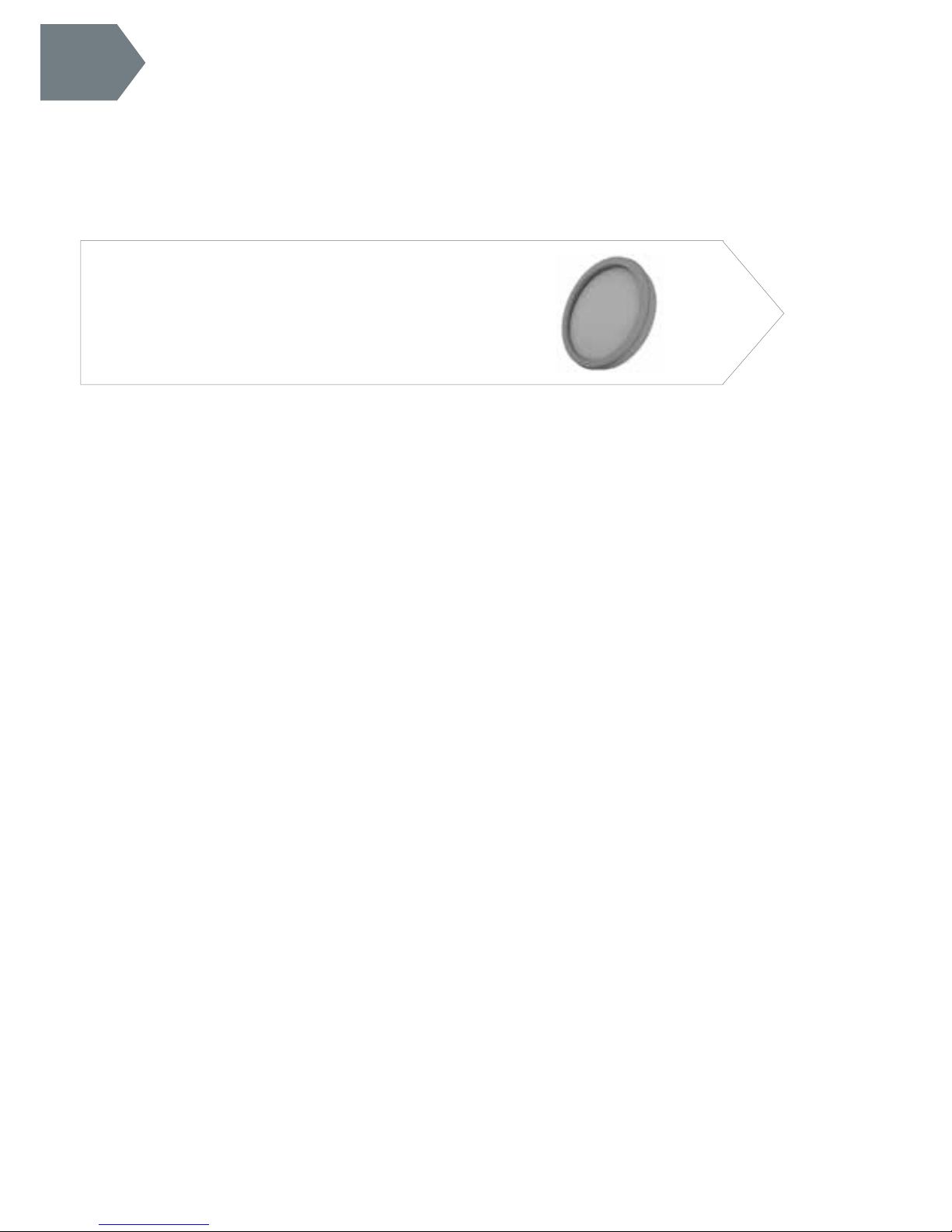

Pre-motor lter
1-7-138168
Accessories & Consumables
To purchase consumables and
accessories, please visit vax.co.uk
On/o and suction control switch
Handle
Dirt container release button
Dirt container
LED indicator charge light Battery cover
Battery cover release button
Machine charging port

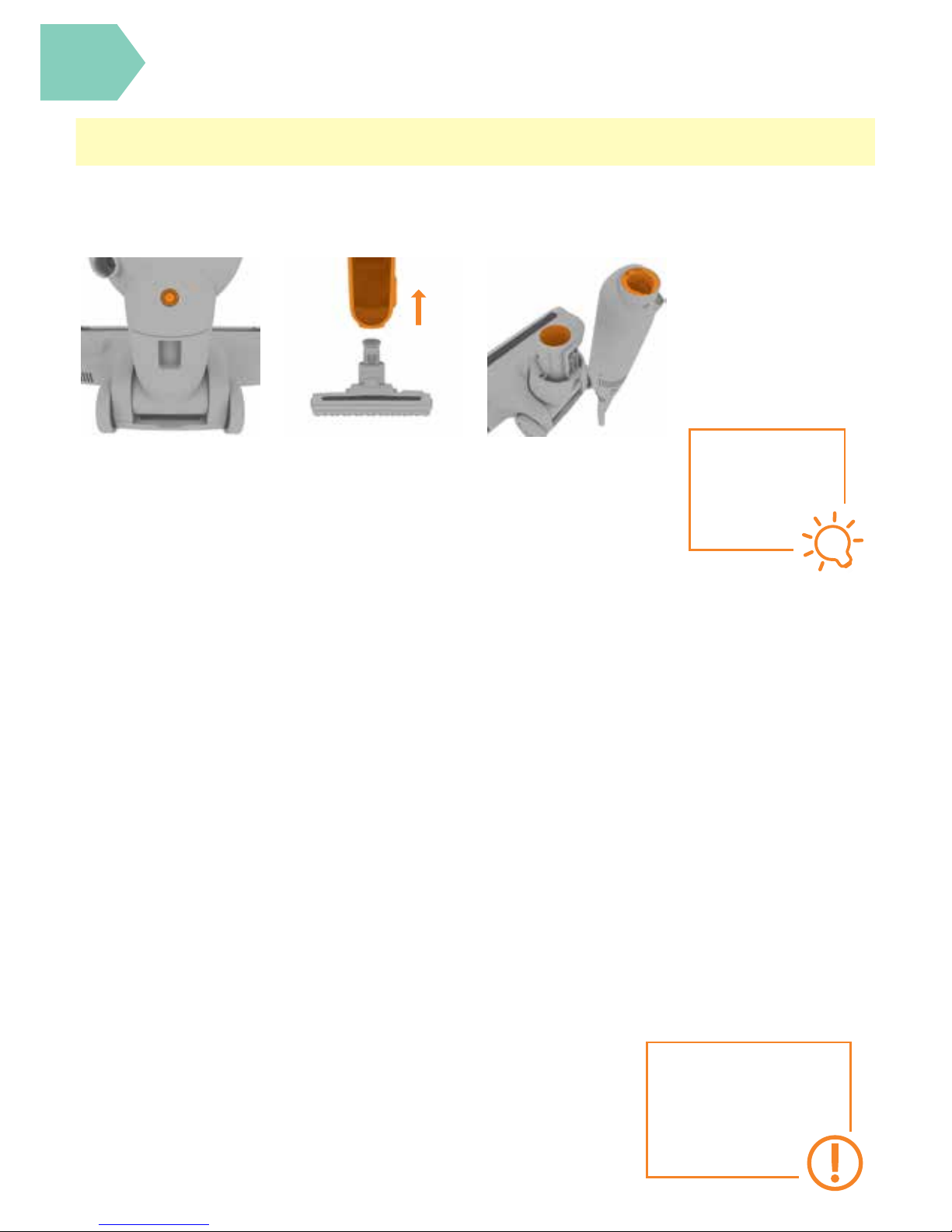

Floorhead release button
Floorhead
Brushbar

Getting started

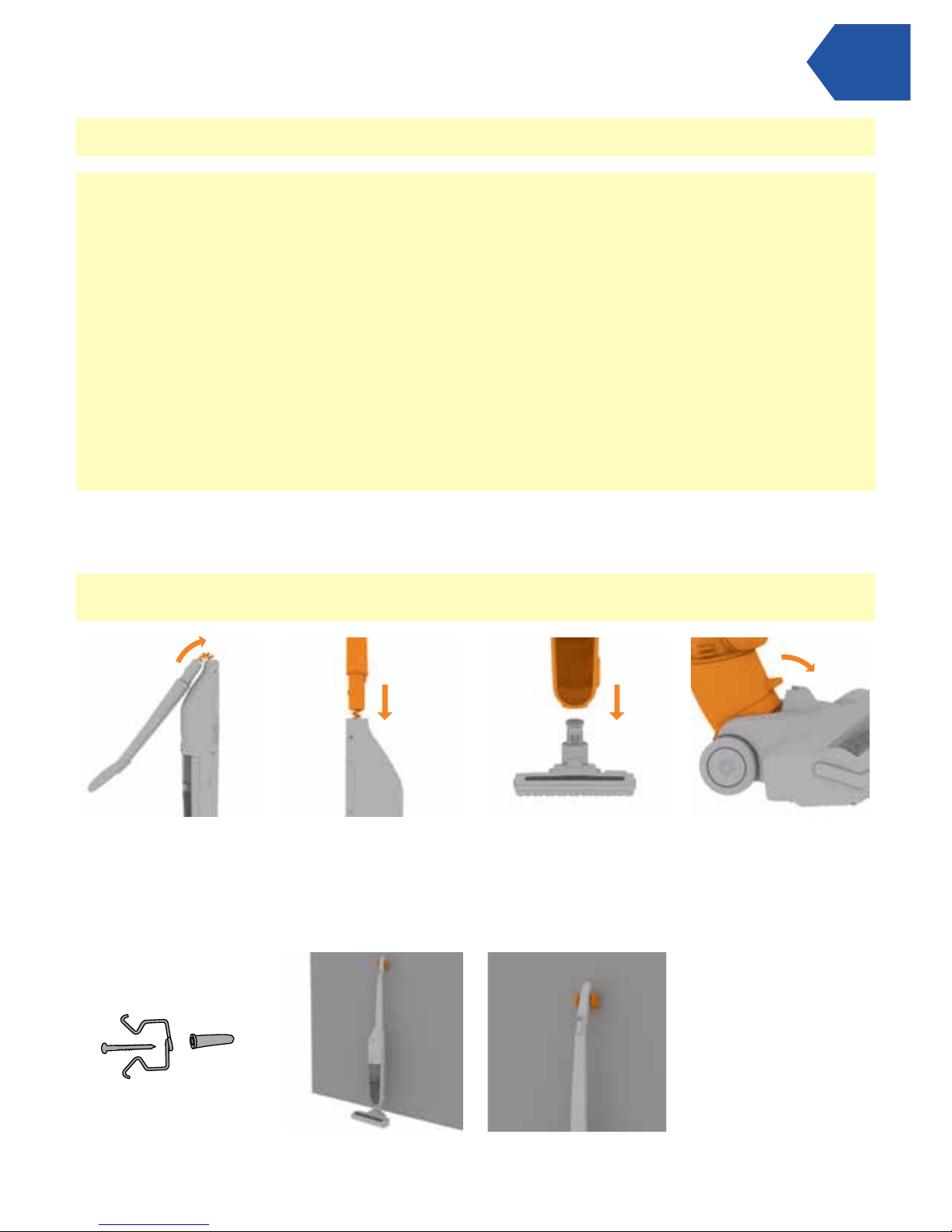

Assembling your cordless vacuum cleaner
Lift the handle in a hinge like manner and line up with
the main body. Make sure the cable attached to both the
handle and main body is inside the main body and does
not become trapped. Push the handle down into the
main body until it clicks securely into place.
Fix the wall clip to your wall using the screw and wall plug provided. During storage
and charging, secure your vacuum cleaner handle into the wall clip.
Line up the oorhead
and main body. Push
the main body down
onto the oorhead to
secure into place.
Push the main body
forward to lock the
oorhead into place.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the charger or removing and
emptying the dirt container.
IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does
overheat the thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o.

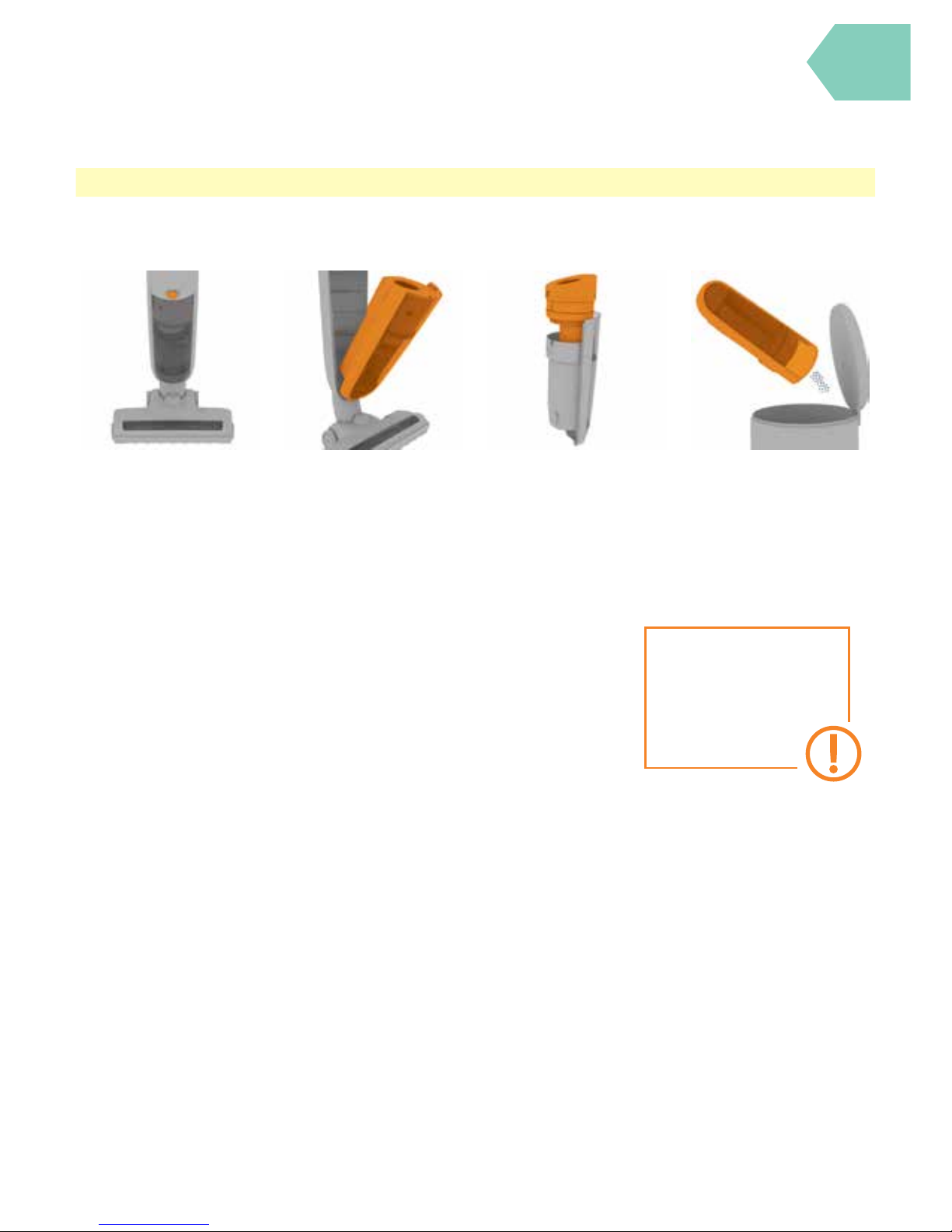

Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to cool
for approximately 1 hour (if you have cleaned the lter please wait 24 hours for the lter to fully dry before putting
back into the machine).

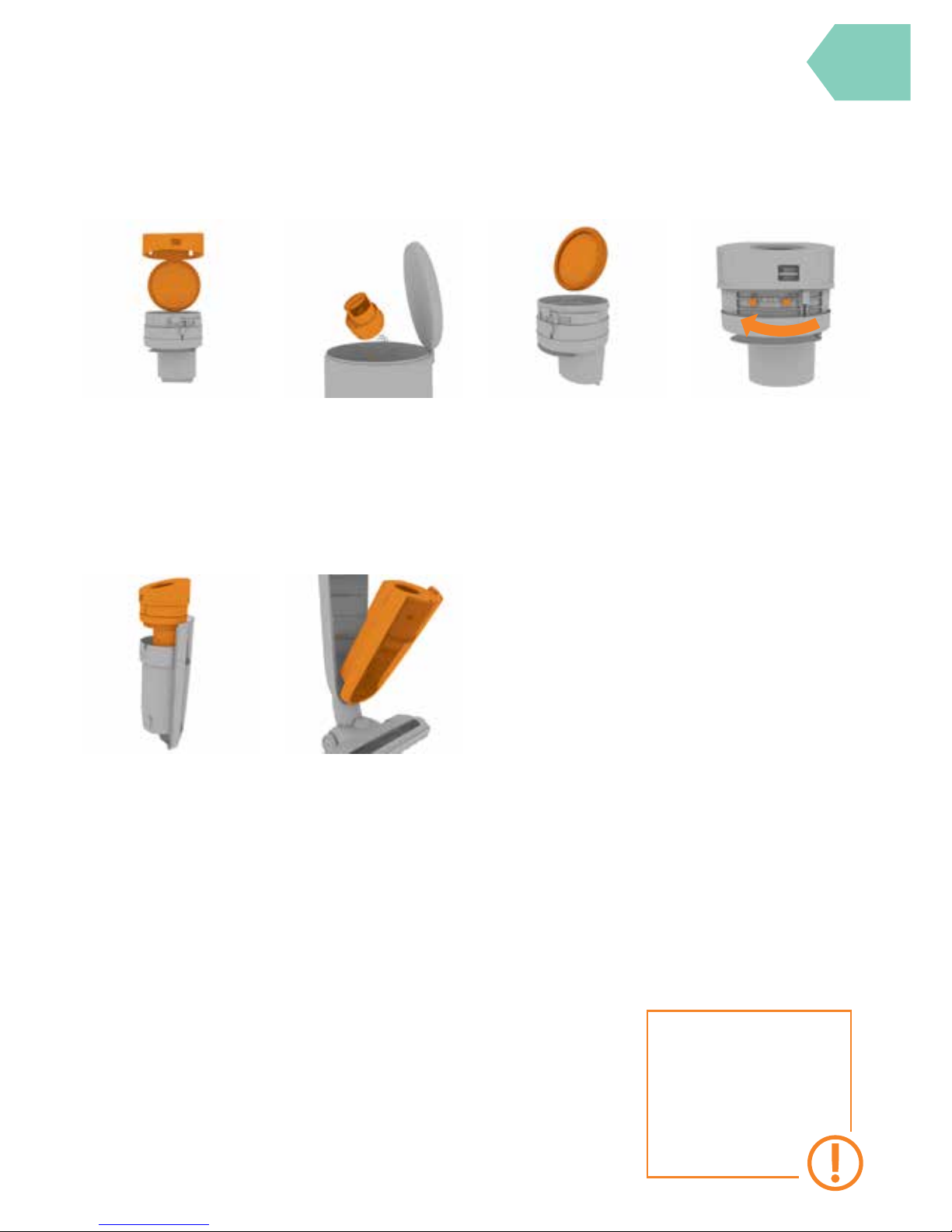

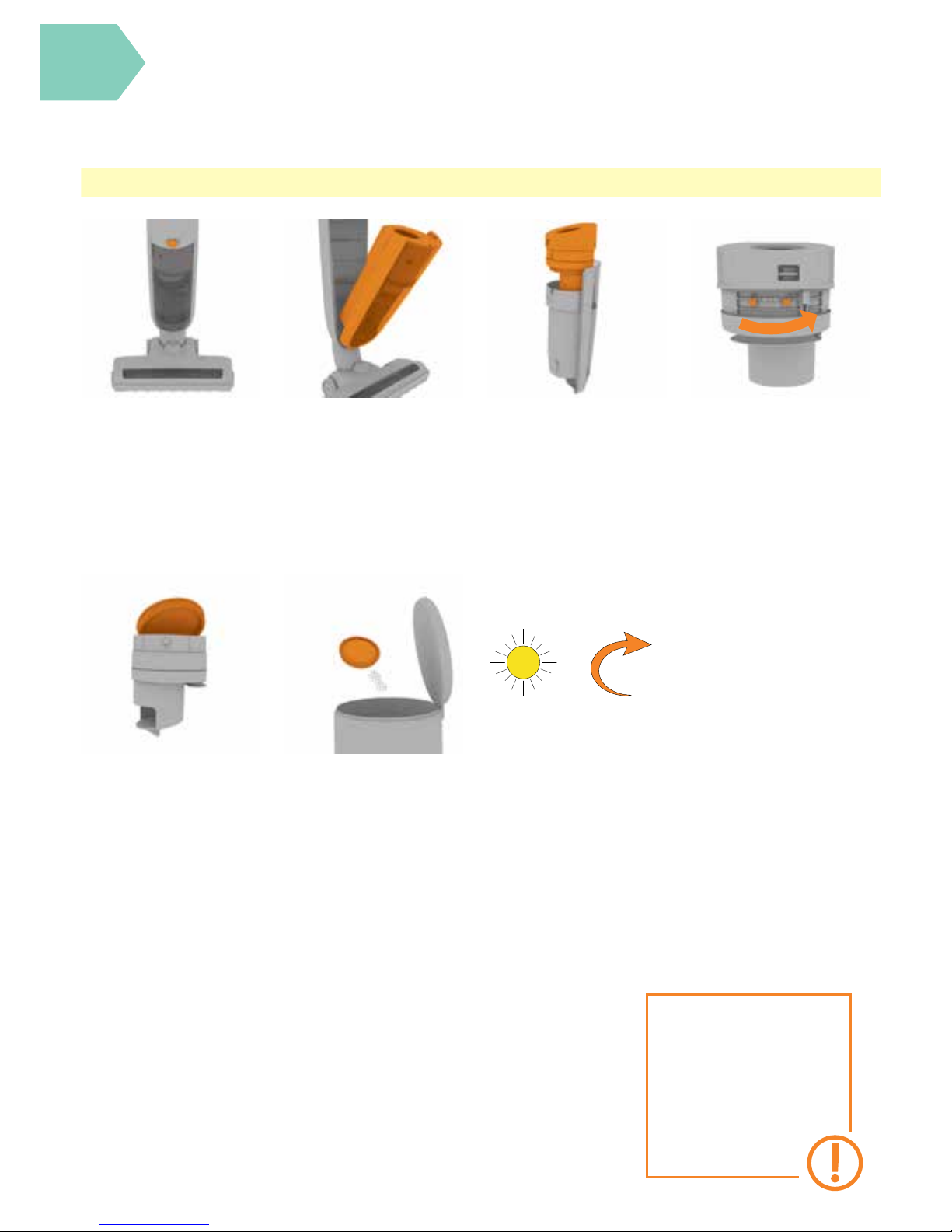

For best cleaning results, lters require cleaning every 4-6 uses or as needed depending upon use. (Refer to ‘Taking
care of your machine’ – Cleaning the lter).
If the vacuum cleaner is blocked, switch o before removing the blockage.
CAUTION: This vacuum cleaner has a constantly rotating brushbar. Never leave the vacuum cleaner in one spot for
an extended period of time as this may damage the oor surface.
CAUTION: Take extra care when assembling the handle. Make sure the cable is correctly inserted inside the main
body and does not become trapped between the main body and handle.

Getting started

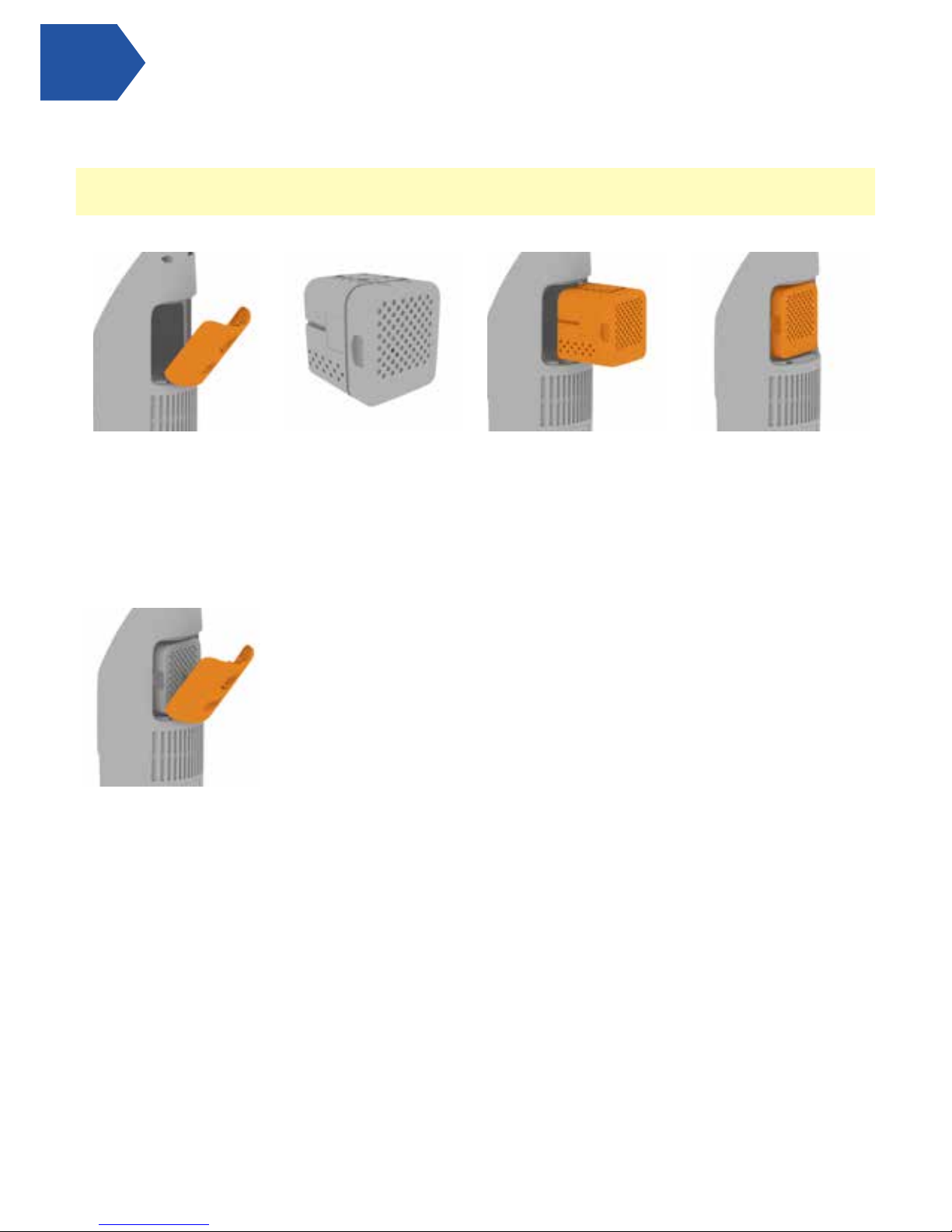

Installing the battery
Squeeze the battery cover
release button and pull
to remove the battery
cover located on the
back of the machine.
Line up the battery cover
and clip into place.
The battery connector
should be positioned at
the bottom of the battery
when installing.
Line up the battery with
battery compartment.
Push the battery into the
battery compartment until
secured into place.
CAUTION: The battery remains permanently installed inside the cordless vacuum once correctly tted. There is no
need to remove it for charging.

Plug the charger into the
charging port located on
the back of the machine,
towards the bottom. Plug
charger into mains.
The LED indicator charge
light will illuminate red
when charging. Once fully
charged the LED indicator
charge light will illuminate
green.
When the vacuum needs
recharging the LED
indicator charge light will
illuminate red and ash
on/o, the machine will
then cut out.
Charging your cordless vacuum cleaner
Getting started
IMPORTANT: Always unplug the charger from the mains and machine charging port before carrying out any
maintenance or troubleshooting checks. Never use the machine with the charger attached and plugged into the mains.
NOTE: The initial charge is 4 hours, charging will be required before rst use.

Using your machine

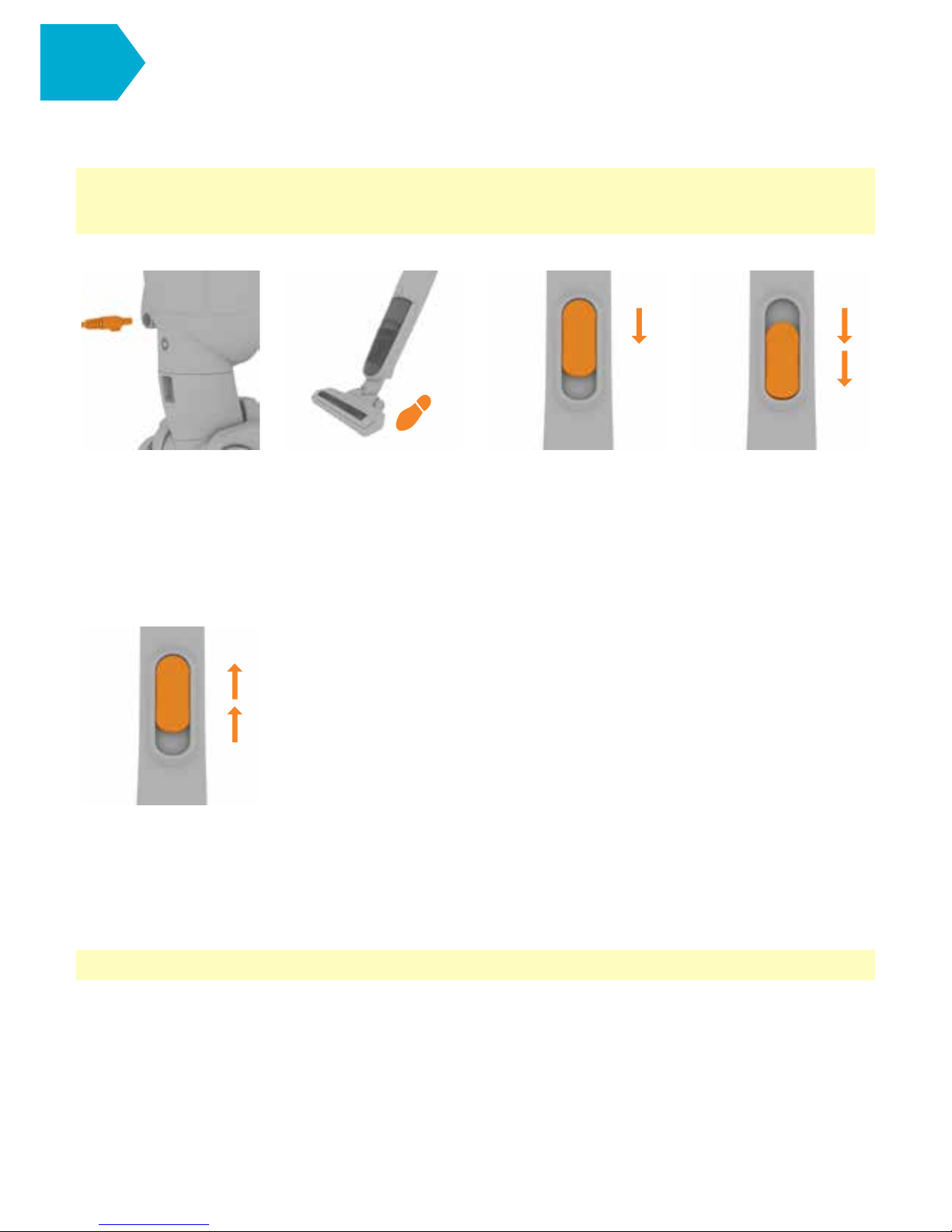

Using the vacuum cleaner
Unplug the charger from
the mains and from the
machine charging port.
Slide the on/o suction
control switch all the way
back to switch the power
and LED light ‘O’.
Place foot on the
oorhead and pull
the handle backwards
to recline.
Slide the on/o suction
control switch forward
once for low suction.
The LED indicator charge
light will illuminate green,
indicating the power is on
and the brushbar will spin.
Slide the on/o suction
control switch forward
again for max suction.
CAUTION: The brushbar will constantly rotate. Never leave the vacuum cleaner in one spot for an extended period
of time as this may damage the oor surface. Vax cannot be held responsible for damage to the oor surface if the
customer fails to take notice of this recommendation.
NOTE: The brushbar will continue to rotate when the vacuum cleaner is switched on and in the upright position.
