Vax U85-ACLG-BA User manual

CORDLESS VACUUM WITH
LIFT-OUT CYLINDER
U85-ACLG-BA
U85-ACLG-B
GET CORDLESS
LET’S CHANGE THE WAY
YOU CLEAN

Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This vacuum cleaner is intended for household use only and
NOT for commercial or industrial use. It is a battery-operated
appliance, the battery being charged outside the appliance.
• Only use the vacuum cleaner indoors and keep the area
you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the vacuum cleaner.
• Don’t use this vacuum cleaner if it has been dropped, damaged,
immersed in water or left outdoors.
• Don’t handle the charger plug or use the vacuum cleaner
with wet hands.
• Don’t run over the charger cord or charge the vacuum if the
charger cord or plug is damaged. Please contact
our Customer Care Line on: 0330 026 8455
(Mon-Fri 8:30am to 6:30pm, Sat 9:00am to 5:00pm).
• Always make sure the lter and dirt container are tted
correctly before using your vacuum cleaner.
• Always turn o and remove the battery from the vacuum
cleaner or charger before carrying out any maintenance.
• Turn o all controls on the vacuum cleaner before
disconnecting or connecting the battery.
• Take extra care when cleaning on the stairs.
• Always replace the fuse in the plug with a British 3amp fuse.

• This vacuum cleaner can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the vacuum cleaner in a safe way and understand the
hazards involved. Children should not play with the vacuum cleaner. Cleaning
and user maintenance should not be made by children without supervision.
• Only Vax recommended tools and accessories should be used with this
vacuum cleaner.
• Keep the charger and batteries in a dry place, and use them indoors only.
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your vacuum cleaner.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t try to short the terminals of the battery and the charger.
• Always protect the charger cord from heated surfaces or near open ames.
• Use only CE approved 13amp extension cords, non-approved extension
cords may overheat. Care should be taken to arrange the extension cord
as it can be a trip hazard.
• Always carry the vacuum cleaner by the handle.
• Store your vacuum cleaner, charger and battery in a cool, dry area.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.

Thank you for buying this Air Cordless Lift.
Taking care of your carpets and hard oors
The Air Cordless Lift is designed to make vacuuming carpets and hard oors regularly,
as eective and ecient as possible and this user guide will help you get the most out
of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer.
You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you
take good care of them.
Taking care of your Air Cordless Lift
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets and hard oor.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd, Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK
This User Guide can be found online at: vax.co.uk/support

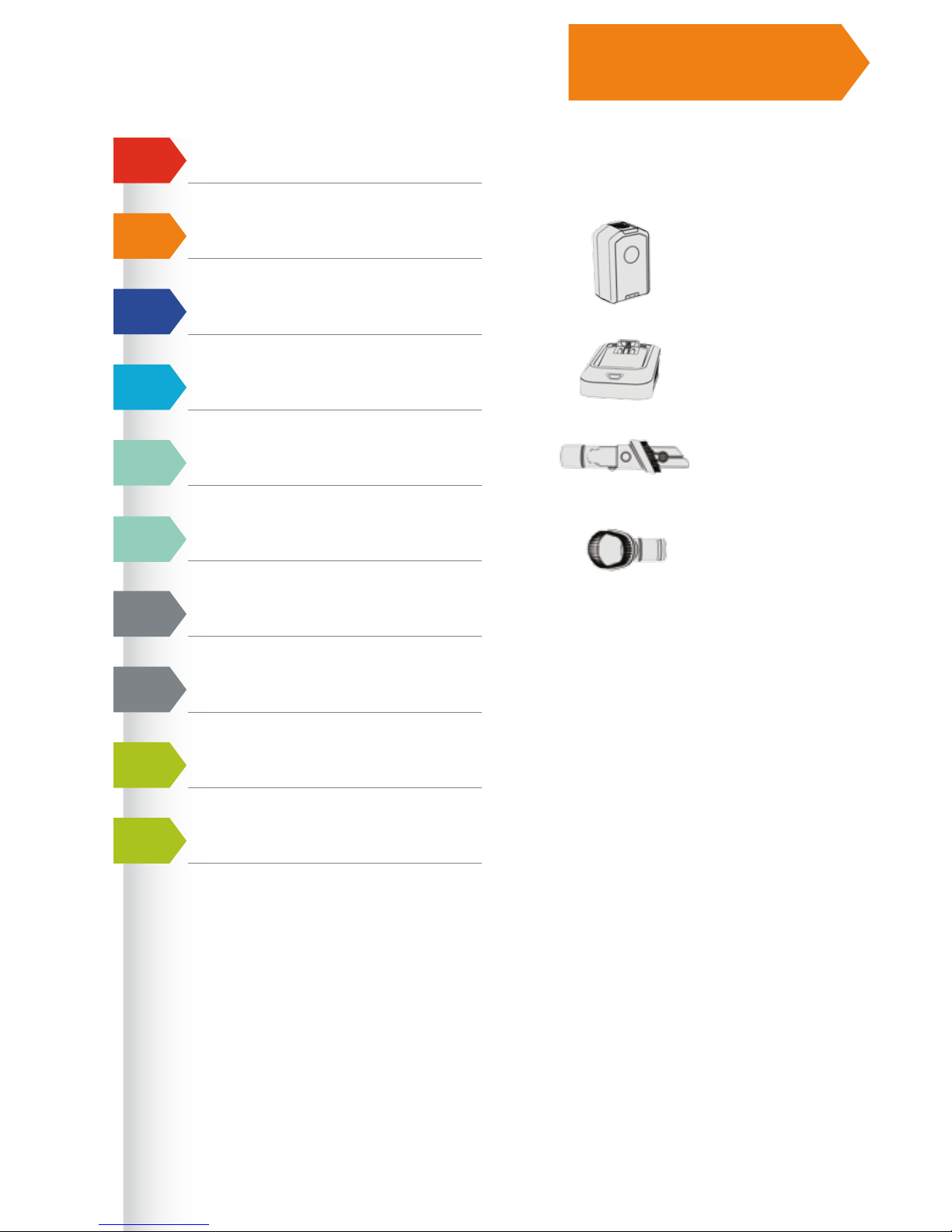

Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Notes
Accessories
What to do if it goes wrong
Getting in touch
LithiumLife™extended
runtime batteries*
Included with
your machine
Battery charger
2-in-1 tool
Articulating up-top tool
Air™ Cordless Lift
*Dependant on model

* Subject to technical change without notice.
Technical Specication*
Name Air Cordless Lift Solo
Battery voltage 20V
Weight 5.1kg
Part number 1-1-136463-00
Dirt container capacity 1.L
Battery Specication*
Type Lithium-Ion rechargeable
battery pack
Nominal voltage 20VDC
Capacity 4Ah/72Wh
Battery Model No. BH03120UK
Battery Charger Specication*
Model No. BH03200UK
U85-ACLG-BA
Technical Specication*
Name Air Cordless Lift Duo
Battery voltage 20V
Weight 5.1kg
Part Number 1-1-135228-00
Dirt container capacity 1.L
U85-ACLG-B
Accessories & Consumables
Battery Charger 1-1-134171-00
LithiumLife Battery 1-1-134164-00
2-in-1 Tool (Type 2) 1-1-132115-00
Filter Kit 1-1-135641-00

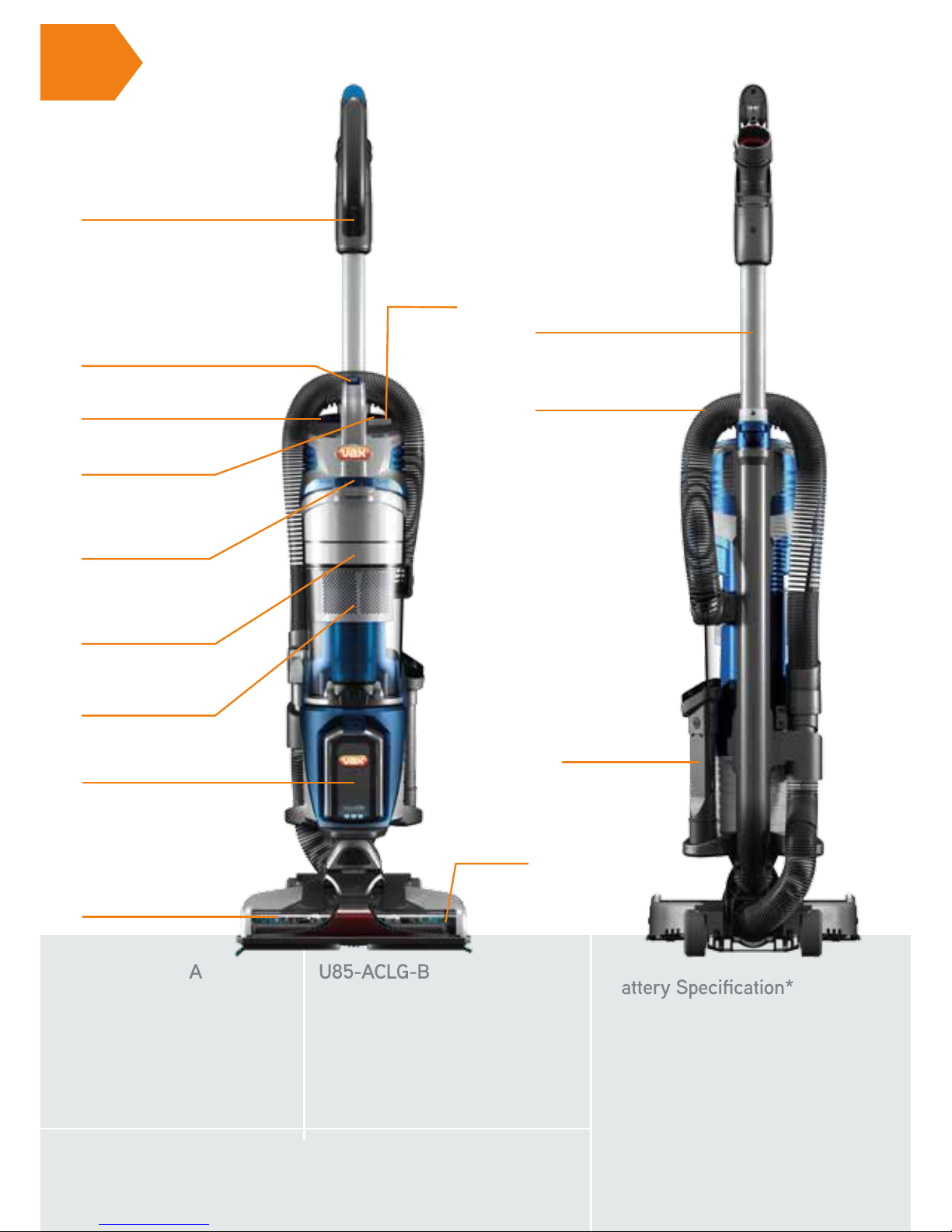

Getting to know your machine
Extension tube
Hose
Brushbar On/O button
On/O button
Boost
button
Dirt container
release button
Pre-motor
lter (hidden)
Separator
Main body
release button
Getting started
Battery
Brushbar
2-in-1 tool
Handle
Floorhead

* Subject to technical change without notice.
Getting started
PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not disassemble
or heat above manufacturer’s maximum temperature limit (60° C/140°F) or incinerate. Replace battery with a Vax battery
only. Use of another battery may present a risk of re or explosion. Dispose of used battery promptly. Keep away from
children. Do not disassemble and do not dispose of in re. Do not attempt to disassemble the battery or remove any
component projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury
may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. The battery
must be recycled or disposed of in an environmentally sound manner.
CAUTION: For best performance terminals on battery,
battery charger and vacuum cleaner must be clean
and free from dust and dirt.
NOTE: The life expectancy of the battery will vary
depending on the usage of the vacuum cleaner.
If you require a replacement battery contact us
- Vax Careline: (UK) 0330 026 8455.
Charging the battery
Fit the battery onto the battery charger. The battery charger light will turn blue when charging.
If a red light appears an error has occurred, remove the battery and re-t. The battery will be fully
charged after 10 hours and the charger light will turn o.
Removing the battery from charger
Press the release button on the battery, hold the base of battery charger
and lift the battery to remove.
Getting started with your LithiumLife™battery:
IMPORTANT: The battery will need charging before rst use. Do not attempt to charge non rechargeable batteries.
TIP
The battery can remain
on the battery charger once
fully charged.
25% Charged
50% Charged
75% Charged

Getting started

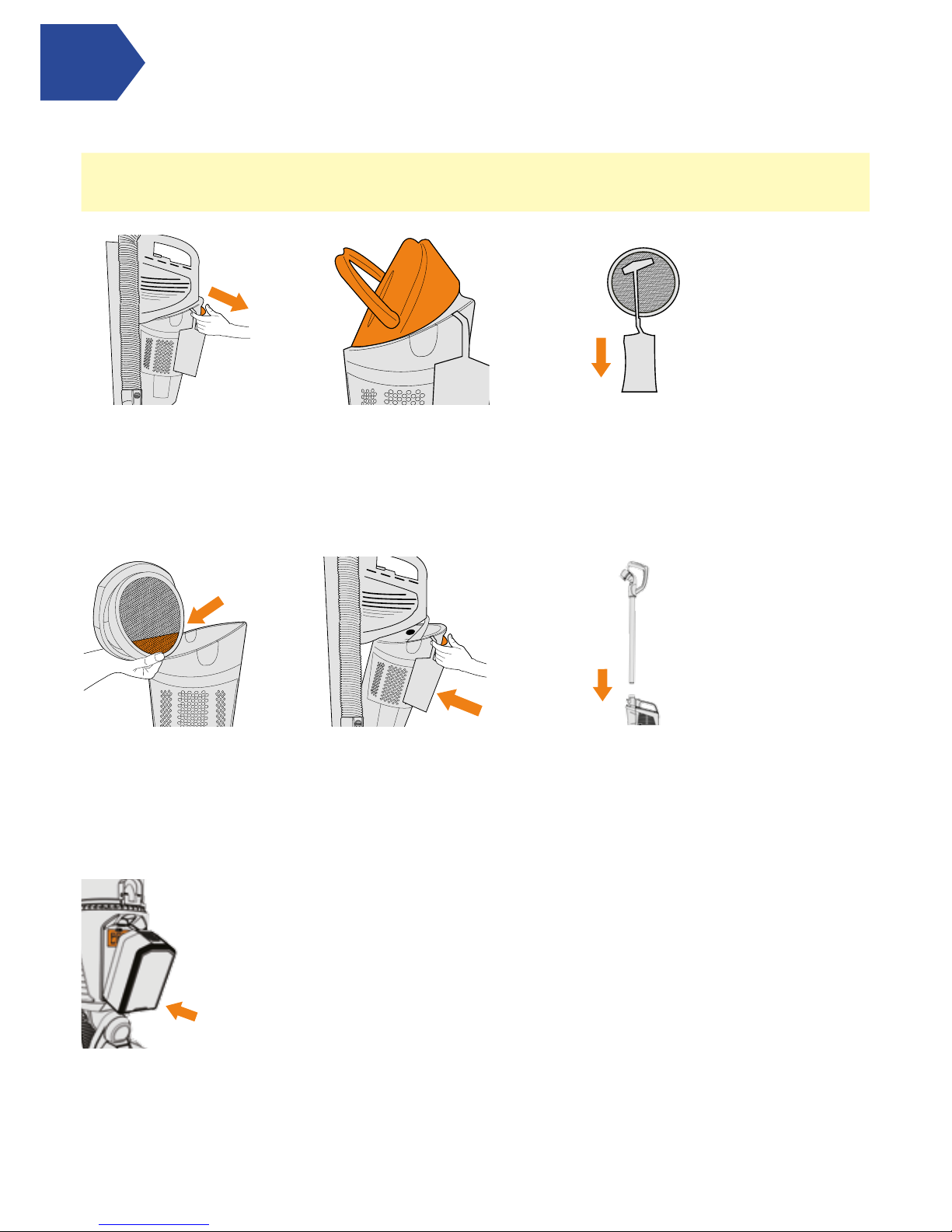

Press the dirt container
release button. Pull and
remove the dirt container
o the vacuum cleaner.
Make sure the tab on the
pre-motor lter is visible
when re-tting the pre-motor
lter and assembly into the
dirt container.
Lift the handle on the
pre-motor lter assembly.
Remove the lter assembly
from dirt container.
Tilt clean dirt container
and line up onto main
body of vacuum cleaner.
Push dirt container back
until it clicks into place.
The lter insert is attached
to the pre-motor lter under
the lter assembly. Pull and
remove the lter insert.
Push the handle into
the body of the vacuum
cleaner. The handle will
click into position when
correctly tted.
Assembling your vacuum cleaner
CAUTION: The motor is contained in the dirt container lid, always make sure the pre-motor lter is correctly tted before
using the vacuum cleaner. Loss of suction may be experienced if the lter insert is not removed before use.
Fit the battery onto the
vacuum cleaner (below the
dirt container). The battery
will click into position when
correctly tted.

Getting started
Using your machine
CAUTION: When the vacuum is reclined with the brushbar switched on, never leave the vacuum in one position for any
long periods of time. The brushbar should be ON for carpets and OFF for hard oors.
TIP
The dirt container has a peel o
sticker which you can remove
if you wish.

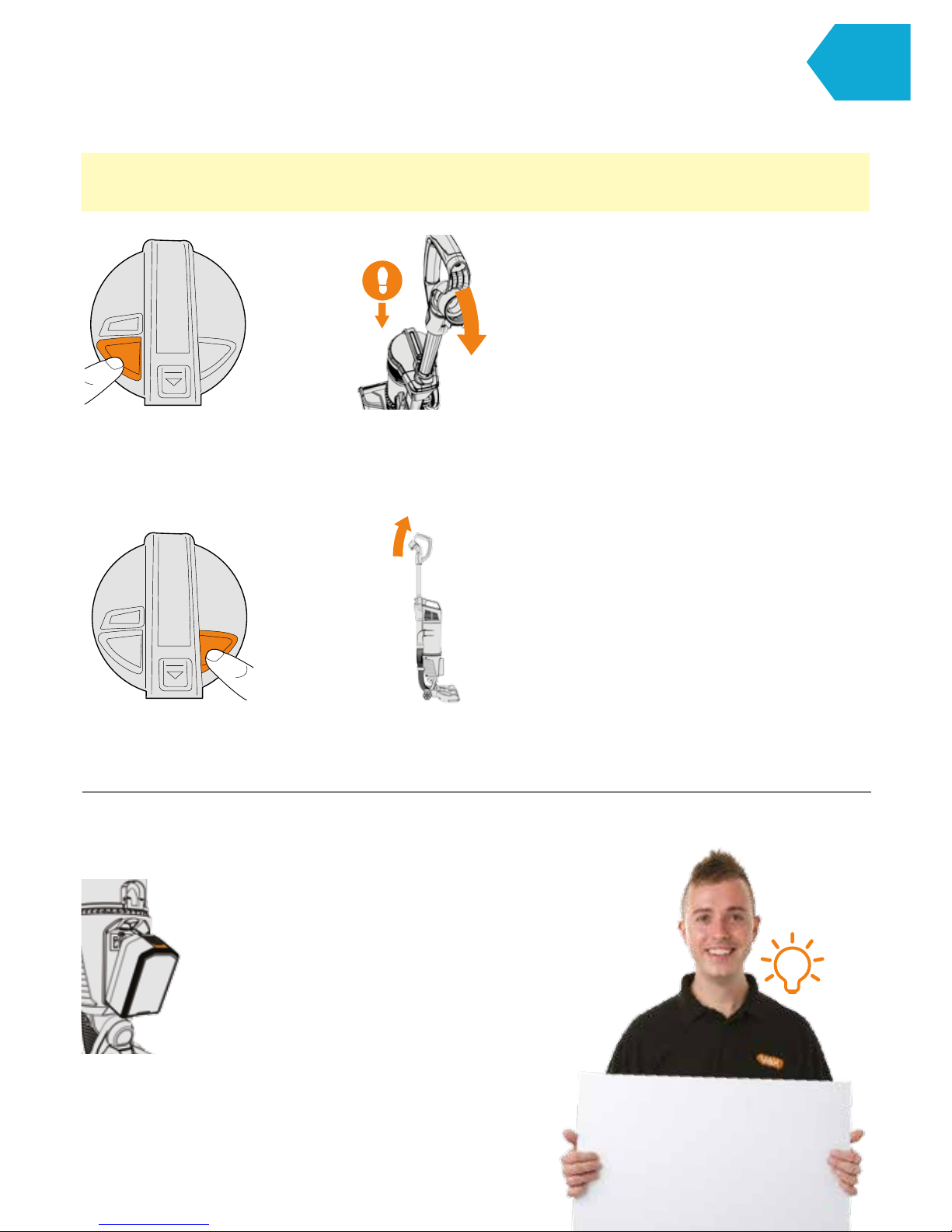

Press the On/O button
to switch the vacuum
cleaner on.
Place your foot on the
base and pull the handle
backwards to recline.
Press the brushbar button
to activate the brushbar.
Hold the battery securely
and press the release
button on the top of the battery.
Stand the vacuum cleaner
in the upright position
to use the hose.

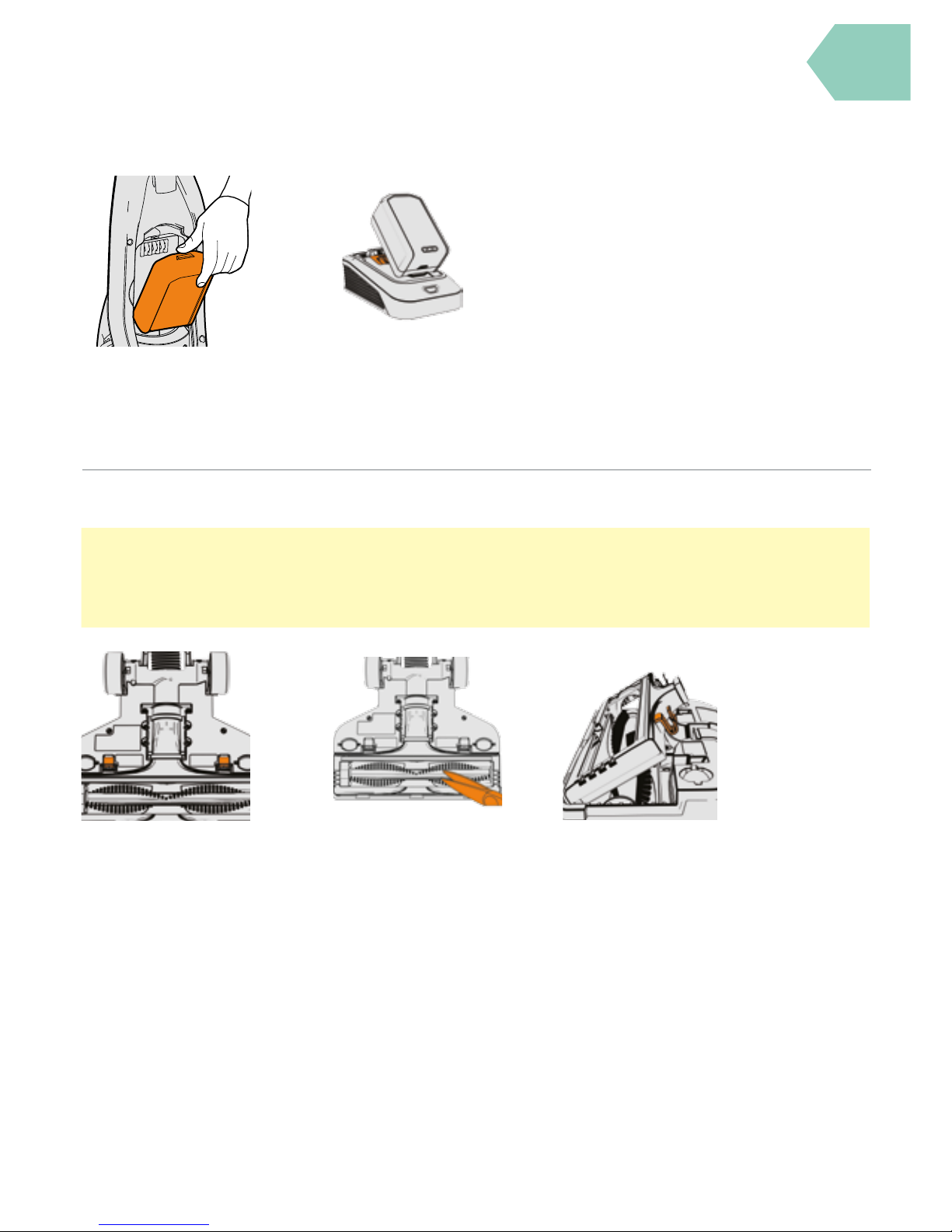

Removing the battery from vacuum cleaner

Using your machine

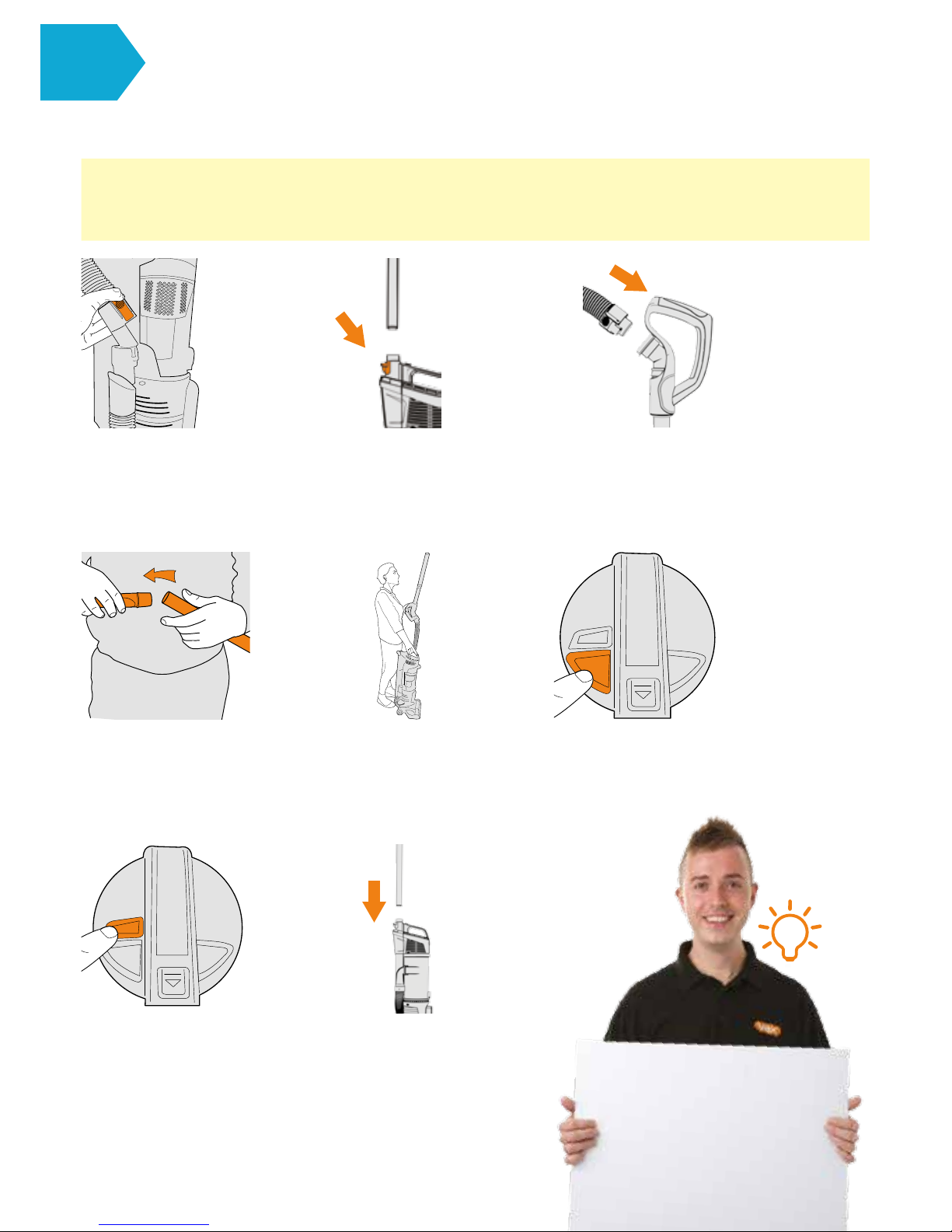

Using the hose with the main body attached
CAUTION: Constant use of the boost button will reduce the battery running time.
Always switch o the vacuum cleaner before connecting or disconnecting any tools.
Do not use the vacuum with base and main body attached to clean stairs.
Remove the hose from the
side of the vacuum cleaner
by pressing the hose end
clip and pulling hose
out of the hose entry point.
Choose an accessory.
Attach tool to the end
of the extension tube.
Press handle release clip
and lift to remove handle.
When using the hose make
sure the vacuum is secure
by holding the handle on top
of the dirt container.
Attach the hose to the
handle, clipping the hose
end clip over the indented
ridge on the entry point.
Press the On/O button
to switch the vacuum
cleaner on.
Press the Boost button
for increased suction when
using tool attachments.
Replace handle and clip
hose end clip into the
side of vacuum cleaner
after use.
TIP
Use the handle on the top of
the dirt container to carry the
vacuum cleaner.

Using your machine
Using the hose with the main body detached
CAUTION: When cleaning stairs to prevent the vacuum cleaner falling, always use with the main body detached from the
base. Hold or place it securely on or at the bottom of the stairs during use. Do not place the vacuum cleaner on furniture.
Remove the hose from the
side of the vacuum cleaner
by pressing the hose end
clip and pulling hose
out of the hose entry point.
Choose an accessory.
Attach tool to the end
of the extension tube.
Press handle release
clip and lift to
remove handle.
Press the main body
release button. Lift and
remove the main body
from base of machine.
Attach the hose to the
handle, clipping the hose
end clip over the indented
ridge on the entry point.
Put the base of the vacuum
cleaner to one side.
Carry the main body with
the handle on top of the
dirt container.
Press the On/O button
to switch the vacuum
cleaner on.
Press the Boost button
for increased suction when
using tool attachments.
Line up main body onto
base of vacuum cleaner
and push backwards until
clicks into place, ret handle
and hose after use.
TIP: Constant use of the boost button will reduce the battery run time.

Taking care of your machine
Emptying and cleaning the dirt container
Cleaning the separator and pre-motor lter
Press the dirt container
release button. Pull and
remove the dirt container
o the vacuum cleaner.
Lift the handle on the
pre-motor lter assembly.
Remove the lter assembly
from dirt container.
MAX
40˚C
TA
P
24hr
Hold the dirt container over
a bin, press the dirt release
button to open, allow the dirt
to fall out.
Pull the lter tab
and remove the lter
out of the lter assembly.
Tap the lter over a bin
to remove any dirt/debris.
Wash the lter under running
water (40 degrees max).
Leave for 24hrs or until
fully dry before replacing.
Lift and remove separator
out of dirt container.
Using a soft brush remove
any dirt/debris from separator.
MAX
40˚C
T
A
P
24hr
TIP
Don’t over ll the dirt container
to avoid blocking the air ow
through the vacuum cleaner and
replace lters every 6-9 months.
CAUTION: Do not use your vacuum cleaner without the lter in place. For best cleaning results lters require cleaning
every 4-6 uses or as needed.

Let’s talk technical
Using a dry cloth or soft dusting brush
remove any dust/debris from terminals
on battery charger, battery and vacuum cleaner.
Cleaning terminals
Clearing a blockage from the brushbar
IMPORTANT: If the brushbar has been obstructed, the Motor Protection Sensor may have been activated.
Remove the battery and dirt container and clear any obstruction from the brushbar.
Wait 30 minutes for the vacuum cleaner to reset itself.
Replace the battery and dirt container. Roll the On/O brushbar control forward to On.
Remove battery and lie
the vacuum cleaner at.
Squeeze the clips on the
brushbar cover towards
the brushbar and lift o
brushbar cover.
Using a pair of scissors cut
any hair or debris from
around the brushbar.
Replace the brushbar cover
by clicking into place.

Let’s talk technical

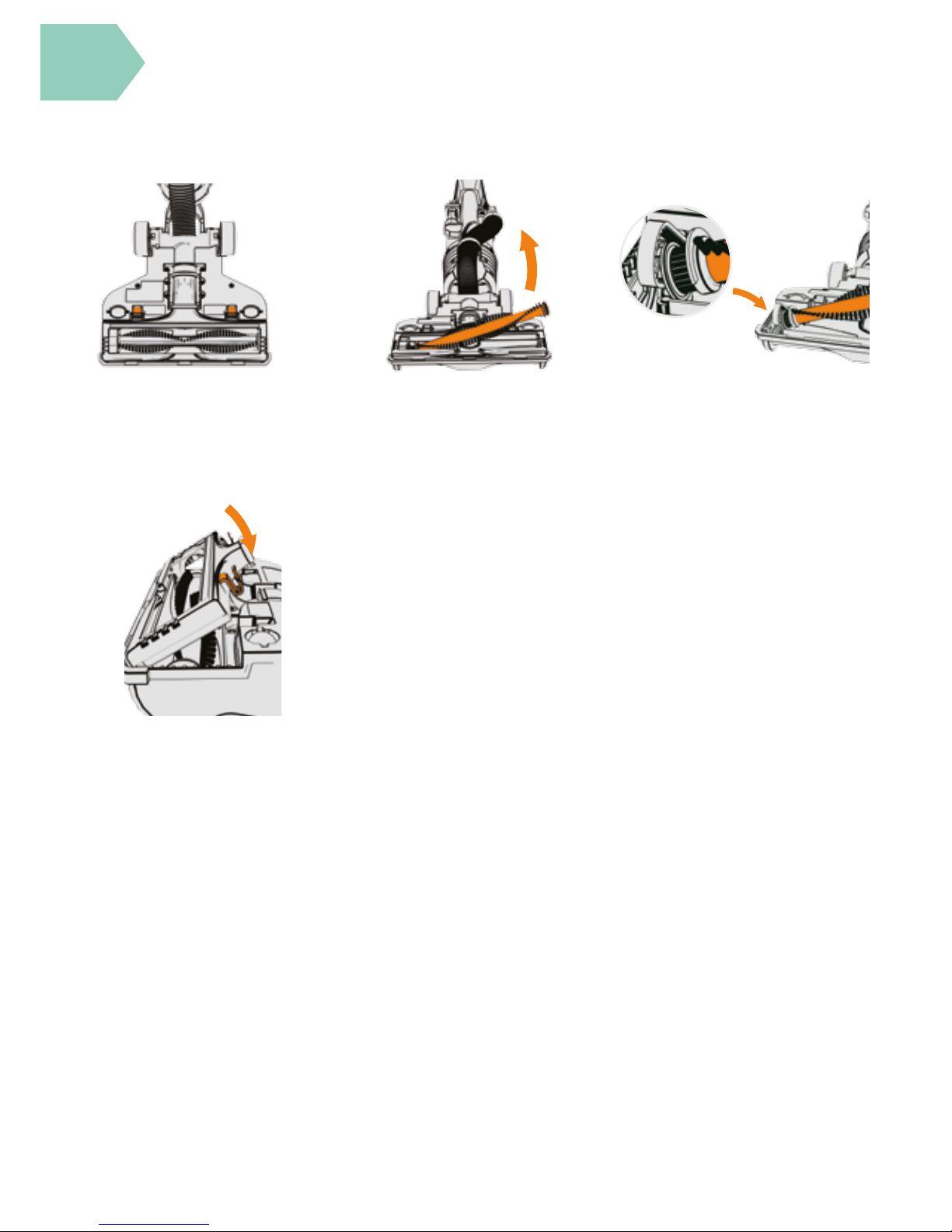

Remove battery and lie the vacuum
cleaner at. Squeeze the clips on the
brushbar cover towards the brushbar
and lift o brushbar cover.
Remove brushbar rstly lifting the
side of brushbar not connected
to belt.
Ret brushbar, tting the belt to the
brushbar rst. Then aligning both
sides of the brushbar into base.
Ret the brushbar cover by clicking
into place.
Changing/replacing brushbar

Notes

Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Accessories
LithiumLife Extended Runtime Battery
1-1-134164-00
LithiumLife battery technology brings power and
cordless convenience for whole-home cleaning.
Battery Charger
1-1-134171-00
Pro Cleaning Kit (Type 2)
1-1-133326-00
All our best tools all in one kit that makes cleaning your
home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach areas
such as on top of cupboards and in between blinds to the
dust that collates behind and within the radiator.
Multi-Floor Brushbar
1-1-134222-00
Specially designed to clean both carpet and hard oors.
Firm bristles lift deep down dirt from carpets while soft
bristles gently remove dirt from hard oors.

Accessories
Accessories
Hard-Floor Brushbar
1-1-134223-00
Extra soft bristles gently remove dirt and debris
from hard oors.
Vax CarpetBurst™Scented Vacuum Granules –
Citrus Burst
1-1-133810-00
Vax’s CarpetBurst™ scented vacuum granules release a fresh
Citrus Burst fragrance, neutralising odours which build up within
your vacuum.
Vax CarpetBurst™Scented Vacuum Granules –
Cotton Fresh
1-1-134172-00
Vax’s CarpetBurst™ scented vacuum granules release a fresh
Cotton Fresh fragrance, neutralising odours which build up within
your vacuum.
Vax CarpetBurst™Scented Vacuum Granules –
Floral Infusion
1-1-134173-00
Vax’s CarpetBurst™ scented vacuum granules release a fresh
Floral Infusion fragrance, neutralising odours which build up within
your vacuum.

CAUTION: To reduce the risk of personal injury, remove the battery before performing maintenance
/troubleshooting checks.
What to do if it goes wrong
Getting in touch
• Check the battery is inserted correctly into the vacuum cleaner.
• The battery may not be charged, remove and charge battery.
• Battery might be too hot, remove and allow to cool for 30 minutes.
Replace battery.
• The motor thermostat may have tripped. If this has happened, switch o the
vacuum cleaner. Remove and empty the dirt container and check for blockages.
Clean the lters and allow the vacuum cleaner to cool for approximately 1 hour
(if you have washed the lters you will need to wait 24 hours for the lters to
fully dry before putting them back into the vacuum cleaner).
• Empty the dirt container and clean lter. Go to ‘Taking care of your machine’
• There may be a blockage in the vacuum cleaner. Check hose, handle
and brushbar.
• The brushbar may not be turning. Go to ‘My brushbar isn’t turning?’ below.
• The brushbar may not be switched on, please check the brushbar
On/O switch.
• The brushbar may be obstructed. Go to ‘Let’s talk technical’.
• Check the battery charger is plugged in.
• Check the battery is inserted correctly into the charger.
• The battery may not be connecting with the charger. Remove battery and
unplug charger, wait 10 seconds then retry The battery is fully charged and the
charger light has turned o.
• The battery has not been fully charged. Go to ‘Getting started’.
• The Boost button has been used and this has reduced the running time.
Go to ‘Using your machine’.
• Check the battery is inserted correctly into the charger.
• The battery or charger has an error. Remove the battery and unplug charger,
wait 10 seconds then plug charger into socket and re-insert the battery.
• Check terminals on battery and vacuum cleaner are clean. Go to
‘Lets talk technical’.
Why does my
vacuum cleaner
have no power?
Why won’t the
vacuum cleaner
pick up?
My brushbar
isn’t turning?
Why isn’t the
battery charger
light lit when
the battery
is charging?
Why does my
battery have
a short run time?
Why is the battery
charger light
continually ashing?
SolutionProblem

Getting in touch
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
†6 year guarantee (batteries guaranteed for 2 years). Registration required. Terms and conditions apply.

GET IN TOUCH
0330 026 8455 VaxVacuums[email protected].uk vax.co.uk @VaxUK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
U85-ACLG-B and U85-ACLG-BA are manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage
Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
© 2015 All rights reserved. VAX®, VAX Lozenge, Air Cordless are trade marks or registered trade marks of Techtronic Floor Care
Technology Ltd.
