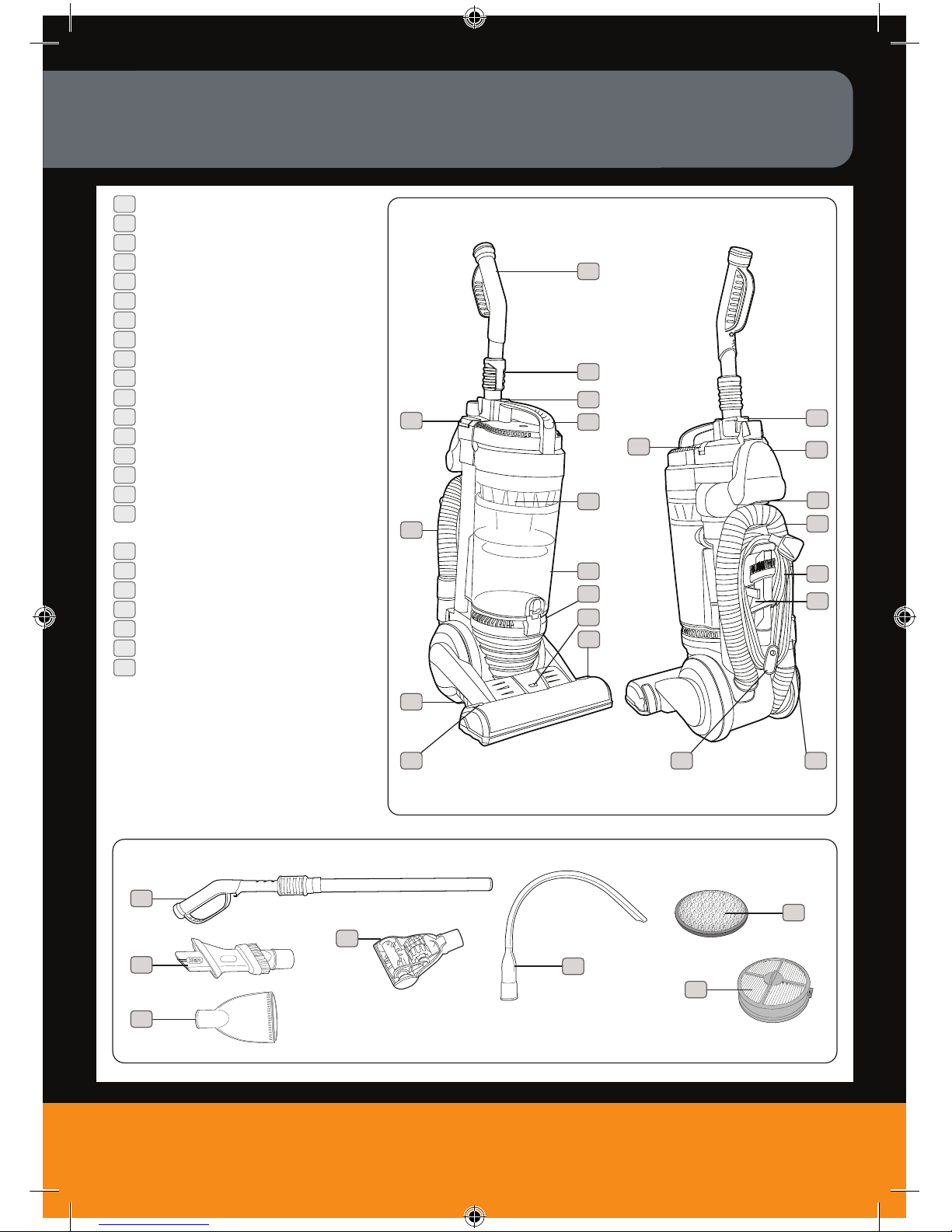

Machine Overview
---
Machine Overview
Unit
Accessories
24
2
Filters
2
1
1
3
5
6
17
20
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
20
17
8
11
21
23
4
7
9
10
11
12
1 Handle/telescopic extension tube
2 Handle height adjuster
3 Dirt container release button
4 Carry handle
5 Power on/off button
6 Inner cyclones
7 Dirt container
8 Hose
9 Post-motor filter cover
10 Brushbar blockage indicator
11 Brushbar release clips
12 Brushbar reset button
13 Brushbar on/off button
14 Handle release button
15 Cord
16 TurboTool caddy
17 3-in-1 crevice, upholstery and
dusting brush tool
18 Hose to machine connector
19 Quick release cord wrap
20 TurboTool
21 Flexi crevice tool
22 Flat nozzle/upholstery tool
23 Pre-motor filter
24 HEPA H12 post-motor filter/
HEPA H12 antibacterial post-motor
filter
PLEASE NOTE: some parts may vary
according to model. Please check inside
flap of box for more details.
13
8
22
15
16
19 18
14
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:15 Page 2

---
www.vax.com.au
3
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
disconnecting or connecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord is damaged, it
must be replaced by the manufacturer or a
recommended Service Agent to avoid hazard and
invalidating the guarantee.
8. Do not pull or carry by cord/hose. Do not use the
cord/hose as a handle, close a door on the cord/hose
or pull cord/hose around sharp edges or corners. Do
not run the vacuum cleaner over the cord/hose. Keep
the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air-
flow. Keep all openings free of dust, lint, hair or
anything that might reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
13. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene etc.) or use
in the presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material
(chlorine, bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only SAA approved 10 amp extension cords.
Non-approved cords may overheat. Care should
be taken to arrange the cord so that the cord
cannot be tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical outlet,
make sure the switch is in the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic tube
is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the vacuum
cleaner. See Maintenance; Clearing Blockages.
IMPORTANT: Cleaning filters maintains vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters are
washable make sure they are completely dry before
inserting back into the vacuum cleaner.
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason the unit should overheat, the
thermostat will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one (1)
hour. To re-start, plug into an electrical outlet and switch
back on.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
!
General Safety Information
!
!
!
!
vax.co.uk 3
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:15 Page 3
General Safety Information

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
4
Operation
---
Brushbar on - for carpets.
Brushbar off - for hard floors.
IMPORTANT: Switching the
brushbar on whilst cleaning
hard floors may damage flooring.
!
Operation
Assembling your vacuum cleaner
Operating the appliance
4
Keep your Vax like new
IMPORTANT: The condition of the filters affects the
performance of your machine. Please check and clean
filters periodically (depending on the level of use). For full
cleaning instructions, see page 6.
!
IMPORTANT: Do not use the vacuum cleaner without
all of the filters in place.
!
Twist cord hook to
release cord.
Plug into mains.Adjust handle height. Turn unit on.
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Recline unit by
pressing foot on front
of unit.
1
2
1
2
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:15 Page 4

---
www.vax.com.au
5
Operation
Operation
vax.co.uk 5
NOTE: All of the accessories can be attached to the telescopic tube or hose directly.
NOTE: To use the different accessories in your 3 in 1 tool, press the Vax logo in (which is located at
the top of the tool.

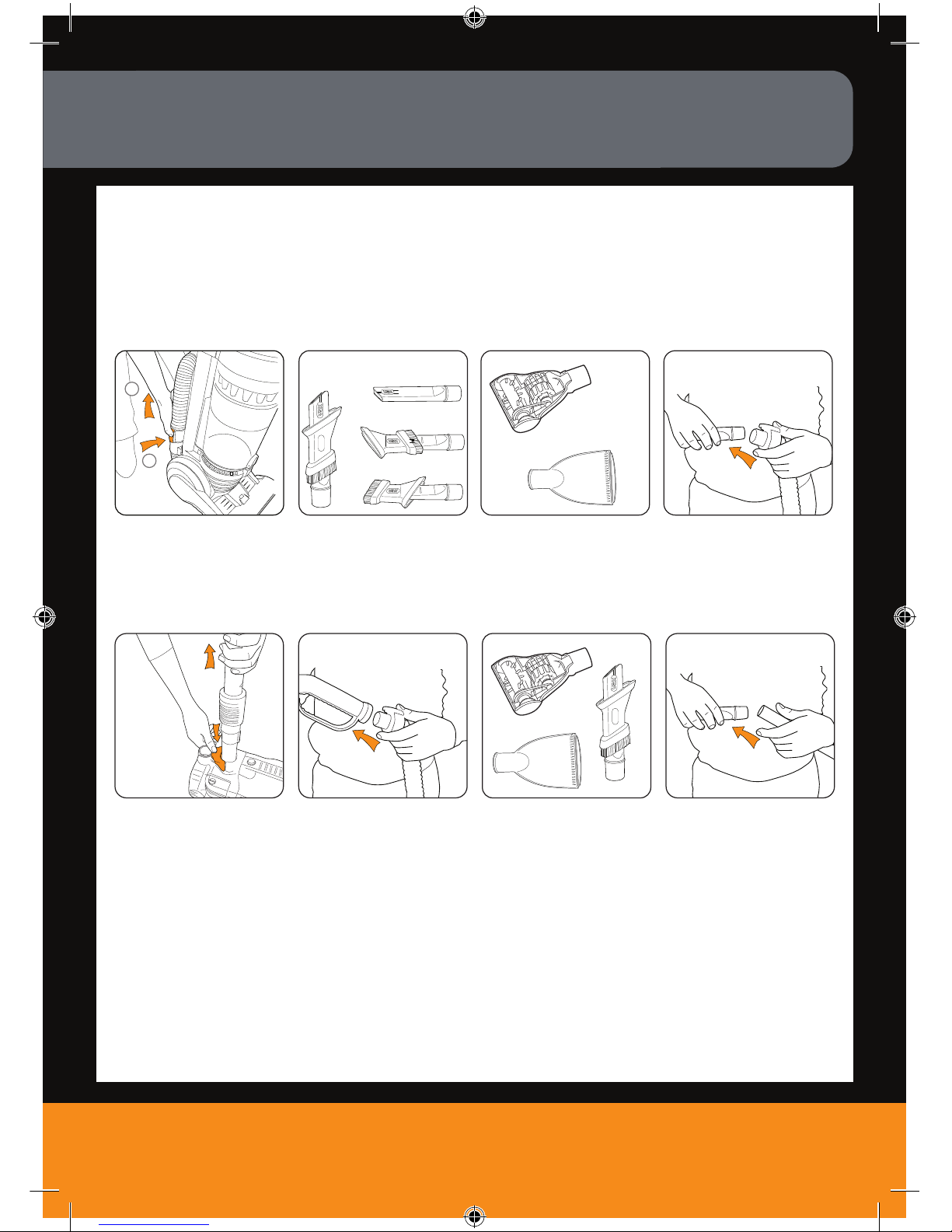

Using accessories
Press the latch release
on the hose before
removing.
Attach accessory to
hose, ensuring the latch
secures the accessory.
Remove telescopic
extension tube.
Attach hose to
telescopic extension
tube ensuring the
latch secures the
hose.
Attach accessory to
telescopic extension
tube.
Attaching to the hose
Attaching to the telescopic extension tube
Choose an accessory.
Crevice tool
Upholstery tool
Dusting brush
1
2
Choose an accessory.
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:15 Page 5

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
6
Maintenance (Keep your Vax as good as new)
---
Maintenance (Keep your Vax as good as new)
6

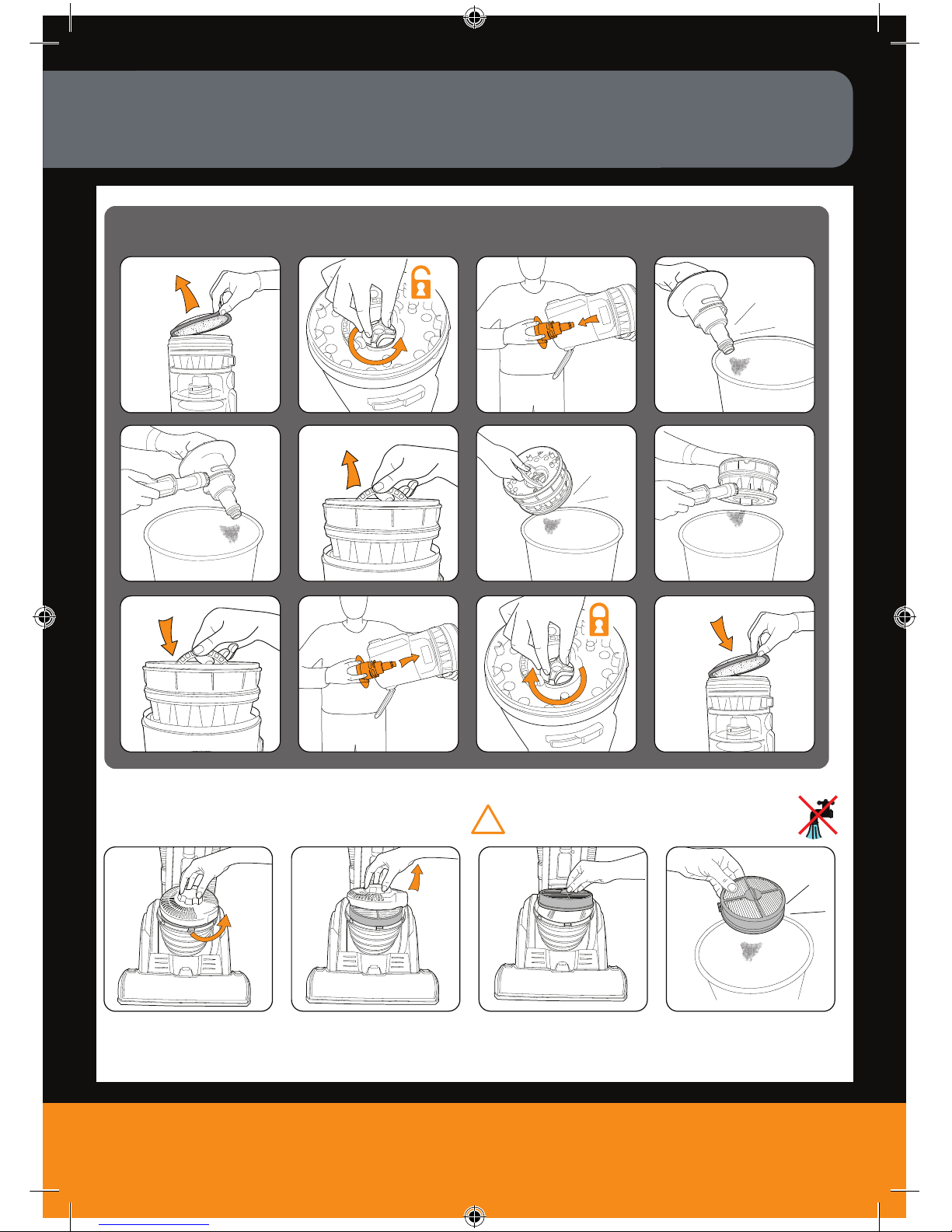

Emptying the dirt container
Cleaning the HEPA pre-motor filter
tap
24hr
!
40° C
max
1
2
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:16 Page 6
Press dirt container
release button
Press container button
to empty dirt
Twist off dirt canister lid Remove lid
Tap filter over a bin to
release dirt
Remove filter
Rinse under water no
warmer than 40°C max
Allow filter to dry
completely before
replacing in vacuum

---
www.vax.com.au
7
Maintenance (Keep your Vax as good as new)
Maintenance (Keep your Vax as good as new)
vax.co.uk 7
Cleaning the post-motor filter
tap
Advanced filter cleaning
!WARNING: Do not wash the post-motor filter.
tap
tap
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:16 Page 7

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
8
Maintenance (Keep your Vax as good as new)
---
8
Maintenance (Keep your Vax as good as new)
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Removing blockages from the brushbar
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner off and unplug from
the electrical outlet before performing maintenance/troubleshooting checks.
Disconnect the hose from the vacuum cleaner and remove any blockages found then reconnect
the hose securely.
Resetting jammed brushbar
A red flashing light will indicate a jammed brushbar. To reset press the button on the side of your vacuum.
Removing debris from the brushbar
If the light continues to flash red after resetting, the brushbar may still be blocked. Using a pair of
scissors, cut through any threads or hairs caught around the brushbar. To access brushbar:
Press the brushbar reset button again to ensure the blockage is fully cleared.
IMPORTANT: for your safety, never try to access/replace brushbar drive belt. If problem
persists please call our Careline: 1300 361 505
!
Red light Green light
!
Removing blockages from the TurboTool
Turn TurboTool over.
Slide off the locking ring.
Pivot lower housing and
remove clog.
To re-assemble,
ensure that the tabs
are aligned and pivot
the lower housing
closed. Slip the locking
ring into the groove at
the neck of the
TurboTool to complete
reassembly.
Locking
ring
Tabs
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:16 Page 8
The light will show green when ready to vacuum.

---
www.vax.com.au
9
FAQs
FAQs
vax.co.uk 9
!WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner
before performing maintenance/troubleshooting checks.
Is there an accessory missing?
•Check the ‘Parts Overview’ page in this
guide to make sure the part is definitely
included in your unit.
•If it is missing, we’re here to help. Simply call
us on AU: 1300 361 505
NZ: 0800 800 900
Why won’t the vacuum cleaner pick up?
•The dirt container may be incorrectly
installed; remove the dirt container from the
unit by pressing the dirt container release
catch and then re-attaching it to the unit,
ensuring it is locked firmly back into place.
•The filter may be clogged; refer to
‘Maintenance: Cleaning the filters’ on pages
6 and 7.
•The dirt container may be blocked; refer to
‘Maintenance: Emptying and cleaning the
dirt container’ on page 6.
•There may be a blockage in the hose/tube;
disconnect from the vacuum cleaner.
Carefully remove any blockages found and
reconnect securely.
Why is dust escaping from the vacuum?
•The filter may be clogged; refer to
‘Maintenance: Cleaning the filters’ on
pages 6 and 7.
•The dirt container may be blocked; refer to
‘Maintenance: Emptying and cleaning the
dirt container’ on page 6.
•The dirt container may be incorrectly
installed; remove the dirt container from the
unit by pressing the dirt container release
catch and then re-attaching it to the unit,
ensuring it is locked firmly back into place.
What do I do if the unit/an accessory
becomes damaged or broken?
•We’re here to help. Simply call
AU: 1300 361 505
NZ: 0800 800 900
or visit www.vax.com.au
Why won’t the accessories pick up
properly?
•Hose blockages: remove the hose from
the unit. Carefully remove any blockages
found and reconnect hose securely.
•Accessory blockages: remove accessory
from handle/tube. Carefully remove
blockage and re-attach to the vacuum
cleaner.
•The accessory may be faulty. Simply call us
on AU: 1300 361 505
NZ: 0800 800 900 for assistance.
Why will the vacuum cleaner not run?
•It may not be plugged into the electrical
outlet correctly; ensure that the plug is
pushed in securely.
•The electrical outlet may not be working
properly; check the fuse or breaker, or
consult an electrician.
•The motor thermostat may have tripped;
switch off and unplug the vacuum cleaner,
and leave for one hour before switching the
cleaner back on.
:
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:16 Page 9
AU: 1300 361 505
NZ: 0800 800 900 www.vax.com.au

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
10
---
10
Other Information
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Service & Help
Vax Careline:
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1600W
Capacity: 4L
Filters: Pre-motor filter (washable)
HEPA H12 post-motor filter (tap to clean)
HEPA H12 antibacterial post-motor filter (tap to clean)
Cord length: 10m
Weight: 8.8kg
Subject to technical change without notice.
U89-MAF2 Mach Air Force 2 Series UG v1.0.qxd:User guide 18/2/11 16:16 Page 10
Monday-Friday 8.30am to 5:00pm
Australia: 1300 361 505
New Zealand: 0800 800 900
If you have queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the
standard
local rate. Please make a note of the serial number and model number of the vacuum
cleaner before calling. For the nearest Service Agent, please call the Vax Customer Careline or
visit www.vax.com.au.
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
Air Force 2 series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Indoor
Use
Read
Instructions
Other Information

---
www.vax.com.au
11
Notes

---
Distributed by Techtronic Industries Pty. Ltd.
Level 1, 660 Doncaster Rd, Doncaster, Australia 3108.
www.vax.com.au. Service Line: AU: 1300 361 505 / NZ: 0800 800 900
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 12
