OWNER'S MANUAL
TR7311U-OR / TUNER

1
目 录
感谢您购买本产品，请在使用前仔细阅读说明
书，并保留以备将来查验。
预防措施
•
只能在12V直流供电负极接地的系统中使
用。
• 安装和连接时，要切断汽车电池的负端。
•
更换保险丝时，要确保使用相同规格的保险
丝。如果使用规格不同的保险丝，会对机器
产生严重损害。
•
要确保尖针或其它外部物体不会进入机器内
部，否则将会引起故障，或者危及设备安
全。例如：电击。
•
如果你的汽车在过冷或过热的环境中放置一
段较长的时间，那么可能要等到车内的温度
恢复正常时才能操作。
•
把音量调节到能听到外部警报声的位置(例
如：喇叭声等)。
操作前
•
不要把音量调得太大，因为声音过大会妨碍
外界声音，以致发生交通事故。
• 在进行较复杂操作时，要先将车停靠。
注意事项
•
不要擅自打开外壳进行修理，请咨询您的经
销商或是有经验的技术人员。
安全须知
安全须知 ...................................................... 1
规格........................................................... 1
面板功能 ...................................................... 2
基本功能 ...................................................... 3
USB功能概述............................................... 3
故障排除指南............................................... 4
规 格
一般
电源: 12V直流(10.8V-16V)
试验电压: 14.4V, 阴极接地
最大输出功率： 4X25W
适用扬声器阻抗： 4ohm
保险丝规格： 10A
尺寸(宽x高x深)：188x58.5x114.7mm
重量： 0.7kg
FM 立体声收音机
频率范围： 87.5-108.0MHz
信噪比： 50dB
步长： 50KHz
AM(MW) 收音机
频率范围: 522-1620KHz
步长： 9KHz
暗电流: ≤3mA
注：1根据车型线束配备不同的连接定义,具
体内容,请参照主机贴纸.
2因技术改进，规格和设计如果有变动，
恕不另行通知。

2
面板功能
1. - 开机
- 静音
- 开机状态下长按关机
2. - 模式转换：
收音
USB(当插入时)
AUX IN
3. - 短按,FM/AM波段切换
- 长按,自动扫描并存储信号最强的6个电
台到预置频道
4. - 短按,选择 VOL/PTY/AF/TA/BAS/TRE/
BAL/FAD，旋转VOL钮进行调节。
- 长按,进入EQ设置状态
EQ OFF-CLASSIC-POP-ROCK-FLAT
旋转VOL钮进行选择。
5. - 短按,时钟显示
- 在时钟显示状态:长按,调节时钟
- 在收音状态:显示电台频道
- MP3播放状态:依次短按,显示"文件夹/文件名
和ID3标签"
6. - 收音模式,自动由高向低搜索电台
- MP3状态:短按,选择上一曲
长按,快退播放
7. - 收音模式:自动由低向高搜索电台
- MP3模式:短按,选择下一曲
长按,快进播放
8. - USB 插口
9. - MP3播放状态:短按,为暂停，
再按,开始播放
10. - MP3状态:短按,浏览播放曲目前10秒
11. - MP3状态:短按,重复播放
12. - MP3状态:短按,随机播放
13. - MP3状态:短按,跳到上一个文件夹
14. - MP3状态:短按,跳到下一个文件夹
15. - 1-6预置电台
按钮1～6收音预置频道：按一下可收听
已存电台，按2秒以上可存入当前电台。

3

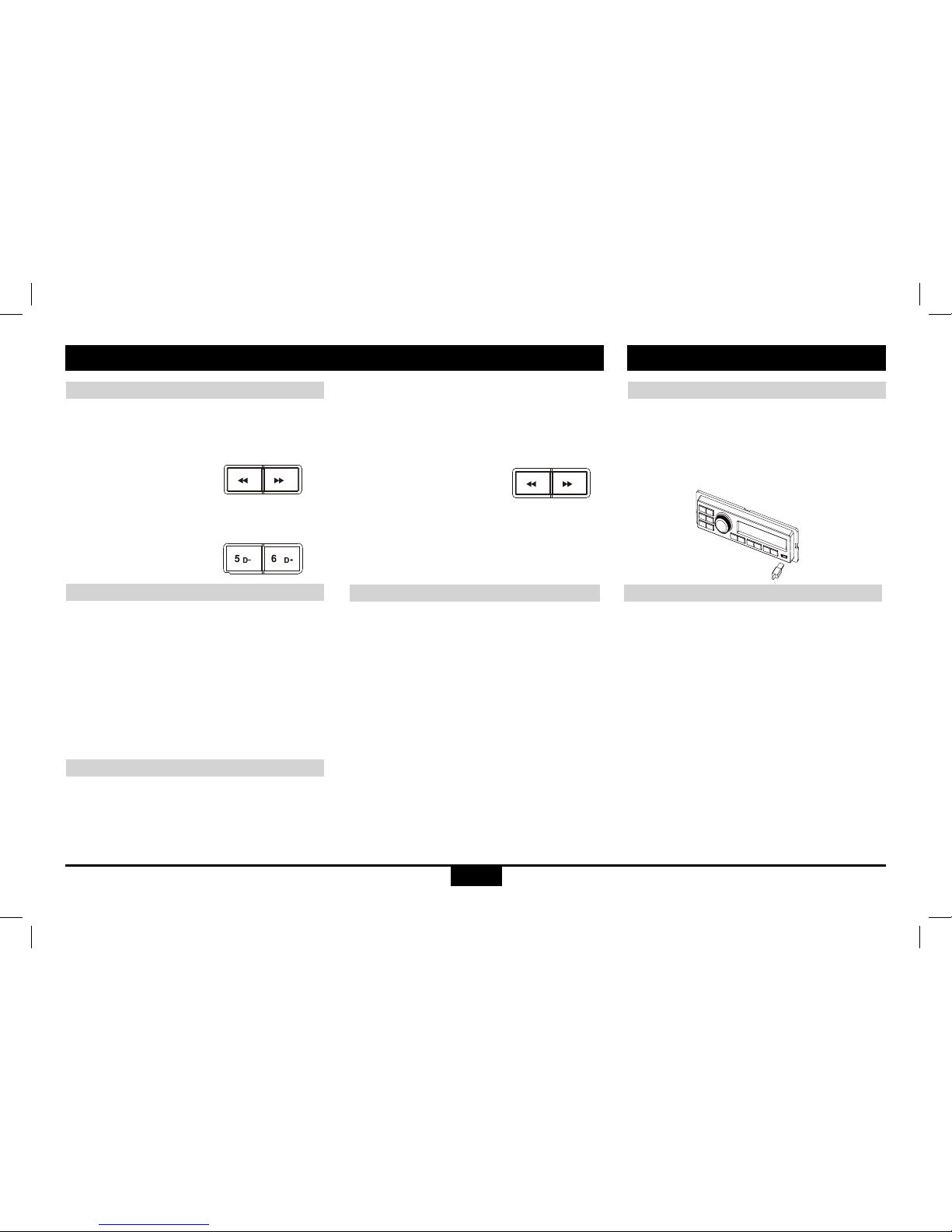

基本功能
MP3播放
短按以下键执行向前或向后选择曲目。
长按以下键执行快进或快退播放
按以下键选择上一个MP3文件夹或下一个
MP3文件夹。
时钟调节
时钟显示：
收音状态,按[DISP]钮一次或多次,屏幕依次显
示PTY/当前时钟/当前收音频率
在MP3播放状态，按[DISP]键一次或多次可
查看"文件夹/文件名和ID3标签"信息。
时钟调节：
时钟显示状态下，长按[DISP]钮，分钟闪
烁，转动VOL旋钮调整分钟；按下DISP钮，
时钟闪烁，转动VOL旋钮调整小时。
再按DISP钮，确认并退出时钟设置。
注:本系统只支持英文和数字显示,其他文
字可能造成无法显示或显示*
USB功能概述
播放/取走USB设备
1.将USB插入连接口，LCD会显示USB，主机
将自动播放USB所储存的歌曲。
2.取出USB存储器。
收音
自动搜索模式：
按以下键可自动由高向低或由低向高搜索收音
电台。
手动搜索模式：
按以下键超过2秒，切换到手动搜索模式，再
按可手动由高向低或由低向高单步搜索收音电
台。
自动搜索存储电台
短按FM/AM键切换FM1/FM2/FM3/AM1/AM2收
音波段。
长按[FM/AM]键自动全波段扫描电台并将搜索
到的有效电台自动存储到1-6预设频道中。
RDS
连续按SEL键直到屏幕上显示AF/TA时，旋转
VOL旋钮可打开或关闭AF/TA功能。
连续按SEL键直到屏幕上显示PTY时,旋转VOL
旋钮，显示NEWS/POP节目类型。
当显示为NEWS类型时，按1-6数字键选择：
当显示为POP类型时，按1-6数字键选择：
1-ROCK/2-EASY /3-LIGHT 4-CLASSICS
/5-JAZZ /6-FOLK
1-SPORT/2-DRAMA/3-CULTURE/4 -
WEATHER /5-TRAVEL /6-SOCIAL
USB功能(闪存类型)
1. 支持 USB 闪存2合1
2. 支持FAT12/FAT 16/FAT 32
3. 支持USB1.1
支持USB2.0(不能支持USB2.0速度，而是使
用USB1.1的速度)
4. 本机支持WMA格式
5. USB最多支持1000首MP3，999个文件夹。
6.
建议使用容量小于8GB，曲目数小于500
首，文件夹少于30个的USB存储设备进行播
放，以取得最佳播放效果。
7.
因为USB规格多种多样，本产品不保证兼容
所有的USB设备。

4
问题现象 原因 对策
一般性问题
没有电源 汽车点火开关处于关闭状态 请将汽车点火开关打开
保险丝熔断 更换指定规格保险丝
没有声音 音量或静音关闭 检查音量或静音是否打开
收音问题
接收不到电台 天线没有正确连接 将天线重新正确连接
收音噪音大 电台过远或信号过于微弱 选择具有更高信号电平的其它电台
预选电台丢失 电池电缆的连接不正确 将电池电缆连接至常时带电的接线柱
USB问题
无法插入USB设备 USB孔插反了 将USB反过来插入
USB设备无法读取 NTFS格式不支持 检查文件系统为FAT或FAT32格式。不同格式及存储设备不同，
MP3播放器可能无法读取。
故障排除指南
如果察觉出现问题，应立即关闭电源，停止使用并与经销处或指定维修站取得联系。切勿擅自进行修理，这是非常危险的。

1
Safety Information
Safety Information ..................... ..................1
Specifications............................................... 1
Panel Controls..............................................2
Button Tips....................................................3
USB function Summarization..........................3
Troubleshooting............................................4
Thank you for purchasing this product, please
read the manual carefully before operating,
and reserve it for future reference.
PRECAUTIONS
• Use only in a 12-volt DC negative-ground
electrical system.
• Disconnect the vehicle's negative battery
terminal while mounting and connecting
the unit.
• When replacing the fuse, be sure to use
one with an identical amperage rating.
Using a fuse with a higher amperage
rating may cause serious damage to the
unit.
• Make sure that pins or other foreign
objects do not get inside the unit, they
may cause malfunctions, or create safety
hazards such as electrical shock.
• If you have parked the car for a long
time in hot or cold weather, wait until the
temperature in the car becomes normal
before operating the unit.
• Keep the volume at a level at which you
can hear outside warning sounds (horns
sirens, etc.).
CAUTION
• DO NOT open covers and do not repair
yourself. Consult the dealer or an
experienced technician for help.
BEFORE OPERATION
• Do not raise the volume level too much,
as this will block outside sounds, making
driving dangerous.
• Stop the car before performing any
complicated operation.
General
Power supply: 12V DC (10.8V-16V)
Maximum power output: 4X25W
Suitable speaker impedance: 4ohm
Fuse spec: 10A
Weight: 0.7kg
Dimensions (WxHxD): 188x58.5x114.7mm
Note:
1 According to models with different wiring
harness to connect the definition of the
specific content, please refer to the model
label.
2Specicationsandthedesignaresubjectto
change without notice due to improvements
in technology.
Specications Contents
FM Stereo Radio
Frequency range: 87.5 - 108.0MHz
Signal/noise ratio: 50dB
Step: 50KHz
AM (MW) Radio
Frequency range: 522-1620KHz
Step: 9KHz
backupcurrent:  ≤3mA

2
Panel Controls
1. - Power on
- Mute
- When on, hold it to power off.
- Rotate the knob to adjust the volume.
2. - Source
Radio
USB (when USB inserted)
AUX IN
3. - Band switch:
FM1 -> FM2 -> FM3 -> AM1 -> AM2
- Hold it Automatically search station and
store the signal strongly station to 1-6
Preset
4. - Press to select VOL/PTY/AF/TA/BAS/
TRE/BAL/FAD,Rotate the VOL knob to
adjust value
- Hold it to select EQ preset mode:
EQ OFF-CLASSIC-POP-ROCK-FLAT,
Rotate the VOL knob to adjust value
5. - Press to display clock,
- Hold it to setting clock
- Radio mode:
Display FM/AM frequency
- MP3 mode:
Turnandturnaboutfoldername/lename
/ID3 TAG/Clock
6. - Radio mode
- Auto search the station from high to low
- MP3 mode
Select the previous track
7. - Radio mode
Auto search the station from low to high
- MP3 mode
Select the next track
8. - USB slot
9. - Play/pause
10. - Program intro play(10 sec.)
11. - MP3 repeat play
12. - MP3 random play
13. - MP3 folder back
14. - MP3 folder ahead
15. - 1-6 radio preset
Press to tune in a preset station.
Hold for more than 2 seconds to store
current station.

3
Radio tune by step
Hold it more than 2 second ,switch to the
manual mode,press the button step search
the station from high to low or from low to
high.
Manual Memory Store
At FM1/FM2/FM3/AM1/AM2 mode, press
and hold button 1-6 to store current station
in memory. You can store 36 stations in total.
(18 FM/ 12 AM)
RDS
Press the SEL button to set AF/TA ,rotate
the VOL knob to open or close AF/TA
function.
Press the SEL button to PTY function ,rotate
the VOL Knob ,display NEWS and POP
program type.
When display NEWS ,press the 1-6 button to
select opposite preset
When display POP,press the 1-6 button to
select opposite preset
Loading/Take out USB equipment
1. Insert a USB device into the connector
and the unit will begin to play
automatically.
2. To stop playback of USB device, push
the SRC button to non USB mode and
then remove the USB device.
USB Function Summarization
Button Tips
MP3 Playback
Track skip
Press the button to go to the previous or
next track.
Hold it to enter fast forward or reverse back
mode.
MP3 track fast search
Press the button to select MP3 folder back/
ahead
Set Clock
Radio mode:press DISP button, Turn and turn
display PTY/Clock/current channel frequency
MP3 playback mode:press DISP button,Turn
and turn about folder name/file name/ID3 TAG/
Clock
Then press DISP more than 2 seconds,
minute display blinks, rotate the VOL knob
to set minute, press DISP button again, hour
display blinks, rotate the VOL knob to set
hour,pressDISPtoconrm.
Tune
Radio seek automatically
Auto search the station from high to low or
from low to high.
1-ROCK/2-EASY /3-LIGHT 4-CLASSICS
/5-JAZZ /6-FOLK
1-SPORT/2-DRAMA/3-CULTURE/4 -
WEATHER /5-TRAVEL /6-SOCIAL
USB functions (ash memory type)
1. USBashmemory2in1support
2. FAT 12/FAT 16/FAT 32 format supported.
3. USB 1.1 support, USB 2.0 support (For 2.0,
speed performance is as USB 1.1)
4. WMAlessupport
5. MaximumnumberofMP3lesis1000.
Maximum number of folders is 999.
6. Maximum USB capacity support is cap at 8
GB and best performance with songs not
more than 500, and not exceeding 30
folders.
7. Not all USB devices are compatible with
the unit.

4
TROUBLESHOOTING
Problem Possible cause Solution
General
T h e u n i t w i l l n o t
switch on.
Car ignition is not on.
Cable is not properly connected.
Fuse is burnt.
Turn your car key in the ignition.
Check cable connection.
Replace fuse with a new fuse of the same capacity.
No sound Volume is set at minimum or the mute
function is on.
Check the volume or switch the mute function off.
The unit or screen
does not work
normally.
The unit system is unstable. Press the RESET button.
Mode TUNER
Unable to receive
stations.
The antenna is not connected properly. Connect the antenna properly.
Poor quality reception
of radio station.
The antenna is not fully extended or it is
broken.
Fully extend the antenna and if broken, replace it with a
new one.
Preset stations are
lost.
The battery cable is not properly connected. Connect the permanent live on the unit to the permanent
live on the vehicle.
Mode USB
Unable to insert USB
device
The USB device has been
inserted the wrong way round.
Insert it the other way around.
The USB device
cannot be read.
NTFS format is not supported. CheckthatthelesystemisinFATorFAT32format.Due
to different formats, some models of storage devices or
MP3 players may not be read.
The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections
and follow the instructions in the user manual. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell can
causereorelectricshock,immediatelystopusingitandcallthestorewhereyou purchased it.
