VDO360 Trident User manual

Trident User Manual Reference
T r i d e n t AI
(V2.0)
J.BC.0205.0150

Trident User Manual Reference
PACKING LIST
Camera ·····································································································1
Power Adapter···························································································1
Power Cable······························································································1
Type-C Cable ····························································································1
Remote Control ·························································································1
User Manual······························································································1
QC certification·········································································· 1
QUICK START
Trident Features:
•Advanced DSP, Sony 1/2.8 inch 8.42 megapixel sensor and high
quality 12 megapixel lens, Ultra high definition output,
•USB2.0 YUY2/NV12/MJPG/H.264/H.265 video format, works with
Windows, MacOS, Android, Linux OS.
•Type-C port output.
•120°FOV
•Lens distortion rate less than 2%
•Support WDR, 3DNR, Anti-flicker

Trident User Manual Reference
•Standard UVC protocol, compatible with most UCC platforms
•The low noise CMOS enables an ultra-high signal-to-noise ratio in
the camera’s video output and allows for a clear and sharp image.
•Autoframe participants dynamically as they enter or exit the camera
frame or change positions; Autoframing is selectable via remote, or
desktop control.
•Backlight compensation to compensate for bright light sources,
eliminating unnatural shadows and “light blooming”.
•Preset camera positions available when using manual mode.
•High Definition Audio with 16K pickup and 24K playback makes for a
crystal clear connection. Utilizing the latest techniques in spatial
audio mapping and sampling, the background noise is eliminated
even in a noisy environment, it can make the voice sound clear. With
360° Omni-directional microphones, range is up to 5 meters.
Full Duplex capability.
384ms Acoustic Echo Cancelation (AEC)
Automatic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Peak-limiting algorithm eliminates even momentary distortion.
PRODUCT SPEC
Model
Trident
Sensor
1/2.8 inch, high quality, 8.42 megapixel SONY
CMOS sensor
Video
Format
USB2.0
YUY2, NV12:
1280*720@15;
1024*576@20;
640*480@30

Trident User Manual Reference
MJPG:
3840*2160@30; 2560*1440@30;
1920*1080@30; 1280*720@30;
1024*576@30; 640*480@30
H.264, H.265:
3840*2160@20; 2560*1440@30;
1920*1080@30; 1280*720@30;
1024*576@30; 640*480@30
RJ45
Only for power (POE)
Digital Zoom
4X
Field of View
120°
Sensor Resolution
8.42 megapixel
Control Port
USB2.0 (UVC/UAC)
Video Port
Type-C (USB2.0)
S/N Ratio
>50dB
Focal Length
f＝2.20mm
Minimum Lux.
0.1 lux
White Balance
Auto/Manual
Iris
F 2.2
Anti-Flicker
50HZ/60HZ/OFF
WDR
Supported
Edge Enhancement
Supported
Digital Noise Reduction
2D&3D
Image Flip
Supported
Electronic Pan/Tilt
Supported
Auto frame
Supported
Backlight Compensation
Supported
Ideal Microphone range
3~5 meters
USB Audio
Supported
Microphone
Omnidirectional microphone(100~16KHz)
Sensitivity
-26±2dB RL=2.2KΩ Vs=2.0V
Input Voltage
DC port
Speaker
4Ω/8W 100-24KHz 2inch Anti-magnetic speaker

Trident User Manual Reference
1. Speaker
7. Type-C (USB2.0) interface
2. Camera lens
8. Dip switch for firmware upgrades
3. Status indicator light
9. Adjustable spindle
4. Multi array microphone
10. Rotatable bracket
5. DC12V power interface
11. Kensington® type slot
6. RJ45 interface (POE)
POE
Supports IEEE802.3af
Dimension (L × W × H)
395mm×113mm×112mm/15.5”x4.5”x4.4”
Net Weight
1 kg/2.2 lbs.

Trident User Manual Reference

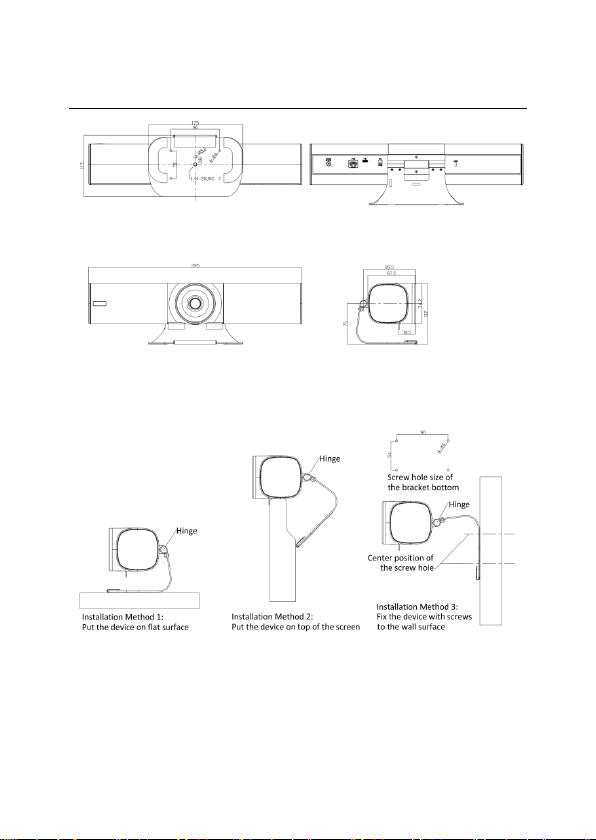

INSTALLATION MODES:

Trident User Manual Reference
REMOTE CONTROL:
LED indicator:
The remote control is unique in that a single control can operate up to three
cameras.
Camera 1 operation is standard, and the LED will flash red when the
commands are being sent to camera 1
Camera 2 operation is indicated by a green LED
Camera 3 operation shows as a blue LED
CAM1/CAM2/CAM3: A quick press of the colored key is all that is needed to
select the camera.
Zoom adjustment key: +/- Adjusts the electronic zoom, only available when
manual control is selected over automatic framing.
Power key: Standby / start camera.
BLC: Set backlight compensation ON or OFF.
Navigation key: up, down, left and right In manual control mode, use to adjust
the position of electronic pan or tilt. Also used to navigate on screen menu.
Confirm/Home key: In manual control mode, a quick press will return image to
home position. When using the menu, it is used to confirm the menu options.
Menu key: In manual control mode, a quick press to enter/exit the menu.
Volume control key:
A quick press will incrementally increase or decrease the volume output of the
Trident. Note- volume control of the PC or device connected is not influenced by
this selection.
Video Mute/Micro Mute:
Video Mute and micro mute.
A/M: Auto frame/Manual frame.
PUSH Frame:
In Auto frame off mode, you can manually trigger the Auto frame once.
Preset key:
Long press for 3 seconds to save the current position to the corresponding
preset position, shortly press to call the preset position, only available when Auto
frame is closed.

Trident User Manual Reference

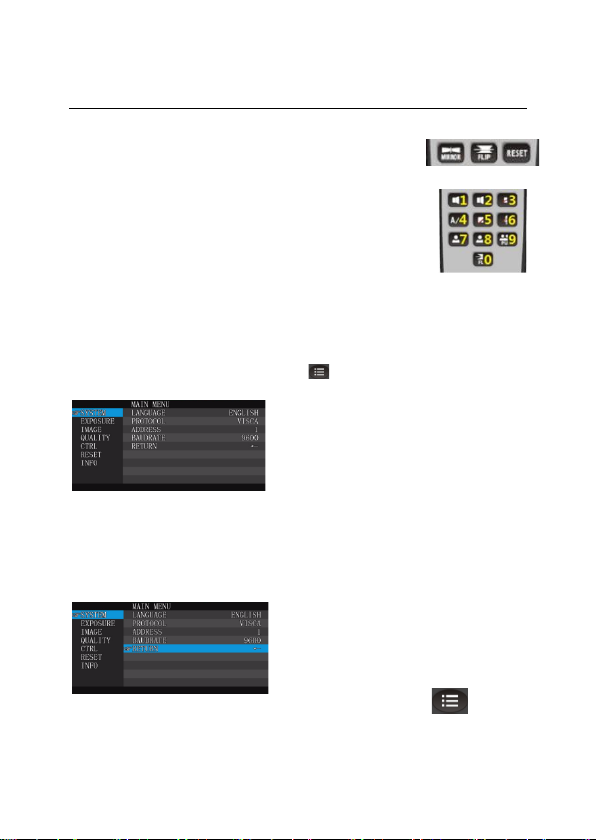

Mirror/Flip: Used to change mage orientation.
Reset: Press and hold for 3 seconds to reset the camera parameters to
the factory settings.
Digital key mapping:
As shown in the figure on the right, in non-menu mode, this part of the
keypad is used for the function identified on the key; while in menu mode,
this part of the keypad is used as numeric keys.
On Screen Display (OSD) menu
1. In normal mode, press the menu button on the RF remote, to enter the
OSD menu; press the menu button again to exit and save modified parameters.
2. Use the navigation button to select the main menu. As seen above, the main
menu will change to gray background, and the right column will show all
parameters under the selected sub menu.
3. After entering the main menu, press the up/down navigation buttons to select
the desired sub menu, then use left/right navigation button to set the parameter.
4. To return to the upper-level menu, select the “return” and then press the left or
right navigation button to return to previous menu.
5. Press OSD button once again to exit the menu.

Trident User Manual Reference
6. OSD Menu Layout:
SYSTEM
LANGUAGE
ENGLISH/CHINESE
PROTOCOL
Optional item: VISCA
Default: VISCA
ADDRESS
VISCA:1~7
Default: 1
BAUDRATE
2400,4800,9600,115200 optional
Default: 9600
RETURN
Back to the main menu
EXPOSURE
EXP.MODE
MODE
AUTO/MANU
Default: AUTO
SHUTTER
Shutter speed:1/30~1/10000, only
valid under MANU mode
Default: 1/100
GAIN
Gain setting:0~15, only valid under
MANU mode
Default: 0
FLICK
OFF/50HZ/60HZ
Default: 50HZ
BACKLIGHT
ON/OFF
Default: OFF
GAMMA
0~15
Default: 8
RETURN
Back to the main menu
WB MODE
AUTO/MANU
Default: AUTO
B_GAIN
Blue gain level:0~256, only valid under
manual white balance mode
Default: 100
R_GAIN
Red gain level:0~256, only valid under
manual white balance mode
Default: 100
DEFOG
Set the image permeability:OFF/1~15
Default: OFF
RETURN
Back to the main menu
QUALITY
2D NR
Set 2D noise reduction level: ON/OFF
Default: OFF
3D NR
Set 3D noise reduction
level:OFF/AUTO/1~4
Default: AUTO
SHARPNESS
Sharpness setting:0~15
the higher value, the clearer of image
shape
Default: 8
CONTRAST
Contrast setting:0~15
Default: 8
SATURATION
Saturation setting:0~15
Default: 8
BRIGHT
Bright setting:0~15
Default: 8
RETURN
Back to the main menu
CTRL
MIRROR
Turn the screen left and right ON/OFF
Default: OFF
FLIP
Picture up and down ON/OFF
Default: OFF
AUTO FRAME
AUTO/MANU
Default: AUTO
RETURN
Back to the main menu
RESET
CAM RESET
Reset camera parameter to default
RETURN
Back to the main menu
INFO
CTRL VER
Camera movement control program version
CTRL DATE
Release date of camera movement control program
RETURN
Back to the main menu
