Vecom IVH-7700 User manual
USER
Manual
USER
Manual
1.1.0 Edition 20151006
IVH-7700
Quad Core Intel®Core™ i7/ i5/ i3 Fanless In-Vehicle System
High Performance, Rugged, Extended Temp, Power Protection
ii
Version Date Page Description Remark
0.1 07/23/2015 All Preliminary Release
1.0 08/10/2015 All Ofcial Release
1.1 10/06/2015 100 Update Release
Record of Revision
iii
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product offerings and specications are subject to change without prior notice. It
does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for
direct, indirect, special, incidental, or consequential damages arising out of the
use of the product or documentation, nor for any infringements upon the rights
of third parties, which may result from such use.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC
The product (s) described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names and
trademarks belong to their respective owners.
Declaimer
Declaration of Conformity
Copyright and Trademarks
iv
Part Number Description
IVH-7700-QRD IVH-7700 Intel® Quad Core™ In-Vehicle Fanless Embedded
System, 6 GbE LAN with 4 RJ45 PoE+, 4 Front-access SSD,
4 COM, 11 USB, 4 SIM, 16 Isolated DIO, 16 GPIO
IVH-7700-QRDM IVH-7700 Intel® Quad Core™ In-Vehicle Fanless Embedded
System, 6 GbE LAN with 4 M12 PoE+, 4 Front-access SSD,
4 COM, 11 USB, 4 SIM, 16 Isolated DIO, 16 GPIO
Order Information
Part Number Description
i7-3610QE Ivy Bridge 3rd Gen Intel® Mobile Quad Core™ i7 Processor
i5-3610ME Ivy Bridge 3rd Gen Intel® Mobile Core™ i5 Processor
i3-3120ME Ivy Bridge 3rd Gen Intel® Mobile Core™ i3 Processor
M340S-W28M1 Vecow DDR3 4GB 1333/1066 MHz RAM, Wide Temperature
-40°C to +85°C
Certied DDR3 4GB
RAM Certied DDR3 4GB 1333/1600 MHz RAM
Certied DDR3 8GB
RAM Certied DDR3 8GB 1333/1600 MHz RAM
PWA-160W-WT 160W, 24V, 85VAC to 264VAC Power Adaptor with 3-pin
Terminal Block, Wide Temperature -30°C to +70°C
PWA-120W 120W, 24V, 90VAC to 264VAC Power Adapter with 3-pin
Terminal Block
ECS-VESA-Mount ECS-7000 series VESA Mounting Kit
3G Module Mini PCIe 3G/GPS Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi Module Mini PCIe WiFi Module with Antenna
Order Accessories
v
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 1
1.3 Product Specication 2
1.3.1 Specications of IVH-7700-QRD 2
1.3.2 Specications of IVH-7700-QRDM 4
1.4 Supported CPU List 7
1.5 Mechanical Dimension 8
1.5.1 Dimensions of IVH-7700-QRD 8
1.5.2 Dimensions of IVH-7700-QRDM 8
CHAPTER 2 GETTING TO KNOW YOUR IVH-7700 9
2.1 Packing List 9
2.2 Front Panel I/O Functions 10
2.3 Rear Panel I/O and Functions 18
2.4 Main Board Expansion Connectors 25
2.5 Main Board Jumper Settings 49
2.6 Ignition Control 52
CHAPTER 3 SYSTEM SETUP 55
3.1 How to Open Your IVH-7700-QRD/ IVH-7700-QRDM 55
3.2 Installing DDR3L/ DDR3 SO-DIMM Modules 60
3.3 Installing Mini PCIe Card 61
3.4 Installing CPU 62
3.5 Installing Antenna Cable 66
3.6 Installing CFast Card and SIM Card 68
3.7 Installing SSD/HDD 70
3.8 Mounting IVH-7700 72
vi
CHAPTER 4 BIOS AND DRIVER SETTING 73
4.1 BIOS Settings 73
4.2 Main Menu 74
4.3 Advanced Function 75
4.4 Chipset Function 84
4.5 Boot Function 85
APPENDIX A : ISOLATED DIO GUIDE 86
APPENDIX B : GPIO and WDT Functions 89
APPENDIX C : Power Consumption 90
APPENDIX D : UPS Installation 92
APPENDIX E : Ignition Control 100
APPENDIX F : RAID Installation Guide 101
1
GENERAL INTRODUCTION
1
GENERAL INTRODUCTION
Powered by Quad Core Intel® Core™ i7/ i5/ i3 processor, DDR3 or DDR3L
dual channel up to 16GB memory; Intel® HD 4000 graphics supports DVI-I,
DisplayPort, and dual channel 24-bit LVDS triple independent displays; 4 front-
access 2.5” SSD/ HDD trays, 4 GbE M12 PoE+ ports, dual GbE LAN ports, 4
Mini PCIe sockets, 4 SIM card sockets (3 front-access, 1 internal), 4 USB 3.0
with independent controllers, 6V to 78V wide range power input, smart surge
protection up to 200V, congurable ignition power control, UPS supported, 16
isolated DIO, fanless design and -25°C to 70°C operating temperature, Vecow
IVH-7700 Series In-Vehicle Fanless Embedded System delivers excellent
system performance for in-vehicle mission critical applications.
1.1 Overview
1.2 Features
• Quad Core Intel® Core™ i7/ i5/ i3 Processor
• Fanless, -25°C to 70°C Operating Temperature
• 4 GbE M12 PoE+ ports and 2 GbE LAN ports
• 4 Mini PCIe sockets
• 4 SIM Card sockets (3 External)
• 4 Front-access 2.5" HDD/ SSD trays
• 4 USB 3.0 with Independent controllers
• Configurable Ignition Power Control
• 6V to 78V DC-in with 200V Surge Protection
• UPS supported (Optional)
2
GENERAL INTRODUCTION
©Vecow IVH-7700 User Manual
1.3 Product Specication
1.3.1 Specications of IVH-7700-QRD
System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory • DDR3 1066/1333/1600 MHz or DDR3L 1066/1333MHz
• Up to 16GB
• 2 204-pin SO-DIMM Socket
I/O Interface
Serial • 2 COM RS-232/ 422/ 485 (COM 1, COM 2)
• 2 COM RS-232 (COM 3, COM 4)
USB • Front : 4 USB 3.0
• Rear : 4 USB 3.0 (4 Independent Controller)
• 1 Internal USB 2.0 (Right Angle USB Connector)
• 2 Internal USB 2.0 (6-pin JST)
Isolated DIO 16 Isolated DIO (8 DI, 8 DO, 24V to 78V DC Input)
LED Power, HDD, Wireless, PoE
SIM Card 4 SIM Card Socket (3 External, 1 Internal)
GPIO 16 GPIO
Expansion
Mini PCIe • 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ mSATA
• 3 Mini PCIe for PCIe/ USB/ External SIM Card
Graphics
Chipset Intel® HD Graphics 4000
Display Memory Shared Memory, up to 1.7GB
Interface Triple Independent Display :
• DVI-I : Up to 1920 x 1200
• DisplayPort : Up to 2560 x 1600
• LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA • 2 SATA III (6Gbps)
• 2 SATA II (3Gbps)
mSATA 1 SATA II (Mini PCIe Type, 3Gbps)
Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector
• 4 Front-access 2.5" SSD/ HDD Tray
3
GENERAL INTRODUCTION
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® I210 Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input 6V to 78V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, IGN
Ignition Control 16 Mode
Remote Switch 2-pin Terminal Block
Surge Protection Up to 200V/1ms Transient Power
UPS Supported (Optional)
Others
TPM Optional Inneon SLB9635 supports TPM 1.0, LPC
Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats
GPS Onboard GPS Module (Optional)
Software Support
Microsoft Windows 8, Windows 7, Windows XP
Linux Fedora 13, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.2 kg (9.26 lb)
Mounting Wallmount by mounting bracket
4
GENERAL INTRODUCTION
©Vecow IVH-7700 User Manual
Environment
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN 50155, EN 50121-3-2
1.3.2 Specications of IVH-7700-QRDM
System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory • DDR3 1066/1333/1600 MHz or DDR3L 1066/1333MHz
• Up to 16GB
• 2 204-pin SO-DIMM Socket
I/O Interface
Serial • 2 COM RS-232/ 422/ 485 (COM 1, COM 2)
• 2 COM RS-232 (COM 3, COM 4)
USB • Front : 4 USB 3.0
• Rear : 4 USB 3.0 (4 Independent Controller)
• 1 Internal USB 2.0 (Right Angle USB Connector)
• 2 Internal USB 2.0 (6-pin JST)
Isolated DIO 16 Isolated DIO (8 DI, 8 DO, 24V to 78V DC Input)
LED Power, HDD, Wireless, PoE
SIM Card 4 SIM Card Socket (3 External, 1 Internal)
GPIO 16 GPIO
Expansion
Mini PCIe • 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ mSATA
• 3 Mini PCIe for PCIe/ USB/ External SIM Card
5
GENERAL INTRODUCTION
Graphics
Chipset Intel® HD Graphics 4000
Display Memory Shared Memory, up to 1.7GB
Interface Triple Independent Display :
• DVI-I : Up to 1920 x 1200
• DisplayPort : Up to 2560 x 1600
• LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA • 2 SATA III (6Gbps)
• 2 SATA II (3Gbps)
mSATA 1 SATA II (Mini PCIe Type, 3Gbps)
Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector
• 4 Front-access 2.5" SSD/ HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® I210 Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210,
M12 Connector
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210,
M12 Connector
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210,
M12 Connector
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210,
M12 Connector
Power
Power Input 6V to 78V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, IGN
Ignition Control 16 Mode
Remote Switch 2-pin Terminal Block
Surge Protection Up to 200V/1ms Transient Power
UPS Supported (Optional)
6
GENERAL INTRODUCTION
©Vecow IVH-7700 User Manual
Others
TPM Optional Inneon SLB9635 supports TPM 1.0, LPC
Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats
GPS Onboard GPS Module (Optional)
Software Support
Microsoft Windows 8, Windows 7, Windows XP
Linux Fedora 13, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.2 kg (9.26 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN 50155, EN 50121-3-2
7
GENERAL INTRODUCTION
1.4 Supported CPU List
Processor No. TDP Cache Max. Frequency Embedded
i7-3940XM 55W 8M Up to 3.90GHz
i7-3920XM 55W 8M Up to 3.80GHz
i7-3840QM 45W 8M Up to 3.80GHz
i7-3820QM 45W 8M Up to 3.70GHz
i7-3740QM 45W 6M Up to 3.7GHz
i7-3720QM 45W 6M Up to 3.60GHz
i7-3630QM 45W 6M Up to 3.40GHz
i7-3612QE 45W 6M Up to 3.10GHz Yes
i7-3610QM 45W 6M Up to 3.30GHz
i7-3610QE 45W 6M Up to 3.30GHz Yes
i7-3540M 35W 4M Up to 3.70GHz
i7-3520M 35W 4M Up to 3.60GHz
i5-3610ME 35W 3M Up to 3.30GHz Yes
i5-3380M 35W 3M Up to 3.60GHz
i5-3360M 35W 3M Up to 3.50GHz
i5-3340M 35W 3M Up to 3.40GHz
i5-3320M 35W 3M Up to 3.30GHz
i5-3230M 35W 3M Up to 3.20GHz
i5-3210M 35W 3M Up to 3.10GHz
i3-3130M 35W 3M Up to 2.60GHz
i3-3120ME 35W 3M Up to 2.40GHz Yes
i3-3120M 35W 3M Up to 2.50GHz
i3-3110M 35W 3M Up to 2.40GHz
Celeron 1020M 35W 2M Up to 2.10GHz
Celeron 1020E 35W 2M Up to 2.20GHz Yes
Celeron 1000M 35W 2M Up to 1.80GHz
8
GENERAL INTRODUCTION
©Vecow IVH-7700 User Manual
1.5 Mechanical Dimension
1.5.1 Dimensions of IVH-7700-QRD
260,0 (10.2”)
260,0 (10.2”)
215,0 (8.5”)
260,0 (10.2”)
215,0 (8.5”)
215,0 (8.5”)
79,1 (3.1”)
1.5.2 Dimensions of IVH-7700-QRDM
260,0 (10.2”)
260,0 (10.2”)
215,0 (8.5”)
260,0 (10.2”)
215,0 (8.5”)
215,0 (8.5”)
79,1 (3.1”)
Unit: mm (inch)
Unit: mm (inch)
9
GETTING TO KNOW YOUR IVH-7700
2
GETTING TO KNOW YOUR IVH-7700
2.1 Packing List
Item Description Qty
1IVH-7700 In-Vehicle Fanless Embedded System
(According to the conguration you order, the IVH-7700
series may contain SSD/HDD and DDR3L SO-DIMM.
Please verify these items if necessary.)
1
2Accessory box, which contains
● Vecow Drivers & Utilities DVD
● Wall-mounting bracket
● KHS#6-32x6 screw for wall-mounting bracket
● M2.5x6 screw for Mini PCIe socket
● 2-pin pluggable terminal block
● 3-pin Pluggable terminal block
● 20-pin pluggable terminal block
● Foot Pad
● HDD Tray Key
1
2
4
8
1
1
1
4
2
10
GETTING TO KNOW YOUR IVH-7700©Vecow IVH-7700 User Manual
2.2 Front Panel I/O Functions
In Vecow IVH-7700 series family, all I/O connectors are located on front panel
and rear panel. Most of the general connections to computer device, such as
audio, USB, DVI-I, VGA, DisplayPort and any additional storage, are placed on
the front panel.
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2

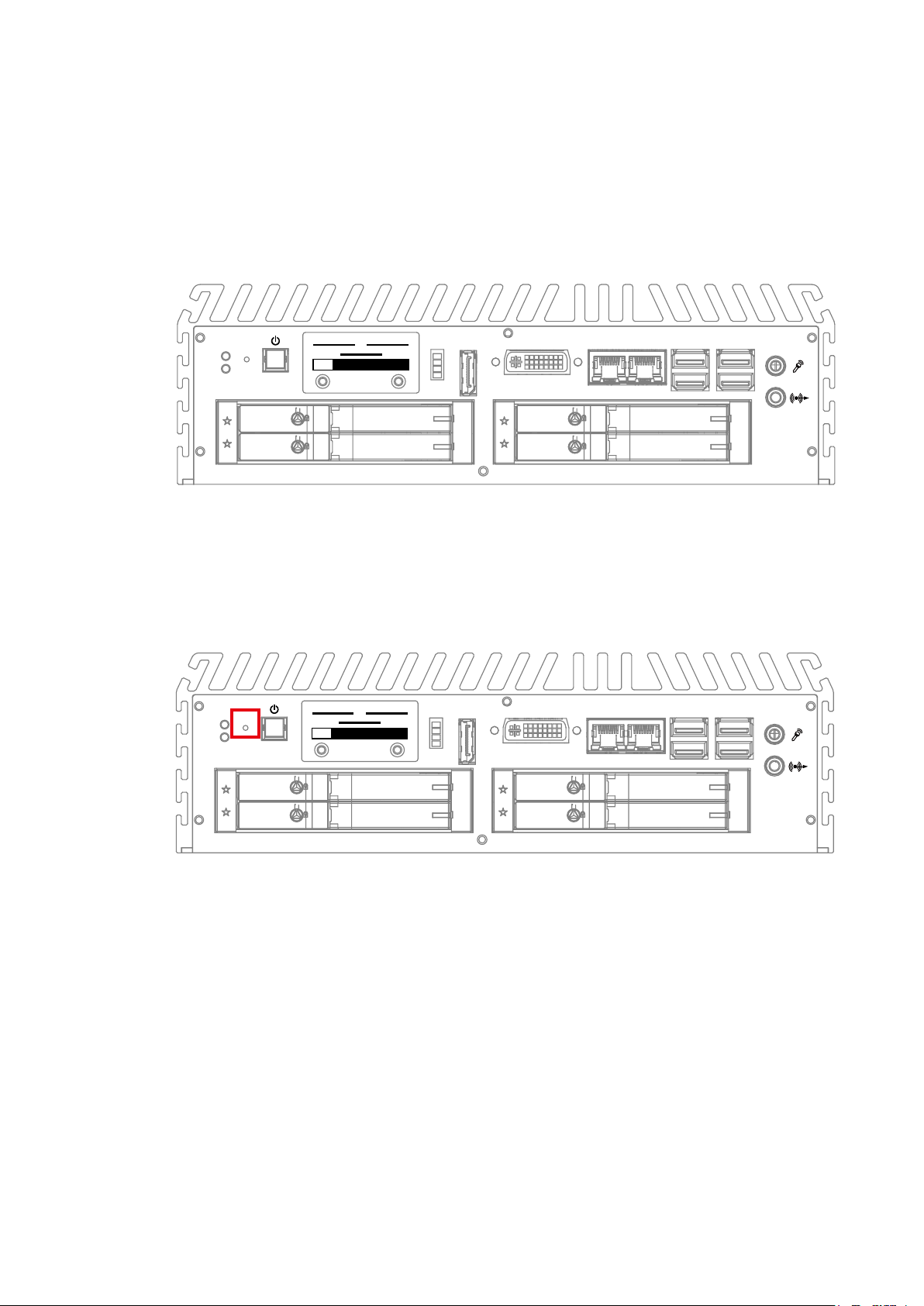

2.2.1 Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without power
off the IVH-7700. Press the Reset Switch for a few seconds, then reset will be
enabled.
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
11
GETTING TO KNOW YOUR IVH-7700

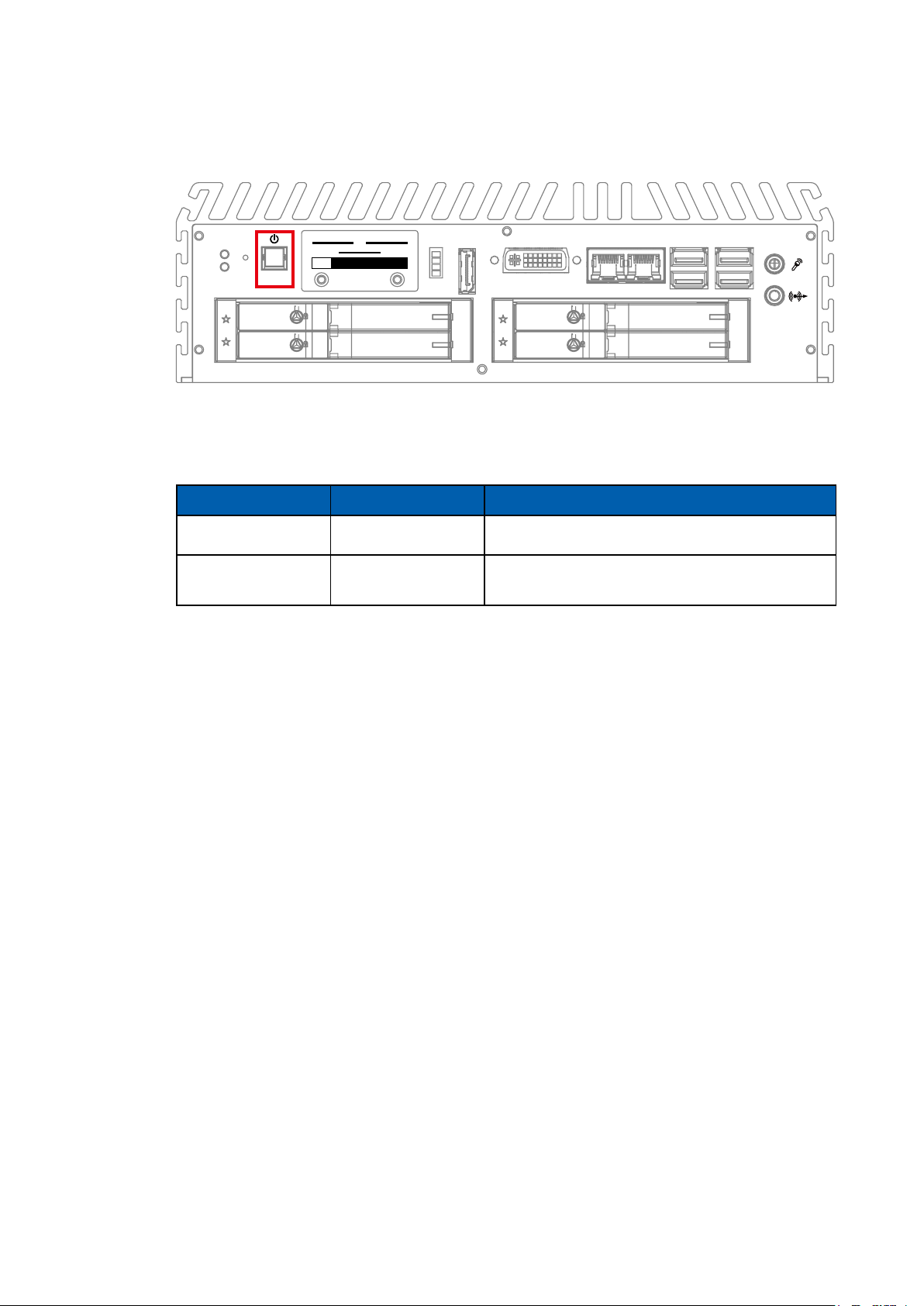

2.2.2 Power Button
The Power Button is a non-latched switch with dual color LED indication. It
indicates power status: S0, S3 and S5. More detail LED indications are listed as
follows:
To power on IVH-7700, press the power button and then the blue LED is
lightened.
To power off IVH-7700, you can either command shutdown by OS operation, or
just simply press the power button.
If system error, you can just press the power button for 4 seconds to shut down
the machine directly.
Please do note that a 4-second interval between each 2 power-on/ power-off
operation is necessary in normal working status. (For example, once turning
off the system, you have to wait for 4 seconds to initiate another power-on
operation).
LED Color Power Status System Status
Solid Blue S0 System working
Solid Orange S3, S5 Suspend to RAM, System off with standby
power
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
12
GETTING TO KNOW YOUR IVH-7700©Vecow IVH-7700 User Manual
2.2.3 CFast Card
There is a CFast socket on the front panel supporting Type-I/ Type-II Compact
Flash card.
It is implemented by a SATA II Port from QM77 PCH. Be sure to disconnect the
power source and unscrew the CFast socket cover before installing a CFast
card. The IVH-7700 does not support the CFast hot swap and PnP (Plug and
Play) functions. It is necessary to remove power source rst before inserting or
removing the CFast card.
The pinouts of CFast port are listed as follows:
Pin No. Description Pin No. Description
S1 GND PC6 NC
S2 SATA_TXP5 PC7 GND
S3 SATA_TXN5 PC8 CFAST_LED
S4 GND PC9 NC
S5 SATA_RXN5 PC10 NC
S6 SATA_RXP5 PC11 NC
S7 GND PC12 NC
PC1 GND PC13 +3.3V
PC2 GND PC14 +3.3V
PC3 NC PC15 GND
PC4 NC PC16 GND
PC5 NC PC17 NC
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
13
GETTING TO KNOW YOUR IVH-7700
2.2.5 DVI-I/ HDMI Connector
The DVI-I connector on the front panel supports both DVI and VGA display
modes. This connector can either output DVI signals signal. The DVI output
mode supports up to 1920 x 1200 resolution and output mode supports up to
1920 x 1200 resolution. The DVI mode is automatically selected according to
the display device connected. You will need a DVI-I cable when connecting to a
display device.
2.2.4 PWR and HDD LED Indicator
Yellow-HDD LED: A hard disk/ CFast LED. If the LED is on, it indicates that the
system’s storage is functional. If it is off, it indicates that the system’s storage is
not functional. If it is ashing, it indicates data access activities.
Green-Power LED: If the LED is solid green, it indicates that the system is
powered on.
LED Color Power Status System Status
Yellow HDD/ CFast • On/ Off : Storage status, function or not.
• Twinkling : Data transferring.
Green Power System power status (on/ off)
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
14
GETTING TO KNOW YOUR IVH-7700©Vecow IVH-7700 User Manual

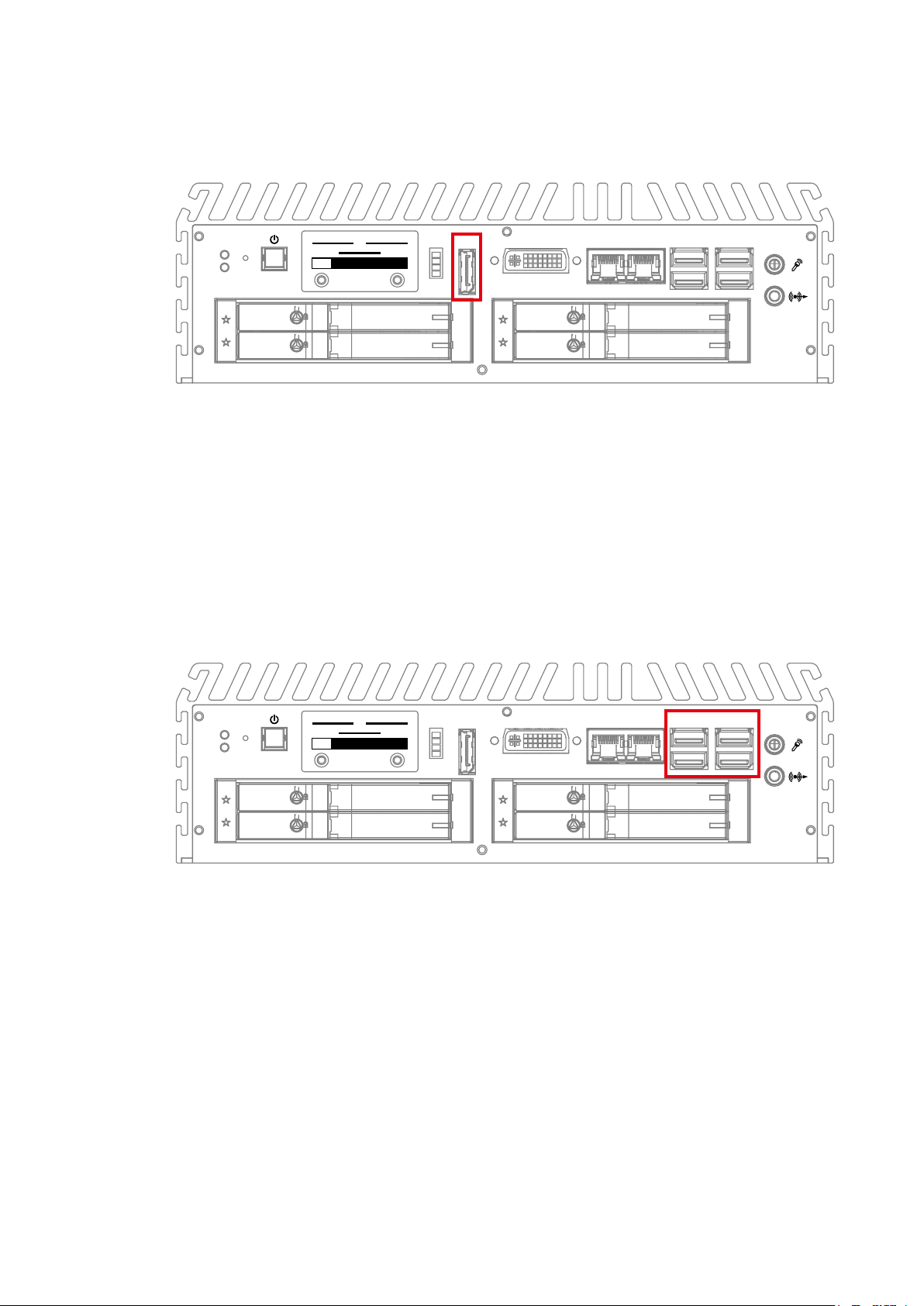

2.2.6 DisplayPort
Onboard DisplayPort connection supports up to 2560 x 1600 resolution at 60
Hz.
2.2.7 USB 3.0
There are 4 USB 3.0 connections available supporting up to 5GB per second
data rate in the front side of IVH-7700. It also compliant with the requirements of
SuperSpeed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
DVI-IDP
POWER
RESET
LAN1 LAN2 USB 3.0 USB 3.0
WLAN/
WWAN
1
2
3
4
HDD
PWR
CFast
SIM 3 SIM 4
SIM 2
Table of contents
Other Vecom Desktop manuals
