Vectaire ELEGANCE 16 User manual

ELEGANCE “16”
Low Carbon Fan with EC Motor
Installation and Operating Instructions
• SAP PCDB Listed
• 3 speed continuous running
• 6 models:
- standard
- delay-on timer
- humidity control
- SELV - low voltage
• for all domestic wet rooms
• for walls, ceilings or windows
16 l/s
Trickle Speed 2
IPX4 IPX7

Elegance “16” - HIGH PERFORMANCE, LOW CARBON FANS
INSTALLATION and OPERATING INSTRUCTIONS
THIS LEAFLET MUST BE AVAILABLE TO THE USER
The product you have purchased is an extrac-
tor fan for exhausting directly outside or
through medium lengths of ducting and is suit-
able for wall, ceiling or window (with optional
kit) installation. To ensure optimum operation
and guarantee a long life, please read this man-
ual carefully. It explains how to install correctly,
use and maintain the product properly.
Following these instructions will ensure the reli-
ability of the product and extend its working life.
The manufacturer will not be held responsible
and will not accept any responsibility for dam-
age caused to persons or things due to
improper use with reference to the precau-
tions outlined in this leaflet.
The product, constructed using state of the art
technology, complies with current standards
regarding electrical equipment. It conforms with
the EMC 2014/30/UE European Directive
regarding radio interference suppression and
electro-magnetic compatibility.
WARNING: Serious injury or death could result if
these instructions are not carefully followed
•Do not use this product for any purpose other
than that for which it was designed.
•Remove the product from its packaging and
make sure that it has not been damaged. If
in doubt, contact the supplier, authorised
dealer, service centre or manufacturer to
check that the product will still operate cor-
rectly. Do not attempt to use or repair the
product before doing this.
•Do not leave packing material within the reach
of children or unskilled people. To dispose of
the packaging and the appliance at the end of
its useful life refer to the recycling rules in force.
•The use of any electrical product requires
compliance with some basic rules which are
listed below:
- do not touch it with wet or damp parts of
the body (e.g hands, feet).
- this appliance can be used by children
aged 8 years and over, and people with
reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge
if they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children should not play with the
appliance. User cleaning should not be car
riedout by children without supervision.
• The product should be connected to the
mains electricity supply or electrical outlet
only if:
- the electrical voltage and frequency corre-
spond to those shown on the rating label.
- the capacity of the electricity supply is suffi-
cient to operate the product at its maximum
power.
- suitable electrical protection is provided
2

for the product to be installed.
• The electrical supply to which the fan is con-
nected must comply with all existing regula-
tions. All installations must comply with cur=
rent IEE wiring regulations.

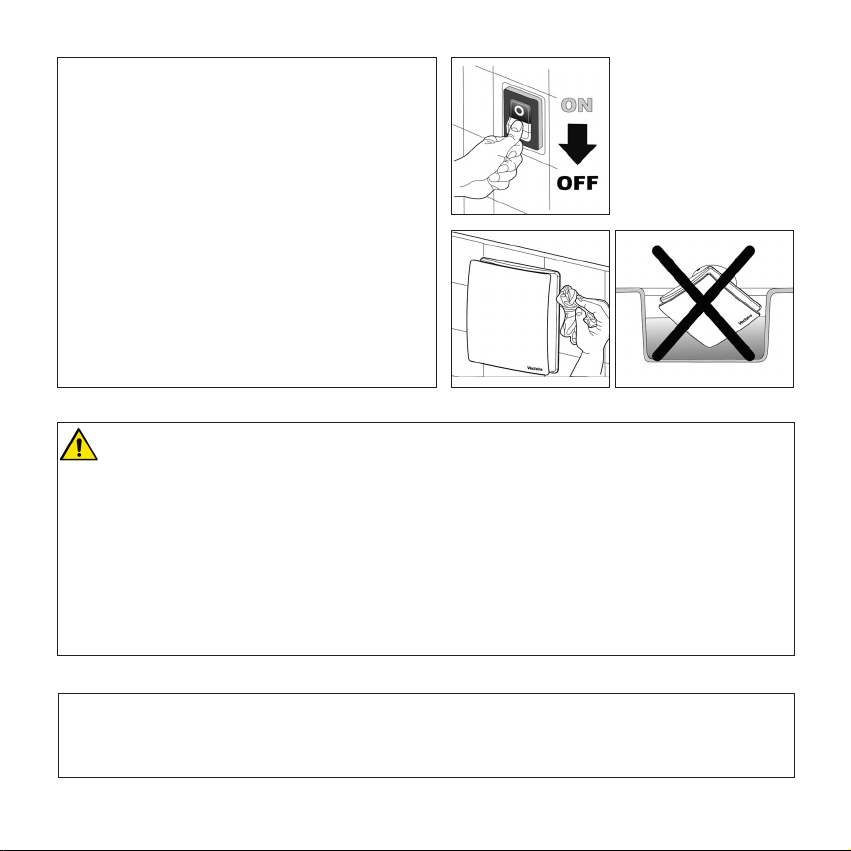

• Before maintenance or cleaning is carried
out, the product must be switched off and
disconnected from the mains electricity supply.
• If a fault, malfunction or anomaly of any type
occurs, the fan should be isolated (switching i
it off and disconnecting it from the mains
electricity supply) and advice sought from
qualified personnel.
• Always request original spare parts for
repairs
• If the product needs to be removed, turn off
the mains supply circuit-breaker and then
disconnect the fan.
• The fan MUST BE installed as detailed in
this leaflet
WARNING: Damage could be caused to the
product if the installation instructions are not
followed
• The product should not be used in an ambi-
ent temperature higher than 40°C (104°F).
• The product should not be exposed to atmo
spheric agents (rain, sun, snow, etc.).
• The product or its parts should not be
placed in water or other liquids.
• Routine maintenance as described below
should be carried out to check the condition
of the fan.
• The air or fumes being extracted must be
clean and free from greasy particles, soot,
chemical and corrosive agents, flammable or
explosive mixtures.
• The product must be installed by profes
sionally qualified personnel. Incorrect
installation can cause damage to people,
animals or property, for which the manu
facturer cannot be held liable.
• All pole disconnection from the mains supply
must be incorporated within the fixed wiring
with a minimum contact separation of 3mm
in accordance with the latest wiring regula
tions.
• If the electrical supply board (or switching
device) is located some distance from the
fan a means of local isolation must be provided.
• To ensure optimum operation, do not block
the air intake and exit vents.
• Any ducting used must be free of blockages,
and should be insulated if in an unheated
area.
• The room where the product is operating
must have adequate air replacement to
ensure maximum effectiveness.
• If the product is sited in a room containing a
fuel burning appliance which is not of the bal-
anced flue type, the installer must ensure
that air replacement is adequate both for
the fan and the fuel burning appliance
• The product must not be used as an activa
tor for water heaters, stoves, etc.
• The product must not exhaust into ducts
designed to evacuate fumes from combus
tion in stoves or other combustion-powered
devices.
3

RANGE
Trickle Speed 1 - 8 l/sec - 28.8 m³/h
Trickle Speed 2 - 16 l/sec - 57.6 m³/h
EL1003 - this fan combines the latest technol-
ogy with energy saving and efficiency. It is a
quiet running, 3 speed fan, is designed to run
continuously at a pre-selectable choice of 2
trickle speeds (fixed at installation). The
user can boost the fan speed to its maximum
performance when required by means of the cord or
remove the cord and use a remote switch, light
switch, PIR sensor or humidistat.
The EL1003 is SAP PCDB Eligible.
EL1003LV - SELV 12V version of EL1003
EL1003DT - 3 speed, continuous running fan
with delay-on timer and pull cord. The delay-on
timer version will run at low speed until the
boost speed is activated by means of the cord
or, if the cord is removed, by means of a
remote switch, light switch, PIR sensor or
humidistat. There is a 2 minute delay before
the fan starts to run at its high speed - if the
boost speed is deactivated before that time
lapse, the fan will continue to run at low speed.
If the boost speed is activated, the fan will oper-
ate at high speed until the boost switch is
turned off. After this, the fan will continue at
high speed for the length of time set on the
timer overrun adjustment, between 0 and 30
minutes. (See page 9). After the overrun time
has elapsed, the fan will return to the slower
speed.
EL1003DTLV - SELV 12V version of
EL1003DT
EL1003HDT - 3 speed, continuous running fan.
The fan runs continuously at the pre-selected
lower speed, and the boost (speed 2) will start
to operate automatically when the relative
humidity (adjustable between 40% and 90%
+/-5% tolerance) reaches the pre-set level and
will continue to operate at this speed until the
humidity has been dispersed and the adjust-
able over-run timer (adjustable from 0 to 30
minutes) has completed its cycle. The boost
speed can also be activated by as described for
model EL1003DT
EL1003HDTLV - SELV 12V version of
EL1003HDT
4

5
INSTALLATION
1
2 3
45

6
67
9
8
10

11

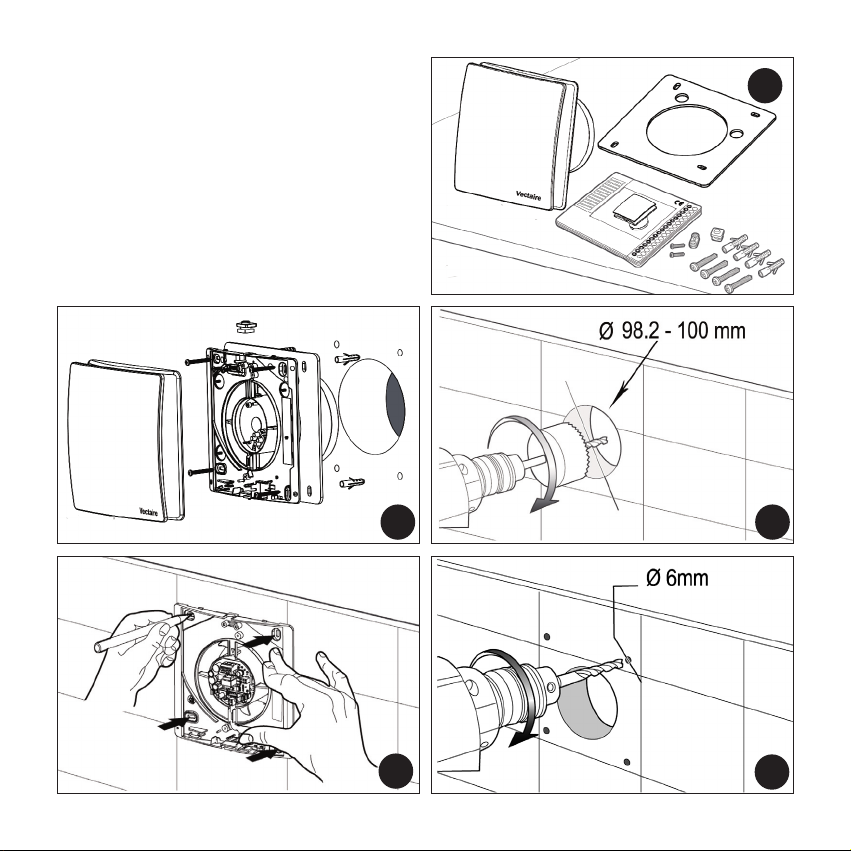

INSTALLATION
1. check there is nothing missing in box
2. exploded diagram
3. drill hole in wall - allow extra width if
using ducting - it is the installer's
responsibility to use the appropriate
core cutter to obtain the correct hole
diameter.
4. use fan assembly as template to mark drill
holes
5. drill 4 x 6mm dia holes
6. fit wall plugs
7/8decide whether to have cable access
from rear (recessed) or top (surface) of
fan - if from top ensure that included
grommet is properly fixed. (See dia 8).
9. screw fan to wall
10. connect cable using cable clamp. NB
this fan is double insulated and does
not need to be earthed
11/12. replace front cover ensuring it
clicks firmly into position
N.B This fan is NOT suitable for use with a
Gravity Grille. It should be installed using
either a Cowl or Fixed Grille.
IMPORTANT
If the fan is installed in a ceiling with a vertical
duct passing through an unheated space, a
condensation trap MUST be fitted. Any duct-
ing in an unheated space should also be insu-
lated according to the latest Building
Regulations recommendations in the
Domestic Ventilation Compliance Guide.
Failure to do this could result in condensation
affecting the operation of the fan and cause
damage to the ceiling.
Additionally for ceiling installation the pull-
cord switch should be put in the "off" position
and the cord removed. A remote switch will
be necessary for changing the fan speed -
see wiring diagrams on following page.
7
12

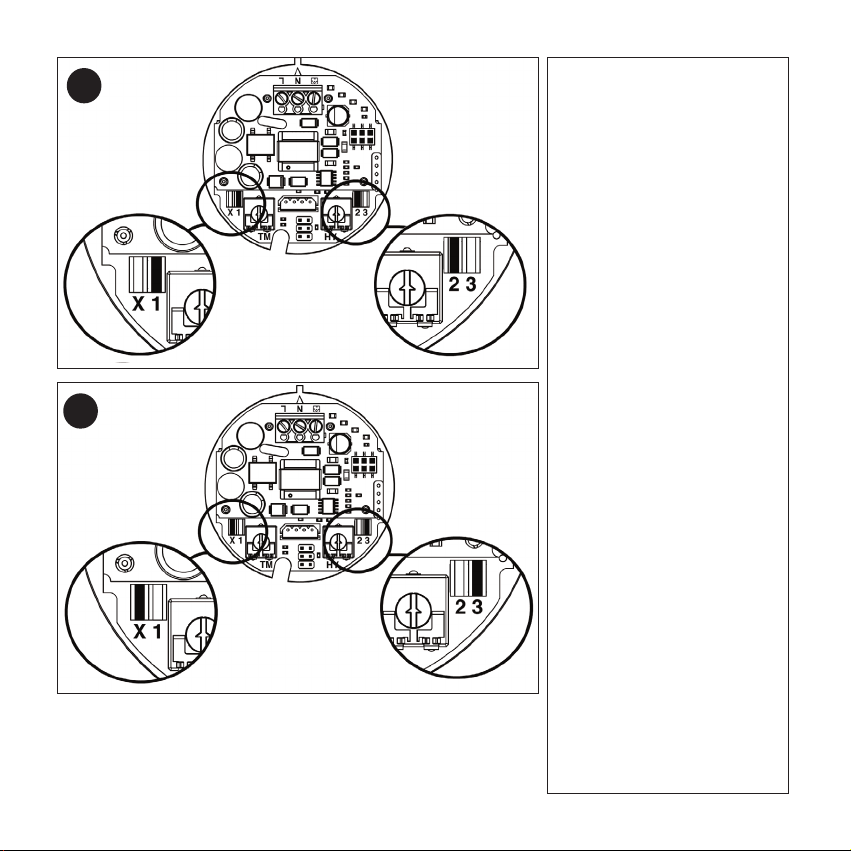

JUMPER SWITCH
These fans are designed to
run continuously at one of 2
lower speeds fixed at installa-
tion using the jumper switch.
Fig 13: -
EL1003, EL1003DT and
EL1003HDT (and SELV
models)
Minimum Speed 1 - Jumper 1
Minimum Speed 2 - Jumper 2
Fig 14: -
to activate delay-on timer in
EL1003DT and EL1003HDT
(and SELV models) plug
Jumper on position 3
(N.B Jumpers 1 and 3 will be
pre-set at the factory,
depending on the fan model
you have)
The user can boost the fan
speed to its maximum perfor-
mance by using cord or
remote switch .
N.B When installing fans via
a remote switch, pullcord
switch must be left in "off"
position and the cord
removed.
13
14
8

TRIMMER ADJUSTMENT
To adjust the humidistat and timer trim-
mers, remove the front cover of the fan (Fig
2) to access the trimmers.
The humidistat (HY) can be adjusted
between 40% and 90% relative humidity.
Turn clockwise to decrease sensitivity and
set at a higher level of relative humidity.
The timer (TM) is adjustable between 0 and
30 minutes. Turn the trimmer clockwise to
increase the overrun time, or anti-clockwise
to decrease it.
9

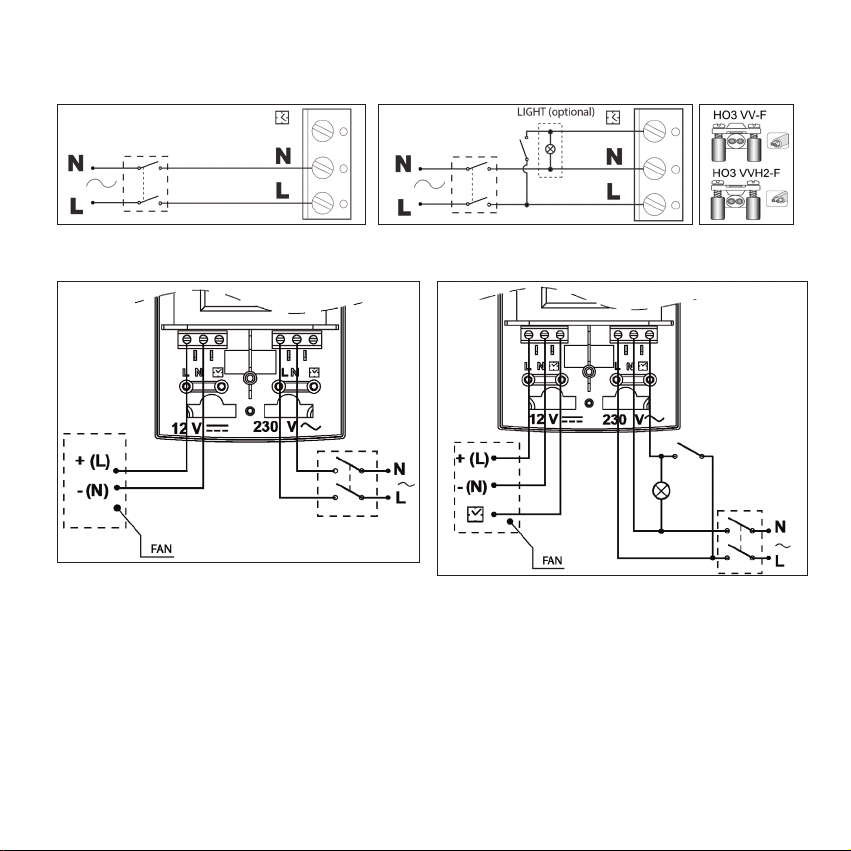

ELs - 3 Speed with Cord
WIRING DIAGRAMS
ELs - 3 Speed via remote switch
10
ELs - SELV - 3 Speed with Cord ELs - SELV - 3 Speed via remote switch
SELV
All SELV (safety extra low voltage) products
must be installed to conform to IEC 60364.
• Connection between the fan and the mains
supply must be by means of a safety isolating
transformer of the appropriate power rating
(supplied).
• The means of disconnection from the supply
mains must have a contact separation in all
poles and must provide full disconnection
under overvoltage category III conditions.
• The transformer will operate only one fan.
• The transformer must not be installed in
Zones 1 or 2, but should be installed as close
as possible to the fan within Zone 3.
• The cable used to connect the transformer
to the fan must have a section area of at
least 1.5mm² and a maximum length of 10m.
When installing fans via a remote switch, pullcord switch must be put in the "off" position and the cord removed.

CLEANING and MAINTENANCE
Before any cleaning or maintenance operation,
the fan should be switched off and disconnected
from the main power supply. The front cover can
be cleaned by the user with a dry cloth or soft
brush. If any maintenance is required, this
should be done by a professional technician. The
user should never dismantle the fan for any rea-
son.
The fan must not come into contact with any
kind of liquid or solvent. If this should occur, con-
tact a qualified technician.
NOTE: The motor does not require lubrication
as it is maintenance free "sealed for life" type.
DISMANTLING & RECYCLING
This product has been designed and constructed using high-quality materials and components
that can be recycled or re-used.
THIS VENTILATION UNIT IS FITTED WITH AN AUTOMATIC SAFETY CUT-OUT WHICH WILL
STOP THE MOTOR RUNNING IF THE FAN BLADE IS OBSTRUCTED IN ANY WAY.
TO RE-START THE MOTOR, THE FOLLOWING SHOULD BE CARRIED OUT BY A QUALIFIED
TECHNICIAN.
• DISCONNECT THE UNIT FROM THE MAINS POWER SUPPLY;
• REMOVE THE OBSTRUCTION;
• RECONNECT TO THE POWER SUPPLY.
THE UNIT SHOULD THEN OPERATE NORMALLY, BUT IF THE PROBLEM PERSISTS, CONTACT
YOUR SUPPLIER FOR FURTHER ASSISTANCE.
11

Elegance “16”230623
5FI2376
E & O.E
Vectaire Ltd
Lincoln Road
Cressex Business Park
High Wycombe
Buckinghamshire
HP12 3RH
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.vectaire.co.uk
