Vector Fog DC20+ User manual
© 2022 Vectorfog® is a trademark of MedSchenker Inc.
All right reserved
DC20+
ULV FOGGER
User Manual
www.vectorfog.com
The battery charger is for AC 110V — 240V power supply/60Hz.
Unplug the charger after the battery is fully charged (green light).
Do not fill the solution tank with powder, viscous liquid and flammable solution
such as strong acid, strong alkaline, petrol, etc.
Do not disassemble, modify, or alter the charger and the machine.
Modifications or alterations will invalidate the warranty.
Please wear safety equipment (mask, anti-contamination clothing, gloves, etc.)
while using noxious material.
When using the machine inside vehicles, secure the position of the machine to
prevent electric shocks and chemical teaks.
Do not lean the machine on its side with chemical inside the tank.
This can cause chemical leaks resulting into faulty machine.
Do not inhale the cold fog generated from the machine. The micro-droplets
produced by this machine can float in the air for a long time and are quickly absorbed
by the lungs. Depending on the chemical being used, this could result in
serious injuries or death.
The charger is not waterproof. Do not use or store this in humid atmosphere
or wet places.
Do not use any damaged power cord, plug, charger or socket.
Do not fill in the solution tank while charging the battery.
Do not drop, heat, cut, or disassemble the machine.
Do not use the machine close to combustible or inflammable materials.
Only use the designated charger to charge the battery.
Do not charge or store the machine over 95°F (35°C) or under 50°F (10°C).
Do not expose and use the machine over 104°F (40°C).
Do not touch the plug, charger or switch with wet hands.
1
15
13
9
8
14
10
4
2
If the machine or the charger is faulty, please contact the supplier.16
12
6
7
11
5
3
SAFETY
PRECAUTIONS
www.vectorfog.com
01
PRODUCT
OVERVIEW
www.vectorfog.com 02
DC20 PLUS is a cordless motor operated machine that generates cold fog, mist or aerosol
formed of tiny droplets known as ultra low volume (ULV). This machine is generally used to
apply disinfectants, insecticides, deodorizers, biocides and fungicides. Due to the droplet
size produced by this machine (5-50 microns), it is ideal for removing germs, insects, fungi
and odors as the cold fog will penetrate each and every hidden corner of the fogged area.
SPECIAL FEATURES
Cordless Machine with Built-in Battery
Can be operated anywhere without power cord after the battery has been charged.
Solution Compatibility
Is compatible with different types of solutions such as water, oil, air freshener and others.
Quiet Cordless ULV Fogger
Generally more quiet than thermal foggers, which is useful in urban areas.
Special Designed Nozzle
Specially designed to adjust the droplet size between 5-50 microns while controlling
the minimum flow rate to 0.25 LPM.
• Pest control for apartments, flat, houses and building.
• Regular fumigation to prevent Epidemic disease for schools, buses,
subways, trains, planes and institutions.
• Removing indoor and outdoor odors for a clean environment.
• Disinfecting animal shelters to eradicate harmful microorganisms.
MULTIPURPOSE USE
OPERATION
www.vectorfog.com
03
• All new machines only come with 30% battery life.
• The battery needs to be fully charged
• Unplug the charger when fully charged.
• When the battery is under 30%, the indicator on the handle turns red.
CHARGING
1
2
3
4
4.1
4.2
Connect the charger to the power cable.
Connect the charger to the charging port on the handle.
Plug-in the power cord to the main power supply
Battery takes 3 hours to recharge
Red light: Ongoing charge
Green light: Fully charged
1 2 3
4.24.1
Use the designated charger only.
Use the charger for recharging purposes only.
Do not use the machine while recharging.
REMARK
OPERATION
www.vectorfog.com 04

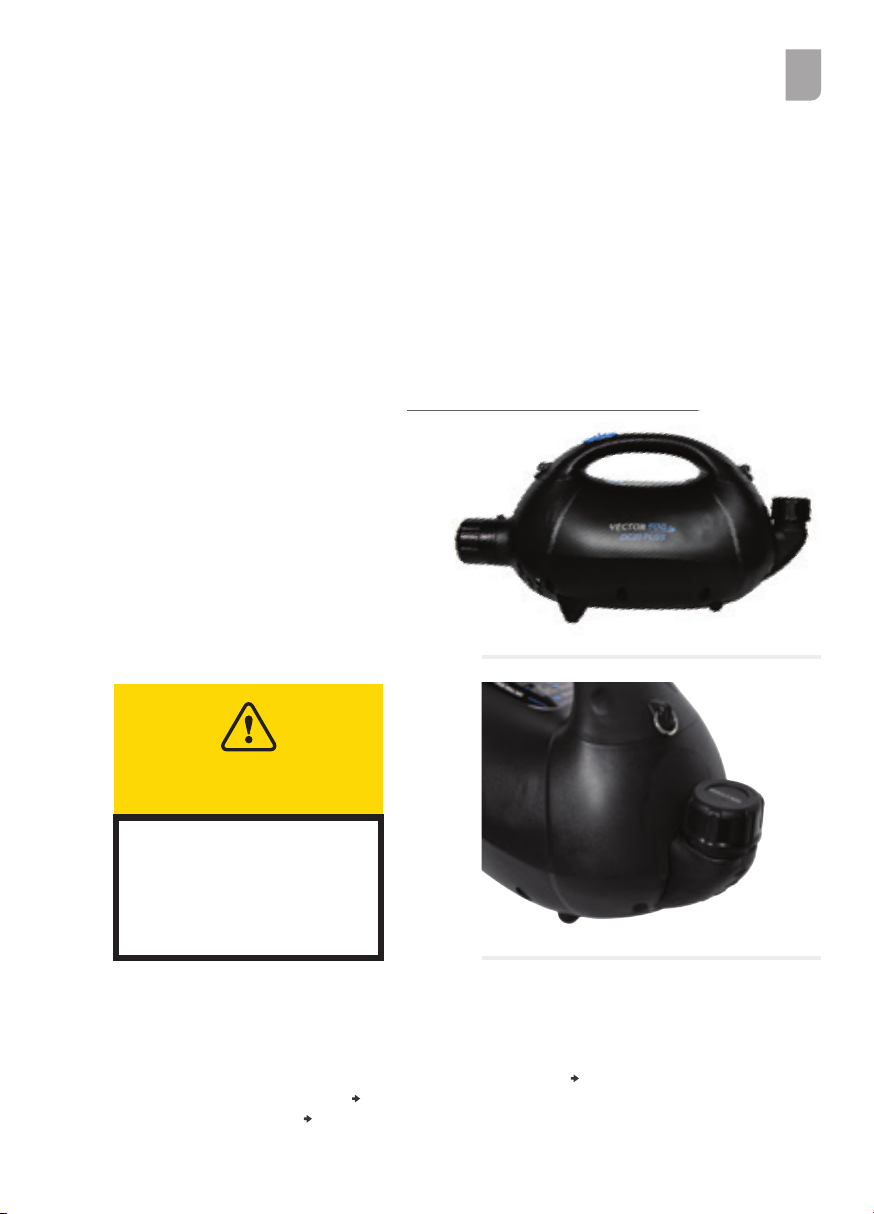

• Pre-mix the chemicals prior to filling the tank.
• Fill the tank with chemical mixture through the solution inlet.
• Close the cap of the tank securely to prevent chemical leakage.
FILLING THE TANK
The tank capacity is only 2 Liters.
Do not fill up the tank with solution while recharging the battery.
Do not fill the solution tank with powder, viscous liquid and flammable
solution such as strong acid, strong alkaline, petrol, etc.
REMARK
SOLUTION
INLET
WARNING
HOCl (Hypochlorous Acid) is a
powerful oxidizing agent and is
not recommended for use with
this machine. Using a home-made
HOCl solution with this machine
is not covered under our 12
month warranty.
OPERATING
THE UNIT
www.vectorfog.com
05
Turn on the machine
by sliding the switch
to the ON position.
Turn off the machine
by sliding the swtich
to the OFF position.
Adjust the droplet
size by turning the
nozzle on the front of
the machine.
Clockwise reduces
the droplet size.
Anti-clockwise
increases it.
www.vectorfog.com 06
CLEANING
INSTRUCTIONS
WHEN USING WATER BASED LIQUIDS
When fogging is complete, pour any liquid left in the tank to a suitable container
using a funnel.
STEP A
Operate the fogger for 1 minute with the nozzle opened to the largest droplet size
setting. This will get rid of any existing liquid remaining in the fogger's internal
tubes.
STEP B
Fill the fogger with some clean water and operate again for one minute.
Remove any excess water from the tank.
STEP C
WHEN USING EMULSIONS
After fogging, begin with STEP A as listed above. Once done, fill the tank with
appropriate solvent for the chemical that was used. Repeat STEP B, flushing any
chemical residuals left inside. Then repeat STEP C. Before storing, allow the tank to dry.
PLEASE CLEAN THE FOGGER AFTER EACH USE!
WARNING

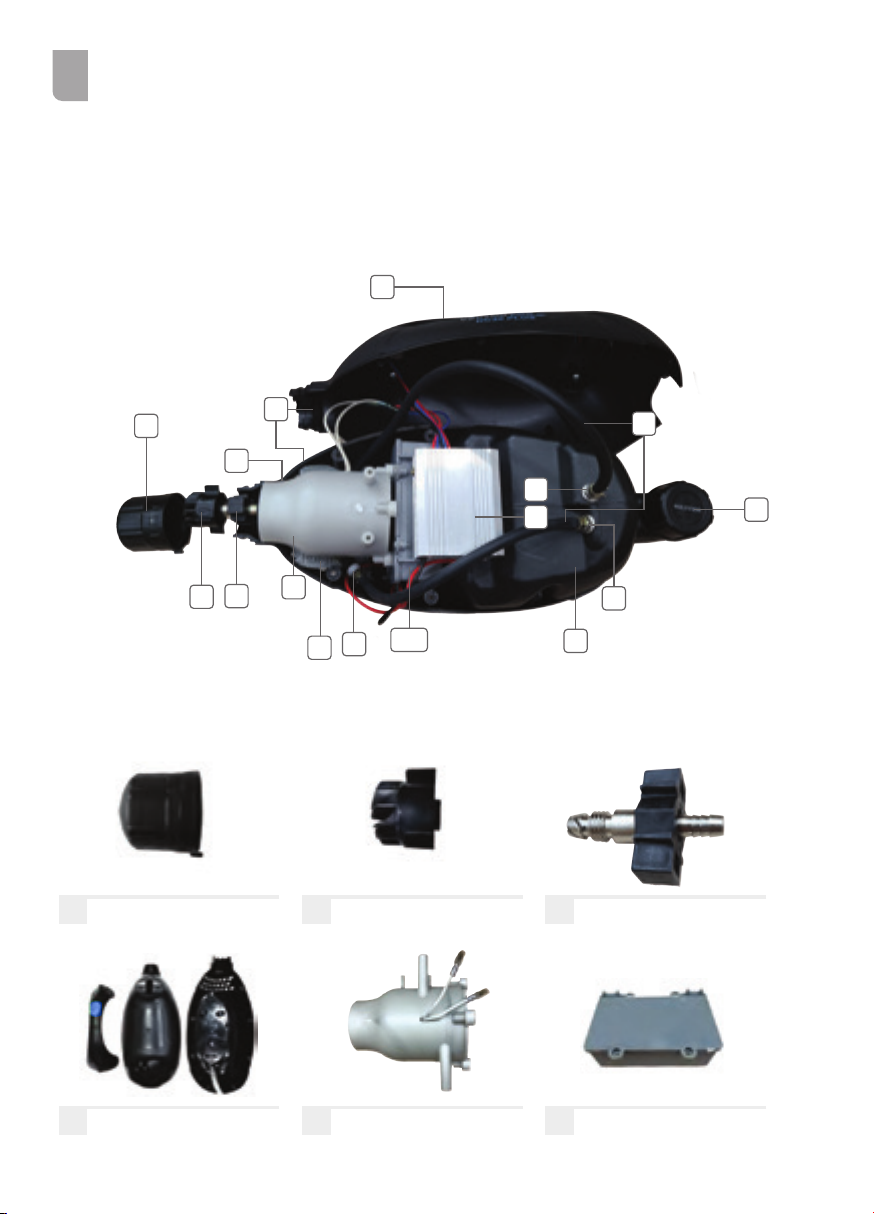

PRODUCT
www.vectorfog.com
07
1 2 3
Air-Cap Cap-Nozzle Nozzle-Assy
Body-Assy Motor-Assy Battery-Assy
4 5 6
1
17
19
16
23
6,7
5
15
18
12
13
414
9
8
www.vectorfog.com 08
PRODUCT
7 8 9
Battery Invertor Switch-Assy
15 Tank-Assy
13 Elbow
18 Water-Nipple
16 Tank-Cap 17 Air-Nipple
21 Power Cable
19 Filter 20 Battery Charger
14 Hose
12 Check Valve
SPECIFICATIONS
www.vectorfog.com
09
Configuration
Specifications
Battery
Charger
DC20 PLUS
Continuous fogging time
(when fully charged) 45 minutes
Tank Capacity
Net Weight
Nozzle Diameter
Vent Diameter
Coverage
Flow Rate
Droplet Size
Cable
Spray Angle
Motor Wattage
RPM
Voltage
Capacity
Input Voltage
Output Voltage
Current (I)
Charging Time
2L (0.5 gallon)
3.11kg (6.8lb)
1.5Ø
15Ø
1,500 sq ft (140 m²)
10-20 LPH
5-50 Microns
Cordless
80 Degrees
350W
20,000 RPM
21.9V
5,500mAh
110-240V, 50-60Hz
25.2V
2.5A
2.5-3hrs
Dimensions 500 x 210 x 260mm
(19.6” x 8.2” x 10.2”)
Spray Distance 2-6meters (Horizontal)
(6.5-19.6 ft)
Motor
www.vectorfog.com 10
The warranty is subject to the following provisions:
• The warranty does not cover normal wear, accidental damage, misuse or damage resulting from use for a
purpose for which it is not designed; altered in any way; or subjected to any but the specified voltage if applicable.
• The product must be operated only by trained and skilled personnel and it must be correctly handled and
operated in accordance with the instructions contained within this manual. The functional safety of the unit (e.g.
by trial fogging with water) must be checked before putting the unit in operation. Any loose or leaking valves or
lines should be repaired and fixed. If functional safety is not ensured, do not put the unit into operation.
• The warranty will be rendered invalided if the product is re-sold, fitted with non-original spare parts or damaged
by inexpert repair.
• Chemical solutions must be officially approved for the intended application and the material safety data sheet of
the chemical solution should be checked prior to operation. HOCL (Hypochlorous Acid) is a powerful oxidizing
agent and is not recommended for use with this machine. Using a home-made HOCL solution with this machine is
not covered under our 12 month warranty. If not approved for acid resistance, the pH-value should be limited to a
range between 4 - 10 at 200 PPM. Using solutions out of the pH-value 4 - 10 will make the warranty null and void.
After use, fog with clean water for about 3 minutes to remove any chemicals still left in the system. Ensure all the
water is used up and the machine is dried prior to storage. Damage caused by corrosion will invalidate the
warranty!
• Any formation of aerosols or fogs from flammable substances or acids releasing oxygen and a mixture with air
and/or dust always involves the risk of fire and/or explosion if there is a source of ignition. Observe the explosion
limit of all solutions and avoid over dosage accordingly. Only use non-inflammable liquids (without a flash point)
for treatments in rooms where a dust explosion hazard exists. Unit is not explosion proof.
• Operators owe a duty of care to prevent unreasonable risk of harm or injury. Operators should not fog towards
hot surfaces or electric cables nor fog in rooms where temperatures exceed 35°C. Position the unit in a safe and
upright position with the hand piece hooked or carry it with the strap over your shoulder. In case of stationary use,
do not leave the unit unattended.
• If the machine stops fogging unintentionally, turn off the unit immediately. If the issue persists, contact the
supplier, distributor or Vectorfog®. After a return due to malfunctioning of the unit, the supplier, distributor or
Vectorfog® will inspect the unit to determine whether or not warranty service applies. Upon arrival at the facility,
inspection will take 7 - 14 business days. Vectorfog® will then contact the Purchaser with an evaluation of the
product warranty.
• Specifications are subject to change without notice. The manufacturer disclaims any liability for the incidental or
consequential damages. The warranty is in addition to and does not diminish your statutory or legal rights. In the
event of a problem with the product within the warranty period call the Customer Helpline: (US) +1 844 780 6711
PRODUCT
WARRANTY
This product is warrantied for twelve months from the date of original
purchase. Any defect that arises due to faulty materials or workmanship
will either be replaced or repaired during this period by the seller or
authorized distributor from whom you purchased the unit.
Transportation charges or duties shall be borne by Purchaser.
Purchaser must register the product for warranty coverage on the website (VECTORFOG.COM/WARRANTY).
Proof of purchase is required to register.
