1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGAMET 391 •4…20 mA/HART signal conditioning instrument
1About this document
36032-EN-091116

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGAMET 391 is a universal signal conditioning instrument and power
supply unit for connection of a 4…20 mA/HART sensor.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the required occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 5
2For your safety
36032-EN-091116

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of www.vega.com.
2.7Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.8Overfill protection according to WHG
InGermany the WHG (Water Resource Act)stipulates an overfill
protection for systems that deal with substances hazardous to water.
An appropriately certified sensor is the prerequisite for such
protection.The VEGAMET 391 fulfils the construction and testing
principles for overfill protection systems.This is certified by the TÜV
(Technical Control Board)statement "PP 5003/09".You can download
this document from our homepage under "Downloads -Approvals -
Signal conditioning instruments -Overfill protection".
2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
6VEGAMET 391 •4…20 mA/HART signal conditioning instrument
2For your safety
36032-EN-091116

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGAMET 391 signal conditioning instrument
lTwo clamping elements for panel mounting
lEx separating wall
lMini-USB cable
lRS232 modem connection cable (optional)
lDocumentation
-this operating instructions manual
-Supplementary instruction 30325 "RS232/Ethernet connec-
tion"(optional)
-Supplementary instructions manual 30768 "Modbus-TCP,
ASCII protocol"(optional)
-Ex-specific"Safety instructions"(with Ex-version)
-if necessary,further certificates
OK
ESC
on
VEGAMET 391
1 2 3 4 5 6
1
2
3
4
2
5
Fig.1:VEGAMET 391
1Ex separating wall
2Clamping element for panel mounting
3Indicating and adjustment unit
4RS232 or Ethernet interface (optional)
5USB interface
The type label contains the most important data for identification and
use of the instrument:
lArticle number
lSerial number
lTechnical data
lArticle numbers,documentation
Scope of delivery
Components
Type label
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 7
3Product description
36032-EN-091116

The serial number allows you to access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".
3.2Principle of operation
VEGAMET 391 is a universal signal conditioning instrument for a
number of applications such as level,gauge and process pressure
measurement.At the same time,it can serve as power supply unit for
connected sensors.VEGAMET 391 is designed for connection of any
4…20 mA/HART sensor.
On instruments with one of the optional interfaces (RS232/Ethernet),
the measured values can be retrieved via modem or network and
displayed by means of a web browser or WEB-VV.It is also possible to
send measured values and messages via e-mail/SMS.The use of
VEGAMET 391 is particularly suitable for stocktaking,VMI (Vendor
Managed Inventory)and remote enquiry.
The VEGAMET 391 signal conditioning instrument can power the
connected sensor and process its measurement signals.The
requested parameter is shown on the display and also outputted to the
integrated current output for further processing.The measurement
signal can thus be transferred to a remote indication or a superordinate
control system.Six level relays for control of pumps or other devices
are also integrated.
Wide-range power supply unit with 20 …253 V AC/DC for world-wide
use.
Detailed information about the power supply can be found in chapter
"Technical data".
3.3Operation
The instrument can be adjusted with the following adjustment media:
lWith integrated indicating and adjustment unit
lan adjustment software according to FDT/DTM standard,e.g.
PACTware and a Windows PC
The entered parameters are generally saved in VEGAMET 391,when
used with PACTware and PC optionally also on the PC.
Information:
When using PACTware and the respective DTM,additional settings
can be carried out which are not possible or only partly possible with
the integrated indicating and adjustment unit.Communication is
carried out via the integrated USB interface or one of the optional
interfaces (RS232/Ethernet).
Application area
Functional principle
Power supply
8VEGAMET 391 •4…20 mA/HART signal conditioning instrument
3Product description
36032-EN-091116

Further instructions for setting up the web server and e-mail functions
are stated in the online help of PACTware or the VEGAMET 391 DTMs
as well as the operating instructions manual "RS232/Ethernet
connection".
3.4Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 9
3Product description
36032-EN-091116

4Mounting
4.1General instructions
The instrument is designed for recessed installation in a front panel,
housing front plate or a switching cabinet door.The required cut-out is
92 x92 mm according to EN 60529.When installed correctly,
protection rating IP 65 is guaranteed.As an alternative,the instrument
can be mounted into a switching cabinet or housing by means of four
screws (fixed with screws on rear of housing).
A VEGAMET 391 in Ex version is an auxiliary,intrinsically safe
instrument and may not be installed in explosion-endangered areas.
Before setup,the Ex separating wall must be attached with Ex
versions.Safe operation can be only ensured if the operating
instructions manual and the EG type approval certificate are observed.
VEGAMET 391 must not be opened.
4.2Mounting instructions
1Check the correct hold of the seal directly behind the front plate
and shift the instrument from the front into the front panel cut-out.
2Shift the two tensioning elements into the provided gaps.
3Screw in the two screws of the tensioning elements steadily with a
screwdriver.
3
2
1
OK
ESC
on
1 2 3 4 5 6
Fig.2:Front panel mounting
1Front panel,front plate or switching cabinet door
2Tensioning elements
3Slotted screw
Installation possibilities
Front panel mounting
10 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
4Mounting
36032-EN-091116

àFasten the instrument by means of four screws (max.ø4mm)on
the rear of teh housing or the mounting plate according to the
following illustration.
73 mm
(2.87")
86,5 mm
(3.41")
1
2

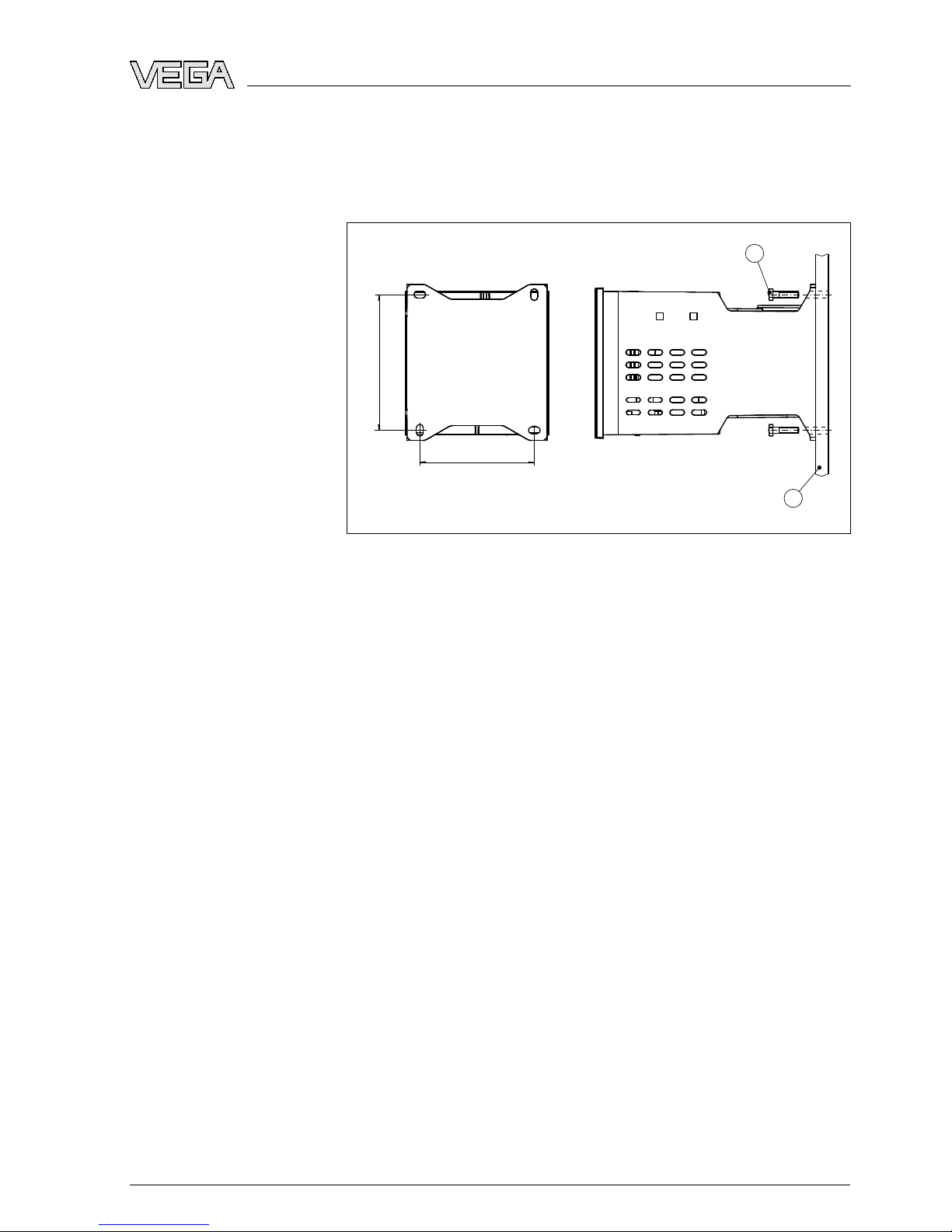

Fig.3:Screw mounting
1Fixing screws
2Rear of the housing or mounting plate
Screw mounting
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 11
4Mounting
36032-EN-091116

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltages are expected,install overvoltage arresters
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the sensors
and power supply units.
The voltage supply can be 20 …253 V AC/DC,50/60 Hz.
The operating voltage of VEGAMET 391 is connected with standard
cable according to the national installation standards.
Standard two-wire cable can be used for connecting the sensors.The
screening is absolutely necessary to ensure interference-free oper-
ation with HART sensors.
Connect the cable screen on both ends to ground potential.In the
sensor,the screen must be connected directly to the internal ground
terminal.The ground terminal on the outside of the sensor housing
must be connected to the potential equalisation (low impedance).
If potential equalisation currents are expected,the screen connection
on the side of VEGAMET 391 must be made via a ceramic capacitor
(e.g.1nF,1500 V). The low frequency potential equalisation currents
are thus suppressed,but the protective effect against high frequency
interference signals remains.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equalisation
currents flow over the cable screen.In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2Connection procedure
Move on to electrical connection and proceed as follows:
1Mount the instrument as described in the previous chapter
2Remove terminal strip 1on the upper side of the instrument
3Connect sensor cable to terminal 1/2(active input)or 5/6(passive
input)
4If necessary,connect digital inputs to 8…12
5Plug terminal strip 1to the upper side of the instrument
6Remove terminal strip 2on the lower side of the instrument
Note safety instructions
Take note of sa-
fety instructions
for Ex applica-
tions
Select power supply
Selecting connection
cable
Cable screening and
grounding
Select connec-
tion cable for Ex
applications
12 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
5Connecting to power supply
36032-EN-091116

7Connect power supply (switched off)to terminal 13/14
8If necessary,connect relays or other outputs
9Plug in terminal strip 2on the lower side of the instrument
10 For connection of additional relais to terminal strip 3,you have to
proceed as described before
The electrical connection is finished.
Remember that with Ex applications,the Ex separating wall must be
plugged onto the upper side of the instrument before setup.
Information:
lOn the active input (terminal 1/2), VEGAMET 391 provides power
for the connected sensors.Power supply and measurement data
are transmitted over the same two-wire cable.This mode is
provided for connection of measuring transducers without sepa-
rate operating voltage (sensors in two-wire version).
lOn the passive input (terminals 5/6), the sensors are not supplied
with energy -only the measured value is transmitted.This input is
for sensors with their own separate operating voltage (sensors in
four-wire version). On a VEGAMET 391 in Ex version,the passive
input is not available due to approval/technical reasons.
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 13
5Connecting to power supply
36032-EN-091116

5.3Wiring plan
87 11103 95421 6 12
1718 141522 1620212324 19 13
2930 262734 2832333536 31 25
+- L+
N-
+ + + + + --
5 4 3
6
9
1 7 82
10 11 12 13
14
OK
ESC
on
1 2 3 4 5 6
Fig.4:Terminal assignment with two-wire sensor
1Operating relay 1
2Operating relay 2
3Operating relay 3
4Operating relay 4
5Operating relay 5
6Operating relay 6
7Current output
8Operating voltage of the signal conditioning instrument
9Measurement data input with sensor supply (active input)
10 Connection for HART modem for sensor parameter adjustment
11 Measurement data input (passive input), not with Ex-ia version
12 Digital input 1…4
13 Common ground for digital input 1…4
14 4 …20 mA/HART sensor (two-wire version)
Wiring plan for two-wire
sensor
14 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
5Connecting to power supply
36032-EN-091116

+ + + + + --
910 11 12
14 15
13
OK
ESC
on
1 2 3 4 5 6
87 11103 95421 6 12
1718 141522 1620212324 19 13
2930 262734 2832333536 31 25
+- L+
N-
5 4 3
6
1 7 82

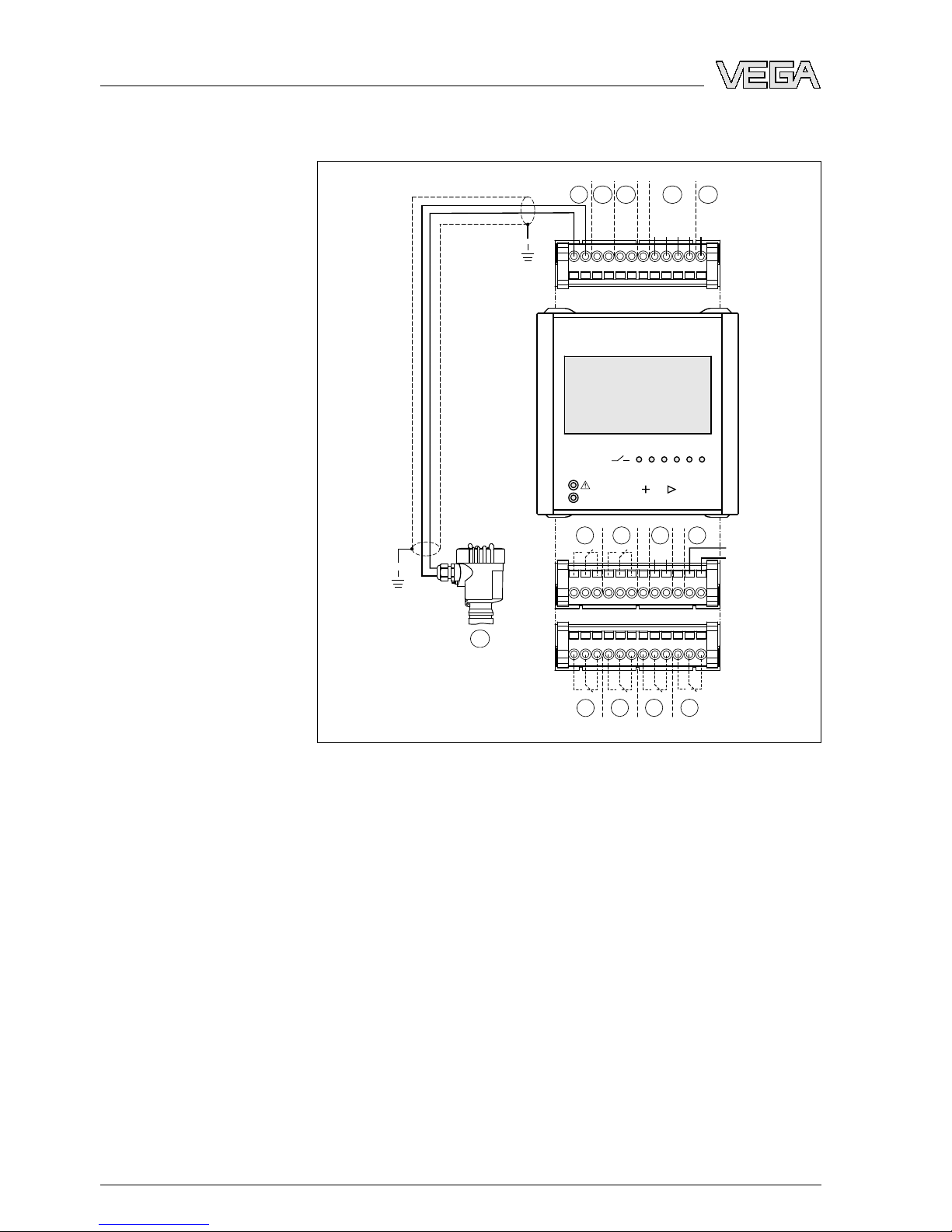

Fig.5:Terminal assignment with four-wire sensor
1Operating relay 1
2Operating relay 2
3Operating relay 3
4Operating relay 4
5Operating relay 5
6Operating relay 6
7Current output
8Operating voltage of the signal conditioning instrument
9Measurement data input with sensor supply (active input)
10 Connection for HART modem for sensor parameter adjustment
11 Measurement data input (passive input), not with Ex-ia version
12 Digital input 1…4
13 Common ground for digital input 1…4
14 4 …20 mA/HART sensor (four-wire version)
15 Power supply for four-wire sensor
Wiring plan for four-wire
sensor
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 15
5Connecting to power supply
36032-EN-091116

6Setup with the integrated indicating and
adjustment unit
6.1Adjustment system
The integrated indicating and adjustment unit is used for measured
value display,adjustment and diagnosis of VEGAMET 391.The
indication and adjustment are carried out via four keys and a clear,
graphic-capable display with background lighting.The adjustment
menu with selectable language is clearly structured and enables easy
setup.
Certain adjustment options are not available or only partially available
with the integrated indicating and adjustment unit,e.g.the settings for
flow measurement.For such applications,the use of PACTware with
appropriate DTMs is recommended.
OK
ESC
on
VEGAMET 391
1 2 3 4 5 6
4
5
3
2
1

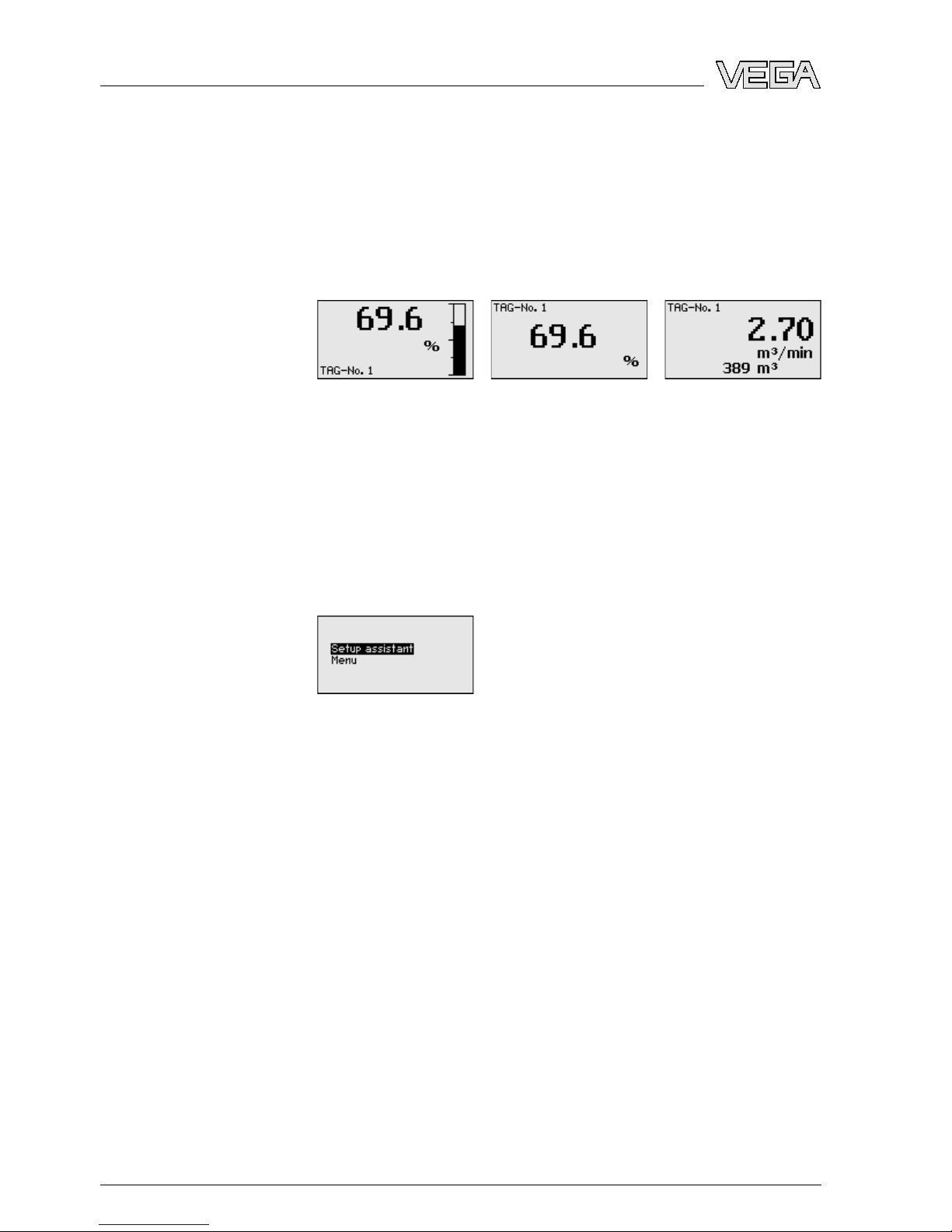

Fig.6:Indicating and adjustment elements
1LC display
2Adjustment keys
3Status indication operation
4Status indication fail safe relay
5Status indication operating relay 1…6
l[OK]key:
-Move to the menu overview
-Confirm selected menu
-Edit parameter
-Save value
l[->]key to select:
-menu change
-list entry
-Select editing position
Function
Indicating and adjust-
ment elements
Key functions
16 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
6Setup with the integrated indicating and adjustment unit
36032-EN-091116

l[+]key:
-Change value of the parameter
l[ESC]key:
-interrupt input
-jump to the next higher menu
Note:
Approx.10 minutes after the last pressing of a key,an automatic reset
to measured value indication is triggered.Any values not confirmed
with [OK]will not be saved.
6.2Setup procedure
Through parameter adjustment,the instrument is adapted to the
individual application conditions.Calibration of the measuring point is
the most important step and should always be carried out.Ascaling of
the measured value to the desired physical variable and unit,possibly
including a linearization curve,is often useful.The adaptation of the
relay switching points or the setting of an integration time to smooth the
measured value are further standard adjustment options.
For instruments with Ethernet interface,the instrument must be
provided with an IP address and subnet mask suitable for the
instrument.As an alternative,addressing via DHCP and a host name
is also possible.If necessary,the e-mail/webserver can be also
configured with PACTware.
Asetup assistant is available for easy,convenient setup.It guides the
user through the standard applications and settings step by step.
Information:
When using PACTware and the respective DTM,additional settings
can be carried out which are not possible or only partly possible with
the integrated indicating and adjustment unit.Communication is
carried out via the integrated USB interface or one of the optional
interfaces (RS232/Ethernet).
Further instructions for setting up the web server and e-mail functions
are stated in the online help of PACTware or the VEGAMET 391 DTMs
as well as the supplementary instructions manual "RS232/Ethernet
connection".
After being switched on,VEGAMET 391 first of all carries out a short
self-check.The following steps are carried out:
lInternal check of the electronics
lindication of the instrument type,firmware version as well as the
instrument TAG (instrument name)
lThe output signals jump briefly to the set fault value
Parameter adjustment
Switch on phase
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 17
6Setup with the integrated indicating and adjustment unit
36032-EN-091116

Then the current measured values will be displayed and outputted.
The measured value indication shows the digital indication value,the
measurement loop designation (measurement loop TAG)and the unit.
An analogue bar graph can also be blended in.Ifflow measurement is
activated,an additional indication window with totalizer is available.By
pushing the [>]key you can move between the different indication
options.
àBy pushing [OK],you move from the measured value indication
into the main menu.Here,you have the choice between the setup
assistant for the most important settings or the complete classical
menu.
At the beginning of every setup or parameter adjustment,you have the
choice of continuing with the setup assistant or the classic menu
guidance.We recommend using the setup assistant for the initial
setup.If later on individual settings should be corrected or added,the
most expedient way to do this is via the classic menus.
àSelect the menu item "Setup assistant"with [->]and confirm with
[OK].
The setup assistant leads you step-by-step throught the standard
settings.All steps must be passed completely,it is not possible to
interrupt the procedure.Following the individiual steps which can be
passed through with the assistant:
lDevice-TAG (individually adjustable instrument name)
lMeasurement loop TAG (individually adjustable measurement
loop designation)
lType of input (4…20 mAor HART)
lMeasured variable (for example level or process pressure)
lAdjustment unit (for example m or bar)
lMin./Max.adjustment
lActivation of the fail safe relay
lConfiguration of the relay outputs (e.g.setup of pump control or
overfill protection)
lAdjustment date/time
lNetwork settings with option "Ethernet interface"
Measured value indica-
tion
Main menu/Setup assis-
tant
Setup assistant
18 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
6Setup with the integrated indicating and adjustment unit
36032-EN-091116

When changing the measurement,the assistant can be opened any
time.The subsequent steps can be also reached via the classical
menu guidance.The description of the individual menu items is
available in the classical menu guidance.In chapter "Application
examples"you will find further information to the setup.
The main menu is split into six areas with the following functions:
lDevice settings:Includes the device-TAG,settings for network
connection such as date/time setting, …
lMeasurement loop:Includes settings for input selection,adjust-
ment,damping,linearization,scaling,outputs, …
lDisplay:Includes settings to the displayed measured value,
languafe setting und brightness of the background lighting
lDiagnosis Includes information to the device status,error
messages,input current,digital inputs
lFurther settings:Includes simulation,reset,PIN,sensor address,
…
lInfo:Shows serial number,software version,last change,instru-
ment features,MAC addr., …
àSelect the requested menu item via the respective keys and
confirm with [OK].

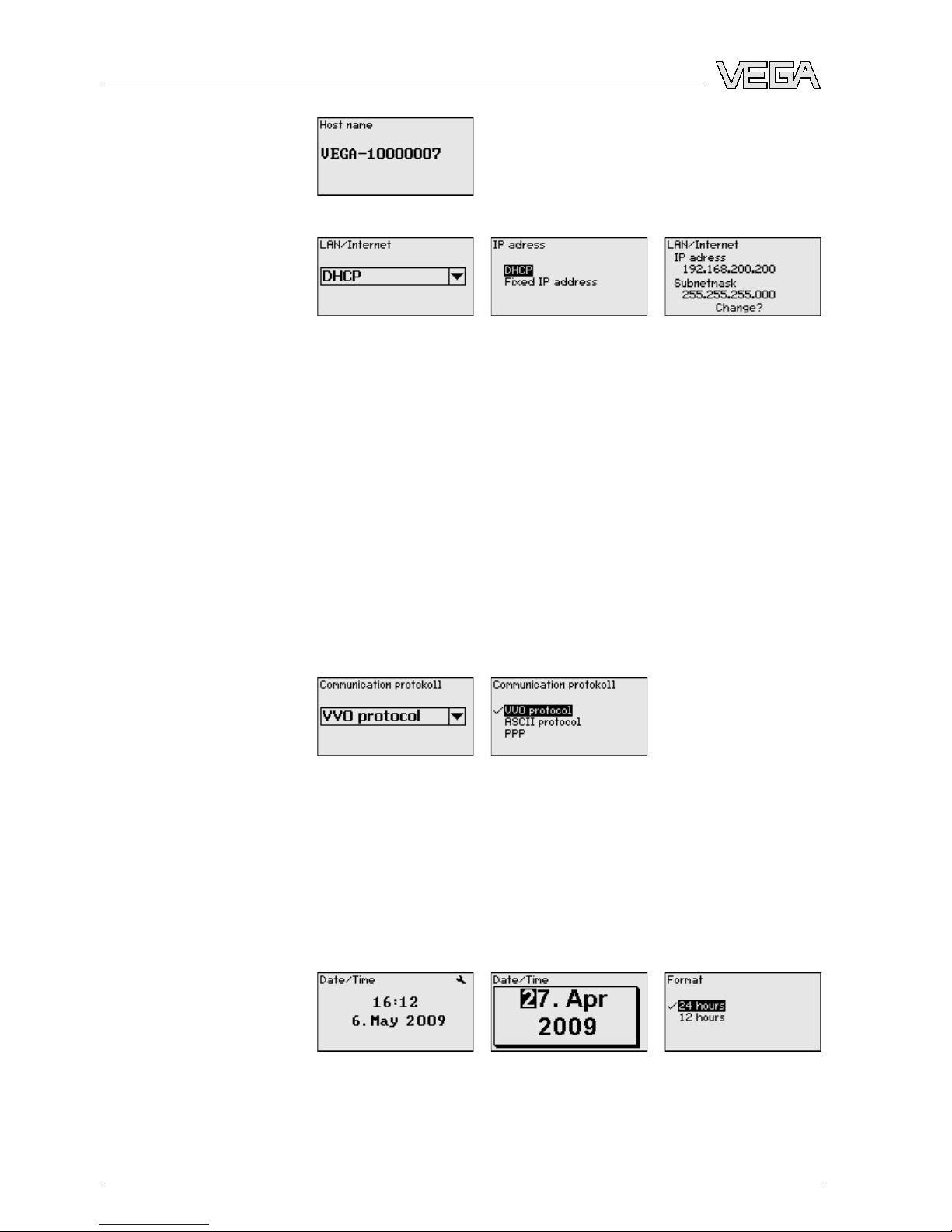

You can assign an unambiguous name to VEGAMET 391 via the
Device-TAG.This function is recommended when several instruments
are implemented and a good documentation of larger systems is
required.
àCarry out your settings via the respective keys and save with [OK].
For instruments with Ethernet interface,the instrument must be
provided with an IP address/Subnet mask suitable for your network.
Depending on the network,the adjustment of a gateway address is
also necessary.As an alternative,addressing via DHCP and a host
name is also possible.These specifications are available from your
network administrator.Keep in mind that your settings are only
effective after a restart of VEGAMET 391.Further information to these
network parameters is available in the supplementary instructions
manual "RS232/Ethernet connection"and in the online help of the
corresponding DTMs.
Classical menu gui-
dance/main menu
Device settings -Device-
TAG
Device settings -Host
Name/IP addr.
VEGAMET 391 •4…20 mA/HART signal conditioning instrument 19
6Setup with the integrated indicating and adjustment unit
36032-EN-091116

àCarry out your settings via the respective keys and save with [OK].
àCarry out your settings via the appropriate keys and save with
[OK].Disconnect briefly the operating voltage so that the modified
settings become effective.
For instruments with optional RS232 interface,you determine here
which mode this serial interface should operate in.The following
options are available:
lVVO protocol:Direct standard connection between signal
conditioning instrument and PC for parameter adjustment and
enquiry (e.g.with PACTware and DTM)
lPPP:Dial-up connection between signal conditioning instrument
and modem for independent transmission of e-mails (dial-out
connection)or enquiry via web browser (dial-in connection)
lASCII protocol:Direct standard connection between signal
conditioning instrument and PC for enquiry with terminal programs,
e.g.Hyperterminal
àCarry out your settings via the respective keys and save with [OK].
Further information is available in the supplementary instructions
manual "RS232/Ethernet connection"and the online help of the
respective DTM.
For instruments with built-in RS232/Ethernet interface,you can enter in
this menu item the date and time.In case of power loss,these time
settings are backed up for a period of up to 10 years by a capacitor as
well as a battery.
àCarry out your settings via the respective keys and save with [OK].
Device settings -Com-
munication protocol
Device settings -Date/
Time
20 VEGAMET 391 •4…20 mA/HART signal conditioning instrument
6Setup with the integrated indicating and adjustment unit
36032-EN-091116
Other manuals for VEGAMET 391
2
Table of contents
Other Vega Power Supply manuals
Popular Power Supply manuals by other brands

Elektro-Automatik
Elektro-Automatik EA-PU 10000 6U manual

Vigitron
Vigitron MaxiiPower Vi2201 installation manual

PILOTAGE
PILOTAGE E-Base 15A user manual

Teledyne
Teledyne T3PS40381P quick start guide

SELF Electronics
SELF Electronics SLT6-700ISC-UN Instructions for use

Pulsar
Pulsar PSU-B-27.6V/S-5A/1/EL-TR-2x17Ah/MC manual
