Vega VEGASWING 61 User manual

Operating Instructions
VEGASWING 61
-two-wire
Document ID:
29227
Vibration

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5Safety label on the instrument . . . . . . . . . . . . . . . . . . 6
2.6CE conformity ............................. 6
2.7SIL conformity ............................. 6
2.8Safety instructions for Ex areas . . . . . . . . . . . . . . . . . 6
2.9Environmental instructions..................... 6
3Product description
3.1Structure ................................. 7
3.2Principle of operation ........................ 8
3.3Operation................................. 9
3.4Storage and transport ........................ 9
4Mounting
4.1General instructions ......................... 10
4.2Instructions for installation ..................... 13
5Connecting to power supply
5.1Preparing the connection ..................... 16
5.2Connection procedure........................ 16
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 17
5.4Wiring plan -version IP 66/IP 68,1bar . . . . . . . . . . . 19
6Set up
6.1General information ......................... 20
6.2Adjustment elements ........................ 21
6.3Function chart ............................. 21
6.4Recurring test and function test (SIL,WHG) . . . . . . . . 22
7Maintenance and fault rectification
7.1Maintenance .............................. 27
7.2Remove interferences ........................ 27
7.3Exchange of the electronics . . . . . . . . . . . . . . . . . . . 28
7.4Instrument repair ........................... 28
8Dismounting
8.1Dismounting steps .......................... 30
8.2Disposal ................................. 30
2VEGASWING 61 • - two-wire
Contents
29227-EN-120418

9Supplement
9.1Technical data ............................. 31
9.2Dimensions ............................... 39
Supplementary documentation
Information:
Supplementary documents appropriate to the ordered version come
with the delivery.You can find them listed in chapter "Product
description".
Instructions manuals for accessories and replacement parts
Tip:
To ensure reliable setup and operation of your VEGASWING 61,we
offer accessories and replacement parts.The corresponding doc-
umentations are:
lOperating instructions manual "Remote housing -VEGASWING"
lOperating instructions manual "Oscillator VEGASWING series 60"
Editing status:2012-04-11
VEGASWING 61 • - two-wire 3
Contents
29227-EN-120418

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGASWING 61 • - two-wire
1About this document
29227-EN-120418

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
The VEGASWING 61 is a sensor for level detection.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGASWING 61 • - two-wire 5
2For your safety
29227-EN-120418

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of "www.vega.com".
2.7SIL conformity
VEGASWING 61 fulfills the requirements of functional safety accord-
ing to IEC 61508 resp.IEC 61511.You can find further information in
the Safety Manual "VEGASWING series 60".
2.8Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
6VEGASWING 61 • - two-wire
2For your safety
29227-EN-120418

3Product description
3.1Structure
The scope of delivery encompasses:
lVEGASWING 61 point level switch
lDocumentation
-this operating instructions manual
-Safety Manual "Functional safety (SIL)"(optional)
-Supplementary instructions manual "Plug connector for level
sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
The VEGASWING 61 consists of the components:
lHousing cover
lHousing with electronics
lProcess fitting with tuning fork
1
2
3
Fig.1:VEGASWING 61 with plastic housing
1Housing cover
2Housing with electronics
3Process fitting
The type label contains the most important data for identification and
use of the instrument:
lArticle number
lSerial number
lTechnical data
lArticle numbers,documentation
lSIL identification (with SIL rating ex works)
Scope of delivery
Constituent parts
Type label
VEGASWING 61 • - two-wire 7
3Product description
29227-EN-120418

With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
3.2Principle of operation
VEGASWING 61 is a point level sensor with tuning fork for level
detection.
It is designed for industrial use in all areas of process technology and
can be used in liquids.
Typical applications are overfill and dry run protection.With a tuning
fork of only 40 mm length,VEGASWING 61 can be also mounted e.g.
in pipelines from DN 32.The small tuning fork allows use in vessels,
tanks and pipes.Thanks to its simple and robust measuring system,
VEGASWING 61 is virtually unaffected by the chemical and physical
properties of the liquid.
It functions even under difficult conditions such as turbulence,air
bubbles,foam generation,buildup,strong external vibration or
changing products.
Fault monitoring
The electronics module of VEGASWING 61 continuously monitors via
frequency evaluation the following criteria:
lStrong corrosion or damage on the tuning fork
lLoss of vibration
lLine break to the piezo drive
If one of these faults is detected,the electronics signals it via a defined
current to the signal conditioning instrument.The connection cable to
the sensor is also monitored for line break and short-circuit.
The tuning fork is piezoelectrically energised and vibrates at its
mechanical resonance frequency of approx.1200 Hz.The piezos are
fixed mechanically and are hence not subject to temperature shock
limitations.The frequency changes when the tuning fork is covered by
the medium.This change is detected by the integrated electronics
module,transferred as a current value to the processing system and
converted there into a switching command.
Depending on your requirements,VEGASWING 61 with two-wire
electronics can be connected to different signal conditioning instru-
ments.Compatible signal conditioning instruments are listed in chapter
"Technical data".
The data for power supply are specified in chapter "Technical data".
Application area
Functional principle
Voltage supply
8VEGASWING 61 • - two-wire
3Product description
29227-EN-120418

3.3Operation
The switching condition of VEGASWING 61 with plastic housing can
be checked when the housing is closed (signal lamp). With the basic
setting,products with a density >0.7g/cm³(0.025 lbs/in³)can be
detected.The instrument can be adapted if products with lower density
are to be measured.
On the electronics module you will find the following indicating and
adjustment elements:
lSignal lamp for indication of the switching condition (green/red)
lDIL switch for adaptation to the product density
3.4Storage and transport
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.The sensor is also equipped with a
protective cap of ABS.For special versions,PE foam or PE foil is also
used.Dispose of the packaging material via specialised recycling
companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
VEGASWING 61 • - two-wire 9
3Product description
29227-EN-120418

4Mounting
4.1General instructions
Make sure that all parts of the instrument exposed to the process,in
particular the sensor element,process seal and process fitting,are
suitable for the existing process conditions.These include above all
the process pressure,process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
In general,VEGASWING 61 can be installed in any position.The
instrument only has to be mounted in such a way that the tuning fork is
at the height of the desired switching point.
The tuning fork has lateral markings (notches)that indicate the
switching point with vertical mounting.The switching point refers to
water with the basic setting of the sensitivity switch ≥0.7g/cm³
(0.025 lbs/in³). When mounting VEGASWING 61,make sure that this
marking is at the height of the requested switching point.Keep in mind
that the switching point of the instrument is shifted if the medium has a
density other than water -water 1g/cm³(0.036 lbs/in³). For products
<0.7g/cm³(0.025 lbs/in³)and >0.5g/cm³(0.018 lbs/in³)the density
switch must be set to ≥0.5g/cm³.
Keep in mind that foams with a density >0.45 g/cm³(0.016 lbs/in³)are
detected by the sensor.This can cause faulty switchings particulary
when used as dry run protection system.
Suitability for the pro-
cess conditions
Switching point
10 VEGASWING 61 • - two-wire
4Mounting
29227-EN-120418

2
3
14
Fig.2:Installation vertical
1Switching point approx.13 mm (0.51 in)
2Switching point with lower density
3Switching point with higher density
4Switching point approx.27 mm (1.06 in)
1
Fig.3:Horizontal installation
1Switching point
VEGASWING 61 • - two-wire 11
4Mounting
29227-EN-120418

1
2
Fig.4:Horizontal installation (recommended mounting position,particularly for
adhesive products)
1Switching point
2Marking with screwed version on top,with flange versions directed to the
flange holes
With flange versions,the fork is directed as follows to the flange holes.
Fig.5:Fork position with flange versions
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Moisture
12 VEGASWING 61 • - two-wire
4Mounting
29227-EN-120418

Fig.6:Measures against moisture penetration
Caution:
Do not hold VEGASWING 61 on the tuning fork.Particularly with flange
or tube versions,the tuning fork can be damaged just by the weight of
the instrument.Transport coated instruments very carefully and avoid
touching the tuning fork.
Remove the packaging or the protective cover just before installation.
The process fitting must be sealed if there is gauge or low pressure in
the vessel.Before use,check if the seal material is resistant against
the measured product and the process temperature.
The max.permissible pressure is specified in chapter "Technical data"
or on the type label of the sensor.
The vibrating level switch is a measuring instrument and must be
treated accordingly.Bending the vibrating element will destroy the
instrument.
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Use the hexagon above the thread for screwing in.
4.2Instructions for installation
VEGASWING 61 has a defined thread starting point.This means that
every VEGASWING 61 is in the same fork position after being
screwed in.Remove therefore the supplied seal from the thread of
VEGASWING 61.This seal is not required when using a welded
socket with O-ring in front.
Keep in mind that this welded socket is not suitable for coated
instrument versions.
Transport
Pressure/Vacuum
Handling
Welded socket
VEGASWING 61 • - two-wire 13
4Mounting
29227-EN-120418

Screw VEGASWING 61 completely into the welded socket.The later
position can be determined already before welding.Mark the
appropriate position of the welded socket.Before welding,unscrew
VEGASWING 61 and remove the rubber ring from the welded socket.
The welded socket has a marking (notch). Weld the socket with the
notch facing upward,or in case of pipelines (DN 32 up to DN 50),
aligned with the direction of flow.
1

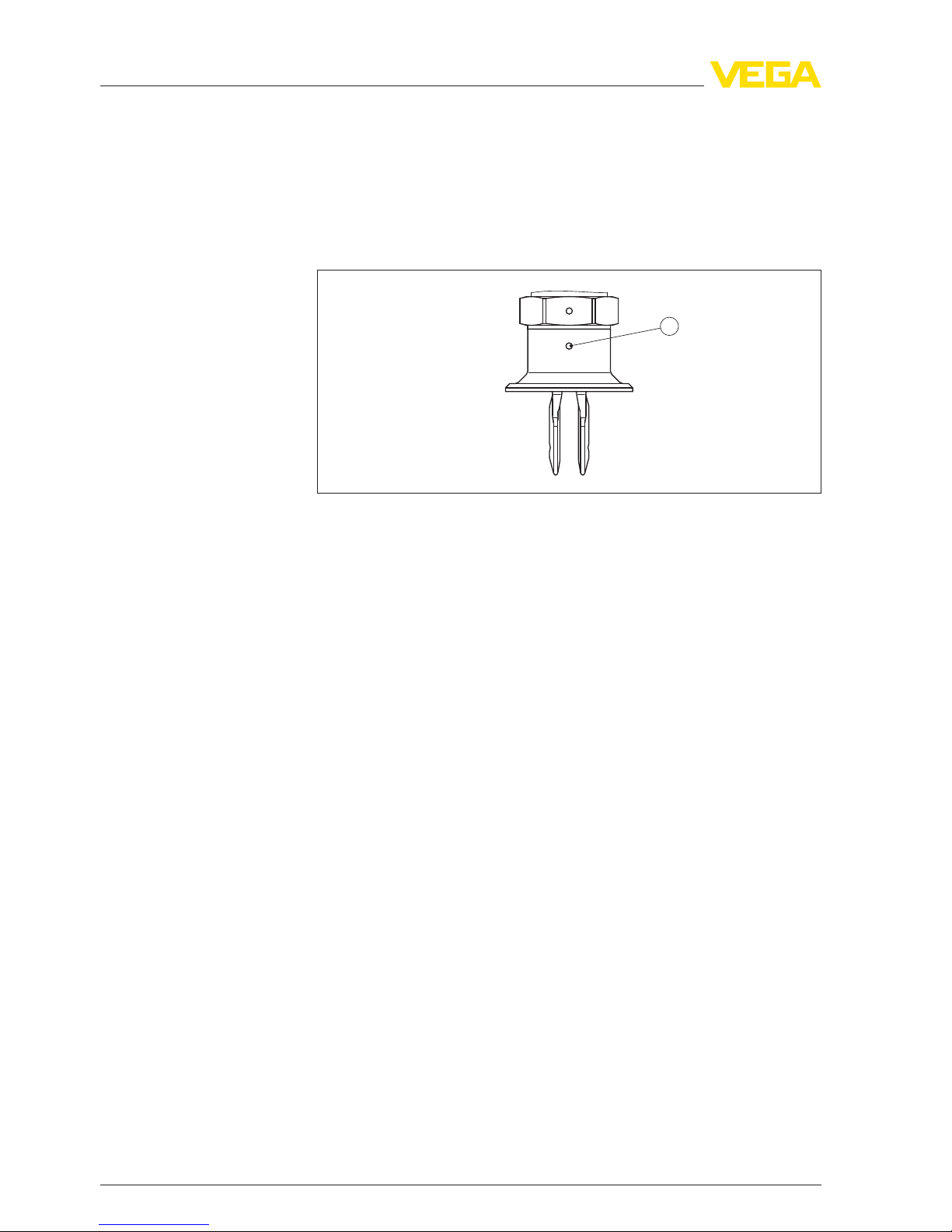

Fig.7:Marking on the welded socket
1Marking
In case of horizontal mounting in adhesive and viscous products,the
surfaces of the tuning fork should be vertical in order to reduce buildup
on the tuning fork.On the screwed version you will find a marking on
the hexagon.With this,you can check the position of the tuning fork
when screwing it in.When the hexagon touches the seal,the thread
can still be turned by approx.half a turn.This is sufficient to reach the
recommended installation position.
With flange versions,the fork is directed to the flange holes.
When used in adhesive and viscous products,the tuning fork should
protrude into the vessel to avoid buildup.For that reason,sockets for
flanges and mounting bosses should be avoided when mounting
horizontally.
IfVEGASWING 61 is mounted in the filling stream,unwanted false
measurement signals can be generated.For this reason,mount
VEGASWING 61 at a position in the vessel where no disturbances,e.
g.from filling openings,agitators,etc., can occur.
To minimise flow resistance caused by the tuning fork,VEGASWING
61 should be mounted in such a way that the surfaces of the blades
are parallel to the product movement.
Instruments with enamel coating should be treated very carefully and
shocks should be avoided.Unpack VEGASWING 61 directly before
installation.Insert VEGASWING 61 carefully into the vessel opening
and avoid touching any sharp vessel parts.
Adhesive products
Inflowing medium
Flows
Enamel coating
14 VEGASWING 61 • - two-wire
4Mounting
29227-EN-120418

The gas-tight leadthrough avoids due to a second sealing the
uncontrolled penetration of the medium.The lifetime of the gastight
leadthrough depends ont he chemical resistance of the materials.See
"Technical data".
Caution:
If it is determined (e.g.by an error message of VEGASWING 61)that
medium has already penetrated into the vibrating element,the
instrument must be exchanged immediately.
Gas-tight leadthrough
VEGASWING 61 • - two-wire 15
4Mounting
29227-EN-120418

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
In hazardous areas you must take note of the respective regulations,
conformity and type approval certificates of the sensors and power
supply units.
Connect the operating voltage according to the following diagrams.
Take note of the general installation regulations.As a rule,connect
VEGASWING 61 to vessel ground (PA), or in case of plastic vessels,
to the next ground potential.On the side of the instrument housing
there is a ground terminal between the cable entries.This connection
serves to drain offelectrostatic charges.InEx applications,the
installation regulations for hazardous areas must be given priority.
The data for power supply are specified in chapter "Technical data".
The instrument is connected with standard two-wire cable without
screen.If electromagnetic interference is expected which is above the
test values of EN 61326 for industrial areas,screened cable should be
used.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
In hazardous areas,only use approved cable connections for
VEGASWING 61.
Take note of the corresponding installation regulations for Ex
applications.
Cover all housing openings conforming to standard according to
EN 60079-1.
5.2Connection procedure
With Ex instruments,the housing cover may only be opened if there is
no explosive atmosphere present.
Proceed as follows:
1Unscrew the housing cover
2Loosen compression nut of the cable entry
3Remove approx.10 cm (4in)of the cable mantle,strip approx.
1cm (0.4in)of insulation from the ends of the individual wires
4Insert the cable into the sensor through the cable entry
Note safety instructions
Take note of the
safety instru-
ctions for Ex
applications
Voltage supply
Connection cable
Connection cab-
le for Ex appli-
cations
16 VEGASWING 61 • - two-wire
5Connecting to power supply
29227-EN-120418

5Open the terminals with a screwdriver
6Insert the wire ends into the open terminals according to the wiring
plan
7Tighten the terminals with a screwdriver
8Check the hold of the wires in the terminals by lightly pulling on
them
9Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
10 Screw the housing cover back on
The electrical connection is finished.
5.3Wiring plan,single chamber housing
The following illustrations apply to the non-Ex as well as to the EEx-d
version.
1
4
44
2 3
Fig.8:Material versions,single chamber housing
1Plastic (not with EEx d)
2Aluminium
3Stainless steel (not with EEx d)
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar (not with EEx d)
Housing overview
VEGASWING 61 • - two-wire 17
5Connecting to power supply
29227-EN-120418

Z
+
0,5g/cm3
0,7g/cm3
11 -36 V DC
4
5
1
2
3
1 2
Fig.9:Electronics and connection compartment
1Control lamp
2DIL switch for sensitivity adjustment
3Ground terminal
4Connection terminals
5Processing system or PLC
We recommend connecting VEGASWING 61 in such a way that the
switching circuit is open when there is a level signal,line break or
failure (safe condition).
For connection to a VEGATOR signal conditioning instrument dto.Ex,
WHG.The sensor is powered by the connected VEGATOR signal
conditioning instrument.Further information is available in chapter
"Technical data","Ex-technical data"are available in the supplied
"Safety information manual".
The wiring example is applicable for all suitable signal conditioning
instruments.
The control lamp on VEGASWING 61 lights in general
lred -with covered tuning fork
lgreen -with uncovered tuning fork
Take note of the operating instructions manual of the signal
conditioning instrument.Suitable signal conditioning instruments are
listed in chapter "Technical data".
IfVEGASWING 61 is used in Ex areas as part of an overfill protection
system according to WHG (Water Resources Act), take note of the
regulations in the safety instructions and conformity certificates.If the
instrument with electronics module SWE60Z EX,SWE60Z EX E1is to
be operated directly on the analogue input of a PLC,a suitable safety
barrier should be connected.
Electronics and connec-
tion compartment
Wiring plan
18 VEGASWING 61 • - two-wire
5Connecting to power supply
29227-EN-120418

4321
1 2
+-
Fig.10:Wiring plan,single chamber housing
5.4Wiring plan -version IP 66/IP 68,1bar
1
2
Fig.11:Wire assignment connection cable
1brown (+)and blue (-) to power supply or to the processing system
2Shielding
Wire assignment con-
nection cable
VEGASWING 61 • - two-wire 19
5Connecting to power supply
29227-EN-120418

6Set up
6.1General information
The figures in brackets refer to the following illustrations.
With plastic housings,the switching condition of the electronics can be
checked when the housing cover is closed (control lamp). With the
basic setting,products with a density >0.7g/cm³(0.025 lbs/in³)can be
detected.For products with lower density,the switch must be set to
>0.5g/cm³(0.018 lbs/in³).
On the electronics module you will find the following indicating and
adjustment elements:
lSignal lamp (1)
lDIL switch for sensitivity adjustment (2)
Mode adjustment (A/B)
On the VEGATOR 536Ex,537Ex,636Ex signal conditioning instru-
ment,via the signal conditioning instrument (when used according to
WHG only mode Apermitted).
The switching condition can be changed with the A/Bswitch.You can
set the required mode according to the "Function chart"(A-max.
detection or overfill protection,B-min.detection or dry run protection).
The switching delay can also be modified on the signal conditioning
instrument (VEGATOR 536Ex,537Ex and 636Ex signal conditioning
instruments).
Note:
For test purposes,immerse the tuning fork of VEGASWING 61 always
in liquids.Do not test the function of VEGASWING 61 with your hand.
This can damage the sensor.
Function/Configuration
20 VEGASWING 61 • - two-wire
6Set up
29227-EN-120418
