VegaStream Vega 50 FXS H.323 User manual

Version 0.5 26 August 2004 Page 1 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
This document describes how to configure a Vega 50 FXS H.323 unit using the web browser
interface. The configuration described will allow the Vega to be rapidly installed and tested.
The instructions below will configure the Vega 50 FXS (connected to 8 analogue telephones) as
follows:
• Calls made on any of the attached analogue phones will be routed to another gateway;
when sending the call over the LAN, the Vega will prefix the dialled number with a 2 digit
prefix indicating on which port the call was received.
• Each of the 8 analogue telephones connected to the Vega will be configured with a 3-digit
extension number 406 to 413. Calls received from the LAN presenting a dialled number in
the range 406 to 413 will be routed to the appropriate telephone.

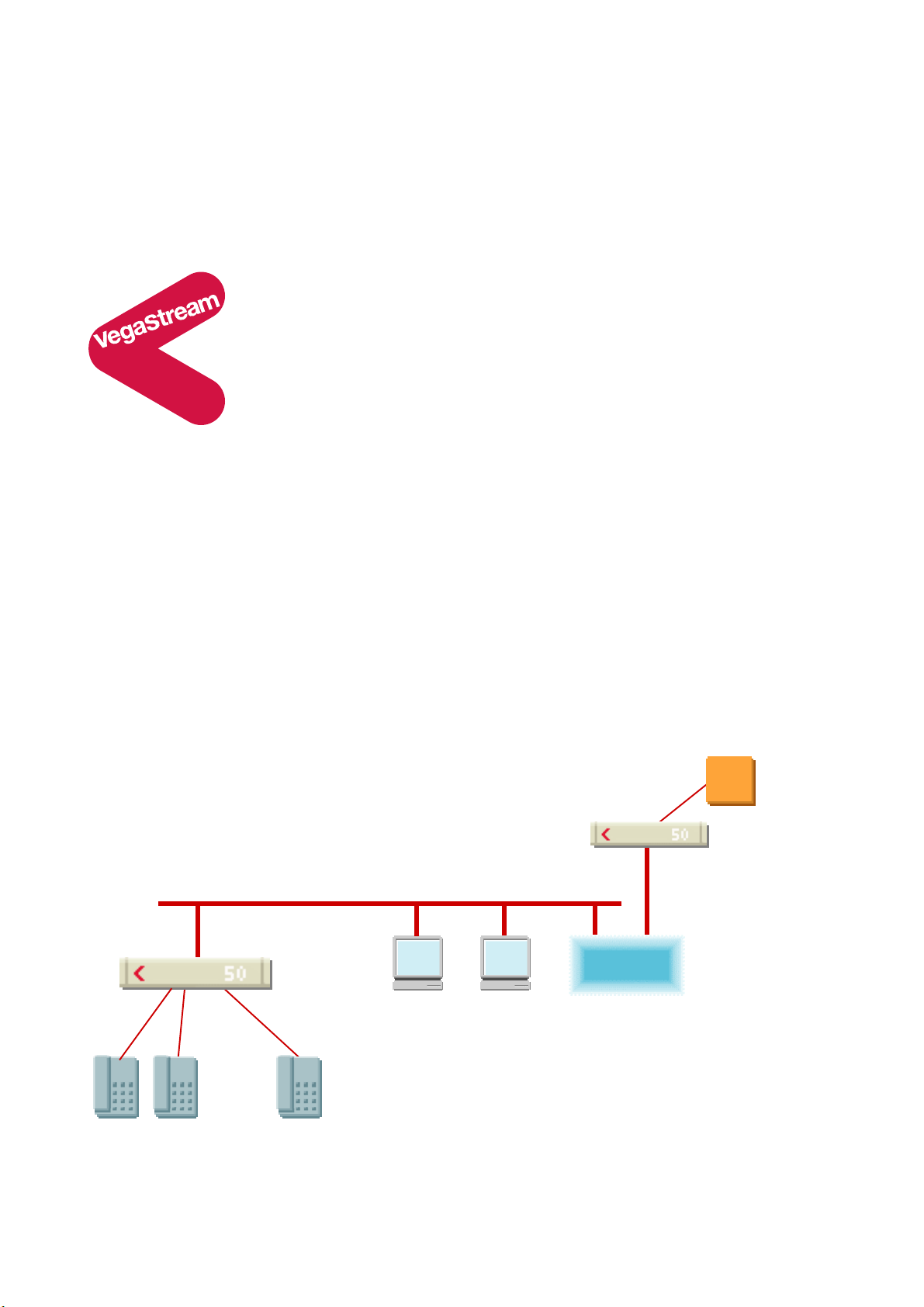

Initial configuration
V
ega 50 FXS (H.323)
Standalone mode – R5.1
LAN
Vega 50 FXS
406
p
P
O
T
S
T
e
l
ep
h
o
n
es
407
413
pbx
IP network

Version 0.5 26 August 2004 Page 2 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
The Caller ID values presented to the LAN will be configured as though the full number of
the telephones is 1344 784 4xx, where 4xx is the extension number i.e.:
Extension number Caller ID
406 1344 784 406
407 1344 784 407
408 1344 784 408
409 1344 784 409
410 1344 784 410
411 1344 784 411
412 1344 784 412
413 1344 784 413
The configuration process is broken down into 11 stages as follows:
1 Connect your Vega to LAN, Telephone and Power
2 Configure the basic LAN parameters
3 Configure password and login timeout
4 Check and configure LAN settings and Host name
5 Configure H.323 parameters
6 Configure the Dial Plan
7 Configure audio parameters
8 Configure POTS parameters
9 Configure pointer to CD ROM documentation
10 Save Changes
11 Archive Vega Configuration
Please also see:
12 Technical Support

Version 0.5 26 August 2004 Page 3 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

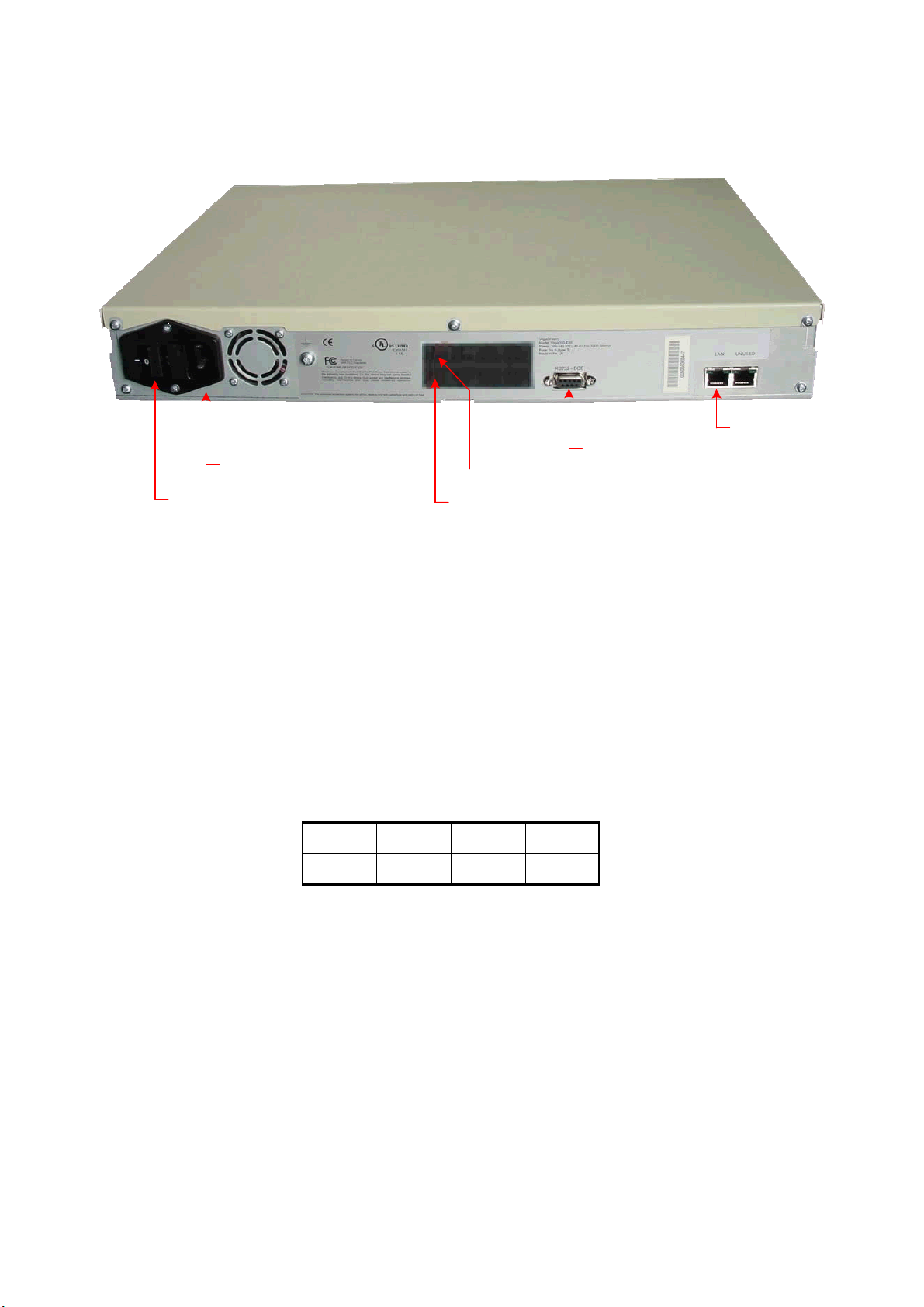

1. Connect your Vega to LAN, Telephone and Power
Serial (RS232) LAN
POTS port 8
Power Switch
AC Power
POTS port 1
Before installing your Vega, ensure that you read the VegaStream VoIP Gateways Safety
and Compliance Information document.
LAN:
Using the yellow booted cable connect the LAN port on the Vega to a standard or fast Ethernet
hub or switch (10 baseT or 100 baseTx). The connector nearest the ferrite core should be
plugged into the Vega.
Telephony:
Connect analogue telephones to the 8 POTS ports. Note the port numbers increase in an
anticlockwise direction from the bottom left corner. So the phones extensions will be as follows:
413 412 411 410
406 407 408 409
Power:
Insert the power cable into the AC power inlet on the Vega and switch on. The power LED on the
front panel will illuminate.
The LAN LEDs will also illuminate indicating 10 (baseT) or 100 (baseTx) connection, and the FDX
LED will illuminate if Full Duplex mode has been negotiated.

Version 0.5 26 August 2004 Page 4 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
2. Configure the basic LAN parameters
If a DHCP server is available, by default, the Vega will automatically pick up an IP
address. If the Vega has an LCD display, or you know the IP address served to the
Vega, skip this section and start at 3.
If DHCP is not to be used to provide the Vega with an IP address, or you need to
check the IP address provided to the Vega, connect the serial interface of the Vega
to a PC serial interface using a 9 way male to female straight through cable.
Configure a terminal emulator program (such as Microsoft’s HyperTerminal) for:
• Speed = 115200 baud
• Data bits = 8
• Parity = none
• Stop bits = 1
• Flow Control = none
Press <Enter> to get the Username: prompt
At the prompts enter the default user name and password
Username: admin
Password: admin
To display the current IP address, type:
 show lan.ip
If this is not the IP address required, it can be overridden, together with other LAN
parameters by typing:
 set lan.use_dhcp=0
 set lan.ip=aaa.bbb.ccc.ddd
 set lan.subnet=eee.fff.ggg.hhh
 set lan.gateway=iii.jjj.kkk.lll
 save
 reboot system

Version 0.5 26 August 2004 Page 5 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
3. Configure password and login timeout
Now configuration will be carried out using a web browser.

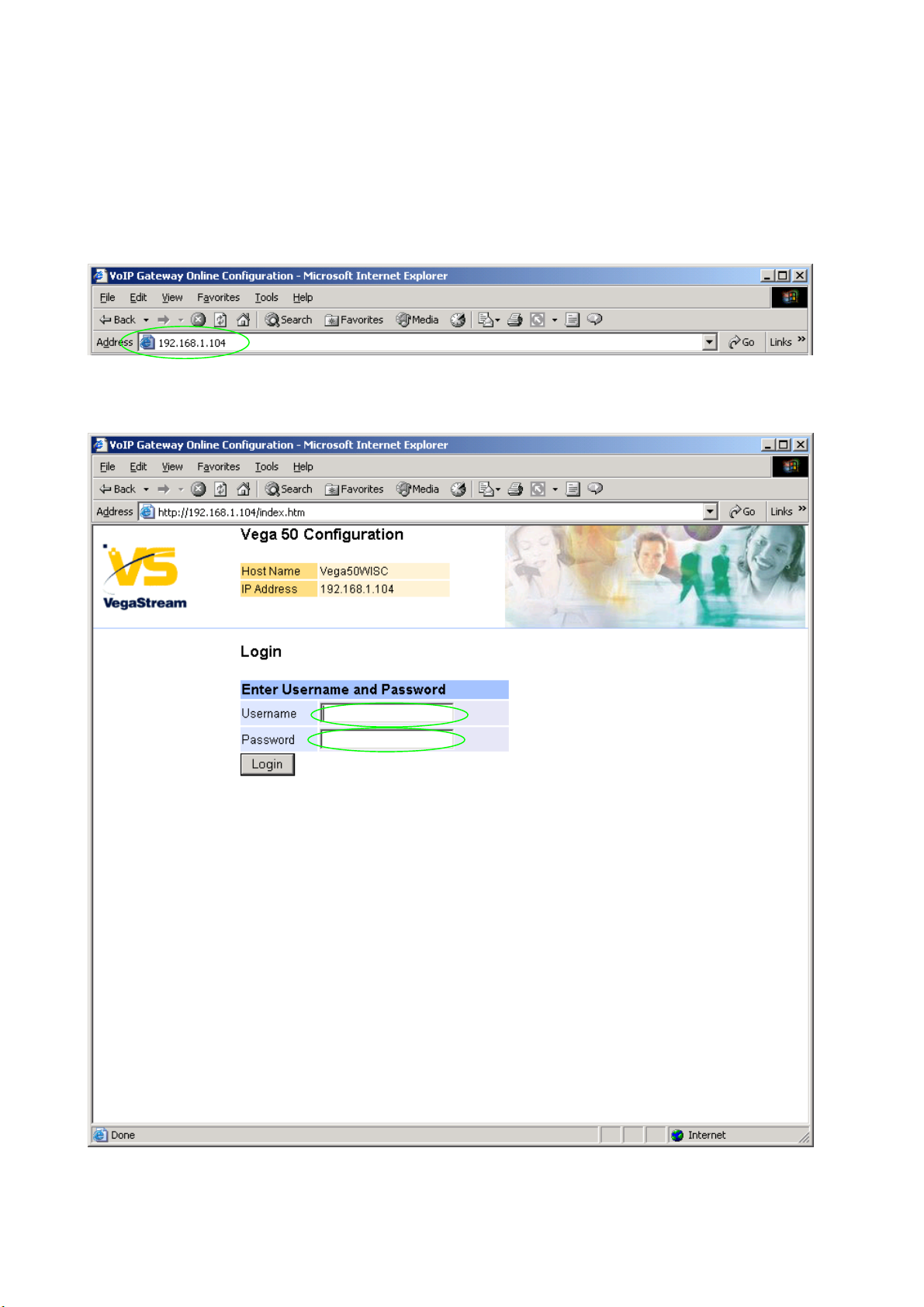

 Enter the IP address of the Vega into the “Address” field of your web browser.
You will then be presented with the login page:

Version 0.5 26 August 2004 Page 6 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
Enter the default Username and Password
 Username: admin
 Password: admin
 Select

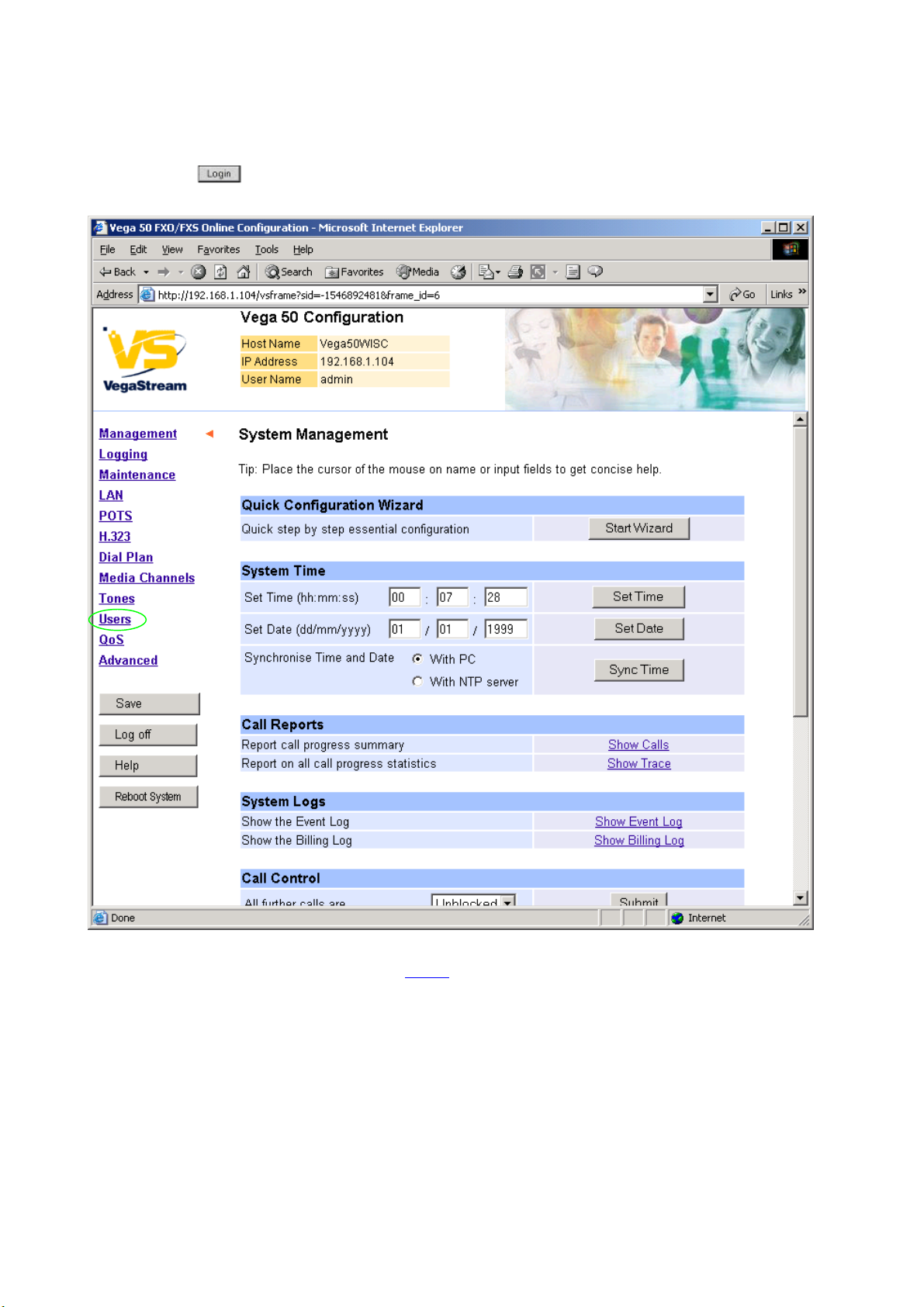

 On the left hand side menu select Users

Version 0.5 26 August 2004 Page 7 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

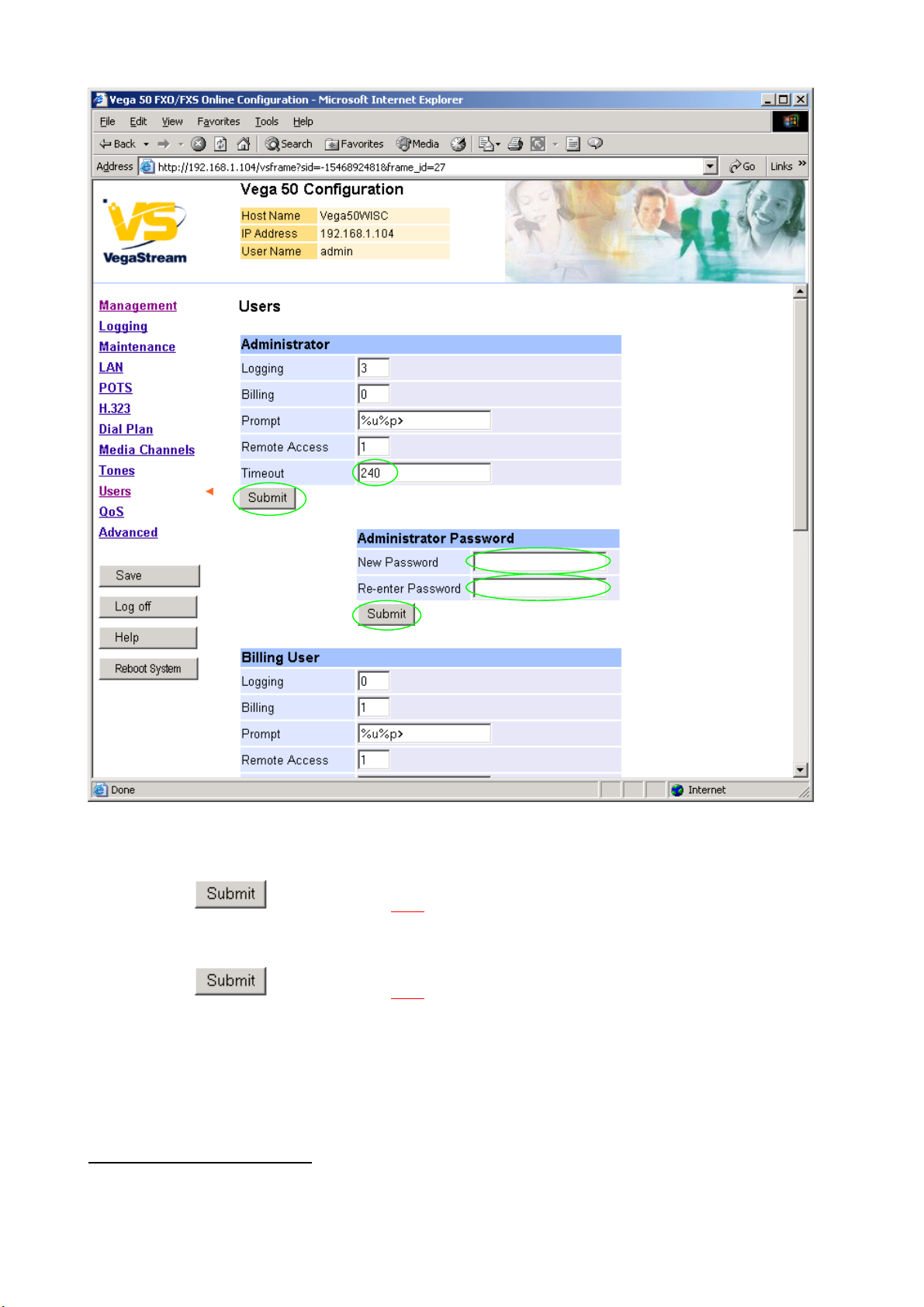

Recommended: Change the password
 enter New Password and Re-enter Password then
 select and then click “here” to return
Optional: Change the timeout1– default is 240 seconds; can extend to 7200 seconds (2hrs)
 select and then click “here” to return
1If the web interface is not used for this length of time the Vega will automatically log off the session. This change is
only activated by logging out and back into the browser session.

Version 0.5 26 August 2004 Page 8 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
4. Check and configure LAN settings and Host name

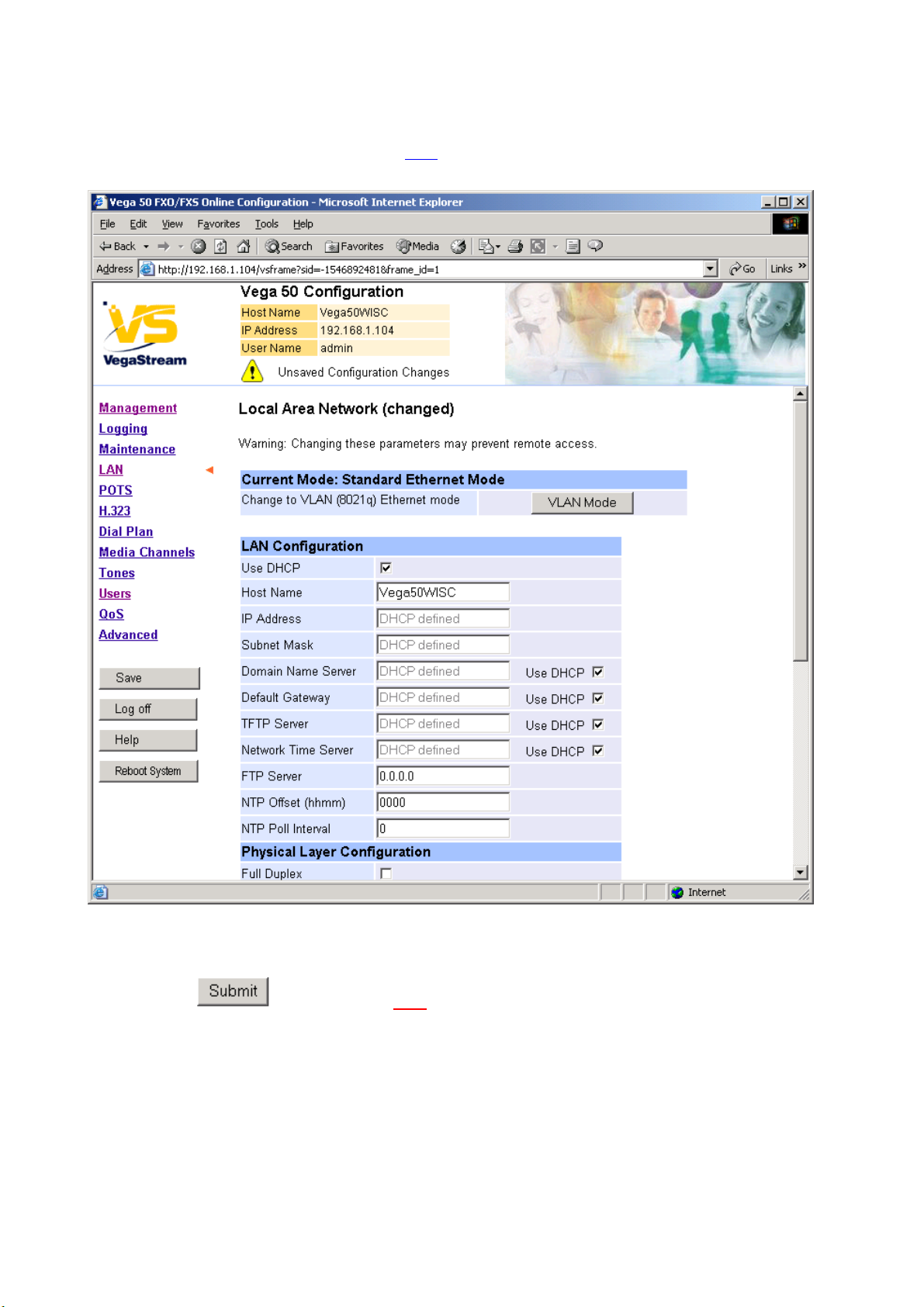

 On the left hand side menu select LAN
Optional: If there are any LAN values that need to be set up (e.g. NTP server or tftp server) set
them up now, then
 Select and then click “here” to return

Version 0.5 26 August 2004 Page 9 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

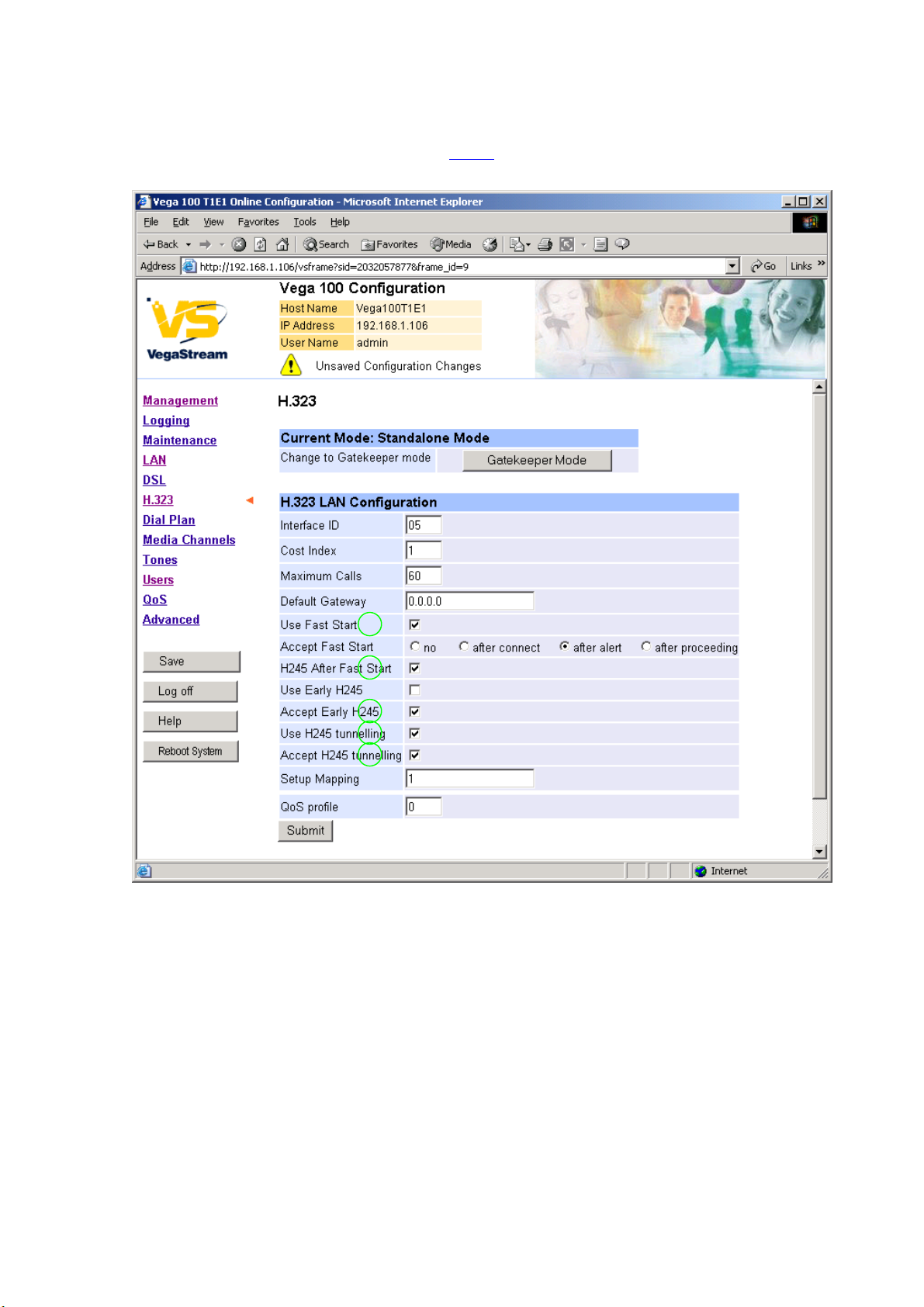

5. Configure H.323 parameters
 On the left hand side menu select H.323
If this Vega is to be inter-working with another Vega leave the H.323 LAN Configuration
alone, if it is to work with other manufacturer’s devices, it is often best to untick the
indicated items – as these are advanced H.323 features that are not always supported by
other manufacturers. Once the Vega and the other device are working in the basic H.323
mode, try enabling other features – back towards this configuration, as this will improve call
setup times.

Version 0.5 26 August 2004 Page 10 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
6. Configure the Dial Plan

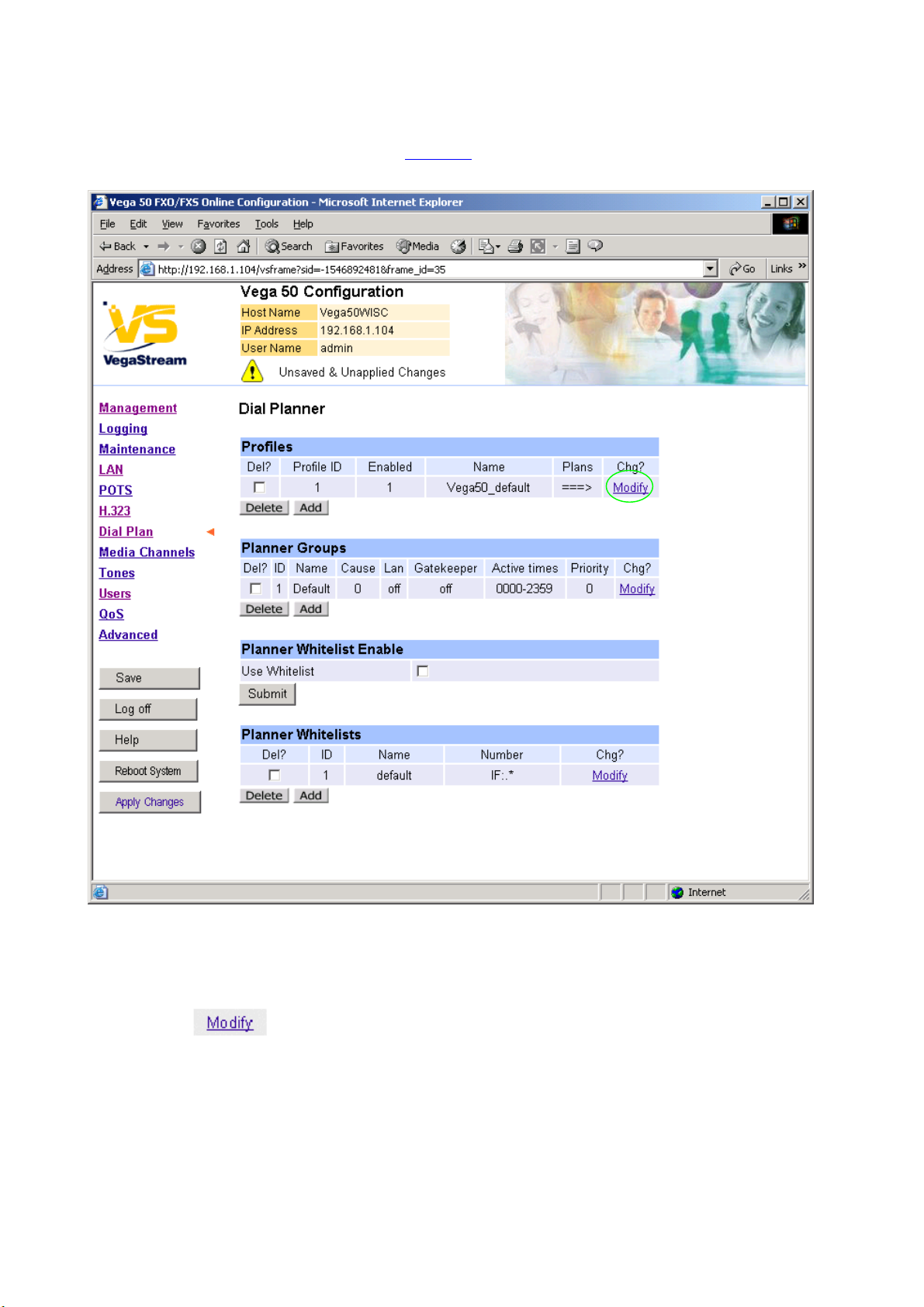

 On the left hand side menu select Dial Plan
Firstly, turn off the default profile:
In the Profiles section, Profile ID 1
 Select

Version 0.5 26 August 2004 Page 11 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

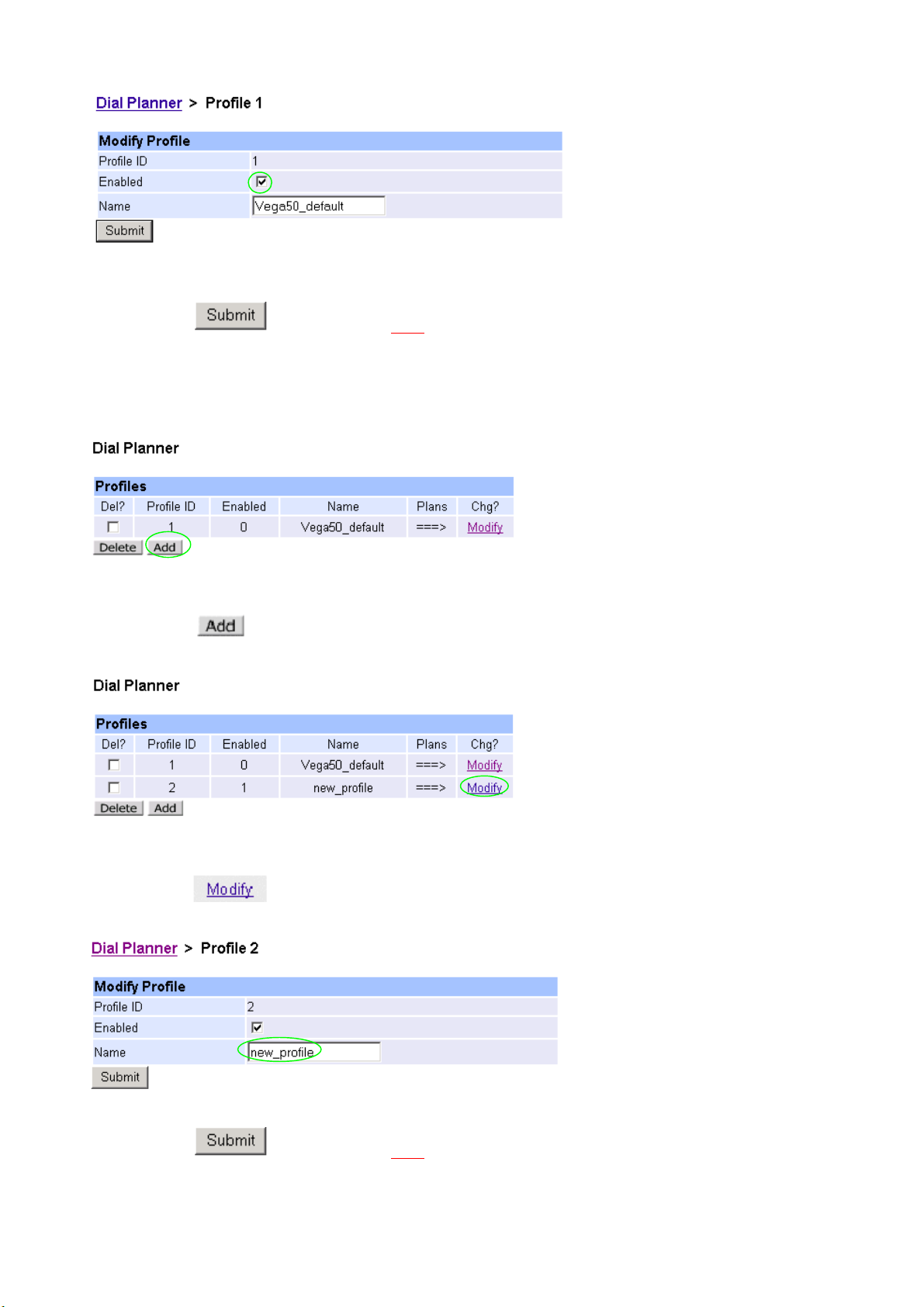

 disable (un-tick) Enabled, then
 select and then click “here” to return

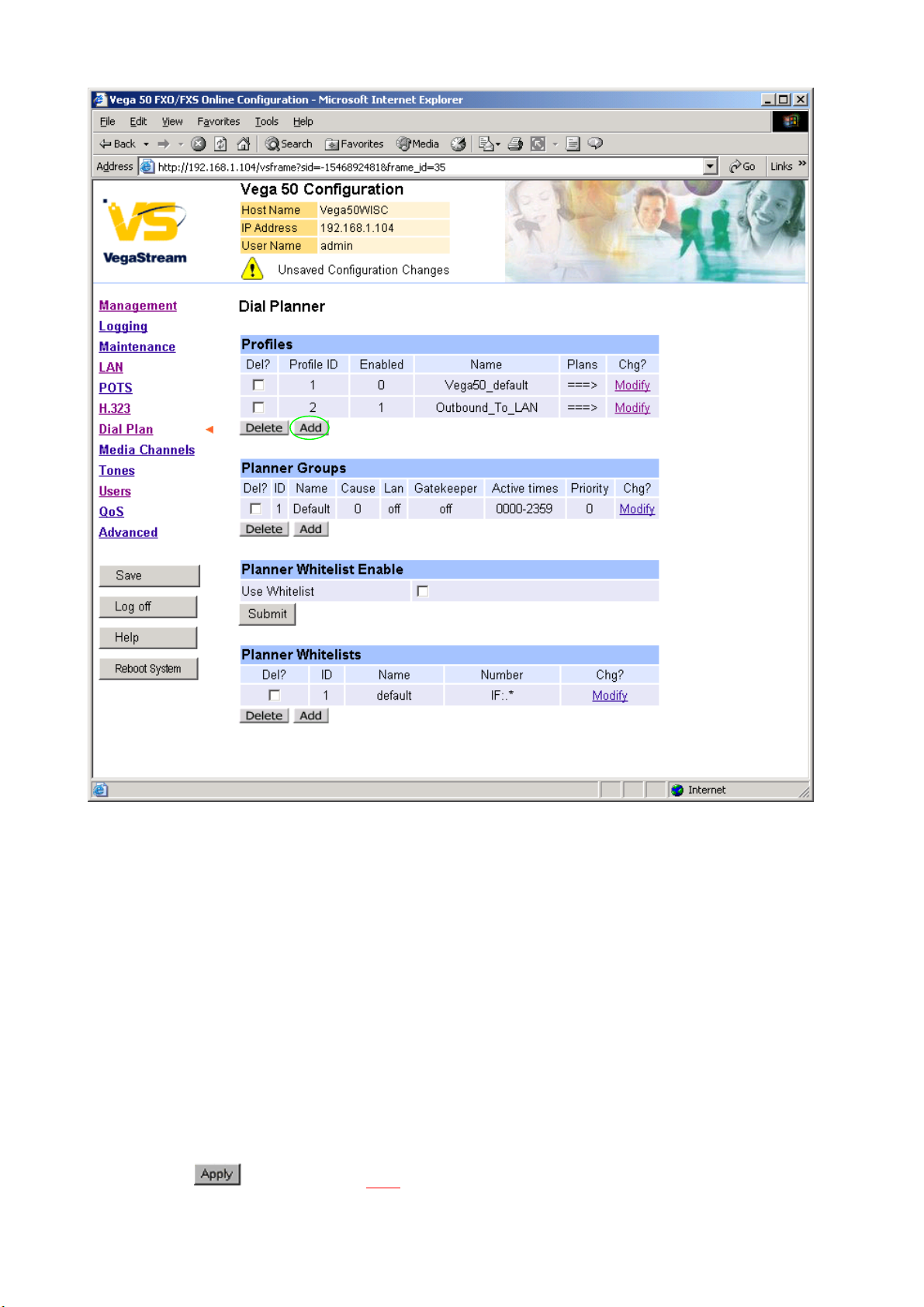

Now create a new profile and in it create a dial plan entry to handle calls being sent from the
telephones to the LAN:
In the Profiles section
 Select

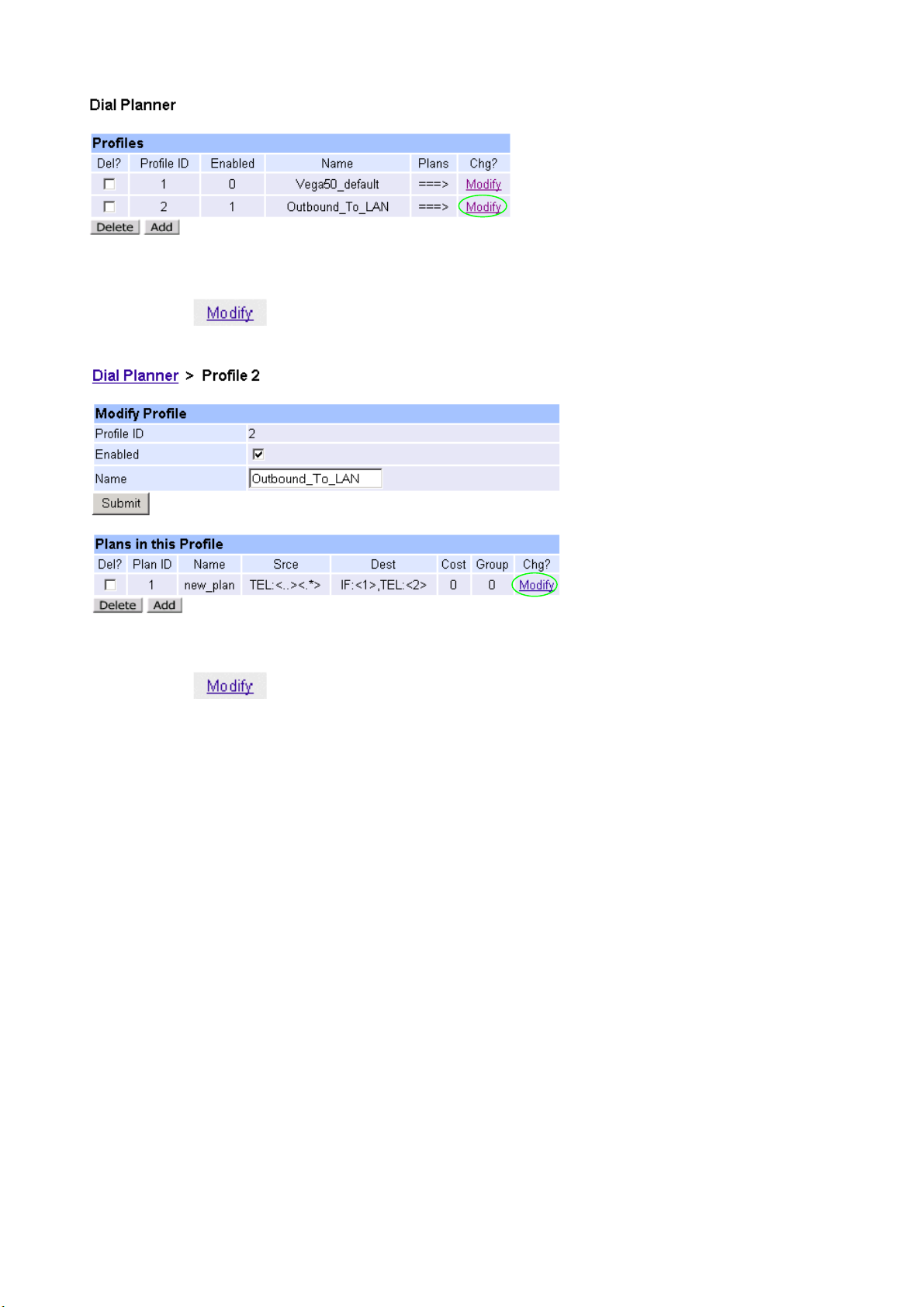

In the Profiles section, on Profile 2 (the new profile):
 Select
 Set Name = Outbound_To_LAN
 select and then click “here” to return

Version 0.5 26 August 2004 Page 12 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

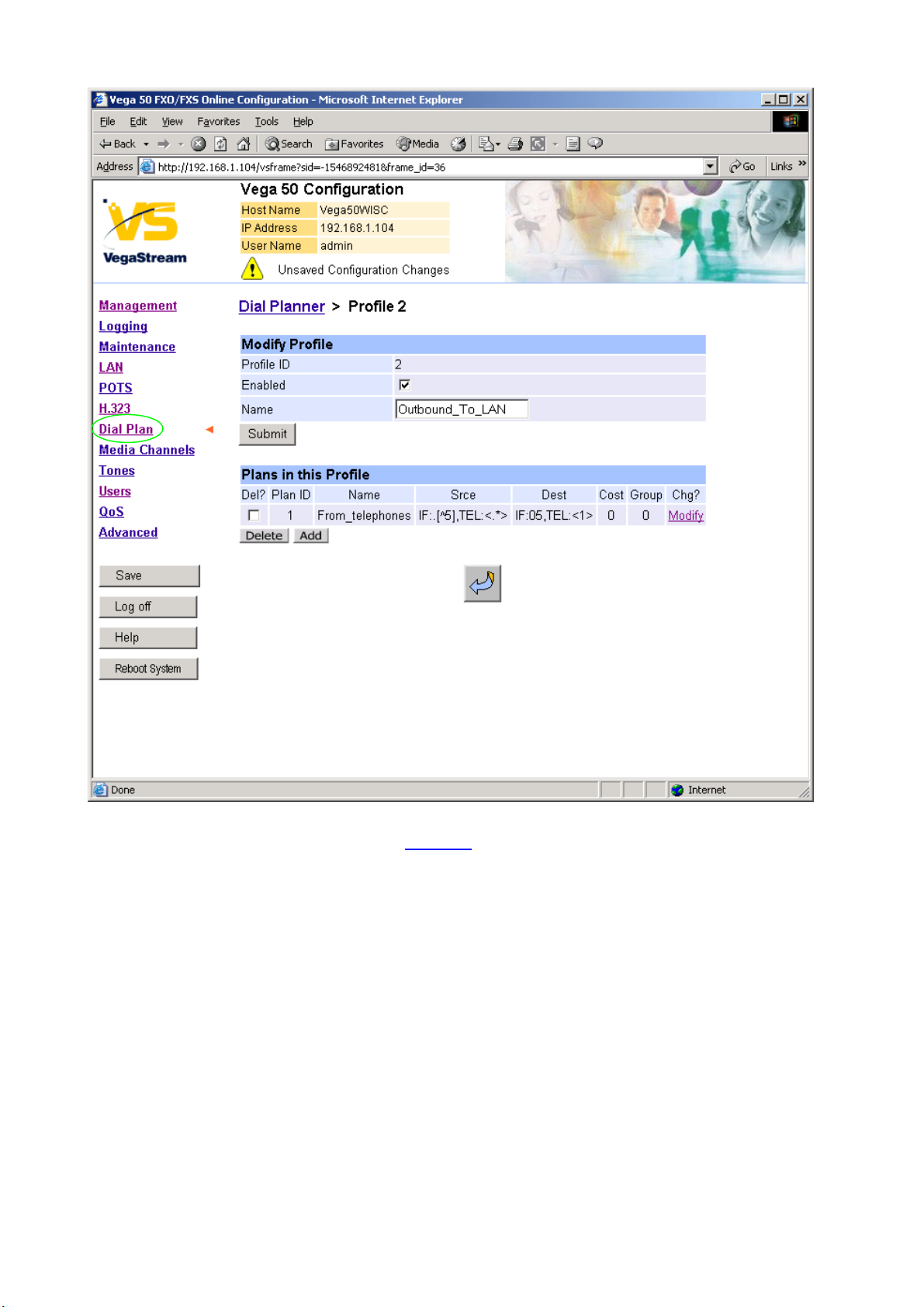

In the Profiles section, on Profile 2 (the Outbound_to_LAN profile):
 Select
In the Plans in this Profile section:
 Select

Version 0.5 26 August 2004 Page 13 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

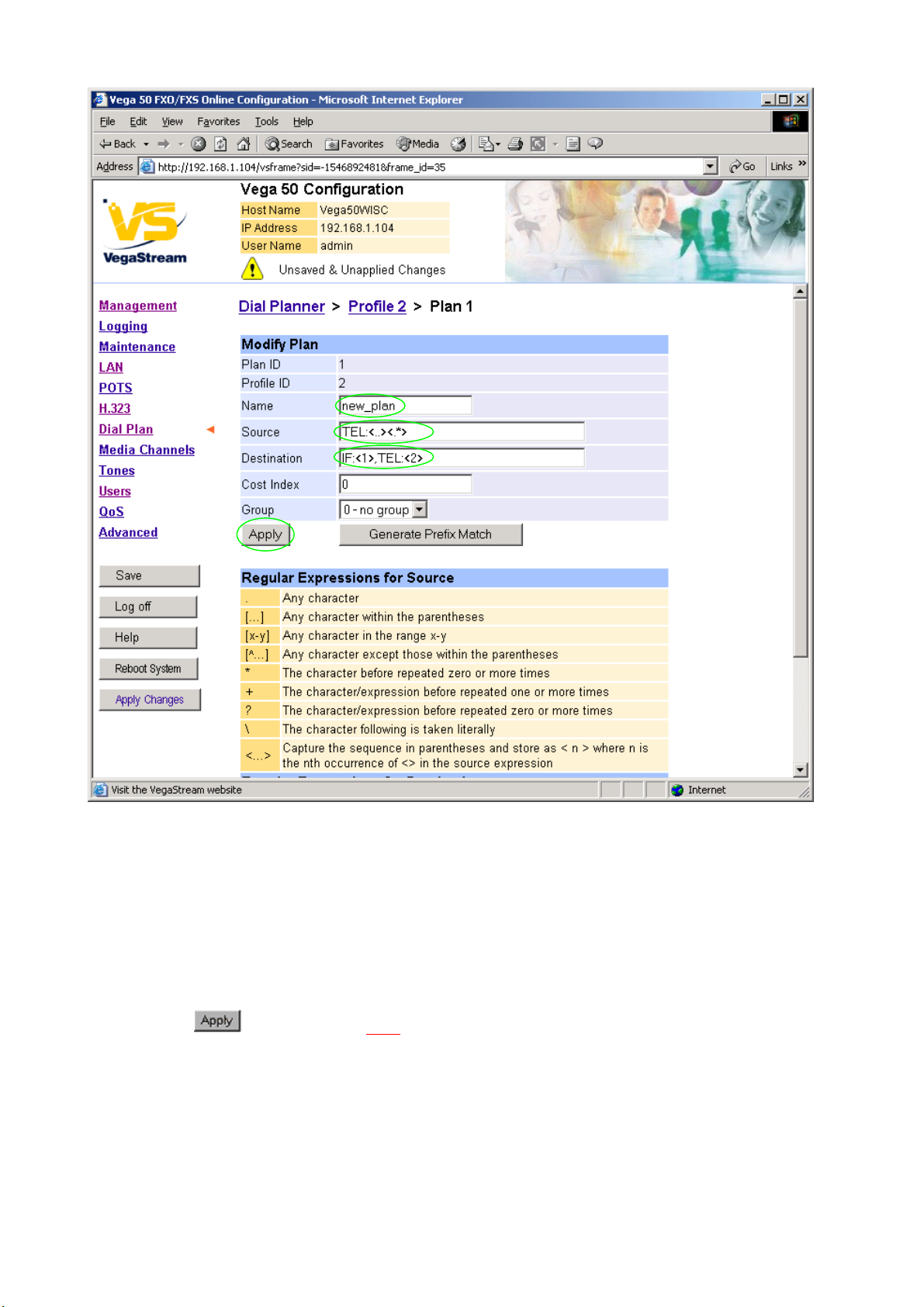

 Set Name = From_telephones
 Set Source = IF:<.[^5]>,TEL:<.*> (This takes a call from any of the 8 telephony
ports and stores the interface number in store
<1> and the number dialled in store <2>)
 Set Destination = IF:05,TEL:<1><2> (This routes the call to IF:05 (the LAN) and
passes the dialled telephone number prefixed
by the incoming interface ID as the destination
telephone number)
 select and then click “here” to return

Version 0.5 26 August 2004 Page 14 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
 On the left hand side menu select Dial Plan

Version 0.5 26 August 2004 Page 15 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
Now create a new profile and in it create a dial plan entry to handle calls being received inbound
from the LAN:
In a similar manner to adding profile 2 add another profile, profile 3,
 Set Name = Inbound_from_LAN
Modify the first plan for Profile 3:
 Set Name = From_LAN
 Set Source = IF:05,TEL:4<..> (This takes the three digit extension number
presented as the telephone number (4xx) and
stores the latter two digits in location <1>)
 Set Destination = IF:<1> (Use the 2 digits in store <1> as the interface
ID (telephone) to ring)
 select and then click “here” to return

Version 0.5 26 August 2004 Page 16 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
Note: The sending device must present just the 3-digit extension number, whether the
caller dialled just the extension number, or whether the caller dialled the full
telephone number including the area code.
For the calls to be accepted, the last two digits of the extension number must be 06
to 13 to be a valid Vega 50 interface ID.
For more details on the operation of the dial planner, including the various
tokens that may be used, see the section “The Dial Planner” in the Vega
Primer.

Version 0.5 26 August 2004 Page 17 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
7. Configure audio parameters

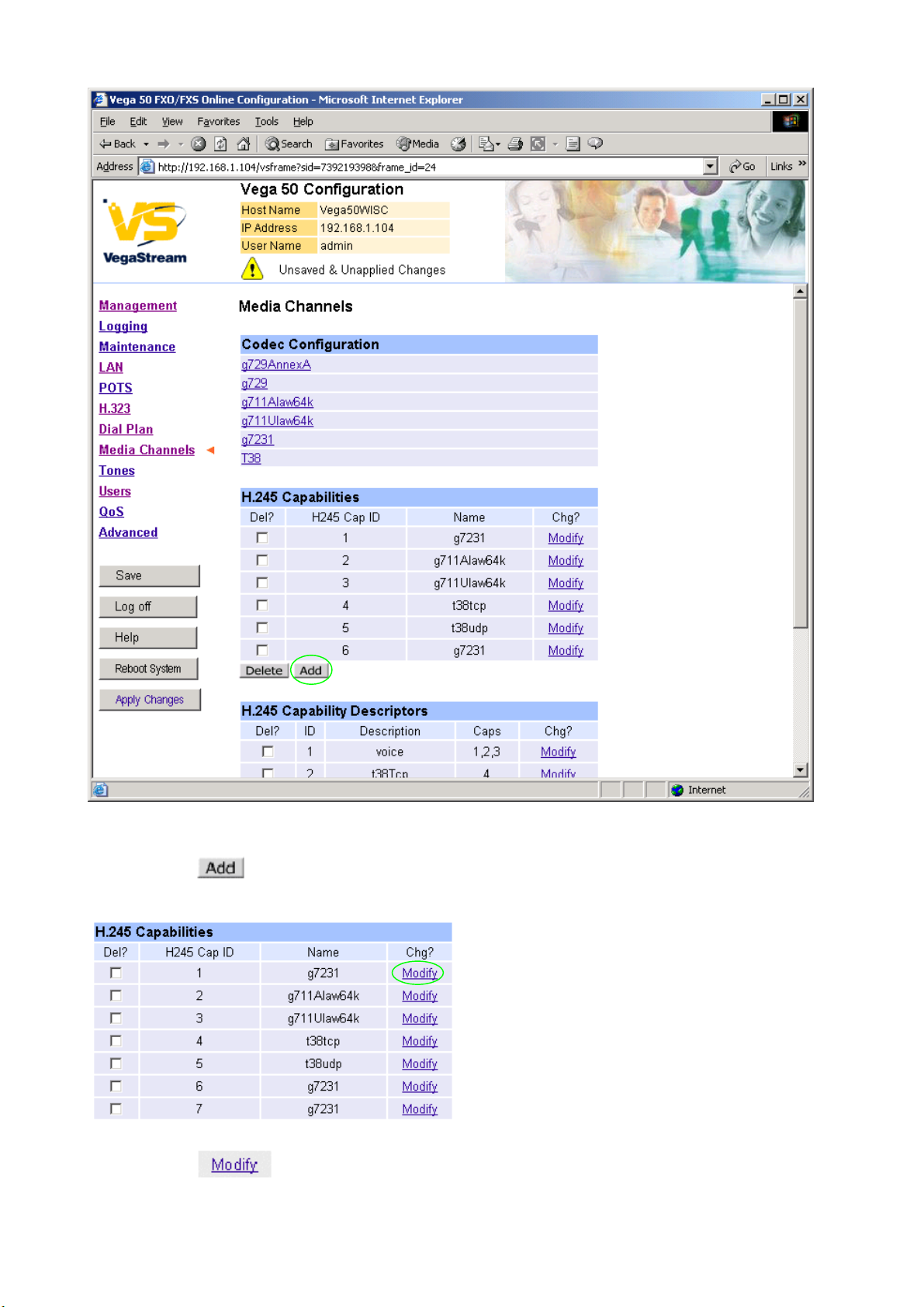

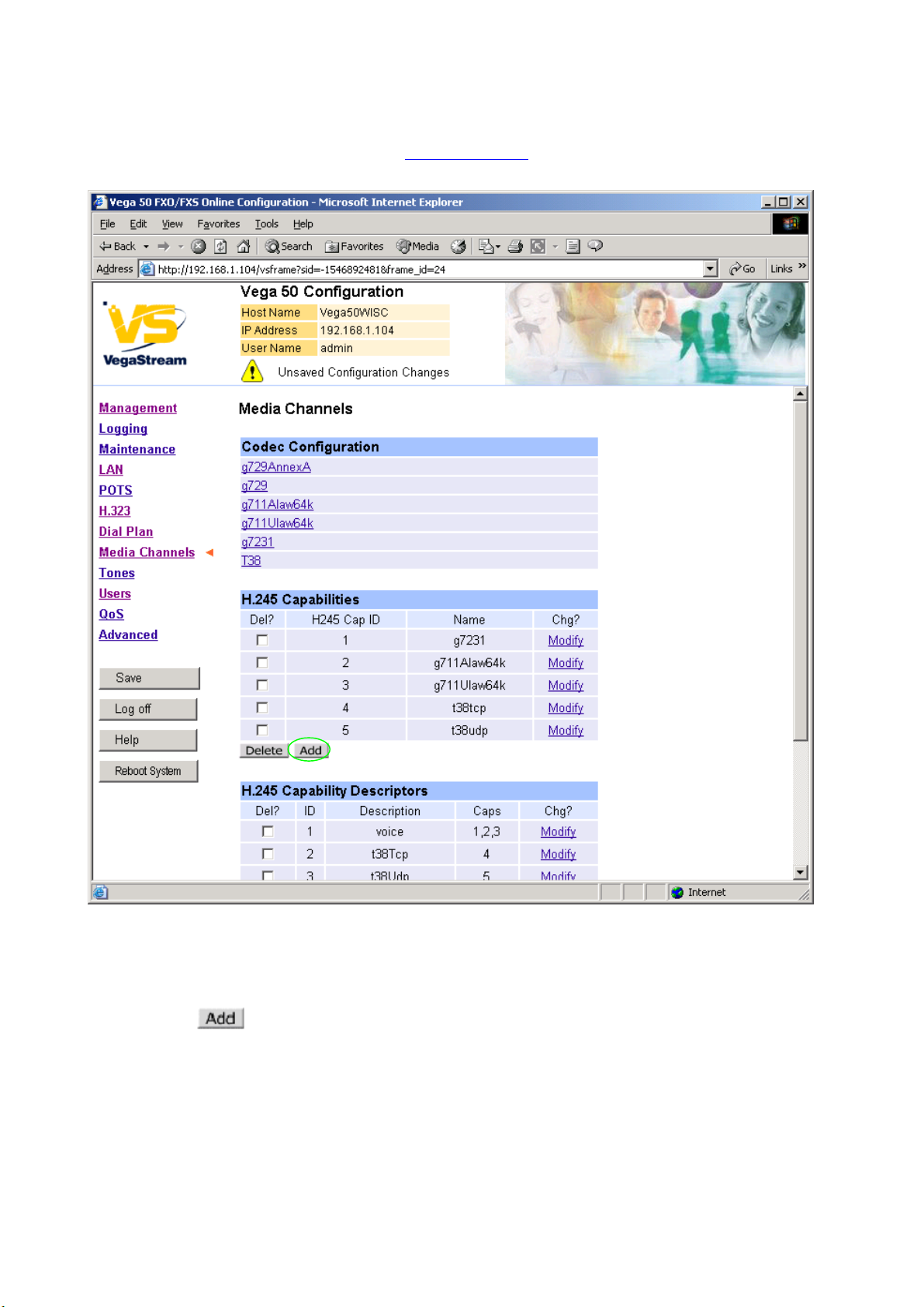

 On the left hand side menu select Media Channels
Add more codecs so that by default the Vega will handle calls with any of the codecs it supports.
In H.245 Capabilities
 Select

Version 0.5 26 August 2004 Page 18 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
In H.245 Capabilities
 Select again
 Select on H245 Cap ID 1

Version 0.5 26 August 2004 Page 19 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.

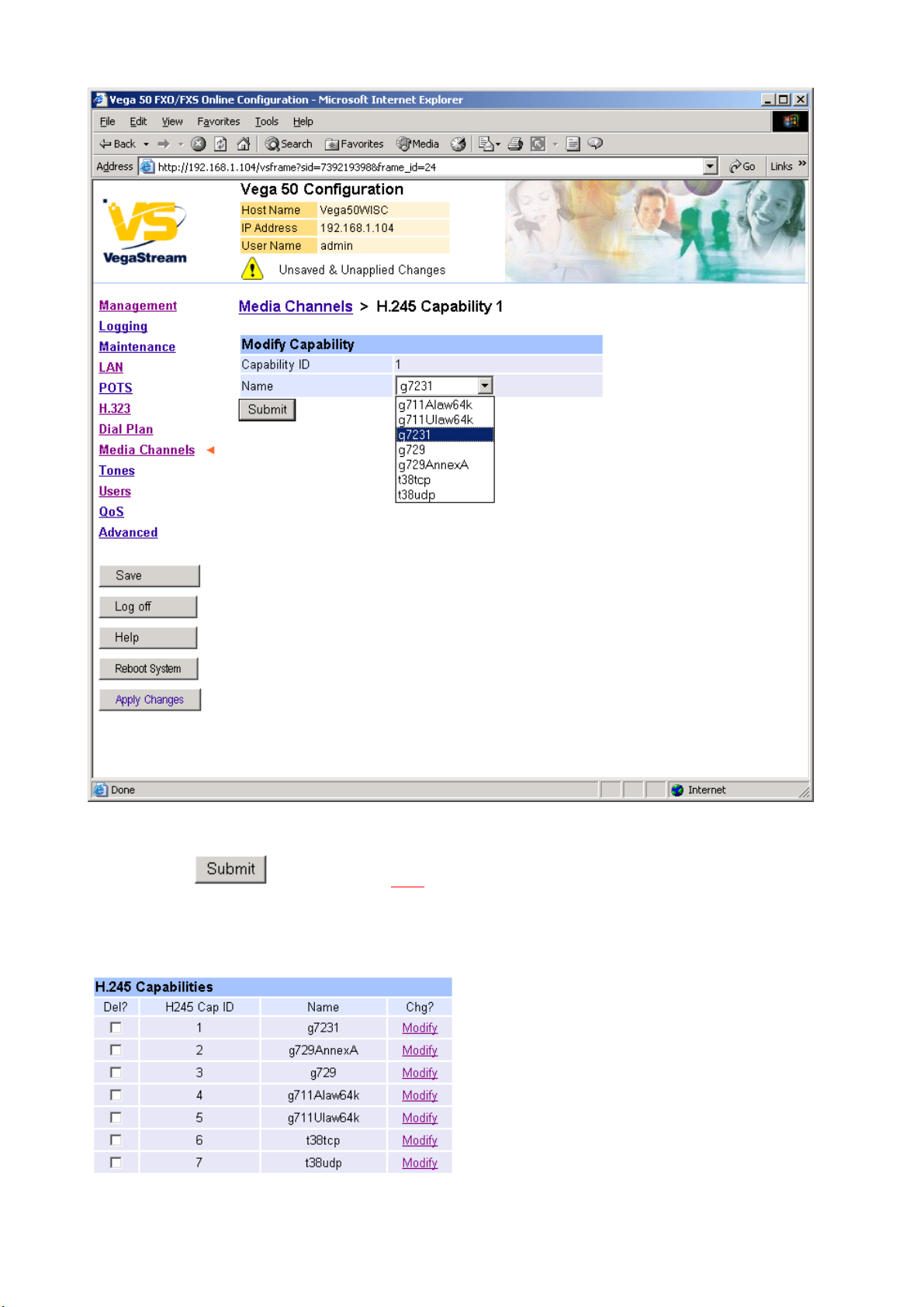

 Select required codec type – in this case g7231
 select and then click “here” to return

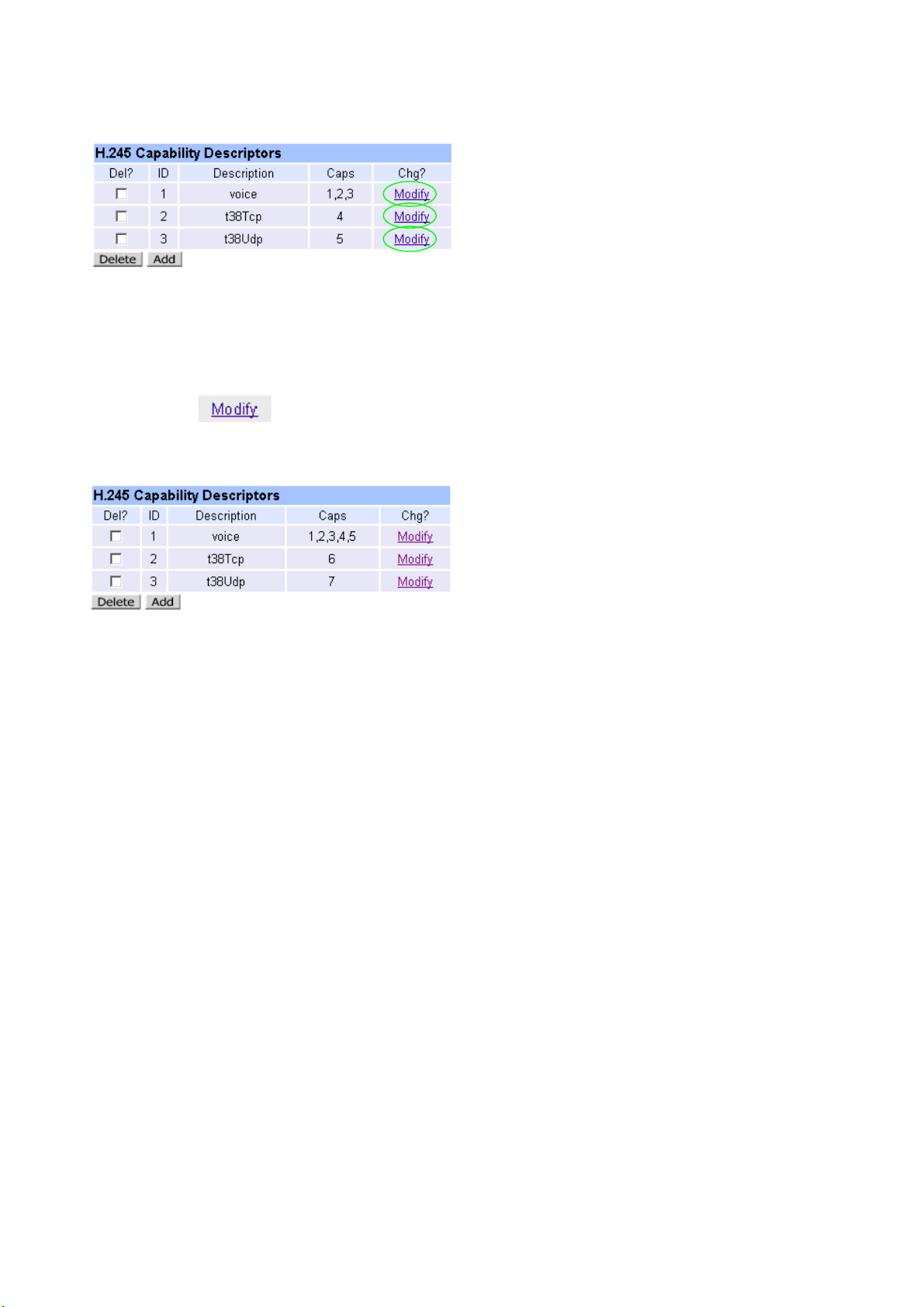

 Modify all H245 Cap ID entries until the list looks as follows:

Version 0.5 26 August 2004 Page 20 of 31
For use with Vega 50 FXS – H.323 version 04.01.05.1 T017 or greater. © 2002-2004 VegaStream Ltd.
Now update the Capability Description list that tells the Vega which of the codecs it can use.
Update entry 1 to select all voice codecs, and the other entries to configure them for the correct
capability Ids.
For each capability:
 Select
 Adjust them so that they have the capabilities as indicated below:
 Scroll to the bottom of the Media Channels page
