K8044
12V, Ten channel light
effect generator
ILLUSTRATED ASSEMBLY MANUAL H8044IP-1
þTen, 12V/400mA outputs.
þTo control cold-cathode fluorescent lamps (using FLPS adapter), light
bulbs, LED’s and “solid state” relays, ...
þFor use as advertisement lighting, party lights, discos, eye-catcher,...
þTen pre-programmed light patterns selectable with a push button.
þThe number of used channels is adjustable.
þAdjustable speed.
þLed indication for every output.
þ12V operation possible for use in cars.
Specifications :
•Power supply : 12V DC
•Outputs : 12V DC/400mA per channel (Total : max 4A)
•Dimensions : 140 x 100 x 27mm / 5,5 x 3,9 x 1,1”
Options (Velleman ordernumbers) :
ÚPower supply for cold-cathode fluorescent lamps : FLPS (300mm) or
FLPS1 (100mm)
ÚCold-cathode fluorescent lamps : FL(xx) –(100 or 300mm).
Modifications reserved.
Features:

2
VELLEMAN Components NV
Legen Heirweg 33
9890 Gavere
Belgium Europe
www.velleman.be
www.velleman-kit.com

3
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project success-
ful. Read them carefully.

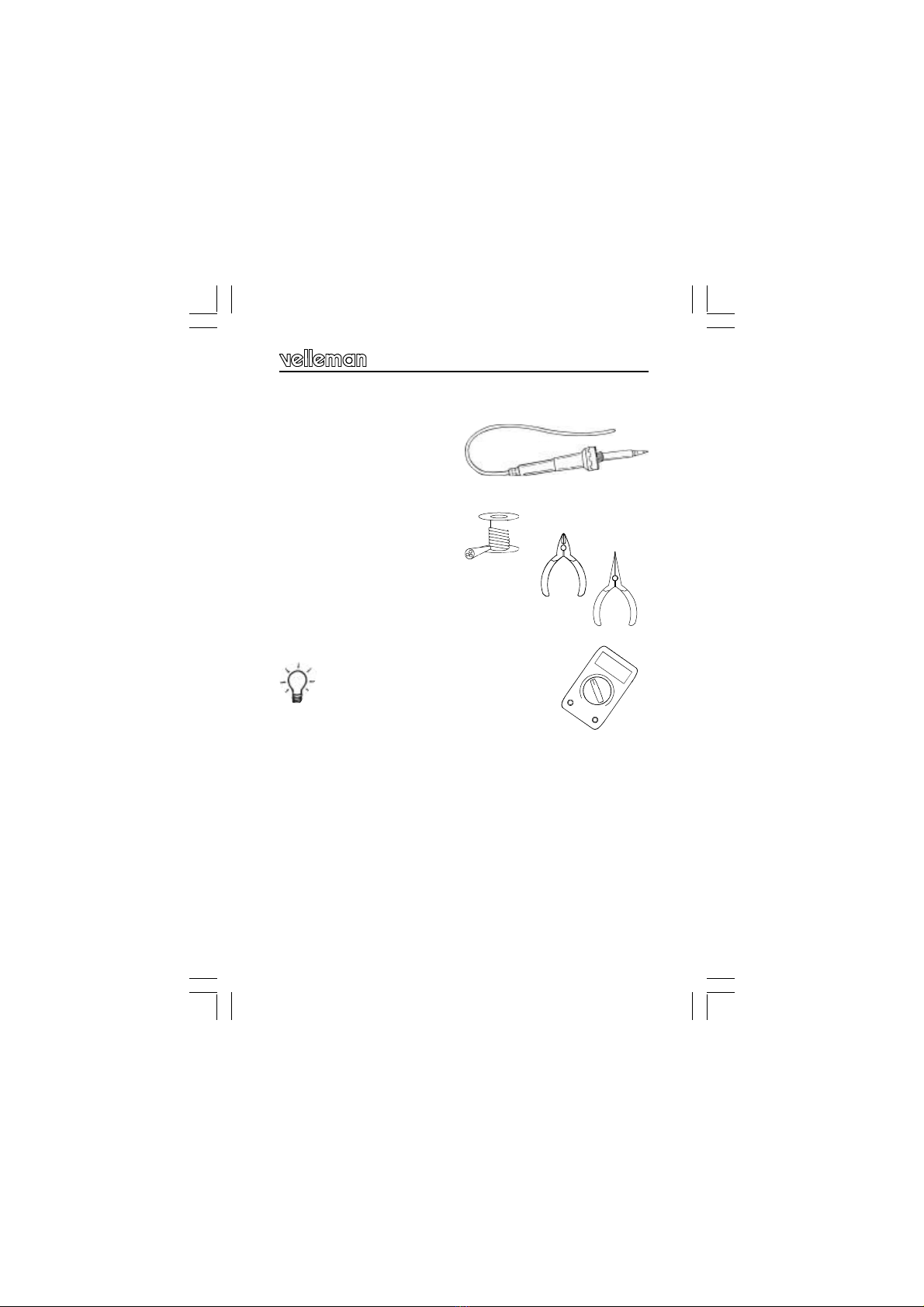

1.1 Make sure you have the right tools:
•A good quality soldering iron (25-
40W) with a small tip.
•Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the
tip, to give it a wet look. This is called ‘thinning’ and will protect the tip, and en-
ables you to make good connections. When solder rolls off the tip,
it needs cleaning.
•Thin raisin-core solder. Do not use
any flux or grease.
•A diagonal cutter to trim excess wires. To avoid injury
when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
•Needle nose pliers, for bending leads, or to hold components in
place.
•Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or
might be handy
1.2 Assembly Hints :
⇒Make sure the skill level matches your experience, to avoid disappointments.
⇒Follow the instructions carefully. Read and understand the entire step before you
perform each operation.
⇒Perform the assembly in the correct order as stated in this manual
⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
⇒Values on the circuit diagram are subject to changes.
⇒Values in this assembly guide are correct*
⇒Use the check-boxes to mark your progress.
⇒Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual
updates, indicated as ‘NOTE’ on a separate leaflet.
0.000
Assembly hints

4
1.3 Soldering Hints :
Mount the component against the PCB surface and carefully solder the
leads
Make sure the solder joints are cone-shaped and shiny
Trim excess leads as close as possible to the solder joint
REMOVE THEM FROM THE TAPE
ONE AT A TIME !
AXIAL COMPONENTS ARE TAPED IN THE CORRECT
MOUNTING SEQUENCE !
Assembly hints

IPESF SDK NDGB FNL

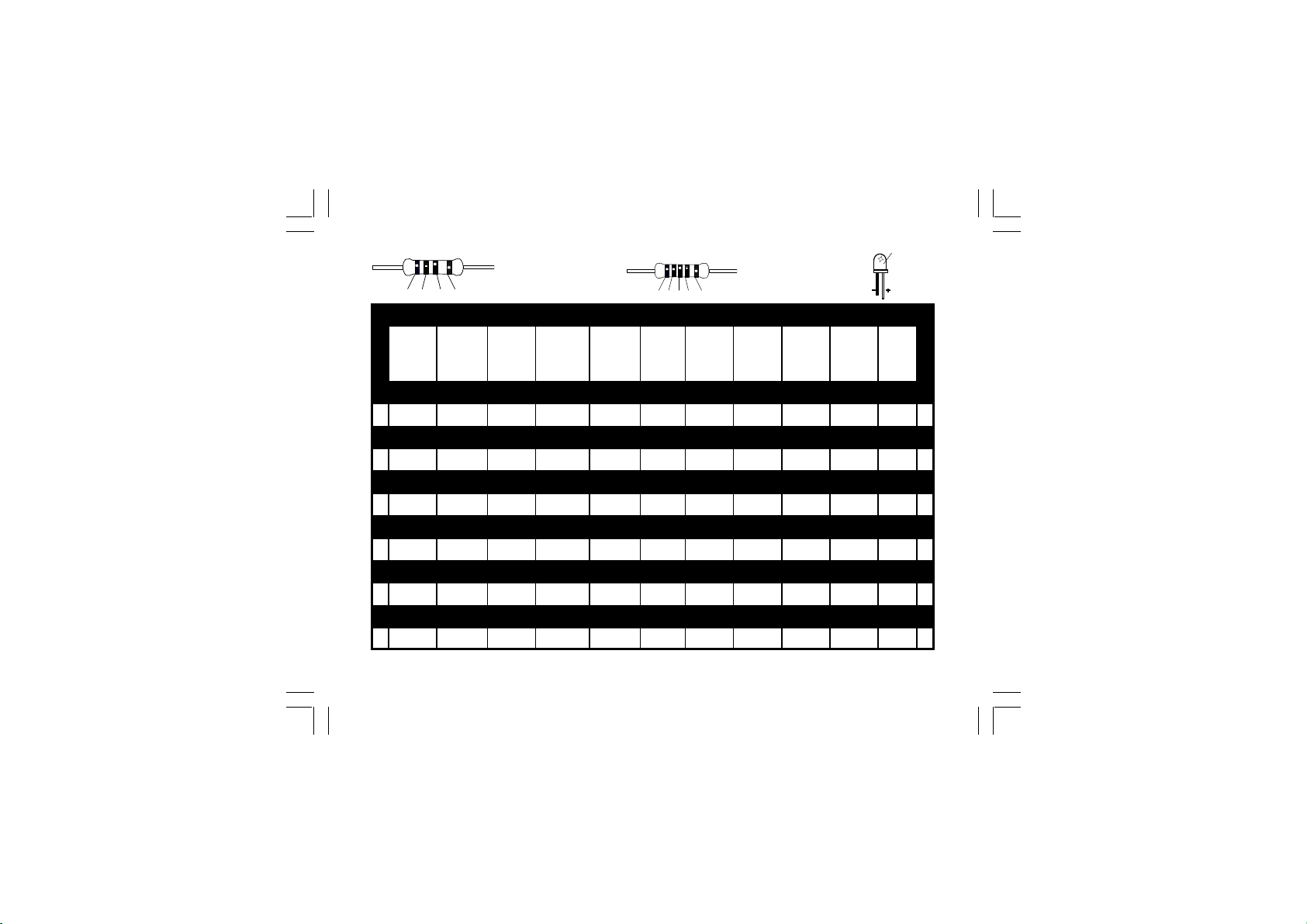

C
O
D
E
CODICE
COLORE
CODIGO
DE CORES
CODIGO
DE COL-
ORES
VÄRI
KOODI
FÄRG
SCHEMA
FARVE-
KODE
FARGE-
KODE
FARB
KODE
COLOUR
CODE
CODIFI-
CATION
DES COU-
LEURS
KLEUR
KODE
C
O
D
E
0Nero Preto Negro Musta Svart Sort Sort Schwarz Black Noir Zwart 0
1Marrone Castanho Marrón Ruskea Brun Brun Brun Braun Brown Brun Bruin 1
2Rosso Encarnado Rojo Punainen Röd Rød Rød Rot Red Rouge Rood 2
3Aranciato Laranja Naranjado Oranssi Orange Orange Orange Orange Orange Orange Oranje 3
4Giallo Amarelo Amarillo Keltainen Gul Gul Gul Gelb Yellow Jaune Geel 4
5Verde Verde Verde Vihreä Grön Grøn Grønn Grün Green Vert Groen 5
6Blu Azul Azul Sininen Blå Blå Blå Blau Blue Bleu Blauw 6
7Viola Violeta Morado Purppura Lila Violet Violet Violet Purple Violet Paars 7
8Grigio Cinzento Gris Harmaa Grå Grå Grå Grau Grey Gris Grijs 8
9Bianco Branco Blanco Valkoinen Vit Hvid Hvidt Weiss White Blanc Wit 9
AArgento Prateado Plata Hopea Silver Sølv Sølv Silber Silver Argent Zilver A
BOro Dourado Oro Kulta Guld Guld Guldl Gold Gold Or Goud B
5%
4K7= ( 4 - 7 - 2 - B )
1%
4K7= ( 4 - 7 - 0 - 1 - 1 )
COLOR= 2… 5
COLOR= 2...5

6

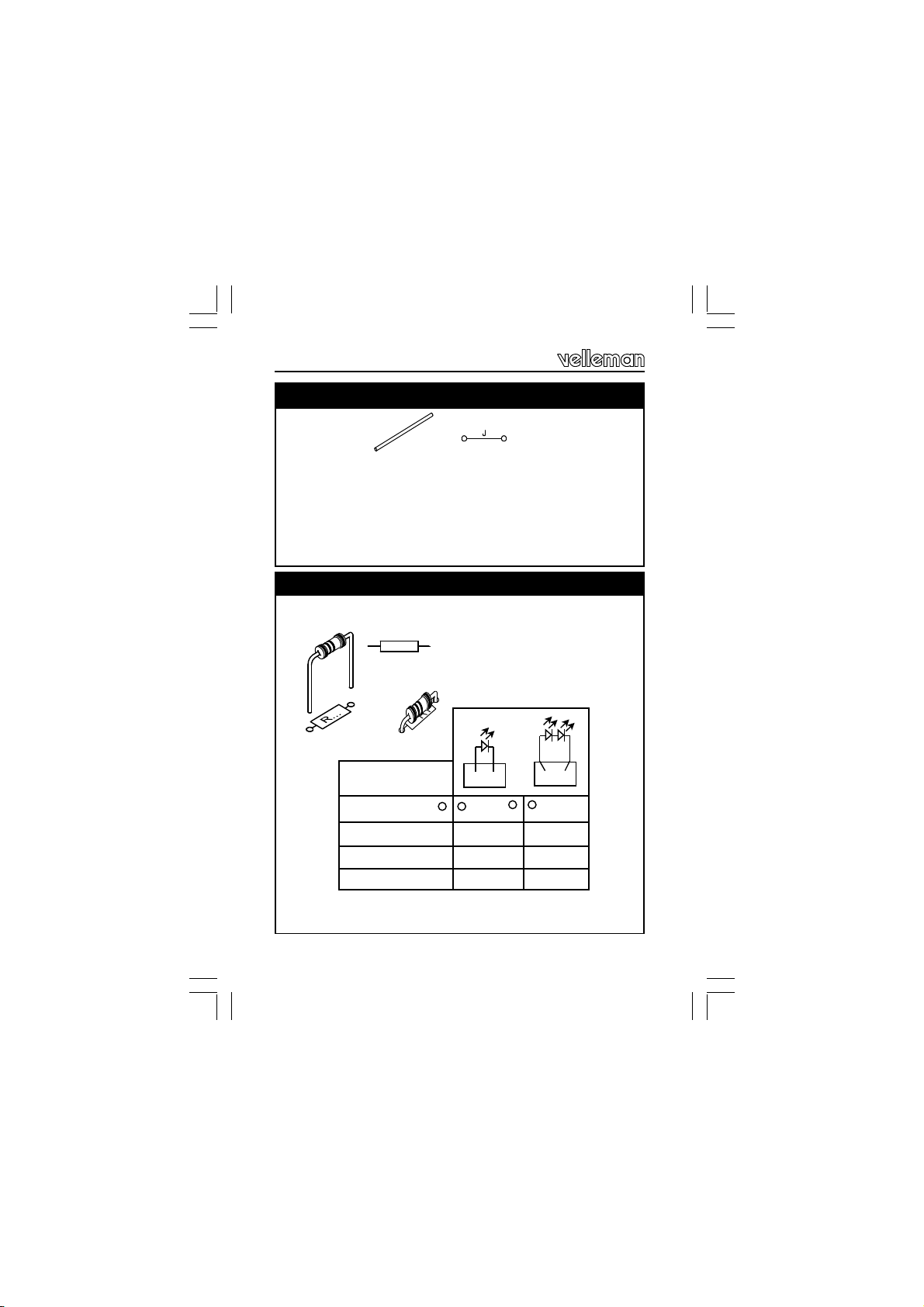

qRX (for each output)
GThese resistors are not supplied whit this kit!
Construction
qCH... : depending on the number of channels
qRX ‘∗’
‘∗’ATTENTION : In case you use light bulbs, Cold-Cathode
fluorescent lamps & “solid-state” relays mount for RX a jumper
wire, If using LED’s as output indication then mount for RX a
resistor appropriated to the value of the LED. See step 2.

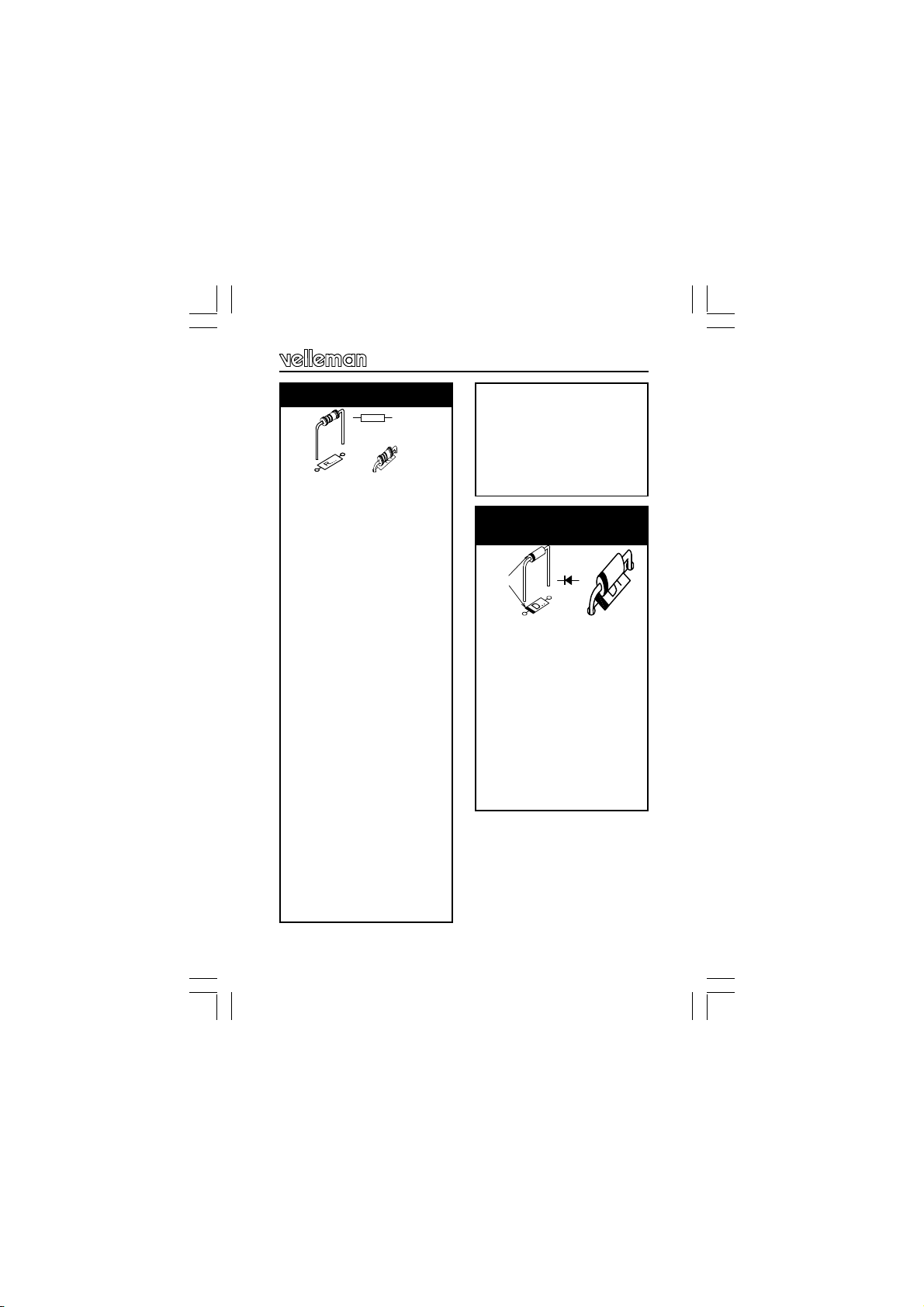

1. Jumper
2. Resistors ‘RX’
Type of LED
Standard (Red) 1K 820
White 470 330
Yellow / Green 1K 820
Blue 470 390
R...

7
qD1 : 1N4007
qD2 : 1N4007
qD3 : 1N4007
qD4 : 1N4007
qD5 : 1N4007
qD6 : 1N4007
qD7 : 1N4007
qD8 : 1N4007
qD9 : 1N4007
qD10 : 1N4007
qD11 : 1N4007
qD12 : 1N5404
4. Diodes. Watch the
polarity !
D...
CATHODE
qR1 : 10K (1-0-3-B)
qR2 : 10K (1-0-3-B)
qR3 : 10K (1-0-3-B)
qR4 : 10K (1-0-3-B)
qR5 : 10K (1-0-3-B)
qR6 : 10K (1-0-3-B)
qR7 : 10K (1-0-3-B)
qR8 : 10K (1-0-3-B)
qR9 : 10K (1-0-3-B)
qR10 : 10K (1-0-3-B)
qR11 : 270 (2-7-1-B)
qR12 : 270 (2-7-1-B)
qR13 : 270 (2-7-1-B)
qR14 : 270 (2-7-1-B)
qR15 : 270 (2-7-1-B)
qR16 : 270 (2-7-1-B)
qR17 : 270 (2-7-1-B)
qR18 : 270 (2-7-1-B)
qR19: 270 (2-7-1-B)
qR20 : 270 (2-7-1-B)
qR21 : 4K7 (4-7-2-B)
qR22 : 4K7 (4-7-2-B)
qR23 : 4K7 (4-7-2-B)
qR24 : 4K7 (4-7-2-B)
qR25 : 4K7 (4-7-2-B)
qR26 : 4K7 (4-7-2-B)
qR27 : 4K7 (4-7-2-B)
qR28 : 4K7 (4-7-2-B)
qR29 : 4K7 (4-7-2-B)
3. Resistors
R...
Construction
qR30 : 4K7 (4-7-2-B)
qR31 : 47 (4-7-0-B)
qR32 : 3K3 (3-3-2-B)
qR33 : 10K (1-0-3-B)
qR34 : 10K (1-0-3-B)
qR35 : 10K (1-0-3-B)
qR36: 330 (3-3-1-B)

8

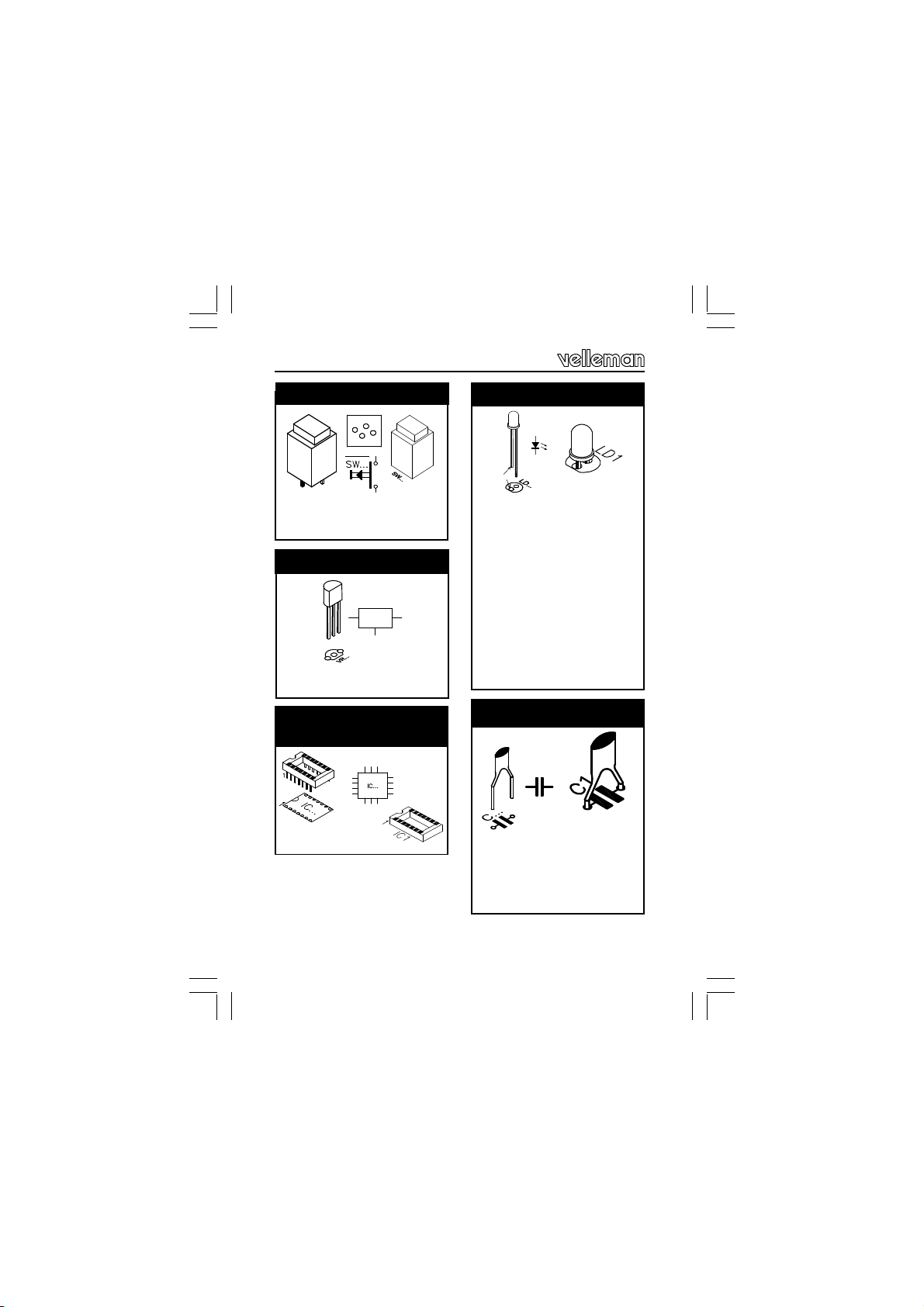

qLD1 : 5mm Red
qLD2 : 5mm Red
qLD3 : 5mm Red
qLD4 : 5mm Red
qLD5 : 5mm Red
qLD6 : 5mm Red
qLD7 : 5mm Red
qLD8 : 5mm Red
qLD9 : 5mm Red
qLD10 : 5mm Red
qLD11 : 5mm Red
Construction
qC2 : 100nF (104)
qC4 : 100nF (104)
qC6 : 100nF (104)
qC7 : 100pF (101)
9.Ceramic Capacitors
C...
qSW1 : S500
qSW2 : S500
5. Pushbuttons.
qIC1 : 18P
7. IC socket, Watch the
position of the notch!
qVR1: UA78L05
6. Voltage Regulator.
8. LED. Watch the polarity !
COLOR= 2...5
LD...
CATHODE
VR...

9
qT1 : BC640
qT2 : BC640
qT3 : BC640
qT4 : BC640
qT5 : BC640
qT6 : BC640
qT7 : BC640
qT8 : BC640
qT9 : BC640
qT10 : BC640
qT11: BC547B
qT12 : BC547B
qT13 : BC547B
qT14 : BC547B
qT15 : BC547B
qT16 : BC547B
qT17 : BC547B
qT18 : BC547B
qT19 : BC547B
qT20 : BC547B
10. Transistors.
qC5 : 10µF
qC3 : 220µF
qC1 : 1000µF / 25V
11. Electrolytic capacitors.
Watch the polarity !
C...
qRV1 : 100K
12. Trim potentiometer
Construction

10
qF1 : 4A (slow)
14. Fuseholder + Fuse
qIC1: VK8044
Programmed PIC16C58B-
20
15. IC, Check the
position of the notch !
F...
Construction
qSK1 : CH1 (2p)
qSK2 : CH2 (2p)
qSK3 : CH3 (2p)
qSK4 : CH4 (2p)
qSK5 : CH5 (2p)
qSK6 : CH6 (2p)
qSK7 : CH7 (2p)
qSK8 : CH8 (2p)
qSK9 : CH9 (2p)
qSK10 : CH10 (2p)
qSK11 : 2p
13. Terminal block
connectors
SK1
SK1
...
SK10
... SK10

11
Hook-up diagram
OR !

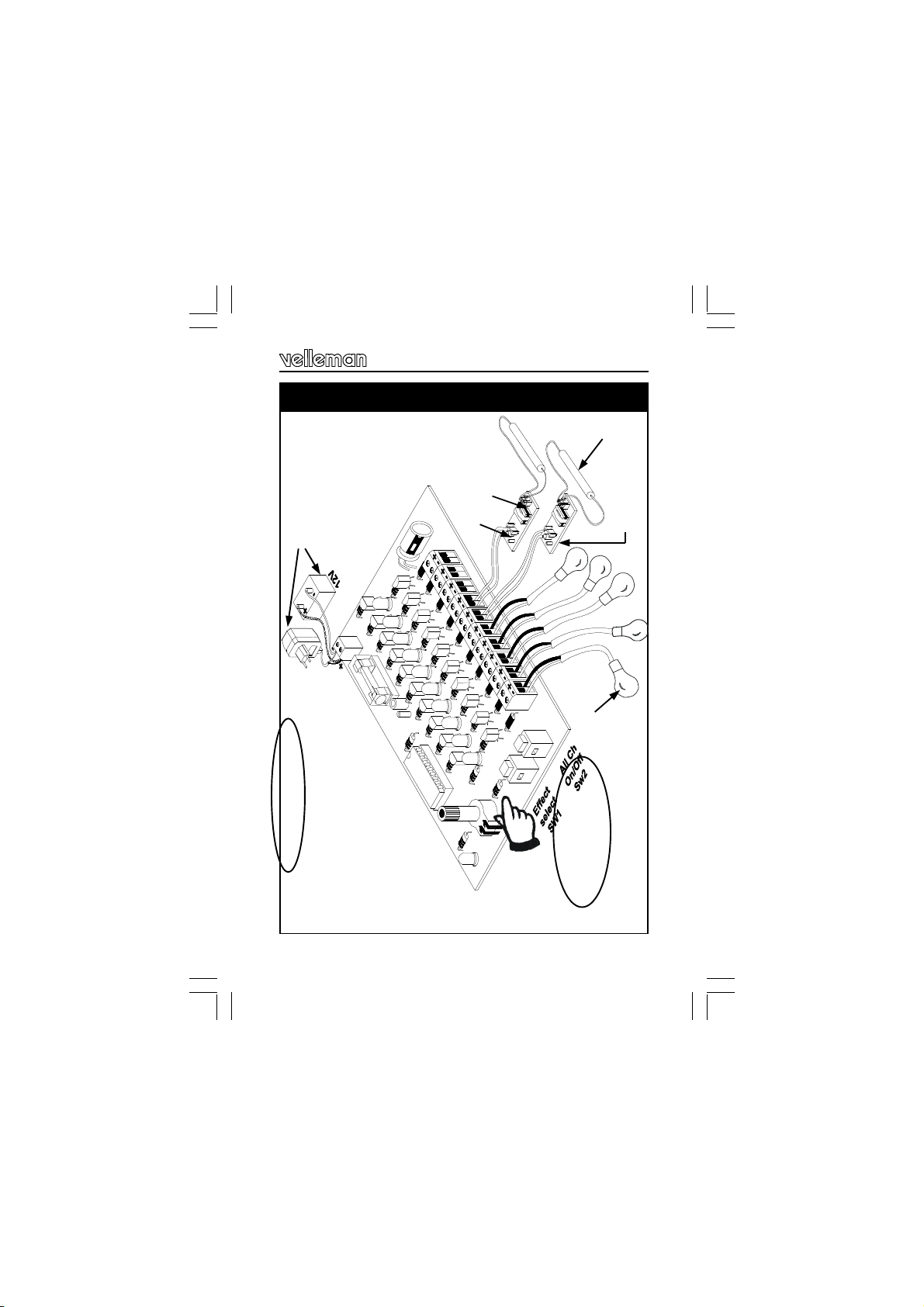

16. Hook-up diagram
Inspect the complete assembly once more
before applying power to the unit !
12VDC / max 4A
12VDC/400mA
per channel
HIGH
VOLTAGE !
12V INPUT
Cold-cathode
fluorescent lamps
Inverter FLPS
12V bulb
400mA max.

12
Connect this kit according to the wiring diagram. LED LD1 will light if the
operating voltage is correct. Take all necessary precautions to avoid
electroshocks when connecting cold-cathode fluorescent lamps : the
inverter ‘FLPS1’ uses a potentially life-threatening voltage.
FThis kit is available in various countries. Take care to use
an appropriate connection or adapter.
Selecting a light effect :
Push button SW1 ‘Effect select’ allows you to choose one of ten avail-
able programmes. Hold SW1 to see which effect is currently selected :
the LED of that effect will light. The light effect will start running when you
release SW1. Press SW1 momentarily to select the next light effect.
SW2 enables you to activate or deactivate all channels. Press SW1 to
restart the selected light effect.
Adjust the speed of the running light with RV1
FThe connection cables should be equipped with an appropri-
ate strain relief when mounted in a movable housing.
Random light effect :
Hold SW2 pressed before connecting the power supply (the
other light patterns shall not work!).
Number of connected channels :
Mount a jumper wire on the spot that matches the amount of
light channels you would like to use. This will make some light
effects adjust to the number of channels used.
Example:Mount a jumper wire on 5 CH if you wish to use 5
light channels.
Connection
17. Use
!

13
18. PCB layout.
