Instruction Manual
PROFESSIONAL SHOW LIGHT

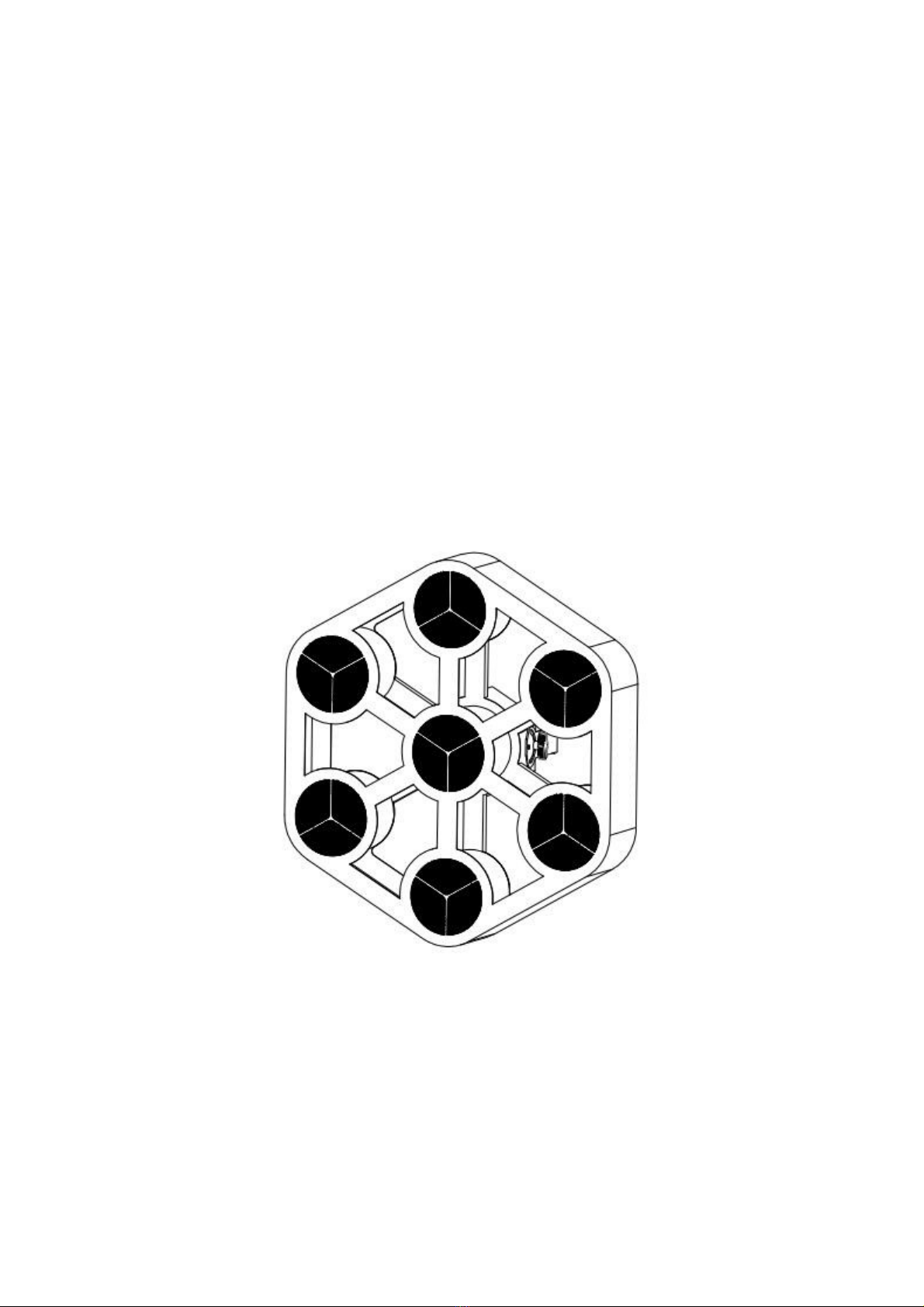

Retro Storm FG740(RGBW)
--------------------------------2022Ver22.05.27----------------------------------

2
Unpacking: Thank you for purchasing FG-740, Every unit has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged, carefully inspect your
fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
In the case damage has been found or parts are missing, please contact the manufacturer or your
dealer for further instructions. Do not return this unit to your dealer without first contacting.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR
INSTALLING FG-740, SAVE IT FOR FUTURE REFERENCE.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself;
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton when ever possible.
General Instructions: To optimize the performance of this product, please read these
operating instructions carefully to familiarize you with the basic operations of this unit. These
instructions contain important safety information regarding the use and maintenance of this unit.
Features
⚫strobe
⚫Effect as background
Safety Precautions
⚫To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
⚫Do not spill water or other liquids into or on to your unit.
⚫Be sure that the local power outlet matches that of the required voltage for your unit.
⚫Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove
or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
⚫Disconnect from main power before making any type of connection.
⚫Do not remove the cover under any conditions. There are no user serviceable parts inside.
⚫Never operate this unit when it’s cover is removed.
⚫Never plug this unit in to a dimmer pack.
⚫Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
⚫Do not attempt to operate this unit, if it becomes damaged.
⚫This unit is intended for indoor use only; use of this product outdoors voids all warranties.
⚫During long periods of non-use, disconnect the unit’s main power.
⚫Always mount this unit in safe and stable matter.
⚫Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to the point they exit from the unit.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain
or moisture.
PLEASE consider that damages caused by manual modifications to the device are not subject
to warranty.

3
⚫Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for
details.
⚫Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves,
or other appliances (including amplifiers) that produce heat.
⚫The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
Set Up:
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required
voltage for your FG-740, The model is Auto power supply, It is workable 90-250V/50~60Hz. Please make sure
your unit voltage matches the wall outlet voltage before attempting to operate you fixture.
Connection to the mains
For protection from electric shock, the fixture must be earthed!
Install a suitable plug on the power cord; note that the cores in the power cord are colored according to the
following table. The earth has to be connected!
If you have any doubts about proper installation, consult a qualified electrician.
Core (EU)
Core (US)
Connection
Plug Terminal Marking
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N
DMX512 connection
The fixture is equipped with 3-pin or 5-pin XLR sockets for DMX input and output. The sockets are wired in
parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in
order to connect the controller with the fixture or one fixture with another.
DMX-output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
DMX Linking: To ensure proper DMX data transmission, when using several DMX fixtures try to use the
shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line,
at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the
DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX
chain.

4
Operating Modes: You can use the FG-740 in 4 ways:
⚫Auto Mode - The unit will automatically chase through the different colors and built-in programs.
⚫Slave Mode –The unit will run under slave mode.
⚫DMX control mode - This function will allow you to control each individual fixtures traits with a standard
DMX 512 controller.
●Sound Control--When music play,The unit will work with music beat.
DMX Mode: Operating through a DMX controller give the user the freedom to create their own programs
tailored to their own individual needs. This function also allows you to use your fixtures as spot lights.
1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
2. The FG740 has 3 kind of DMX channels to operate. Please see “DMX Values and Functions” for the DMX
traits.
3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any standard DMX controller.
Set your desired DMX address following the setup specifications that come with your DMX controller
Main Control Menu
The control board on the fixture base is your interface to access and control all functions on the unit, its screen
display gives you a code view of functions

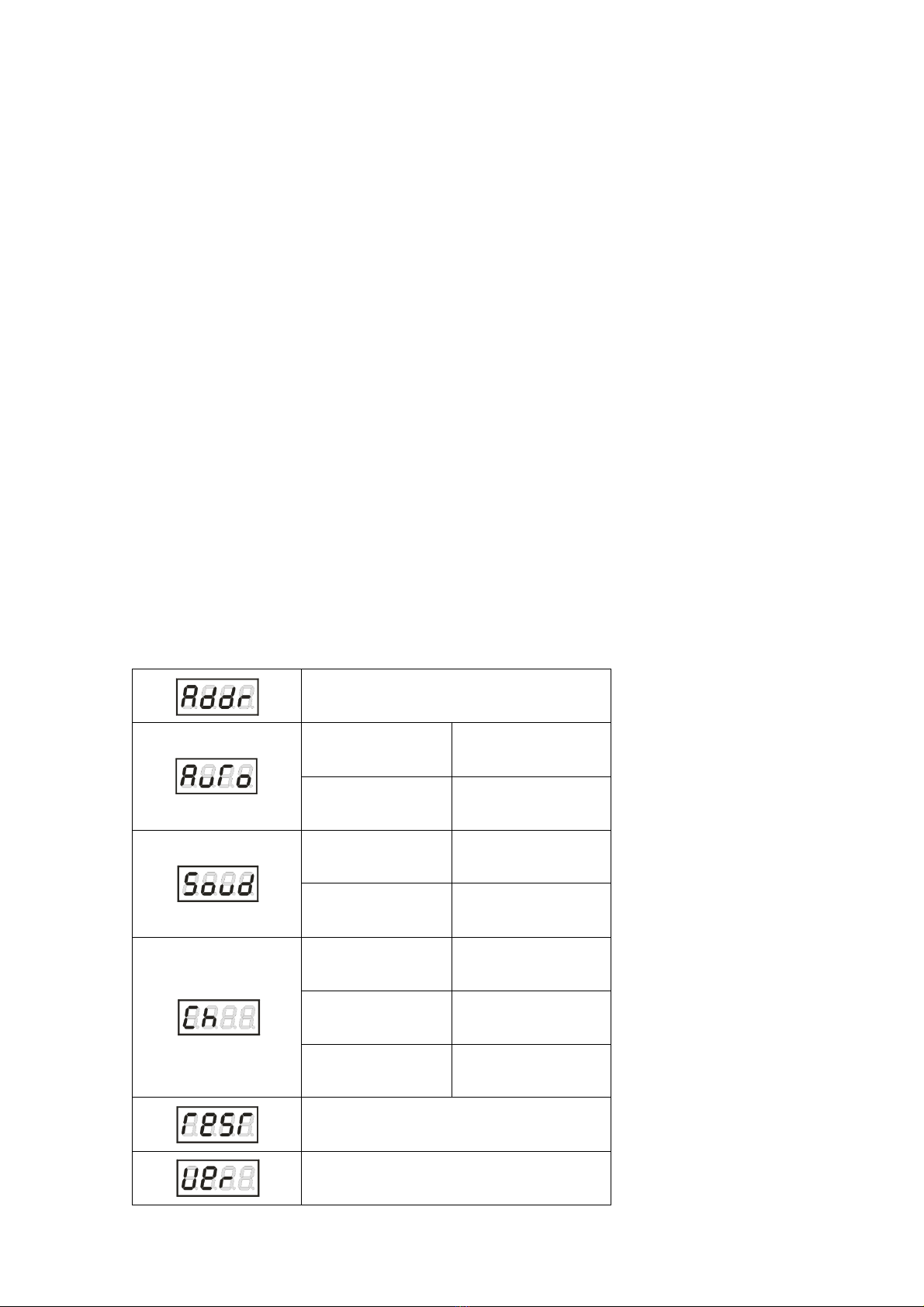

LED Menu display:
DMX Address 001-512
AU01-07
Auto 01-07
S01-16
Auto Speed
Sod1/Sod2
Sound 1/2
SC-1--9
Sensitiveness
CH11
11 Channels
CH13
13 Channels
CH35
35 Channels
LED(LED Test)
Software version

5
DMX Chart :
11CH
13CH
35CH
Function
DMX Value
Description
1
1
1
Dimmer
0-255
0-100%
2
2
2
Strobe
0-19
No Effect
20-255
Strobe Slow-Fast
*
*
3
Red1
0-255
0-100%
*
*
4
Green1
0-255
0-100%
*
*
5
Blue1
0-255
0-100%
*
*
7
White1
0-255
0-100%
*
*
...
...
...
...
*
*
27
Red7
0-255
0-100%
*
*
28
Green7
0-255
0-100%
*
*
29
Blue7
0-255
0-100%
*
*
30
White7
0-255
0-100%
*
3
*
Led1
0-255
LED1 Color Macro
*
4
*
Led2
0-255
LED2 Color Macro
*
5
*
Led3
0-255
LED3 Color Macro
*
6
*
Led4
0-255
LED4 Color Macro
*
7
*
Led5
0-255
LED5 Color Macro
*
8
*
Led6
0-255
LED6 Color Macro
*
9
*
Led7
0-255
LED7 Color Macro
3
*
*
Red
0-255
0-100%
4
*
*
Green
0-255
0-100%
5
*
*
Blue
0-255
0-100%
6
*
*
White
0-255
0-100%
7
*
31
Color Macro
0-10
No Function
11-30
R 100%,G 50-100-50%,B 0
31-50
R 100%-0,G 100%, B,0
51-70
R 0,G 100%,B 0-100%
71-90
R 0,G 100%-0,B 100%
91-110
R 0-100%, G 0, B 100%
111-130
R 100%,G 0, B 100%-0
131-150
R 100% ,G 0-100% ,B 0-100%

6
151-170
R 100%-0 , G 100%-0 , B 100%
171-200
R 100%,G 100%, B 100%
201-205
Color 1
206-210
Color 2
211-215
Color 3
216-220
Color 4
221-225
Color 5
226-230
Color 6
231-235
Color 7
236-240
Color 8
241-245
Color 9
246-250
Color 10
251-255
Color 11
8
10
32
BackGround
0-10
No Effect
11-255
BackGround Color
9
11
33
BackGround
Dimmer
0-255
0-100%
10
12
34
Show
0-10
No Function
11-15
Show1
16-20
Show2
21-25
Show3
26-30
Show4
31-35
Show5
36-40
Show6
41-45
Show7
46-50
Show8
51-55
Show9
56-60
Show10
61-65
Show11
66-70
Show12
71-75
Show13
76-80
Show14
81-85
Show15
86-90
Show16
91-95
Show17
96-100
Show18

7
Di
m
e
n
si
o
n(
m
m
):
6
6
6*
3
1
2*
7
4
0
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out
periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
101-105
Show19
106-110
Show20
111-115
Show21
116-120
Show22
121-125
Show23
126-130
Show24
131-135
Show25
136-140
Show26
141-145
Show27
146-150
Show28
151-155
Show29
156-160
Show30
161-165
Show31
166-170
Show32
171-175
Show33
176-180
Show34
181-185
Show35
186-190
Show36
191-195
Show37
196-200
Show38
201-205
Show39
206-210
Show40
211-215
Show41
216-220
Show42
221-225
Show43
226-230
Show44
231-235
Show45
236-245
Sound1
246-255
Sound2
11
13
35
Show Speed
0-255
Show Speed Slow to Fast

8
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates ( smoke, fog residue, dust, dew).
Parameter:
Model name: Retro FG-740
Power consumption：300W
Voltage：AC100V-250V, 50Hz/60Hz
Working position：any safe working position
LED：40W 4in1(RGBW) LEDs * 7pcs
DMX Channel：11/13/35 CHs
Display：LCD display
Aluminum housing: black ,white and other color optional
Control：DMX 512, auto run/Slave/ Master mode and Sound Control
3pin or 5pin DMX XLR and powercon in and out
Size：666*312*740mm
N.W.：13kgs
Note: All information is subject to change without prior notice.
