Velodyne IMPACT IMPACT-10 User manual

impact SERIES
IMPACT .. 10
IMPACT .. 12
IMPACT .. MINI
USER'S
MANUAL
Home Theater Subwoofers
>~
(Velodyne

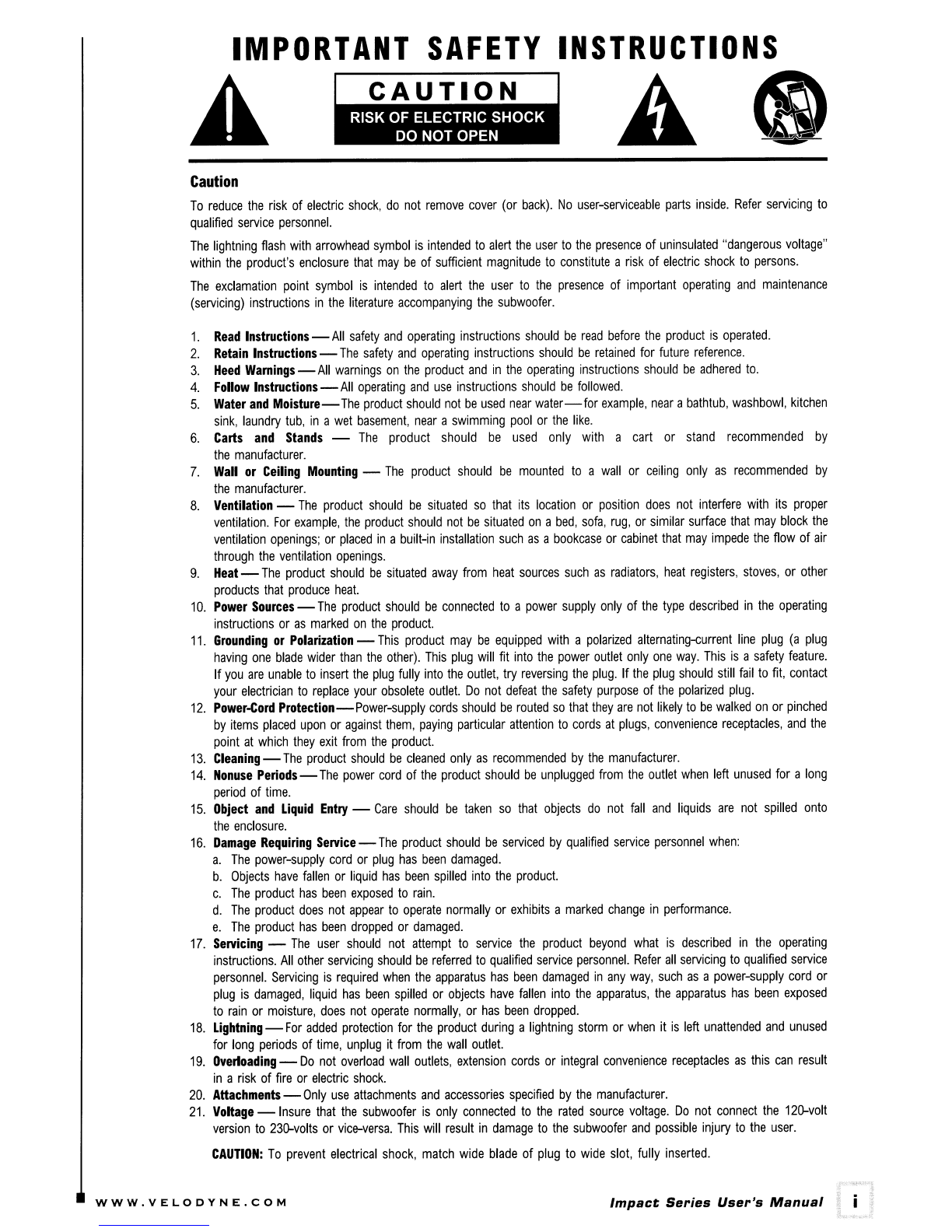

IMPORTANT SAFETY INSTRUCTIONS
A AS
Caution
To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.
The lightning flash with arrowhead symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the subwoofer.
1. Read Instructions - All safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture- The product should not be used near water-for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, near a swimming pool or the like.
6. Carts and Stands - The product should be used only with a cart or stand recommended by
the manufacturer.
7. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by
the manufacturer.
8. Ventilation - The product should be situated so that its location or position does not interfere with its proper
ventilation. For example, the product should not be situated on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
9. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products that produce heat.
10. Power Sources - The product should be connected to a power supply only of the type described in the operating
instructions or as marked on the product.
11. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug
having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the
point at which they exit from the product.
13. Cleaning - The product should be cleaned only as recommended by the manufacturer.
14. Nonuse Periods- The power cord of the product should be unplugged from the outlet when left unused for a long
period of time.
15. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled onto
the enclosure.
16. Damage Requiring Service - The product should be serviced by qualified service personnel when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen or liquid has been spilled into the product.
c. The product has been exposed to rain.
d. The product does not appear to operate normally or exhibits a marked change in performance.
e. The product has been dropped or damaged.
17. Servicing - The user should not attempt to service the product beyond what is described in the operating
instructions. All other servicing should be referred to qualified service personnel. Refer all servicing to qualified service
personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
18. Lightning - For added protection for the product during a lightning storm or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet.
19. Overtoading - Do not overload wall outlets, extension cords or integral convenience receptacles as this can result
in a risk of fire or electric shock.
20. Attachments - Only use attachments and accessories specified by the manufacturer.
21. Voltage -Insure that the subwoofer is only connected to the rated source voltage. Do not connect the 12o-volt
version to 23O-volts or vice-versa. This will result in damage to the subwoofer and possible injury to the user.
CAUTION: To prevent electrical shock, match wide blade of plug to wide slot, fully inserted.
WWW.VELODYNE.COM
Impact Series User's Manual

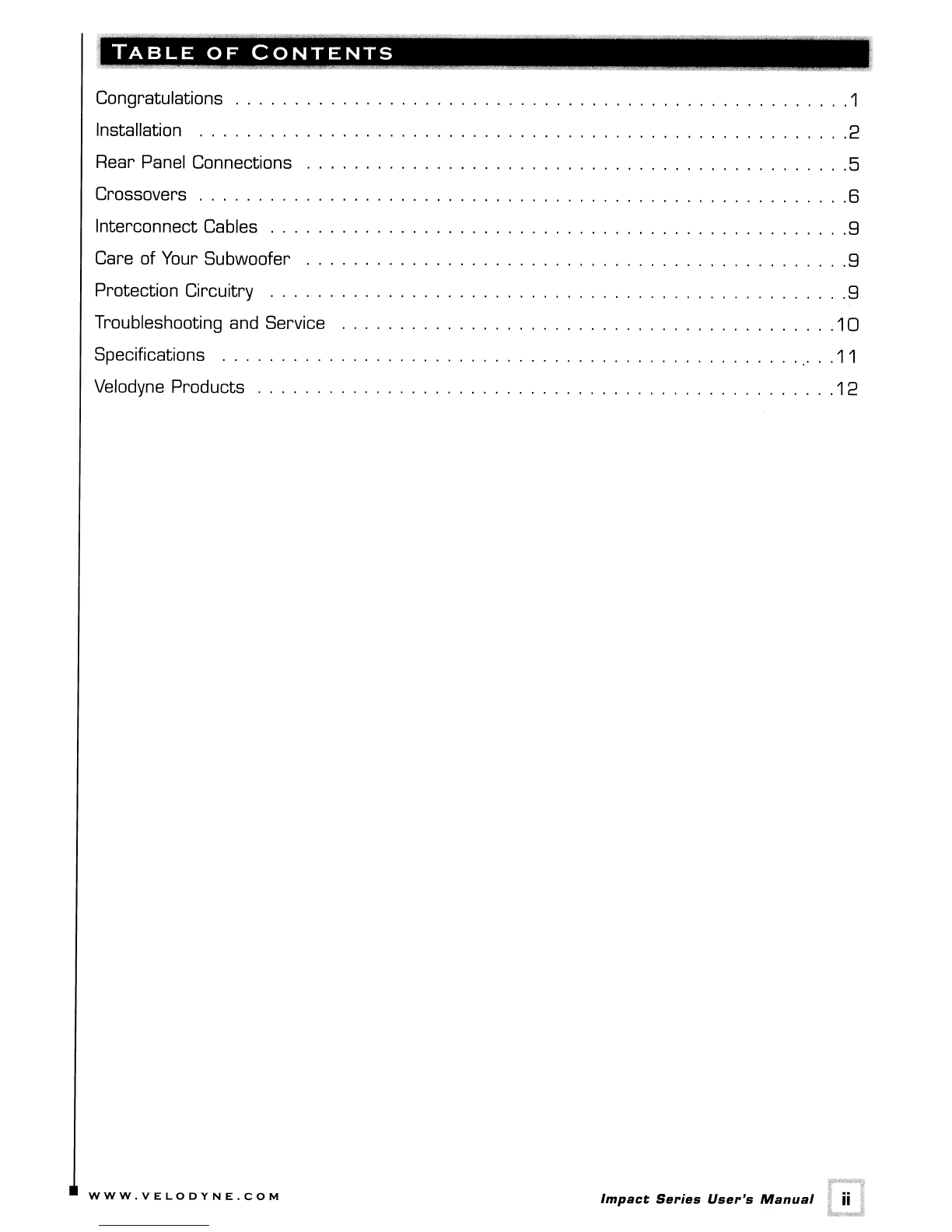

TABLE OF CONTENTS
,..-",_?"''''~ _~ 4 ~ ~ _ .... ~ =~....., 4 ~".. __ ."" ..
Congratulations
Installation
.. ,

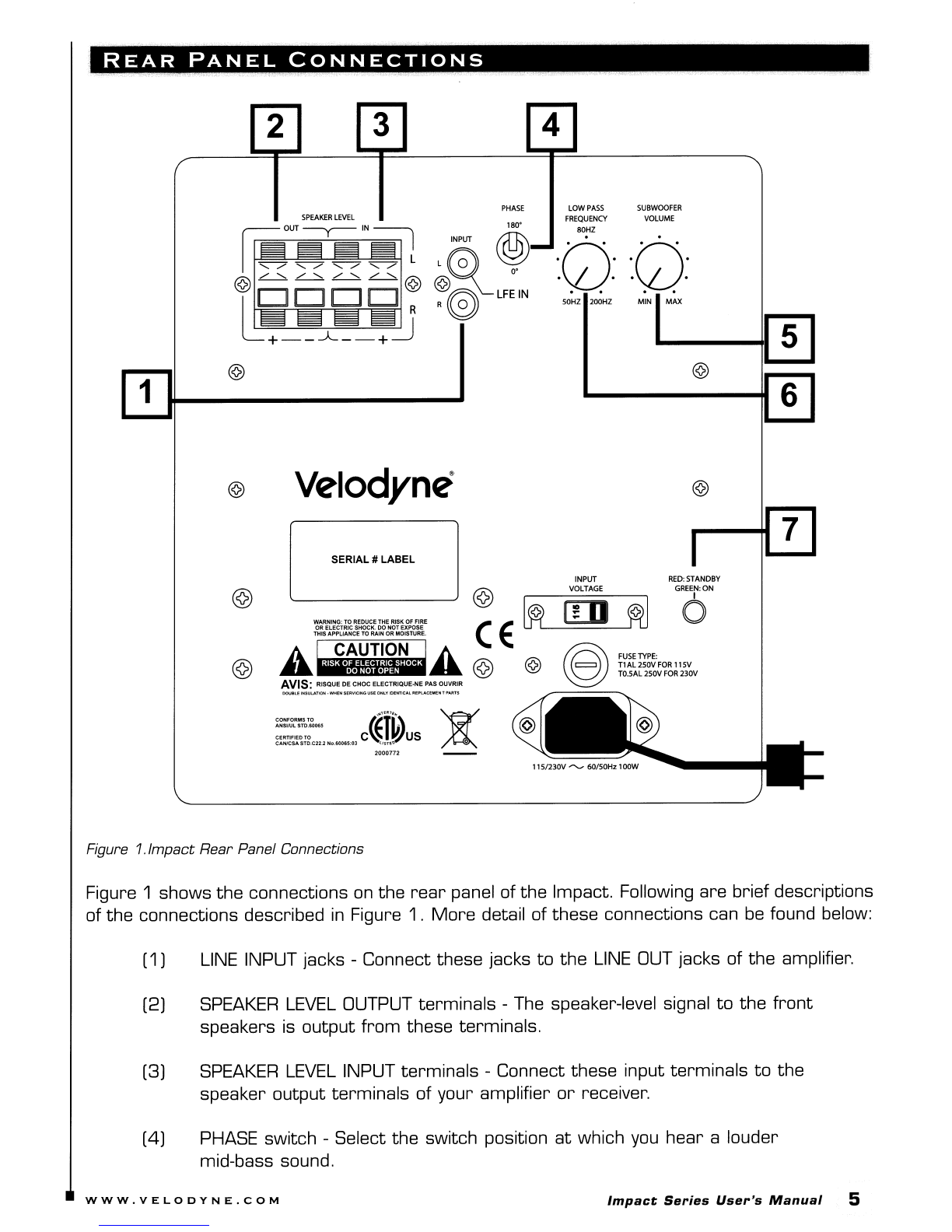

Rear Panel Connections

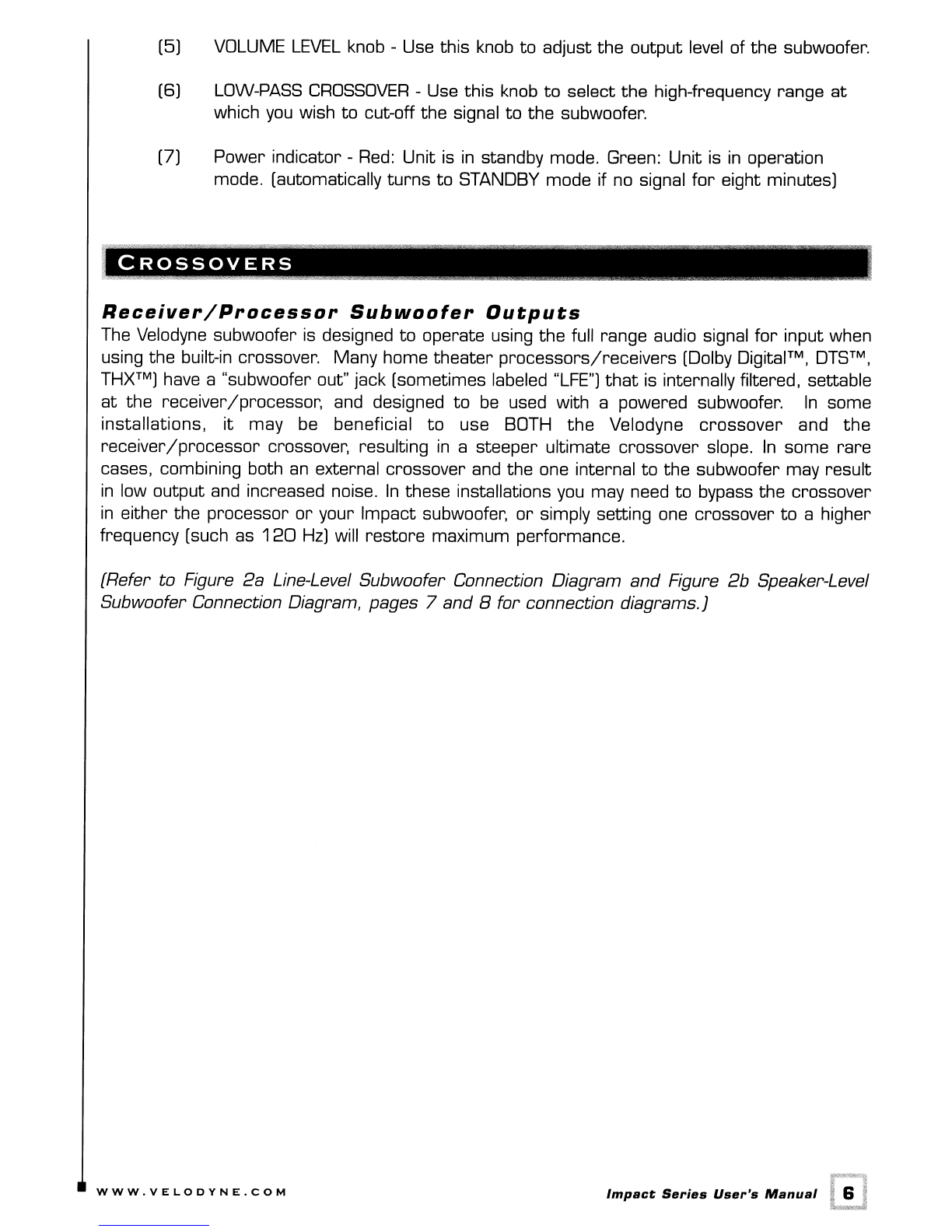

Crossovers ......
Interconnect Cables
Care of Your Subwoofer
Protection Circuitry
...

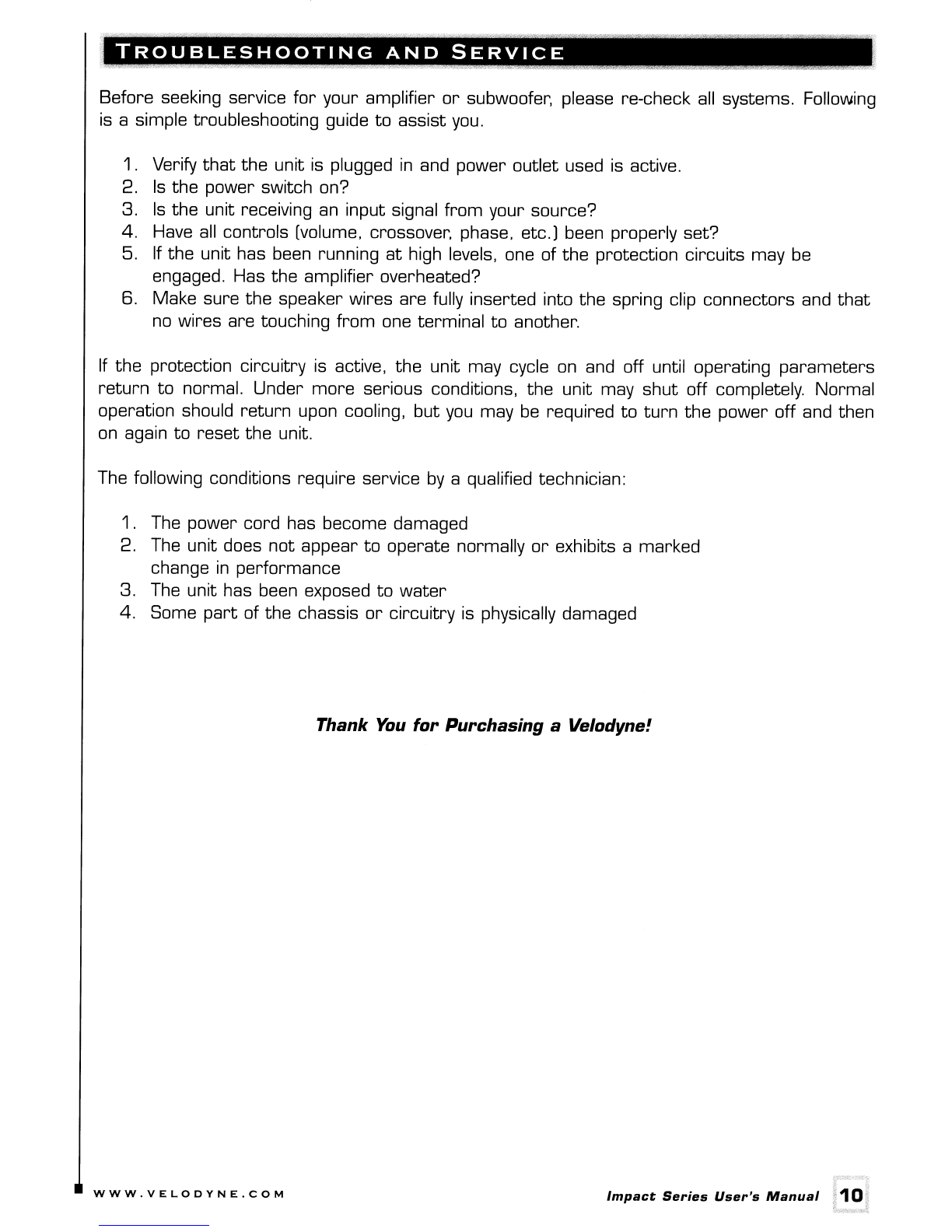

Troubleshooting and Service
Specifications
...
Velodyne Products
.1
.2
.5
.6
.9
.9
.. 9
.10
.11
.12
WWW.VELODYNE.COM Impact Series User's Manual ii

CONGRATULATIONS
Congratulations on your purchase of aVelodyne Impact subwoofer system. This system
represents the state-of-the-art
in home audio reproduction and will provide you with years of
listening pleasure when properly used and cared for.
Read and follow this instruction manual
to ensure safe and proper system connection and operation.
Caution!
Please observe the following instructions to insure safe and proper system operation.
/Vote: Do not leave unit in direct sunlight or use in high humidity environments!!!
Warning!
To prevent fire or shock hazard, do not expose this equipment to rain or moisture. To avoid
electrical shock, do not open speaker enclosure
or amp chassis cover. Please observe all
warnings on the equipment itself. There are no user serviceable parts inside. Please refer all
service questions to your authorized Velodyne dealer.
Prior to Installation:
Please unpack the system carefully. This unit is heavy. Use caution when lifting or moving to
avoid injury. Please save the carton and all packaging materials for future use. Packing this
unit
in any other carton may result in severe damage when shipping. Record the serial number

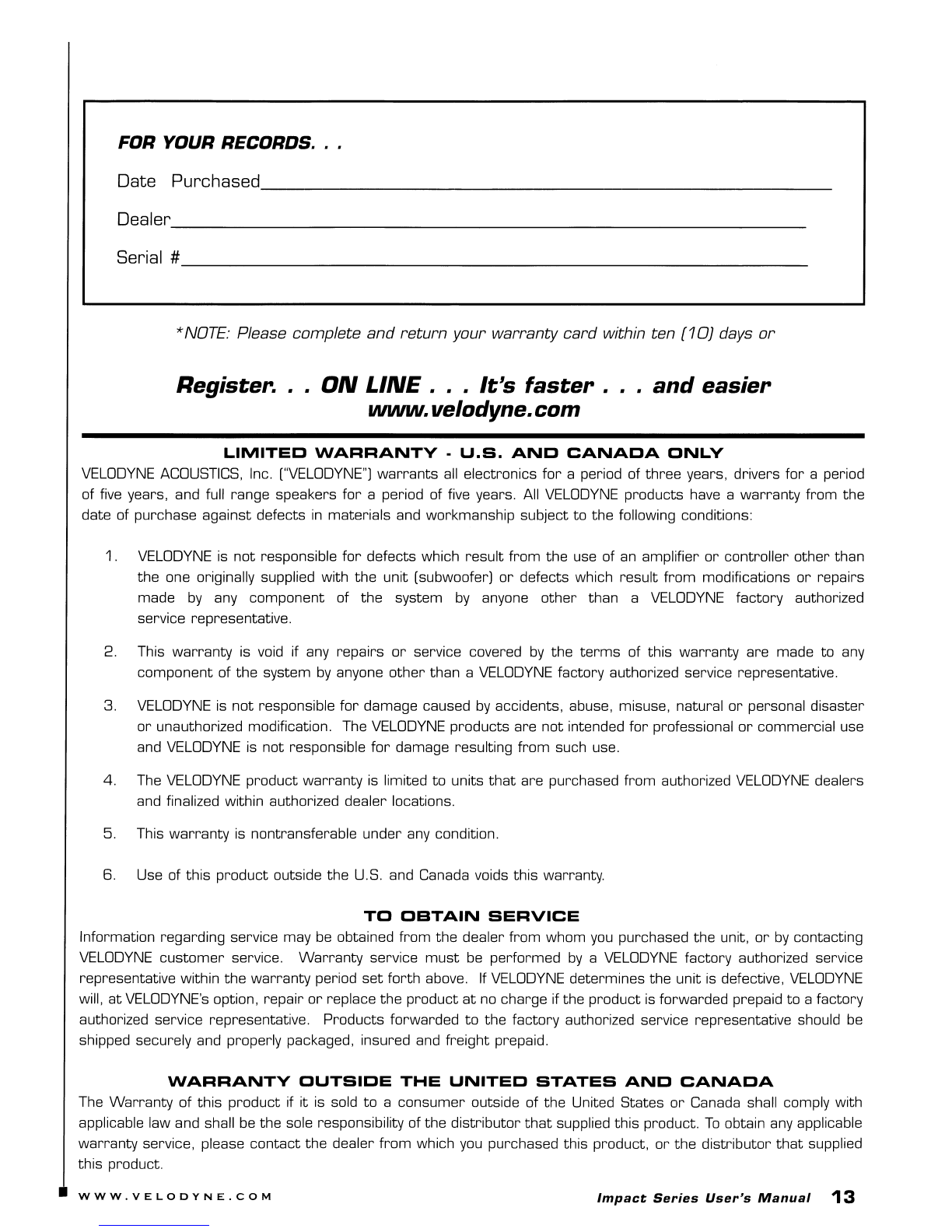

in the space provided on page 13 for future reference.
Product Features
Driver configurations:
Impact-Mini -
6.5" [5" piston diameter) active subwoofer with 2.0" high-temp voice coil
and
64 ounce [4.0 Ib) motor structure and 8" [6.5" piston diameter)
passive radiator
or,
Impact-10 - 10" [8.2" piston diameter) subwoofer with 2.0" high-temp voice coil and
89.6 ounce [5.6 Ib) motor structure or,
Impact-12 - 12" [9.7" piston diameter) subwoofer with 2.0" high-temp voice coil and
89.6 ounce [5.6 Ib) motor structure
•Adjustable [50 to 200 Hz) low-pass crossover with a 12 dB/octave slope
•Line-level
[RCA) inputs
•Speaker-level inputs and outputs
•Signal sensing auto turn
on/off
•Variable volume control
•Selectable phase control
[0° or 180°)
•Green [power on) /
Red [power standby) mode indicator LED
Prepare for Installation
Your new Velodyne subwoofer provides for anumber of installation options. Read all the
installation information below
in order to determine which installation option is best for your
system. Remember
to perform all installation procedures with system power turned off to
prevent possible damage.
WWW.VELODYNE.COM
Impact Series User's Manual 1

Placement
The first step in installing your new Impact sub is to determine where it will be placed in the
room. Unpack the system carefully and use the following guidelines in order to find the best
room placement option.
True subwoofers operate at extremely low frequencies which are primarily omni-directional.
Keep
in mind that frequency response and output level can be drastically influenced by
placement, depending on the acoustic properties of the listening room. To obtain optimum
output
from your subwoofer, try placing it within afoot of acorner. This location will offer the
greatest output levels and optimum low frequency extension. If at all possible, your subwoofer
should
be placed along awall. The worst location for asubwoofer is typically far away from any
walls and close
to the center of your room. Avoid these locations when possible. When using
apair of Velodyne subwoofers
in 2-channel stereo, it is preferable to feed each subwoofer with
one channel and place each subwoofer near the satellite of the same channel.
Depending
on the size and type of furnishings in the room, perfect placement may not be
possible. Finding
the best location within your environment will likely require some
experimentation.
We suggest you experiment with the location during setup to find what sounds
best to you when seated in your typical listening position.
Regardless of where you install your Velodyne subwoofer, it must remain in an upright position.
Using, shipping
or storing the subwoofer in any other position for an extended period of time
may result in damage to the unit not covered by warranty.
Caution!
This subwoofer has electronics built into the cabinet. 00 not place the cabinet next to sources
of heat such as furnace registers, radiators, etc. 00 not place the unit near sources of
excessive moisture, such as evaporative coolers, humidifiers, etc. The power cord should be
routed in such away that it will not be walked on, pinched or compressed in any way that could
result in damaging the insulation or wire.
Your Velodyne Impact subwoofer is NOT magnetically shielded. Should you find it necessary to
use it with an older CRT monitor or TV, keep it at least two feet from the monitor. Experiment
for correct distance by minimizing distortion of the picture and colors.
-.
INSTALLATION
,-
Inputs
Your new subwoofer is equipped with speaker-level and line-level inputs. Use the LINE LEVEL
jacks when connecting your subwoofer to apre-amp, signal processor (such as LFE out], line-
level crossover,
or receiver with pre-amp level outputs. When using the line level jacks, some
receivers may
not provide enough signal to have the unit's auto-on feature operate properly.
Additionally, this lack of signal may also cause the subwoofer
to produce less output than it is
capable of.
WWW.VELODYNE.COM
Impact Series User's Manual 2

To alleviate this condition, we recommend the following steps:
1) If using line level jacks, BOTH THE LEFT AND RIGHT INPUT SHOULD ALWAYS BE USED -
never use just the left
or just the right input. If the subwoofer's input comes from the LFE
channel of your receiver, use the included "Y" splitter to supply the single input to both
connectors
for the Left and Right subwoofer inputs. If using line level connections from
apreamp
or signal processor, use both Left and Right inputs from your preprocessor or
preamp and connect them to the Left and Right inputs on your subwoofer. (See figure 2a
on page 7.)
2) If using areceiver with
LFE out, be sure the LFE channel is sending adequate signal to the
subwoofer.
We recommend setting the subwoofer's level to the 9o'clock position (the
1/4 volume setting) and then adjust the LFE channel on your receiver or processor to
achieve the desired bass output.
See your receiver or processor's owner's manual for
more information. (See figure 2b on page 8.)
The
SPEAKER LEVEL jacks connect directly to the speaker outputs of any amplifier, integrated
amplifier,
or receiver. Your amplifier section will notice no additional loading effects when you
use these inputs due to their very high impedance. If using the SPEAKER LEVEL inputs, you DO
want to connect both channels, since different bass information might be present in each
channel going
to your main speakers.
Important!!!
00 not use both LINE LEVEL and SPEAKER LEVEL connections simultaneously!
Caution!!!
To avoid damage to your main amplifier, be sure to maintain correct polarity when making all
connections -
red [positive) to red, and black (negative) to black. Be sure all connections are
tight, and
that there are no loose strands or frayed wires.
Volume Control
This control allows you to balance the output from the subwoofer to the main speakers in your
system. This control should
be set to achieve similar output levels from both the main speakers
and subwoofer when listening to music. Agood starting point for the volume control
is two or
three graduations from minimum.
Warning:
Some manufacturers preset their receivers with the Sub-Out channel signal at aminimum level.
It is very important to verify that your receiver Sub-Out channel is set to the same output level
as your front right and left channels. Refer to your receiver manual for the individual channel
level adjustment procedure.
If your receiver Sub-Out channel is set too low, the subwoofer may
appear to have aweak output,
it may sound noisy or distorted, and the Auto On/Off feature
may
not operate properly.
WWW.VELODYNE.COM
Impact Series User's Manual 3

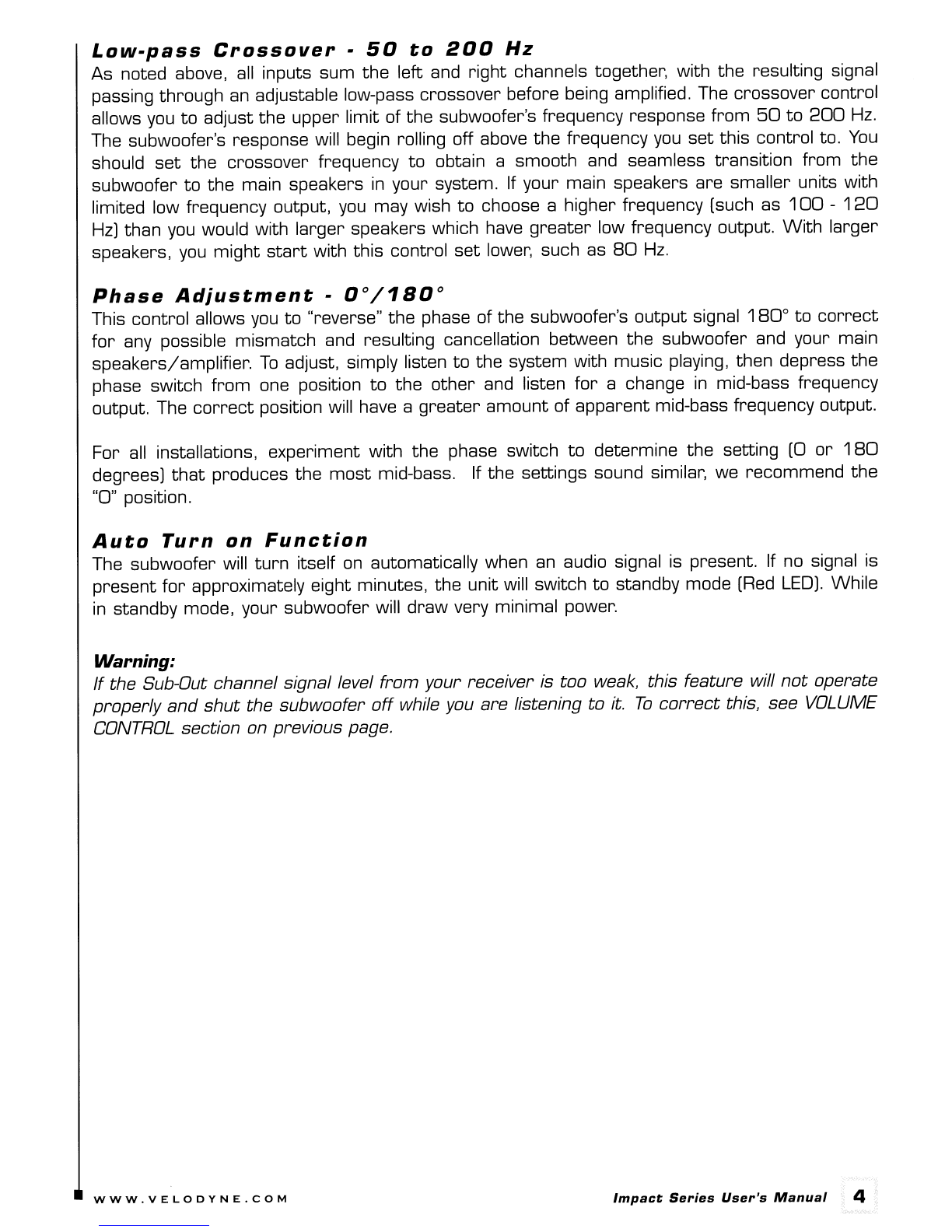

Low-pass Crossover - 50 to 200 Hz
As noted above, all inputs sum the left and right channels together, with the resulting signal
passing through
an adjustable low-pass crossover before being amplified. The crossover control
allows
you to adjust the upper limit of the subwoofer's frequency response from 50 to 200 Hz.
The subwoofer's response will begin rolling off above the frequency you set this control to. You
should set the crossover frequency to obtain asmooth and seamless transition from the
subwoofer
to the main speakers in your system. If your main speakers are smaller units with
limited low frequency output,
you may wish to choose ahigher frequency (such as 100 - 120
Hz) than you would with larger speakers which have greater low frequency output. With larger
speakers,
you might start with this control set lower, such as 80 Hz.
Phase Adjustment - 0°/180°
This control allows you to "reverse" the phase of the subwoofer's output signal 1 80° to correct
for any possible mismatch and resulting cancellation between the subwoofer and your main
speakers/amplifier.
To adjust, simply listen to the system with music playing, then depress the
phase switch
from one position to the other and listen for achange in mid-bass frequency
output. The
correct position will have a greater amount of apparent mid-bass frequency output.
For all installations, experiment with the phase switch to determine the setting (0 or 180
degrees) that produces the most mid-bass. If the settings sound similar, we recommend the
"0" position.
Auto Turn on Function
The subwoofer will turn itself on automatically when an audio signal is present. If no signal is
present for approximately eight minutes, the unit will switch to standby mode [Red LED). While
in standby mode, your subwoofer will draw very minimal power.
Warning:
If the Sub-Out channel signal level from your receiver is too weak, this feature will not operate
properly and
shut the subwoofer off while you are listening to it. To correct this, see VOLUME
CONTROL section on previous page.
WWW.VELODYNE.COM
Impact Series User's Manual 4

REAR PANEL CONNECTIONS
234
5
SOHZ 200HZ MIN MAX
PHASE LOW PASS SUBWOOFER
FREQUENCY VOLUME
80HZ
no'
'Y-!" ..'
16
Velodyne 7
SERIAL # LABEL
INPUT RED: STANDBY
@ VOLTAGE GREEN: ON
WARNING: TOREOUCE THE RI$K OF FIRE (E Iri\ [[0 0J 6
OR ELECTRIC SHOCK. DO NOT EXPOSE m HJ
A
,"I:'P~A.NC.EU.T.~o.OR~mREA @ ~ FUSE TYPE
@= TlAL2S0V FOR llSV
TO SAL 2S0V FOR 230V
AVIS: RISQUE DE CHoe ELECTRIQUE·NE PAS OUVRIR
Figure 1. Impact Rear Panel Connections
Figure 1shows the connections on the rear panel of the Impact. Following are brief descriptions
of the connections described
in Figure 1. More detail of these connections can be found below:
(1)
LINE INPUT jacks -Connect these jacks to the LINE OUT jacks of the amplifier.
(2)
SPEAKER LEVEL OUTPUT terminals -The speaker-level signal to the front
speakers is output from these terminals.
(3) SPEAKER LEVEL INPUT terminals -Connect these input terminals to the
speaker output terminals of your amplifier
or receiver.
(4) PHASE switch -Select the switch position at which you hear alouder
mid-bass sound.
WWW.VELODYNE.COM
Impact Series User's Manual 5

(5) VOLUME LEVEL knob -Use this knob to adjust the output level of the subwoofer.
(6) LOW-PASS CROSSOVER -Use this knob to select the high-frequency range at
which you wish to cut-off the signal to the subwoofer.
(7) Power indicator - Red: Unit is in standby mode. Green: Unit is in operation
mode. (automatically
turns to STANDBY mode if no signal for eight minutes)
~~ ~- ~_ ... _-..11'-'"""'"-"" ~~~- ... ~-- ~ •• ~.- ~ _.~- T --- ,.- , ~.. ....-~ - -~. - ·-il
CROSSOVERS j
-~ .-,.-,. -"'" , ..... ~..,. .,...,... ... ~~~'--~. -,-"--- - - -~. ~ ~. ~..:
Receiver/Processor Subwoofer Outputs
The Velodyne subwoofer is designed to operate using the full range audio signal for input when
using the built-in crossover. Many home theater processors/receivers (Dolby Digital™,
DTSTM,
THXTM) have a"subwoofer out" jack (sometimes labeled "LFE") that is internally filtered, settable
at the receiver/processor, and designed
to be used with apowered subwoofer. In some
installations,
it may be beneficial to use BOTH the Velodyne crossover and the
receiver/processor crossover, resulting
in asteeper ultimate crossover slope. In some rare
cases, combining both
an external crossover and the one internal to the subwoofer may result
in low output and increased noise. In these installations you may need to bypass the crossover
in either the processor or your Impact subwoofer, or simply setting one crossover to ahigher
frequency (such
as 120 Hz) will restore maximum performance.
[Refer to Figure 2a Line-Level Subwoofer Connection Diagram and Figure 2b Speaker-Level
Subwoofer Connection Diagram, pages 7and 8for connection diagrams.)
WWW.VELODYNE.COM
Impact Series User's Manual 6

SUBWOOFER OUTPUT JACK
AMPLIFIER
SPEAKER LEVEL
Velodyne
SERIAL #LABEL
PHASE LOW PASS SUBWOOFER
FREQUENCY VOLUME
® ·080~ .. '0' '.
O· • / •• •
LFE IN •• ••
50HZ 200HZ MIN MAX
RED: STANDBY
GREEN: ON
I
o
@
@
INPUT
@VOLTAGE
WARNING: TO REDUCE THE RISK OF FIRE (E Iti\ lID ~
OR ELECTRIC SHOCK. DO NOT EXPOSE mrtf
•
THI:APC.A.Ne.EU.T.~O.ORM~TURE A ~ FUSE TYPE:
r:J0I @8 TlAL 2S0V FOR 11SV
'\:::!/ TO.SAL2S0V FOR 230V
AVIS: RISQUE OE eHoe ."EeTRIQUE"'. PAS OUYRIR
11sn3OV ........, 6O/S0Hz l00W
Figure 2a. Line-Level Subwoofer Connection Diagram
WWW.VELODYNE.COM
Impact Series User's Manual
7

. .
0
·0·
. . . .
. .. .
.. ..
SUBWOOFER OUTPUT JACK
®
I
I PHASE
I INPUT ~
LlLe ~
rirn"!J~~~ LFE IN
lOW PASS
FREQUENCY
80HZ
50HZ 200HZ
AMPLIFIER
SUBWOOFER
VOLUME
MIN MAX
Velodyne
SERIAL # LABEL
115/230V ............. 60/50Hz 100W
REO: STANDBY
GREEN: ON
I
o
INPUT
@ VOLTAGE
eE ~ !ill \§i]
~
FUSE TYPE:
IJi:::'I. @ c:::::J T1Al250VFQR115V
\::£) TO.SALISOV FOR 230V
WARHlHG: TO REDUCE THE IUSK Of FIRE
OR ELECTRIC SHOCK. DO NOT EXPOSE
THIS APPl .... NCE TO RAIN OR MOIST\JRE.
AVIS: RISQUE DE CHOC ElECTRIQUE-NE PAS OUVRIR
""""lE .. SULOT!OI<·WlIC" SVI""CINGunONlY II;>[NTIC.C.E.UO'CE.IUIT ..... n.
::::~:::"., c~tL\s ~
CANICS'" STD.C22.2 No.60065:03 (" .. '1/ A
~._._._._._._._._._.,
I
L.
•
I
FRONT LEFT SPEAKER
FRONT RIGHT SPEAKER
Figure 2b. Speaker-Level Subwoofer Connection Diagram
WWW.VELODYNE.COM Impact Series User's Manual ,8

INTERCONNECT CABLES
When installing your new Velodyne subwoofer using the line level connections, you should
always use shielded phono cables. There are many high quality cables available today. It is
recommended
that you keep the length of cable as short as possible to avoid any potential
noise problems.
When using speaker level connections, use ahigh quality speaker cable that mates well with
the connectors. Be very careful
to avoid any loose strands or frayed wires that may result in a
short, which may damage your equipment. Cables of extremely large
size are not required due
to the low current draw of this type of connection. Extremely large gauge wire may not properly
fit
in the terminals, resulting in apoor connection and possible short circuits.
CARE OF YOUR SUBWOOFER
Your Velodyne subwoofer does not require any regular maintenance. Normal dusting or cleaning
of the surface
for appearance purposes is all that is required. We suggest you avoid any harsh
detergents
or chemicals when cleaning the cabinet. Abrasives, detergents, or cleaning
solutions may damage the finish
on the cabinet. We recommend using only adamp cloth to
clean the cabinet.
During normal conditions, your new subwoofer may
be left on continuously without any
problems. The unit
is equipped with asignal-sensing turn on/off that will automatically turn on
the unit when asignal is present at the inputs and turn off the unit after several minutes when
there is
no longer any signal at the inputs.
PROTECTION CIRCUITRY
Your new subwoofer IS equipped with circuitry to provide maximum performance with
greatest reliability.
The unit is protected against:
1) Overheating the amplifier.
2) Excessive drop
in power line voltage.
If either of the above should happen, you should reduce the volume setting or shut the unit off
until normal operating conditions return.
You may also want to plug the unit into adifferent wall
outlet, as dropping power line voltage will
be most noticeable under strenuous conditions and
may result
in the unit shutting down intermittently.
WWW.VELODYNE.COM
Impact Series User's Manual 9

TROUBLESHOOTING AND SERVICE
Before seeking service for your amplifier or subwoofer, please re-check all systems. Following
is asimple troubleshooting guide to assist you.
1. Verify that the unit is plugged in and power outlet used is active.
2.
Is the power switch on?
3.
Is the unit receiving an input signal from your source?
4. Have
all controls [volume, crossover, phase, etc.) been properly set?
5.
If the unit has been running at high levels, one of the protection circuits may be
engaged. Has the amplifier overheated?
6. Make sure the speaker wires are fully inserted into the spring clip connectors and
that
no wires are touching from one terminal to another.
If the protection circuitry
is active, the unit may cycle on and off until operating parameters
return to normal. Under more serious conditions, the unit may shut off completely. Normal
operation should return upon cooling, but
you may be required to turn the power off and then
on again to reset the unit.
The following conditions require service
by aqualified technician:
1.
The power cord has become damaged
2.
The unit does not appear to operate normally or exhibits amarked
change
in performance
3. The unit has been exposed
to water
4. Some part of the chassis or circuitry is physically damaged
Thank
You for Purchasing aVelodyne!
WWW.VELODYNE.COM
Impact Series User's Manual 10

SPECIFICATIONS
SPECIFICATIONS
IMPACT- Mini
IMPACT-l0
IMPACT-12
'?'loafer
6Y' (165 cm) active (5
N
pis10n lO
N
(Z4.5 em) lZ
N
(305 cm)
diameter) &8N (ZO.3 em) passive forward nring foward nring
(6.5
N
pi5lon diameter) (8 Zo'" pi5lon diameter)
(9 7'" pi5lon diameter)
Amplifier. 180 waft Dynamic/
150 waft Dynamic/ 165 waft Dynamic/
CI05S D 300 waft RMS Power Z50 waft RMS Power
275 Vlaft RMS Power
Cabinet Design Acoustically neutral,
Acoustically neulral,
Acoustiealll' neutral,
down-nring passive radialor
downwarHring port dowmvard-nring port
Frequency Response
38·140 Hz 3Z ·140 Hz Z9· 140 Hz
(+/-3 dB)
(+1-3 dB) (+/-:3 dB)
Voice Coil 2'" copper wound
ZN copper-wound
Z" (Opper-wound
Cone 6.5'Y &8N Anodized Aluminum Cones
Coated Fiber Coated Fiber
Magnet Structure
64 oz. (40 Ibs)
89.6 oz. (5.6Ibs) 89.60z (5.6Ibs)
Speaker-Level Pass-Through
Full range Full Range
Full Range
Low·Pass Crossover
50 - ZOO Hz
50 - ZOO Hz
50 - ZOO Hz
Output Left and right speaker Left and right speaker
Left and right speaker
level p05s-lhrough level pass-lhrough lellel pass-lhrough
Input RCA Une Level, lIE and
RCA Une Level, lIE and RCA Une Le',el, lIE and
Speaker Level input
Speaker Level input Speaker Level input
Phase 00 or 180
000
or 180
000
or 180
0
Auto On/Off
Yes ~b Yes
Removable Grill
~'6 Yes Yes
'vldeo Shielding
No No ~lo
UD Power IndicalQr
Yes Ye-s Yes
Input Impedance
65K ohm (for UNE INPUT jacks)
1.ZK ohm (for SPEAKER UVEL INPUT terminals)
Sensitilljjlj Speaker-Level
lOY 10V
10V
Une
100mV
lOOmV 100 mil
Po\ver Supply 1 ZOIl, 60 Hz AC
1 ZO\o~ 60 Hz AC 1 ZOV, 60 Hz AC
Cabinet (H, W, D)
10
N
~: 10
Nx
12/1 13. 75'Y x lZ 75/1 X 14.4
N
15.4/1 X 14.4/1 x 17.9/1
(cm) with grille
25.4 x Z5.4 x 305 35 x 3Z x 37
3't x 37 x 46
1'\lJrran~1 (parts/labor)
Three years (elec1ronics - parts and labor)
Five years (drillers - part and labor)
Shipping Weight (approl:) 20 Ibs. (9 Kg) 30 Ibs. (14 Kg) 37 Ibs (17 f(g)
Specifications are subiect to change without notice.
WWWoVELODYNEoCOM
Impact Series User's Manual 11

" ..
VELODYNE PRODUCTS
120V
230V
DD® Series
SMSTM,,1
DD® Series SPLi Series
00-10
00-10
SPL-800i
00-12
SPL·R®Series
00-12
SPL-1000i
00-15
SPL-800R
00-15
00-18
SPL-1000R
00-18
SPL·R Series
Digital Drive 1812
SPL-1200R Digital Drive
1812
SPL-800R
Signature Edition SPL-1500R Signature Edition SPL-1000R
SubContractor ™SPL-1200R
DLSTM"R Series
CHT·R Series
Series SPL-1500R
OLS-3500R
CHT-8R
OLS-3750R SC-1250 CHT-10R
SubContractor ™
OLS-4000R
SC-8
CHT-12R Series
OLS-5000R SC-10 CHT-15R SC-1250
SC-12
SC-8
DPSTM Series SC-15 Impact Series SC-10
OPS-10 SC-IW Impact-Mini SC-12
OPS-12 SC-IFjIC Impact-10 SC-15
SC-600 Amp Impact-12 SC-IW
Impact Series SC-600 IW SC-IFjIC
Impact-Mini SC-600
IF jlC
MicroVee™
SC-600 Amp
Impact-10 SC-600 IW
Impact-12
VX Series
SMSTM·1
SC-600 IF jlC
VX-10®
MicroVee™
VX·10 Series II
MiniVee®
MiniVee®
10
WWW.VELODYNE.COM
Impact Series User's Manual

FOR YOUR RECORDS.
Date Purchased _
Dealer
------------------------------------
Serial # _
*NOTE: Please complete and return your warranty card within ten (10J days or
Register. . . ON LINE . . . It's faster . . . and easier
www.llelodyne.com
LIMITED WARRANTY· u.s. AND CANADA ONLY
VELODYNE ACOUSTICS, Inc. ("VELODYNE") warrants all electronics for aperiod of three years, drivers for aperiod
of five years, and full range speakers
for aperiod of five years. All VELODYNE products have a warranty from the
date of purchase against defects
in materials and workmanship subject to the following conditions:
1.
VELODYNE is not responsible for defects which result from the use of an amplifier or controller other than
the one originally supplied with the unit (subwoofer)
or defects which result from modifications or repairs
made
by any component of the system by anyone other than a VELODYNE factory authorized
service representative.
2. This
warranty is void if any repairs or service covered by the terms of this warranty are made to any
component of the system
by anyone other than a VELODYNE factory authorized service representative.
3.
VELODYNE is not responsible for damage caused by accidents, abuse, misuse, natural or personal disaster
or unauthorized modification. The VELODYNE products are not intended for professional or commercial use
and
VELODYNE is not responsible for damage resulting from such use.
4. The VELODYNE product warranty is limited to units that are purchased from authorized VELODYNE dealers
and finalized within authorized dealer locations.
5. This
warranty is nontransferable under any condition.
6. Use of this
product outside the U.S. and Canada voids this warranty.
TO OBTAIN SERVICE
Information regarding service may be obtained from the dealer from whom you purchased the unit, or by contacting
VELODYNE customer service. Warranty service must be performed by a VELODYNE factory authorized service
representative within
the warranty period set forth above. If VELODYNE determines the unit is defective, VELODYNE
will, at VELODYNE's option, repair or replace the product at no charge if the product is forwarded prepaid to afactory
authorized service representative. Products forwarded
to the factory authorized service representative should be
shipped securely and properly packaged, insured and freight prepaid.
WARRANTY OUTSIDE THE UNITED STATES AND CANADA
The Warranty of this product if it is sold to aconsumer outside of the United States or Canada shall comply with
applicable law and shall
be the sole responsibility of the distributor that supplied this product. To obtain any applicable
warranty service, please contact the dealer
from which you purchased this product, or the distributor that supplied
this product.
WWW.VELODYNE.COM
Impact Series User's Manual 13

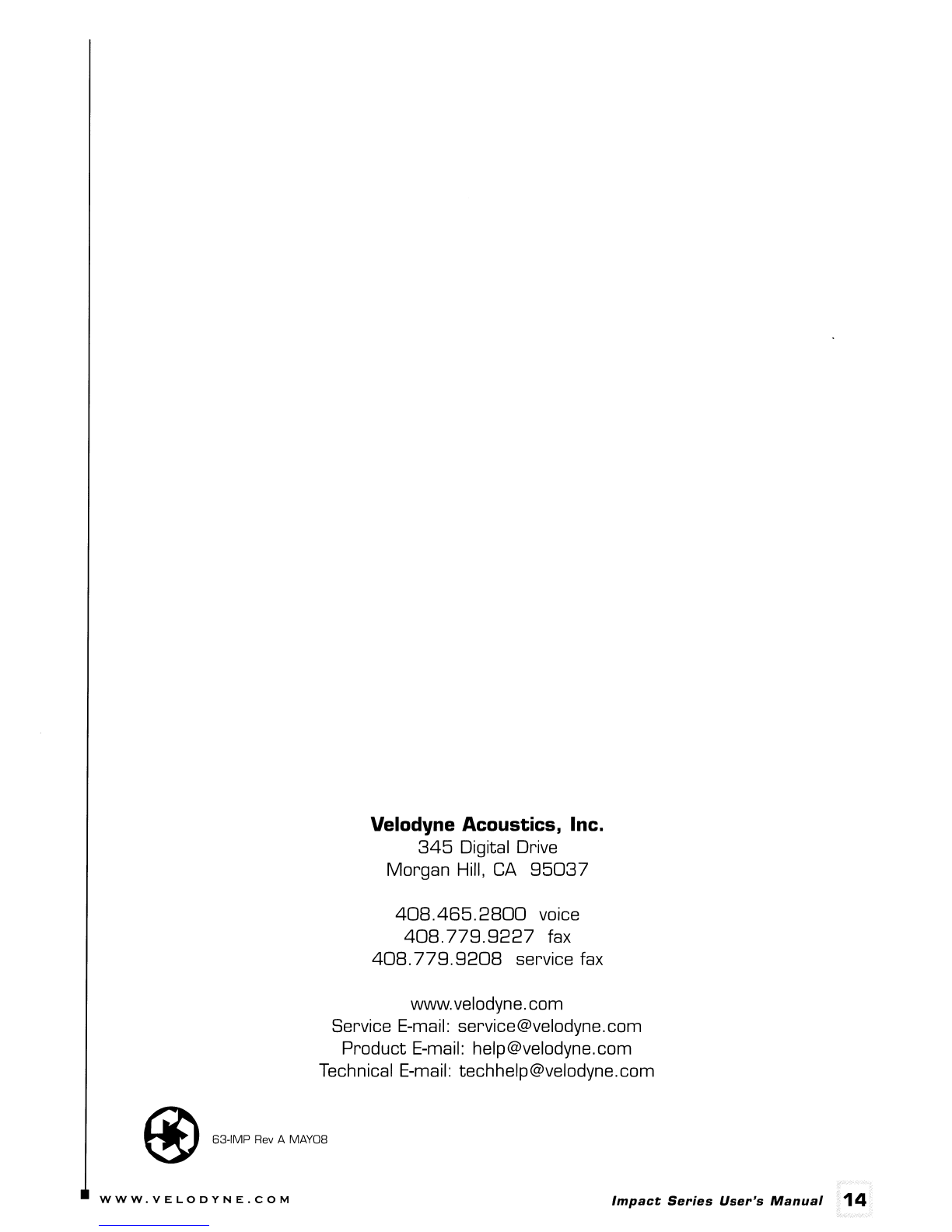

Velodyne Acoustics, Inc.
345 Digital Drive
Morgan Hill,
CA 95037
408.465.2800 voice
408.779.9227 fax
408.779.9208 service fax
www.velodyne.com
Service
E-mail: [email protected]
Product
E-mail: [email protected]
Technical
E-mail: [email protected]
®63<MP R" AMAY08
WWW.VELODYNE.COM
Impact Series User's Manual 14

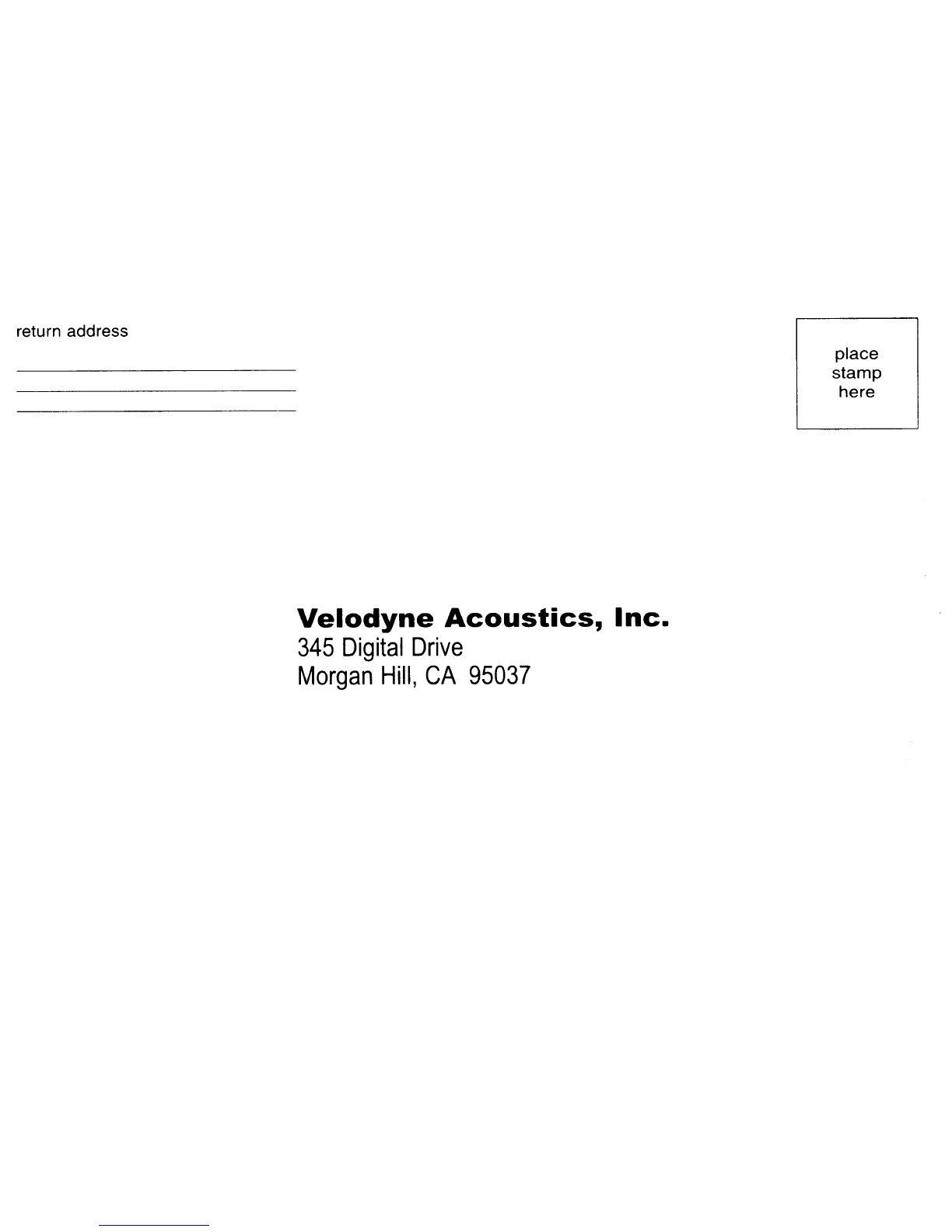

return address
Velodyne Acoustics, Inc.
345 Digital Drive
Morgan Hill, CA 95037
place
stamp
here

Velodyne OWNERS REGISTRATION
___________ Purchase Price _
______________ City _
_______________ Phone _
_______________ S/N _
_____________ Country Zip _
__________________ Street _
____________________ State Zip _
1. Name
City
Country
E-mail
2. Model #
Date Purchased
3. Dealer Name
State
4.
Comments:
5. Would you like to be notified of new Velodyne products or special promotions via email? 0 Yes 0 No
6. Age: 0 Under 18 0 18-24 025-29
Marital Status: 0 Married 0 Single
030-34 035-44 045-54 055-64 065+
7. Why did you choose your Velodyne product? (check all that apply)
o Performance 0 Price 0 Dealer Recommendation 0 Friends Recommendation
o Magazine Review 0 Magazine Ad 0 Other _
8. I learned about this product through: 0 Sales Person 0 Distributor 0 Industry Contact
o PrinVAdvertisement 0 Magazine Review 0 Internet Review 0 Velodyne Website
o Other Website 0 Audio Forum/Chat Room'
o Trade Show 0 Friend/Relative Recommendation 0 Other _
9. I purchased the product because: (check all that apply) 0 Promotion 0 Performance
o Technical Specifications 0 Appearance 0 Price 0 Reputation/Brand Name
o Technical Support 0 Durability 0 Prior Experience with Velodyne 0 Review
o Friend s Recommendation/Audition 0 Other recommendation
o Availability
10. What other brands did you consider? _
o CE Pro 0 Electronic House 0 Home Entertainment & Design
o Sound & Vision 0 Stereophile
11. Home theater or audio magazines I read:
o Home Theater 0 Residential Systems
o Other _
12. Audio or home theater websites I visit _
13. Primary use: 0 Home Theater 0 Music
14. Please describe your stereo system: 0 Tuner/Receiver 0 TV _
o Size 0 Amplifier 0 Satellite Speakers _
63-260 Rev E FEB08

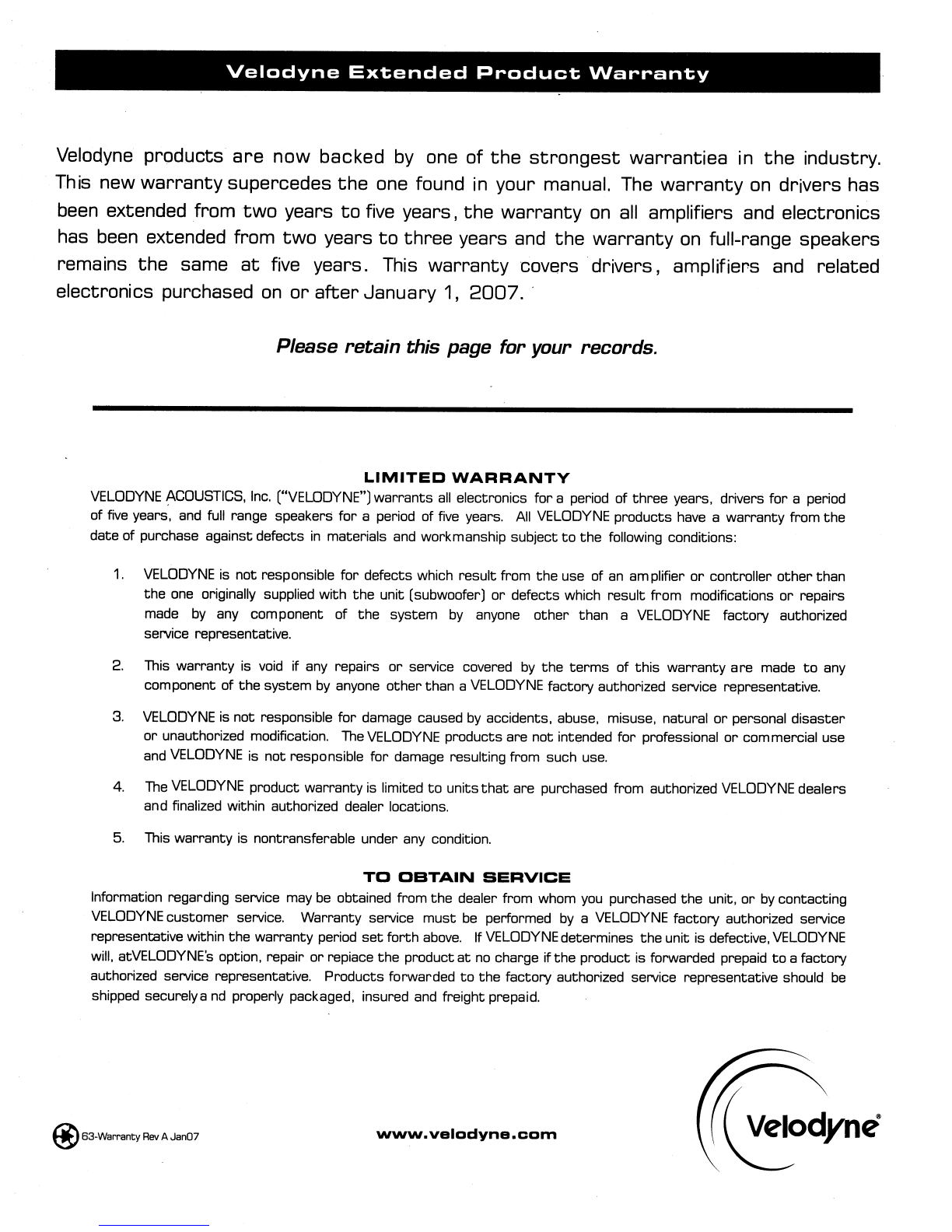

Velodyne Extended Product Warranty
Velodyne products are now backed by one of the strongest warrantiea in the industry.
Th is new warranty supercedes the one found in your manual. The warranty on drivers has
been extended from two years to five years Jthe warranty on all amplifiers and electronics
has been extended from two years to three years and the warranty on full-range speakers
remains the same
at five years. This warranty covers drivers, amplifiers and related
electronics purchased
on or after January 1, 2007 ..
Please retain this page for your records.
LIMITED WARRANTY
VELOOYNE ~COUSTICS. Inc. ("VELODYNE") warrants all electronics for aperiod of three years. drivers for aperiod
of five years, and
full range speakerS for aperiod of five years. All VELODYNE products have a warranty from the
date of purchase against defects in materials and workmanship subject to the following conditions:
1. VELODYNE is not responsible for defects which result from the use of an am plifier or controller other than
the one originally supplied with the unit (subwoofer) or defects which result from modifications or repairs
made
by any component of the system by anyone other than aVELODYNE factory authorized
seNice representative.
2. This warranty is void if any repairs or seNice covered by the terms of this warranty are made to any
component of
the system by anyone other than aVELODYNE factory authorized seNice representative.
3. VELODYNE is not responsible for damage caused by accidents, abuse, misuse, natural or personal disaster
or unauthorized modification. The VELODYNE products are not intended for professional or commercial use
and VELODYNE is not responsible for damage resulting from such use.
4.
The VELODYNE product warranty is limited to units that are purchased from authorized VELODYNE dealers
and finalized within authorized dealer locations.
5. This warranty is nontransferable under any condition.
TO OBTAIN SERVICE
Information regarding seNice may be obtained from the dealer from whom you purchased the unit. or by contacting
VELODYNE
customer seNice. Warranty seNice must be performed by aVELODYNE factory authorized seNice
representative within
the warranty period set forth above. If VELODYNE determines the unit is defective, VELODYNE
will, atVELODYNE's option, repair
or repiace the product at no charge if the product is forwarded prepaid to a factory
authorized seNice representative. Products forwarded to the factory authorized seNice representative should be
shipped securelya nd properly packaged, insured and freight prepaid.
@63-Warranty Rev A Jan07
www.velodyne.com
