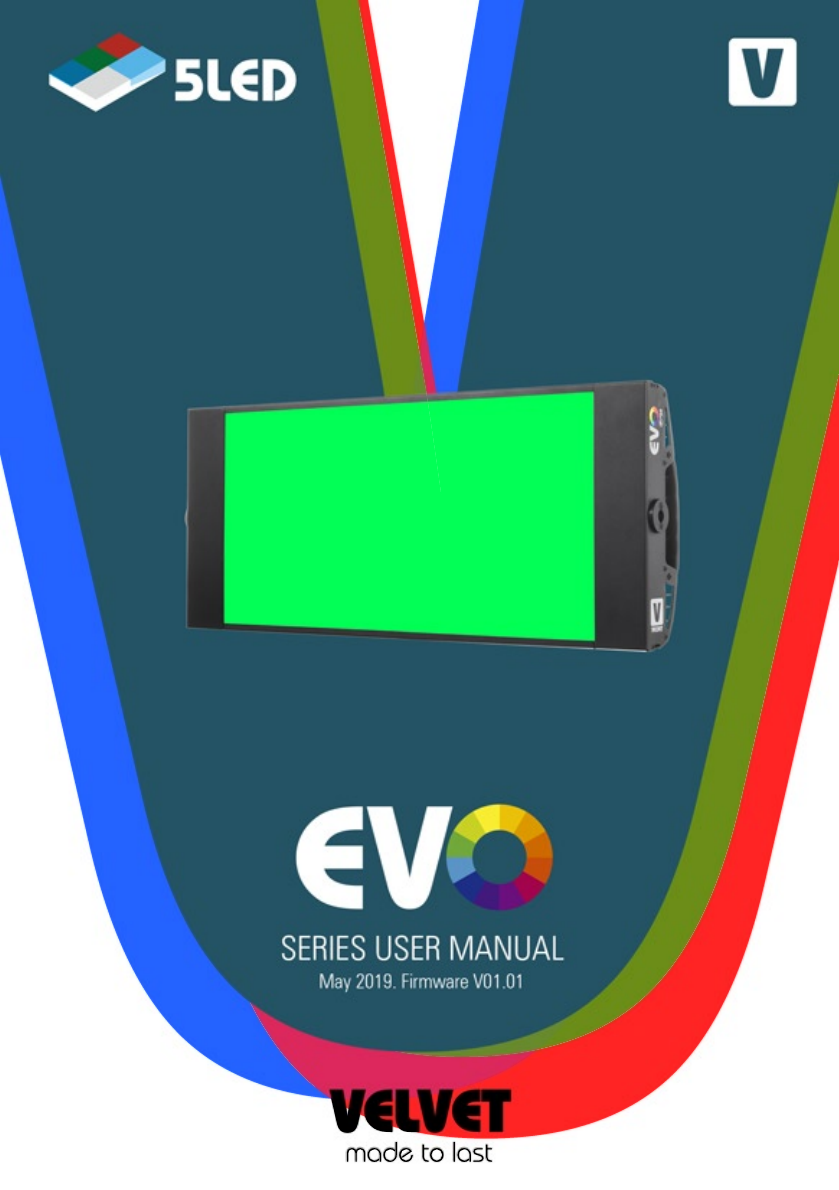

Velvet EVO Series User manual

V
V
V
V
V
V
V
SERIES USER MANUAL
May 2019. Firmware V01.01
made to last
VELVET

2
INTRODUCTION

3
The symbols and their meanings are explained below.
WARNING
Possible risk of injury or damage to equipment
DANGER
Indicates the risk of electric shock or fire danger that could result in injury
or damage to equipment.
In
In order to protect against risk of electric shock, the installation should be
properly grounded. Defeating the purpose of the grounding type plug will
expose you to the risk of electric shock.
Do not open the product. The housing is sealed with several watertight
gaskets that will get immediately damaged when trying to open the
housing. Doing so will invalidate the IP54 rate and therefore the product
warranty.
Do
Do not attempt to repair any part of the product on your own. Maintenance
and repair work to be carried out only by VELVET Service Centre.
Do not cover the aluminum lamp head heat sink while using it. Proper
ventilation must be provided. Avoid exposing the lamp head to the heat
radiation of other light fixtures.
Do not power on the product if the ambient temperature exceeds 45° C.
Never point a light beam from another fixture into the light EVO source.
Do not place the product on heat sources.
Do not place the product on heat sources.
Never connect the product to a dimmer system or a dimmer channel in
non-dim mode. Doing so will damage the EVO fixture electronics.
Damages caused by connecting the product to a not suitable power
source are not covered by the warranty.
The lamp head is equipped with power LED. Due to their high light-output
intensity don’t stare directly into the light source.
Though
Though the light generated by LED does not produce any heat, for what his
use turns out to be very comfortable for the actors, the lamp head acts as
a heat sink through its back part.
Surface can reach a temperature between the 20 ºC and the 70 ºC. Please
use protective gloves if you touch the lamp head at the heat sink.
INTRODUCTION
Safety precautions

4

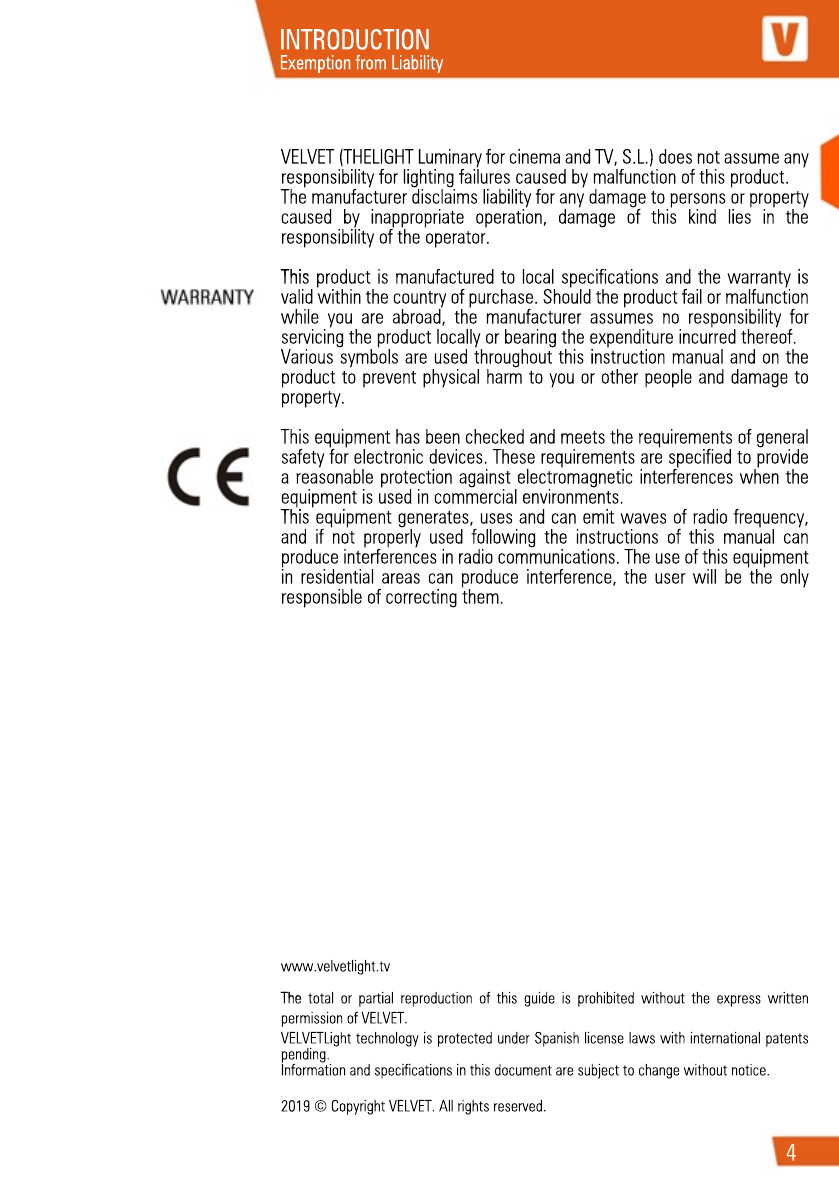

VELVET (THELIGHT Luminary for cinema and TV, S.L.) does not assume any
responsibility for lighting failures caused by malfunction of this product.
The manufacturer disclaims liability for any damage to persons or property
caused by inappropriate operation, damage of this kind lies in the
responsibility of the operator.
This
This product is manufactured to local specifications and the warranty is
valid within the country of purchase. Should the product fail or malfunction
while you are abroad, the manufacturer assumes no responsibility for
servicing the product locally or bearing the expenditure incurred thereof.
Various symbols are used throughout this instruction manual and on the
product to prevent physical harm to you or other people and damage to
property.
This
This equipment has been checked and meets the requirements of general
safety for electronic devices. These requirements are specified to provide
a reasonable protection against electromagnetic interferences when the
equipment is used in commercial environments.
This
This equipment generates, uses and can emit waves of radio frequency,
and if not properly used following the instructions of this manual can
produce interferences in radio communications. The use of this equipment
in residential areas can produce interference, the user will be the only
responsible of correcting them.
www.velvetlight.tv
TheThe total or partial reproduction of this guide is prohibited without the express written
permission of VELVET.
VELVETLight technology is protected under Spanish license laws with international patents
pending.
Information and specifications in this document are subject to change without notice.
2019 © Copyright VELVET. All rights reserved.
INTRODUCTION
Exemption from Liability

5
TABLE OF CONTENTS

6

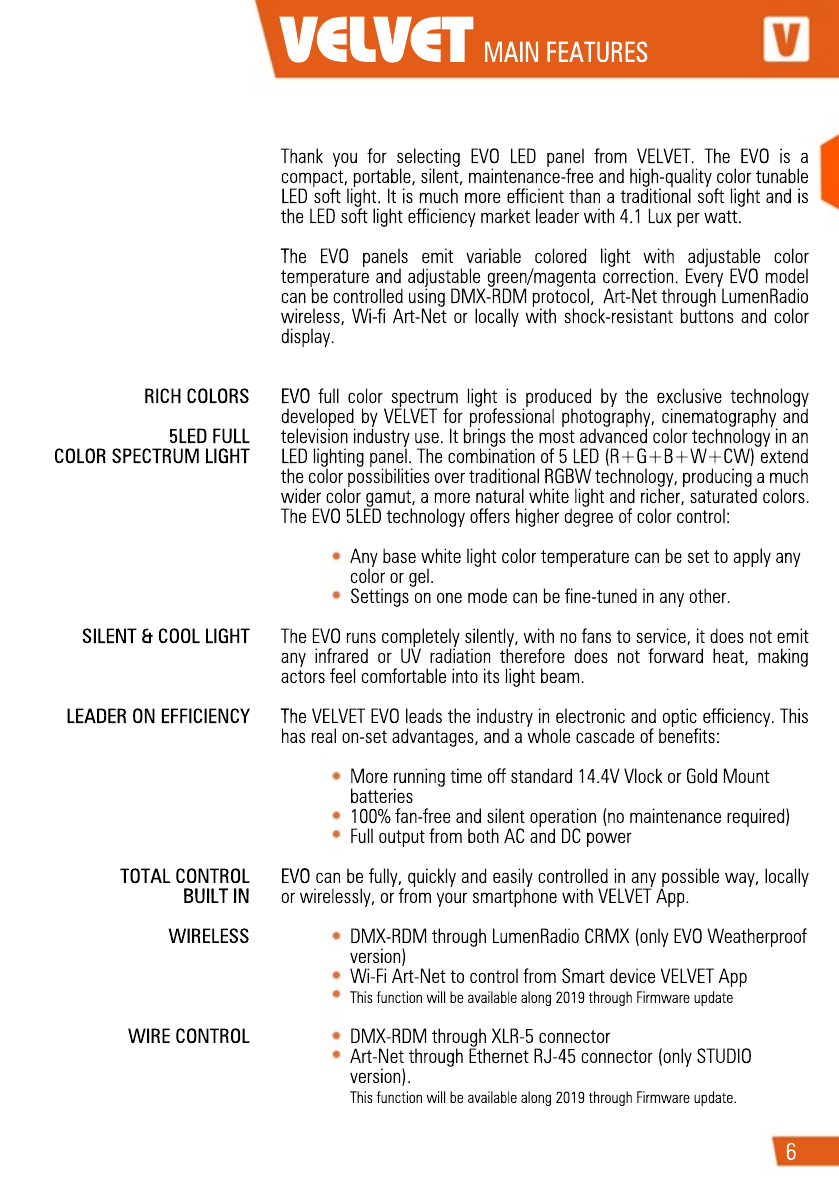

Thank you for selecting EVO LED panel from VELVET. The EVO is a
compact, portable, silent, maintenance-free and high-quality color tunable
LED soft light. It is much more efficient than a traditional soft light and is
the LED soft light efficiency market leader with 4.1 Lux per watt.
The
The EVO panels emit variable colored light with adjustable color
temperature and adjustable green/magenta correction. Every EVO model
can be controlled using DMX-RDM protocol, Art-Net through LumenRadio
wireless, Wi-fi Art-Net or locally with shock-resistant buttons and color
display.
EVO
EVO full color spectrum light is produced by the exclusive technology
developed by VELVET for professional photography, cinematography and
television industry use. It brings the most advanced color technology in an
LED lighting panel. The combination of 5 LED (R+G+B+W+CW) extend
the color possibilities over traditional RGBW technology, producing a much
wider color gamut, a more natural white light and richer, saturated colors.
The EVO 5LED technology offers higher degree of color control:
Any base white light color temperature can be set to apply any
color or gel.
Settings on one mode can be fine-tuned in any other.
The EVO runs completely silently, with no fans to service, it does not emit
any infrared or UV radiation therefore does not forward heat, making
actors feel comfortable into its light beam.
The
The VELVET EVO leads the industry in electronic and optic efficiency. This
has real on-set advantages, and a whole cascade of benefits:
More running time off standard 14.4V Vlock or Gold Mount
batteries
100% fan-free and silent operation (no maintenance required)
Full output from both AC and DC power
EVO
EVO can be fully, quickly and easily controlled in any possible way, locally
or wirelessly, or from your smartphone with VELVET App.
DMX-RDM through LumenRadio CRMX (only EVO Weatherproof
version)
Wi-Fi Art-Net to control from Smart device VELVET App
This function will be available along 2019 through Firmware update
DMX-RDM through XLR-5 connector
Art-Net through Ethernet RJ-45 connector (only STUDIO
version).
This function will be available along 2019 through Firmware update.
RICH COLORS
5LED FULL
COLOR SPECTRUM LIGHT
SILENT & COOL LIGHT
LEADER ON EFFICIENCY
TOTAL CONTROL
BUILT IN
BUILT IN
WIRELESS
WIRE CONTROL
MAIN FEATURES
VELVET

7
The color display offers unlimited possibilities, quick user-friendly control
and shock-proof buttons.
Gels list are displayed as colors
White light or color adjustment preset is always visible on its real color.
The EVO produces a super soft uniform, single-shadow, natural light at any
white light or color setting. The fully tunable white and color light emitted
by EVO produce a beautiful wraparound true-to-life light quality.
ON BOARD CONTROL
VELVET SUPERSOFT EVO
PRODUCT BROCHURE PDFUPDATED SERVICE MANUAL PDF
VELVET
MAIN FEATURES

8
Ref. VE2CIP54
INCLUDES
Ref. VE2CIP54NY
INCLUDES
RELATIVE VALUE
RELATIVE VALUE
RELATIVE VALUE
1x EVO 2 Color LED panel IP54 with DC in XLR-3, 1x DMX in XLR-5, 1x
Micro-USB, LumenRadio wireless DMX, VELVET WIFI, 1x yoke with
28mm junior pin - 16mm baby receiver, 1x hexagonal baby mount
Panel without yoke 1x EVO 2 Color LED panel IP54 with DC in XLR-3, 1x
DMX in XLR-5, 1x Micro-USB, LumenRadio wireless DMX, VELVET WIFI,
1x hexagonal baby mount

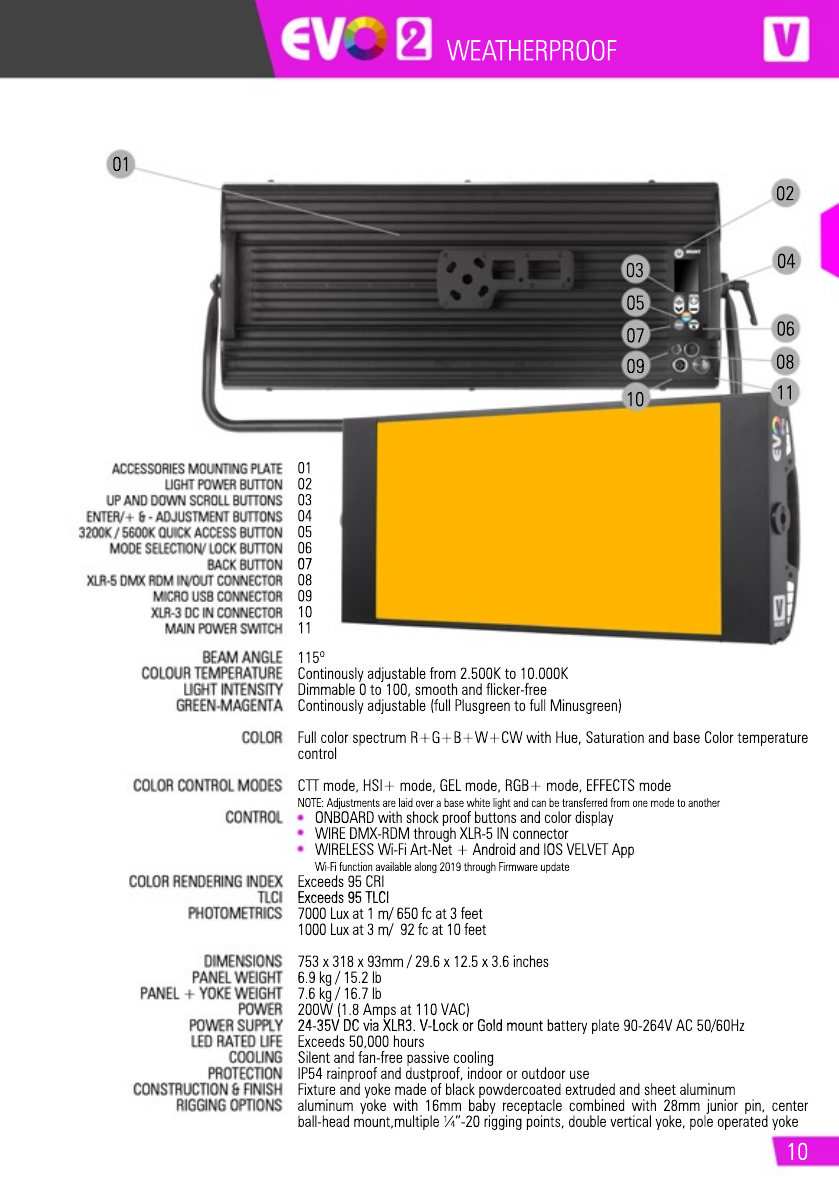

EVOEVO 2 is a weatherproof panel with a 100% aluminum housing, designed specifically to
endure the toughest working conditions in wet or dusty locations.
It delivers the same full output powered by two standard V-Lock or Gold Mount batteries as
it does from AC power. EVO’s back panel has a twist-on plate to quickly install the battery
mount, AC Power supply, or center-rig ball joint mount. The EVO 2 weights only 6.9 kgs /
15.2 lbs and it is just 92mm / 3.6” thick.
WEATHERPROOF
RANGE MODELS
VELVET EVO 2 Weatherproof

9
Ref. VE2CST
INCLUDES
Ref. VE2CSTNY
INCLUDES
RELATIVE VALUE
RELATIVE VALUE
RELATIVE VALUE
1x EVO 2 Color tunable Studio LED panel IP51 with DC in XLR-3,
integrated AC power supply, DMX in & out XLR-5, Mini-USB, WIFI
Art-Net, 1x RJ45 Ethernet, 1x yoke with Euro 28mm junior pin - 16mm
baby receiver, 1x PowerCon TRUE1 power cable.
1x
1x EVO 2 Color tunable Studio LED panel IP51 with DC in XLR-3,
integrated AC power supply, DMX in & out XLR-5, Mini-USB, WIFI
Art-Net, 1x RJ45 Ethernet, 1x PowerCon TRUE1 power cable.

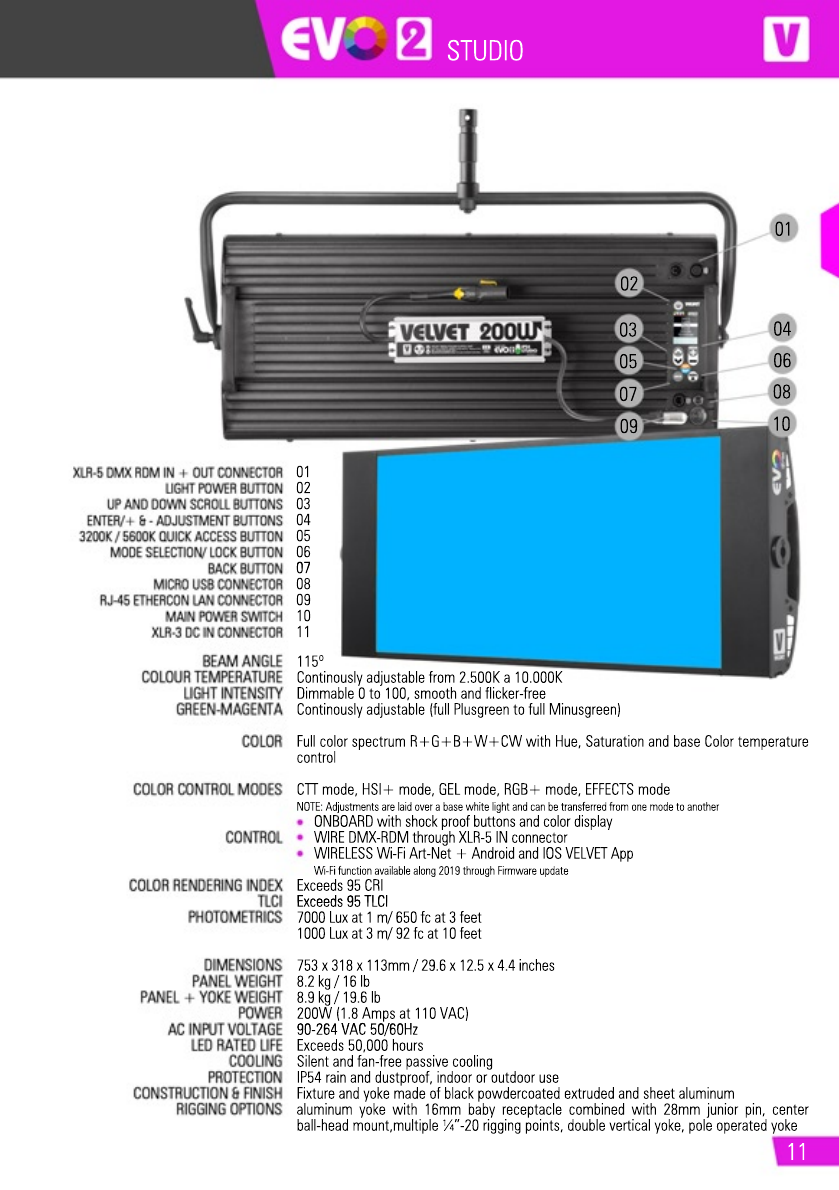

The EVO 2 STUDIO is a dustproof, maintenance-free panel, which runs completely silently,
with no fans to service. The STUDIO version operates exclusively on AC power and includes
input and through DMX XLR5 connectors for daisy-chaining. It also includes an Ethernet
connection through RJ45.
EVO
EVO is ideal for studio applications. Its low weight, slim profile and industry leader efficiency
with only 200W consumption speed up installation. The EVO 2 Studio weights only 8.9 kgs
/ 19.6 lbs. Including yoke and it is just 128mm / 5” thick.
STUDIO
RANGE MODELS
VELVET EVO 2 Studio

10
115º
Continously adjustable from 2.500K to 10.000K
Dimmable 0 to 100, smooth and flicker-free
Continously adjustable (full Plusgreen to full Minusgreen)
Full color spectrum R+G+B+W+CW with Hue, Saturation and base Color temperature
control
CTT mode, HSI+ mode, GEL mode, RGB+ mode, EFFECTS mode
CTT mode, HSI+ mode, GEL mode, RGB+ mode, EFFECTS mode
NOTE: Adjustments are laid over a base white light and can be transferred from one mode to another
ONBOARD with shock proof buttons and color display
WIRE DMX-RDM through XLR-5 IN connector
WIRELESS Wi-Fi Art-Net + Android and IOS VELVET App
Wi-Fi function available along 2019 through Firmware update
Exceeds 95 CRI
Exceeds 95 TLCIExceeds 95 TLCI
7000 Lux at 1 m/ 650 fc at 3 feet
1000 Lux at 3 m/ 92 fc at 10 feet
753 x 318 x 93mm / 29.6 x 12.5 x 3.6 inches
6.9 kg / 15.2 lb
7.6 kg / 16.7 lb
200W (1.8 Amps at 110 VAC)
24-35V DC via XLR3. V-Lock or Gold mount battery plate 90-264V AC 50/60Hz
24-35V DC via XLR3. V-Lock or Gold mount battery plate 90-264V AC 50/60Hz
Exceeds 50,000 hours
Silent and fan-free passive cooling
IP54 rainproof and dustproof, indoor or outdoor use
Fixture and yoke made of black powdercoated extruded and sheet aluminum
aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, center
ball-head mount,multiple ¼”-20 rigging points, double vertical yoke, pole operated yoke
11
10
09 08
07 06
05
04
03
02
01
01
02
03
04
05
06
07
07
08
09
10
11
WEATHERPROOF

11
115º
Continously adjustable from 2.500K a 10.000K
Dimmable 0 to 100, smooth and flicker-free
Continously adjustable (full Plusgreen to full Minusgreen)
Full color spectrum R+G+B+W+CW with Hue, Saturation and base Color temperature
control
CTT mode, HSI+ mode, GEL mode, RGB+ mode, EFFECTS mode
CTT mode, HSI+ mode, GEL mode, RGB+ mode, EFFECTS mode
NOTE: Adjustments are laid over a base white light and can be transferred from one mode to another
ONBOARD with shock proof buttons and color display
WIRE DMX-RDM through XLR-5 IN connector
WIRELESS Wi-Fi Art-Net + Android and IOS VELVET App
Wi-Fi function available along 2019 through Firmware update
Exceeds 95 CRI
Exceeds 95 TLCIExceeds 95 TLCI
7000 Lux at 1 m/ 650 fc at 3 feet
1000 Lux at 3 m/ 92 fc at 10 feet
753 x 318 x 113mm / 29.6 x 12.5 x 4.4 inches
8.2 kg / 16 lb
8.9 kg / 19.6 lb
200W (1.8 Amps at 110 VAC)
90-264 VAC 50/60Hz
90-264 VAC 50/60Hz
Exceeds 50,000 hours
Silent and fan-free passive cooling
IP54 rain and dustproof, indoor or outdoor use
Fixture and yoke made of black powdercoated extruded and sheet aluminum
aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, center
ball-head mount,multiple ¼”-20 rigging points, double vertical yoke, pole operated yoke
10
09
08
07
06
05
04
03
02
01
01
02
03
04
05
06
07
07
08
09
10
11
STUDIO

12
The EVO 2 weatherproof IP54 location panel can be powered by AC power,
by any battery from 24 to 35 VDC or by any Vlock or Gold batteries and it
delivers the same full output both AC and DC powered.
Connect any battery from 24 to 35 VDC to the XLR3 connector located at
the back of the panel.
When
When powering VELVET EVO from an external battery through the XLR3
connector check the proper polarity as shown in the picture at the side of
the panel.
To ensure maximum performance of the equipment use only high-load
capacity batteries with a high continuous draw meaning a Discharge
Current of at least 7A.
EVO 2 can also be directly powered with two Vlock or Gold batteries.
Attach
Attach the quick link double Vlock or Gold plate by aligning the center pin
of the mounting plate to the center hole on the panel docking plate. Rotate
the Vlock or Gold plate clockwise until the four shoulder rivets drop into
their receptacles. A locking pin will snap into place when the plate is
properly locked.
Connect the XLR3 to the connector located on the back of the panel.
EVO
EVO 2 Weatherproof panel exclusively runs when two Vlock (or Gold
Mount) batteries are inserted on the mounts.
Secure the Vlock or Gold plate by inserting the locking pin into place.
Attach
Attach the quick link 200W AC Power Supply plate by aligning the center
pin of the mounting plate to the center hole on the panel docking plate.
Rotate the AC Power Supply plate clockwise until the four shoulder rivets
drop into their receptacles. A locking pin will snap into place when the
plate is properly locked.
Connect
Connect the XLR3 to the connector located on the back of the panel,
connect the power cable to the PowerCon TRUE1 connector located on
the left side of the power supply and the power plug with a mains power
outlet.
POWER OPTIONS
EVO 2 Weatherproof

13
Secure the AC Power Supply plate by inserting the locking pin into place.
Use only an original VELVET power supply unit and a VELVET connector
cable. The use of other power supply units and connector cables might
cause malfunction and damage of the EVO panel.
For
For protection from electric shock, always connect the external power
supply unit electrically to ground (earth) when connected to AC power.
The AC mains power supply must be fitted with a fuse or circuit breaker
and ground-fault (earth-fault) protection.
Always connect the EVO product direct to AC power through VELVET AC
Power Supply. Do not connect it to a dimmer-system. Doing so will
damage the product.
POWER OPTIONS
EVO 2 Weatherproof

14
EVO Studio dustproof IP51 maintenance free softlight LED panels have
been designed to be exclusively AC powered.
Attach the quick link 200W AC Power Supply plate by aligning the center
pin of the mounting plate to the center hole on the panel docking plate.
Rotate the AC Power Supply plate clockwise until the four shoulder rivets
drop into their receptacles. A locking pin will snap into place when the
plate is properly locked.
Connect the XLR3 to the connector located on the back of the panel.
Connect the XLR3 to the connector located on the back of the panel.
Connect the power cable to the PowerCon TRUE1 connector located on
the left side of the power supply and the power plug with a mains power
outlet.
Secure the AC Power Supply plate by inserting the locking pin into place.
Use
Use only an original VELVETLight power supply units and an VELVETLight
connector cable. The use of other power supply units and connector
cables might cause malfunction and damage of the EVO panel.
For protection from electric shock, always connect the external power
supply unit electrically to ground (earth) when connected to AC power.
The AC mains power supply must be fitted with a fuse or circuit breaker
and ground-fault (earth-fault) protection.
Always
Always connect the EVO product direct to AC power through VELVET AC
Power Supply. Do not connect it to a dimmer-system. Doing so will
damage the product.
POWER OPTIONS
EVO 2 Studio

15

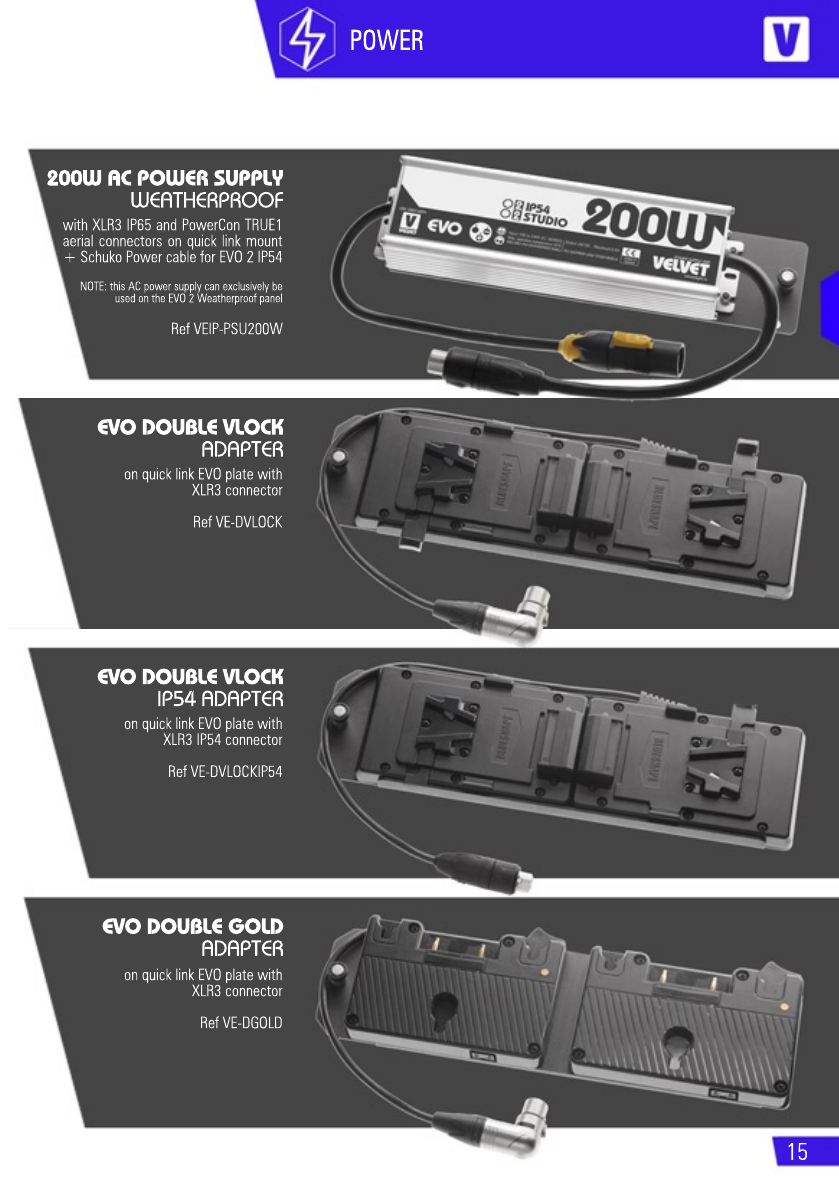

on quick link EVO plate with
XLR3 connector
Ref VE-DGOLD
EVO DOUBLE GOLD
ADAPTER
on quick link EVO plate with
XLR3 IP54 connector
Ref VE-DVLOCKIP54
EVO DOUBLE VLOCK
IP54 ADAPTER
on quick link EVO plate with
XLR3 connector
Ref VE-DVLOCK
EVO DOUBLE VLOCK
ADAPTER
with XLR3 IP65 and PowerCon TRUE1
aerial connectors on quick link mount
+ Schuko Power cable for EVO 2 IP54
NOTE: this AC power supply can exclusively be
used on the EVO 2 Weatherproof panel
Ref VEIP-PSU200W
200W AC POWER SUPPLY
WEATHERPROOF
POWER

16
Ref CAB-XLR3DCC4.5M
XLR-3 CABLE
4,5m/ 15 feet CABLE
on quick link EVO plate with
XLR3 IP54 connector
Ref VE-DGOLDIP54
EVO DOUBLE GOLD
IP54 ADAPTER
POWER

17
EVO 1 and EVO 2 Kits
Ref VE1-YPO (EVO 1)
Ref VE2-YPO (EVO 2)
EVO POLE OPERATED
YOKE
with 28mm junior pin on quick
link mount for EVO 1 and 2
Ref VE-QLS
EVO BALL HEAD
CENTER MOUNT
RIGGING

18
kit of 4x barndoors for EVO
Ref VE1-RB (EVO 1)
Ref VE2-RB (EVO 2)
EVO BARN DOORS
Including transport bag
Ref VE1-SB (EVO 1)
Ref VE2-SB (EVO 2)
EVO SNAPBAG
FOLDABLE by DopChoice
Including transport bag
Ref VE1-SG (EVO 1)
Ref VE2-SG (EVO 2)
EVO SNAPGRID 40º
FOLDABLE by DopChoice
Ref VE2-LV40 (EVO 2)
EVO LOUVER
40º
BEAM CONTROL

19
transmitter (8 x Fader/512Ch)
INCLUDES: 1 Antenna x1 & 1
AC adpt (w/UK/EU/US plugs)
NOTE: this product is only compatible with
EVO Weatherproof panel
Ref ACC-DESK-TX8
PORTABLE DMX DESK
UNIVERSAL and WIRELESS
Cable with 2x XLR-5 female
and 1x XLR-5 male connectors
Ref THE-DMXINOUT
SPLITTER DMX
AERIAL IN/OUT
REMOTE CONTROL

20

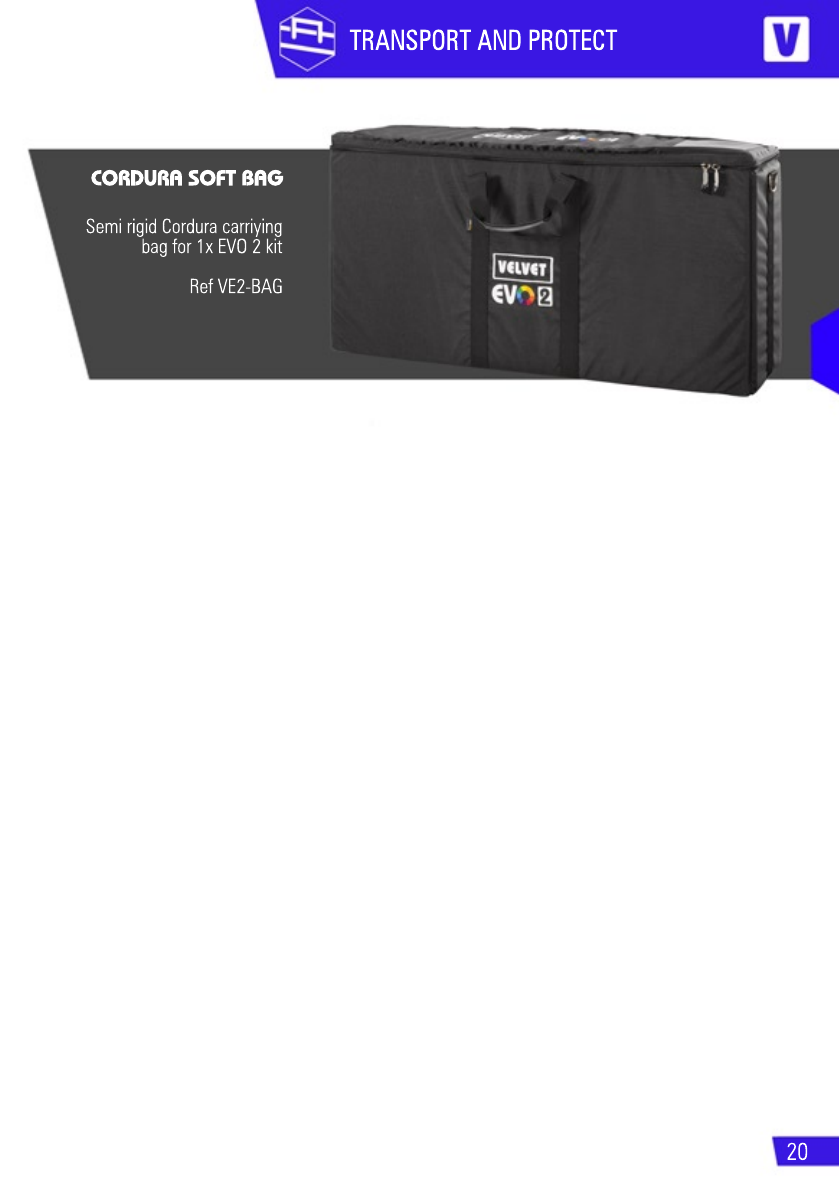

Semi rigid Cordura carriying
bag for 1x EVO 2 kit
Ref VE2-BAG
CORDURA SOFT BAG
TRANSPORT AND PROTECT
