Venini VEOP610SS User manual

User Manual for your Venini
VEOP610SS
60 cm Built-in Pyrolytic Oven
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 18/01/13

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 – 10
Electricaldetails 9
Coolingfan 9
Control panel 10
LEDdisplay 10
Initial set-up of your oven 11 – 12
Settingthetimeofday 11
Before first use 11 – 12
Timerfunctions 12 - 13
The minute minder 12 - 13
Durationtimer 13
Usingyouroven 14 - 19
Selecting an oven function, temperature & duration 14
Oven functions 15 - 16
Pausing a cooking function 16
Cancelling a cooking function 16
The enquiry function 16
Safetylock 17
Energysavingfunction 17
Internallight 17
Cooking guidelines 18 - 19
Warnings 19
Cleaning and maintenance 20 – 23
Pyrolytic cleaning 20 – 21
Generalcleaning 21
Replacing the oven bulb 21
Removing the oven door for cleaning 22
Removing the inner door glass for cleaning 23
Installation 24 - 26
Electrical connection 24 - 25
Positioning the appliance 25
Ventilation requirements 26
My appliance isn’t working correctly 27 – 28
Contact details 29

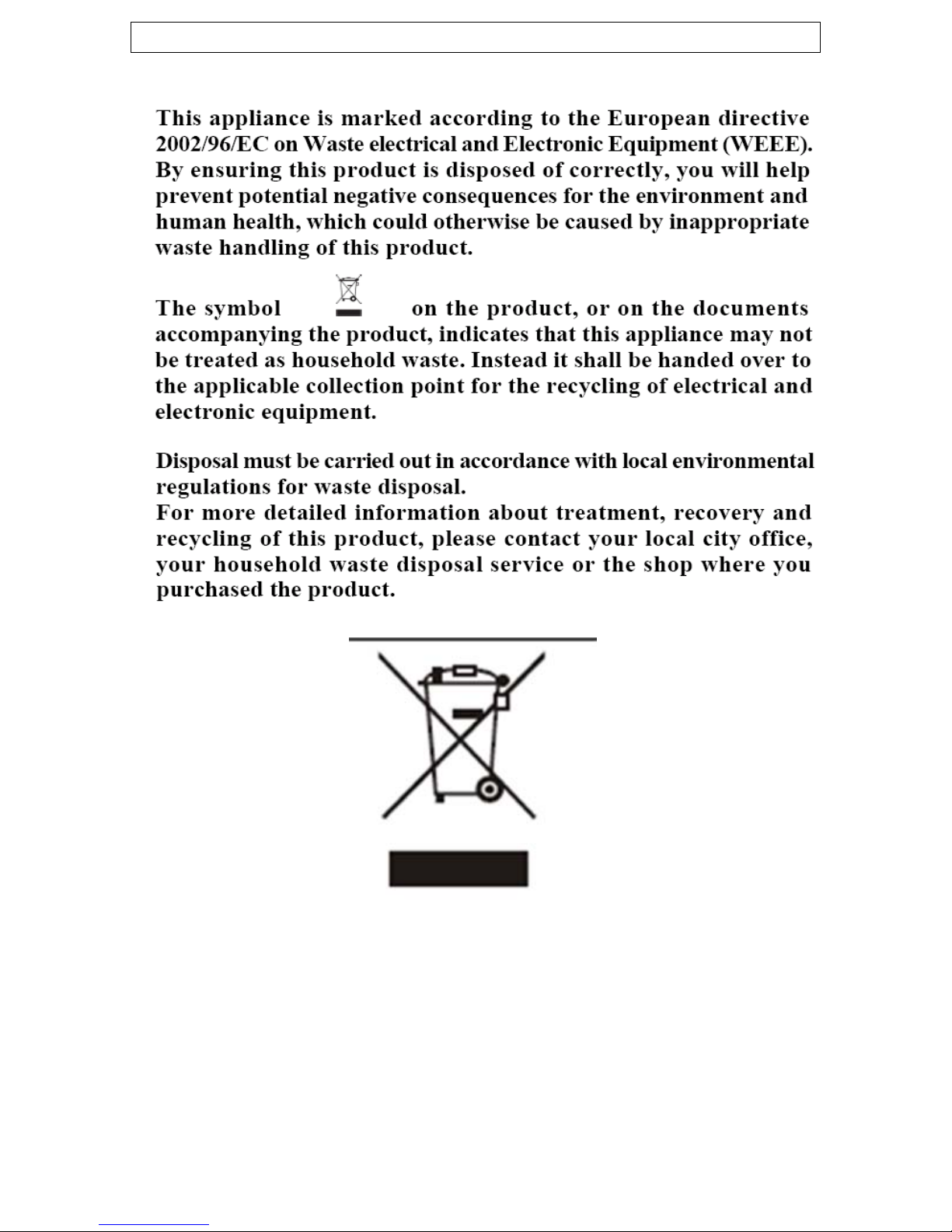

Environmental note
4
oThe packaging materials that Venini uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5 5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Venini.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the retailer where you
urchased your unit.
eneral Information
ambient temperature
scolouration at
han 4mm to the appliance, will be the
ement of Venini will
uarantee. The foregoing does not affect
your statutory rights.
gineers,
service technicians or authorised service agents.
arning and safety instructions
ll become hot during use
in heat after operation.
p
G
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the owner.
oThe use of this appliance for any other purpose or in any other
environment without the express agre
invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in the Conditions Of G
oRepairs may only be carried out by qualified en
W
oThis appliance complies with all current safety legislation. Venini
do wish to emphasise that this compliance does not remove the
fact that the appliance surfaces wi
and reta

6
bies and young children are
prevented from being near to the appliance and not allowed to
ssary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
oDo not place pans or baking trays directly on the base of the
oDo not allow electrical fittings or cables to come into contact
oDo not use the appliance to heat the room it is located in or to
y using the
oven door or handle, as this may cause damage to the appliance
sult in injury to the person lifting the appliance.
Great care should be taken whilst using this appliance and when
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Child Safety
oVenini strongly recommend that ba
touch the appliance at any time.
oIf it is nece
at all times.
General Safety
oDo not place
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oven cavity, or line it with aluminium foil.
with areas on the appliance that get hot.
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances b
or re
Cleaning
oCleaning of the oven should be carried out on a regular basis.
ofollowing the cleaning procedure.

7
correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
ility for injury or damage, to
person or property, as a result of improper use or
ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
Installation
This appliance must be
oVenini declines any responsib
installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately
required.
Declaration of conformity.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed

Specifications
8 8
Product Dimensions
ions
idth: 603 mm
epth: 600 mm
litres
oor-lock (when in Pyrolytic mode)
lled baking tray
Op
BPS2 Pizza stone
Height: 595 mm
Width: 595 mm
Depth: 575 mm
Aperture Dimens
Height: 597 mm
W
D
Product specifications
o10 functions
oEnergy efficiency class: A
oOven capacity gross/net: 65/60
LED semi-automatic timero
oCooling fan
oThermostatically controlled grill
Quadruple-glazed removable dooro
oRemovable inner door glass
oManual child safety lock (control panel)
oAutomatic safety d
Standard accessories
oEname
o2 x Safety Shelves
oTrivet
tional extras
o

9
ac 50-60 Hz
ax Rated Inputs: 3.20 kW
ains Supply Lead: 3 x 1.5mm²
tted inside of the appliance, to make
the internal temperature of the oven stable and the external
time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.
les invoice. The rating plate for your oven can be
cated by opening the oven door and looking on the right hand side of
ate of Purchase ……………………………….
Electrical details
Rated Voltage: 220-240 V
Supply Connection: 15 A
M
M
Cooling fan
oA tangential cooling fan is fi
surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sa
lo
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
D

Control PanelControl Panel
1) Selector knob
ing button
button
) Adjustment knob
inder time
2) Alarm/timer symbol
3) Oven light indicator
2) Minute minder button
3) Clock button
4) Pause / Stop cook
5) Start cooking
6
7) LED display
LED display
8) Oven function symbols
9) Oven temperature
10) Safety lock symbol
11) Time of day/minute m
1
1
10 10

11
ovenInitial set-up of your
Setting the time of day
When the oven is connected to your mainsosupply for the first time
t knob (6) to adjust the hour time. Your oven
ol
can adjust the time of day at any time by
g as the oven is not
facturing process, you should select the convection & fan
s cooled, it should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No abrasive
cleaners should be used.
(or after a power cut), the digits on the LED display (7) will show
“0:00” and there will be an audible signal.
oPress the clock button (3) and the hour digits will flash on the LED
display.
Turn the adjustmenohas a 24 hour clock, so it is possible to adjust the hour digit
between 0 and 23.
oWhen the correct hour time appears on the LED display, press the
clock button again. The minute digits will flash on the LED display.
oTurn the adjustment knob to adjust the minute time; it is possible
to adjust the minute digit between 0 and 59.
oWhen the correct minute time appears on the LED display, press
the clock button for a third time to confirm the time of day.
The “:” symbol between the digits will flash and the time of day wil
light on the LED display.
IMPORTANT: You
following the instructions above, as lon
se.currently in u
Before first use
oTo remove any residue from the oven that may have been left from
the manu
oven function and set the thermostat to its maximum temperature
setting.
oIt is perfectly normal for a smell to be produced during this process.
oYou should make sure that any windows in the room are left open
during this process.
oIt is advisable for you not to remain in the room whilst the burning
off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
oAfter the oven cavity ha

12
oOuter parts of the oven should be cleaned with warm soapy water,
using either a sponge or soft cloth. No abrasive cleaners should be
used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Timer functions
The minute minder
The minute minder is a countdown timer that is independent from the
oven functions. When the countdown time has finished, an audible
signal will sound. The minute minder must be set prior to selecting an
oven function.
NOTE: The minute minder can be used without an oven cooking
function selected, and it will work as a separate kitchen timer.
oPress the minute minder button (2) and the hour digits will flash on
the LED display (7).
oTurn the adjustment knob (6) to adjust the hour time; it is possible
to adjust the hour digit between 0 and 9.
oWhen the correct hour time appears on the LED display, press the
minute minder button again. The minute digits will then flash.
oTurn the adjustment knob (6) to adjust the minute time; it is
possible to adjust the minute digits between 0 and 59.
oWhen the correct minute time appears on the LED display, press
the start button (5) to confirm the countdown time. The timer will
be active immediately.
oIf required, you can now set an oven function, however the minute
minder will have no affect on the function when the time has
elapsed.
oThe alarm will sound 10 times when the countdown has finished.
NOTE: When adjusting the timer, please be aware that the
timer will scroll through one minute at a time between 0:00 –
0:30 minutes. When scrolling between 0:30 minutes to 9:00
hours, the timer will scroll in 5 minute units.

13
Note: You cannot amend the minute minder after a cooking
function has been started. To do this, you must cancel the
current cooking operation and re-program the minute minder
and cooking function.
The duration timer
The duration timer is a countdown timer that is linked to your oven.
When the countdown has finished, an audible signal will sound and the
oven will turn off.
oAfter you have selected an oven function and pressed start, the
oven will start to heat and 9:00 hours appears on the display.
o9:00 Hours is the default duration time and after 9:00 hours the
oven will automatically turn off. This is a safety feature.
oDuring cooking, it is possible to adjust the cooking time (cooking
duration) by turning the selector knob (1).
oPress the start cooking button (5) to confirm the oven cooking
duration that you have chosen and the oven timer will start.
oAt the end of the cooking time, an audible signal will sound and the
oven will turn off.

14
Using your oven
Selecting an oven function, temperature and duration
The selector knob should be used to select the particular mode of
cooking that you require. The appliance will utilise different elements
within the oven cavity, depending on the oven function that you select.
oTurn the selector knob (1) to select the oven function that you
require. The oven function symbols will light to show you which
oven function is currently being selected. (See page 15 for a list of
oven functions / symbols).
oTurn the adjustment knob (6) to select the cooking temperature
you desire.
oPress the start cooking button (5) to confirm the oven function and
temperature that you have chosen and the oven will start cooking.
The default cooking time (displayed) is 9:00 hours.
oDuring cooking, it is possible to select and adjust the cooking time
by turning the selector knob (1).
oPress the start cooking button (5) to confirm the oven cooking
duration that you have chosen and the oven timer will start.
oDuring cooking, you can adjust the cooking temperature by turning
the adjustment knob (6). The oven temperature (9) will appear on
the LED display as you turn the adjustment knob. When the correct
temperature appears on the LED display, press the start cooking
button.
oIf the start button is not pressed within 3 seconds of an oven
time or temperature being selected then the oven will revert
back to the previously set conditions.
oAt the end of the cooking time, an audible signal will sound and the
oven will enter stand-by mode.
NOTE: The unit of adjustment for temperature will change 5°C
at a time. The Grill function will adjust in 30°C units.

Oven functions
OVEN LIGHT: Separate light control which allows the light to
be switched on, even when the oven is not in use.
DEFROST MODE: The fan runs without heat to reduce the
defrosting time of frozen foods. The time required to defrost
the food will depend on the room temperature, the quantity
and type of food. Always check food packaging for the
defrosting instructions.
LOWER ELEMENT ONLY: This method of cooking uses the
lower element to direct heat upward to the food. This function
is suitable for slow-cooking recipes or for warming up meals.
CONVENTIONAL OVEN: This method of cooking provides
traditional cooking, with heat from the top and lower
elements. This function is suitable for roasting and baking on
one shelf only.
CONVECTION OVEN AND FAN: This method of cooking
provides traditional cooking with heat from the top and the
lower element, it also utilises the circulation fan. This ensures
a fast and even distribution of the heat. Suitable for light and
delicate baking, such as pastries.
FAN AND GRILL: This method of cooking utilises the top
element in conjunction with the fan, which helps to provide a
quick circulation of heat. This function is suitable where quick
browning is required and “sealing” the juices in, such as
steaks, hamburgers, some vegetables etc.
FULL GRILL: This method of cooking utilises the inner and
outer parts of the top element, which directs heat downwards
onto the food. This function is suitable for grilling medium or
large portions of sausages, bacon, steaks, fish, etc.
HALF GRILL: This method of cooking utilises the inner
sections of the top element, which directs heat downwards
onto the food. This function is suitable for grilling portions of
bacon, toast and meat etc.
15

FAN OVEN: This method of cooking uses the circular element
while the heat is distributed by the fan. This results in a faster
and more economical cooking process. The fan oven allows
food to be cooked simultaneously on different shelves,
preventing the transmission of smells and tastes from one
dish onto another.
PYROLYTIC CLEANING: This function cleans the oven cavity
by raising the inner oven temperature to approximately
450°C. The resultant ash deposits can be wiped away with a
soft damp cloth once the oven has cooled down.
Pausing a cooking function
oDuring cooking, if you wish to pause the cooking function, you
should press the stop cooking button (4) once. The oven will
stop heating and the cooking time will pause.
oTo continue cooking after pausing the cooking function, you
should press the start cooking button (5).
oThe oven will resume cooking, using the same oven function and
temperature as previously set. The cooking time will continue
counting down from the point it was at when the stop cooking
button was pressed.
Cancelling a cooking function
oDuring cooking, if you wish to cancel the cooking function, you
should press the stop cooking button (4) twice. The oven will
stop heating and return to stand-by mode.
The enquiry function
oWhilst the appliance is cooking, to check the time of day, press
the clock button (3) once.
oWhen a countdown time is set, to check the remaining cooking
time, press the clock button once.
Open door alarm
oIf the oven door is opened during normal operation the LED
display will show “DOOR” and an alarm will sound until the door
is closed or the cancel button is pressed.
16

Manual safety lock
When the safety lock is switched on, it disables the control panel so
that it is not possible to alter any settings. This is separate to the
automatic door lock of the Pyrolytic function.
oPress the stop cooking (4) and start cooking (5) buttons
simultaneously for 3 seconds.
oThere will be a long audible signal and a symbol will appear
on the LED display, which confirms that the safety lock has been
activated.
oTo switch off the safety lock, press and hold the stop cooking
and start cooking buttons simultaneously for 3 seconds.
oThere will be a long audible signal and the symbol will go
out, these confirm that the safety lock has been switched off.
IMPORTANT: when locked, you must unlock the control
panel as outlined above if you want to stop or change any
oven function.
Energy saving function
IMPORTANT: The energy saving function can only be set when an
oven function and temperature are not selected.
oPress the start cooking button (5) for 3 seconds and the oven
will enter energy saving mode and the LED display will switch
off.
oEnergy saving mode will be entered automatically if a button or
control knob are not touched for 10 minutes.
oTo exit energy saving mode, you should touch any button or turn
either control knob.
Internal light function
IMPORTANT: The oven light will come on automatically when the
oven is in use. If you want to turn the oven light on without using an
oven function please follow the instructions below.
oUsing the selector knob, select the oven light function
oPress the start button (5) and the interior light will come on.
oWith the light function still selected, press the stop button to
turn the light back off.
17

18
Cooking guidelines
oPlease refer to the information given on food packaging for
guidance on cooking temperatures and times. Once familiar with
the performance of your appliance, temperatures and times can
be varied to suit personal preference.
oWhen using the fan oven function you should follow the
information given on the food packaging for this particular mode
of cooking.
oYou should pre-heat the oven and not place food inside of it until
the oven operating light has gone off. You can choose not to pre-
heat when using the fan oven mode; however you should extend
the cooking time given on the food packaging by at least ten
minutes.
oIMPORTANT: You should ALWAYS pre-heat the oven if you are
baking.
oIf there is no guidance given on the food packaging specifically
for cooking in fan oven mode, you can generally reduce the
cooking time and temperature by 10% from the information
given for conventional oven cooking.
oMake sure that frozen foods are thoroughly thawed before
cooking, unless the instructions on the food packaging advise
that you can “cook from frozen”.
oBefore cooking, check that any accessories that are not required
are removed from the oven.
oPlace cooking trays in the centre of the oven and leave gaps
between the trays to allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.

19
Warnings
oKeep the oven door closed when using any of the cooking
functions, including all grill functions.
oDo not use aluminium foil to cover the enamelled baking tray or
heat items wrapped in aluminium foil under the grill. The high
reflectivity of the foil could potentially damage the grill element.
oYou should also never line the base of your oven with aluminium
foil.
oDuring cooking, never place pans or cookware directly onto the
bottom of your oven. They should always be placed on the
shelves provided.
oThe grill heating element and other internal components of the
oven become extremely hot during operation, avoid touching
them inadvertently when handling the food which you are
grilling.
oImportant: Be careful when opening the door, to avoid contact
with hot parts of the oven and steam.
oImportant: Be careful when using the oven that you do not
touch the heating elements as these will become very hot during
use.
oWarning: Accessible and exterior parts may become hot during
use. Young children should be kept well away from the oven
when it is in use.
oWhen removing the enamelled baking tray, you should ALWAYS
use an oven glove.

Cleaning and maintenance
External cleaning operations must only be carried out when
the oven is cool and with the appliance disconnected from
your mains supply.
oThe oven should be thoroughly cleaned before it is operated for the
first time. The pyrolytic cleaning process listed below should be
followed AT LEAST once a month or more frequently if there have
been food spillages inside of the cavity.
Pyrolytic cleaning
oIMPORTANT: All accessories must be removed from inside
the oven before commencing the pyrolytic cleaning function.
oThe oven should not be left unattended when the pyrolytic
cleaning cycle is in progress.
oAll major food residues must be removed from the oven
before starting this function.
oSelect the pyrolytic cleaning function by turning the oven function
selector knob (1) to the cleaning symbol (as shown on page
14/15). “PYA” will appear on the LED display.
oPress the start button (5) to confirm. A cleaning period of 2 hours
is automatically set (2:00 will appear on the LED display (11)).
NOTE: If the oven door is not properly closed the start button
will be invalid and “DOOR”, “PYA” will be shown on the LED
display.
oThe length of cleaning cycle can be decreased by 30 minutes to
1 hour and 30 minutes (1:30) by turning the selector knob (1),
should your oven only be lightly soiled.
oThe oven door will automatically lock when the temperature inside
the oven reaches 300°C.
oDuring pyrolytic cleaning, the oven light will not switch on.
oThe pyrolytic cleaning cycle will finish after the set time period has
elapsed. The oven door will remain locked until the oven
temperature has fallen below 300°C.
oThe LED display will display “0:00” when the Pyrolytic cycle has
finished and the oven will enter stand-by mode.
20

oWhen the oven has reached a warm temperature, you should use a
soft damp cloth to wipe out the resultant ash deposits. For best
cleaning results, you should not allow the oven to get completely
cold before wiping away the ash deposits.
IMPORTANT: How to cancel the Pyrolytic operation:
oIf the internal temperature is below 300°C, press the stop button
(4) and the oven will return to standby mode.
oIf the oven is above 300°C, press the start button (5) to begin the
cooling process. The words “COOL” will be displayed and the door
will remain locked until the temperature has dropped below 300°C.
General cleaning information
oNever clean any of the oven surfaces by steam cleaning.
oOuter parts of the oven should only be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
oIf you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is suitable
for use on your appliance.
oAny damage that is caused to the appliance by a cleaning
product will not be fixed by Venini free of charge, even if the
appliance is within the guarantee period.
Replacing the oven bulb
IMPORTANT: The oven must be disconnected from
your mains supply before you attempt to either
remove or replace the oven bulb.
oRemove all oven shelves and the enamelled
baking tray.
oRemove the light cover by turning it.
oUnscrew the bulb and remove it from its holder.
oReplace the bulb with a 25W 300°C, screw type
pygmy.
oDo not use any other type of bulb.
oPlace the lamp cover back into position.
21
