Ventrac LC150 User manual

STUMP GRINDER
LC150
OWNER/OPERATOR’S
MANUAL & PARTS LIST
Revised 02/11/10
09.10033

ii
328 East Water St.
PO Box 148
Orrville, OH 44667
www.ventrac.com
Venture Products Inc. reserves the right to make changes
in design or specifications without obligation to make like
changes on previously manufactured products.

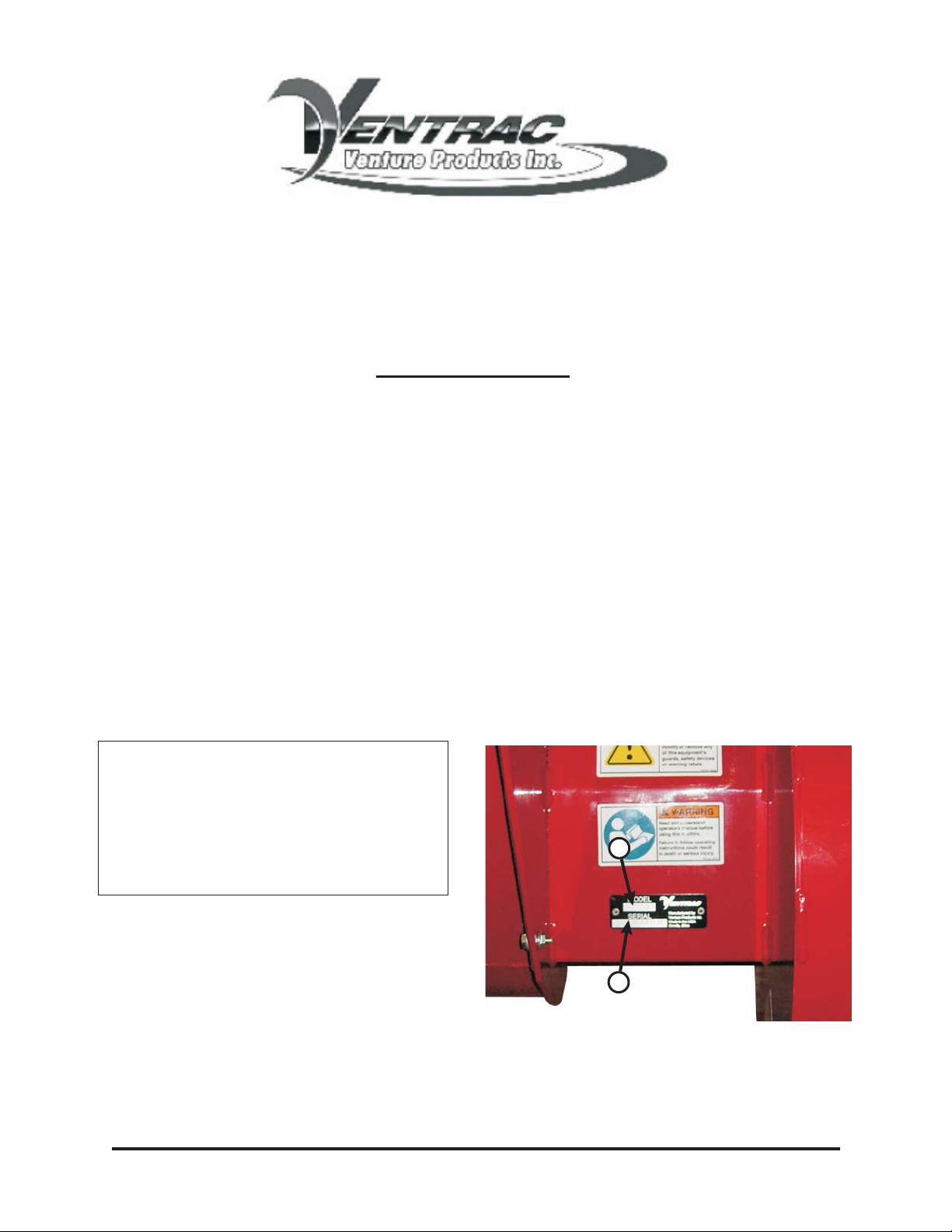

Model # (A): _______________________
Serial # (B): ________________________
Affix Part/Serial Number label here
Contact Information and Product Identification
If you need to contact an authorized Ventrac dealer for information on servicing your product,
always provide the product Model and serial numbers.
Please fill in the following information for future reference. See picture below to find the
location of the identification number. Record them in the spaces provided below.
Date of Purchase: Month _________________ Day ___________ Year ___________________
Dealer: _______________________________________________________________________
Dealer Address: ________________________________________________________________
________________________________________________________________
Dealer Phone Number: __________________________________________________________
Dealer FAX Number: ____________________________________________________________
B
A
TO THE OWNER

TABLE OF CONTENTS
iii
INTRODUCTION SECTION A
Product Description ................................A-1
Why Do I Need An Operator's Manual.......................A-1
LC150 Specifications ...............................A-1
Using Your Manual.................................A-2
Manual Glossary ..................................A-2
SAFETY SECTION B
Safety Decals ...................................B-1
General Safety Procedures ............................B-2
Training Required .................................B-2
Personal Protective Equipment Requirements ..................B-2
Operating Safely................................B-2&3
Preventing Accidents ...............................B-3
Keep Riders Off ..................................B-3
Operating On Slopes ...............................B-4
Roadway Safety ..................................B-4
Truck Or Trailer Transport .............................B-4
Maintenance ....................................B-5
Fuel Safety.....................................B-5
Hydraulic Safety ..................................B-6
LC150 Safety Procedures .............................B-7
OPERATION SECTION C
Daily Inspection ..................................C-1
Attaching......................................C-1
Detaching .....................................C-1
Operating Techniques & Tips ...........................C-2
Grinding ......................................C-2
MAINTENANCE/ADJUSTMENTS SECTION D
Cleaning & General Maintenance .........................D-1
Service Schedule .................................D-1
Maintenance ....................................D-1
Cutter Replacement ................................D-2
PARTS & ILLUSTRATED DRAWINGS SECTION E

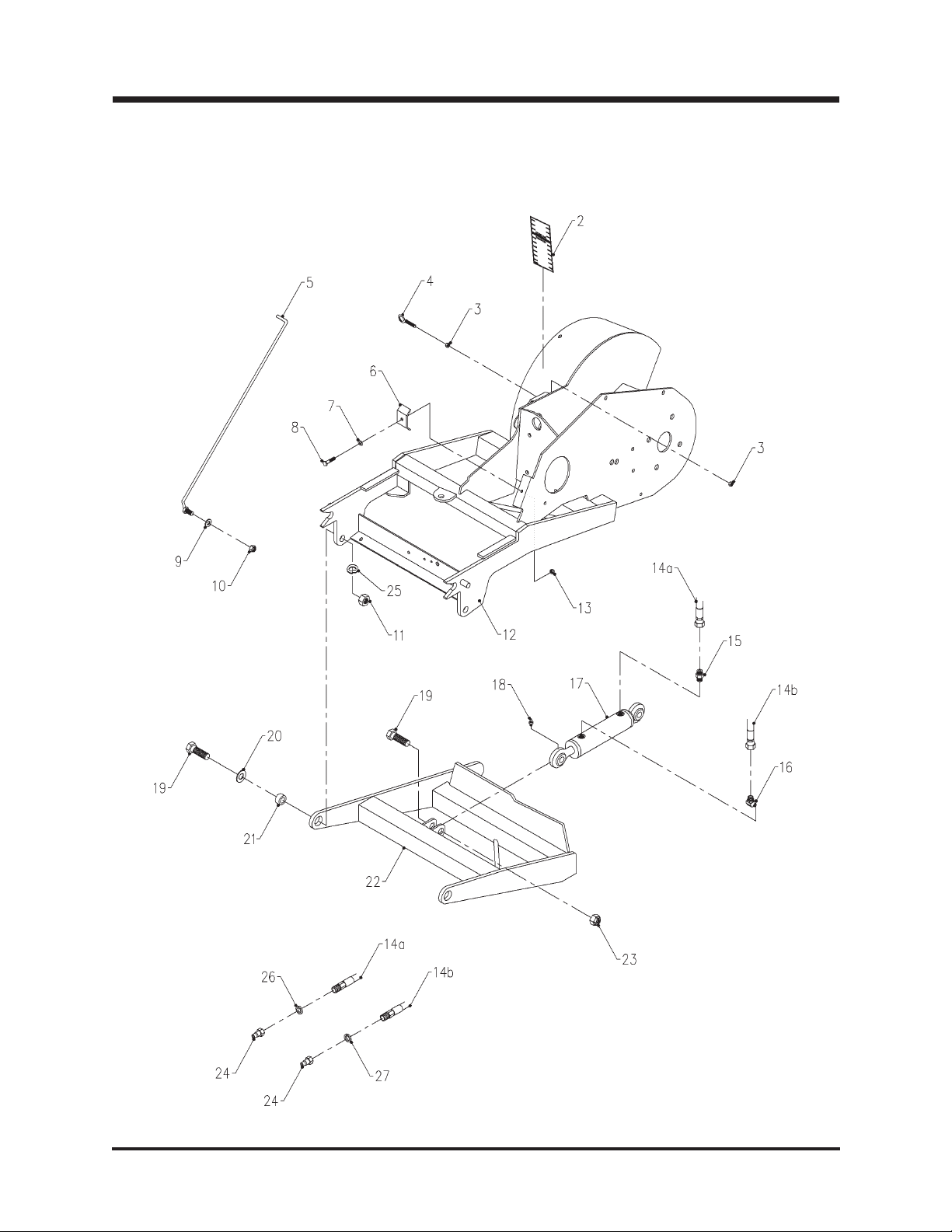

Main Frame, Blade/Stand Frame, & Hydraulics ................E-1&2
Belt Drive (Power Unit to Gearbox) ......................E-3&4
Belt Drive (Gearbox to Cutter/Rotor) .....................E-5&6
Rotor Shield, Belt Cover, & Safety Decals...................E-7&8
WARRANTY SECTION K

A-1
INTRODUCTION
Product Description
LC150 Stump Grinder
The Ventrac LC150 stump grinder is designed to operate with the Ventrac Series 3000 power
unit. It is a great tool for removing stumps up to 10-12 inches (25.4-30.5 cm) in diameter as well
as remove above ground roots which may damage mowing equipment. It is equipped with a
multi-function arm that is controlled by the auxiliary lever of the power unit hydraulics. This arm
can be used to achieve a common grinding depth of a stump that is repeatable by using the
depth indicator gauge. It also can be used as a blade to level the area where the stump was
ground out. The arm serves as a stand when the stump cutter is removed from the power unit,
holding the hitch arms at the correct height for easy hookup.
Why Do I Need An Operator's Manual?
This manual has been created to help you gain the important knowledge of what is needed to
safely operate, maintain, and service your machine. It is divided into sections for convenient ref-
erence of the appropriate section.
You must read and understand the operator’s manual for each piece of Ventrac equipment you
own. Reading the operator’s manual will help you become familiar with each specific piece of
equipment. Understanding the operator’s manual will help you, as well as others, avoid personal
injury and/or damage to the equipment. Keep this manual with the machine at all times. The
manual should remain with the machine even if it is sold. If this manual becomes damaged or
unreadable, it should be replaced immediately. Contact your local Ventrac dealer for a
replacement.
When using a Ventrac attachment, be sure to read and follow the safety and operating instruc-
tions of both the power unit and the attachment being used to ensure the safest operation
possible.
The information in this manual provides the operator with the safest procedures to operate the
machine while getting the maximum use out of the unit. Failure to follow the safety precautions
listed in this manual may result in personal injury and/or damage to the equipment.
Ventrac LC150 Specifications
Overall Height ........................19-1/2 inches (49.5 cm)
Overall Length..........................40inches (101.5 cm)
Overall Width .........................22-1/4 inches (56.5 cm)
Weight .............................200pounds (90.7 kg)
Rotor Tip Speed (at 3200 engine rpms) ..........2,475 ft/min (754.5 m/min)
Rotor RPM (at 3200 engine rpms)......................620rpms
Grinding Depth (below ground)..................6inches (15.25 cm)
Cutter Wheel Diameter ....................14-3/8 inches (36.5 cm)
Cutter Teeth (Carbide Tipped) ...........................12
Venture Products, Inc. reserves the right to change these specifications without notice.

INTRODUCTION
A-2

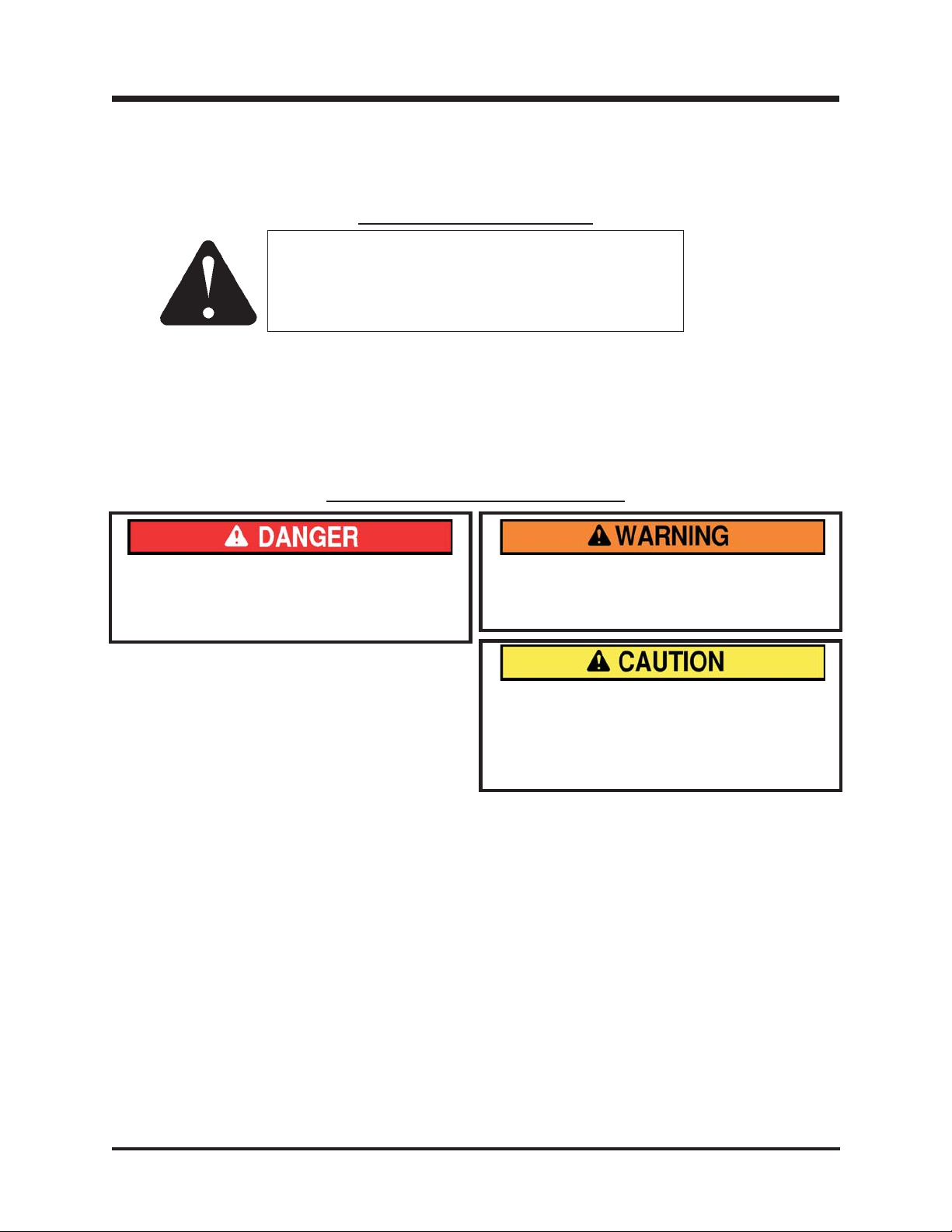

ATTENTION:
This symbol identifies potential health and safety
hazards. It marks safety precautions. Your safety
and the safety of others is involved.
SYMBOL DEFINITIONS
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury and/or property damage. It
may also be used to alert against unsafe
practices.
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
SIGNAL WORD DEFINITIONS
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury. This signal word is limited to
the most extreme cases.
Using Your Manual
Throughout this manual, you will encounter special messages and symbols that identify poten-
tial safety concerns to help you as well as others avoid personal injury or damage to the
equipment.
There are three signal words that describe the level of safety concern: Danger, Warning, and
Caution. Safety should always be the #1 priority when working on or operating equipment. Acci-
dents are more likely to occur when proper operating procedures are not followed or inexperi-
enced operators are involved.
Note: Right-Hand and Left-Hand orientations may be referred to at different places throughout
this manual. Right-Hand and Left-Hand is determined as if sitting on the power unit seat facing
forward.
Manual Glossary
Power Unit A Ventrac tractor or other Ventrac engine powered device that may be operated
by itself or with an attachment or accessory.
Attachment A piece of Ventrac equipment that requires a Power Unit for operation.
Accessory A device that attaches to a Power Unit or Attachment to extend its capabilities.
Machine Describes any “Attachment” or “Accessory” that is used in conjunction with a
power unit.

B-1
Safety Decals
The following safety decals must be maintained on your LC150 Stump Grinder.
Keep all safety decals legible. Remove all grease, dirt, and debris from safety decals and in-
structional labels. If any decals are faded, illegible, or missing, contact your dealer promptly for
replacements.
When new components are installed, be sure that current safety decals are affixed to the re-
placement components.
SAFETY
A
C
E
B
F
D
Decal Page & Location Description Part Number
AE-7, #17 Danger - Shield Missing 00.0062
BE-7, #10 Warning - Moving Parts 00.0216
CE-7, #19 Warning - Read Owner’s Manual 00.0217
DE-7, #16 (2) Warning - Pinch Point 00.0218
EE-7, #11 Warning - Do Not Reach 00.0219
FE-7, #20 General Safety 00.0220

B-2
SAFETY
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Training Required
•The owner of this machine is solely responsible for properly training the operators.
•The owner/operator is solely responsible for the operation of this
machine and prevention of accidents or injuries occurring to him/herself,
other people, or property.
•Do not allow operation or service by children or untrained personnel.
Local regulations may restrict the age of the operator.
•Before operating this machine, read the operator’s manual and
understand its contents.
•If the operator of the machine cannot understand this manual, then it is
the responsibility of this machine’s owner to fully explain the material
within this manual to the operator.
•Learn and understand the use of all controls.
•Know how to stop the power unit and all attachments quickly in the event of an emergency.
Personal Protective Equipment Requirements
It is the responsibility of the owner to be sure that the operators use the proper personal protective
equipment while operating the machine. Required personal protective equipment includes, but is not
limited to, the following list.
• Wear a certified ear protection device to prevent loss of hearing.
• Prevent eye injury by wearing safety glasses while operating the machine.
• Closed toe shoes must be worn at all times.
• Long pants must be worn at all times.
• When operating in dusty conditions, it is recommended that a dust mask be worn.
Operating Safely
• Inspect machine before operation. Repair or replace any damaged, worn, or missing parts. Be sure
guards and shields are in proper working condition and are secured in place. Make all necessary
adjustments before operating machine.
•Alterations or modifications to this machine can reduce safety and could cause damage to the
machine. Do not alter safety devices or operate with shields or covers removed.
•Before each use, verify that all controls function properly and inspect all safety devices. Do not operate
if controls or safety devices are not in proper working condition.
•Check parking brake function before operating. Repair or adjust parking brake if necessary.
•Observe and follow all safety decals.
•All controls are to be operated from the operator’s seat only.
•Always wear a seat belt if the machine has a roll cage/bar installed.
•Ensure the attachment or accessory is locked or fastened securely to the power unit before operating.
•Ensure that all bystanders are clear of the power unit and attachment before operating. Stop machine
if someone enters your work area.
•Always be alert to what is happening around you, but do not lose focus on the task you are performing.
Always look in the direction the machine is moving.
•Look behind and down before backing up to be sure of a clear path.
•If you hit an object, stop and inspect the machine. Make all necessary repairs before operating machine again.
•Stop operation immediately at any sign of equipment failure. An unusual noise can be a warning of
equipment failure or a sign that maintenance is required. Make all necessary repairs before operating
machine again.
•If equipped with a high/low range feature, never shift between high and low range while on a slope.
Always move the machine to level ground and place the selector lever in park before shifting range.

B-3
SAFETY
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Operating Safely (continued)
•Do not leave machine unattended while it is running.
•Always park the machine on level ground.
•Always shut off engine when connecting attachment drive belt to the power unit.
•Never leave the operator’s seat without lowering the attachment to the ground, setting the parking
brake, shutting off the engine, and removing the ignition key. Make sure all moving parts have come to
a complete stop before dismounting.
•Never leave equipment unattended without lowering the attachment to the ground, setting the parking
brake, shutting off the engine, and removing the ignition key.
•Only operate in well-lit conditions.
•Never direct the discharge of any attachment in the direction of people, buildings, animals, vehicles, or
other objects of value.
•Never discharge material against a wall or obstruction. Material may ricochet back towards the operator.
•Use extra caution when approaching blind corners, shrubs, trees, or other objects that may obscure vision.
•Do not run the engine in a building without adequate ventilation.
•Do not touch the engine or the muffler while the engine is running or immediately after stopping the
engine. These areas may be hot enough to cause a burn.
• Do not change the engine governor settings or over-speed the engine. Operating engine at excessive
speed may increase the hazard of personal injury.
• To reduce the hazard of fire, keep the battery compartment, engine, and muffler areas free of grass,
leaves, and excessive grease.
Preventing Accidents
• Clear working area of objects that might be hit or thrown from machine.
• Keep people and pets out of mowing area.
• Know the work area well before operation. Do not operate where traction or
stability is questionable.
•Reduce speed when you are operating over rough ground.
•Equipment can cause serious injury and/or death when improperly used. Before
operating, know and understand the operation and safety of the power unit and
the attachment being used.
•Do not operate machine if you are not in good physical and
mental health, if you will be distracted by personal devices, or
are under the influence of any substance which might impair
decision, dexterity, or judgment.
•Children are attracted to machine activity. Be aware of children
and do not allow them in the working area. Turn off the
machine if a child enters the work area.
Keep Riders Off
•Only allow the operator on the power unit. Keep riders off.
•Never allow riders on any attachment or accessory.

B-4
SAFETY
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Operating On Slopes
•Slopes can cause loss-of-control and
tip-over accidents, which can result in
severe injury or death. Be familiar with the
emergency parking brake, along with the
power unit controls and their functions.
•If power unit is equipped with a fold down
roll bar, it must be locked in the upright
position when operating on any slope.
•Use low range when operating on slopes
greater than 15 degrees.
•Do not stop or start suddenly when operating on slopes.
•Never shift between high and low range while on a slope. Always move the power unit to level ground
and place the selector lever in park before shifting range.
•Variables such as wet surface and loose ground will reduce the degree of safety. Do not drive where
machine could lose traction or tip over.
•Keep alert for hidden hazards in the terrain.
• Stay away from drop-offs, ditches, and embankments.
• Sharp turns should be avoided when operating on slopes.
• Pulling loads on hills decreases safety. It is the responsibility of the owner/operator to determine loads
that can safely be controlled on slopes.
• Transport machine with attachment lowered or close to the ground to improve stability.
• While operating on slopes, drive in an up and down direction when possible. If turning is necessary
while driving across slopes, reduce speed and turn slowly in the downhill direction.
• Assure a sufficient supply of fuel for continuous operation. A minimum of one-half tank of fuel is recommended.
Roadway Safety
•Operate with safety lights when operating on or near roadways.
•Obey all state and local laws concerning operation on roadways.
•Slow down and be careful of traffic when operating near or crossing roadways. Stop before crossing
roads or sidewalks. Use care when approaching areas or objects that may obscure vision.
•If there is doubt of safety conditions, discontinue machine operation until a time when
operation can be performed safely.
•When operating near or on roadways, have a Slow Moving Vehicle Emblem clearly
displayed.
Truck Or Trailer Transport
•Use care when loading or unloading machine into a truck or trailer.
•The parking brake is not sufficient to lock the machine during transport. Always secure the power unit
and/or attachment to the transporting vehicle.
•Shut off fuel supply to power unit during transport on truck or trailer.

B-5
SAFETY
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Maintenance
•Keep all safety decals legible. Remove all grease dirt, and debris from safety decals and instructional labels.
•If any decals are faded, illegible, or missing, contact your dealer promptly for replacements.
•When new components are installed, be sure that current safety decals are affixed to the replacement
components.
•If any component requires replacement, use only original Ventrac replacement parts.
•Always disconnect the negative battery cable from the battery when working with electrical components.
•Keep all bolts, nuts, screws, and other fasteners properly tightened.
•Always lower the attachment to the ground, engage parking brake, shut off engine, and remove the
ignition key. Make sure all moving parts have come to a complete stop before cleaning, inspection,
adjusting or repairing.
•If the power unit, attachment, or accessory requires repairs or adjustments not instructed in the
operator’s manual, the power unit, attachment, or accessory must be taken to an authorized Ventrac
dealer for service.
•Never perform maintenance on the power unit and/or attachment if someone is sitting in the operator’s seat.
•Always use protective glasses when handling the battery.
• Check all fuel lines for tightness and wear on a regular basis. Tighten or repair them as needed.
• To reduce the hazard of fire, keep the battery compartment, engine, and muffler areas free of grass,
leaves, and excessive grease.
• Do not touch the engine or the muffler while the engine is running or immediately after stopping the
engine. These areas may be hot enough to cause a burn.
• Do not change the engine governor settings or over-speed the engine. Operating engine at excessive
speed may increase the hazard of personal injury.
• Springs may contain stored energy. Use caution when disengaging or removing springs.
• An obstruction or blockage in a drive system or moving/rotating parts may cause a buildup of stored
energy. When the obstruction or blockage is removed, the drive system or moving/rotating parts may
move suddenly. Do not attempt to remove an obstruction or blockage with your hands. Keep hands,
feet, and clothing away from all power-driven parts.
•Dispose of all fluids in accordance with local laws.
Fuel Safety
•Do not refuel machine while smoking or at a location near flames or sparks.
•Always refuel the machine outdoors.
•Do not store machine or fuel container indoors where fumes or fuel can reach an open
flame, spark, or pilot light.
•Only store fuel in an approved container. Keep out of reach of children.
•Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling.
•Replace all fuel tank and container caps securely.
•Do not overfill fuel tank. Maximum level is 1” below the neck of the fuel tank.
•If fuel is spilled, do not attempt to start the engine. Move the power unit away from the fuel spill and
avoid creating any source of ignition until fuel vapors have dissipated.
•If the fuel tank must be drained, it should be drained outdoors into an approved container.
•Dispose of all fluids in accordance with local laws.
•Check all fuel lines for tightness and wear on a regular basis. Tighten or repair them as needed.
•The fuel system is equipped with a shut-off valve. Shut off the fuel when transporting the machine to
and from the job, when parking the machine indoors, or when servicing the fuel system.

B-6
SAFETY
General Safety Procedures
for Ventrac Power Units, Attachments, & Accessories
Hydraulic Safety
•Make sure all hydraulic connections are tight and all hydraulic hoses and tubes are in good condition.
Repair any leaks and replace any damaged or deteriorated hoses or tubes before starting the machine.
•Hydraulic leaks can occur under high pressure. Hydraulic leaks require special care and attention.

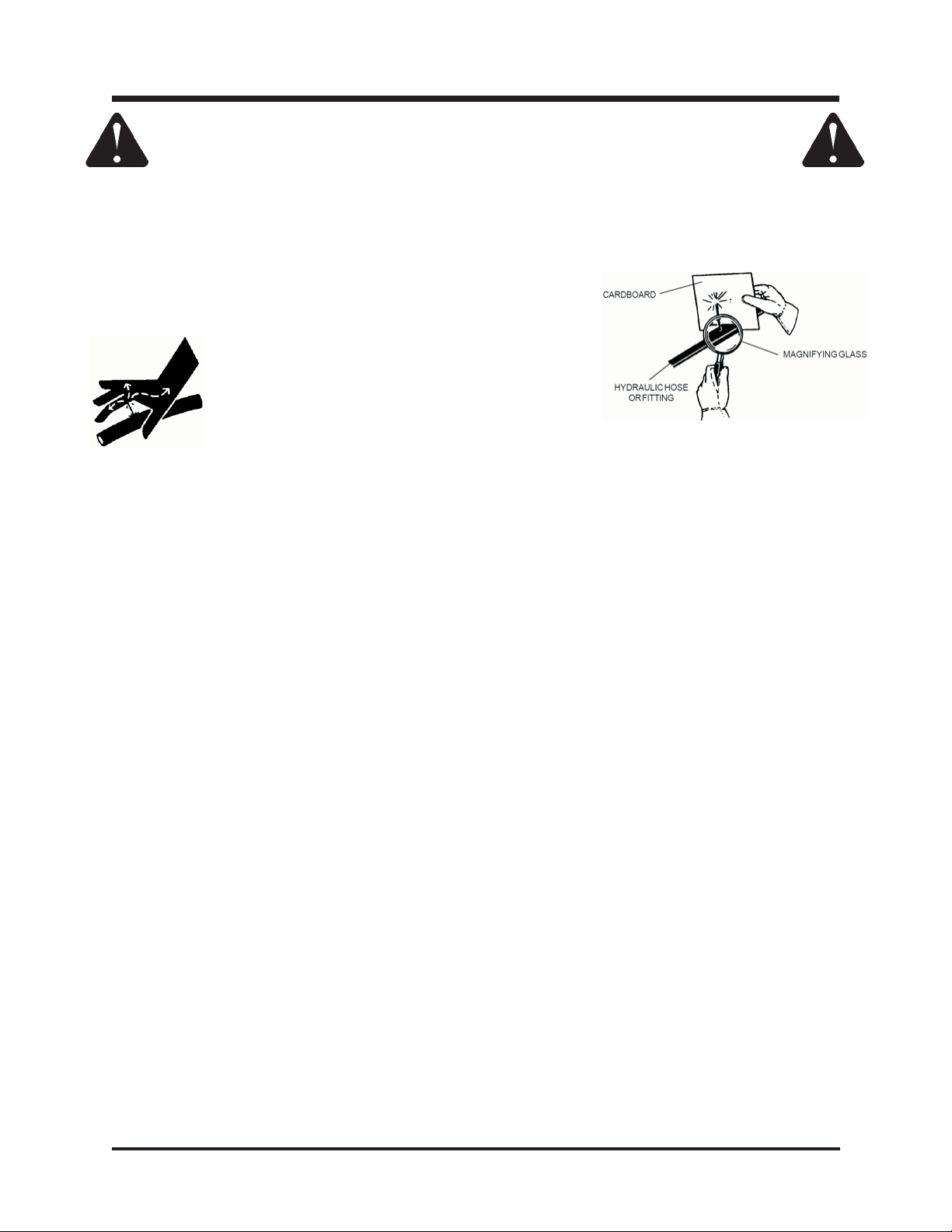

•Use a piece of cardboard and a magnifying glass to locate
suspected hydraulic leaks.
•Keep body and hands away from pinhole leaks
or nozzles that eject high pressure hydraulic
fluid. Hydraulic fluid escaping under high
pressure can penetrate the skin causing serious
injury. If hydraulic fluid is injected into skin, seek
immediate medical attention.
•Hydraulic system may contain stored energy. Before performing maintenance or repairs on the hydraulic
system, remove attachments, engage parking brake, disengage weight transfer system (if equipped), shut
off engine, and remove ignition key. To relieve pressure on the auxiliary hydraulic system, shut off the
power unit engine and move the secondary S.D.L.A. lever left and right before disconnecting the auxiliary
hydraulic quick couplers.
• Dispose of all fluids in accordance with local laws.

SAFETY
B-7
LC150 Safety Procedures
•Set up power unit and stump grinder so that particles are directed away from buildings or other objects
of value.
•During the grinding process, objects can be propelled from the stump grinder causing injury or damage
to people, animals, buildings, vehicles, or other objects of value. Block access to the area prior to
grinding stumps. Use plywood or equivalent shielding to protect nearby building or objects. If access to
the area cannot be prevented, use plywood or equivalent shielding to protect pedestrian areas.
•Stop grinding immediately if the cutter head strikes a rock or other solid object. Damage to the cutting
teeth or the cutter head may occur.
•Do not operate with any of the cutting teeth missing. This causes the cutter head to become
unbalanced and may cause damage to the stump grinder.

OPERATION
C-1
Daily Inspection
1 Park machine on a level surface, with the
engine shut off and all fluids cold.
2 Perform a visual inspection of both the power
unit and the stump grinder. Look for loose or
missing hardware, damaged components, or
signs of wear. Inspect hydraulic hoses, hydraulic fittings, and fuel lines to ensure tight, leak free
connections. Inspect drive belts. Belts should be in good condition.
3 Refer to the power unit operator’s manual. Check the power unit’s engine oil, hydraulic oil, cooling
system, tire pressure, and fuel level. Add fluid or service as required.
4 Inspect the cutting teeth for wear and service as required.
5 Test the power unit’s operator safety interlock system*.
Attaching
1. Drive the power unit slowly forward into the hitch arms on the stump grinder. Align the hitch arms to
complete the engagement.
2. Once completely engaged, close the front hitch latch.*
3. Set parking brake, stop engine, and remove the key.*
4. Install the PTO drive belt onto the power unit. It is easier if the belt
is first removed from the pulley on the gearbox and then installed
onto the bottom groove of the double pulley on the power unit.
Once the belt is installed on the power unit then install it back onto
the bottom pulley of the gearbox. It is also helpful to have the
tension idler rotated so it is centered in the belt. (See Figure 1)
5. Rotate the tension idler pulley over the belt to the left as viewed
from the seat (See Figure 2). Hook the torsion spring inside the
tab that is welded to the left hitch arm (See Figure 3). Do not hold
the torsion spring at the end as this is the area that is held by the
tab. Grasp the spring approximately 1-1/2" from the end to
prevent pinching.
6. Wipe hose ends clean and connect to quick couplers. If equipped,
connect the hoses and quick couplers so the red indicators are
paired together and the yellow indicators are paired together.
Detaching
1. Park the power unit on a level surface and set the parking brake.*
2. Lower the stump grinder to the ground.
3. Lower the multi function arm to the ground. (note detaching point
on decal)
4. Shut off engine and remove key.*
5. Disconnect hydraulic couplers.*
6. Slowly release idler torsion spring and move idler pulley in
between belts. (See Figure 1) Remove belt from power unit drive
pulley.
7. Disengage the hitch latch. (LT3000 - Rotate the locking lever
down and move the hitch lever to the right. See Figure 2.)
8. Restart the power unit and slowly back away from the stump
grinder.
* See power unit Manual
Figure 1
Tension Idler Pulley
Figure 2
Hitch Latch Lever
Hitch Locking Lever
Figure 3
Torsion Spring
Always set the parking brake, shut off power unit en-
gine, remove the ignition key, and ensure all moving
parts have come to a complete stop before inspecting
components, or attempting any repair or adjustment.

OPERATION
C-2
Operating Techniques and Tips
If a common grinding depth is desired, grind the first stump to the desired depth, then lower the multi
function arm until it contacts the ground with the cutter wheel touching the already ground stump. Note
what line the depth indicator gauge is on, and then move to the next stump. The multi function arm can
be left at the selected level from the first stump while grinding the second stump. When the second
stump is ground down to the correct depth, the arm will prevent further cutting. The depth indicator de-
cal is for reference only and does not indicate actual depth below ground level that the stump is being
ground at.
After the stump has been removed, raise the stump cutter to its highest position and lower the multi
function arm until it contacts the ground. This will allow you to push the debris back into the hole that
remains from grinding the stump out.
Grinding
Before grinding, cut stump as low to the ground as possible with a chain saw. The maximum recom-
mended height is 3” above ground level. Position the grinder above the closest edge of the stump and
lower slowly until it begins to cut. Turn the steering wheel left and right to sweep the cutter head across
the stump. After each pass, lower the grinder a little more and repeat the process.
After removing several inches on larger stumps, move forward and repeat the process as required.
Also on large stumps, it is advisable to approach from several different angles.
Follow this procedure until the stump is cut to desired depth below the ground surface.
If the grinder is lowered too much at one time it will not allow the power unit to be steered. Lift the
grinder slightly to continue side-to-side grinding.
There are variables in stumps. Hardwoods cut much slower than softwoods. Partially decayed stumps
may cut easy in some spots, but still have some hard spots or tough roots. Experience will help the pro-
cess be more efficient.
During the grinding process, objects can be propelled from the stump
grinder causing injury or damage to people, animals, buildings, vehi-
cles, or other objects of value. Block access to the area prior to grinding
stumps. Use plywood or equivalent shielding to protect nearby building
or objects. If access to the area cannot be prevented, use plywood or
equivalent shielding to protect pedestrian areas.

MAINTENANCE & SERVICE
D-1
Cleaning & General Maintenance
•For best results, and to maintain the finish of the LC150, clean or wash the stump grinder after each
use to remove wood shavings, dirt, and other debris.
Service Schedule
Daily
•Check for loose bolts or hardware and tighten as required.
•Check cutting head for loose, dull, or bent cutters. Repair or replace as needed.
50 hours
• Grease the two bearings on cutter head shaft. Do not over grease, usually one pump is sufficient.
• Check gearbox oil level. To check remove the allen head plug at the front of the gearbox. Oil level
should be at the bottom of the plug hole. If necessary, add 80-90 weight gear oil until it reaches this
point.
Maintenance
Gearbox Oil
•Initial change at 50 hrs, then every 500 hrs or annually.
•Refill until gearbox is 1/2 full.
Cutter Head
•Tighten bolts to 35 ft lbs. (47.5 Nm) after 30 minutes of running time after initial start up.
Always set the parking brake, shut off power unit
engine, remove the ignition key, and ensure all
moving parts have come to a complete stop be-
fore inspecting components, or attempting any
repair or adjustment.
Attention
If any component requires replacement, use only
original Ventrac replacement parts.

Cutter Replacement
•The cutter head is equipped with (4) right, (4) left, and (4) straight cutters. It is important to always
replace the cutters in the original positions. It is recommended that the cutters are replaced one at a
time to ensure they are installed in the correct positions.
•Loosen the (4) bolts that hold the cutter in the cutter head. The bolts do not need to be removed, only
loosened. Using locking pliers or some other gripping device, pull the cutter out of the cutter head. On
old cutters that are going to be discarded, it is permissible to use a steel hammer to tap the cutters out.
However if the cutters are to be reused, it is not recommended due to the potential of damage to the
carbide tip on the cutter. Use only a rubber mallet or soft faced hammer on cutters that are to be
reused.
•Insert a 3/8” bolt or clevis pin in the provided gauge hole in the cutter head, which serves as a stop
when positioning a new cutter into the proper depth. Slide the new cutter into the cutter head until it
bottoms out on the bolt or pin in the gauge hole. If necessary, use a rubber mallet or soft faced
hammer to tap the cutter in, or use a block of wood to protect the carbide tip and use a steel hammer.
Once the cutter is installed, tighten the (4) clamping bolts to 35 ft-lb (47.5 Nm). Remove the bolt or pin
that was used as a gauge.
D-2
MAINTENANCE & SERVICE
After replacing the cutter teeth, re-torque the cutter bolts
to 35 ft-lb (47.5 Nm) after 30 minutes of cutting time.

PARTS
MANUAL
LC150

PARTS
ILLUSTRATED DRAWING
MAIN FRAME, BLADE/STAND FRAME, & HYDRAULICS
Use only original Ventrac
replacement parts.
E-1

MAIN FRAME, BLADE/STAND FRAME, & HYDRAULICS
PARTS
REF. PART NO. DESCRIPTION QTY.
2.....00.0215..........Decal, Height Indicator LC150 ............1
3.....92.04 ...........1/4-20 Nut ...................... 2
4.....99.K0097 .........1/4-20 x 1-1/2 Eye Bolt ................1
5.....42.0467..........Rod, Indicator Depth Gauge .............1
6.....64.0826..........Clamp, Hydraulic Hose ................1
7.....95.04 ...........1/4SAEFlat Washer .................1
8.....90.0410..........1/4-20 x 1-1/4 Bolt .................. 1
9.....95.06 ...........3/8SAEFlat Washer .................1
10....99.A06 ..........3/8-16 Lock Nut.................... 1
11....92.10 ...........5/8-11 Nut....................... 2
12....62.1017..........Frame, Main LC150..................1
13....99.A04 ..........1/4-20 Lock Nut.................... 1
14....20.0185..........Hose Assembly x48” 1/4-1W #4 ...........2
15....25.6400-06-06 ......Fitting, Male Connector - 3/8 x 3/8 ..........1
16....25.6802-06-06 ......Fitting, 45 deg ME - 3/8 x 3/8 .............1
17....23.0130..........Cylinder, 1-1/2” x 5”..................1
18....29.GF0001 ........Grease Fitting, 1/4-28 st ...............2
19....90.1016..........5/8-11 x 2 Bolt .................... 4
20....94.10 ...........5/8USSFlat Washer ................. 2
21....64.1132..........Bushing, 5/8x1x1/2.................2
22....62.1018..........Frame, Multi Function Arm ..............1
23....99.A10 ..........5/8-11 Lock Nut .................... 2
24....23.0104..........Coupler, Hydraulic Quick Male 1/4 ..........2
25....96.10 ...........5/8Lock Washer ................... 2
26....05.0117..........Washer, .544ID x .817 x.14 Yel ............1
27....05.0116..........Washer, .544ID x .817 x.14 Red ...........1
Use only original Ventrac
replacement parts.
E-2

PARTS
ILLUSTRATED DRAWING
BELT DRIVE (POWER UNIT TO GEARBOX)
Use only original Ventrac
replacement parts.
E-3
