Ventrac Terra Rake KR502 User manual

TERRA RAKE
Model KR502 Serial # 1050-1127
Model KR702 Serial # 1050-1173
OWNER/OPERATOR’S
MANUAL & PARTS LIST
Revised 01/09/09
09.10023

ii
TO THE OWNER
Venture Products Inc. reserves the right to make changes in design or
specifications without obligation to make like changes on previously
manufactured products.
Orrville, OH
www.ventrac.com
Model # (A): _______________________
Serial # (B): ________________________
Affix Part/Serial Number label here
Product Identification
If you need to contact an Authorized Ventrac Dealer for information on servicing your product,
always provide the Product Model and Serial numbers.
Please fill in the following information for future reference. See picture below to find the loca-
tion of the identification number. Record them in the spaces provided below.
Date of Purchase: Month _________________ Day ___________ Year ___________________
Dealer: _______________________________________________________________________
Dealer Address: ________________________________________________________________
________________________________________________________________
Dealer Phone Number: __________________________________________________________
Dealer FAX Number: ____________________________________________________________

INTRODUCTION SECTION A
Description & Specifications .................................A-1
SAFETY SECTION B
Safety Symbols ........................................B-1

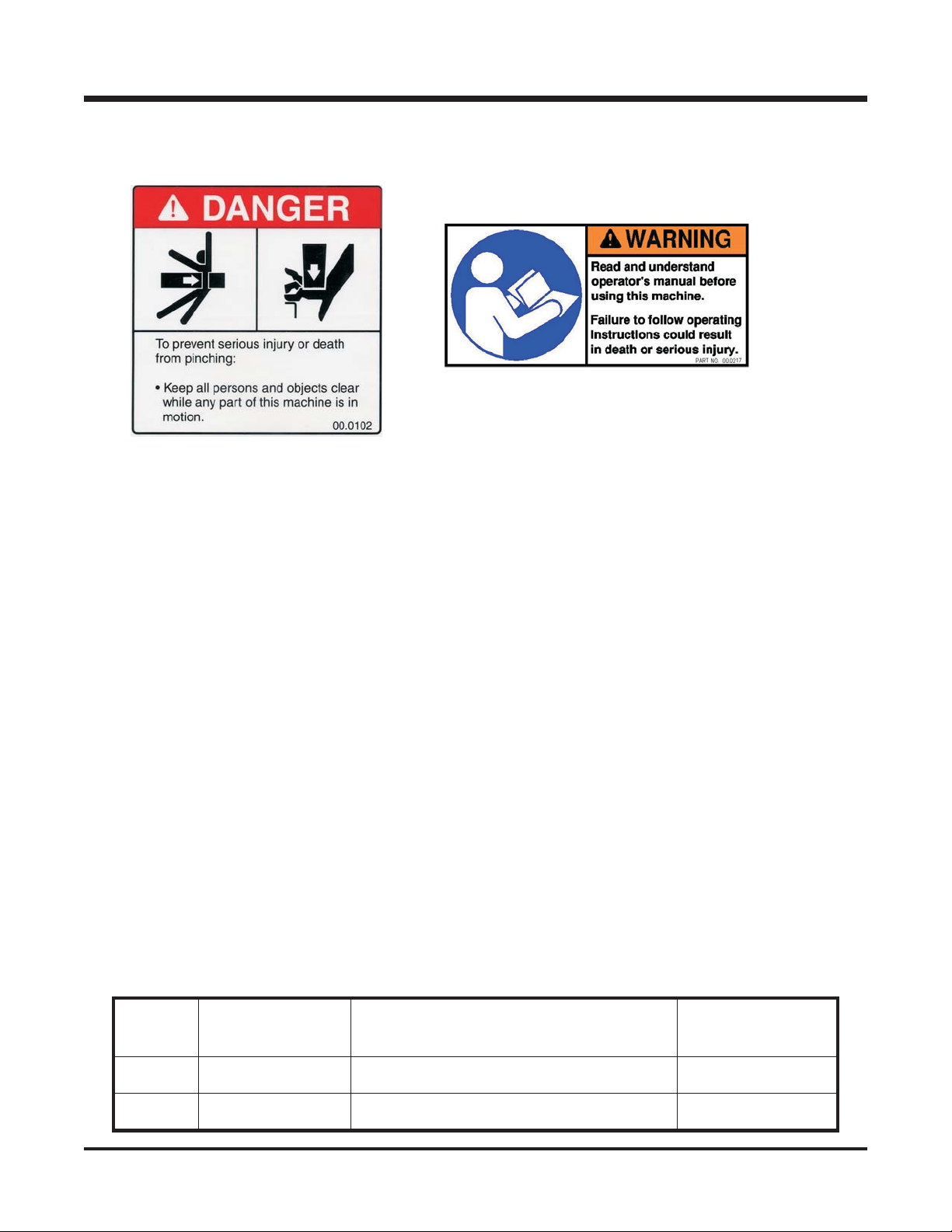

Decals ............................................B-2
General Safety Procedures..................................B-3
Safety Operation & Techniques................................B-4
OPERATION SECTION C
Attaching ...........................................C-1
Detaching...........................................C-1
Operating Tips ........................................C-1
MAINTENANCE SECTION D
Lubrication ..........................................D-1
Tire Pressure .........................................D-1
Tine Replacement & Straightening ..............................D-1
PARTS & ILLUSTRATED DRAWINGS SECTION E
Main Frame & Wheels ..................................E-1&2

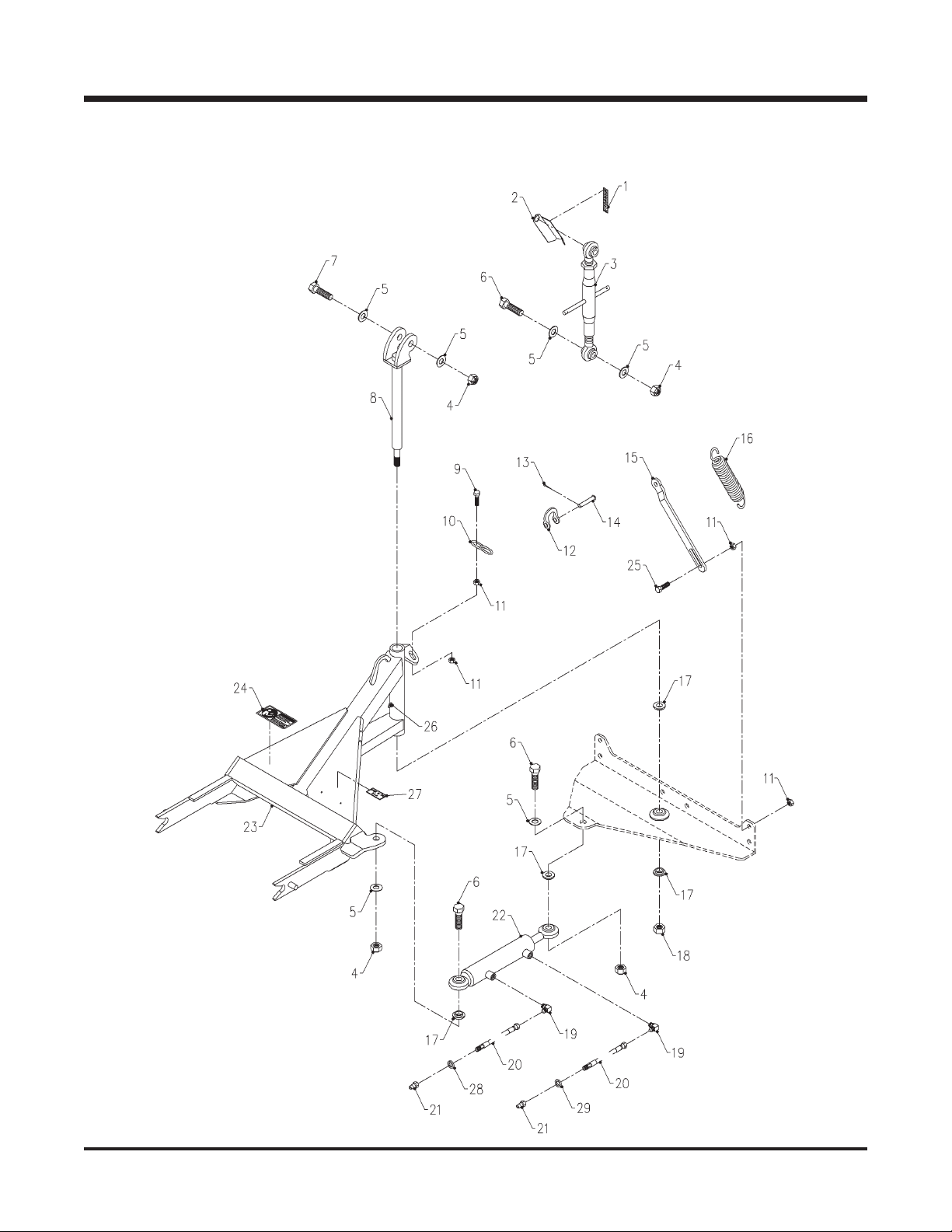

Hitch Frame, Height Adjuster, & Hydraulics .......................E-3&4
OPTIONAL PARTS & ILLUSTRATED DRAWINGS SECTION F

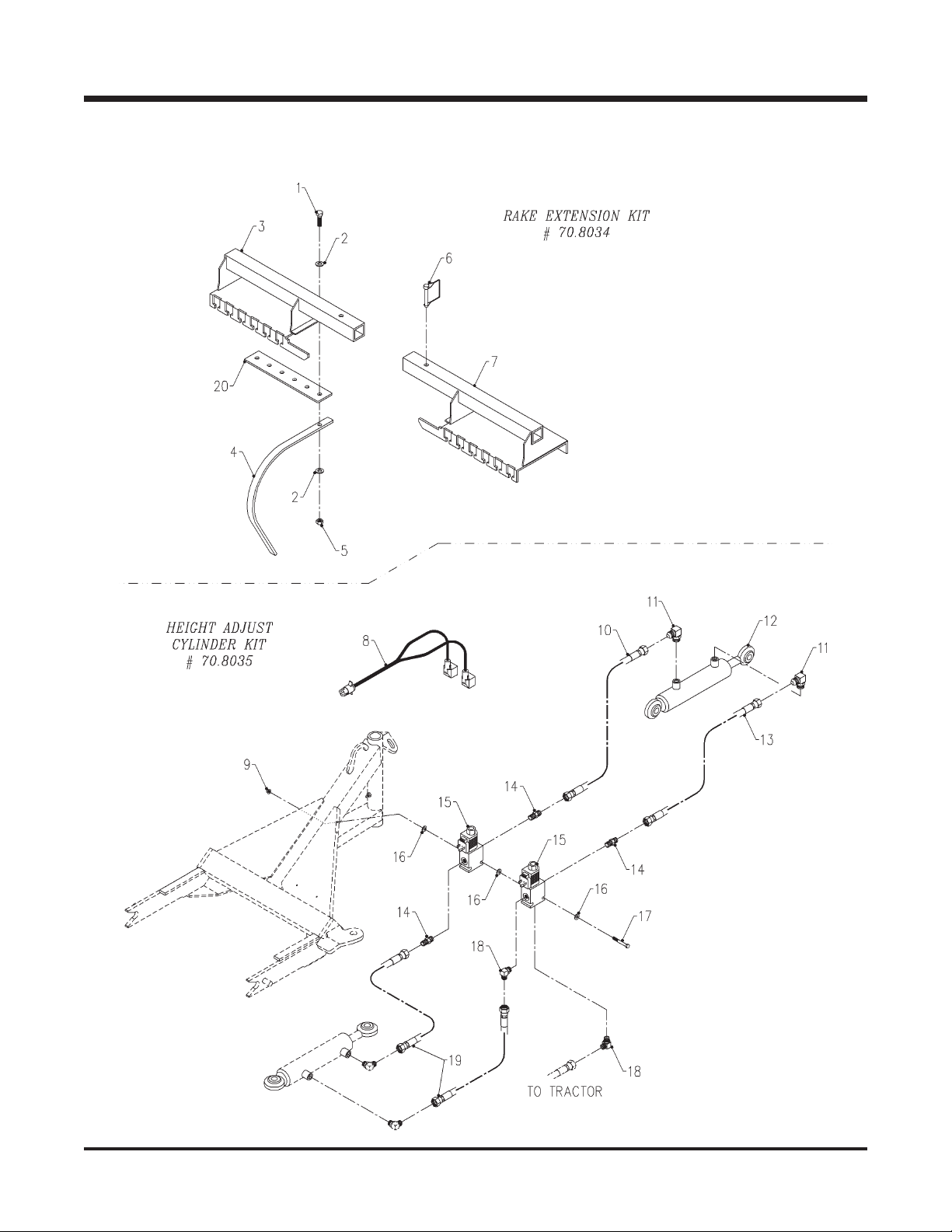

Rake Extensions & Hydraulic Height Adjust .......................F-1&2
WARRANTY
TABLE OF CONTENTS
iii

The Ventrac Terra Rake is designed to eliminate most of the manual labor that is required for
landscapers in seed bed preparation. The terra rake works for the final stage of leveling, removal of
small stones, and refinement of soil. It also works great for grading and leveling gravel driveways and
parking lots.
The terra rake consists of multiple 5/16” x 1” tines to fine comb the surface. A single adjustment top
link adjusts the tines to a depth of 3” or a height of 3”.
The rake will angle up to 28 degrees right or left, controlled by a single hydraulic cylinder. Two front
swivel wheels can be mounted at different positions to create a wide or narrow wheel track.
An additional feature is the ability to remount the hitch on the opposite side of the tine frame and use
it on the rear of the Ventrac that is equipped with a three point hitch and a Ventrac 3N1 hitch.
Options for the terra rake include:
Easily attachable, 10” wing extensions (kit #70.8034) which will increase the overall operating width
by 20”.
A hydraulic height adjustment cylinder (kit #70.8035) which allows the operator to adjust the tine
height on the go from the tractor seat. NOTE: the height adjustment cylinder cannot be used when
the rake is set up for use on the rear of the tractor. To operate the height adjustment cylinder, the
tractor must be equipped with the 12 volt front plug. (4100/4200 Kit #70.4034) (4000 Kit #4046) (3000
Kit #3006)
A-1
INTRODUCTION
Ventrac KR702 Specifications
Overall Width......................................70inches
Overall Width with Rake Extensions ..........................90inches
Overall Length .....................................52inches
Overall Height .....................................29inches
Weight ........................................290pounds
Angle, Right & Left ..................................27degrees
Venture Products, Inc. reserves the right to change these specifications without notice.
Ventrac KR502 Specifications
Overall Width......................................49inches
Overall Width with Rake Extensions ..........................69inches
Overall Length .....................................52inches
Overall Height .....................................29inches
Weight ........................................260pounds
Angle, Right & Left ..................................27degrees
Venture Products, Inc. reserves the right to change these specifications without notice.

SAFETY
B-1
ATTENTION:
This symbol identifies potential health
and safety hazards. It marks safety
precautions. Your safety and the
safety of others is involved.
SIGNAL WORD DEFINITIONS
Indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury and/or property dam-
age. It may also be used to alert against
unsafe practices.
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates an imminently hazardous situa-
tion which, if not avoided, will result in
death or serious injury. This signal word is
limited to the most extreme cases.
